2022 Kobelco SK35SR-6E For Sale in Fort Worth, Tx

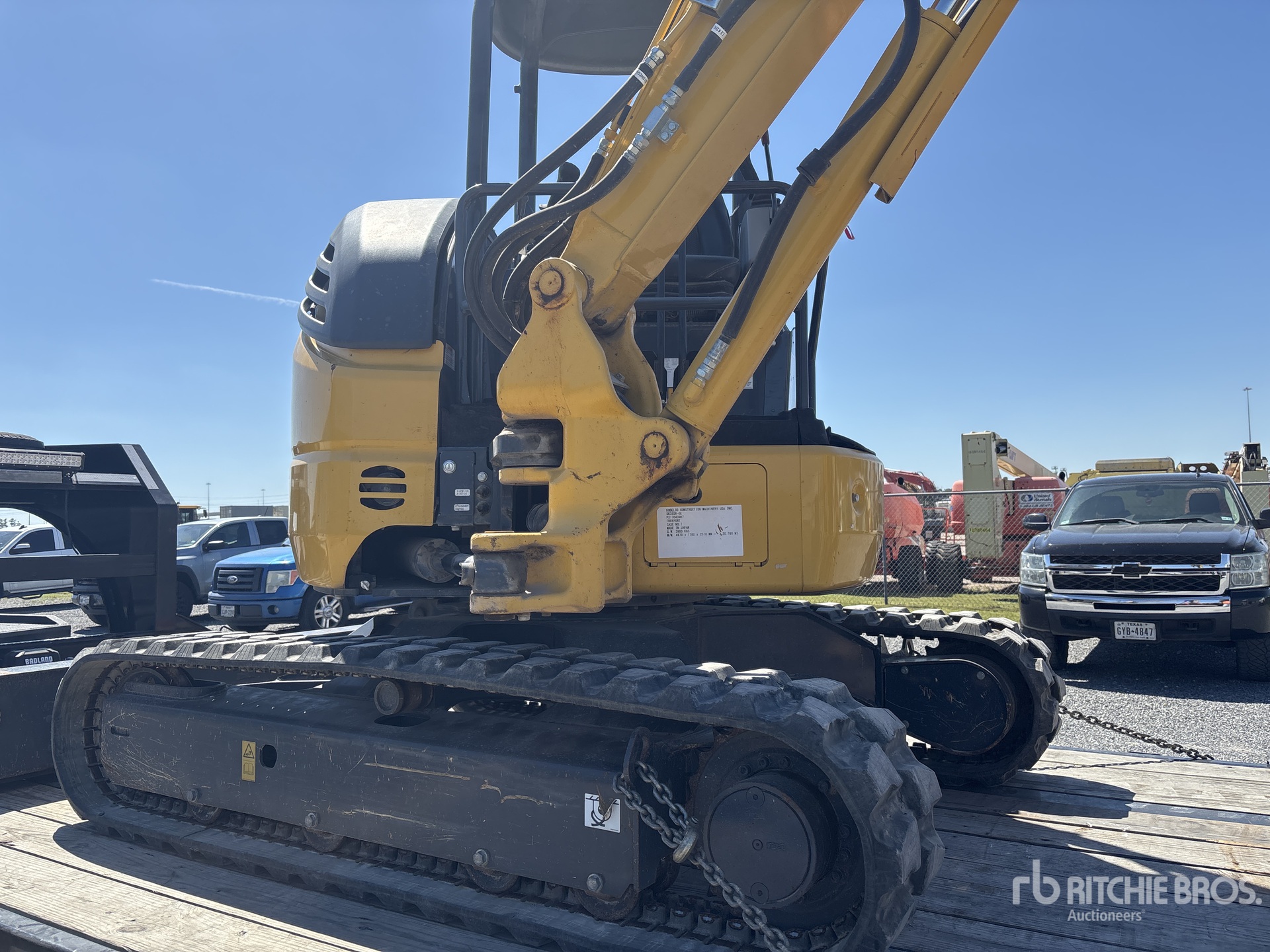

Name: 2022 Kobelco SK35SR-6E
Brand: Kobelco
SKU: 89157368
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-16

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

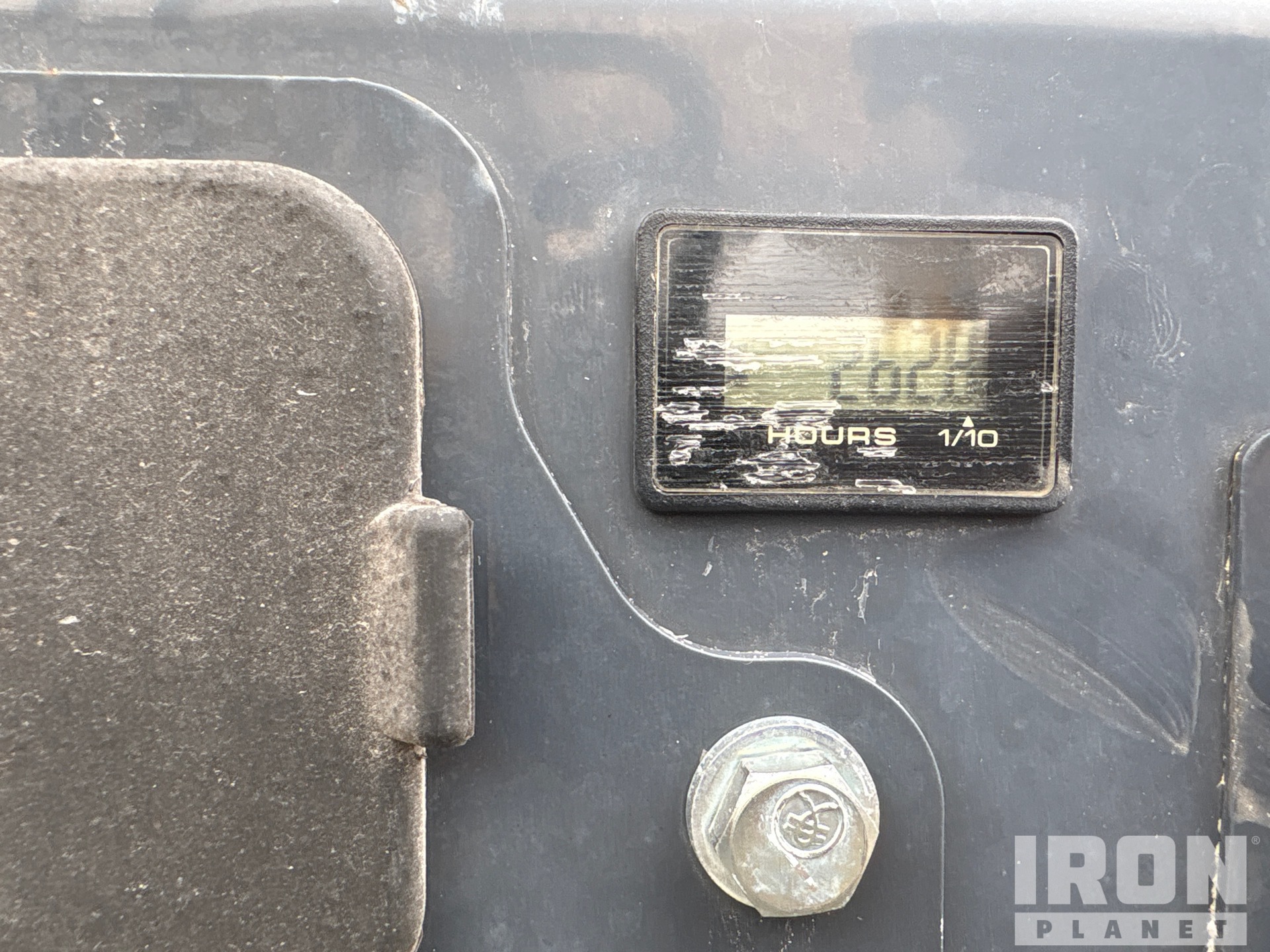

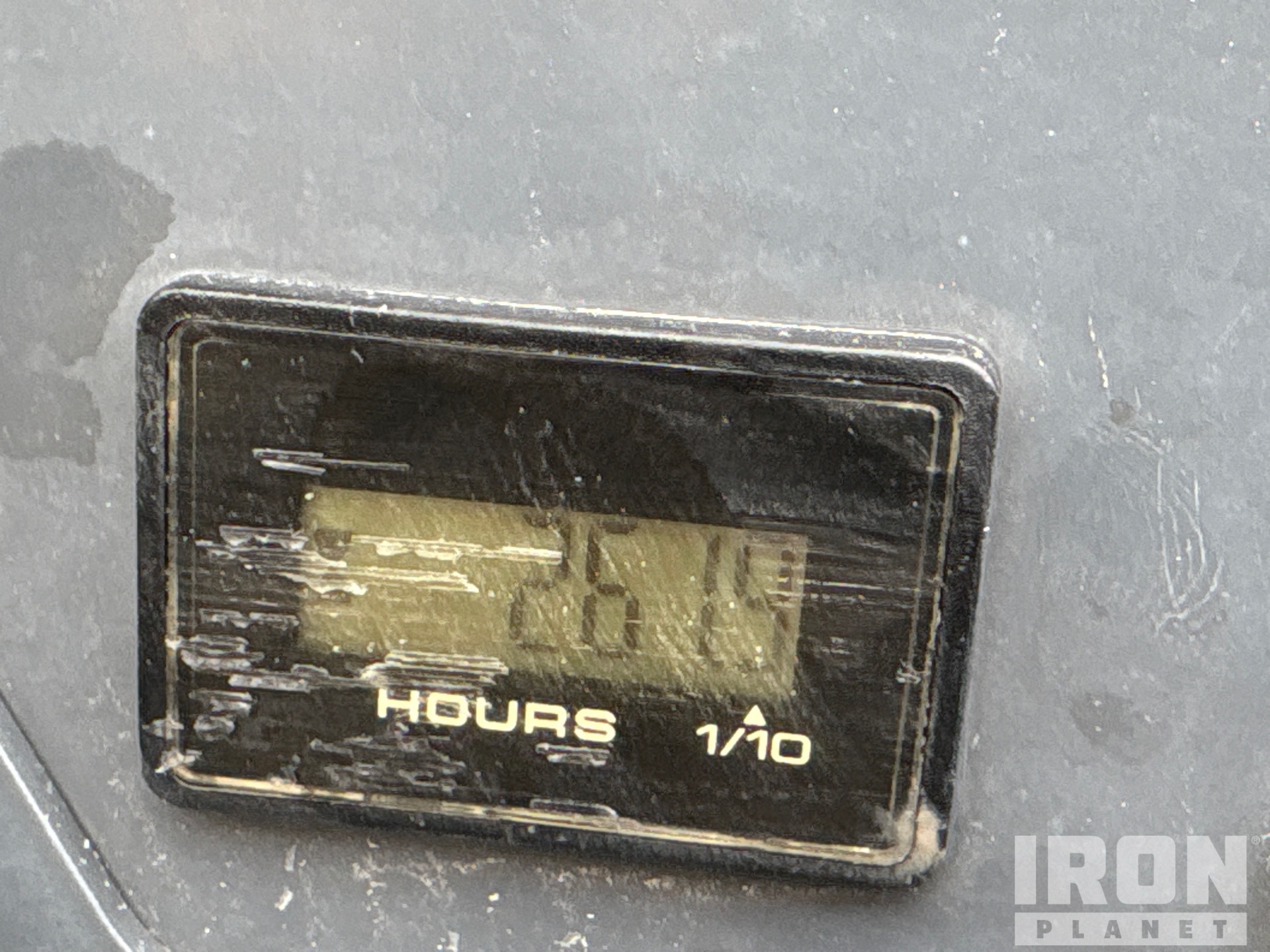

Hours:	262

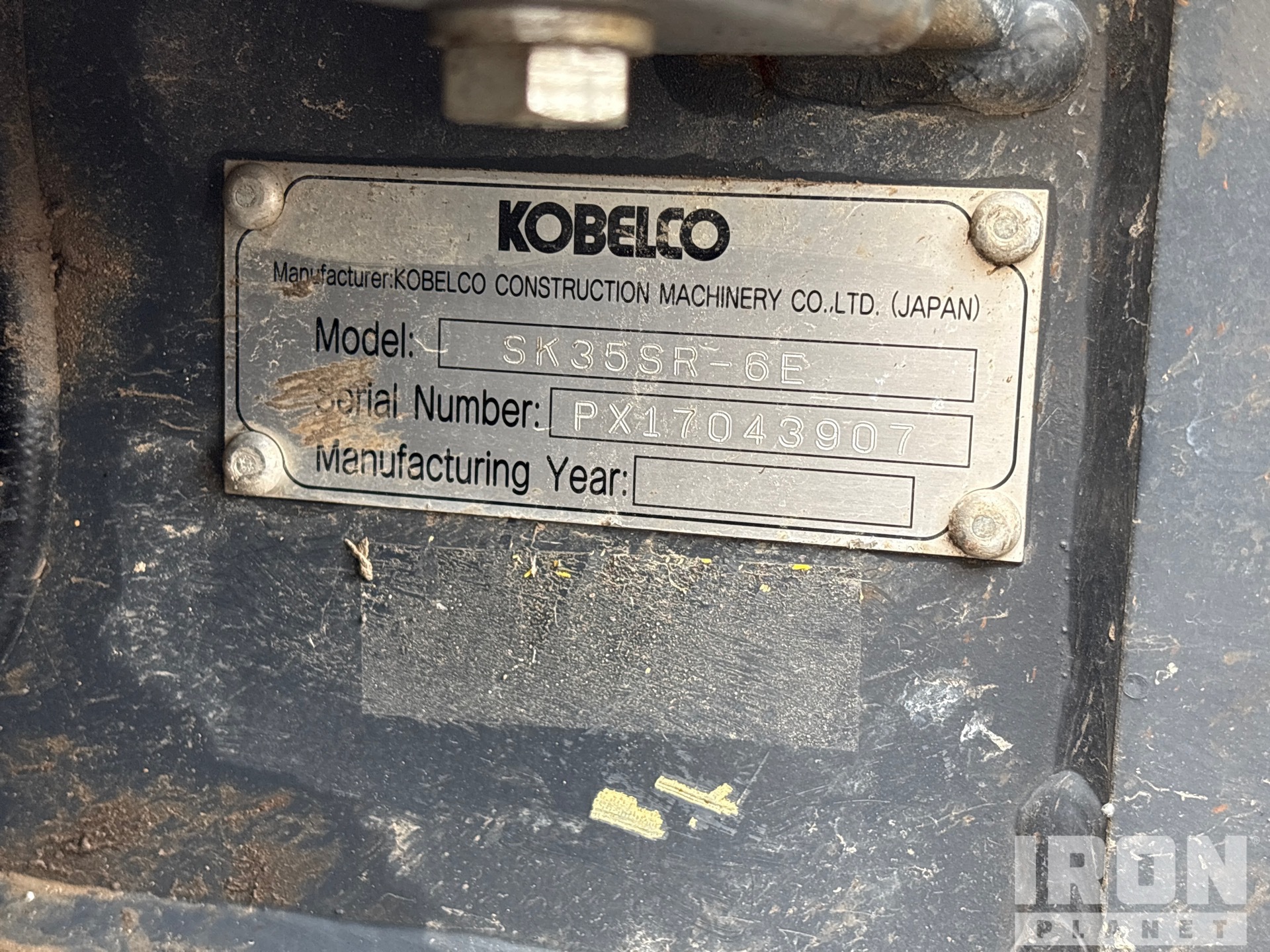

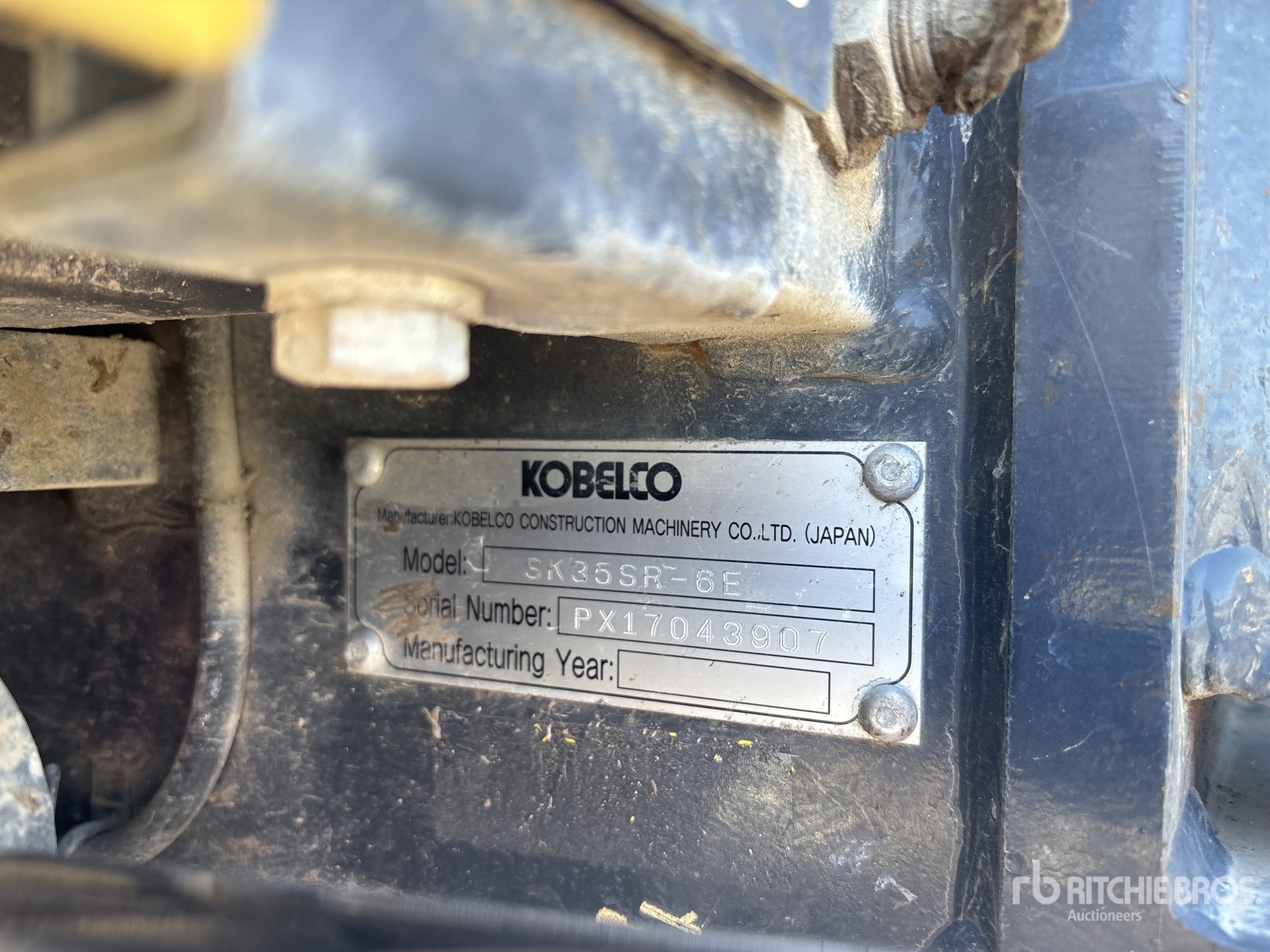

Serial Number:	PX17043907
Machine Location:	FORT WORTH, TX

Description:

Control Pattern Changer, 2022 US EPA Label, Swing Boom, 5 ft 6 in Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, 12 in Rubber Tracks, 18 in Digging Bucket, Thumb Bracket, Counterweight Removal System Closing Time: 2026-09-16 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Kobelco SK35SR-6E is a compact mini excavator designed for construction, landscaping, utility work, and confined job sites. It features a short-radius tail swing for improved maneuverability in tight spaces, making it suitable for urban projects and indoor or roadside applications. The SK35SR-6E is typically equipped with a fuel-efficient diesel engine, hydraulic controls, and a reinforced undercarriage for stable operation. Common attachments include buckets, augers, and hydraulic breakers. As part of Kobelco's mini excavator lineup, the SK35SR-6E is used for digging, trenching, grading, and material handling where space and access are limited.

Boom/Stick 1
Arm Crowding Force - Iso	5,058 lbs (2,294 kg)
Arm Crowding Force - Sae	4,811 lbs (2,182 kg)
Boom/Stick 1	Mono Boom
Bucket Digging Force - Iso	6,250 lbs (2,835 kg)
Bucket Digging Force - Sae	5,418 lbs (2,458 kg)
Max Cutting Height	16 ft (5 m)
Max Digging Depth	10 ft (3 m)
Max Loading Height	12 ft (4 m)
Max Reach Along Ground	17 ft (5 m)
Max Vertical Wall Digging Depth	7 ft (2 m)
Shipping Height Of Unit	8 ft (3 m)
Shipping Length Of Unit	15 ft (5 m)
Buckets
Reference Bucket Capacity	0 cu yd
Dimensions
Height To Top Of Cab	8 ft (3 m)
Length Of Track On Ground	15 ft (5 m)
Tail Swing Radius	2 ft (1 m)
Width To Outside Of Tracks	6 ft (2 m)
Engine
Displacement	101 cu in (1,649 cu cm)
Engine Model	YANMAR 3TNV88F-E
Engine Type	Water cooled, 4-cycle, 3-cylinder, direct injection, diesel engine
Max Torque	60 lbs ft (82 nm)
Net Power	23 hp (17 kw)
Number Of Cylinders	3
Power Measured @	2,400 rpm
Torque Measured @	1,440 rpm
Hydraulic System
Max. Oil Flow	2 x 10.1 (38.4), 5.1 (19.2), 2.9 (10.8) (gal/min (L/min))
Pump Type	Two variable displacement pumps + two gear pumps
Relief Valve Setting	3,335 (23.0) (psi (MPa))
Operational
Fuel Capacity	11 gal (42 l)
Operating Weight	8,555 lbs (3,880 kg)
Traction Force	8,565 lbs (3,885 kg)
Swing Mechanism
Swing Motor	Axial piston motor
Swing Speed	8 rpm
Undercarriage
Ground Pressure	5 psi
Max Travel Speed	3 mph (4 kph)
Number Of Track Rollers Per Side	4
Shoe Size	12 in (30 cm)
