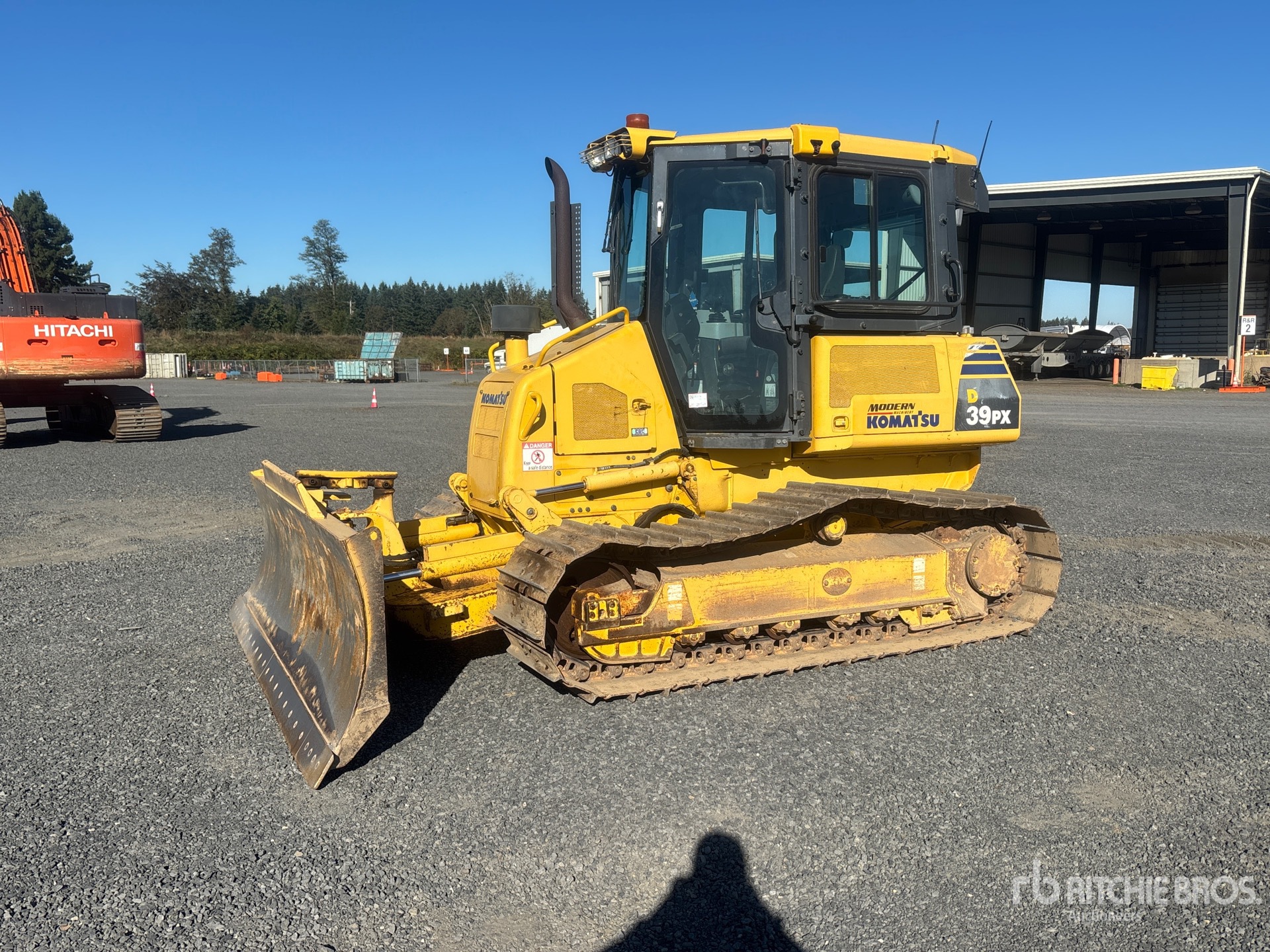

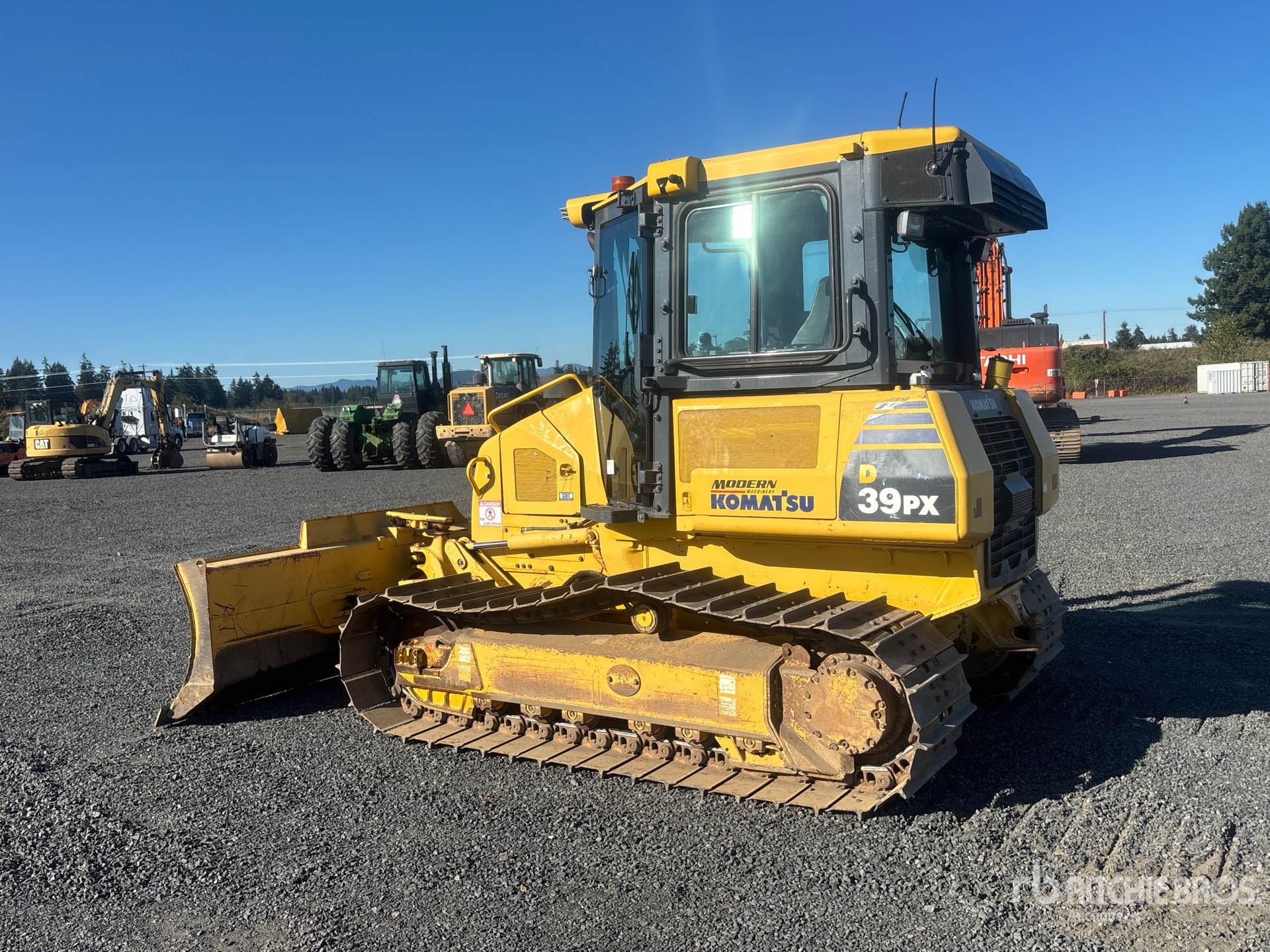

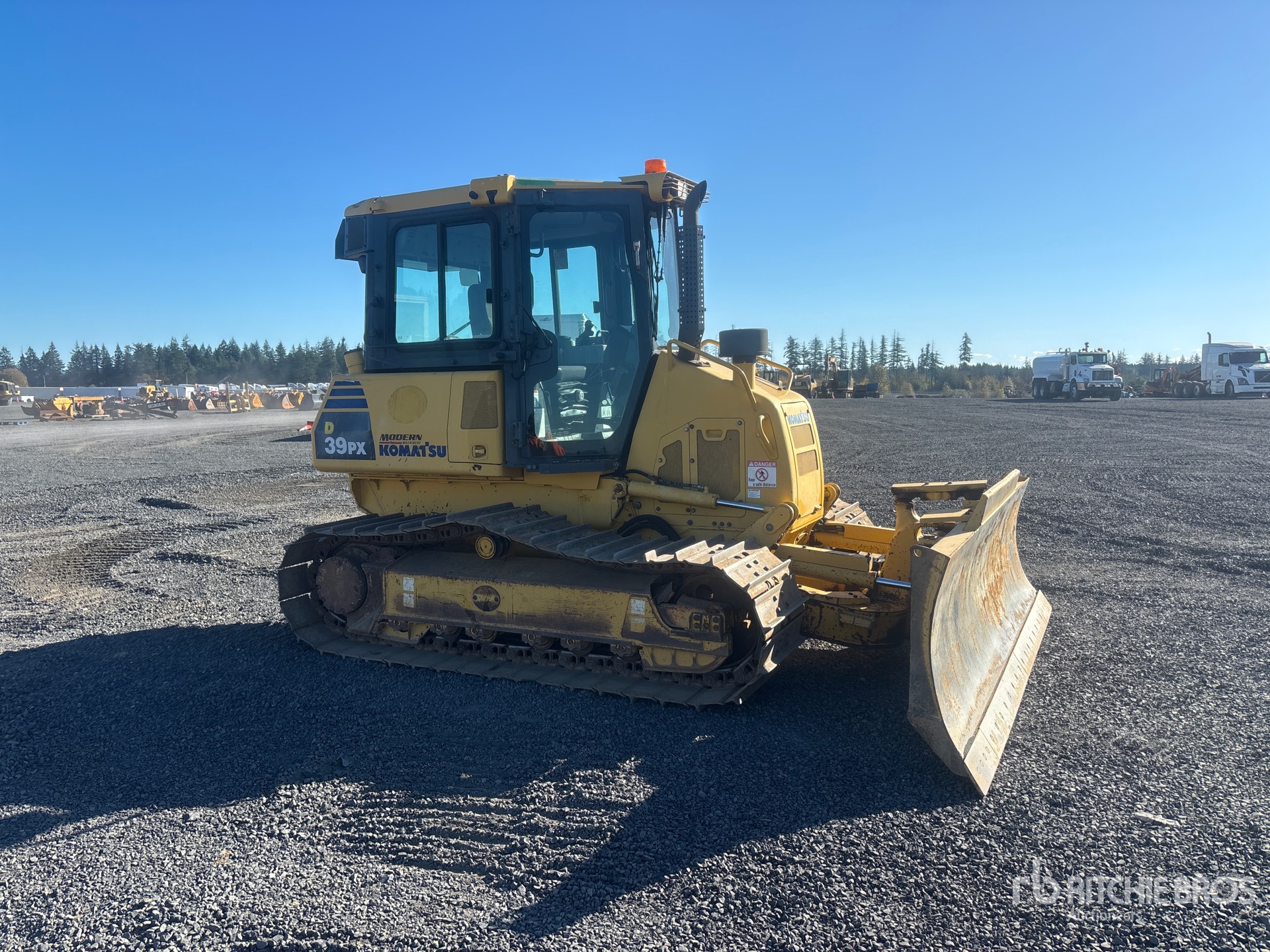

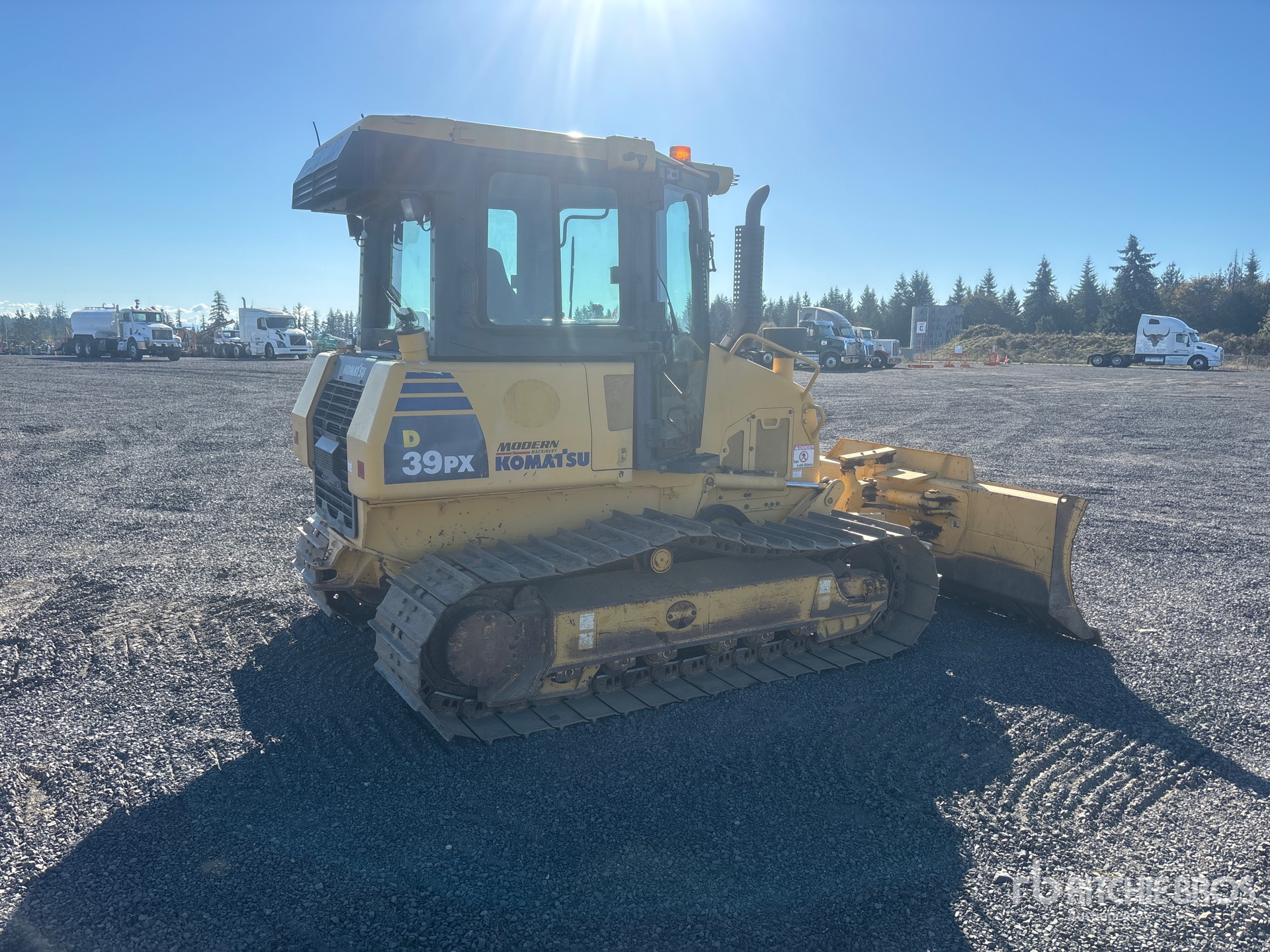

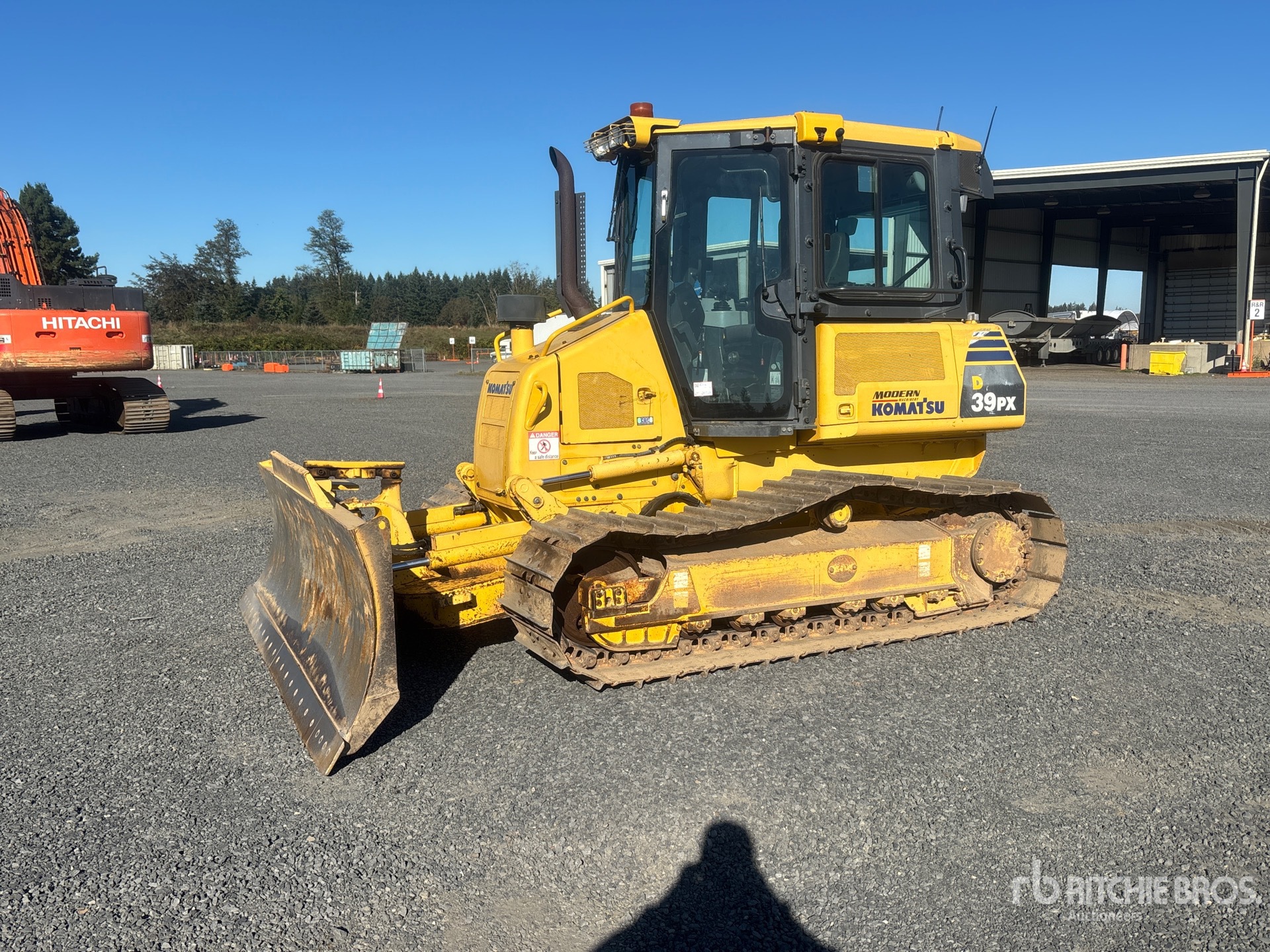

2012 Komatsu D39PX-22

Name: 2012 Komatsu D39PX-22
Brand: Komatsu
SKU: 89384241
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-10-29 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

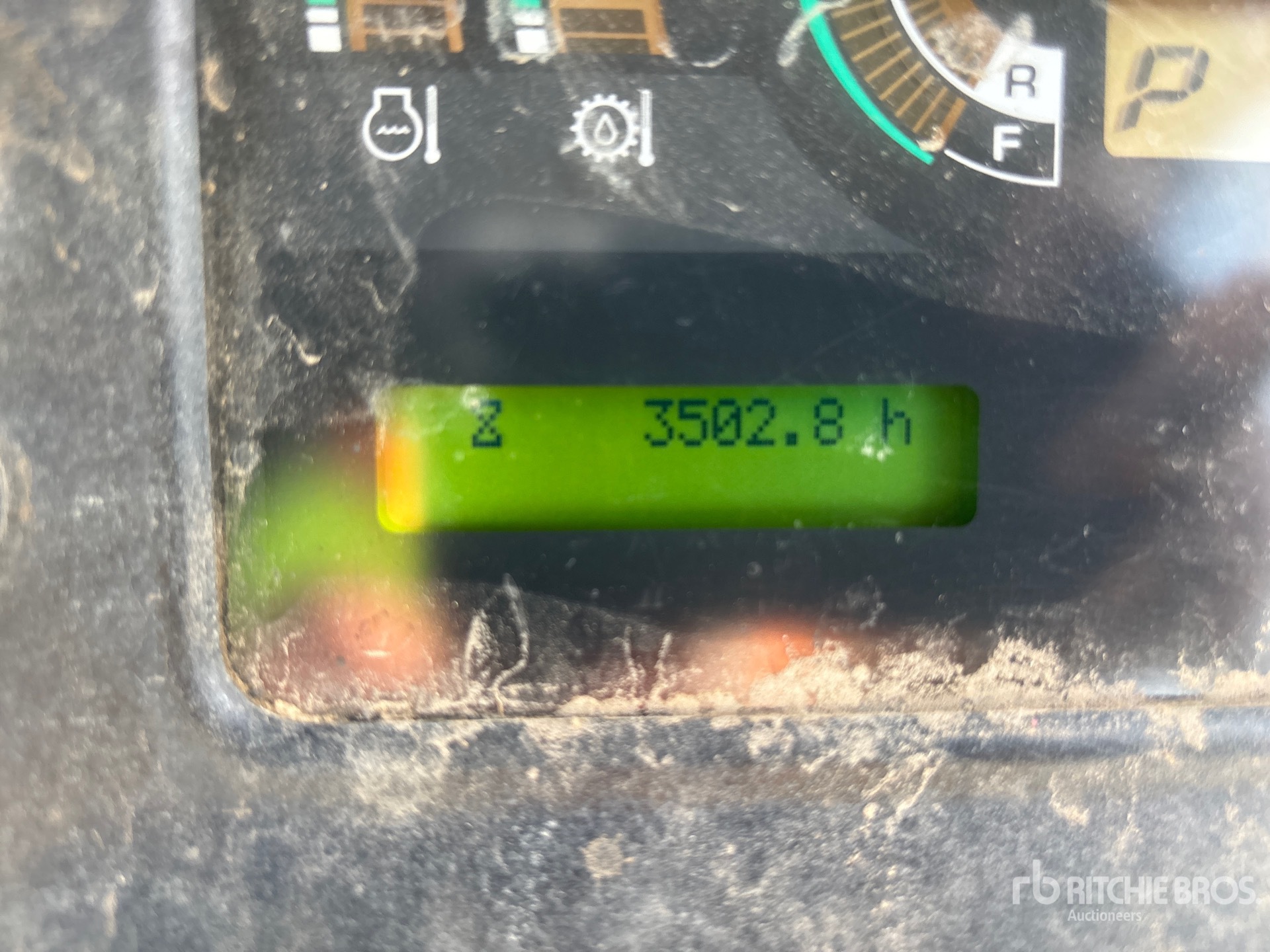

Hours:	3502

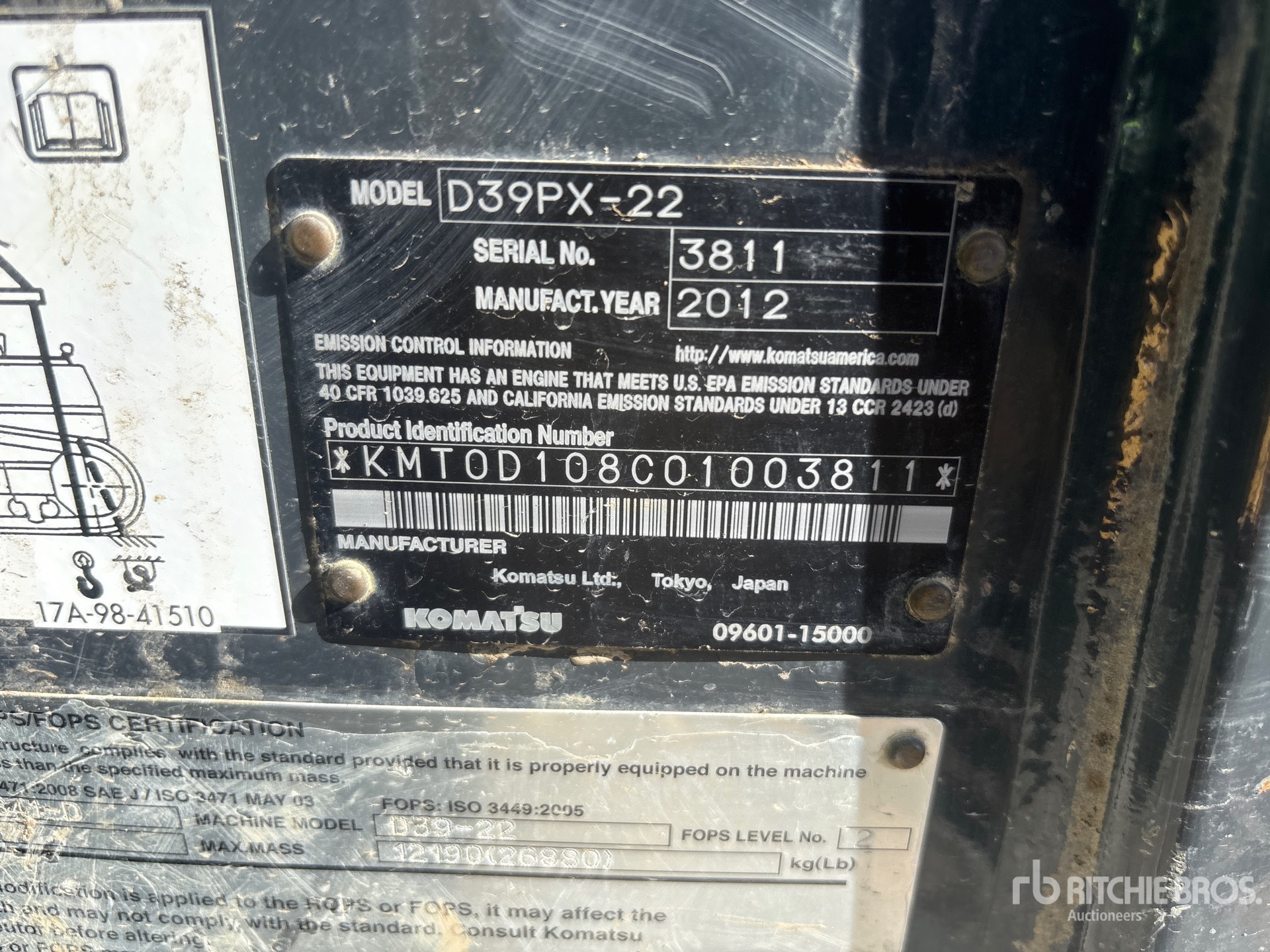

Serial Number:	KMT0D108C01003811
Machine Location:	CHEHALIS, WA

Description:

Located in Lane 5 Spot 15, Enclosed Cab, Air Conditioner, 2011 US EPA Label, 128 in Wide PAT Blade, Drawbar, 25 in Single Grouser Track Shoes Closing Time: 2026-10-29 09:41:40 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Ground Clearance	1 ft (0 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	7 ft (2 m)
Length of Track on Ground	8 ft (2 m)
Length w/ Blade	14 ft (4 m)
Length w/ Blade	14 ft (4 m)
Width Over Tracks	6 ft (2 m)
Width Over Tracks	8 ft (2 m)
Engine
Aspiration	Turbocharged air-to-air aftercooled
Aspiration	Turbocharged air-to-air aftercooled
Bore	4 in (11 cm)
Displacement	199 cu in (3,261 cu cm)
Displacement	272 cu in (4,457 cu cm)
Engine Model	SAA4D107E-1
Engine Model	Komatsu SAA4D107E-1*
Gross Power	80 hp (60 kw)
Gross Power	107 hp (80 kw)
Make	Komatsu
Net Power	78 hp (58 kw)
Net Power	105 hp (78 kw)
Number of Cylinders	4
Number of Cylinders	4
Power Measured @	2,200 rpm
Power Measured @	2,200 rpm
Stroke	5 in (12 cm)
Hydraulic System
Pump Flow Capacity	26 gpm (99 lpm)
Pump Flow Capacity	26 gpm (99 lpm)
Pump type	Piston-type
Relief Valve Pressure	3,983 psi
Relief Valve Pressure	3,983 psi
Operating Specifications
Alternator Supplied Amperage	35 amps
Alternator Supplied Amperage	35 amps
Cooling System Fluid Capacity	6 gal (23 l)
Cooling System Fluid Capacity	5 gal (18 l)
Engine Oil Capacity	3 gal (11 l)
Engine Oil Capacity	4 gal (15 l)
Final Drives Fluid Capacity	1 gal (4 l)
Final Drives Fluid Capacity	1 gal (4 l)
Fuel Capacity	52 gal (195 l)
Fuel Capacity	52 gal (195 l)
Hydraulic Fluid Capacity	16 gal (60 l)
Hydraulic Fluid Capacity	16 gal (60 l)
Operating Voltage	24 volts
Operating Voltage	24 volts
Operating Weight	18,056 lbs (8,190 kg)
Operating Weight	21,804 lbs (9,890 kg)
Standard Blade
Blade Angle (both directions)	25 degrees
Blade Angle (both directions)	25 degrees
Capacity	3 cu yd (2 cu m)
Capacity	2 cu yd (2 cu m)
Height	33 in (84 cm)
Height	36 in (91 cm)
Width	8 ft (3 m)
Width	11 ft (3 m)
Transmission
Max Speed - Forward	5 mph (9 kph)
Max Speed - Forward	5 mph (9 kph)
Max Speed - Reverse	5 mph (9 kph)
Max Speed - Reverse	5 mph (9 kph)
Number of Forward Gears	3
Number of Forward Gears	3
Number of Reverse Gears	3
Number of Reverse Gears	3
Transmission Type	dual-path hydrostatic
Transmission Type	Dual-path hydrostatic
Undercarriage
Ground Contact Area	46,453,593 cu in (761,239,684 cu cm)
Ground Contact Area	4,645 cu in (76,118 cu cm)
Ground Pressure	5 psi
Ground Pressure	5 psi
Number of Shoes per Side	39
Number of Track Rollers per Side	6
Standard Shoe Size	25 in (64 cm)
Track Gauge	6 ft (2 m)
Track Gauge	6 ft (2 m)
