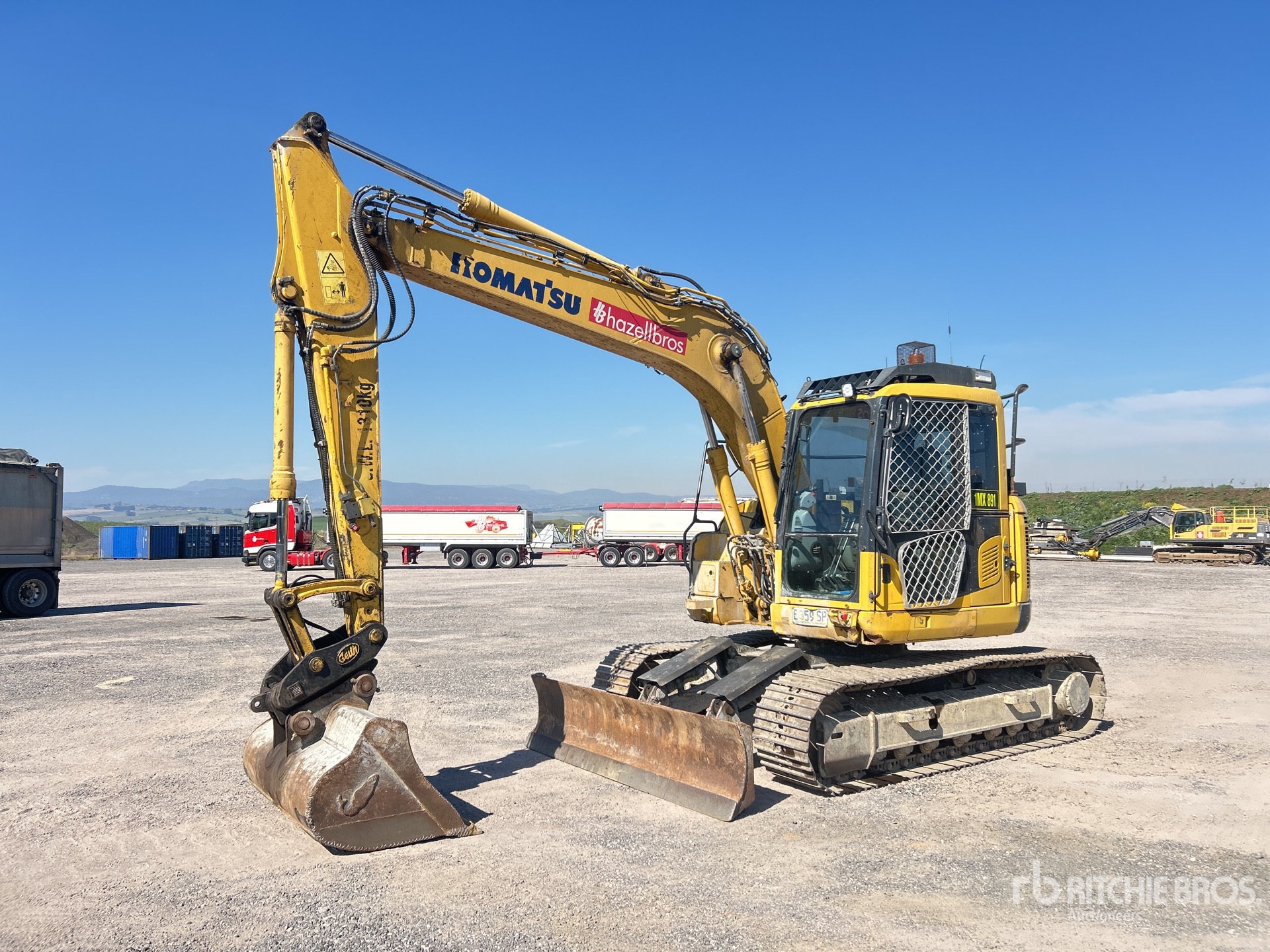

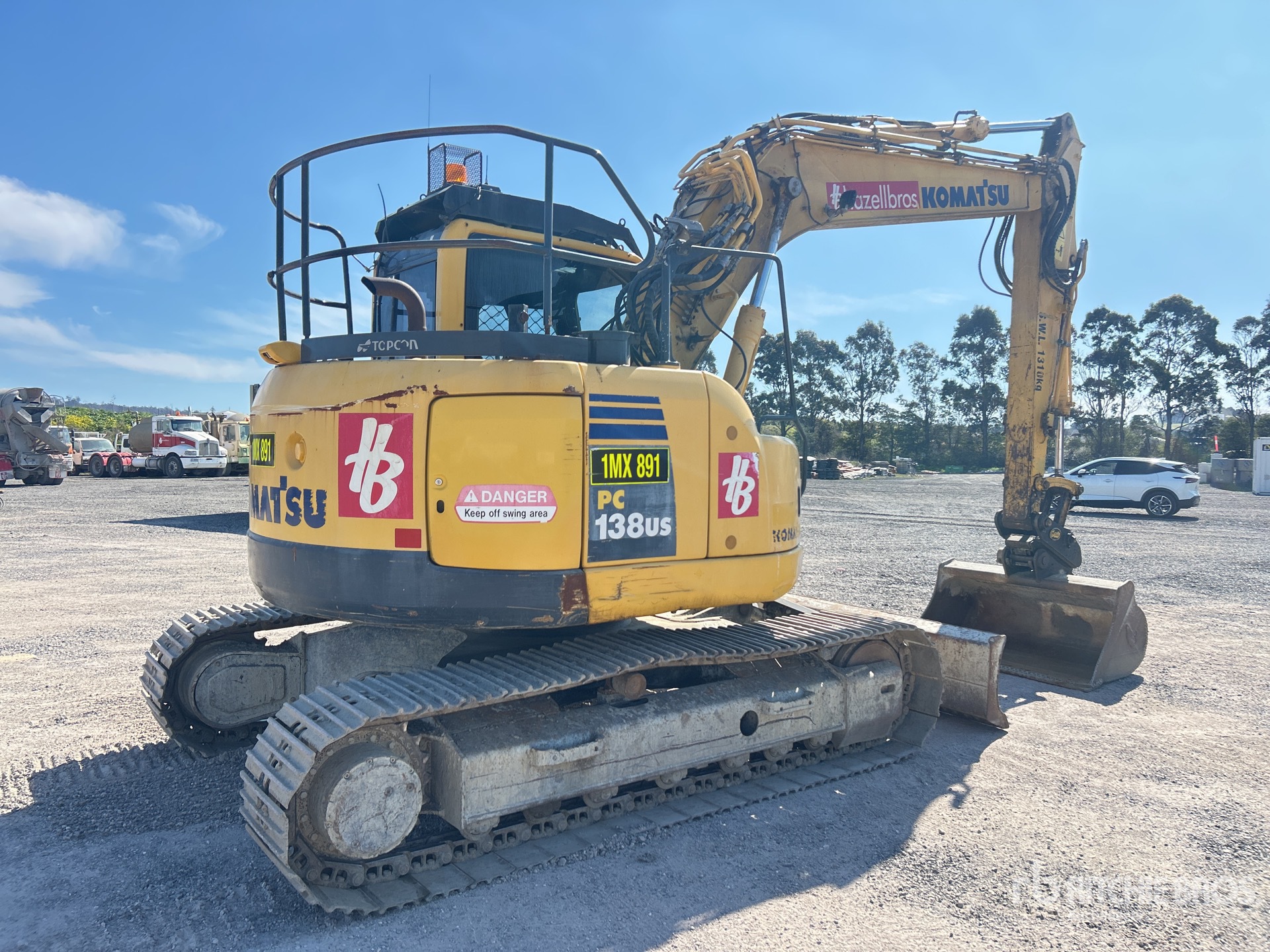

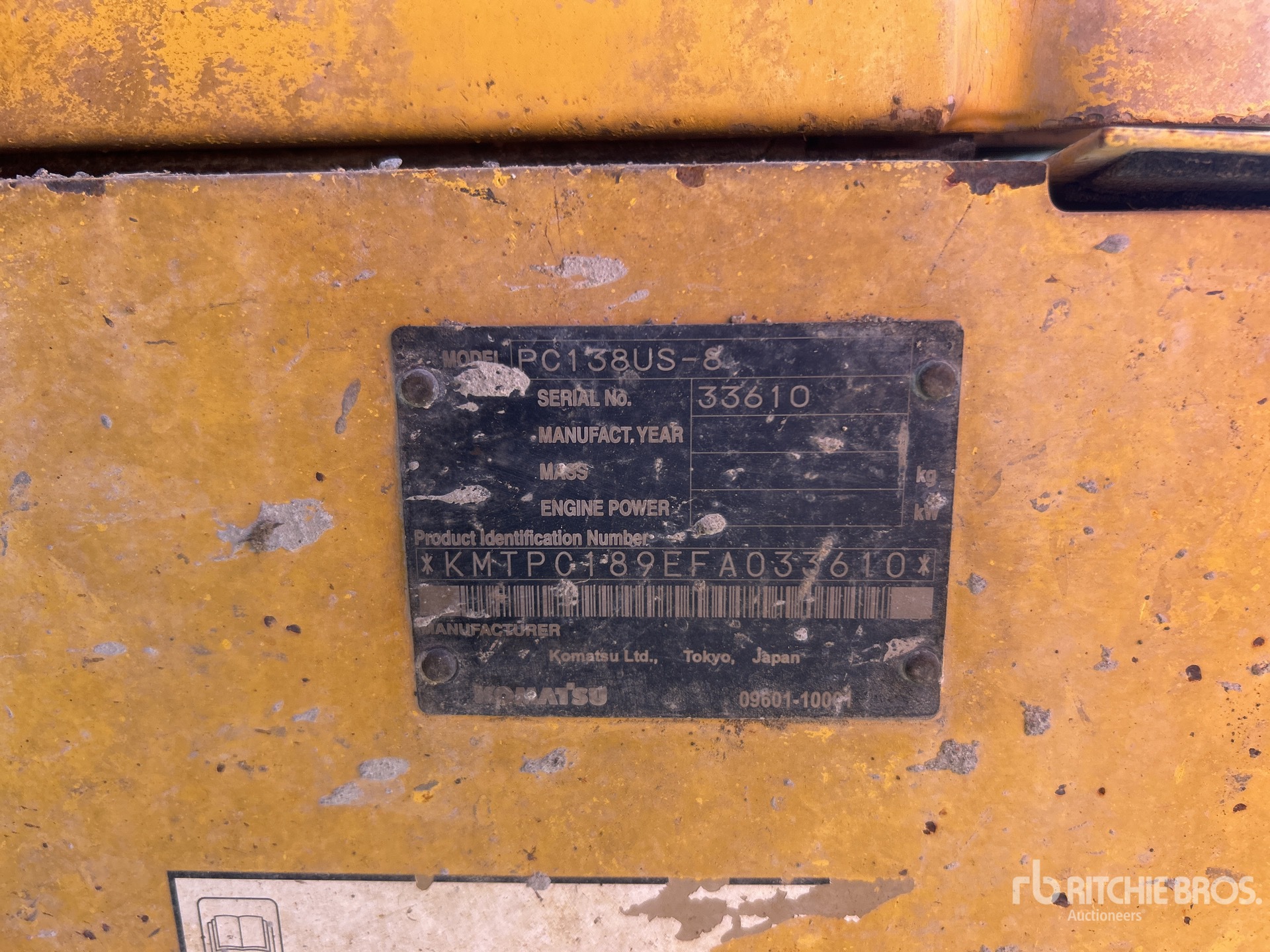

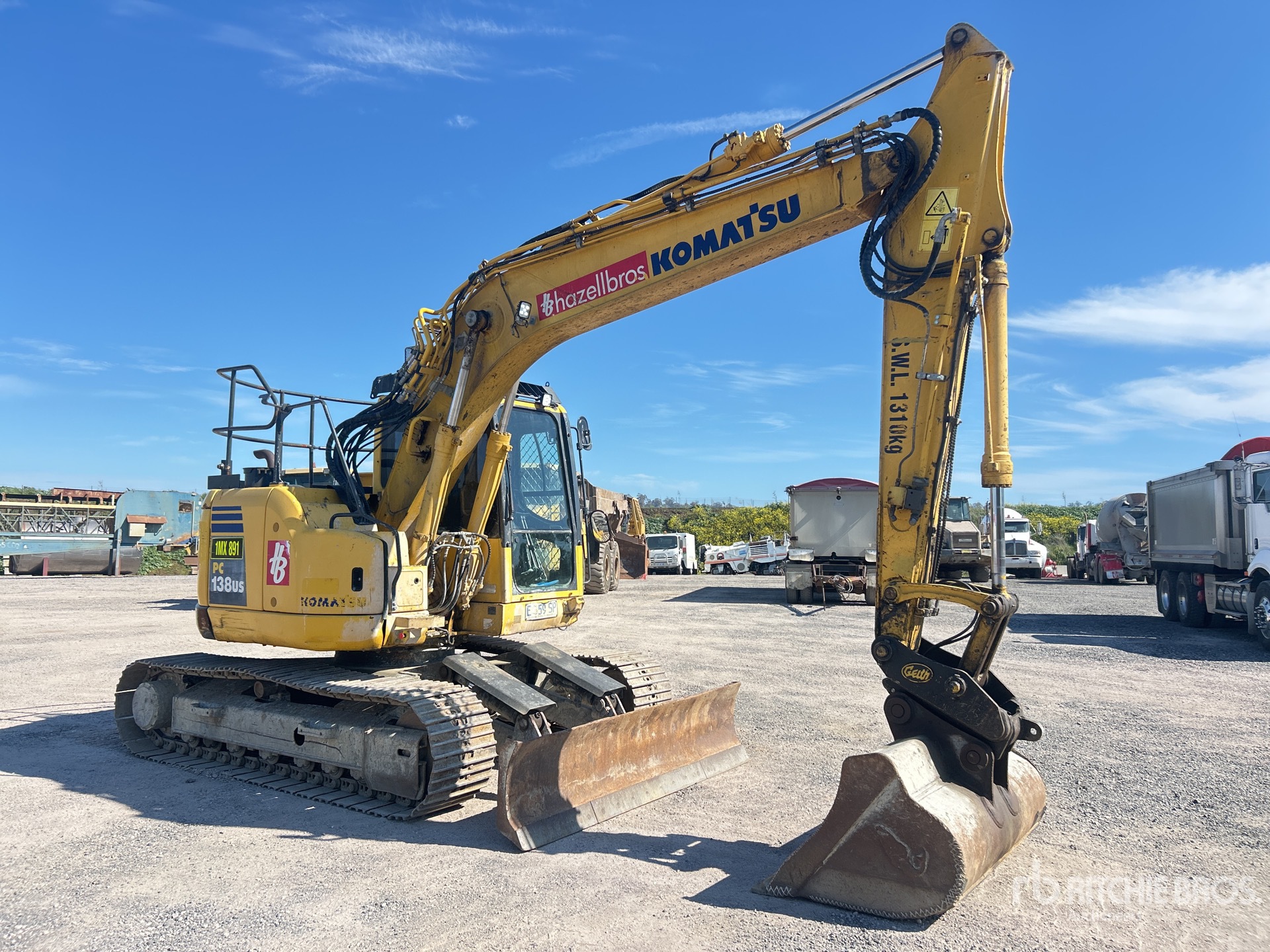

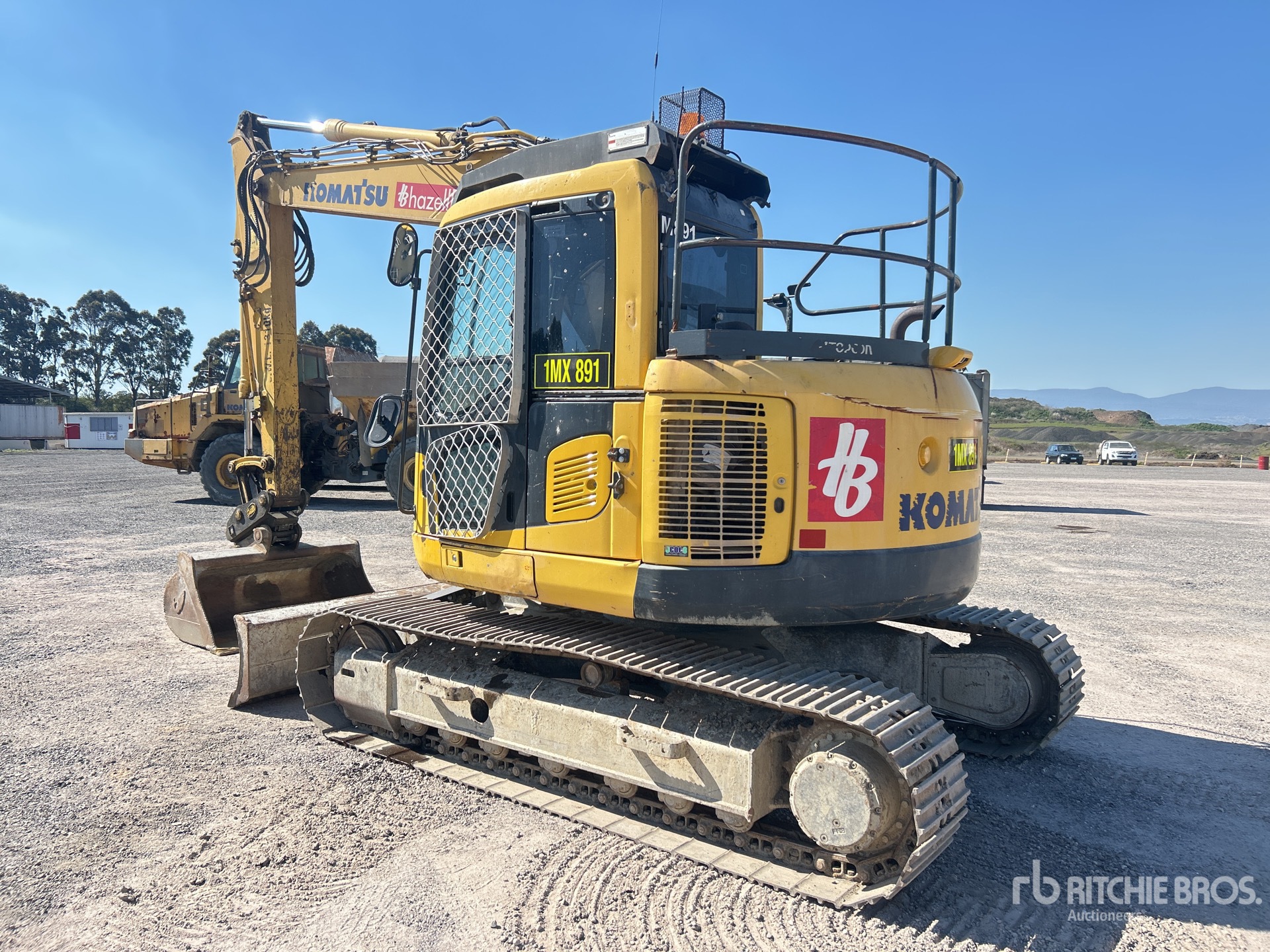

| Brakes |
|
Parking Brake |
Wet, multiple-disc |
|
Service Brake |
Hydraulic lock |
| Capacities |
|
Engine Oil |
3 gal (11 l)
|
|
Final Drive |
1 gal (2 l)
|
|
Fuel Tank |
52 gal (195 l)
|
|
Hydraulic |
18 gal (69 l)
|
|
Radiator |
3 gal (12 l)
|
|
Swing Drive |
1 gal (3 l)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height To Top Of Cab |
9 ft (3 m)
|
|
Height To Top Of Cab |
9 ft (3 m)
|
|
Length Of Track On Ground |
12 ft (4 m)
|
|
Overall Height |
9 ft (3 m)
|
|
Overall Length |
24 ft (7 m)
|
|
Overall Track Width |
8 ft (2 m)
|
|
Removal Counterweight Clearance |
3 ft (1 m)
|
|
Removal Counterweight Clearance |
3 ft (1 m)
|
|
Tail Swing Radius |
5 ft (1 m)
|
|
Tail Swing Radius |
5 ft (1 m)
|
|
Track Gauge |
7 ft (2 m)
|
|
Track Length On Ground |
9 ft (3 m)
|
|
Width To Outside Of Tracks |
8 ft (2 m)
|
| Driveline |
|
Drawbar Pull, Maximum (Kg) |
12,500 |
|
Gradeability |
70 % |
|
Travel Speed |
2.9/5.1 |

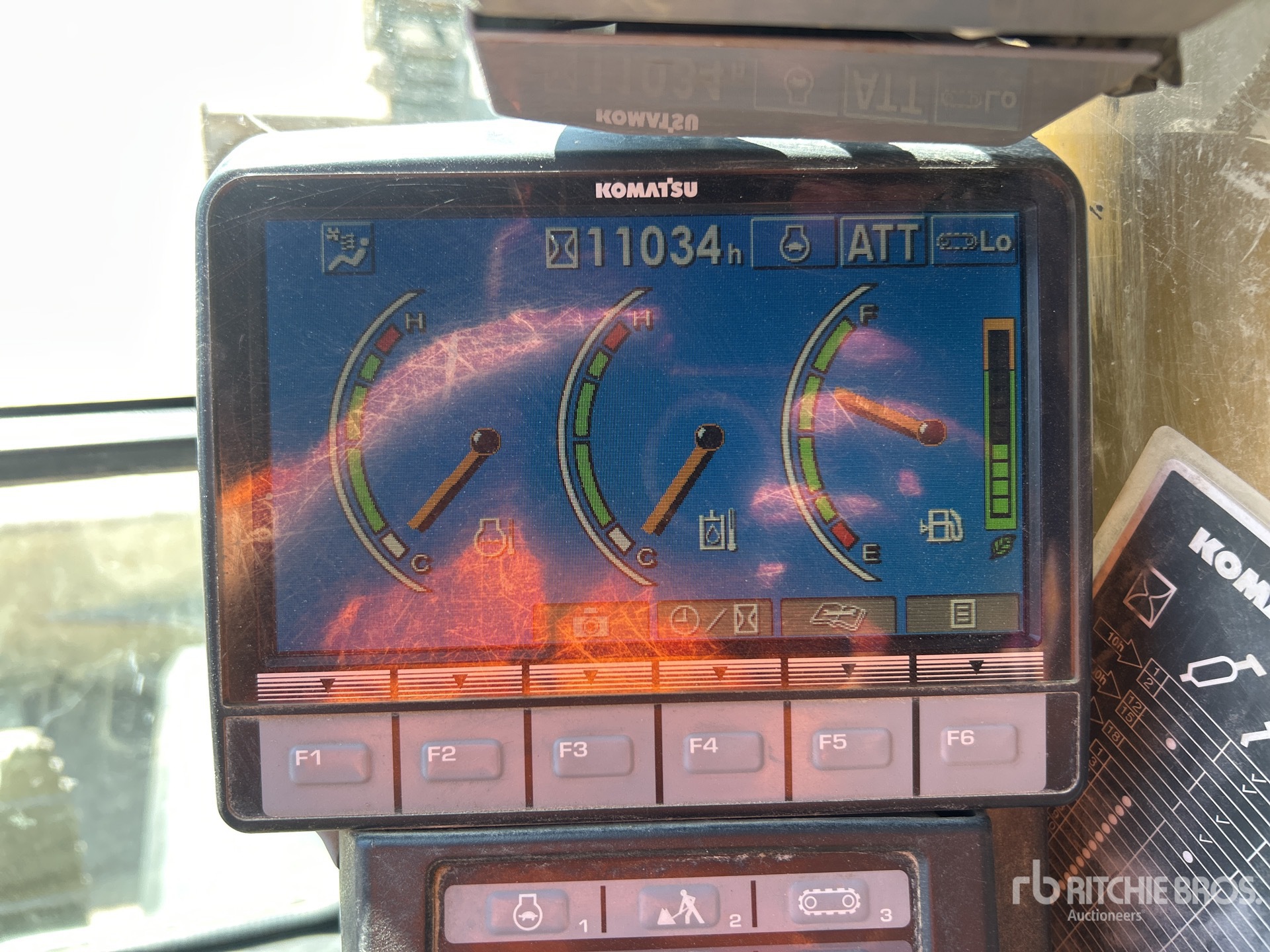

| Engine |
|
Air Cleaner |
Dry-type with double elements and auto dust evacuator, plus dust indicator |
|
Alternator |
35 A/24 V amps |
|
Aspiration |
Turbocharged, and air-to-air aftercooled |
|
Battery |
64 Ah/2 x 12 V |
|
Bore And Stroke |
95 mm x 115 mm 3.74\" x 4.53\" |
|
Displacement |
199 cu in (3,261 cu cm)
|
|
Displacement |
199 cu in (3,261 cu cm)
|
|
Engine Make |
2,238 |
|
Engine Make |
2,238 |
|
Engine Model |
SAA4D95LE-5 |
|
Engine Model |
SAA4D95LE-5 |
|
Engine Type |
Water-cooled,4-cycle |
|
Fan Drive Type |
Mechanical |
|
Fuel System |
Direct injection |
|
Governor |
All-speed control, electronic |
|
Gross Power |
97 hp (72 kw)
|
|
Horsepower, Gross-Sae J1995 |
97 hp (72 kw)
|
|
Horsepower, Net-Iso 9249 |
92 hp (68 kw)
|
|
Horsepower, Net-Sae J1349 |
92 hp (68 kw)
|
|
Lubrication System |
Method- Gear pump, force-lubrication; Filter-Full-flow |
|
Net Power |
92 hp (68 kw)
|
|
Number Of Cylinders |
4 |
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
|
Power Measured @ |
2,200 rpm |
|
Starter Motor |
4.5 kW/24 V |
| Hydraulic System |
|
Economy Sub-Mode Selections |
4 |
|
Hydraulic Motor (Swing) |
1 x piston motor with swing holding brake |
|
Hydraulic Motor (Travel) |
2 x piston motor with parking brake |
|
Hydraulic System Type |
HydrauMind System |
|
Main Pump Type |
Variable displacement, axial piston |
|
Maximum Flow Rate |
64 gpm (241 lpm)
|
|
Selectable Work Modes |
5 |
| Operational |
|
Arm Crowd Force – Iso |
6,300 |
|
Arm Size |
8 ft (3 m)
|
|
Arm Type |
Standard |
|
Boom Size |
15 ft (5 m)
|
|
Boom Type |
Standard |
|
Bucket Crowd Force – Iso |
9,500 |
|
Bucket Size – Kga Standard Gp |
1 cu yd |
|
Cooling System Fluid Capacity |
3 gal (12 l)
|
|
Digging Depth – Maximum |
18 ft (5 m)
|
|
Digging Reach – Maximum |
27 ft (8 m)
|
|
Engine Oil Capacity |
3 gal (11 l)
|
|
Fuel Capacity |
52 gal (195 l)
|
|
Hydraulic System Fluid Capacity |
18 gal (69 l)
|
|
Maximum Reach @ Ground Level |
27 ft (8 m)
|
|
Operating Weight |
30,540 lbs (13,853 kg)
|
|
Swing Drive Fluid Capacity |
1 gal (3 l)
|
|
Swing Radius |
5 ft (1 m)
|
| Swing Mechanism |
|
Swing Speed |
11 rpm |
| Swing System |
|
Driven By |
Hydraulic motor |
|
Swing Circle Lubrication |
Grease-bathed |
|
Swing Lock |
Wet, multiple-disc brake |
|
Swing Reduction |
Planetary gear |
| Undercarriage |
|
Centre Frame |
X-frame |
|
Drawbar Pull |
27,560 lbs (12,501 kg)
|
|
Max Travel Speed |
3 mph (5 kph)
|
|
Number Of Carrier Rollers Per Side |
1 |
|
Number Of Carrier Rollers Per Side |
1 |
|
Number Of Shoes (Each Side) |
43 |
|
Number Of Shoes Per Side |
43 |
|
Number Of Track Rollers Per Side |
7 |
|
Number Of Track Rollers Per Side |
7 |
|
Seal Of Track |
Sealed track |
|
Shoe Size |
20 in (50 cm)
|
|
Shoe Type |
triple grouser |
|
Track Adjuster |
Hydraulic |
|
Track Frame |
Box-section |
| Weights |
|
Bucket Weight - Kga Gp |
992 lbs (450 kg)
|
|
Operating Weight |
30,534 lbs (13,850 kg)
|
|
Quick Hitch Weight – Kga |
393 lbs (178 kg)
|
