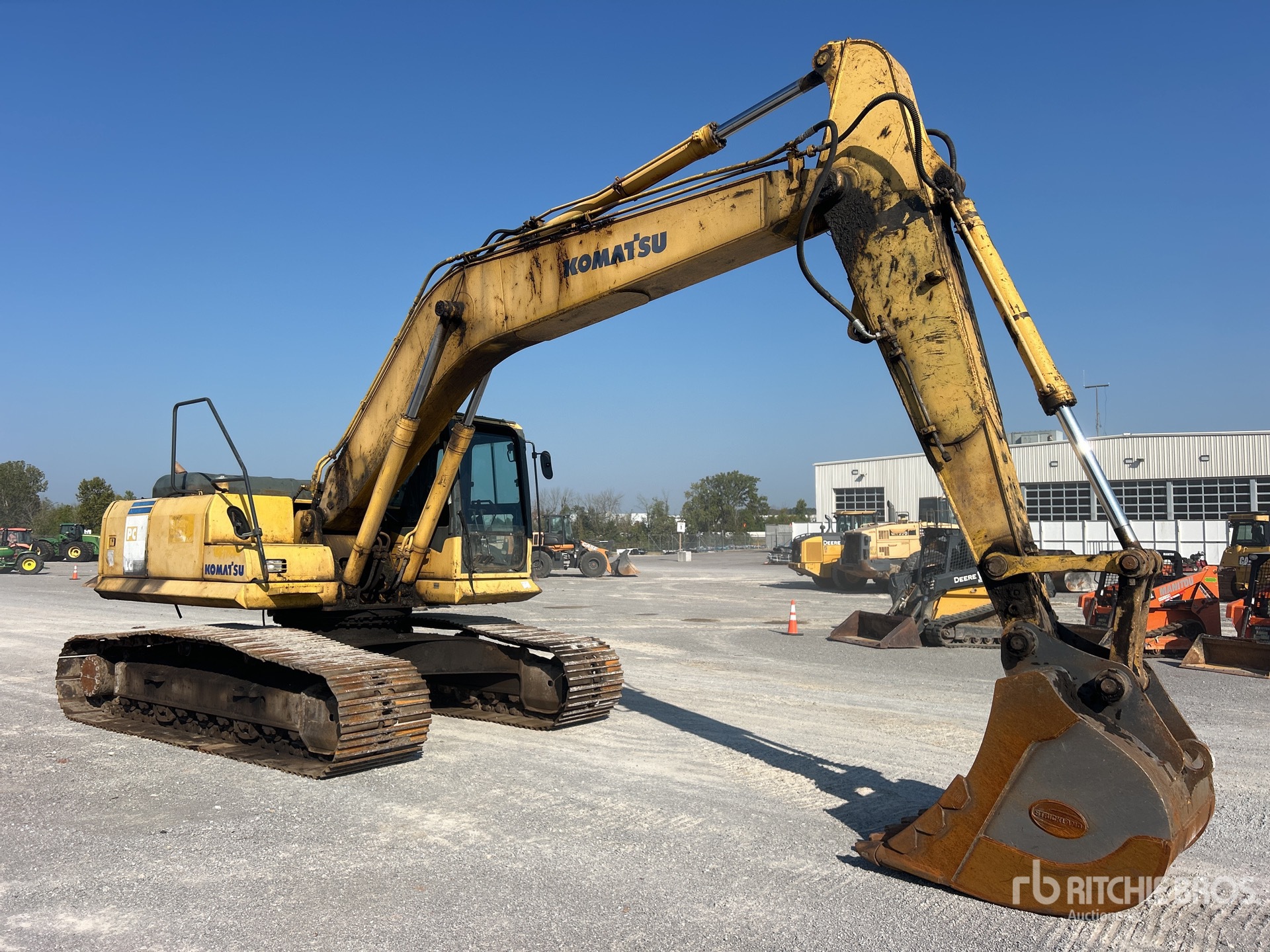

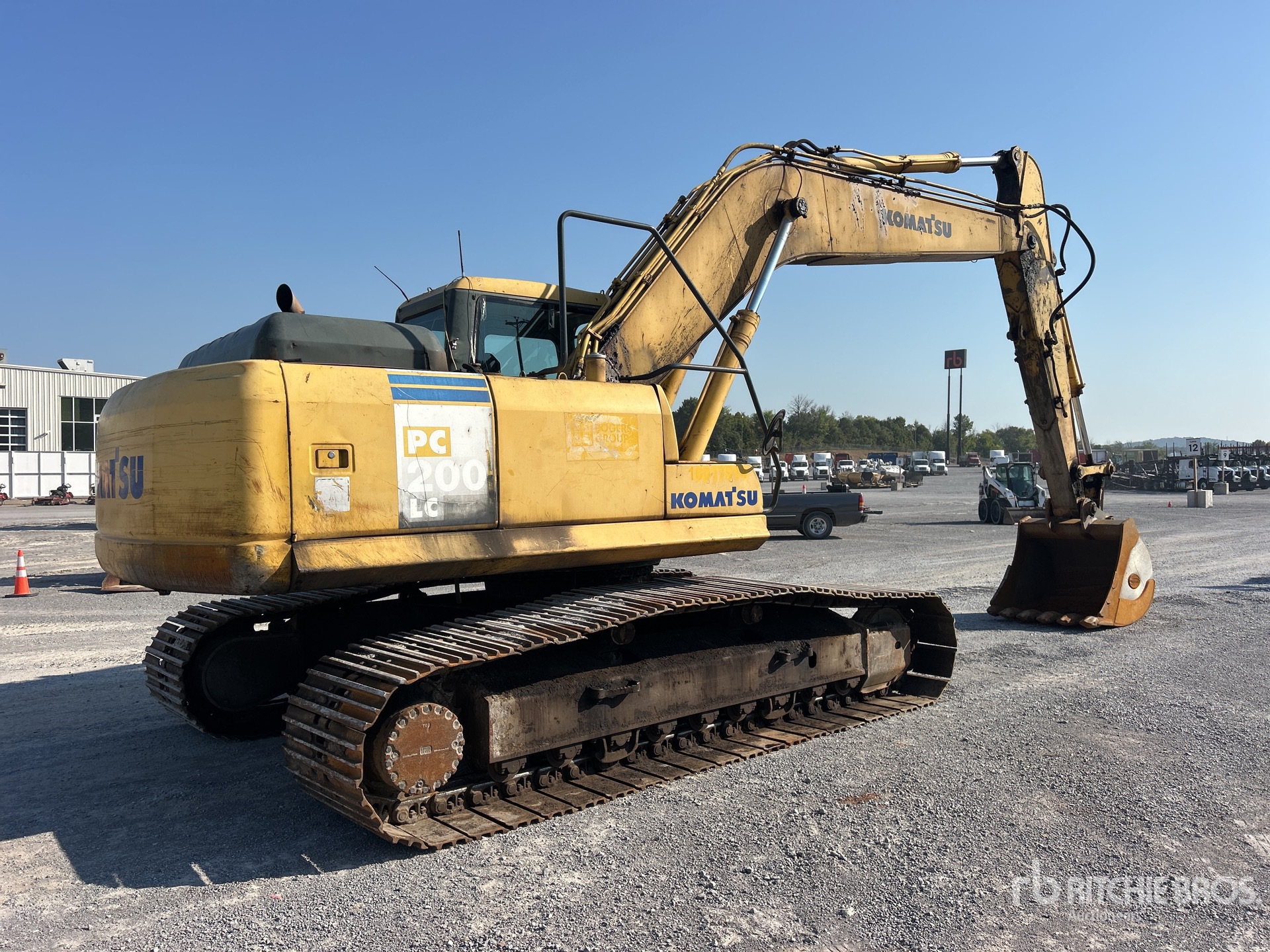

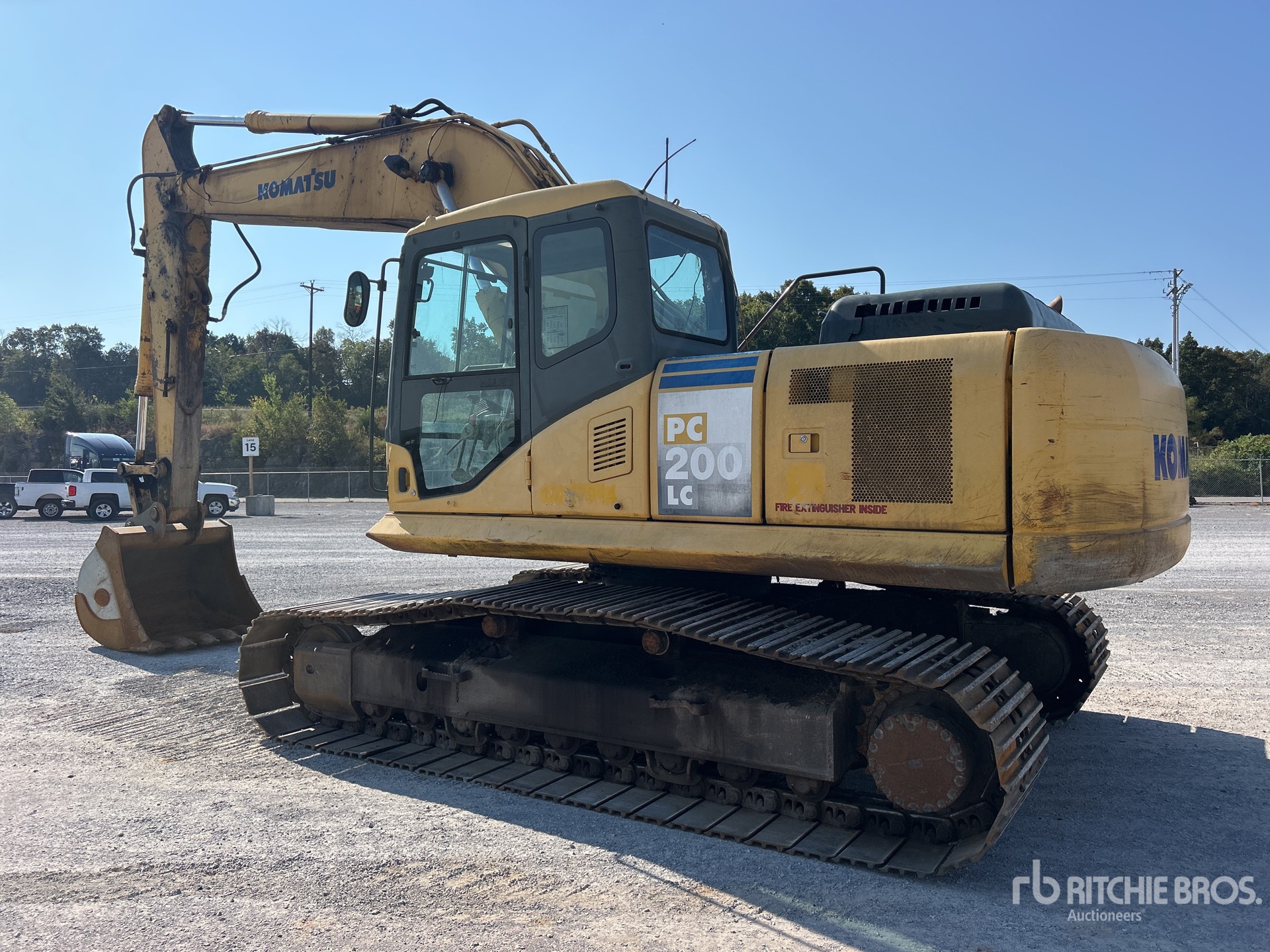

2004 Komatsu PC200LC-7L For Sale in Atlanta, Ga

Name: 2004 Komatsu PC200LC-7L
Brand: Komatsu
SKU: 89268826
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-22

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

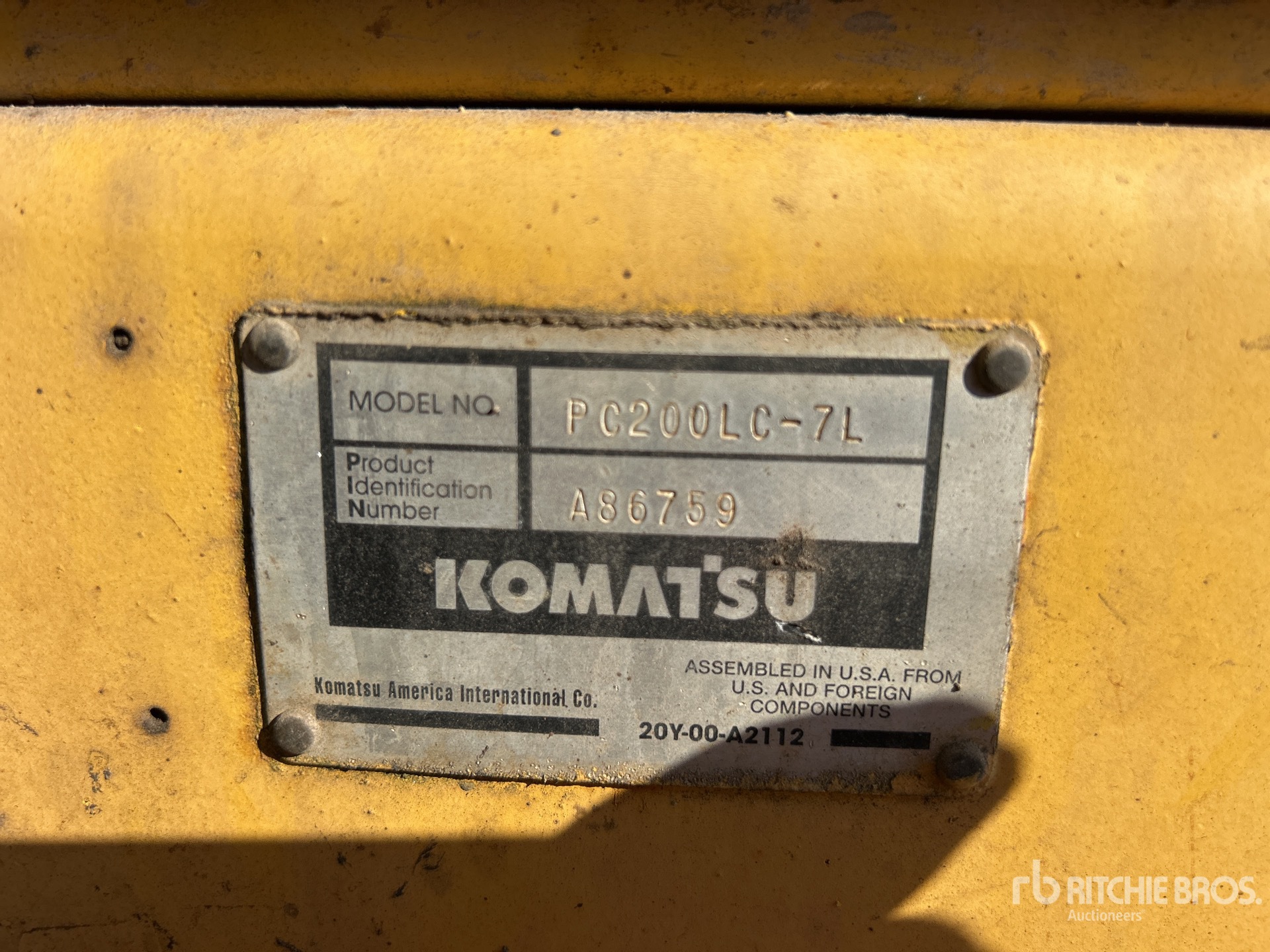

Serial Number:	A86759
Machine Location:	ATLANTA, GA

Description:

9 ft 8 in Stick, 31.5 in Triple Grouser Track Shoes, Manual Quick Coupler, 46 in Digging Bucket Closing Time: 2026-10-22 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Komatsu PC200LC-7 is a hydraulic crawler excavator in the 20-ton class, designed for general earthmoving, trenching, site preparation, and material handling. The PC200LC-7 uses a long undercarriage for improved stability and ground contact, with a conventional tail swing layout and a standard excavator boom and arm configuration. It is commonly equipped with a diesel engine, hydraulic system, and operator cab designed for construction and utility work. The model is part of Komatsu's PC-series excavator line and is used in construction, excavation, demolition support, and landscaping applications. Availability of attachments and specifications may vary by market and configuration.

Boom/Stick 1
Arm Crowd Force - Sae	27,876 lbs (12,645 kg)
Arm Crowd Force-Iso	28,551 lbs (12,950 kg)
Boom/Stick 1	Arm - 2410 mm, 7.11 ft in
Max Digging Depth	20 ft (6 m)
Max Digging Height	32 ft (10 m)
Max Digging Reach	31 ft (9 m)
Max Digging Reach On Ground	30 ft (9 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Max.Dumping Height	23 ft (7 m)
Maximum Vertical Wallcut Depth	18 ft (5 m)
Minimum Swing Radius	122 in (309 cm)
Boom/Stick 2
Arm Crowd Force-Iso	24,279 lbs (11,013 kg)
Arm Crowd Force-Sae	22,706 lbs (10,299 kg)
Boom/Stick 2	Arm - 2925 mm, 9.7 ft in
Bucket Digging Force - Iso	33,497 lbs (15,194 kg)
Bucket Digging Force - Sae	31,024 lbs (14,072 kg)
Max Digging Depth	22 ft (7 m)
Max Digging Reach	32 ft (10 m)
Max Digging Reach On Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Max. Digging Height	33 ft (10 m)
Max.Dumping Height	23 ft (7 m)
Minimum Swing Radius	120 in (304 cm)
Capacities
Coolant	6 gal (23 l)
Engine Oil	6 gal (24 l)
Final Drive	1 gal (5 l)
Fuel Tank	106 gal (400 l)
Hydraulic Oil Tank	38 gal (143 l)
Swing Drive	2 gal (7 l)
Dimensions
Cab Height	82 in (210 cm)
Cab Width	8 ft (2 m)
Ground Clearance	1 ft (0 m)
Height	11 ft (3 m)
Height	11 ft (3 m)
Height To Top Of Cab	10 ft (3 m)
Length	31 ft (10 m)
Length	31 ft (10 m)
Length Of Track On Ground	12 ft (4 m)
Length On Ground (Transport)	19 ft (6 m)
Overall Height (To Top Of Boom)	10 ft (3 m)
Overall Length	31 ft (10 m)
Shoe Width	3 ft (1 m)
Tail Swing Radius	9 ft (3 m)
Track Gauge	8 ft (2 m)
Track Length	175 in (445 cm)
Weight	46,870 lbs (21,260 kg)
Weight	46,870 lbs (21,260 kg)
Width	10 ft (3 m)
Width	10 ft (3 m)
Width To Outside Of Tracks	10 ft (3 m)
Engine
Aspiration	Turbocharged
Bore	4 in (10 cm)
Displacement	359 cu in (5,881 cu cm)
Engine Make	Komatsu
Engine Model	SAA6D102E-2
Gross Power	150 hp (112 kw)
Net Power	143 hp (107 kw)
Number Of Cylinders	6
Power Measured @	1,950 rpm
Stroke	5 in (12 cm)
Operational
Hydraulic Pump Flow Capacity	113 gpm (428 lpm)
Max Speed	3 mph (5 kph)
Operating Weight	45,636 lbs (20,700 kg)
Swing Mechanism
Swing Brake	Hydraulic lock
Swing Speed	12 rpm
Swing Torque	48,124 lbs ft (65,247 nm)
Undercarriage
Drawbar Pull	40,016 lbs (18,151 kg)
Ground Pressure	5 psi
Max Travel Speed	3 mph (6 kph)
Number Of Carrier Rollers Per Side	2
Number Of Shoes Per Side	49
Number Of Track Rollers Per Side	9
Shoe Size	28 in (70 cm)
