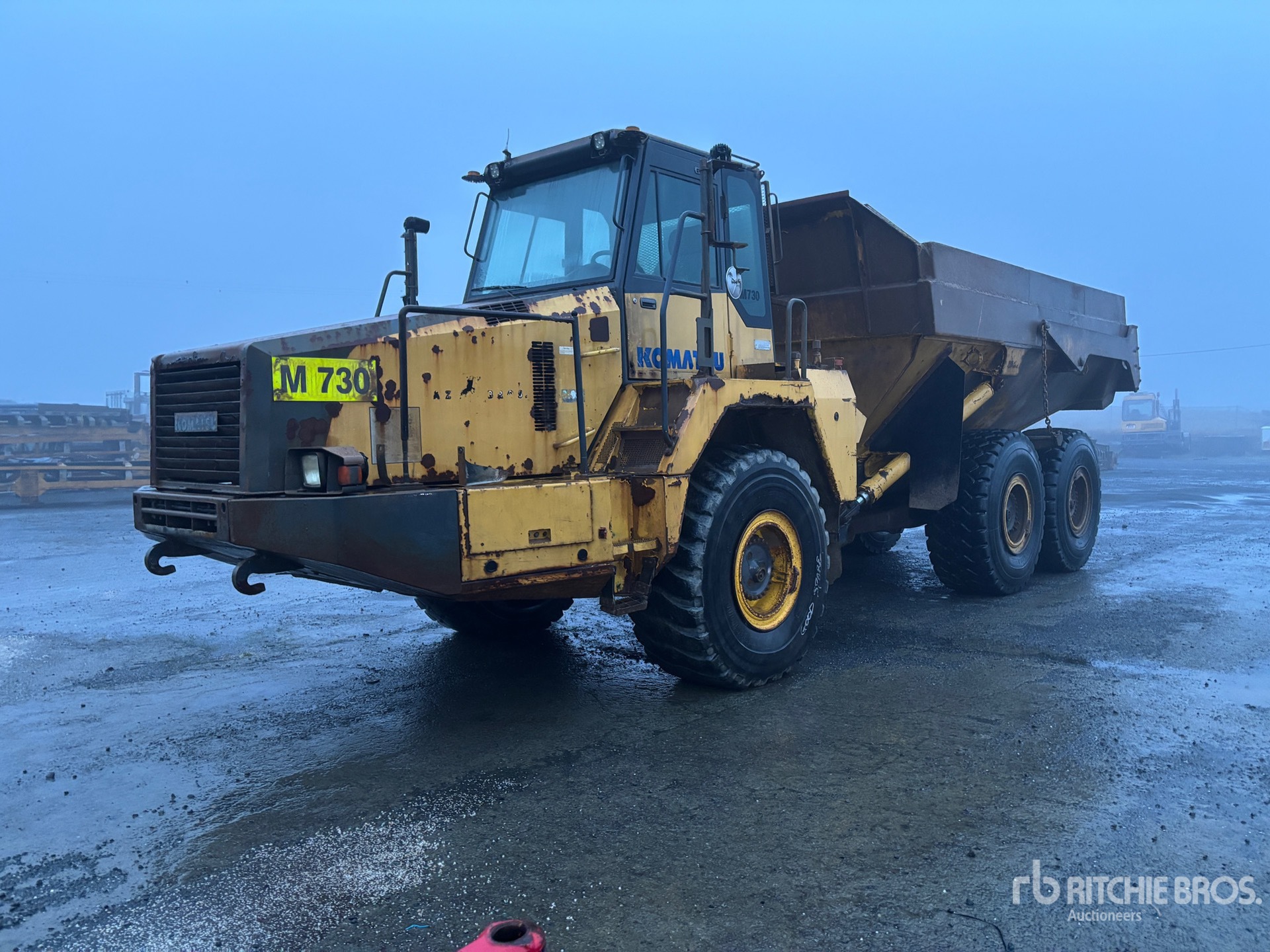

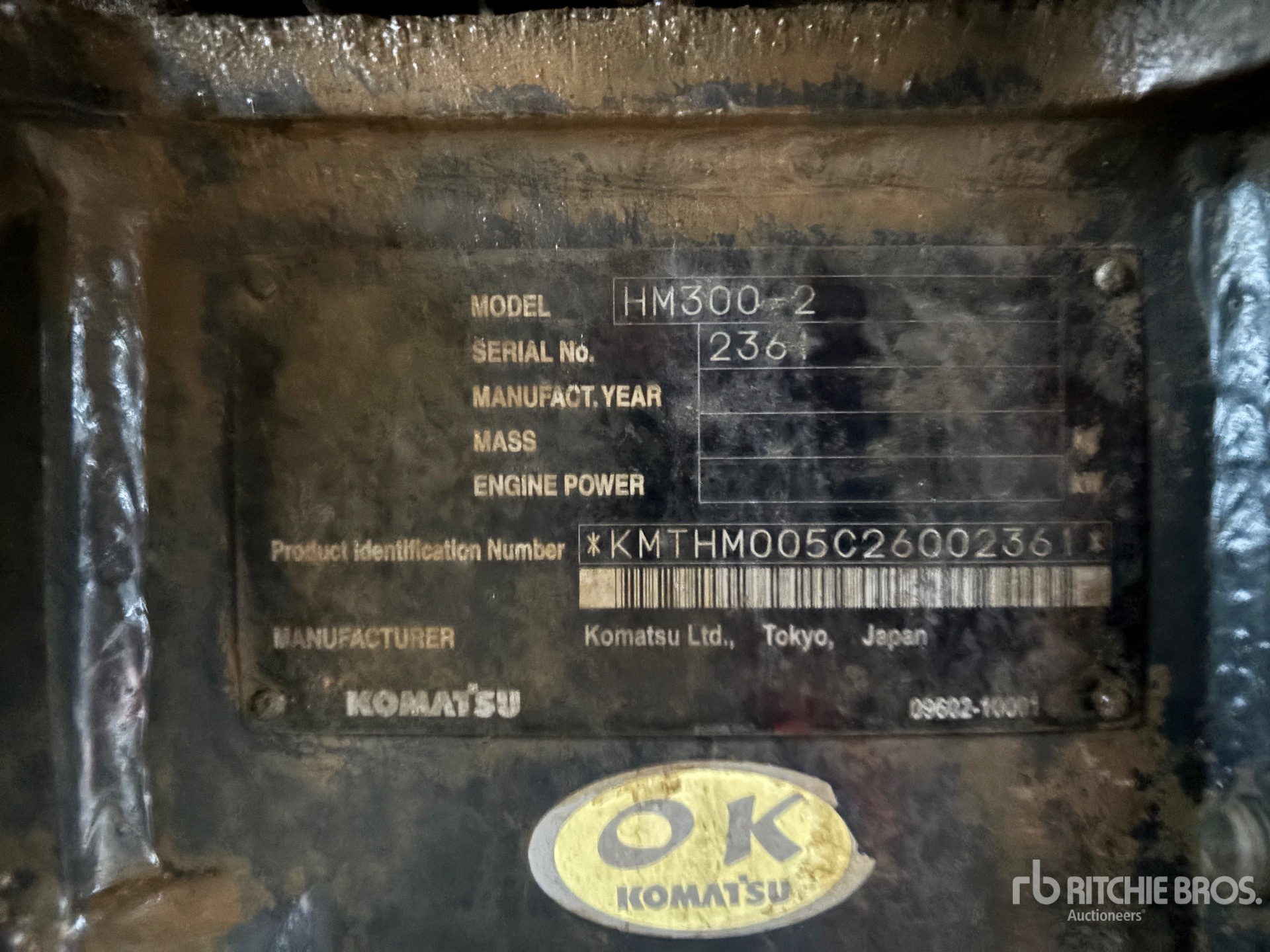

| Axles |
|
Differential |
3 |
|
Planetary |
5 |

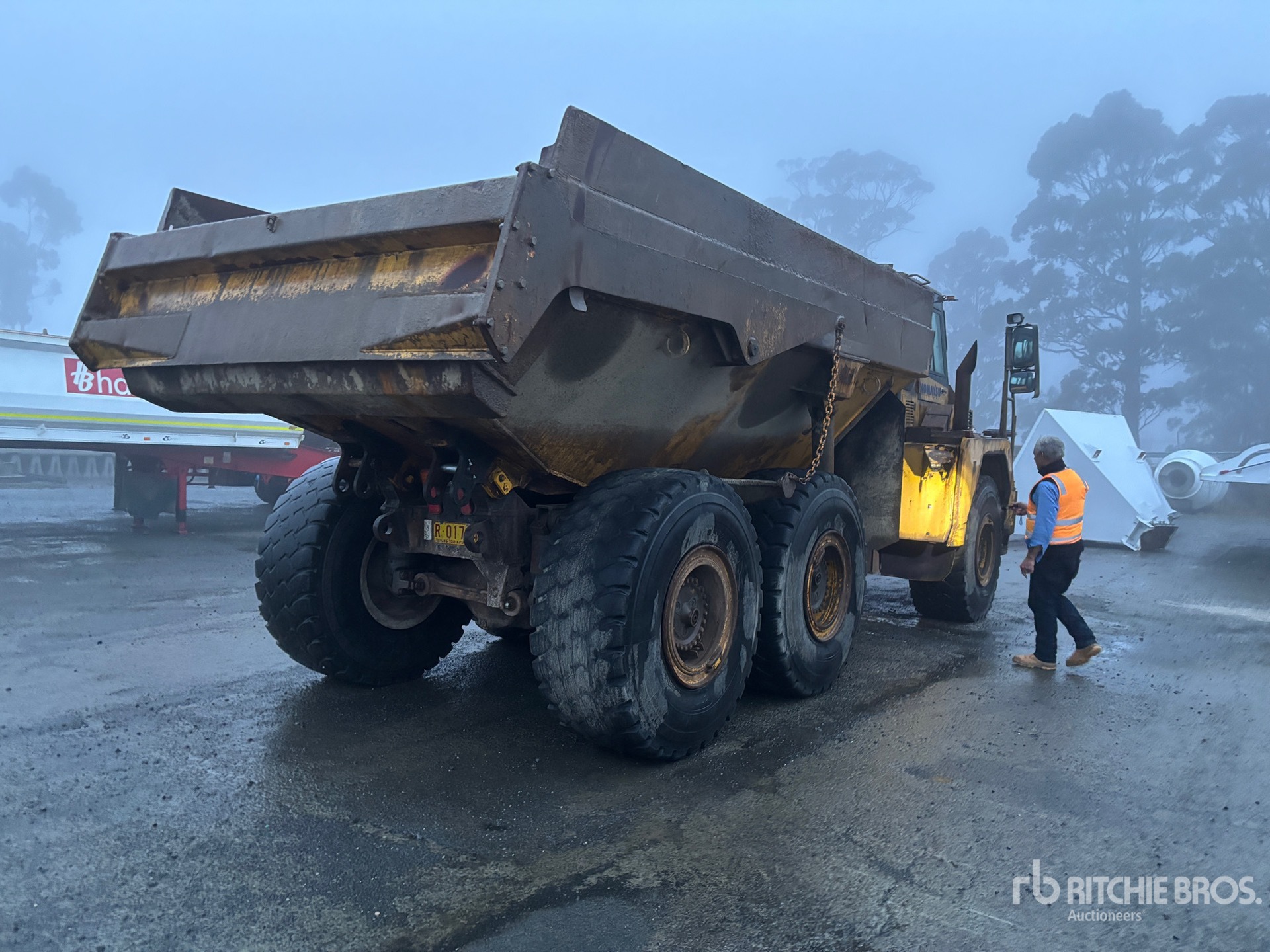

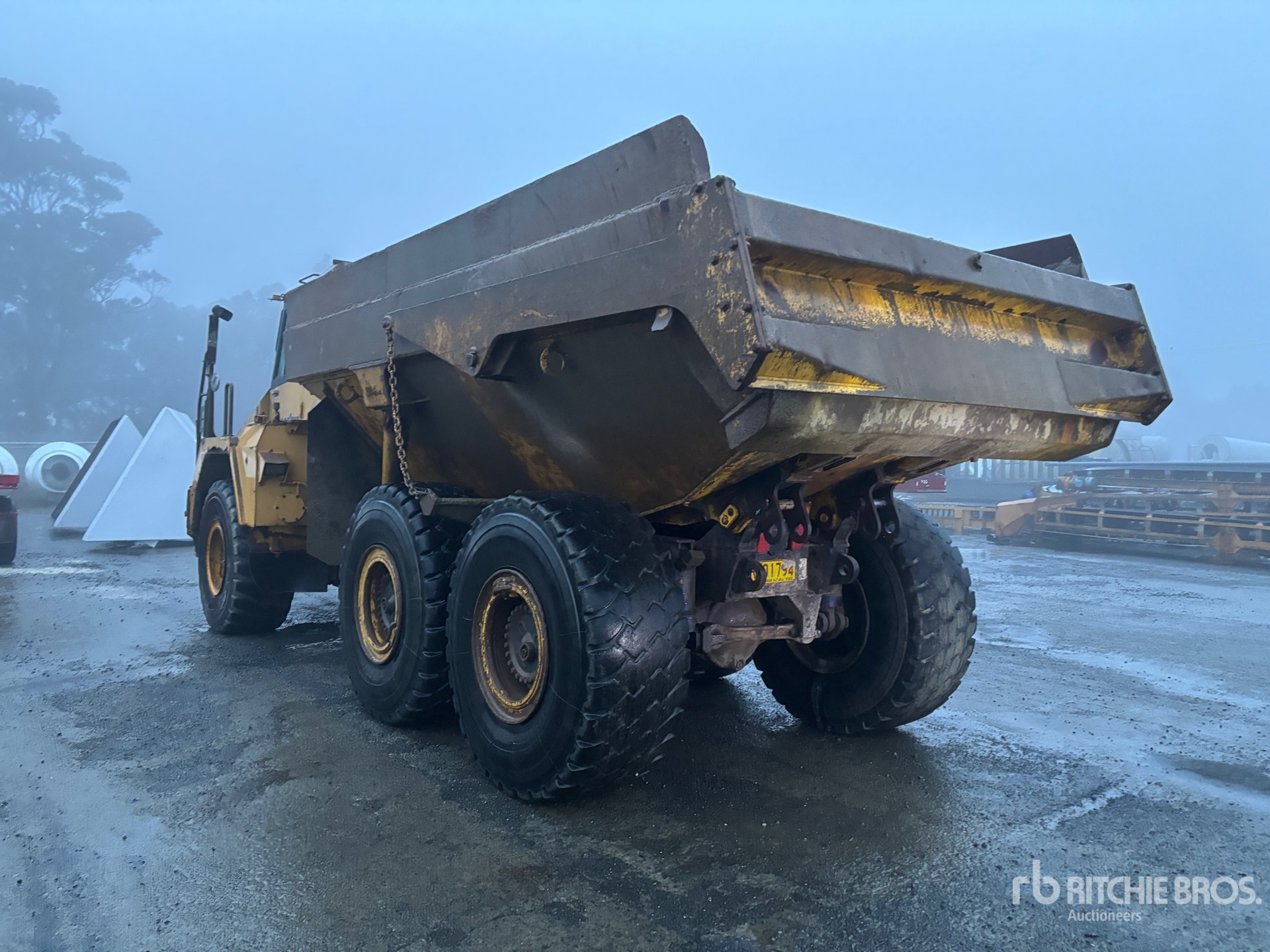

| Body |
|
Capacity Struck |
17 cu yd |
|
Heaped (2:1, Sae) |
22 cu yd |
|
Heating |
Exhaust heating (option) |
|
Material |
130 kg/mm2 184,925 psi high tensile strength steel |
|
Material Thickness-Bottom |
1 in (2 cm)
|
|
Material Thickness-Front |
0 in (1 cm)
|
|
Material Thickness-Sides |
1 in (1 cm)
|
|
Payload |
27.3 metric tons 30.1 U.S. tons |
|
Target Area |
5240 mm x 2685 mm 17\'2\" x 8\'10\" |
| Brakes |
|
Parking Brake |
Spring applied, caliper disc type |
|
Retarder |
Front and center axle brakes act as retarder |
|
Service Brake |
Full-hydraulic control, oil-cooled multiple-disc type on front and center axles |
| Cab |
|
Compliance |
Dimensions comply with ISO 3471 ROPS (Roll-Over Protective Structure) standard |
| Capacities |
|
Differentials |
17 gal (64 l)
|
|
Engine Oil |
10 gal (37 l)
|
|
Final Drive |
6 gal (24 l)
|
|
Fuel Tank - Diesel |
102 gal (384 l)
|
|
Hydraulic System |
32 gal (120 l)
|
|
Suspension |
3 gal (10 l)
|
|
Torque Converter, Transmission And Retarder Cooling |
21 gal (78 l)
|
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Overall Height |
12 ft (4 m)
|
|
Overall Length |
34 ft (10 m)
|
|
Overall Width |
10 ft (3 m)
|
|
Turning Radius – Outside Minimum |
26 ft (8 m)
|
|
Tyre Gauge |
7 ft (2 m)
|
| Electrical System |
|
Alternator |
24V, 75 Ah. |
|
Batteries |
12V, 136 Ah x 2. |
|
Starter Motor |
24V, 11.0 kW. |
| Engine |
|
Air Cleaner |
Dry type with double elements and precleaner (cyclonpack type), plus dust indicator EPA Tier 3 and EU Stage 3A emissions certified |
|
Aspiration |
Turbo-charged, after-cooled, cooled EGR |
|
Bore |
5 in (13 cm)
|
|
Displacement |
674 cu in (11,045 cu cm)
|
|
Engine Make |
0 |
|
Engine Model |
Komatsu SAA6D125E-5 |
|
Engine Type |
Water-cooled, 4-cycle |
|
Fan Drive Type |
Mechanical |
|
Fuel System |
Direct injection |
|
Governor |
Electronically controlled |
|
Gross Power |
340 hp (254 kw)
|
|
Lubrication |
Method- Gear pump, force-lubrication Filter-Full-flow type |
|
Maximum Torque |
174 kg•m 1,259 lb. ft |
|
Net Power |
329 hp (245 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
2,000 rpm |
|
Stroke |
6 in (15 cm)
|
| Hydraulic System |
|
Hoist Cylinder |
Twin, 2-stage telescopic type |
|
Hoist Time |
12 sec |
|
Relief Pressure |
20.6 MPa 210 kg/cm2 2,990 psi |
| Main Frame |
|
Main Frame Type |
Articulated type, box-sectioned construction on front and rear Connected by strong torque tubes. |
| Steering System |
|
Articulation Angle |
45°each direction |
|
Minimum Turning Radius, Wall To Wal |
7.96 m 26\'1\" |
|
Steering System Type |
Articulated type, fully hydraulic power steering with two double-acting cylinders |
|
Supplementary Steering |
Automatically actuated electrically powered |
| Suspension System |
|
Front |
Hydro-pneumatic suspension |
|
Rear |
Combined hydro-pneumatic and rubber suspension system |
| Tires |
|
Standard Tire |
23.5 R25 |
| Transmission |
|
Forward |
Torque converter drive in 1st gear, direct drive in 1st lockup and all higher gears |
|
Lockup Clutch |
Wet, single-disk clutch |
|
Reverse |
Torque converter drive and direct drive in all gear |
|
Shift Control |
Electronic shift control with automatic clutch modulation in all gear |
|
Speed Range |
6 speeds forward and 2 reverse |
|
Torque Converter |
3-elements, 1-stage, 2-phase |
|
Transmission |
Full-automatic, counter-shaft type |
|
Travel Speed |
36 mph (59 kph)
|
| Weights |
|
Center Axle - Empty |
23.6 % |
|
Center Axle - Loaded |
35.5 % |
|
Empty Weight |
53,000 lbs (24,040 kg)
|
|
Front Axle - Empty |
55.8 % |
|
Front Axle - Loaded |
30.3 % |
|
Gross Weight |
113,360 lbs (51,419 kg)
|
|
Rear Axle - Empty |
20.6 % |
|
Rear Axle - Loaded |
34.2 % |
