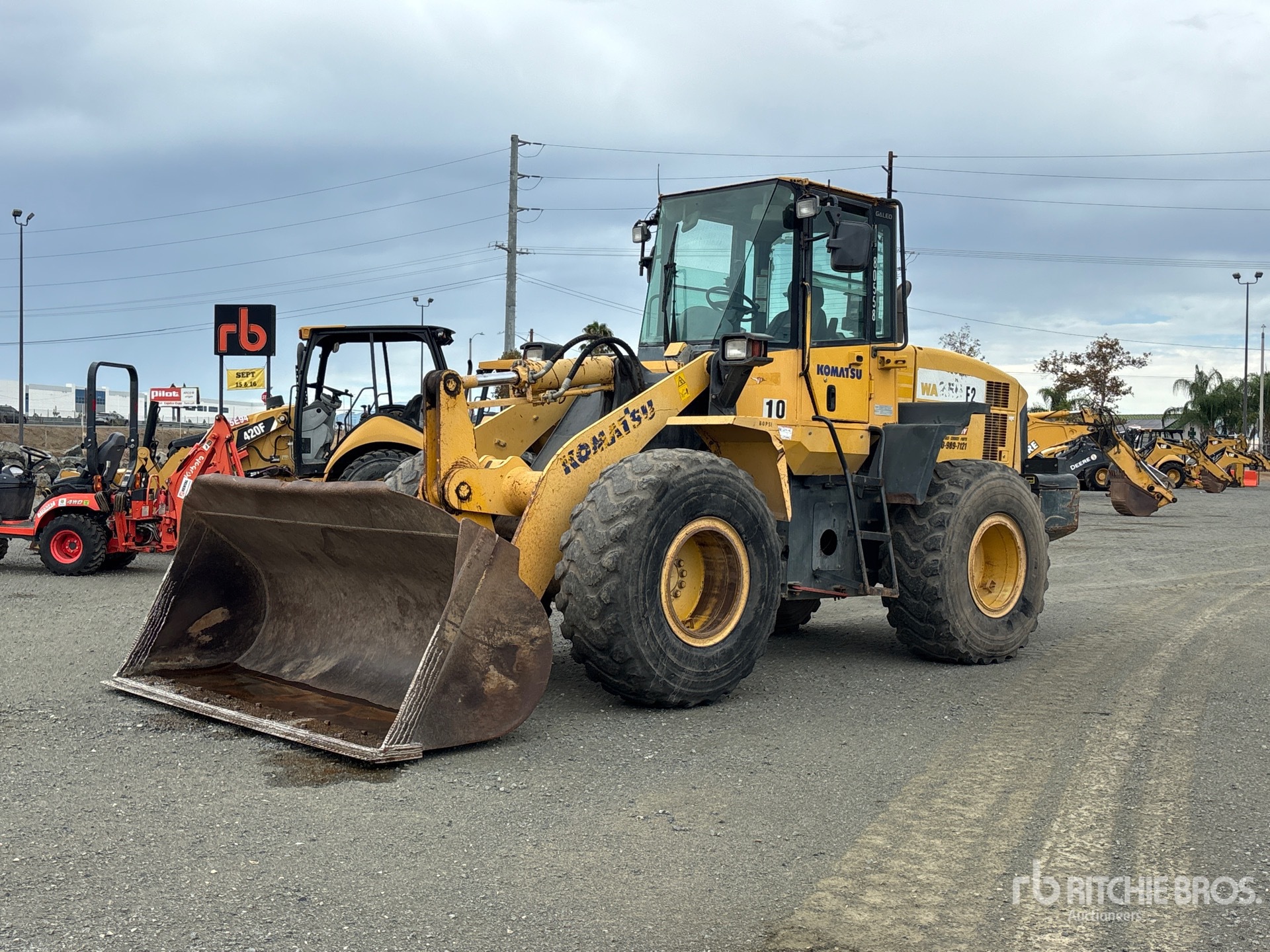

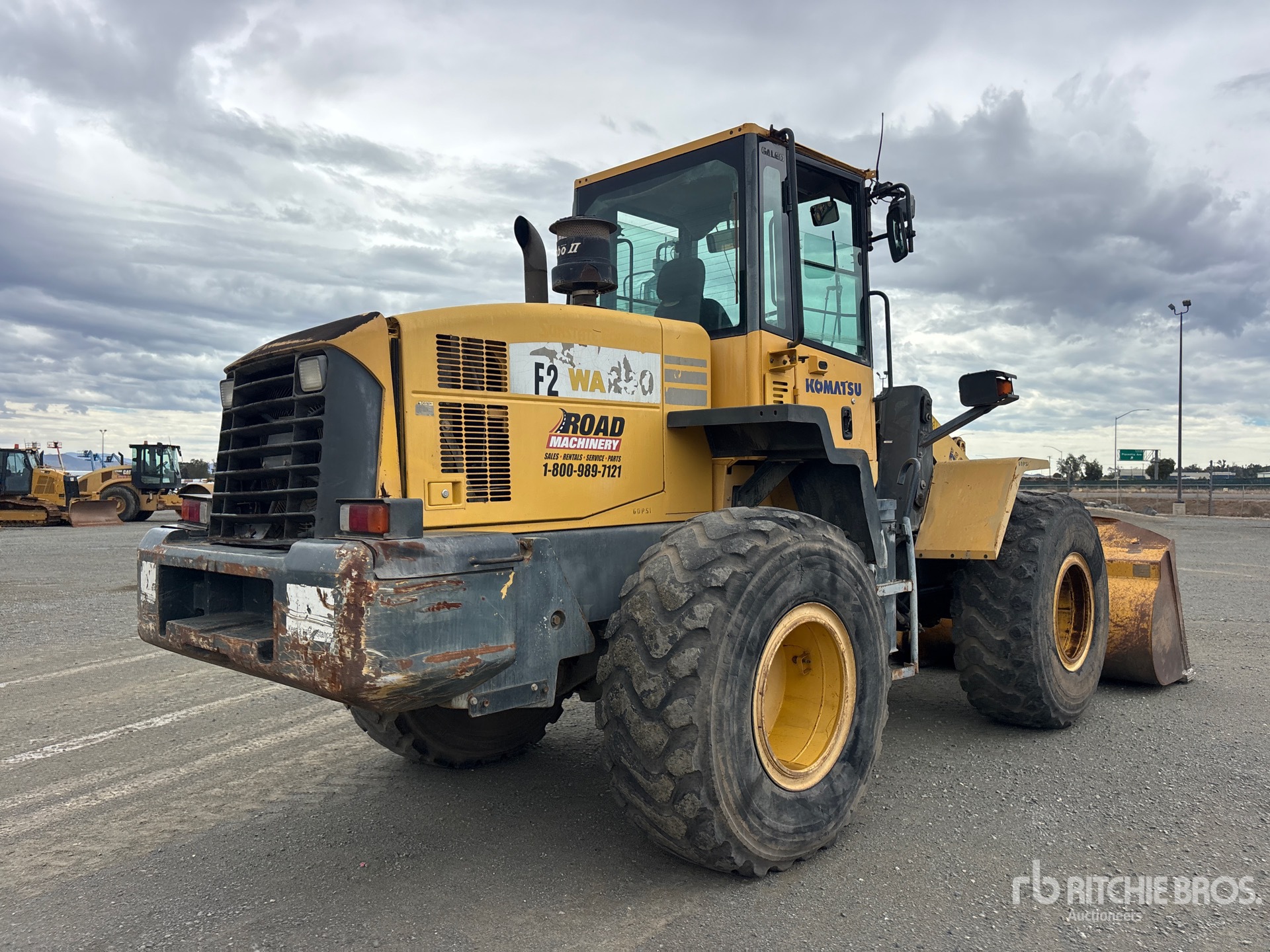

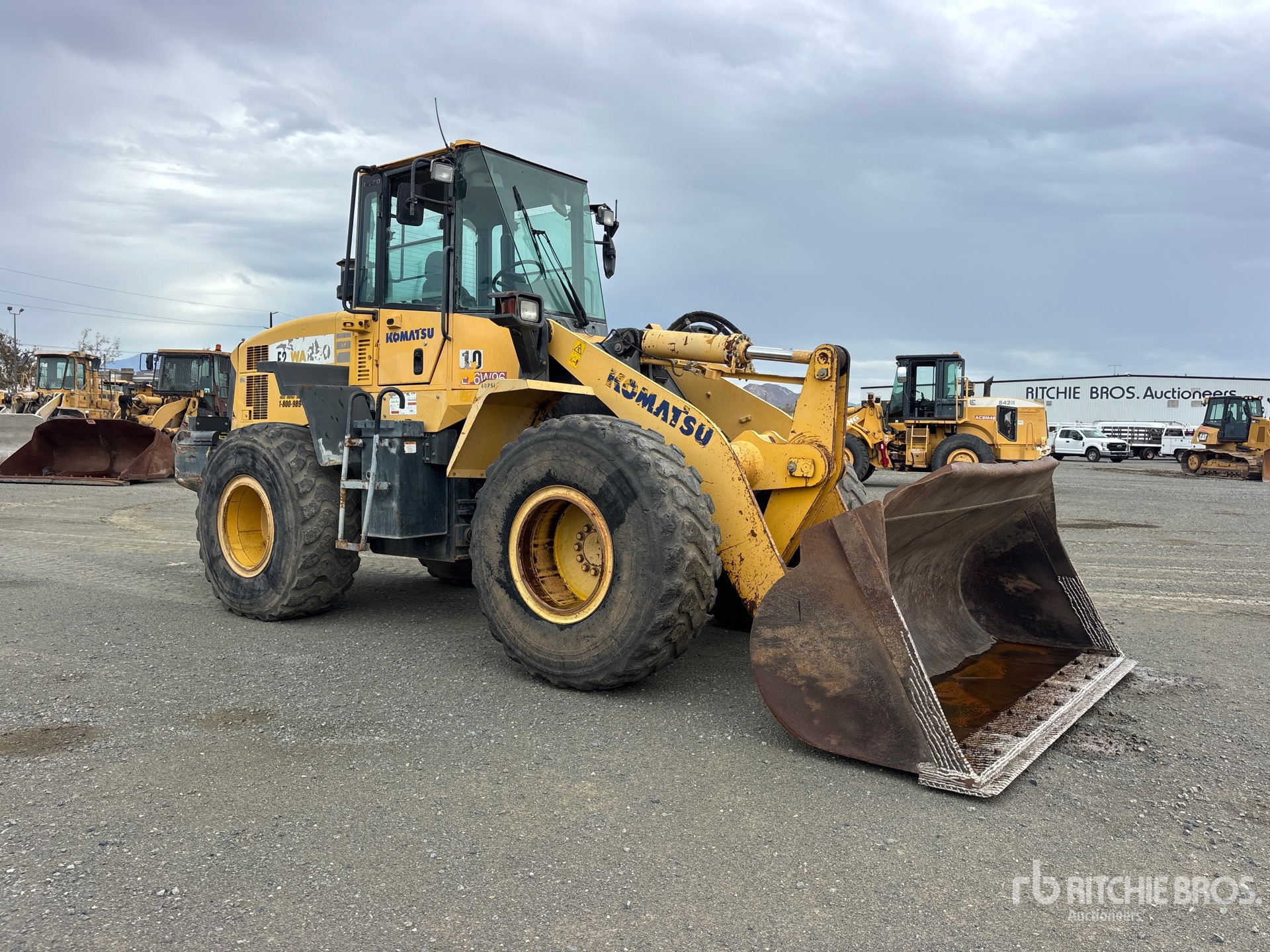

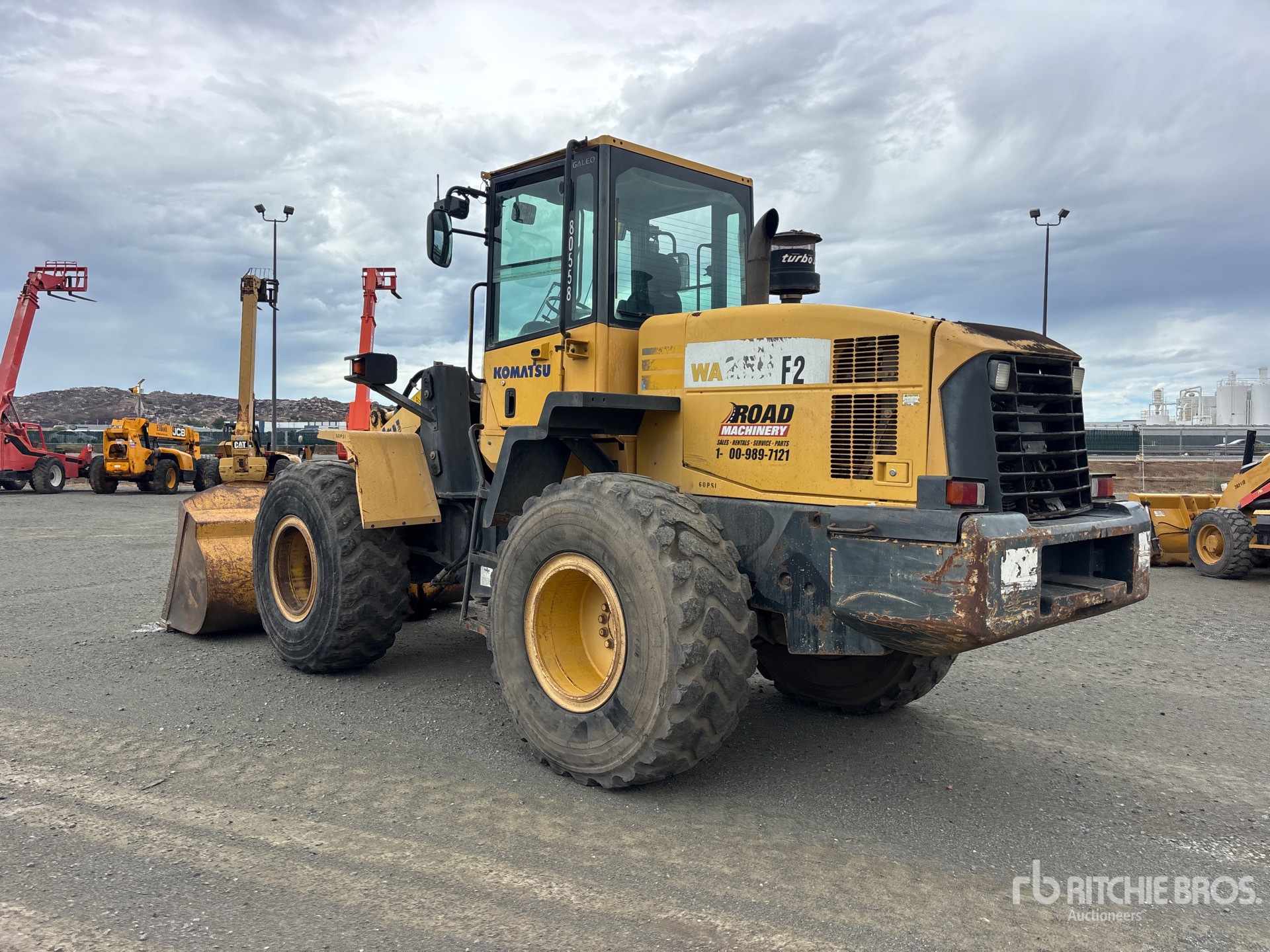

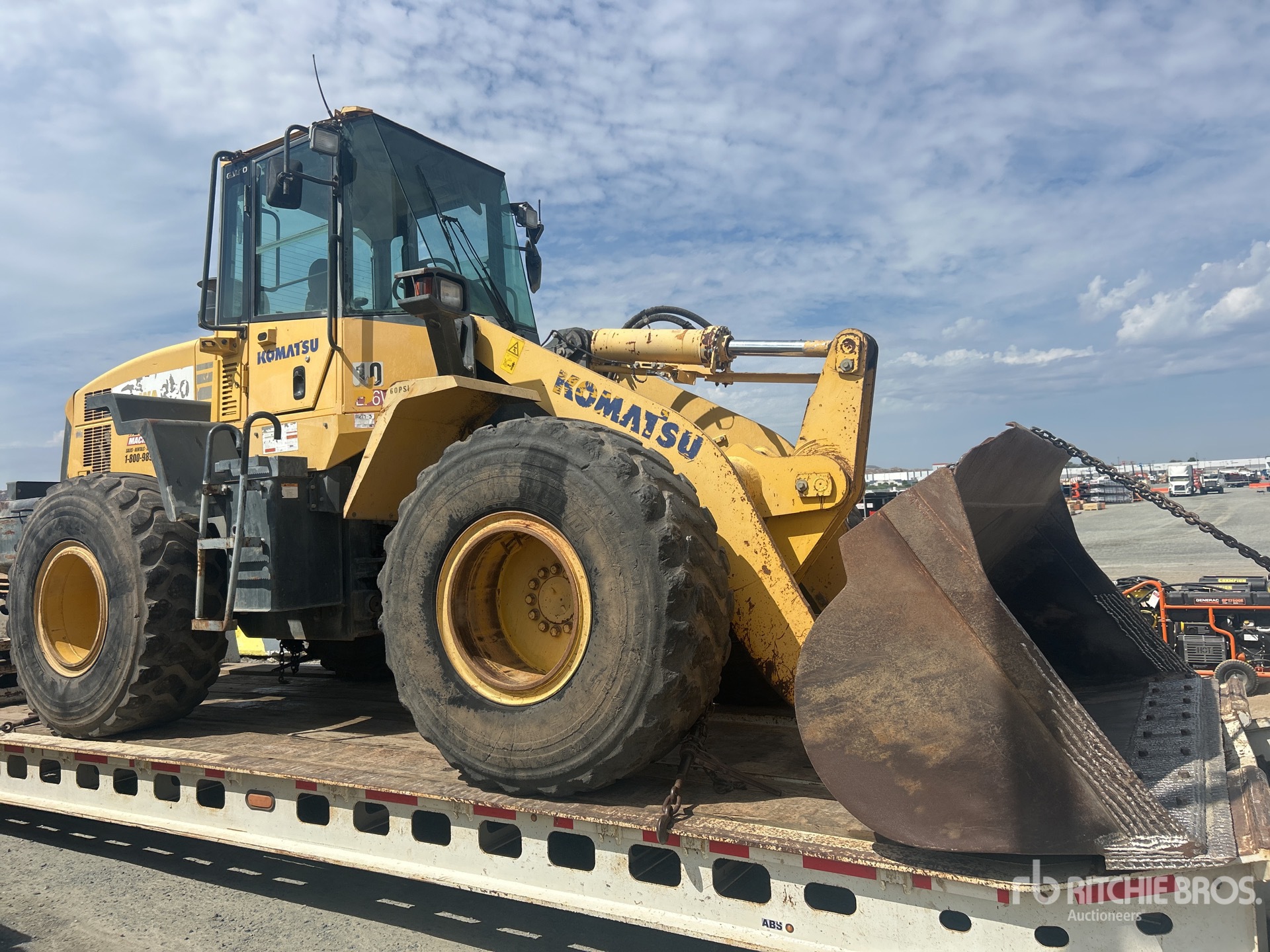

2007 Komatsu WA250-5 For Sale in Los Angeles, Ca

Name: 2007 Komatsu WA250-5
Brand: Komatsu
SKU: 89158902
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-15 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

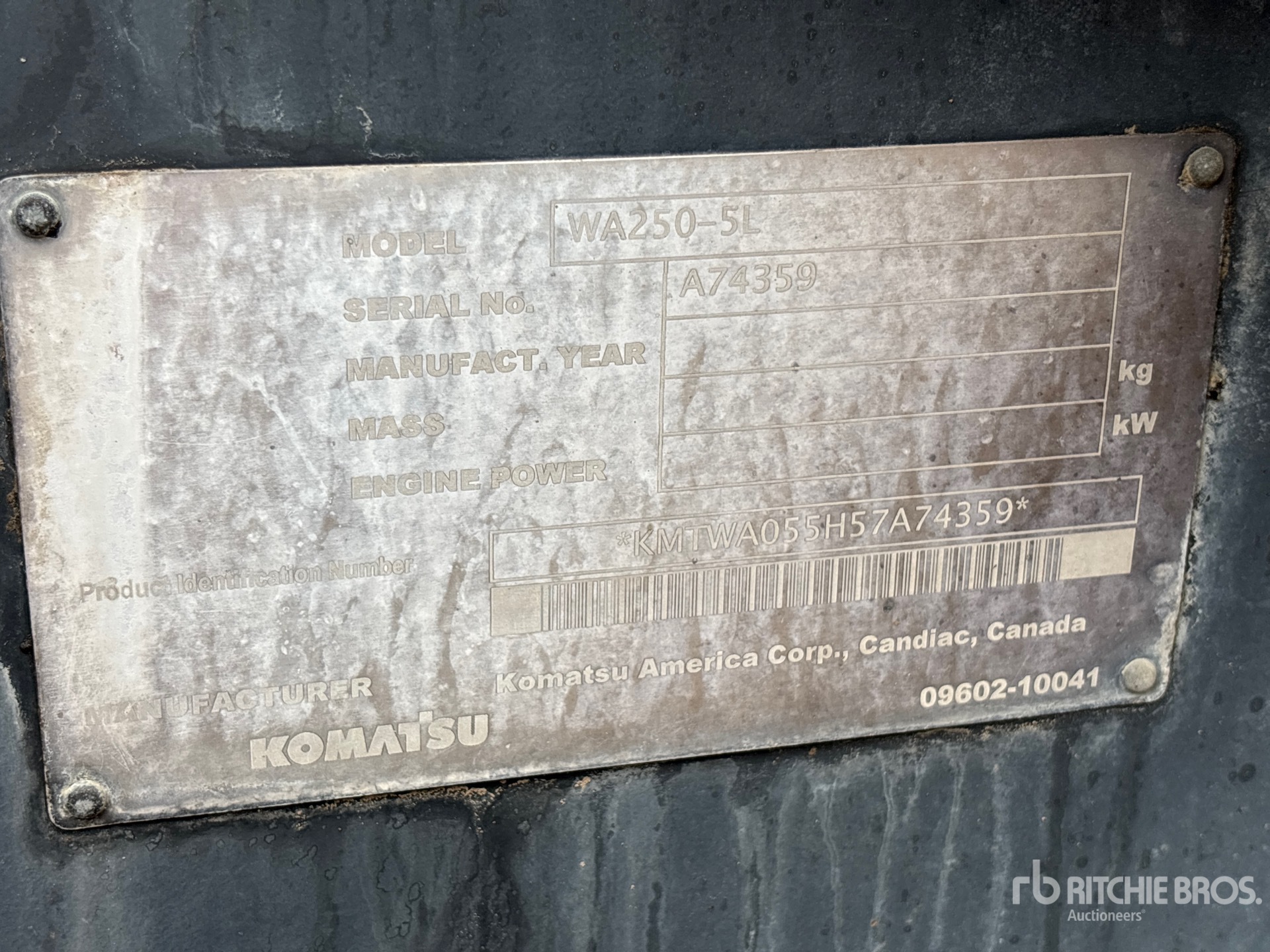

Serial Number:	KMTWA055H57A74359
Machine Location:	LOS ANGELES, CA

Description:

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force	28,101 lbs (12,746 kg)
Bucket Capacity - Heaped	3 cu yd
Bucket Width	8 ft (3 m)
Dump Clearance At Max Raise	10 ft (3 m)
Dimensions
Ground Clearance	2 ft (0 m)
Height	11 ft (3 m)
Height To Top Of Cab	11 ft (3 m)
Hinge Pin - Max Height	12 ft (4 m)
Length	23 ft (7 m)
Length With Bucket On Ground	23 ft (7 m)
Reach At Max Lift And Dump	3 ft (1 m)
Weight	24,850 lbs (11,270 kg)
Wheelbase	10 ft (3 m)
Width	8 ft (2 m)
Width Over Tires	8 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	360 cu in (5,901 cu cm)
Engine Make	2,238
Engine Model	SAA6 D102 E
Gross Power	135 hp (101 kw)
Max Torque	456 lbs ft (618 nm)
Number Of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Dump Time	2 sec
Lower Time	3 sec
Pump Flow Capacity	43 gpm (163 lpm)
Pump Type	Gear Pump
Raise Time	6 sec
Relief Valve Setting	3,046 psi
Operational
Alternator Supplied Amperage	60 amps
Cooling System Fluid Capacity	5 gal (18 l)
Engine Oil Fluid Capacity	5 gal (20 l)
Front Axle/Diff Fluid Capacity	5 gal (18 l)
Fuel Capacity	48 gal (181 l)
Hydraulic System Fluid Capacity	18 gal (67 l)
Operating Voltage	24 V
Operating Weight	25,508 lbs (11,570 kg)
Rear Axle Oscillation	30 degrees
Rear Axle/Diff Fluid Capacity	5 gal (18 l)
Static Tipping Weight	22,068 lbs (10,010 kg)
Tire Size	20.5 R25
Transmission Fluid Capacity	2 gal (7 l)
Turning Radius	17 ft (5 m)
Transmission
Max Speed - Forward	24 mph (38 kph)
Max Speed - Reverse	24 mph (38 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	4
Transmission Type	Electronically controlled hydrostatic
