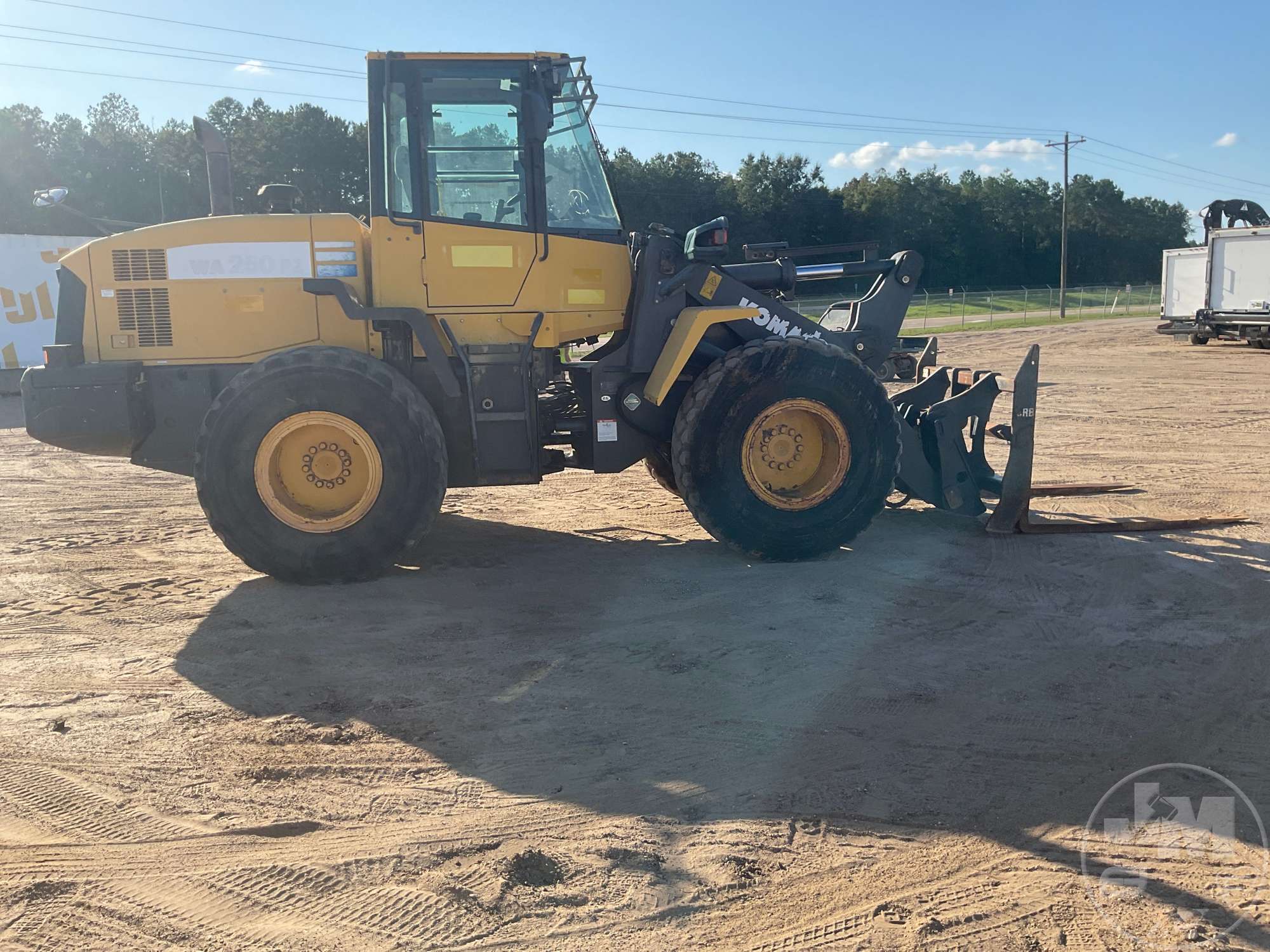

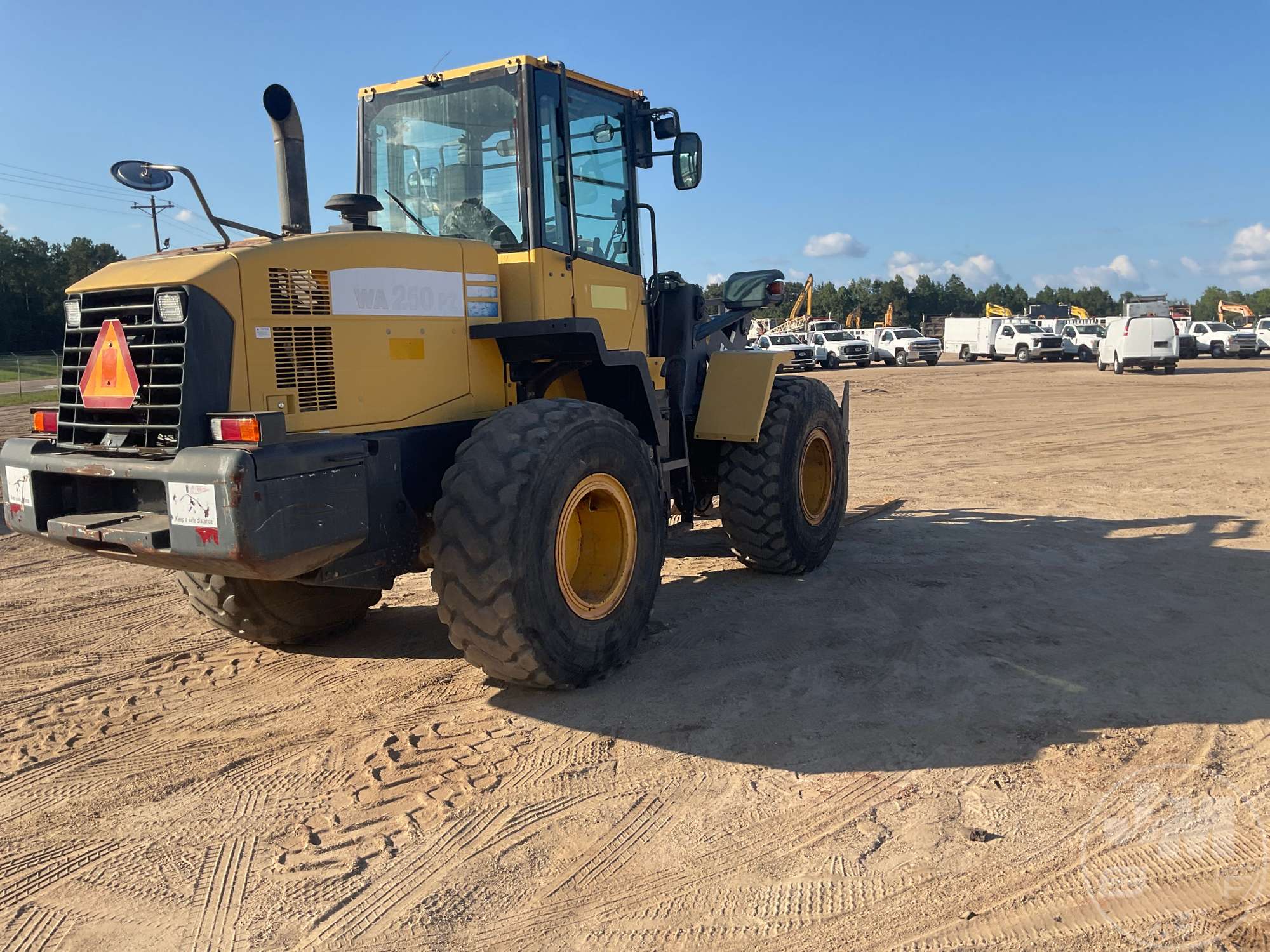

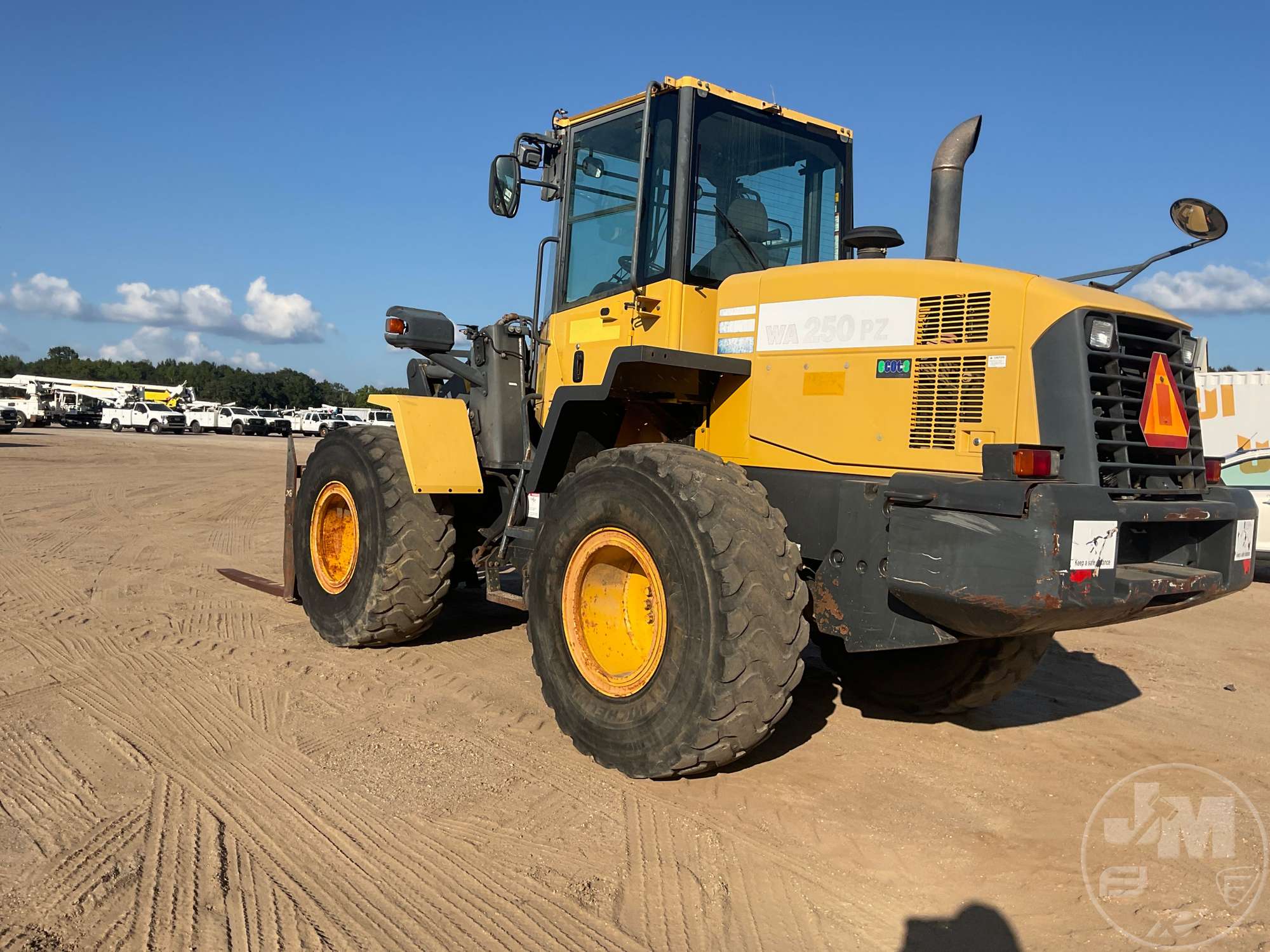

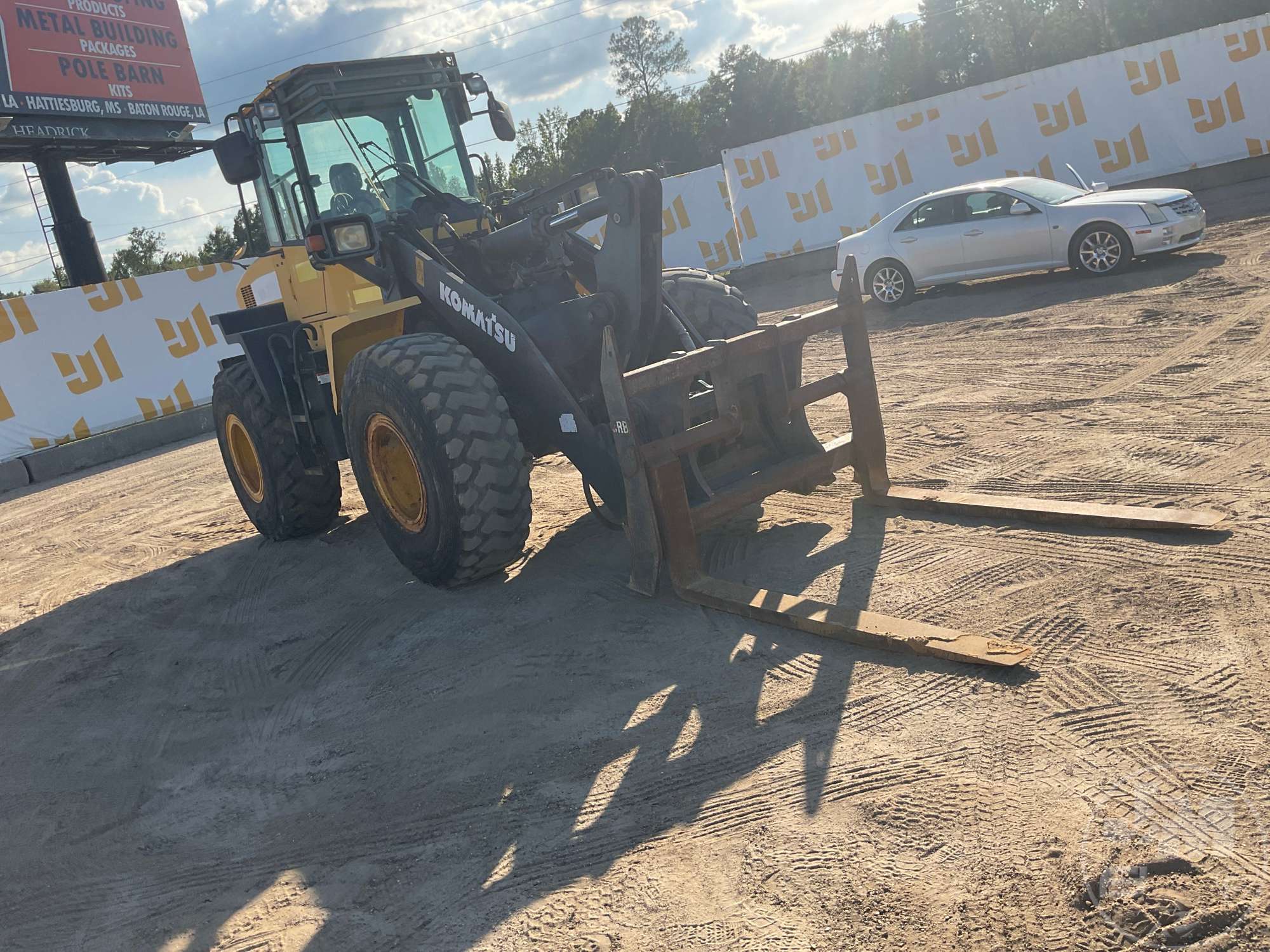

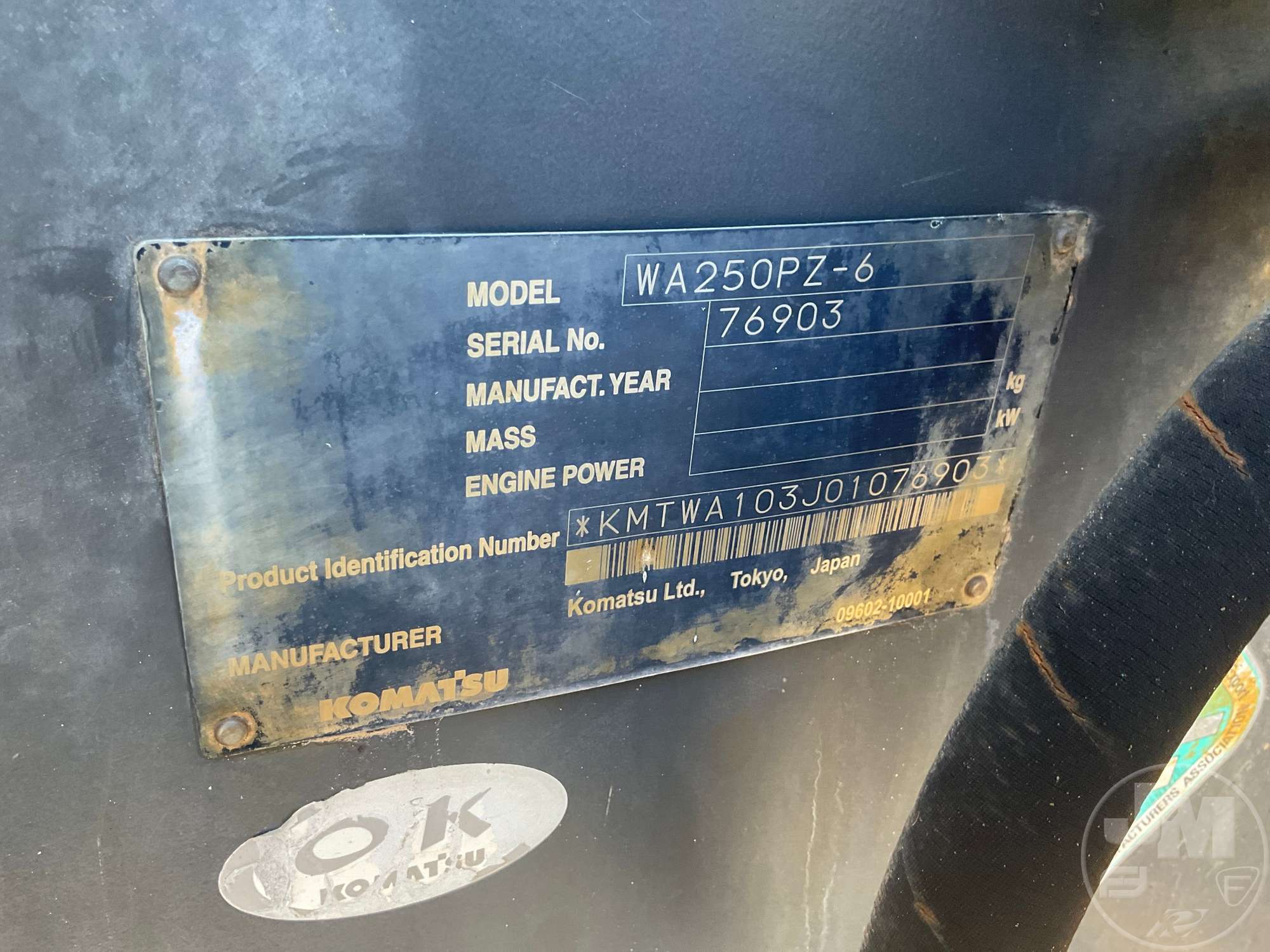

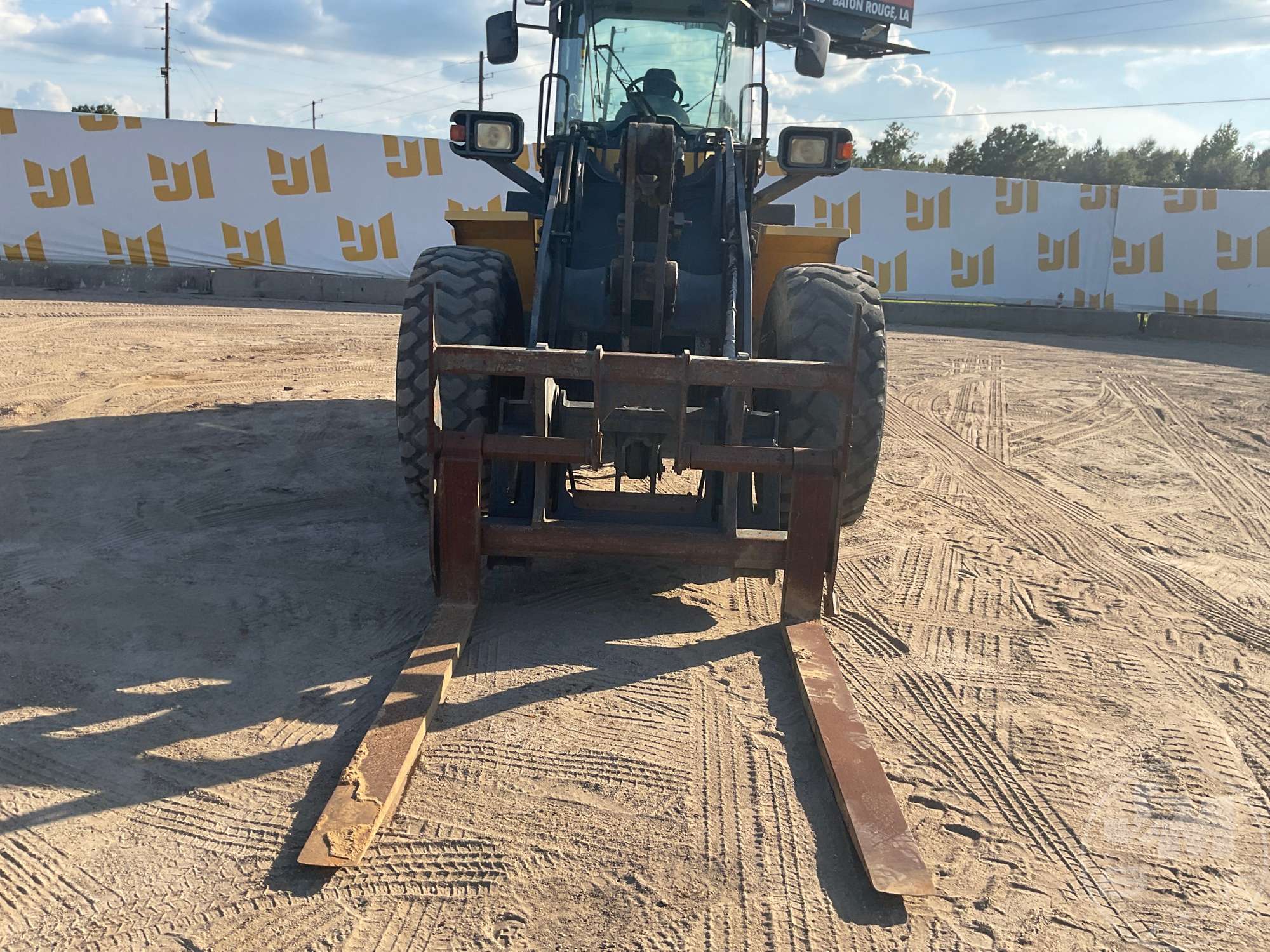

| Axles |
|
Drive System |
Four-wheel drive |
|
Front |
Fixed, semi-floating |
|
Rear |
Center-pin support, semi-floating, 24 ? total oscillation |

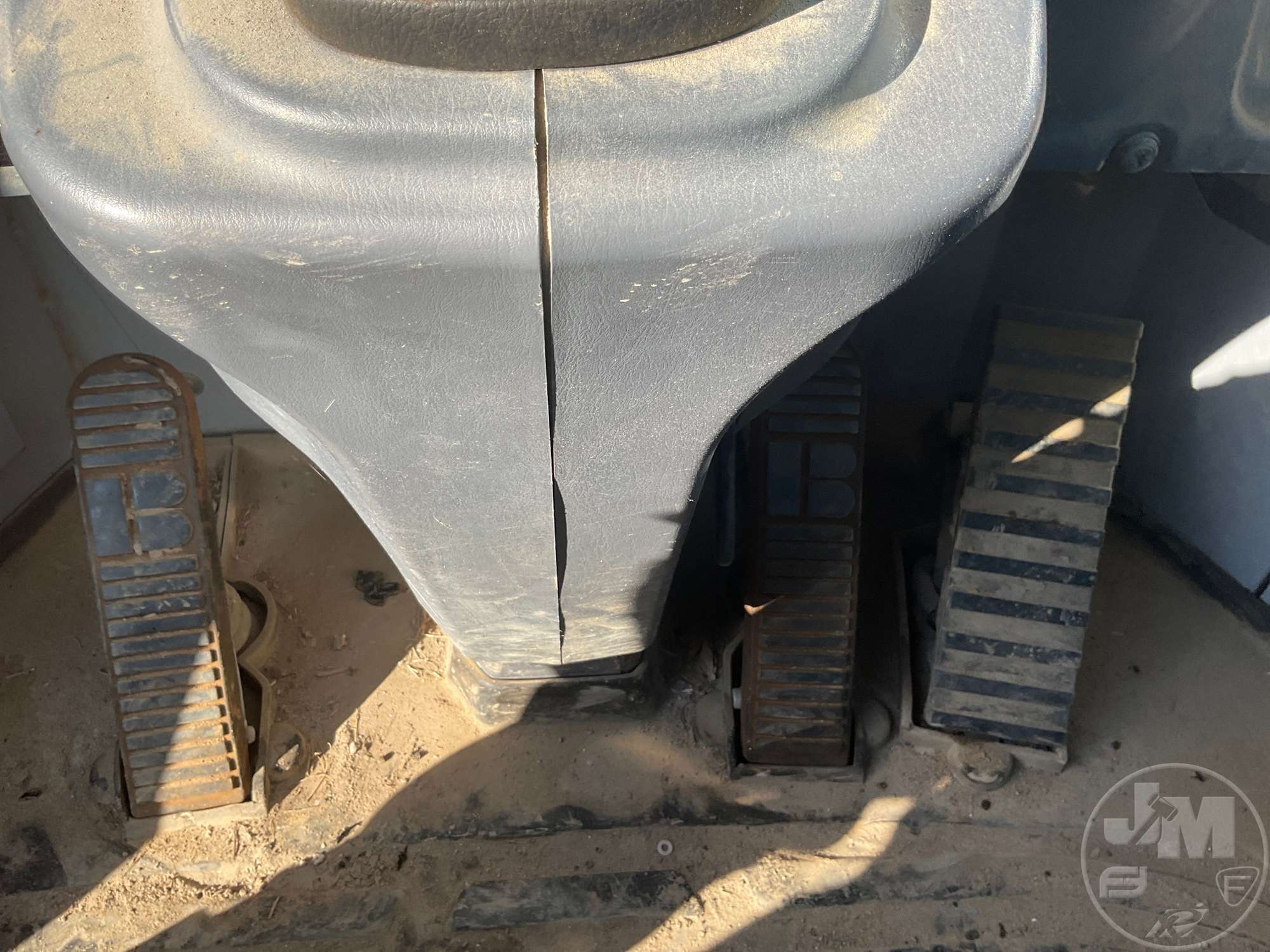

| Brakes |
|
Emergency Brake |
Parking brake is commonly used |
|
Parking Brake |
Wet |
|
Service Brake |
Hydraulically actuated |
| Capacities |
|
Axle Each (Front & Rear) |
5 gal (18 l)
|
|
Cooling System |
6 gal (22 l)
|
|
Engine Oil |
6 gal (23 l)
|
|
Fuel Tank |
49 gal (186 l)
|
|
Hydraulic System |
18 gal (67 l)
|
|
Torque Converter, Transmission And Retarder Cooling |
1 gal (5 l)
|

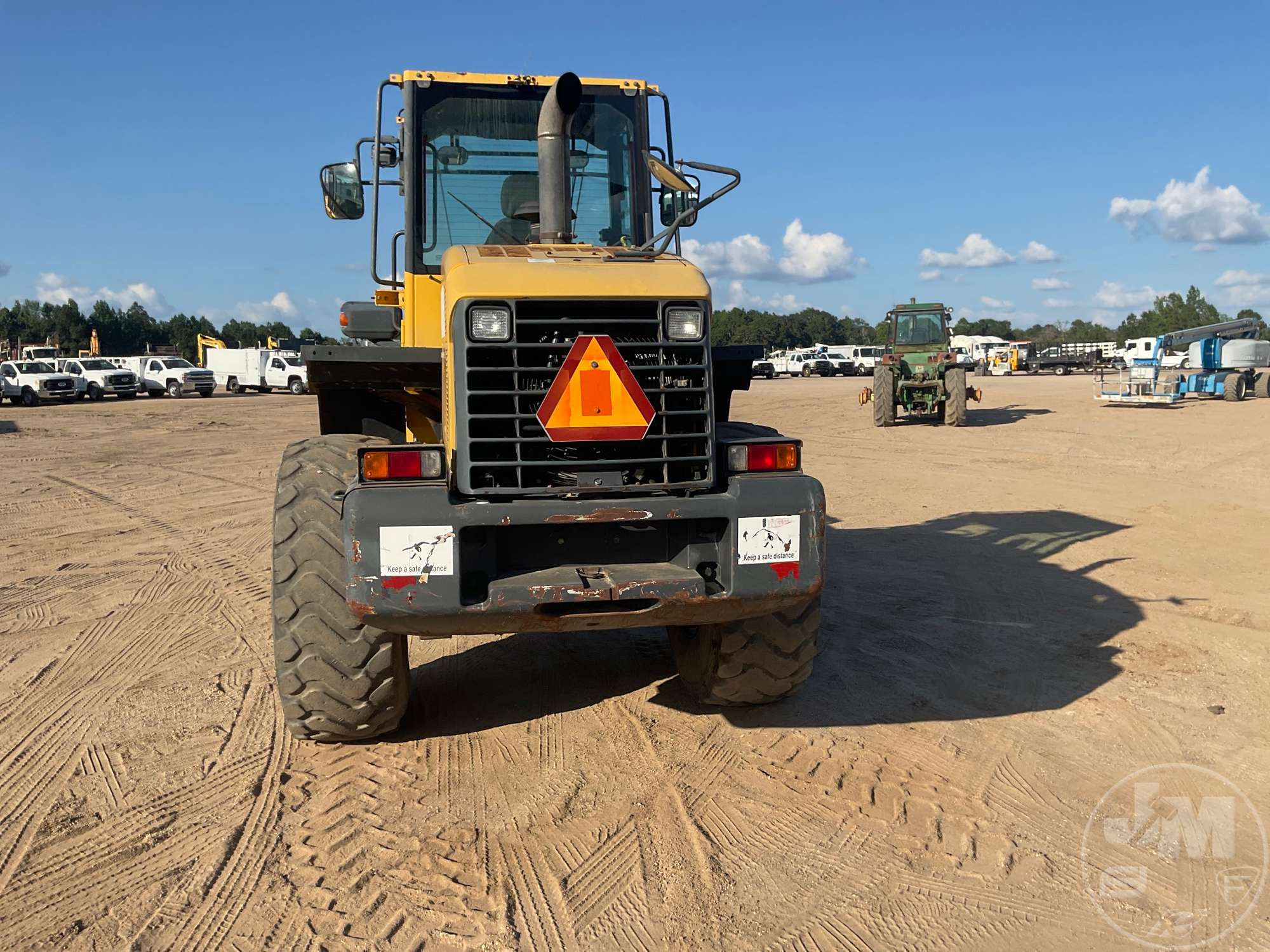

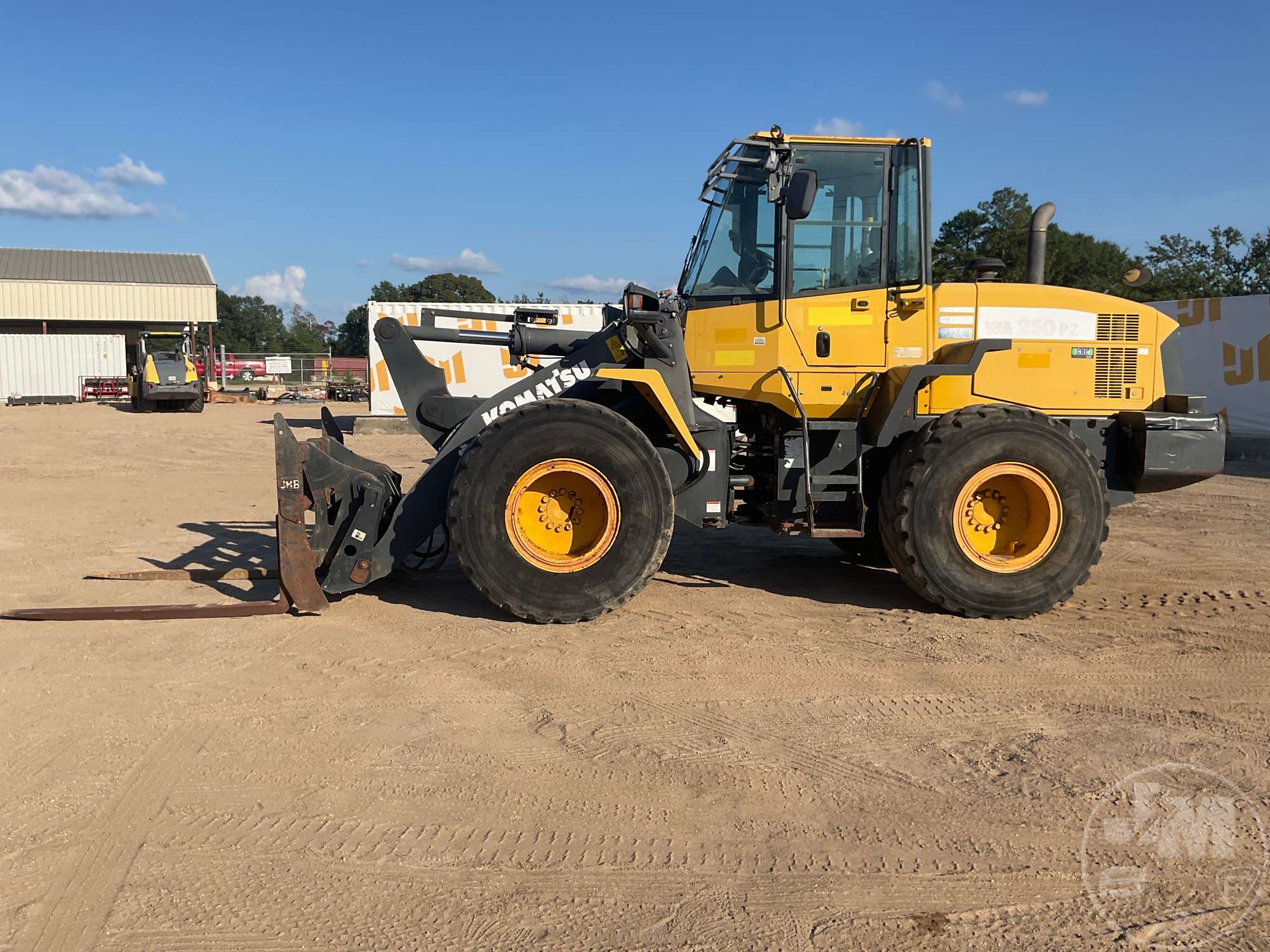

| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Length |
24 ft (7 m)
|
|
Length |
284 in (721 cm)
|
|
Length With Bucket On Ground |
24 ft (7 m)
|
|
Weight |
27,778 lbs (12,600 kg)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width |
8 ft (2 m)
|
|
Width Over Tires |
8 ft (2 m)
|
| Driveline |
|
Brake |
Hydraulic, Wet disc |
|
Maximum Speeds, Fwd / Rev |
24 mph (38 kph)
|
|
Number Of Speeds - Forward |
4 |
|
Number Of Speeds - Reverse |
4 |
|
Ride Control System |
Standard |
|
Transmission |
Hydrostatic |

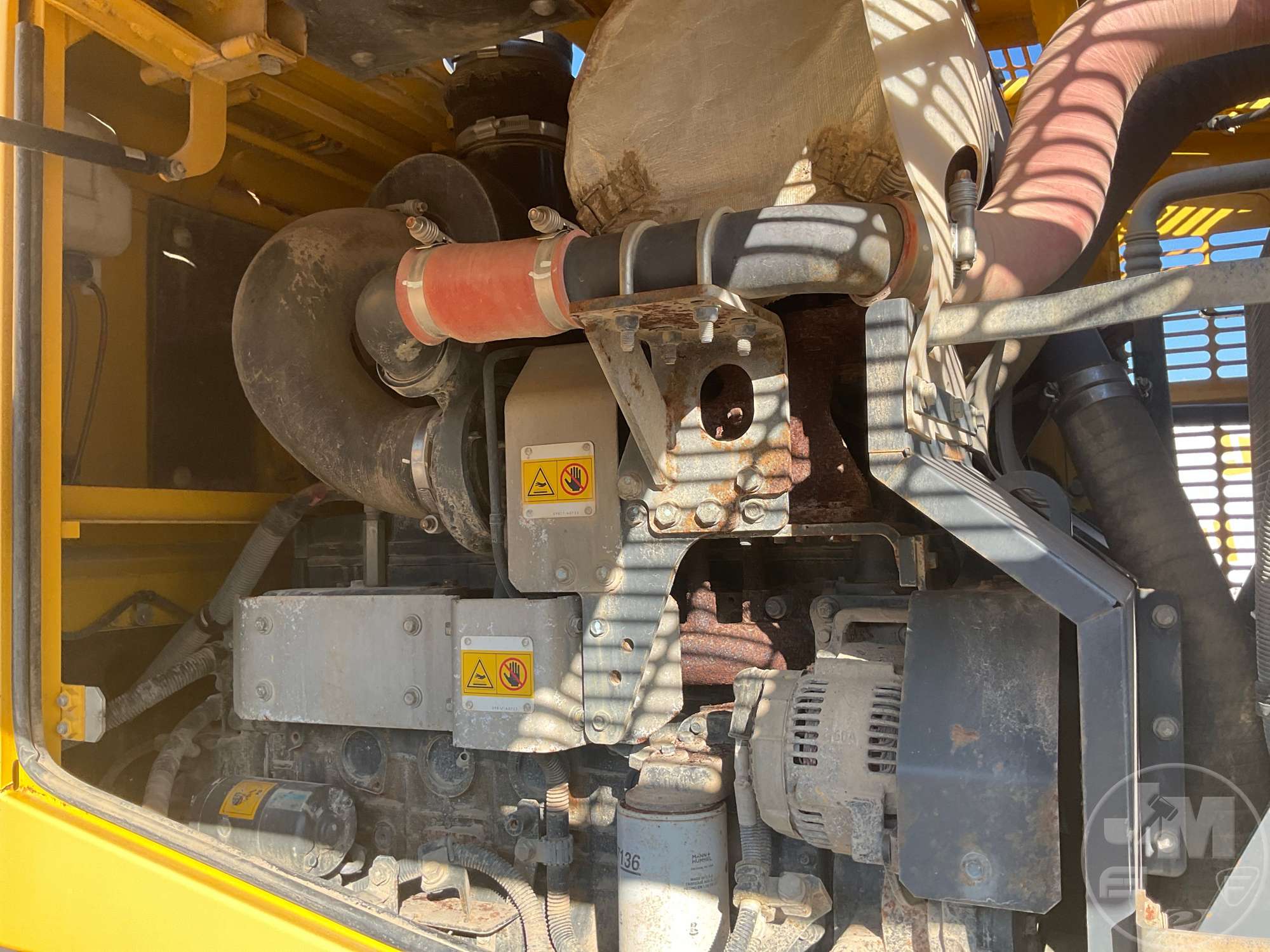

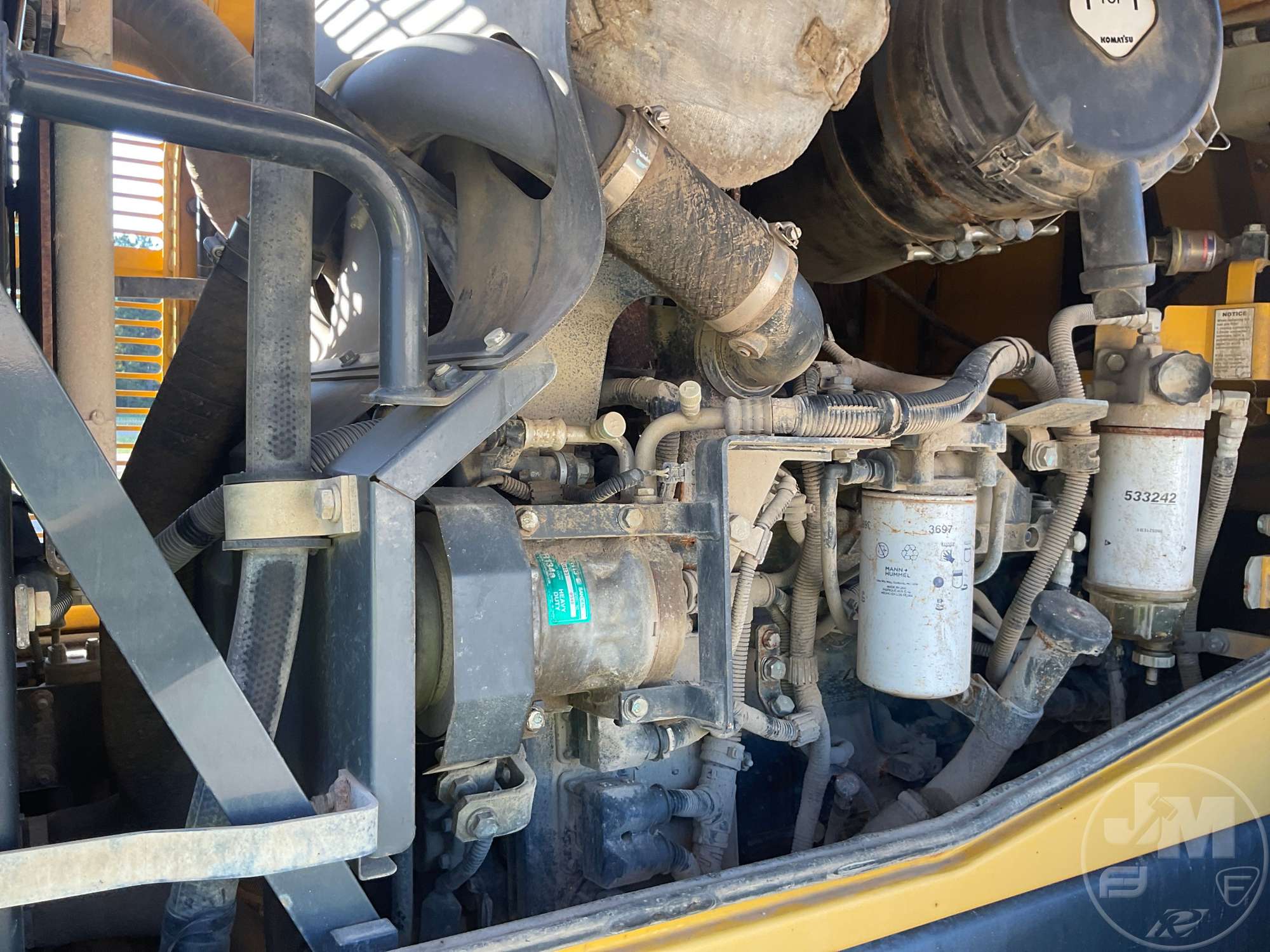

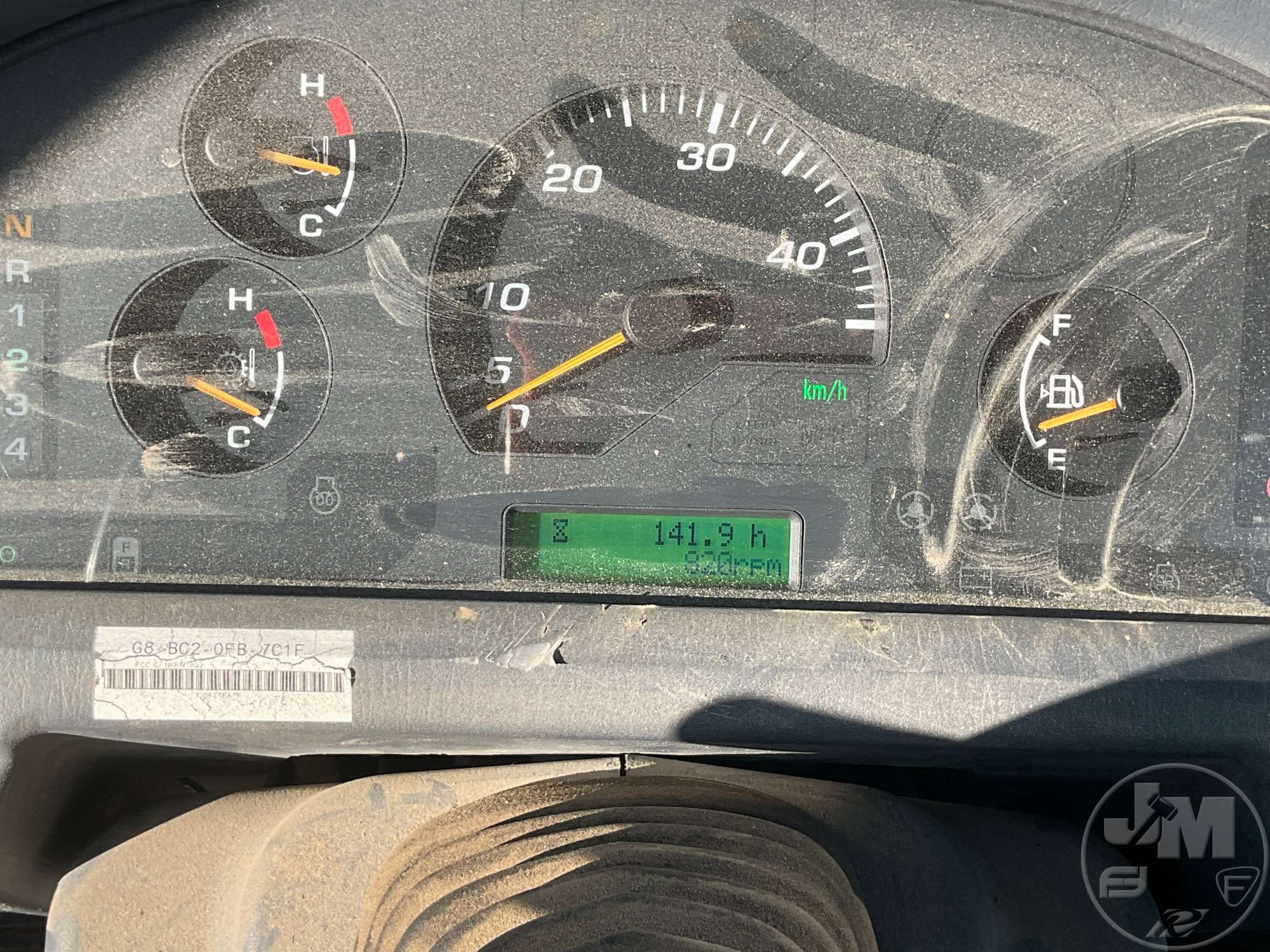

| Engine |
|
Air Cleaner |
Dry type |
|
Aspiration |
Turbocharged, after cooled |
|
Bore |
4 in (11 cm)
|
|
Displacement |
408 cu in (6,691 cu cm)
|
|
Engine Make |
2,238 |
|
Engine Model |
SAA4D107E-1 |
|
Engine Type |
Water-cooled, 4-cycle |
|
Fan Drive Method |
?Hydraulic |
|
Filter |
Full-flow type |
|
Fuel System |
Direct injection |
|
Governor |
All-speed, electronic |
|
Horsepower, Gross-Sae J1995 |
140 hp (104 kw)
|
|
Horsepower, Net-Iso 9249 |
138 hp (103 kw)
|
|
Horsepower, Net-Sae J1349 |
138 hp (103 kw)
|
|
Lubrication Method |
Gear pump, force-lubricatio |
|
Number Of Cylinders |
6 |
|
Piston Displacement |
408 cu in (6,691 cu cm)
|
|
Power Measured @ |
2,000 rpm |
|
Stroke |
5 in (12 cm)
|
| Final Drive |
|
Differential Gear |
Torque proportioning |
|
Final Reduction Gear |
Planetary gear, single reduction |
|
Reduction Gear |
Spiral bevel gear |

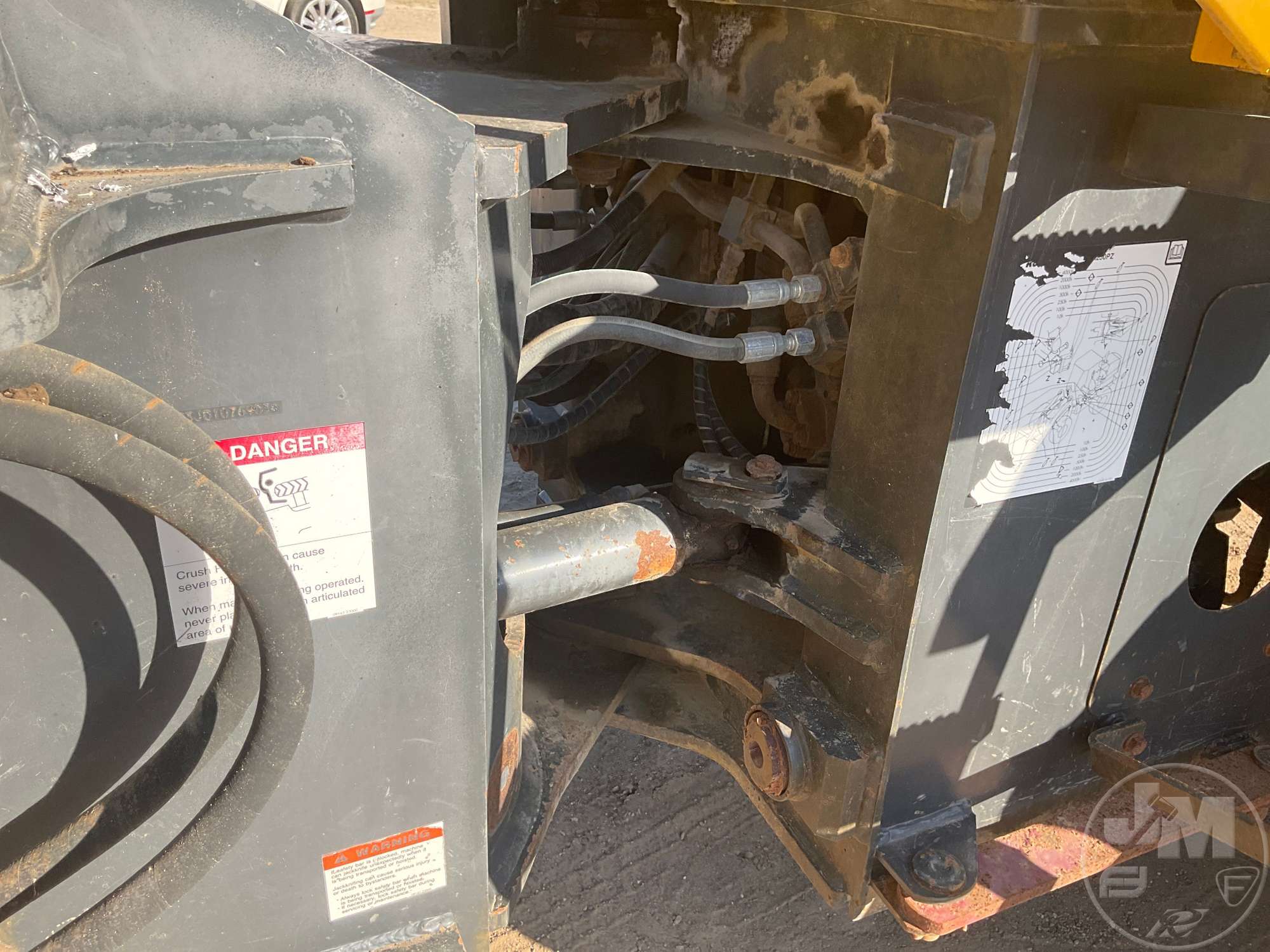

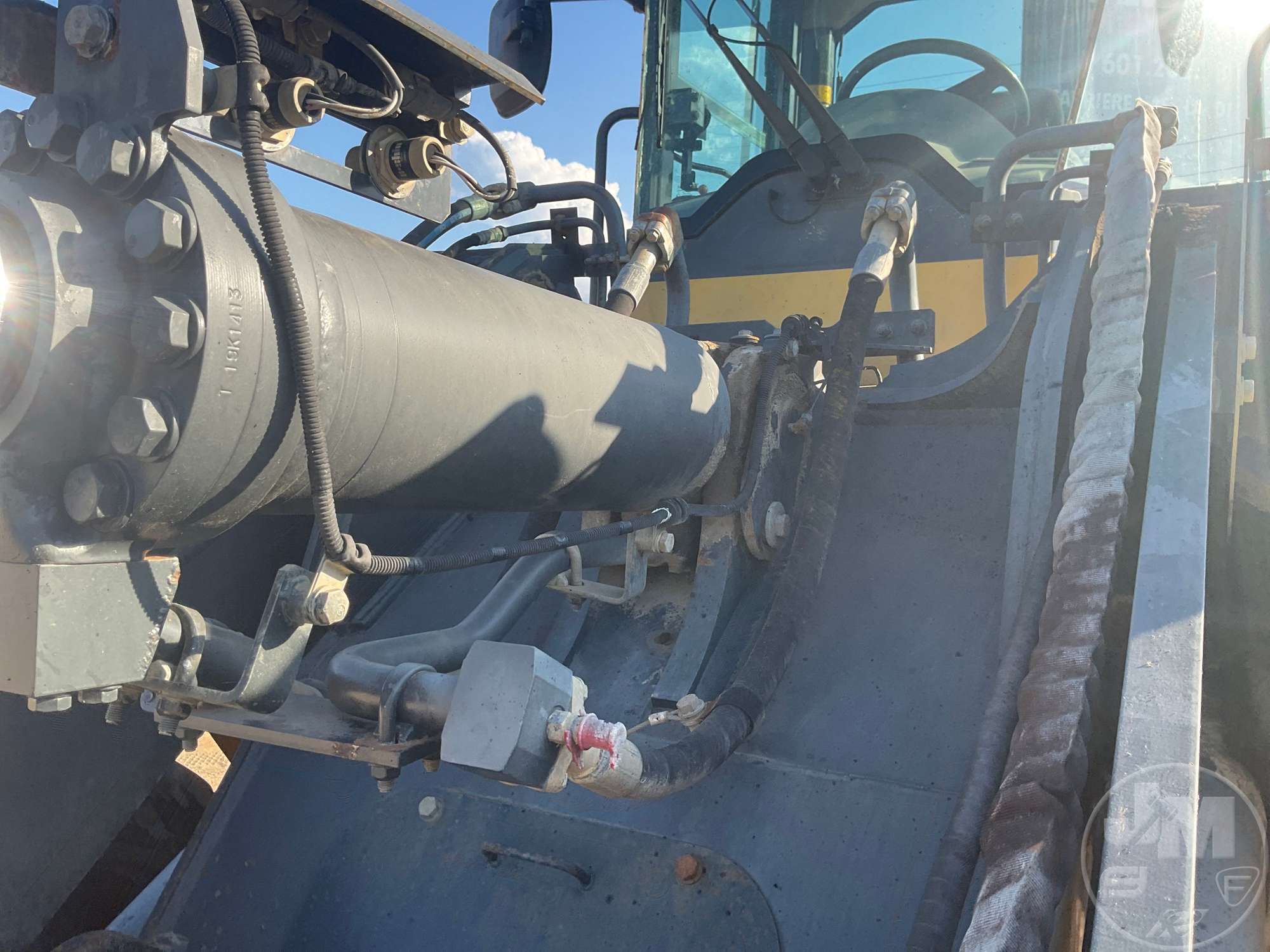

| Hydraulic System |
|
Bore |
3 in (7 cm)
|
|
Bucket Cylinde Bore |
7 in (17 cm)
|
|
Bucket Cylinde Stroke |
19 in (48 cm)
|
|
Control Positions Boom |
Raise, hold, lower, and float |
|
Control Positions Bucket |
Tilt-back, hold, and dump |
|
Control Valve |
3-spool type |
|
Dump Time |
2 sec |
|
Hydraulic Cylinders Type |
Double-acting, piston type |
|

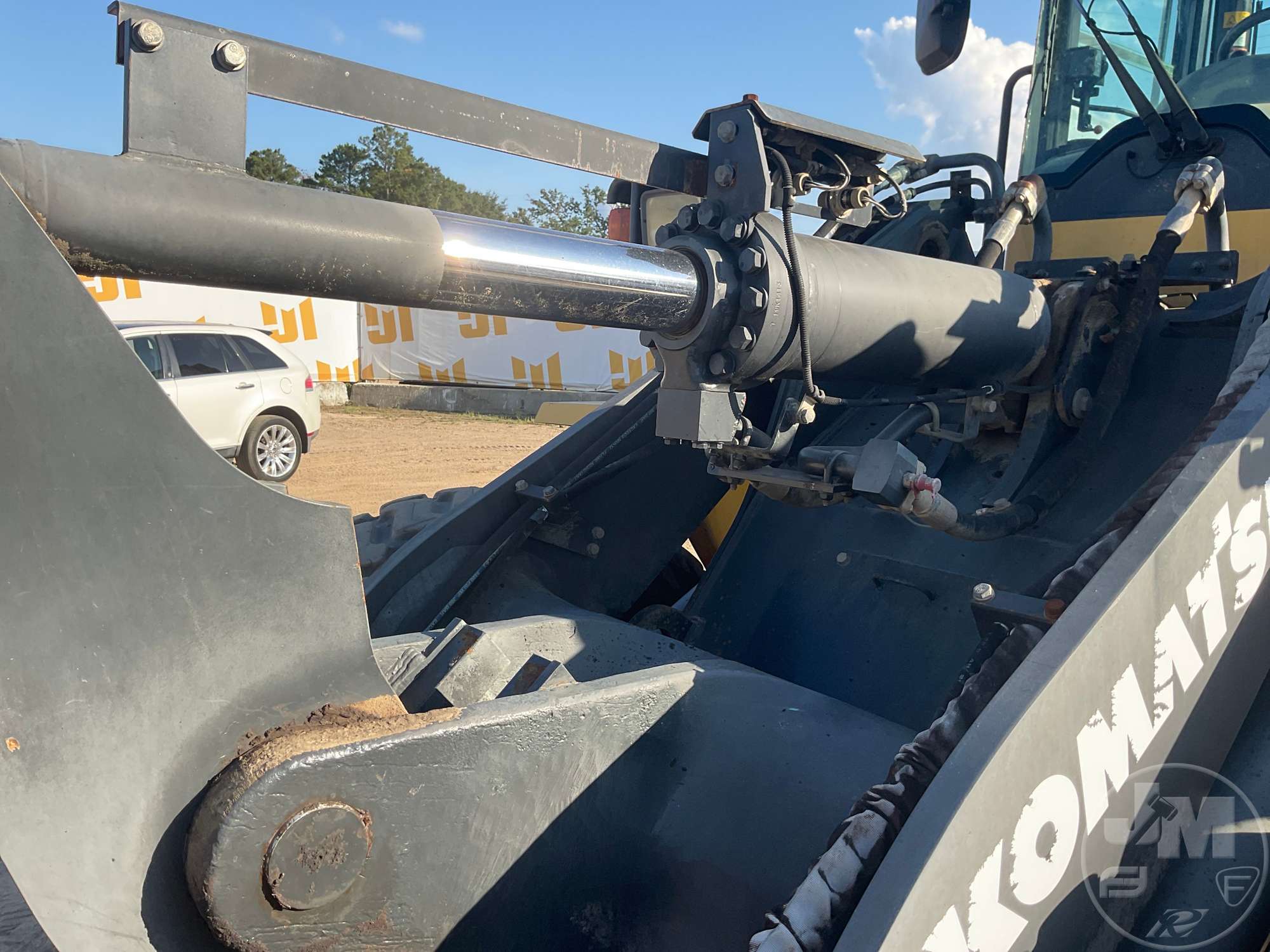

Lift Cylinder |
2 |
|
Lift Cylinder Bore |
5 in (13 cm)
|
|
Lift Cylinder Stroke |
28 in (72 cm)
|
|

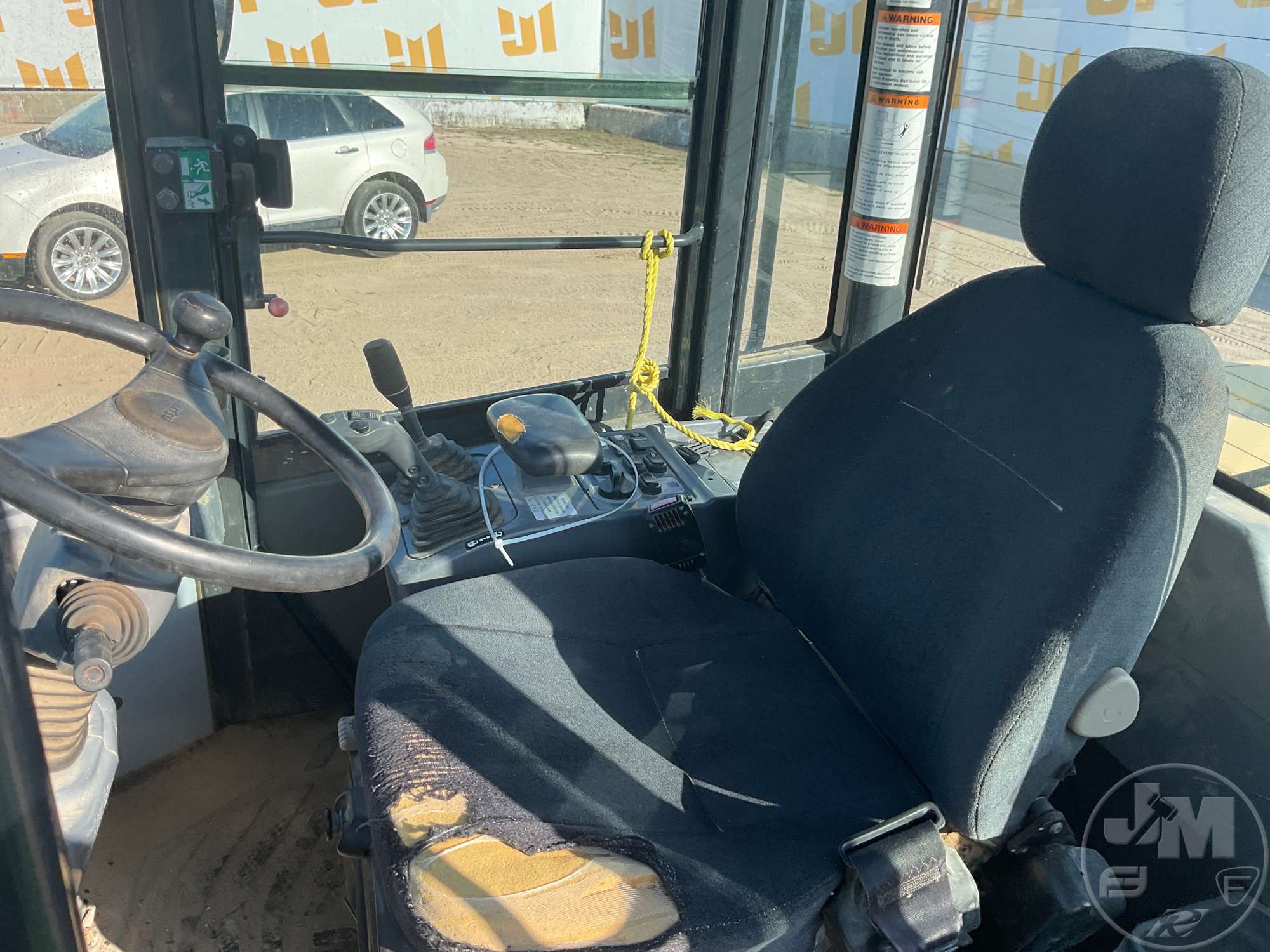

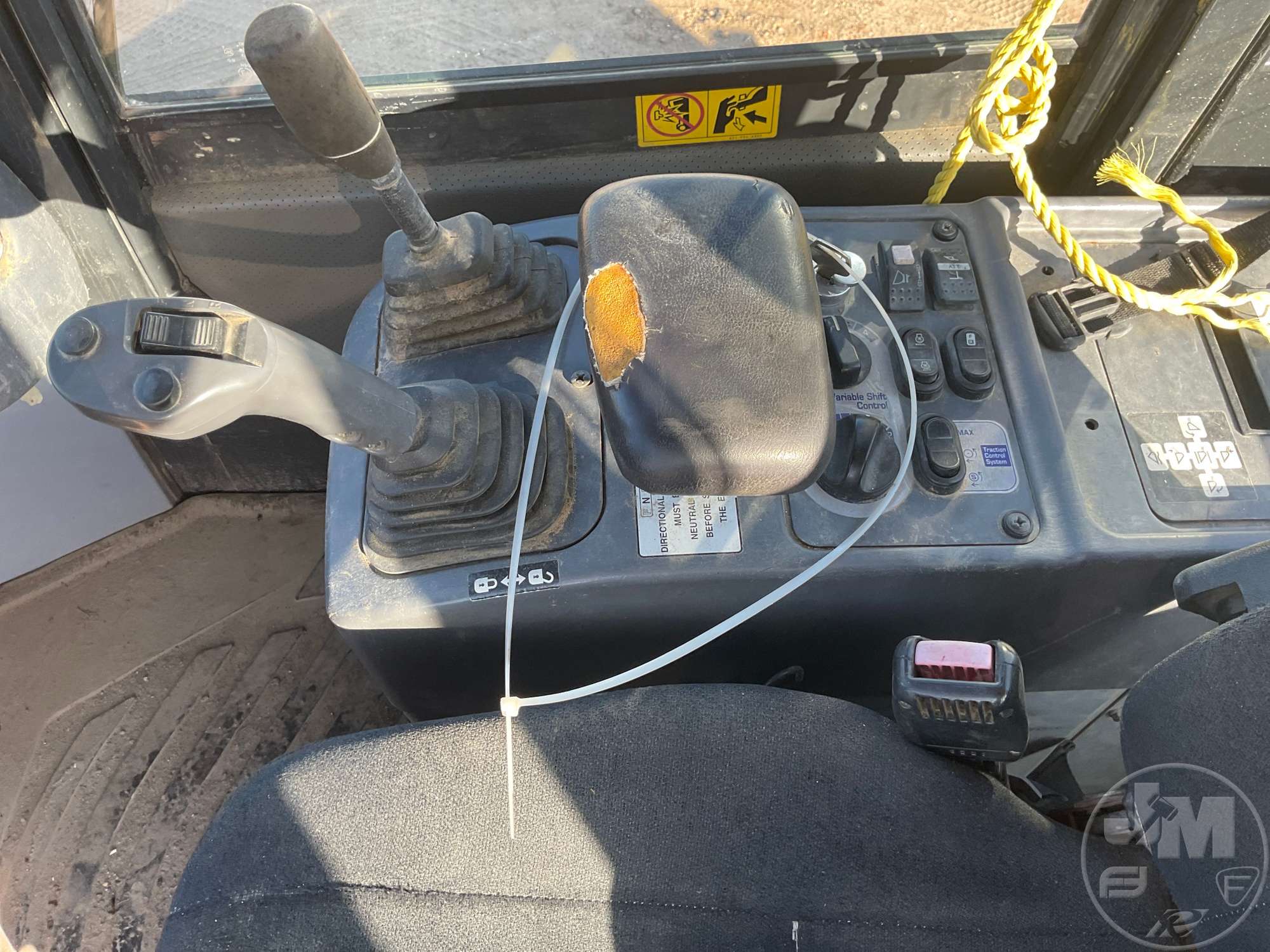

Loader Control Type |
Gear |
|
Loader Control_Capcity |
21 gal (78 l)
|
|
Lower Time |
3 sec |
|
Number Of Cylinders |
2 |
|
Pump Flow Capacity |
29 gpm (110 lpm)
|
|
Pump Type |
Gear type pump |
|
Raise Time |
6 sec |
|
Relief Valve Setting |
186 MPa 190 kgf/cm 2 2,700 psi |
|
Steering Pump Type |
Gear |
|
Stroke |
18 in (45 cm)
|

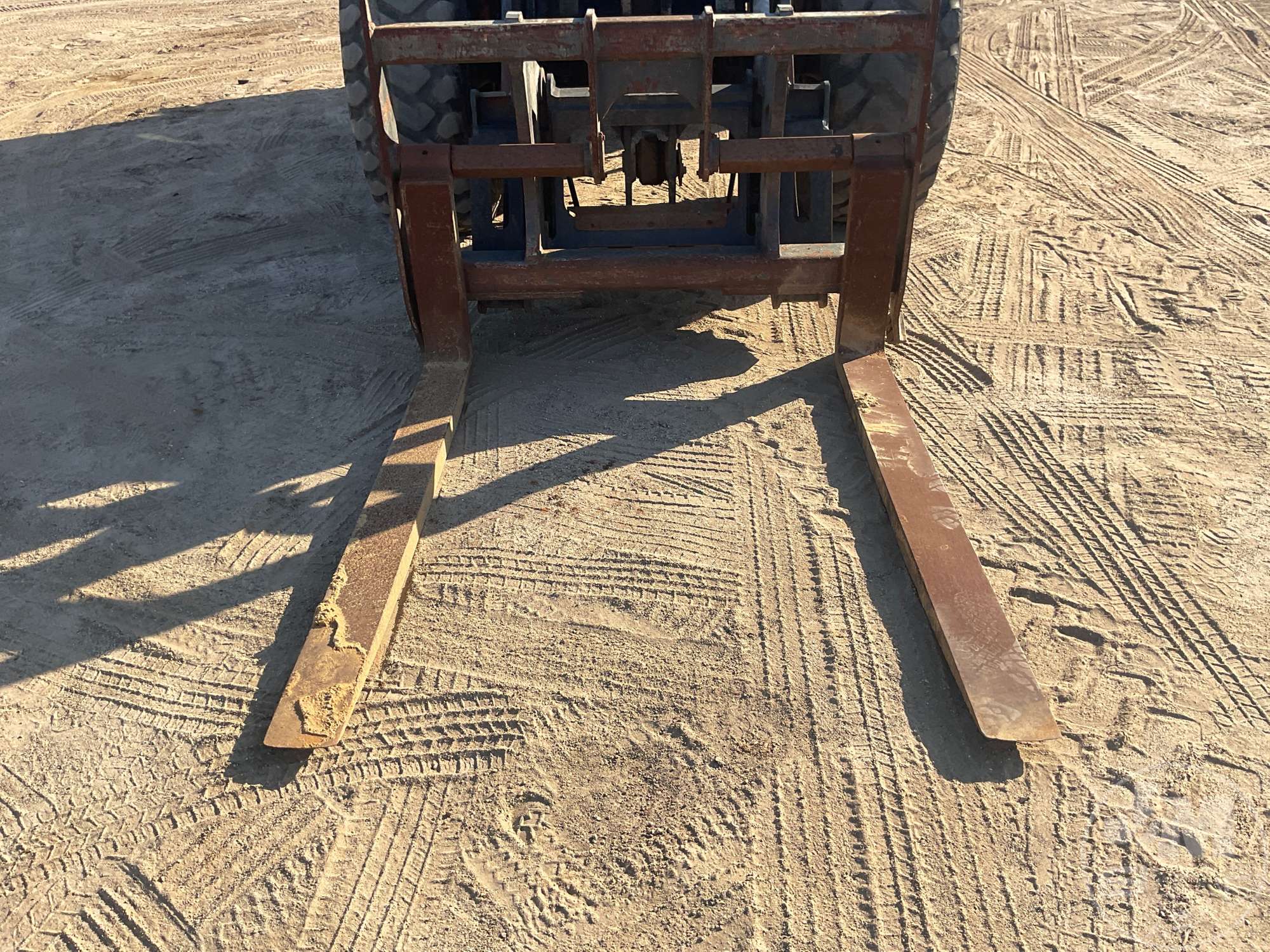

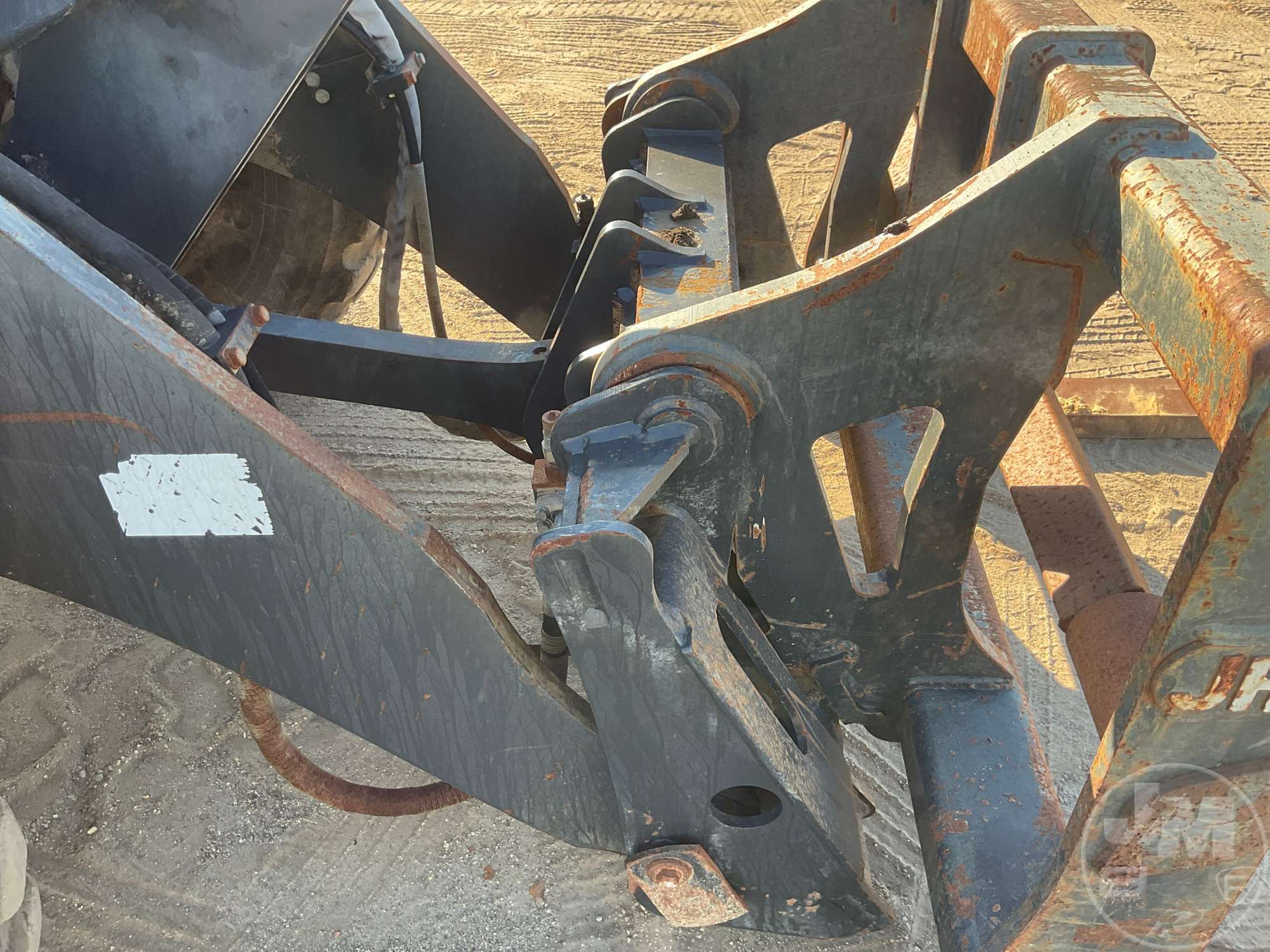

| Operational |
|
Breakout Force |
13,380 kgf |
|
Bucket Capacity Range – Sae |
On request |
|

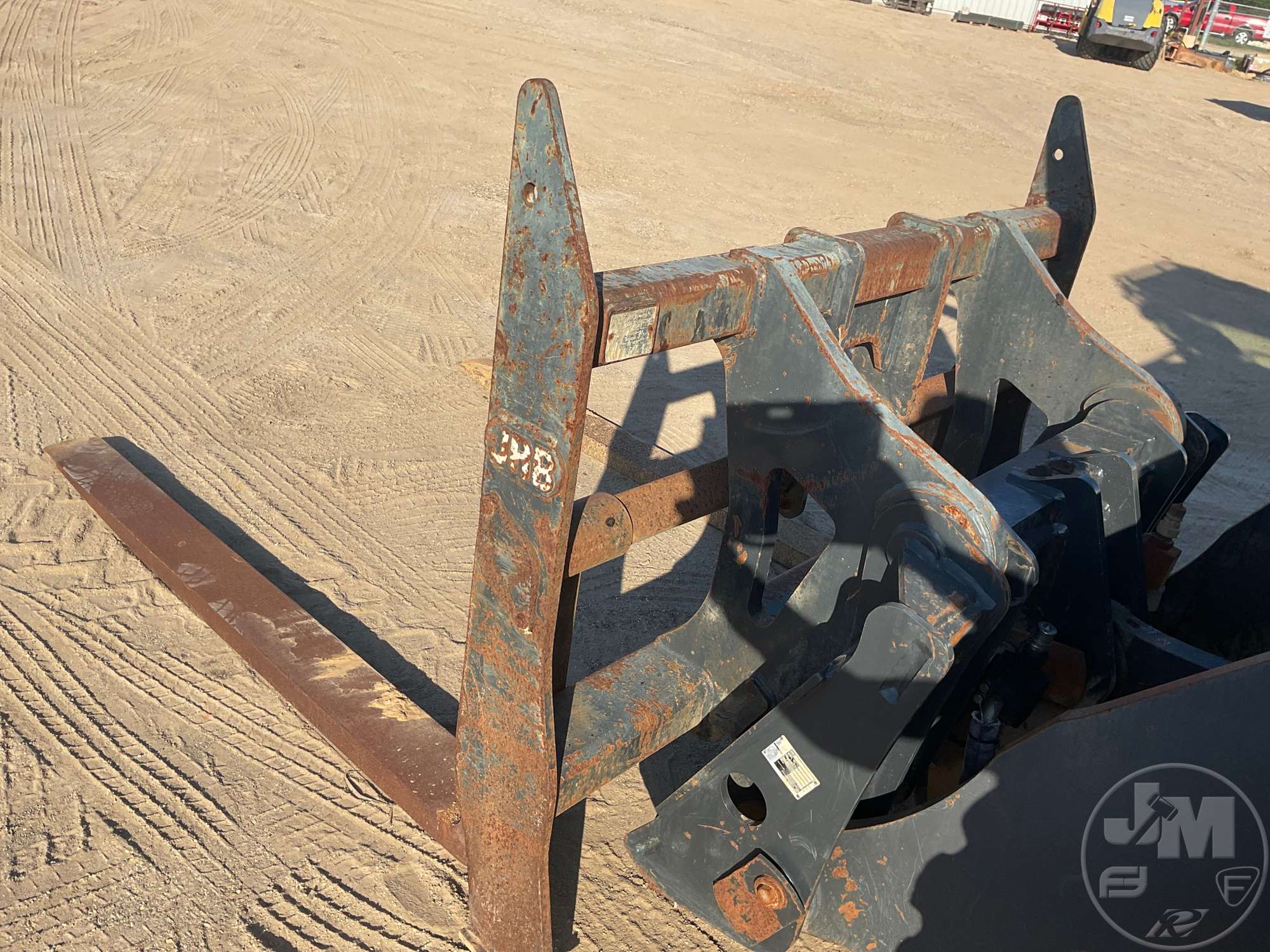

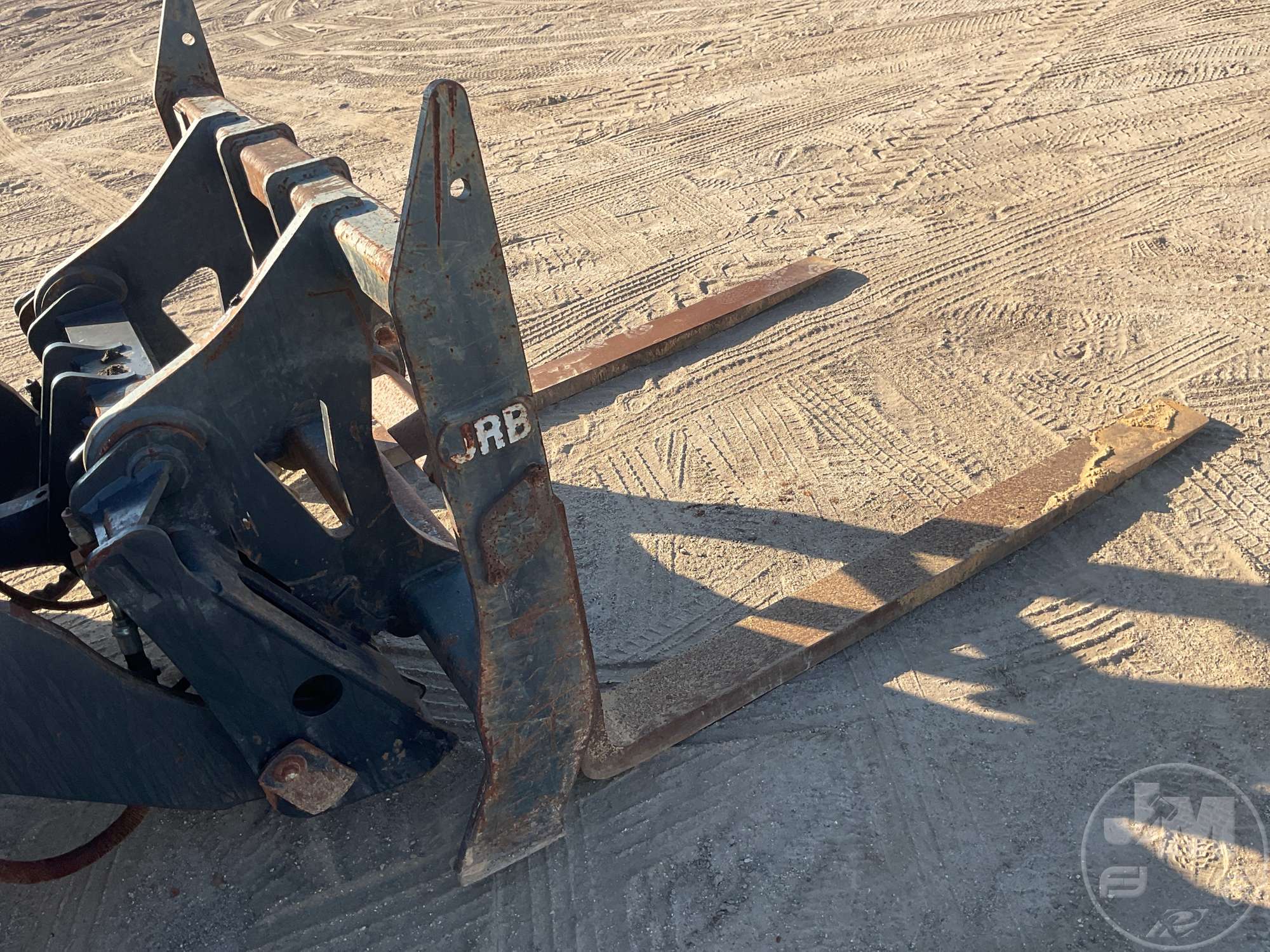

Bucket Description |
GP Bucket, Bolt Edge |
|
Bucket Link Type |
Z-Bar |
|
Bucket Width |
8 ft (3 m)
|
|
Dump Clearance, @45 Degrees Dump Angle |
10 ft (3 m)
|
|
Dump Reach, @45 Degrees Dump Angle |
3 ft (1 m)
|
|
Standard Bucket Capacity – Sae |
3 cu yd |
|
Static Tipping Load,Full Turn |
18,012 lbs (8,170 kg)
|

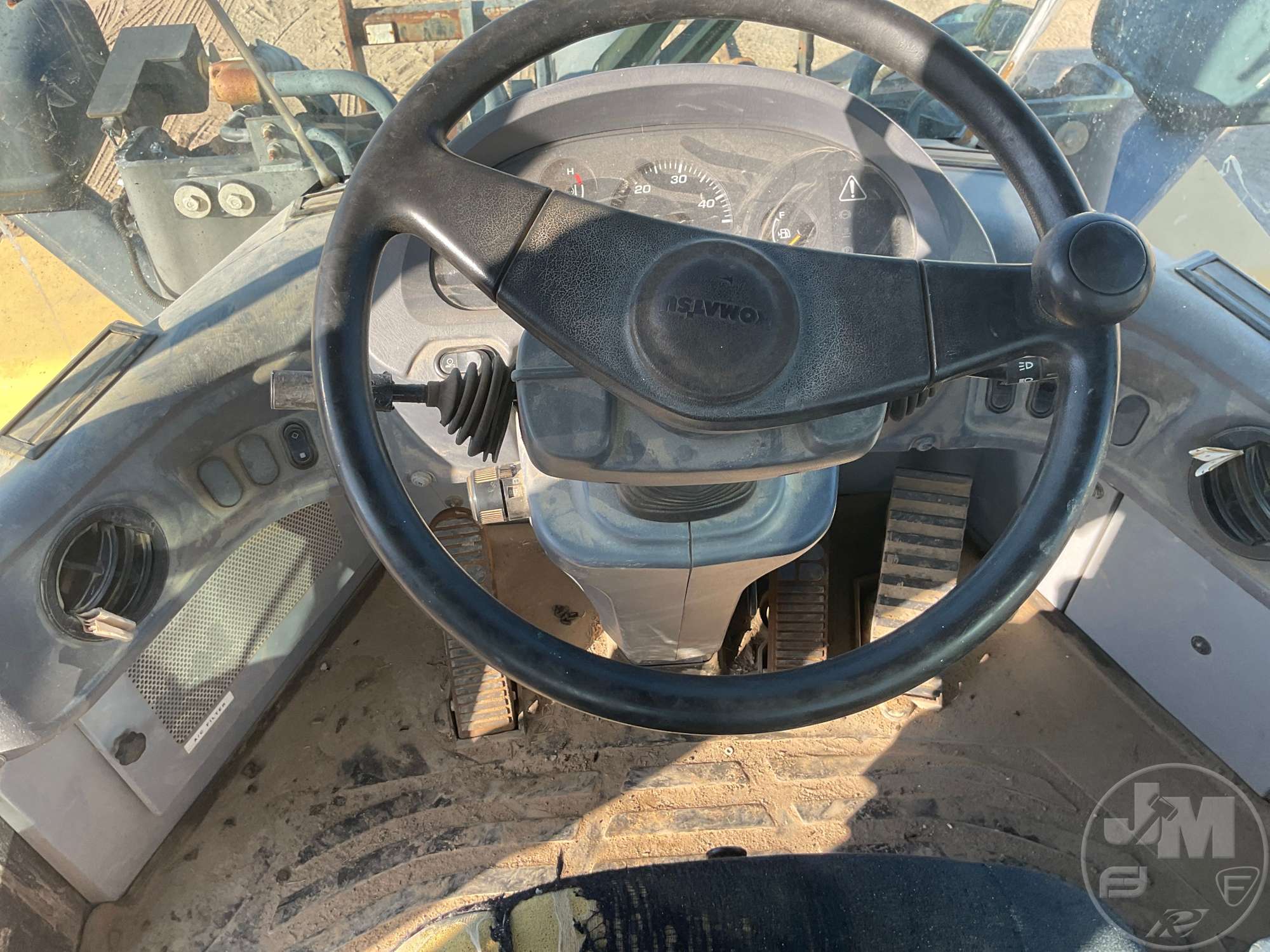

| Steering System |
|
Minimum Turning Radius At The Centre Of Outside Tire |
17 ft (5 m)
|
|
Steering System Type |
Full-hydraulic power steering |

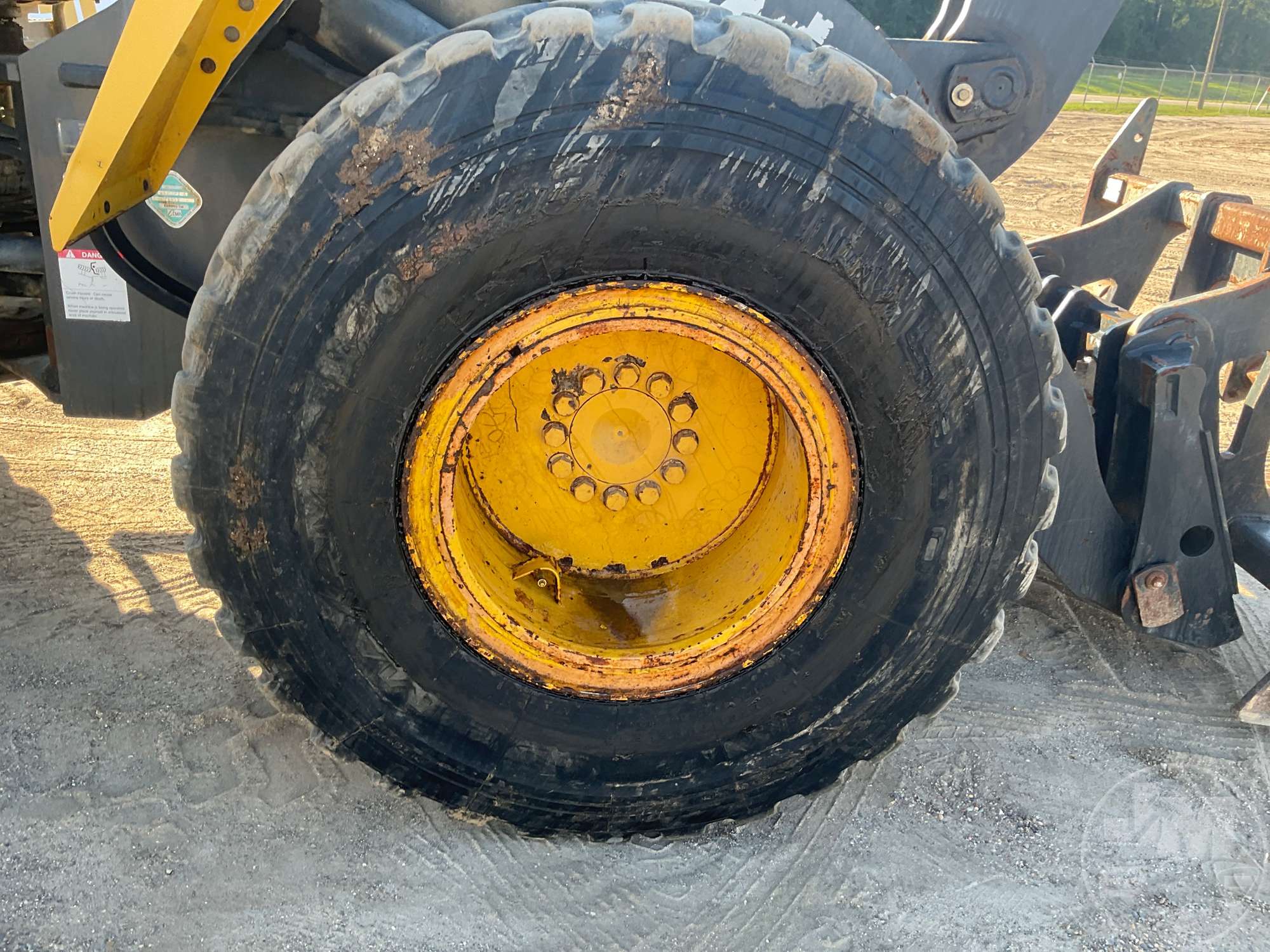

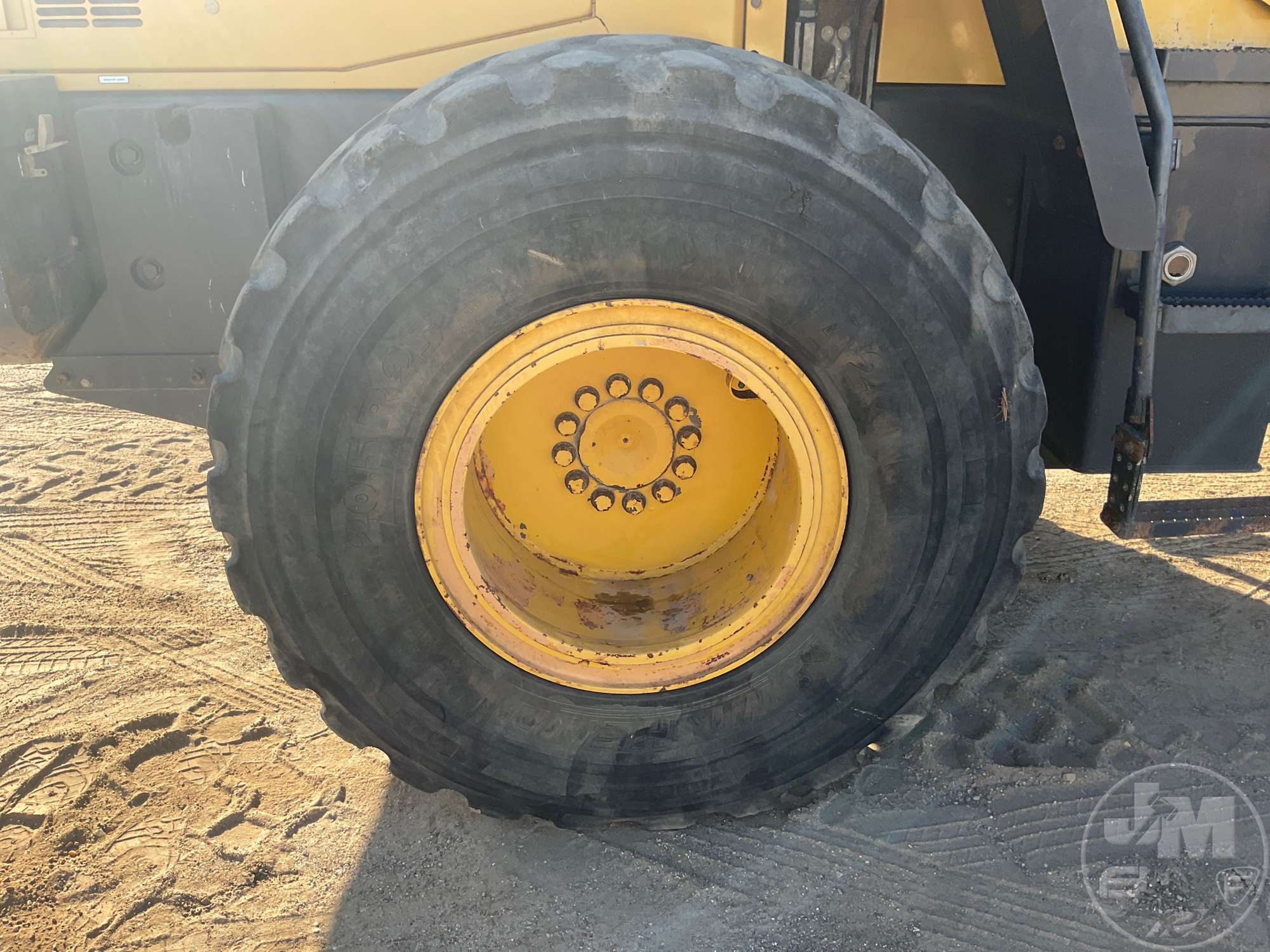

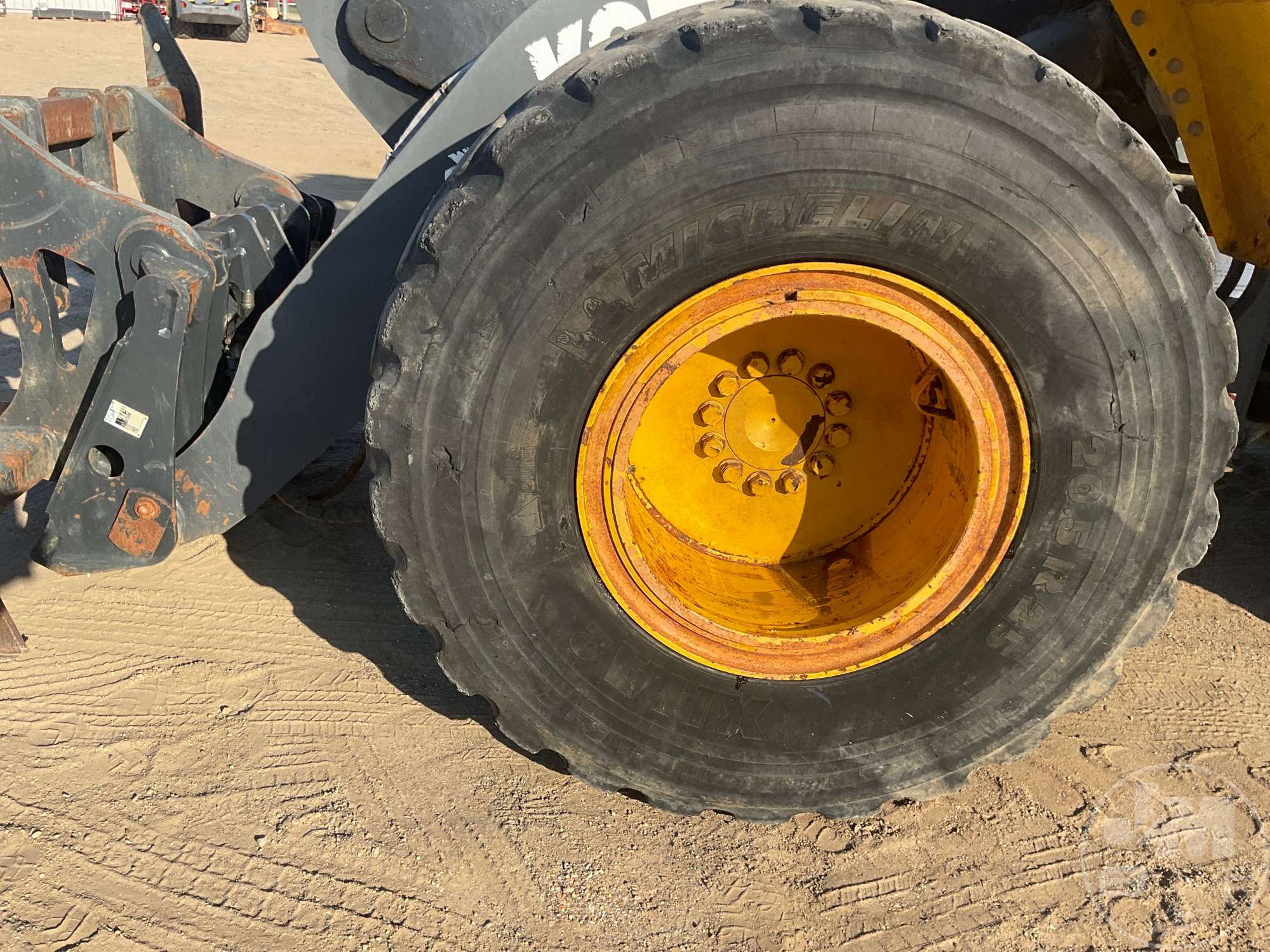

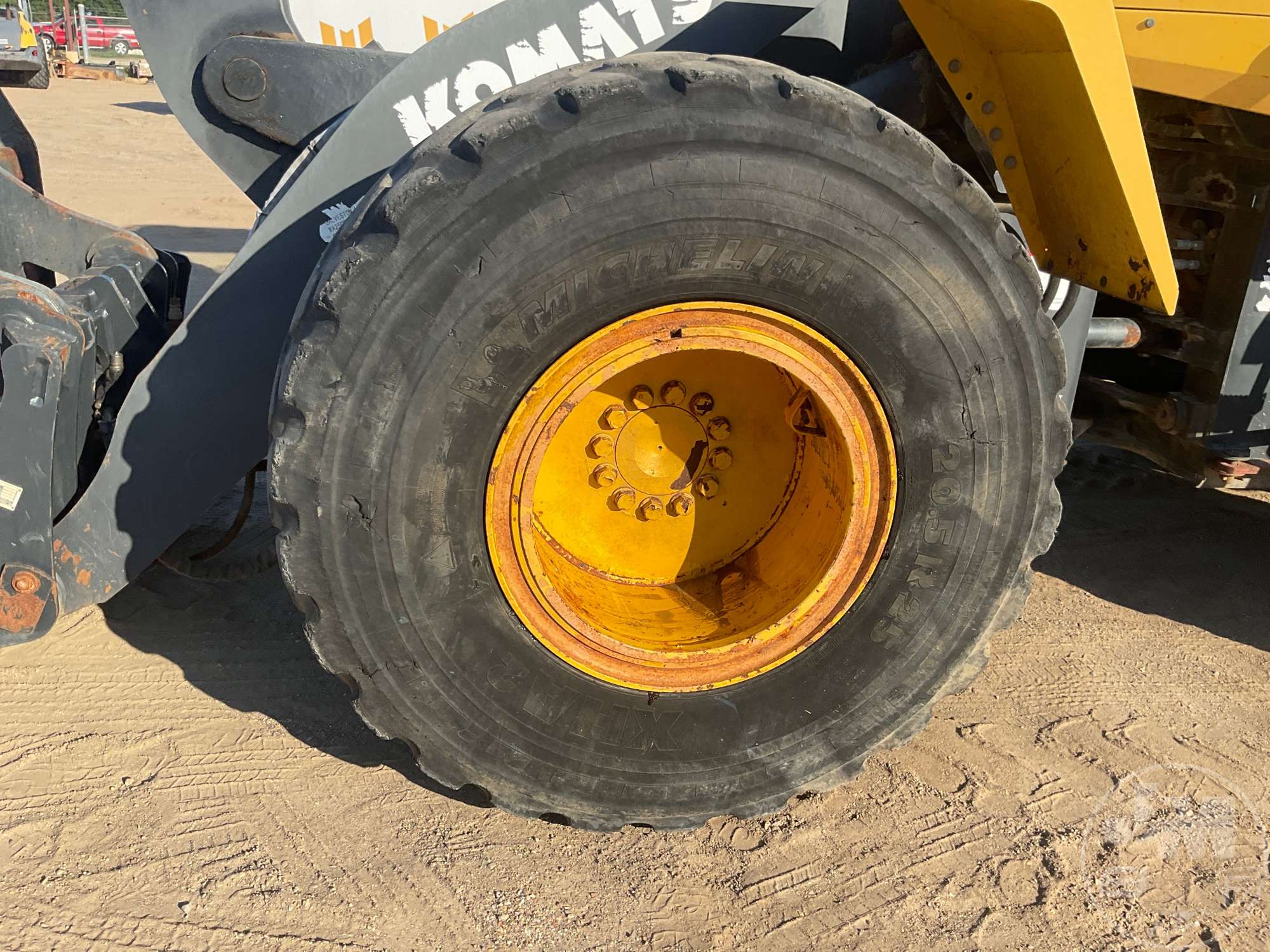

| Tires |
|
Standard Fitment Size |
20.5 R25 L3 |
| Transmission |
|
Max Speed - Forward |
24 mph (38 kph)
|
|
Max Speed - Reverse |
24 mph (38 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
4 |
|
Transmission Type |
Hydrostatic |
| Weights |
|
Operating Weight |
26,709 lbs (12,115 kg)
|
