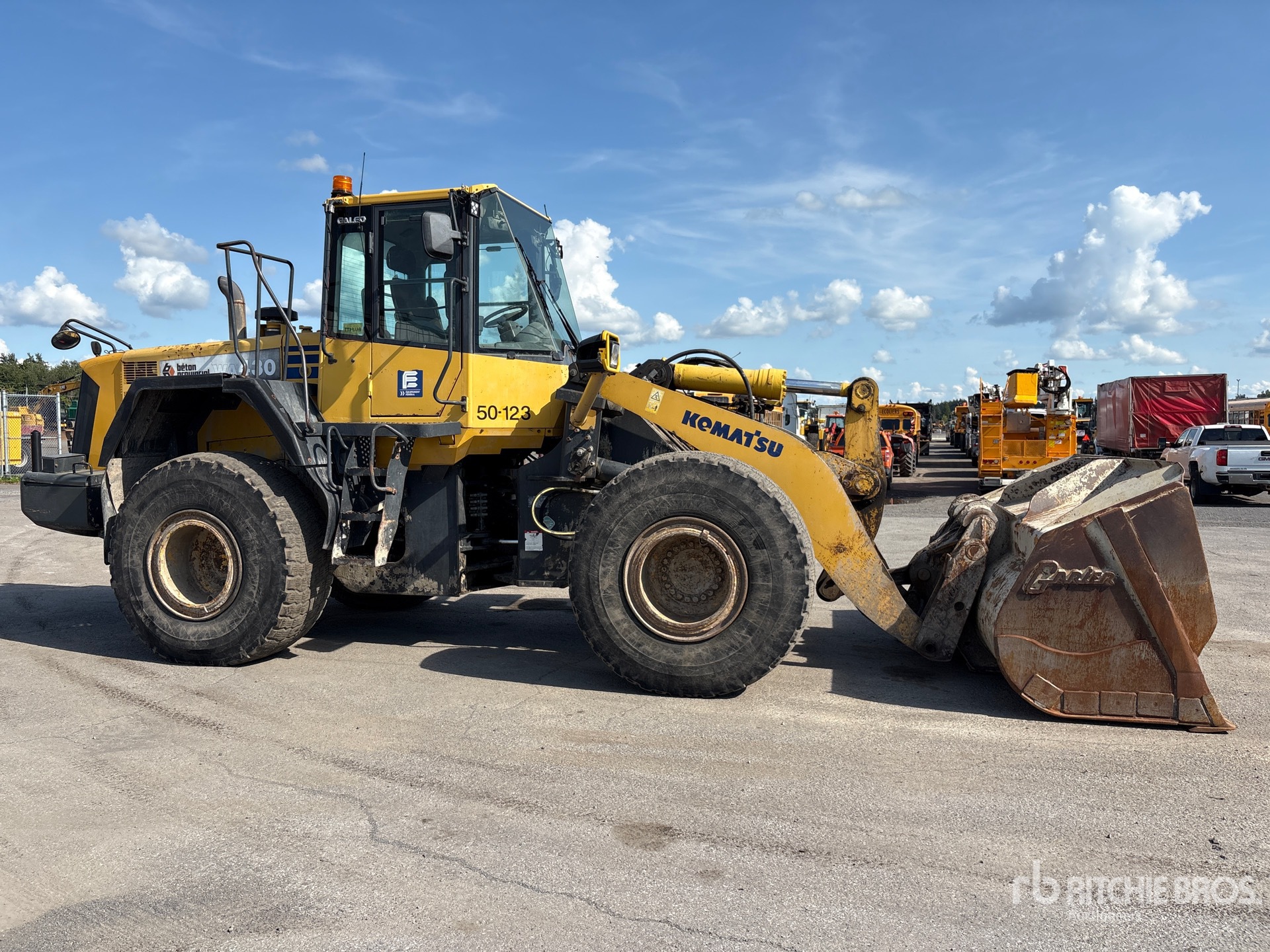

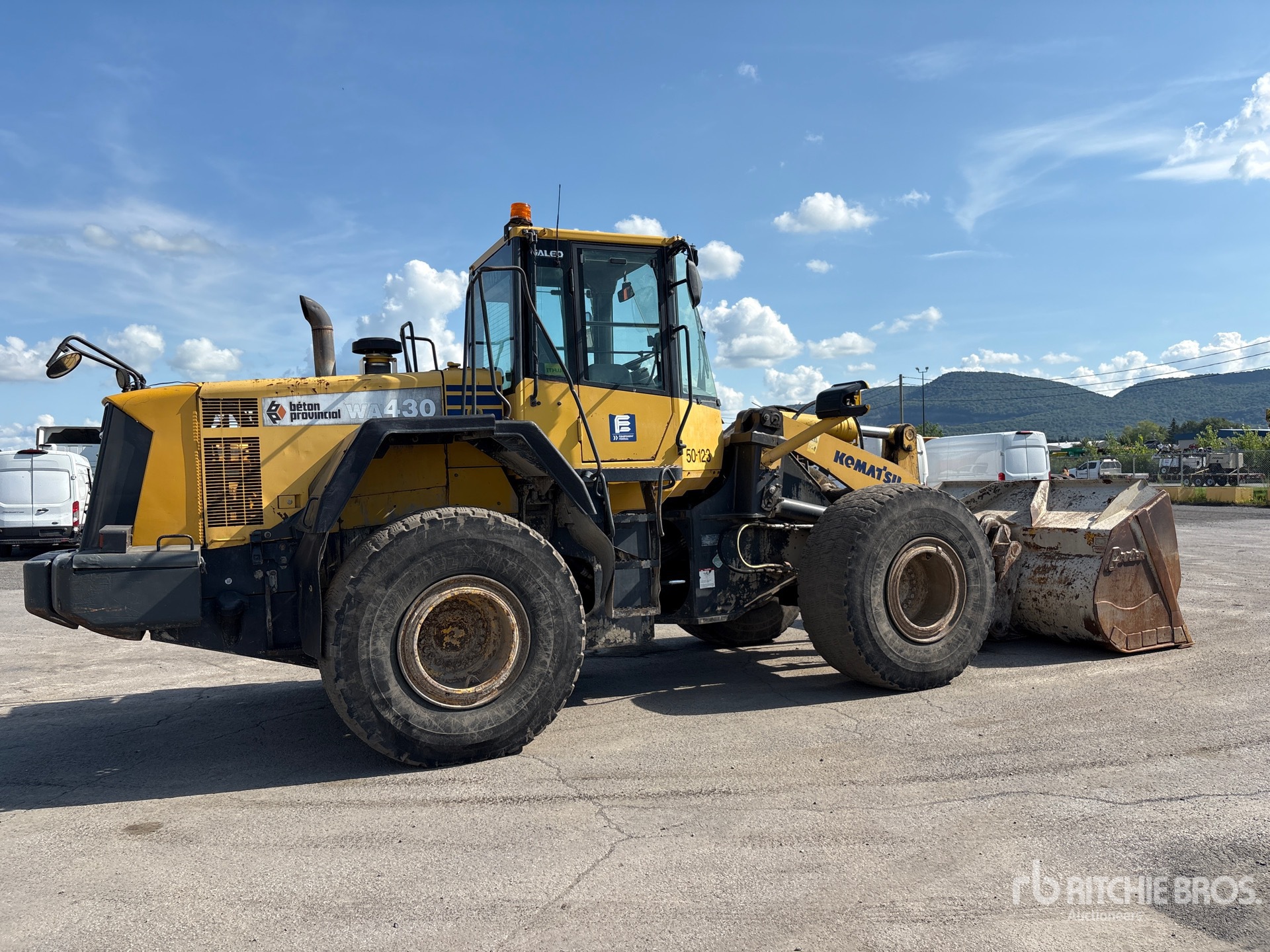

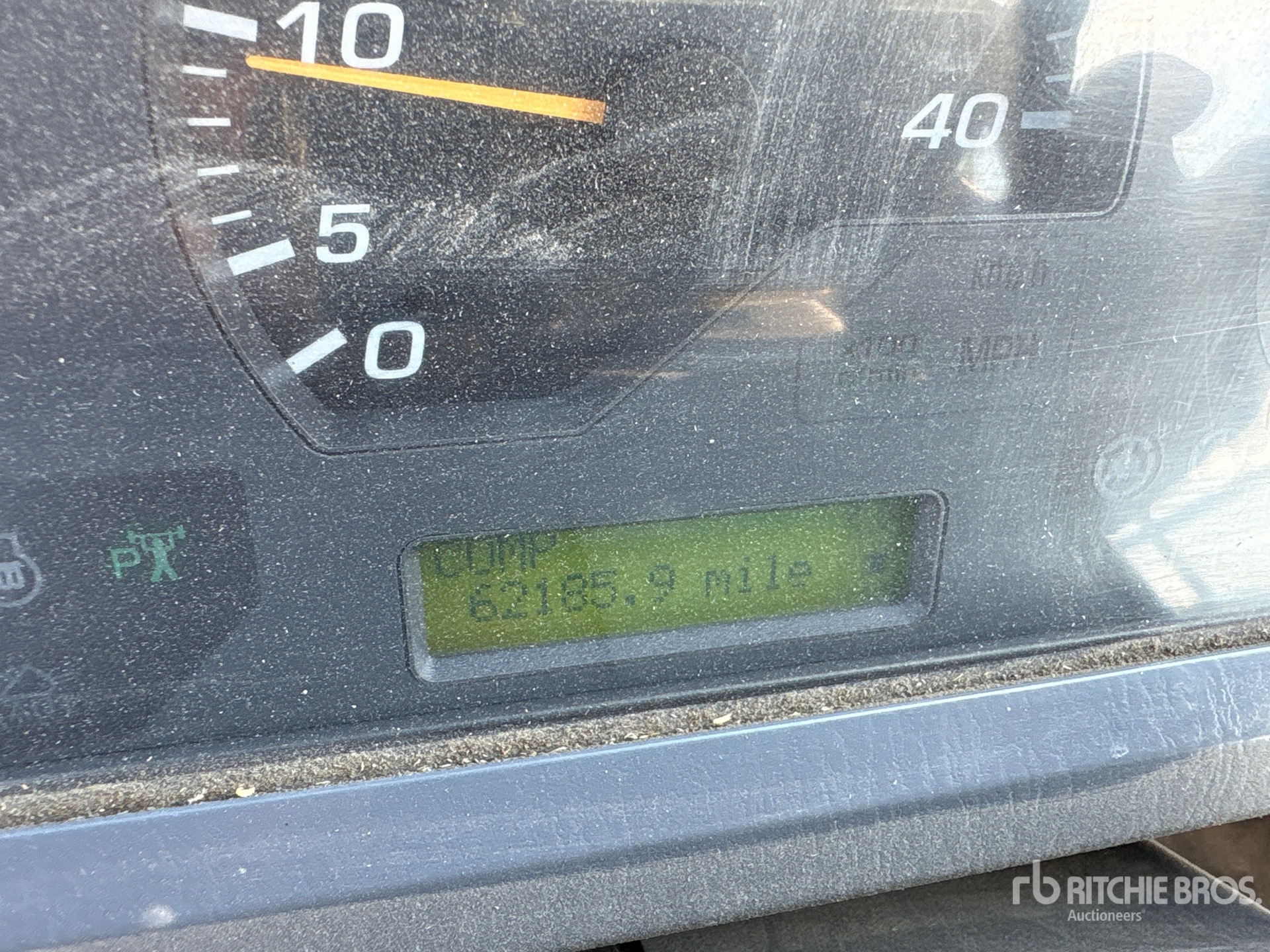

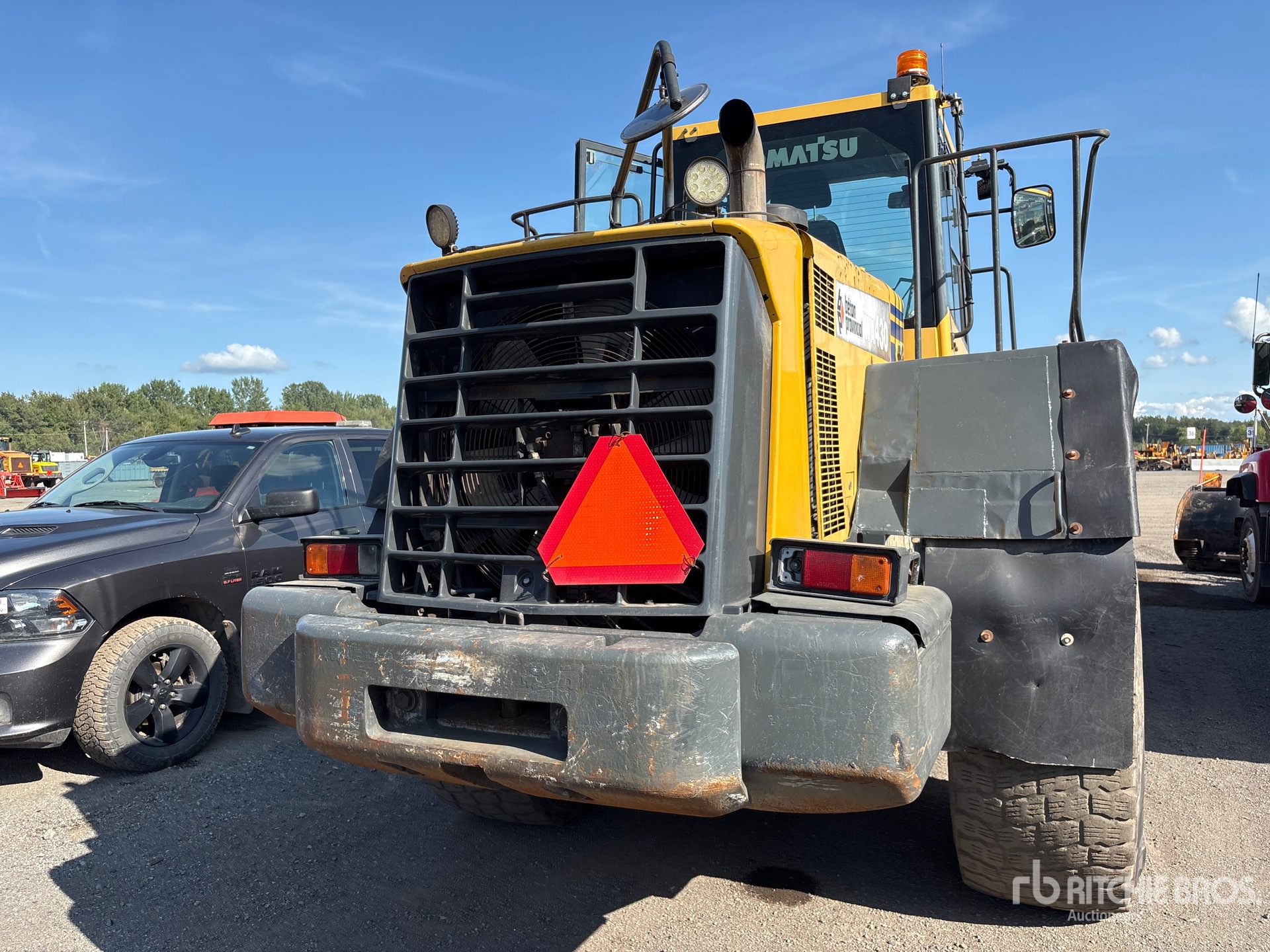

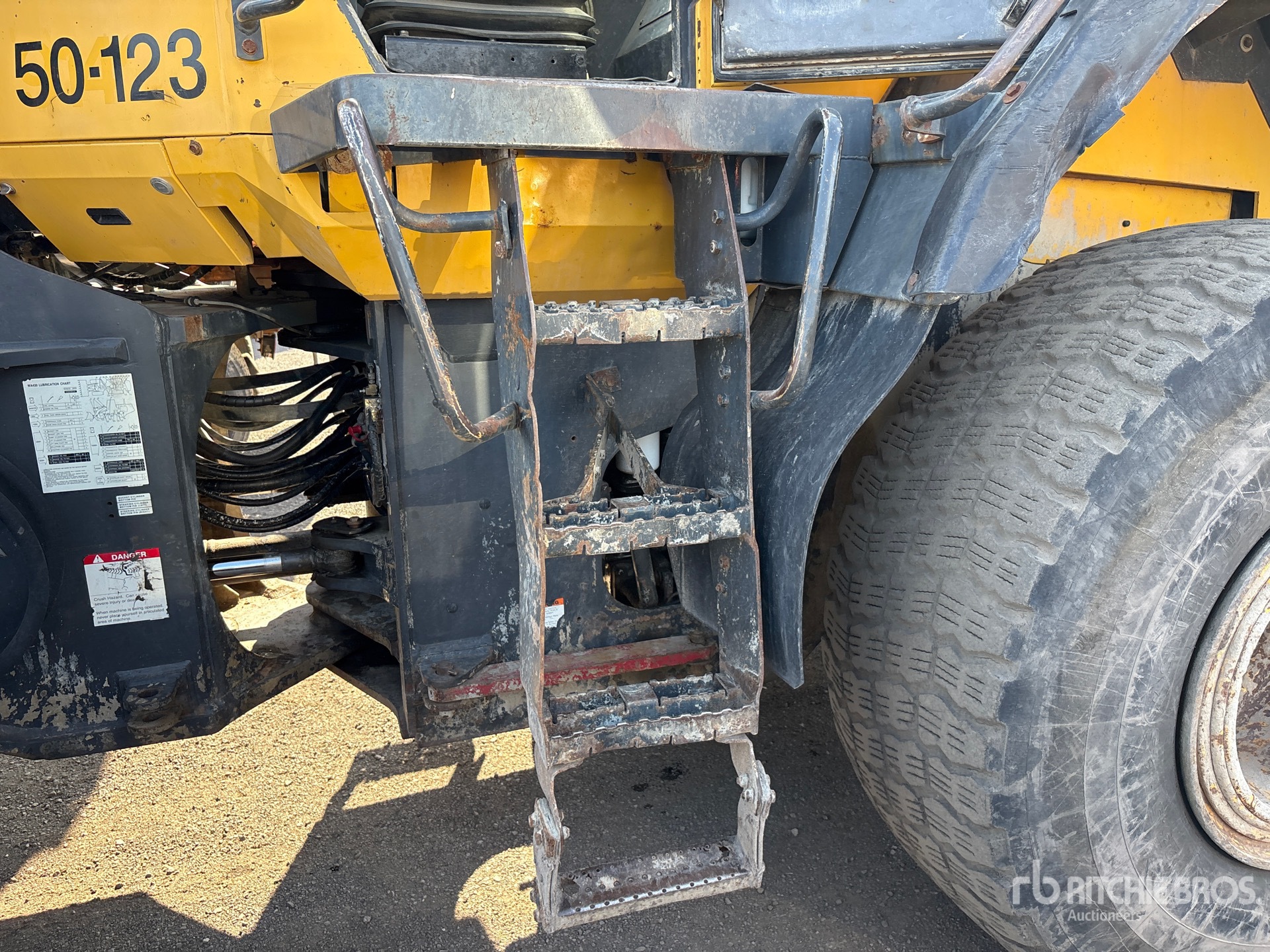

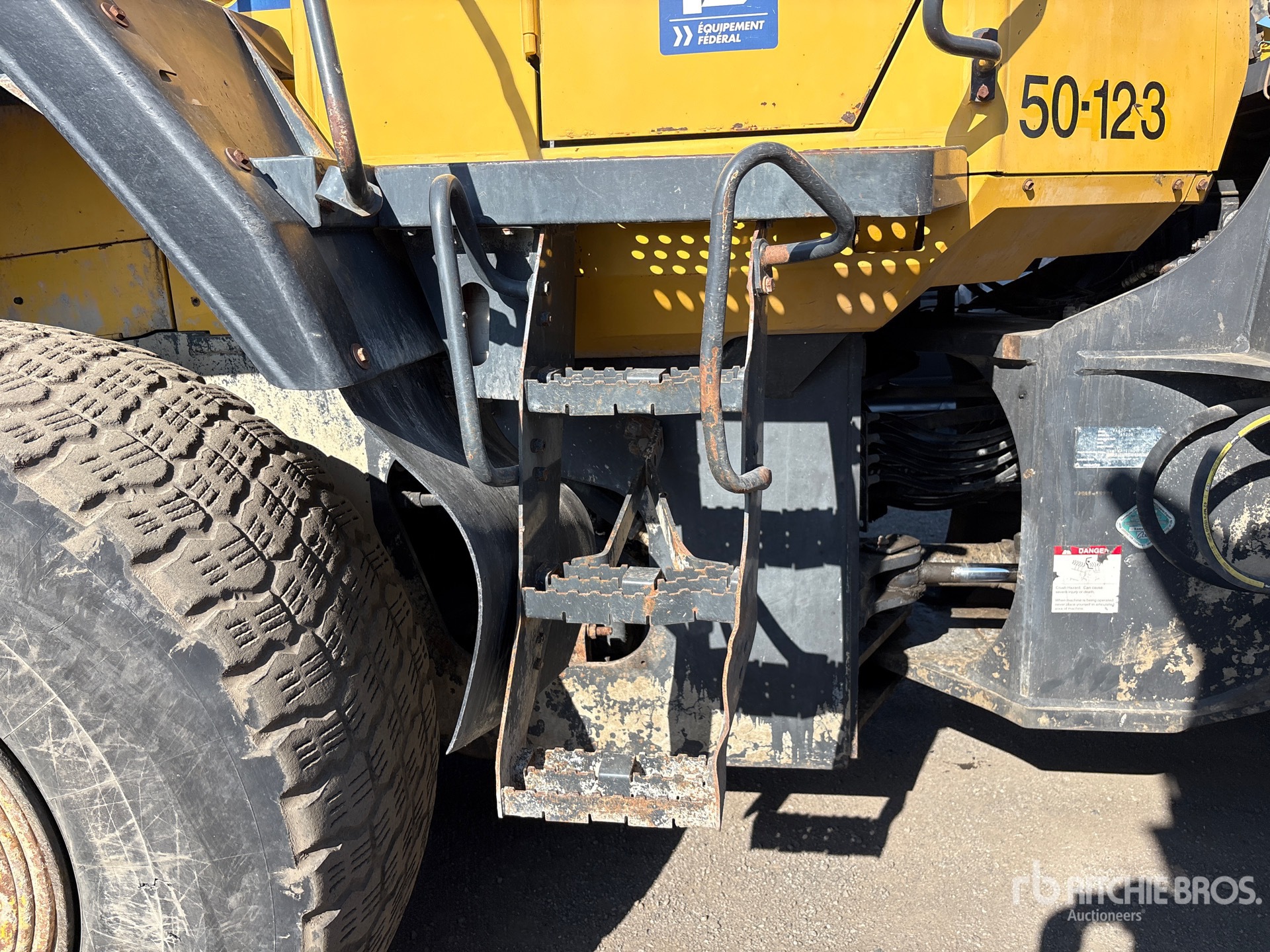

| Axles |
|
Drive System |
Four-wheel drive |
|
Front |
Fixed, semi-floating |
|
Rear |
Center-pin support, semi-floating, 24 ? total oscillation |
| Brakes |
|
Emergency Brake |
Parking brake is commonly used |
|
Parking Brake |
Wet |
|
Service Brake |
Hydraulically actuated |
| Capacities |
|
Cooling System |
9 gal (32 l)
|
|
Engine Oil |
8 gal (30 l)
|
|
Front Axle |
2,990 cu in (49,001 cu cm)
|
|
Fuel Tank |
86 gal (325 l)
|
|
Hydraulic System |
37 gal (139 l)
|
|
Rear Axle |
11 gal (40 l)
|
|
Torque Converter, Transmission And Retarder Cooling |
14 gal (54 l)
|
| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Length |
28 ft (8 m)
|
|
Length |
327 in (831 cm)
|
|
Length With Bucket On Ground |
24 ft (7 m)
|
|
Turning Circle |
48 ft (15 m)
|
|
Weight |
41,000 lbs (18,597 kg)
|
|
Wheelbase |
11 ft (3 m)
|
|
Width |
9 ft (3 m)
|
|
Width Over Tires |
9 ft (3 m)
|
| Driveline |
|
Brake |
Hydraulic, Wet disc |
|
Maximum Speeds/Fwd Mph (Km/H) |
37 |
|
Maximum Speeds/Rev Mph (Km/H) |
37 |
|
Number Of Speeds - Forward |
4 |
|
Number Of Speeds - Reverse |
4 |
|
Ride Control System |
Standard |
|
Transmission |
Automatic Powershift |
| Engine |
|
Air Cleaner |
Dry type |
|
Aspiration |
Turbocharged, after cooled |
|
Bore |
5 in (11 cm)
|
|
Displacement |
505 cu in (8,271 cu cm)
|
|

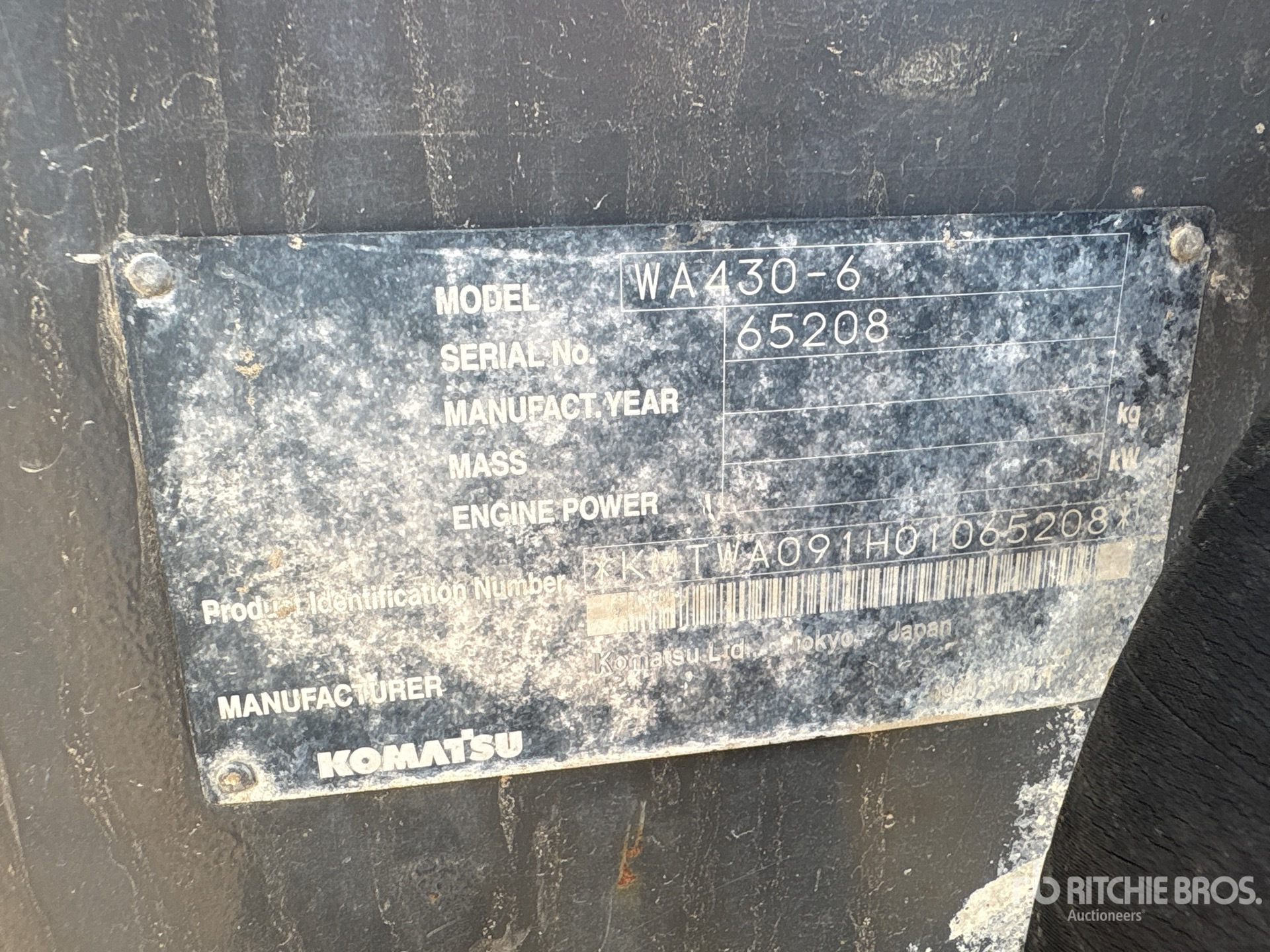

Engine Make |
2,238 |
|
Engine Model |
SAA6D114E-3 |
|
Engine Type |
Water-cooled, 4-cycle |
|
Fan Drive Method |
?Hydraulic |
|
Filter |
Full-flow type |
|
Fuel System |
Direct injection |
|
Governor |
All-speed, electronic |
|
Horsepower, Gross-Sae J1995 |
232 hp (173 kw)
|
|
Horsepower, Net-Iso 9249 |
231 hp (172 kw)
|
|
Lubrication Method |
Gear pump, force-lubricatio |
|
Number Of Cylinders |
6 |
|
Piston Displacement |
505 cu in (8,271 cu cm)
|
|
Power Measured @ |
2,100 rpm |
|
Stroke |
5 in (14 cm)
|
| Final Drive |
|
Differential Gear |
Torque proportioning |
|
Final Reduction Gear |
Planetary gear, single reduction |
|
Reduction Gear |
Spiral bevel gear |
| Hydraulic System |
|
Bore |
3 in (8 cm)
|
|
Bucket Cylinde Bore |
6 in (16 cm)
|
|
Bucket Cylinde Stroke |
21 in (54 cm)
|
|
Control Positions Boom |
Raise, hold, lower, and float |
|
Control Positions Bucket |
Tilt-back, hold, and dump |
|
Control Valve |
2-spool type |
|
Dump Time |
2 sec |
|
Hydraulic Cylinders Type |
Double-acting, piston type |
|
Lift Cylinder |
2 |
|
Lift Cylinder Bore |
5 in (13 cm)
|
|
Lift Cylinder Stroke |
31 in (78 cm)
|
|
Loader Control Type |
Piston Pump |
|
Loader Control_Capcity |
54 gal (205 l)
|
|
Lower Time |
3 sec |
|
No.Of.Bucket Cylinders |
1 |
|
Number Of Cylinders |
2 |
|
Pump Flow Capacity |
36 gpm (137 lpm)
|
|
Pump Type |
Gear type pump |
|
Raise Time |
6 sec |
|
Relief Valve Setting |
24.5 MPa 250 kgf/cm 2 3,555 psi |
|
Steering Pump Type |
Piston Pump |
|
Stroke |
18 in (44 cm)
|
| Operational |
|
Breakout Force |
18,400 kgf |
|
Bucket Capacity Range – Sae |
3.1 - 4.6 |
|
Bucket Description |
GP Bucket, Bolt Edge |
|
Bucket Link Type |
Z-Bar |
|
Bucket Width |
10 ft (3 m)
|
|
Dump Clearance, @45 Degrees Dump Angle |
10 ft (3 m)
|
|
Dump Reach, @45 Degrees Dump Angle |
4 ft (1 m)
|
|
Standard Bucket Capacity – Sae |
5 cu yd |
|
Static Tipping Load,Full Turn |
30,225 lbs (13,710 kg)
|
| Steering System |
|
Minimum Turning Radius At The Centre Of Outside Tire |
21 ft (6 m)
|
|
Steering System Type |
Articulated |
| Tires |
|
Standard Fitment Size |
23.5 R25 L3 |
| Transmission |
|
Max Speed - Forward |
21 mph (34 kph)
|
|
Max Speed - Reverse |
22 mph (36 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
4 |
|
Transmission Type |
Automatic full-power shift |
| Weights |
|
Operating Weight |
41,072 lbs (18,630 kg)
|
