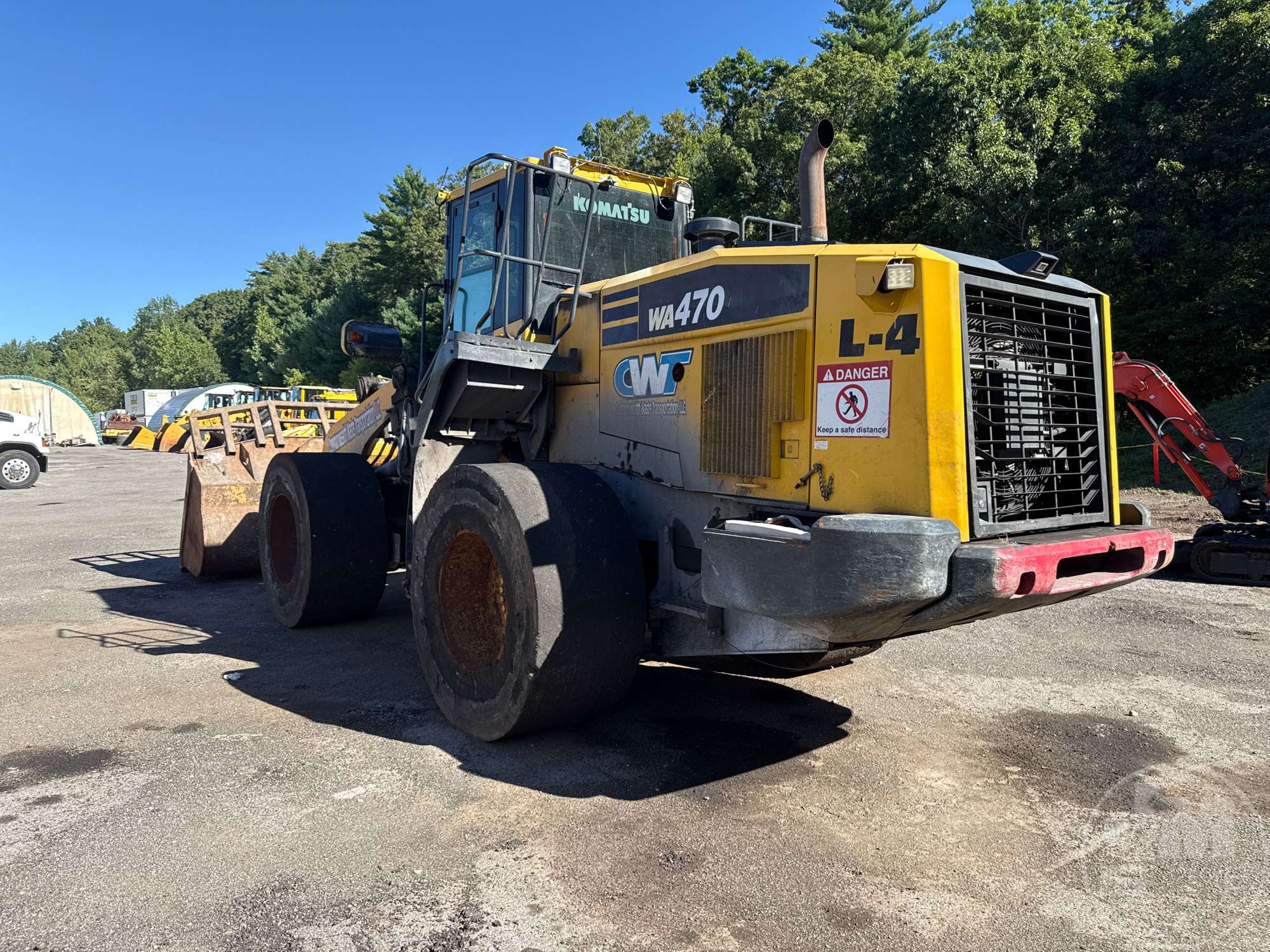

| Brakes |
|
Emergency Brake |
Parking brake is commonly used |
|
Parking Brake |
Wet disc brake |
|
Service Brake |
Hydraulically actuated, wet multiple-disc brakes actuate on four wheels. |
| Capacities |
|
Cooling System |
21 gal (80 l)
|
|
Engine Oil |
10 gal (38 l)
|
|
Front Axle |
3,478 cu in (57,001 cu cm)
|
|
Fuel Tank |
100 gal (380 l)
|
|
Hydraulic System |
46 gal (173 l)
|
|
Rear Axle |
15 gal (56 l)
|
|
Torque Converter, Transmission And Retarder Cooling |
17 gal (65 l)
|
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Height |
12 ft (4 m)
|
|
Height To Top Of Cab |
11 ft (4 m)
|
|
Length |
29 ft (9 m)
|
|
Length |
8,875 mm (349 in)
|
|
Turning Circle |
50 ft (15 m)
|
|
Weight |
52,007 lbs (23,586 kg)
|
|
Wheelbase |
136 in (345 cm)
|
|
Width |
10 ft (3 m)
|
|
Width Over Tyres |
119 in (301 cm)
|

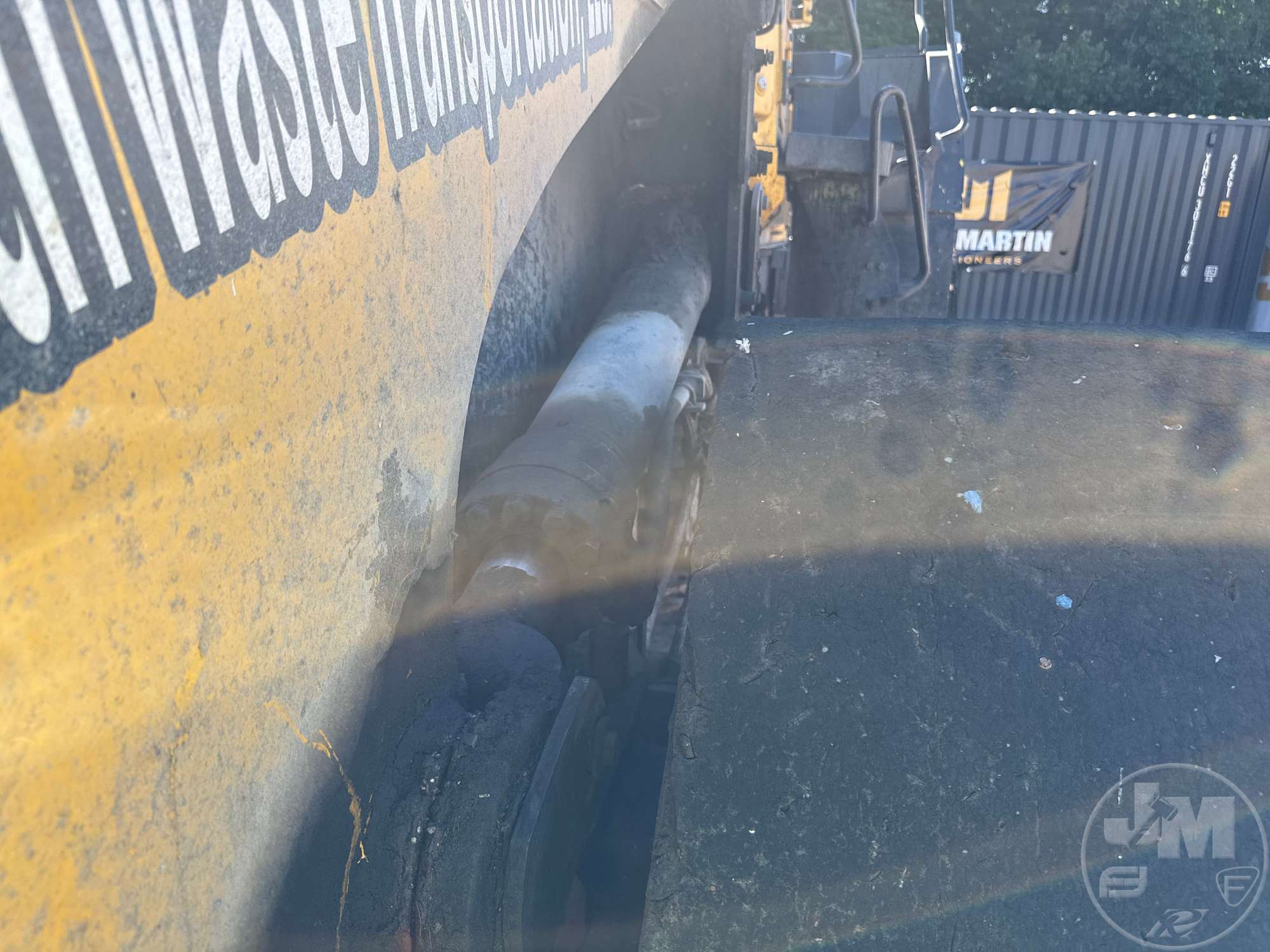

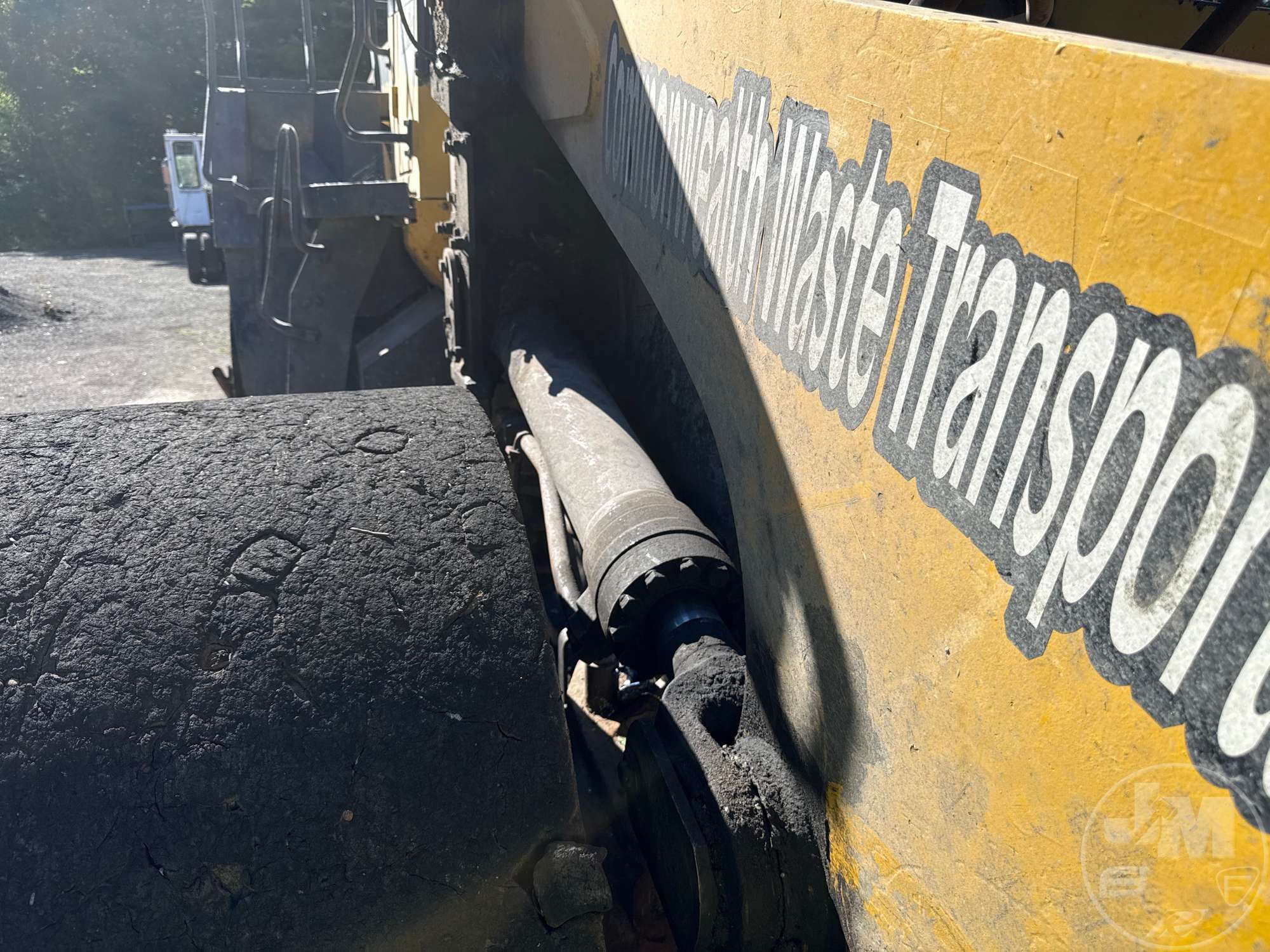

| Driveline |
|
Brake |
Hydraulic, Wet disc |
|
Maximum Speeds Fwd |
24 mph (38 kph)
|
|
Maximum Speeds Rev |
24 mph (39 kph)
|
|
Number Of Speeds - Forward |
4 |
|
Number Of Speeds - Reverse |
4 |
|
Ride Control System |
Standard |
|
Transmission Type |
Automatic Powershift |

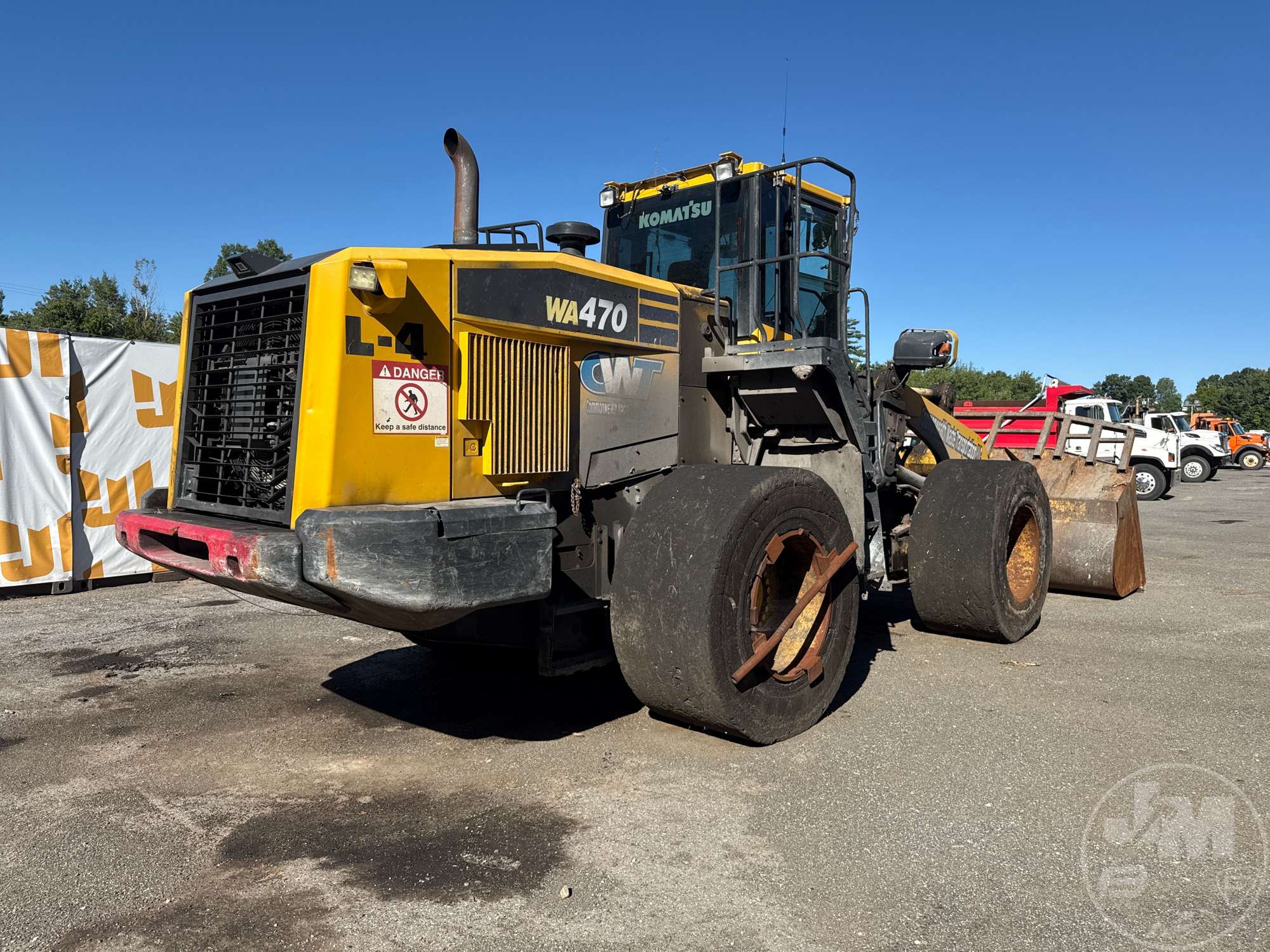

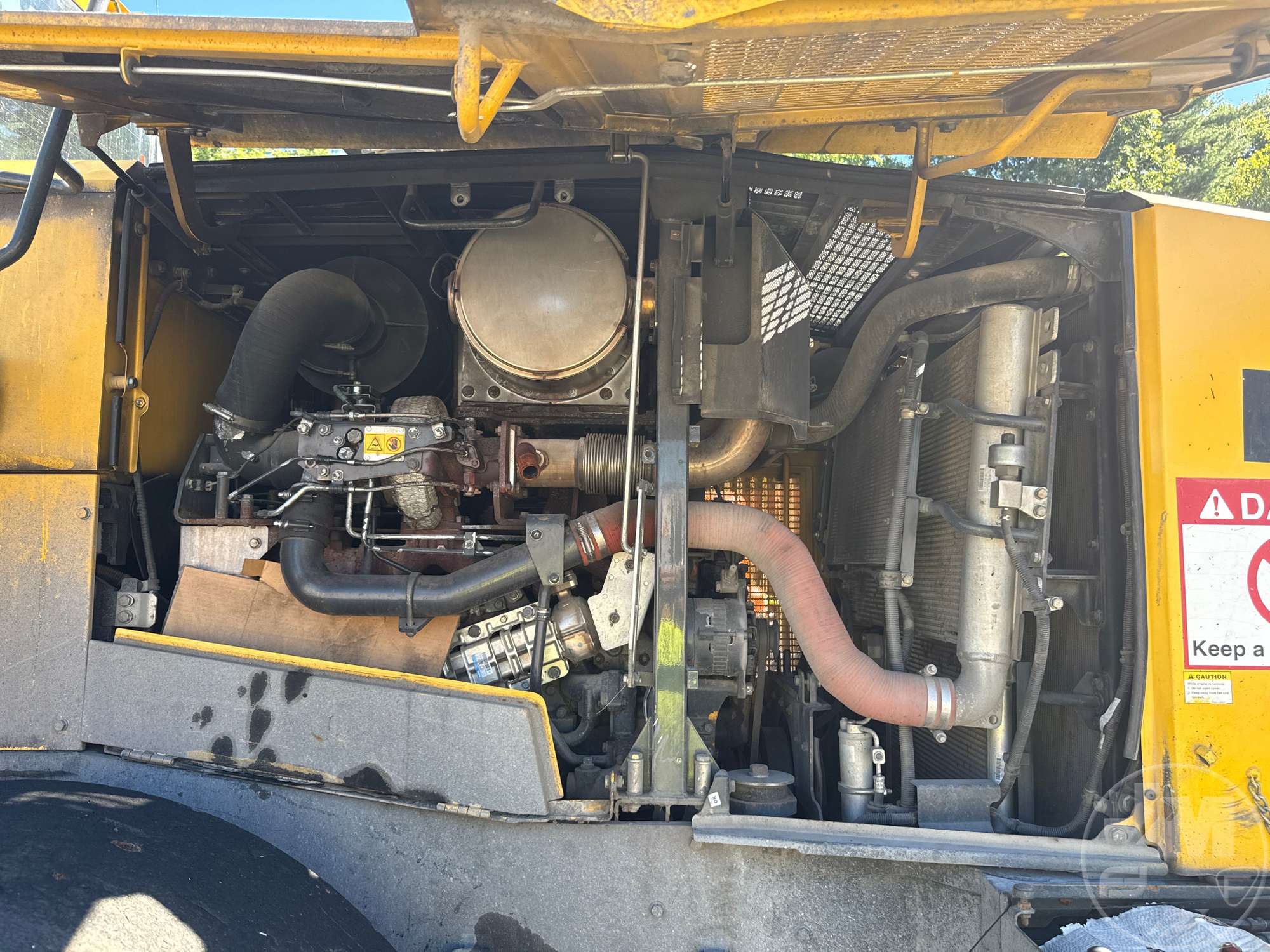

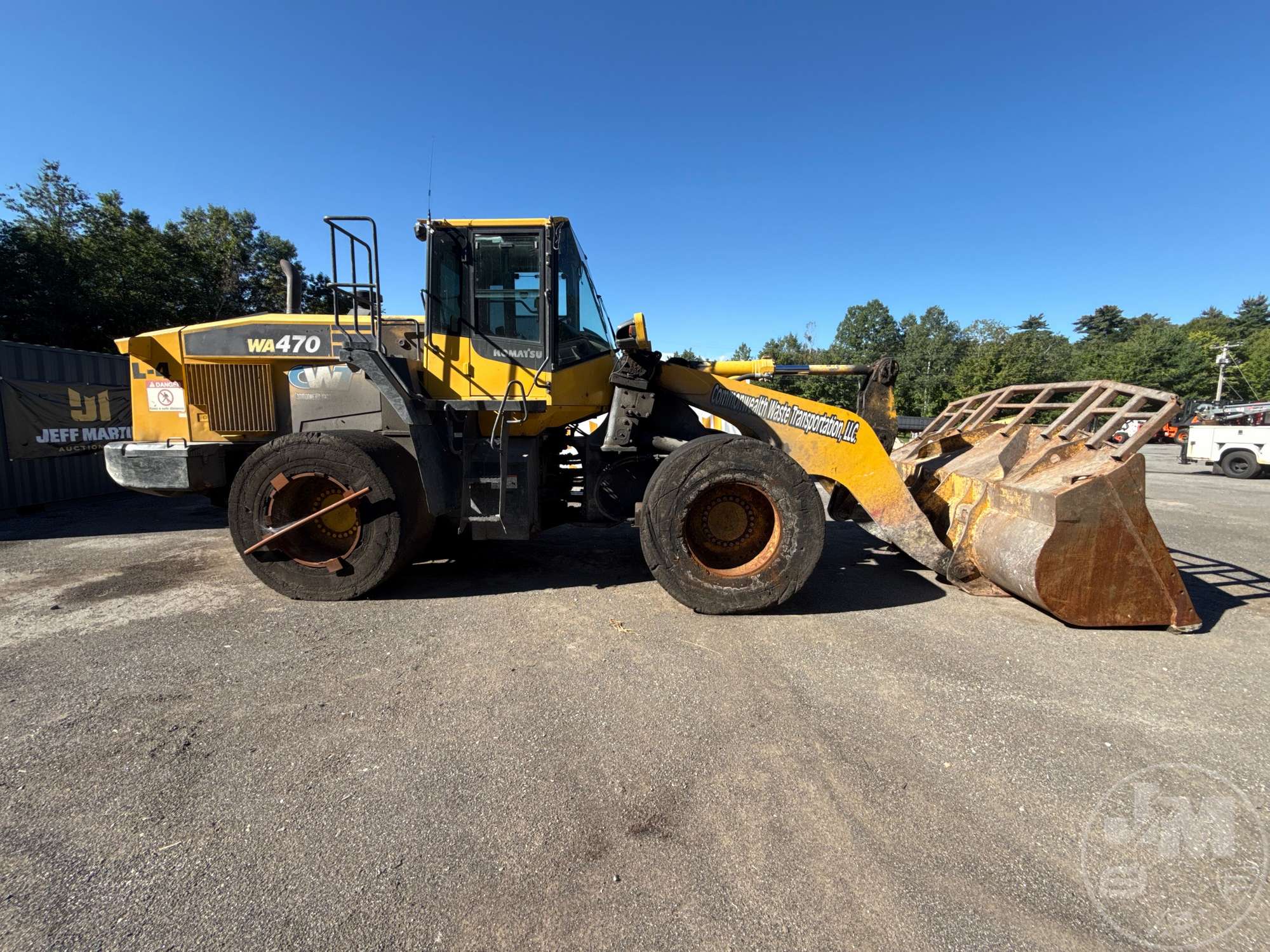

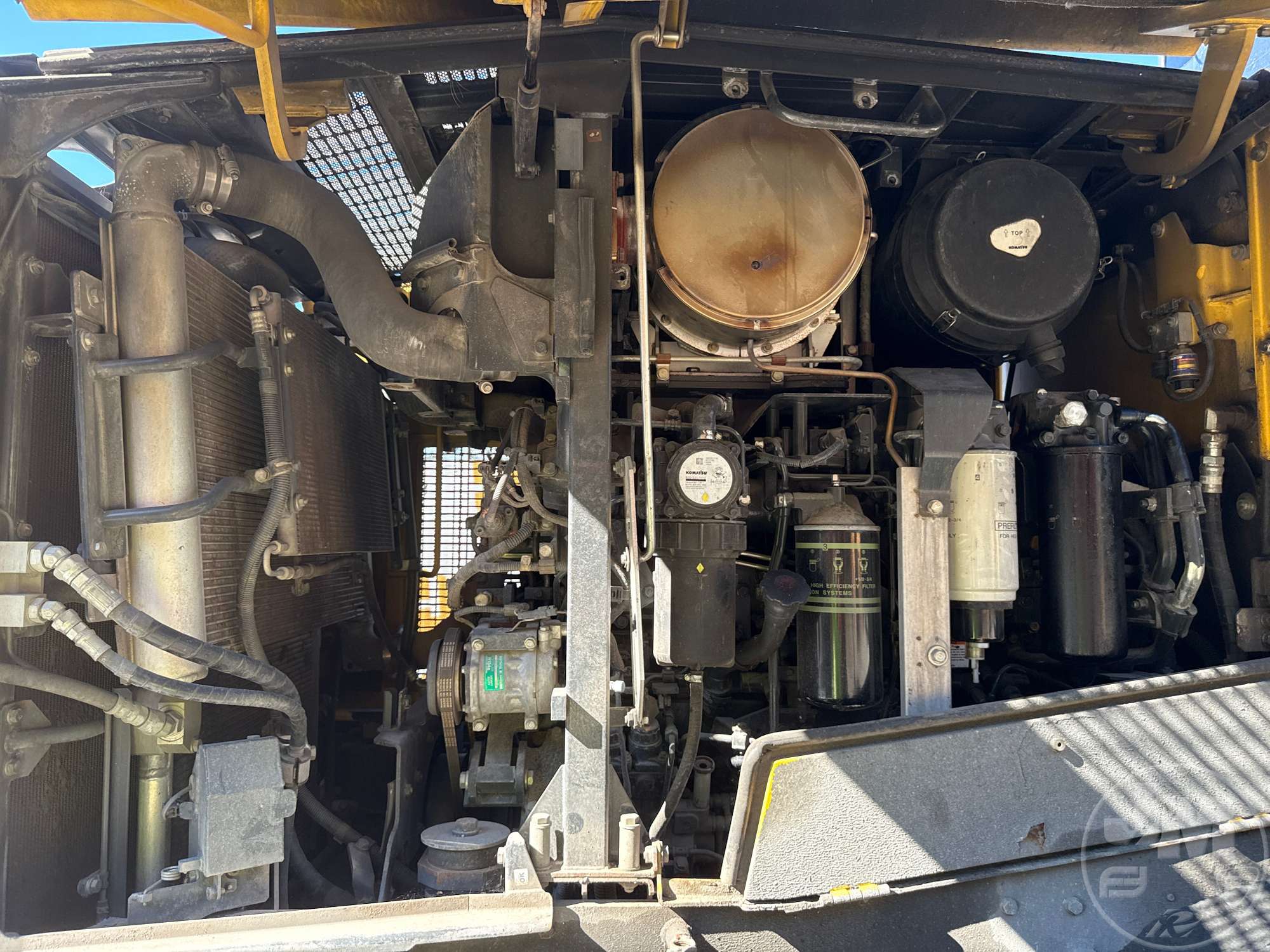

| Engine |
|
Air Cleaner |
Dry type with double elements and dust evacuator, plus dust indicator |
|
Aspiration |
Turbocharged, aftercooled, cooled EGR |
|
Bore |
4 in (9 cm)
|
|
Displacement |
674 cu in (11,042 cu cm)
|
|
Engine Model |
Komatsu SAA6D125E-6 |
|
Engine Type |
Water-cooled, 4-cycle |
|
Fan Drive Method |
Hydraulic |
|
Filter |
Full-flow type |
|
Fuel Type |
Direct injection |
|
Governor |
All-speed, electronic |
|
Horsepower, Gross-Sae J1995 |
274 hp (204 kw)
|
|
Horsepower, Net-Iso 9249 |
272 hp (203 kw)
|
|
Horsepower, Net-Sae J1349 |
272 hp (203 kw)
|
|
Lubrication Method |
Gear pump, force-lubrication |
|
Number Of Cylinders |
6 |
|
Rated Power |
?2000 |
|
Stroke |
17 in (44 cm)
|
| Final Drive |
|
Differential Gear |
Conventional type |
|
Drive System |
Four-wheel drive |
|
Final Reduction Gear |
Planetary gear, single reduction |
|
Front |
Fixed, semi-floating |
|
Rear |
Center-pin support, semi-floating, 26? total oscillation |
|
Reduction Gear |
Spiral bevel gear |
| Hydraulic System |
|

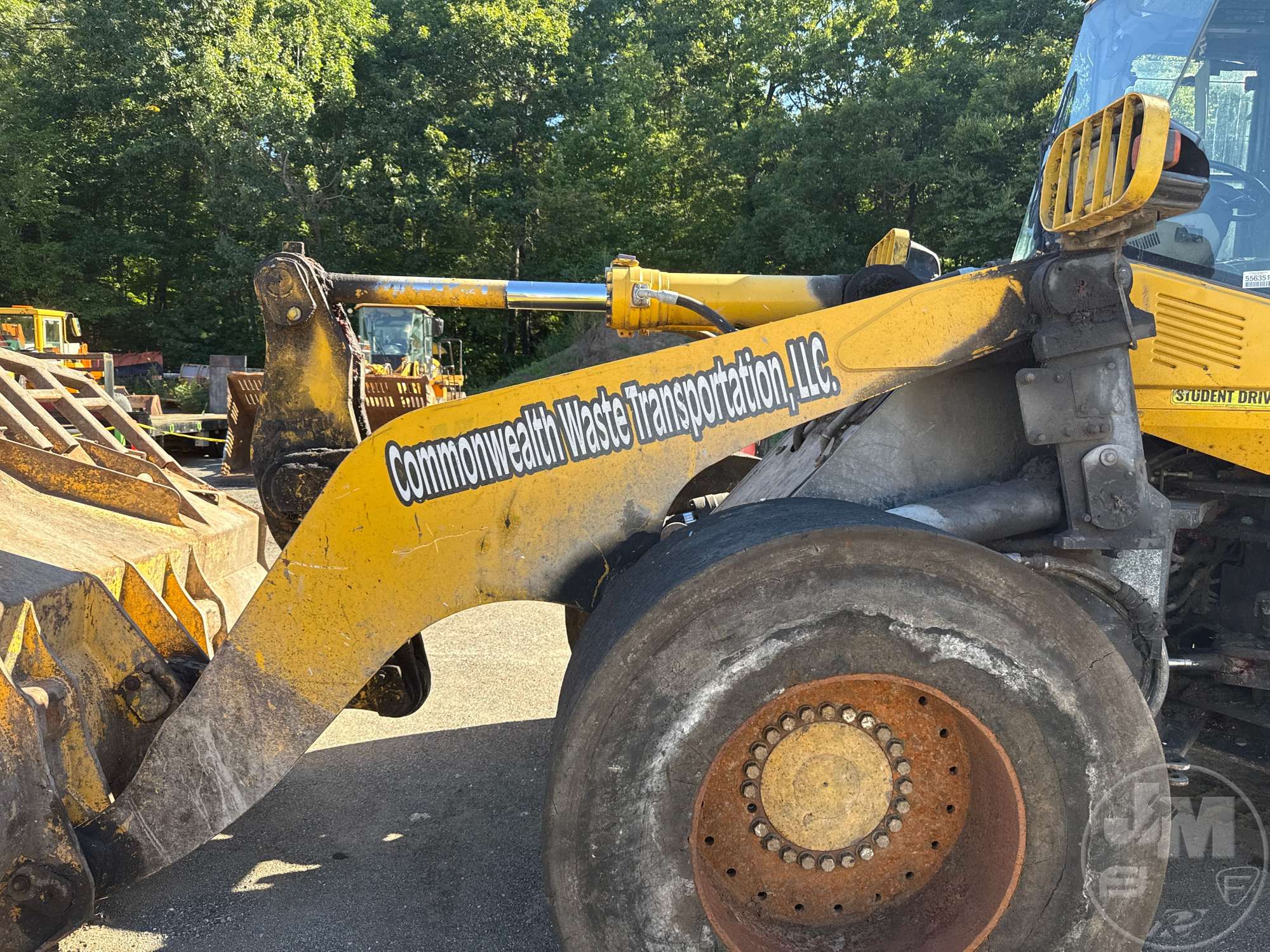

Boom |
Raise, hold, lower, and float |
|
Bore |
4 in (9 cm)
|
|
Bucket |
Tilt-back, hold, and dump |
|

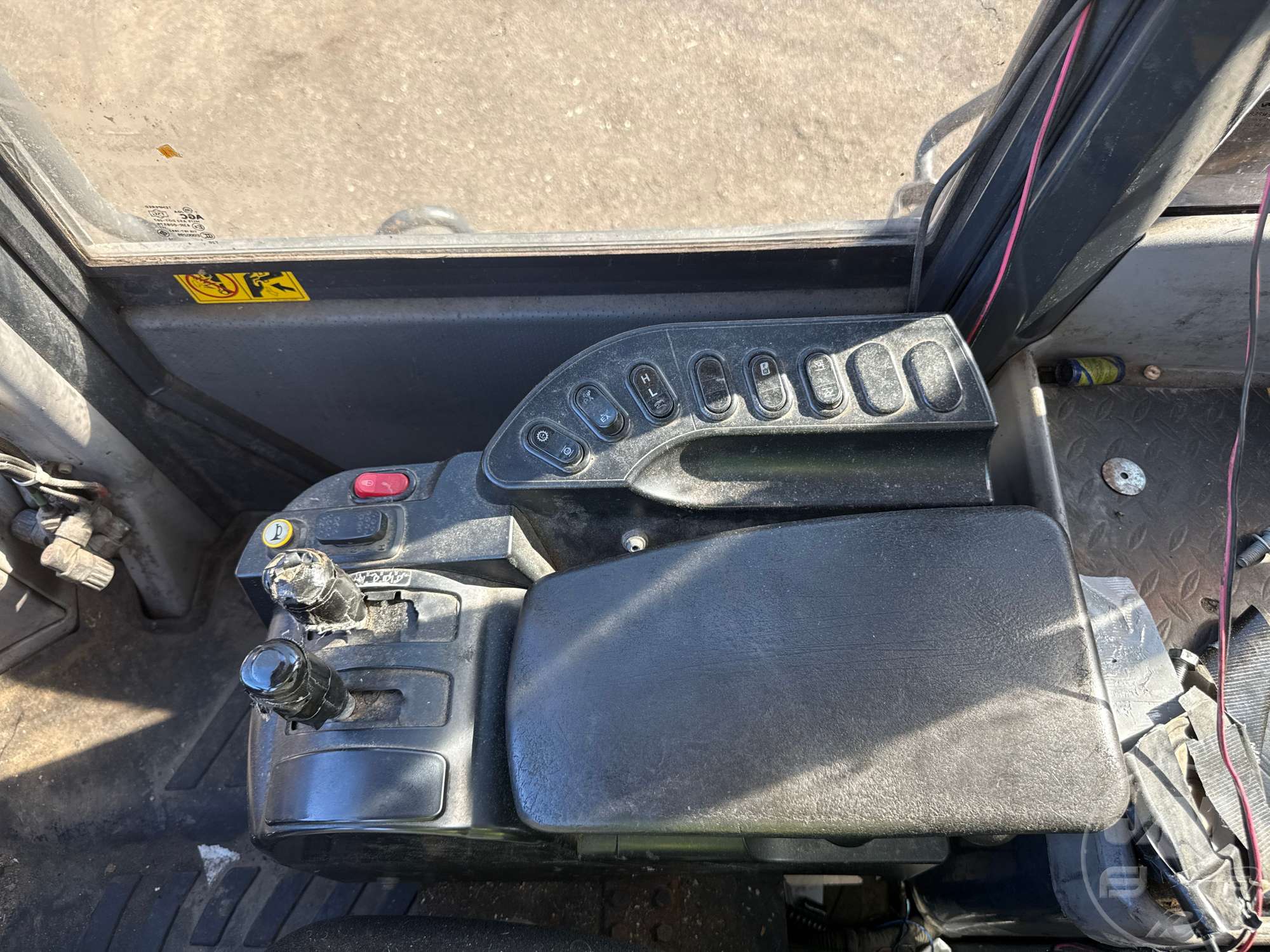

Control Positions Boom |
Raise, hold, lower, and float |
|
Control Positions Bucket |
Tilt-back, hold, and dump |
|
Control Valve |
2-spool type |
|
Dump Time |
2 sec |
|
Hydraulic Cylinders Type |
Double-acting, piston type |
|
Hydraulic Pump |
Piston pump |
|
Loader Control Capacity |
69 gpm (260 lpm)
|
|
Loader Control Relief Valve Setting |
4,975 psi |
|
Loader Control Type |
Piston Pump |
|
Lower Time |
3 sec |
|
Number Of Cylinders |
2 |
|
Raise Time |
6 sec |
|
Steering Pump Type |
Piston Pump |
|
Steering System Capacity |
52 gpm (195 lpm)
|
|
Steering System Relief Valve Setting |
3,554 psi |
|
Stroke |
441 mm (17 in)
|
| Operational |
|
Breakout Force |
19,600 |
|
Bucket Capacity Range – Sae |
3.6 - 5.2 |
|

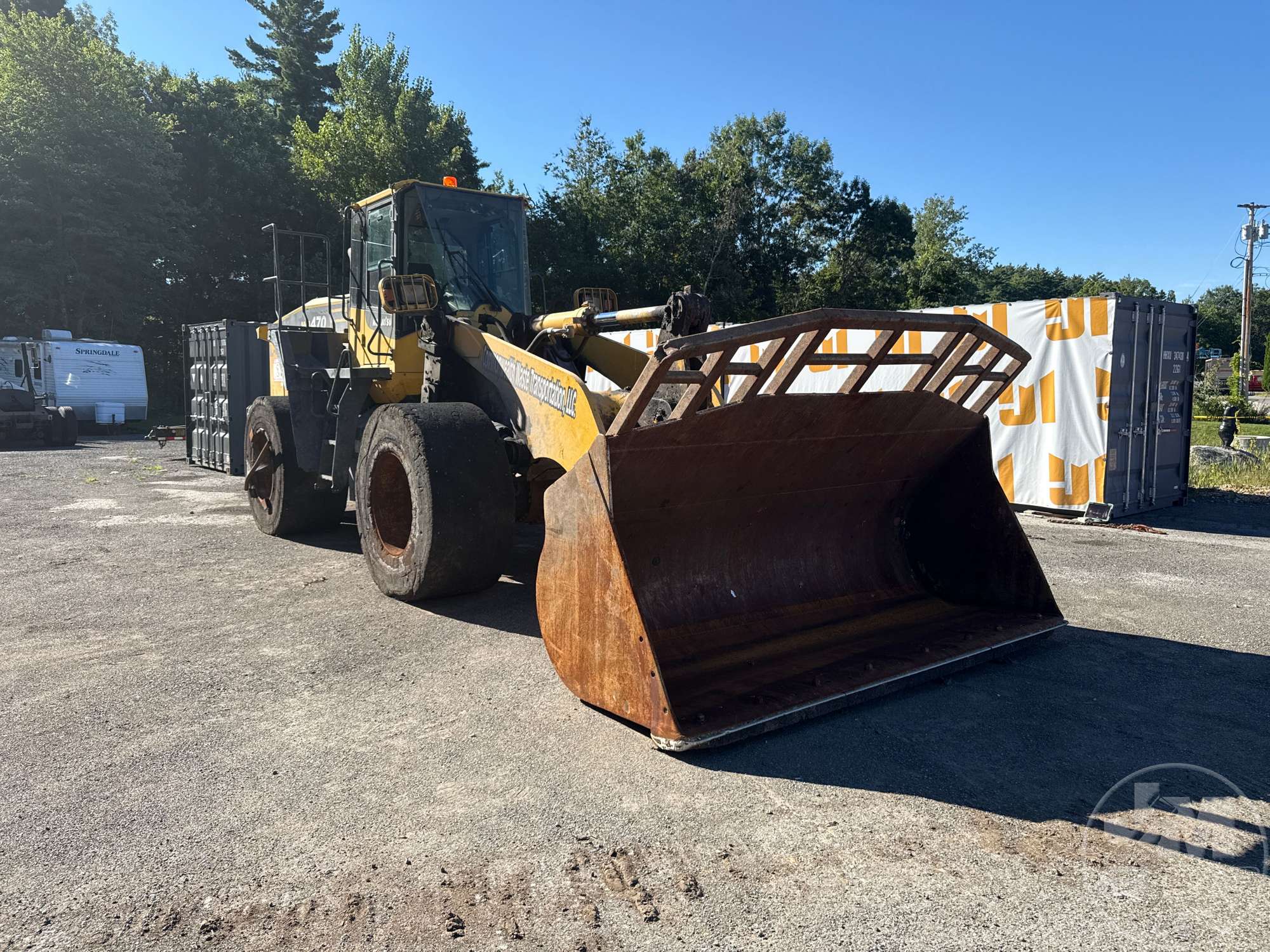

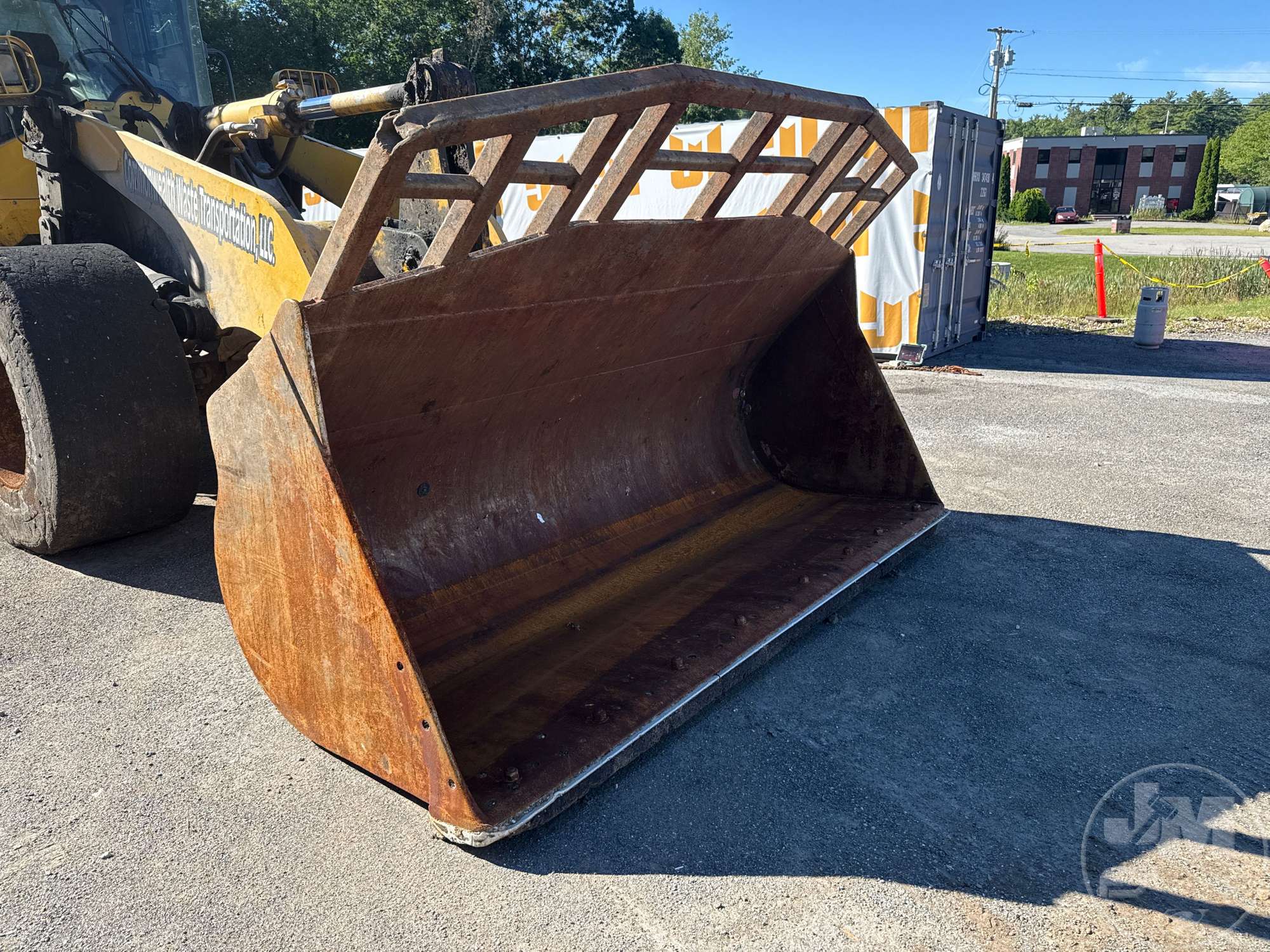

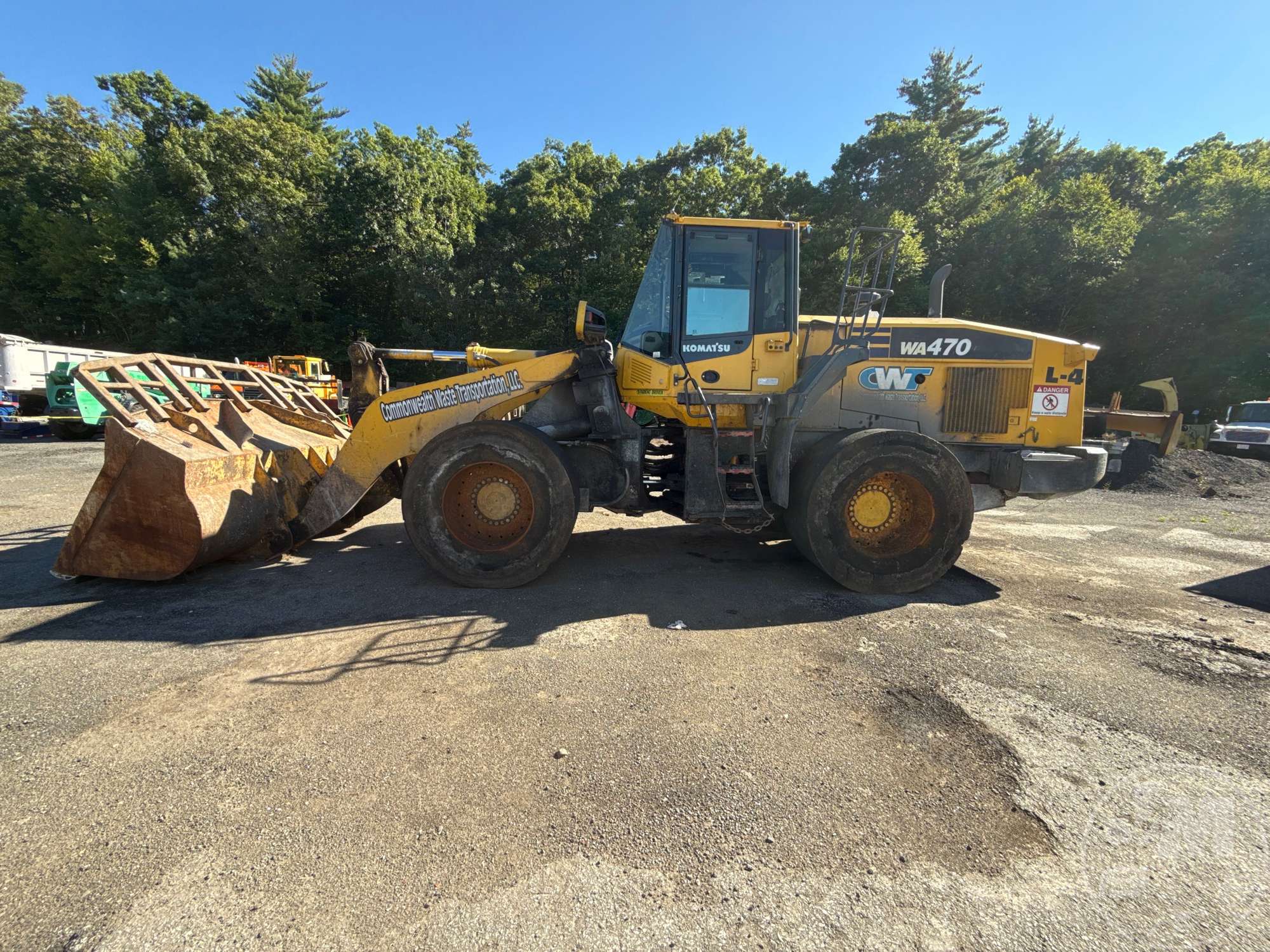

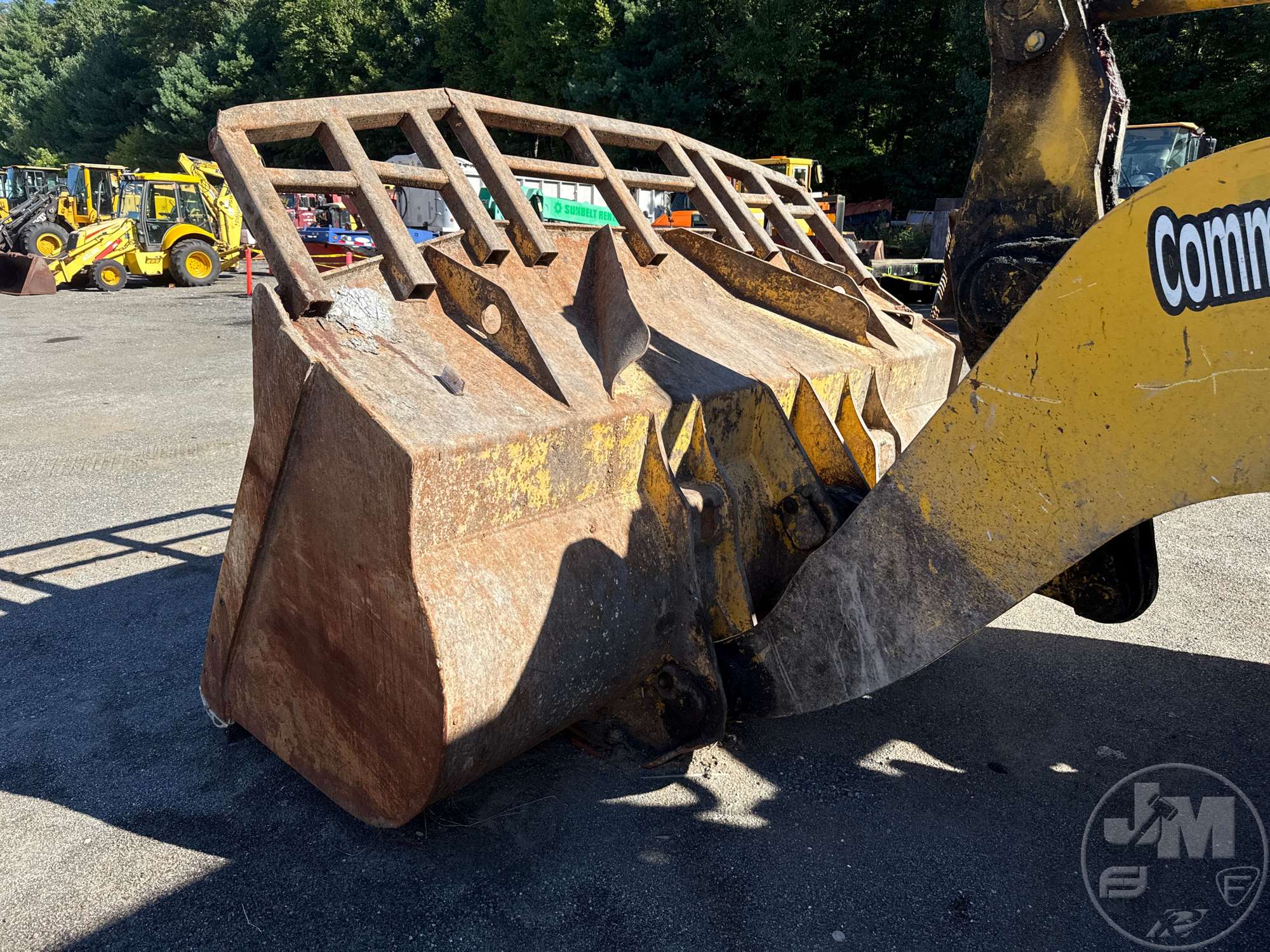

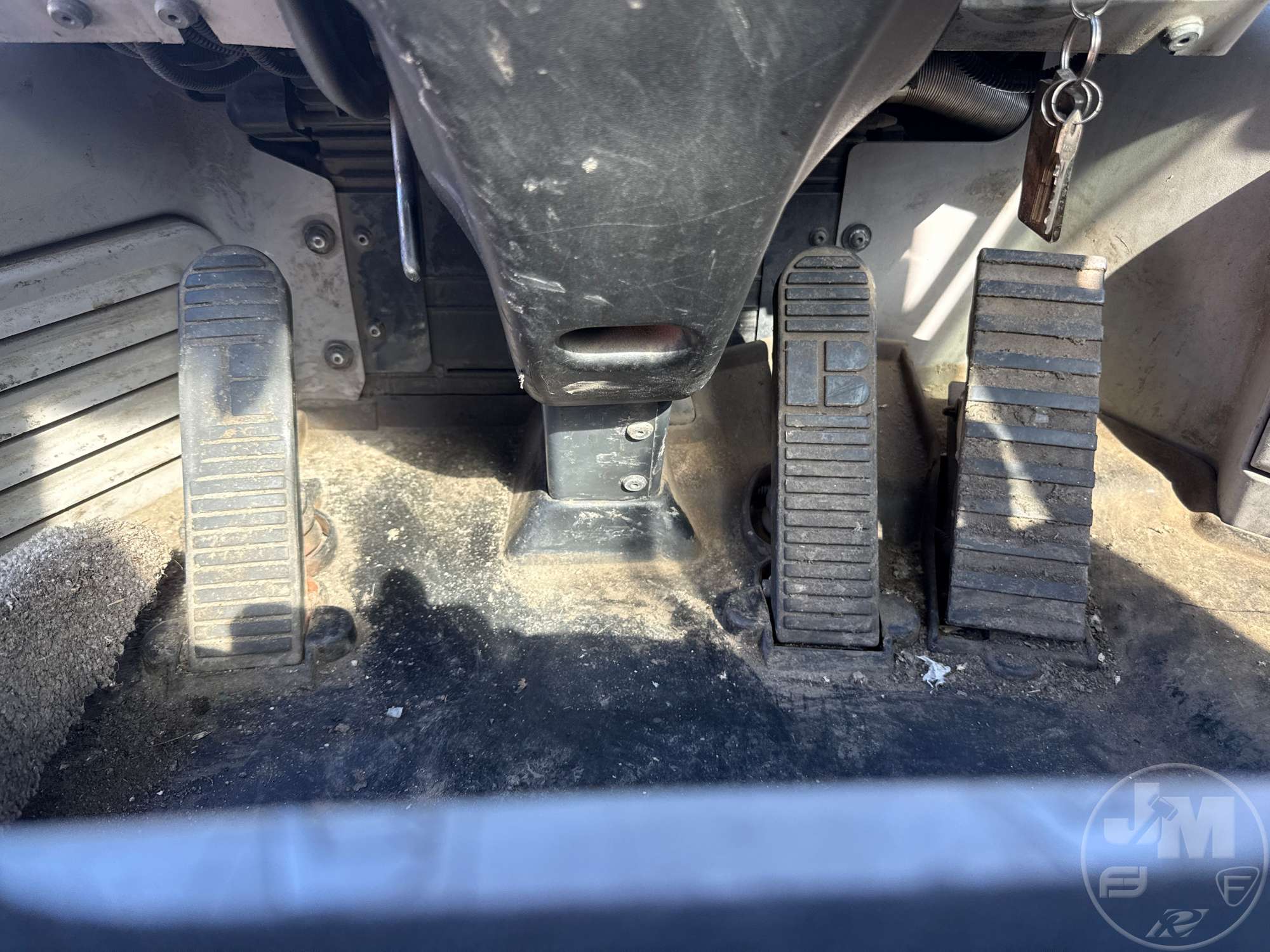

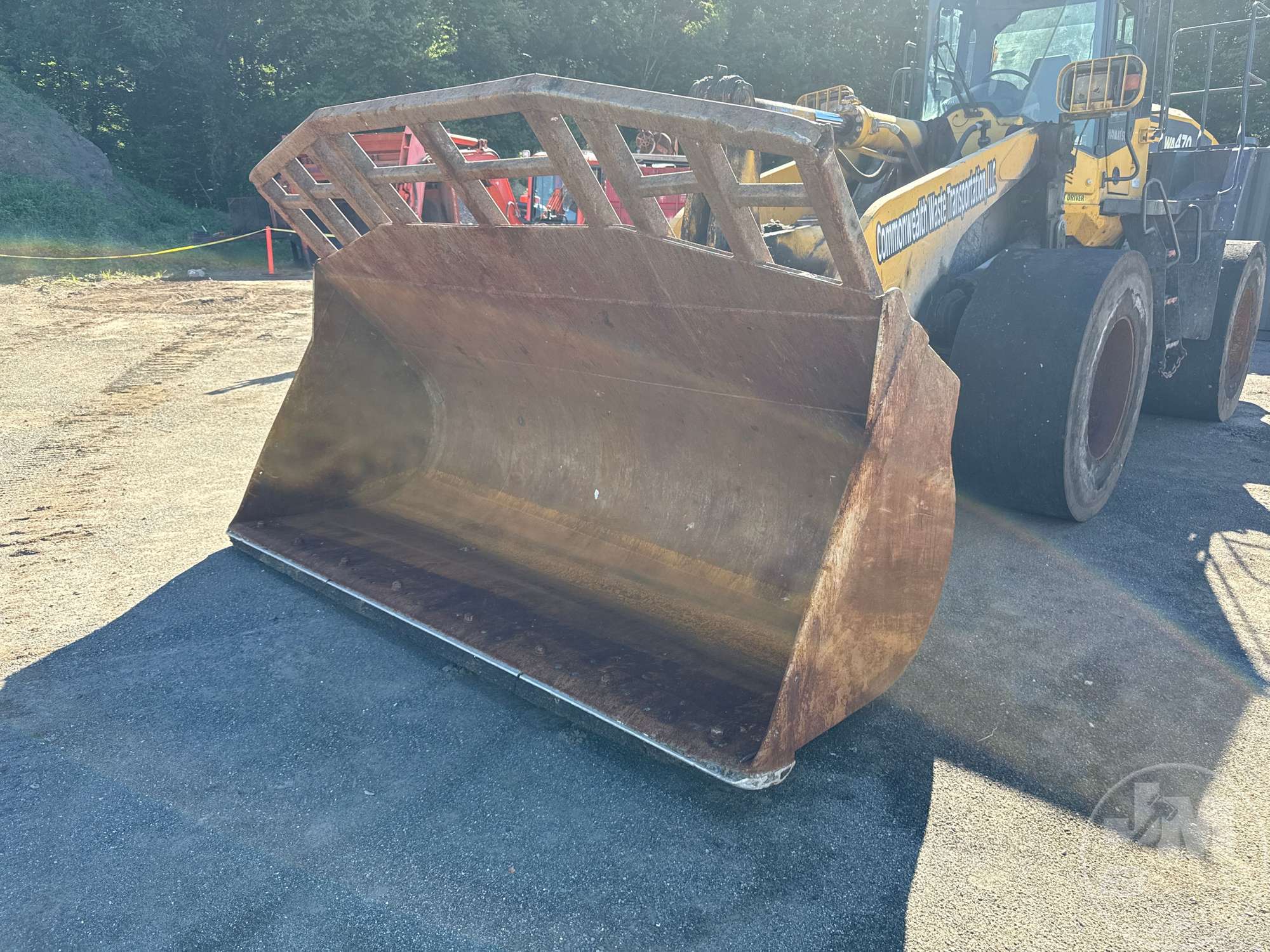

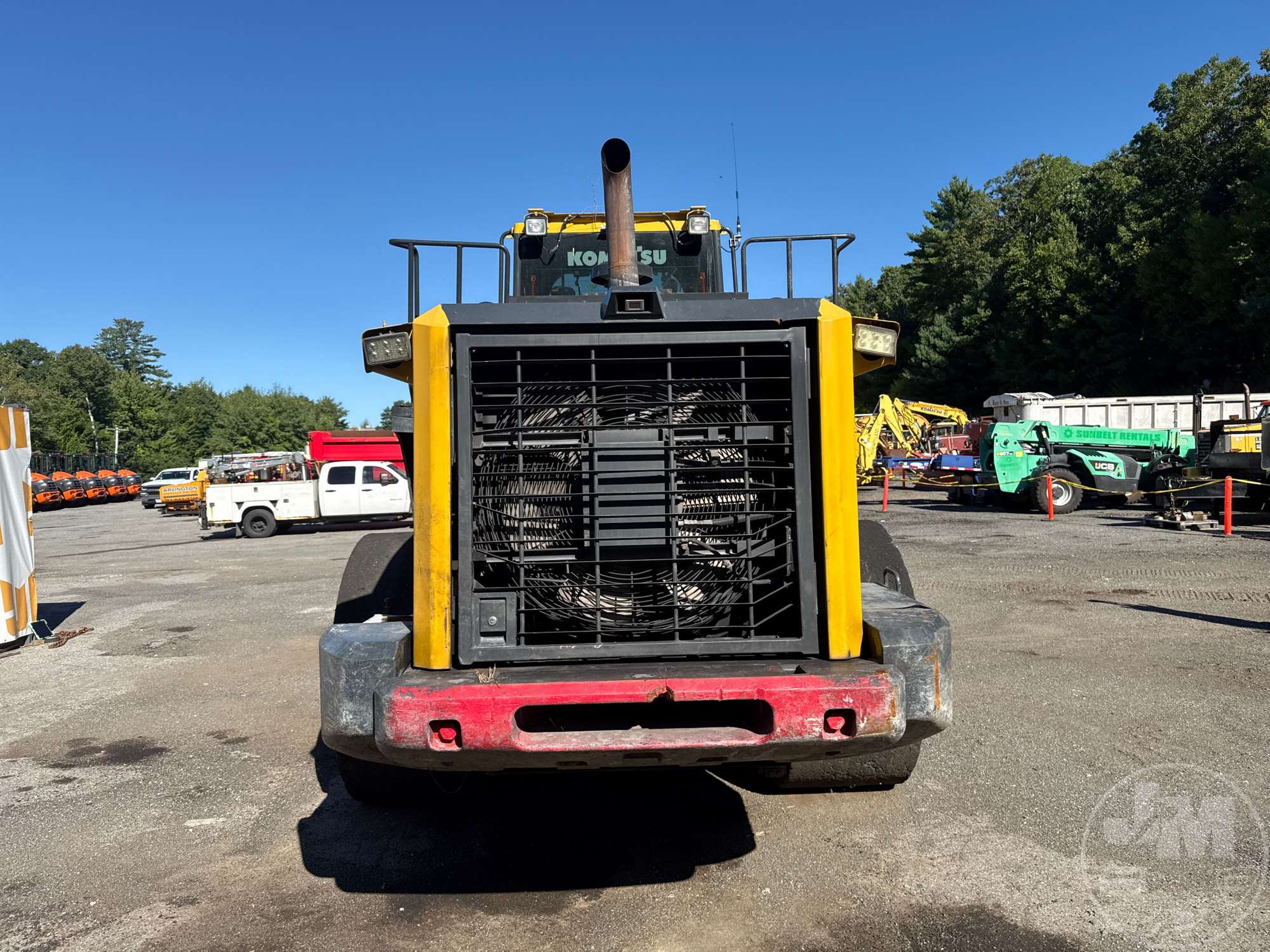

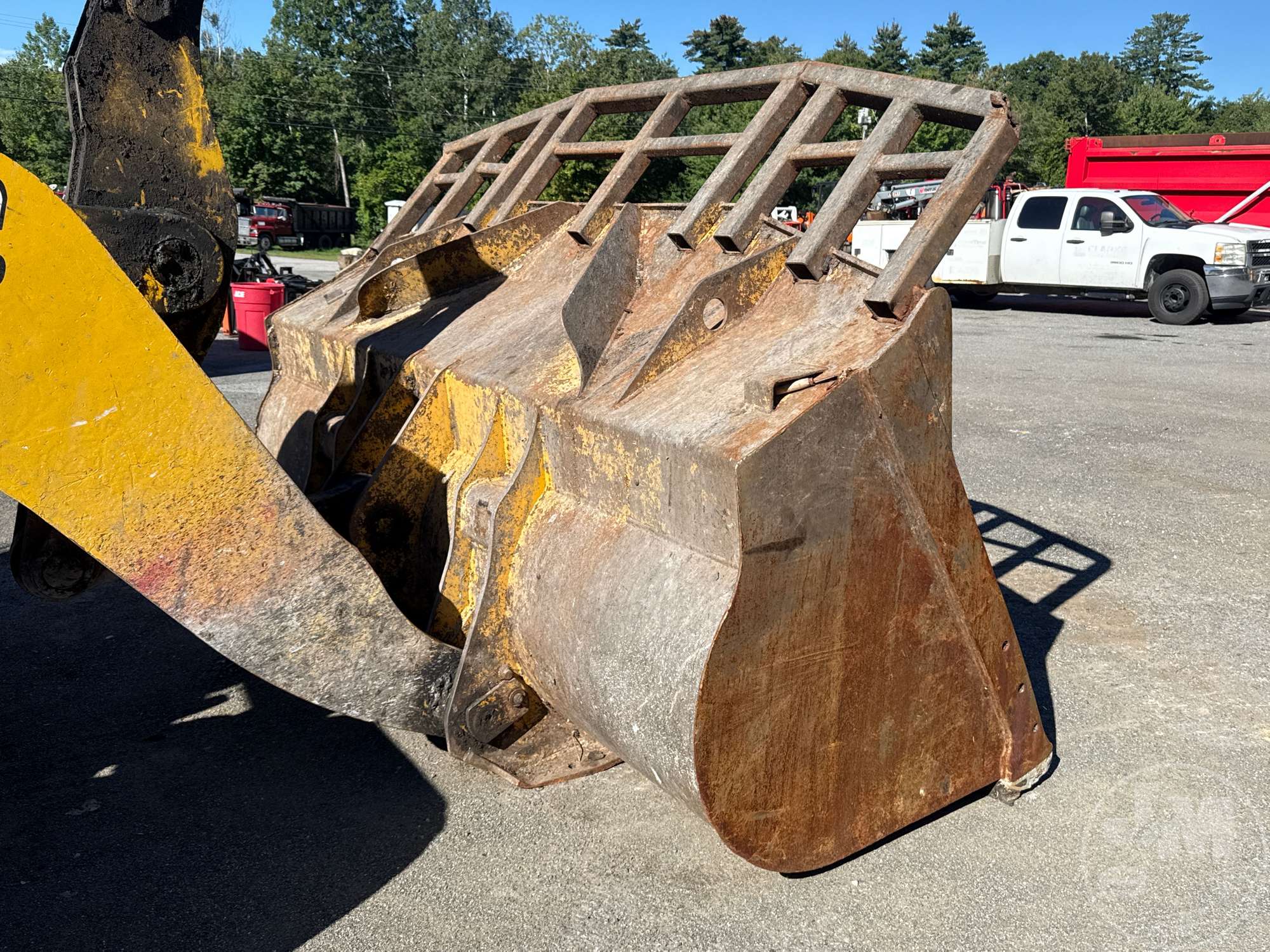

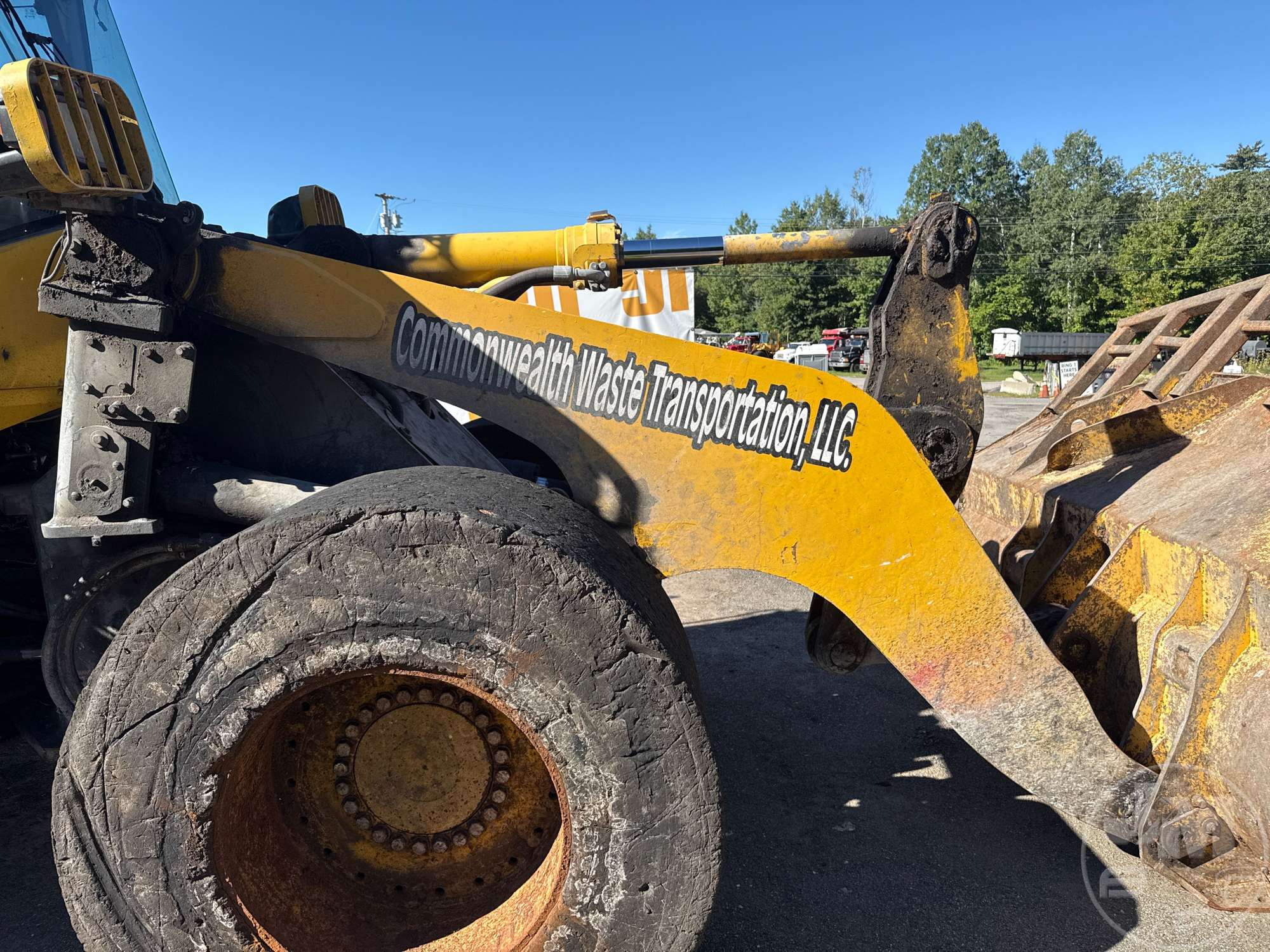

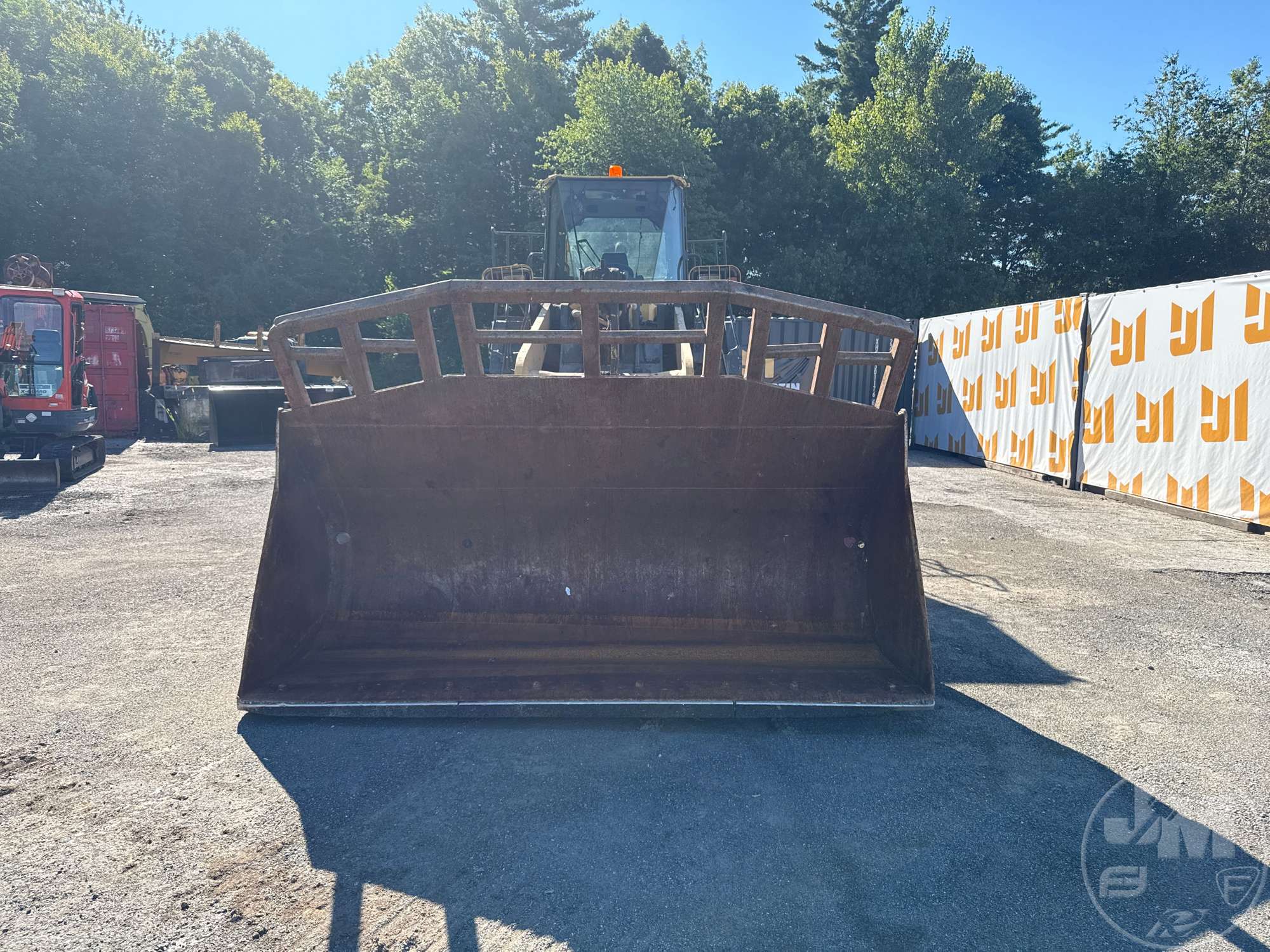

Bucket Description |
GP Bucket, bolt on edge |
|

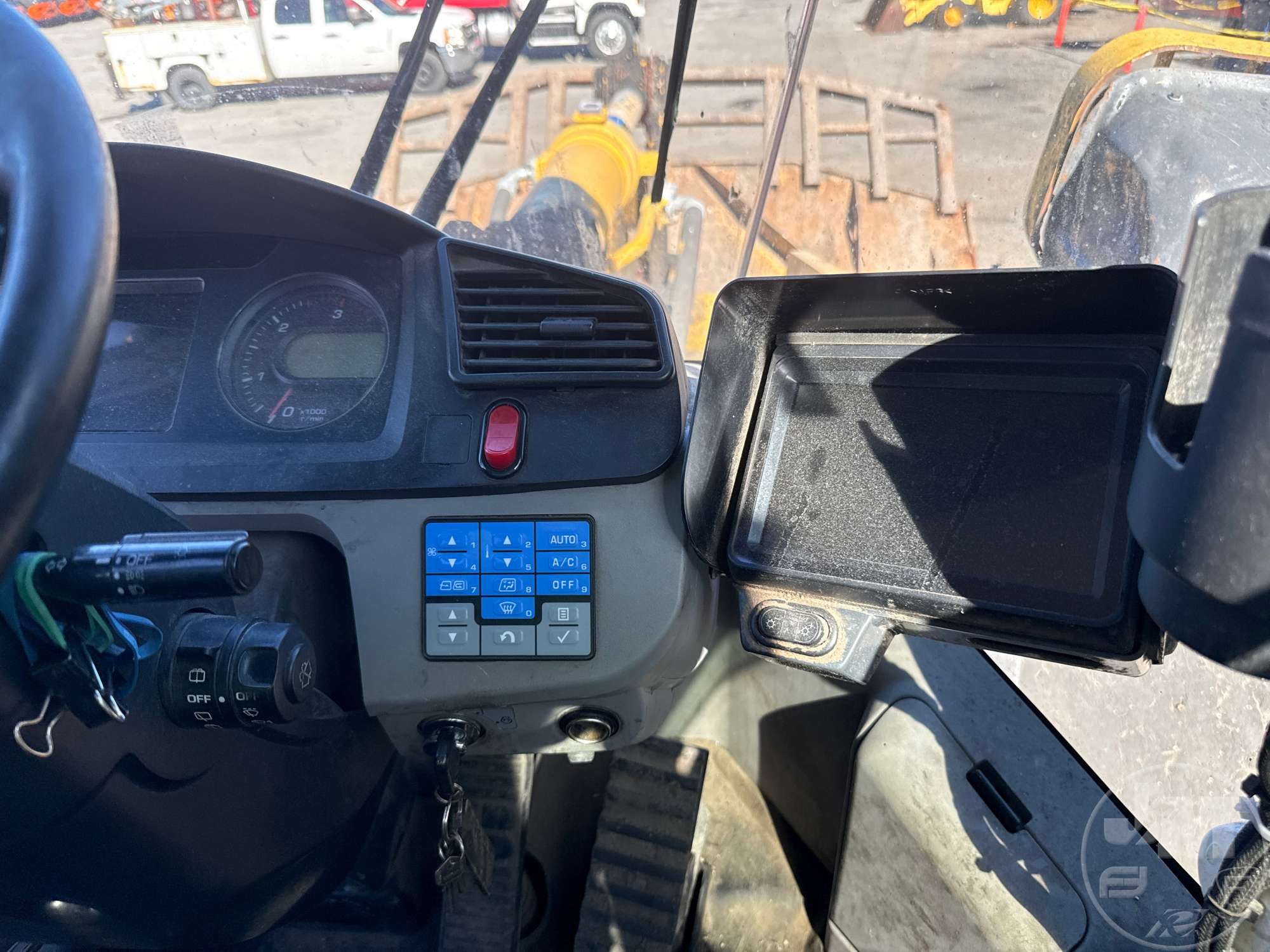

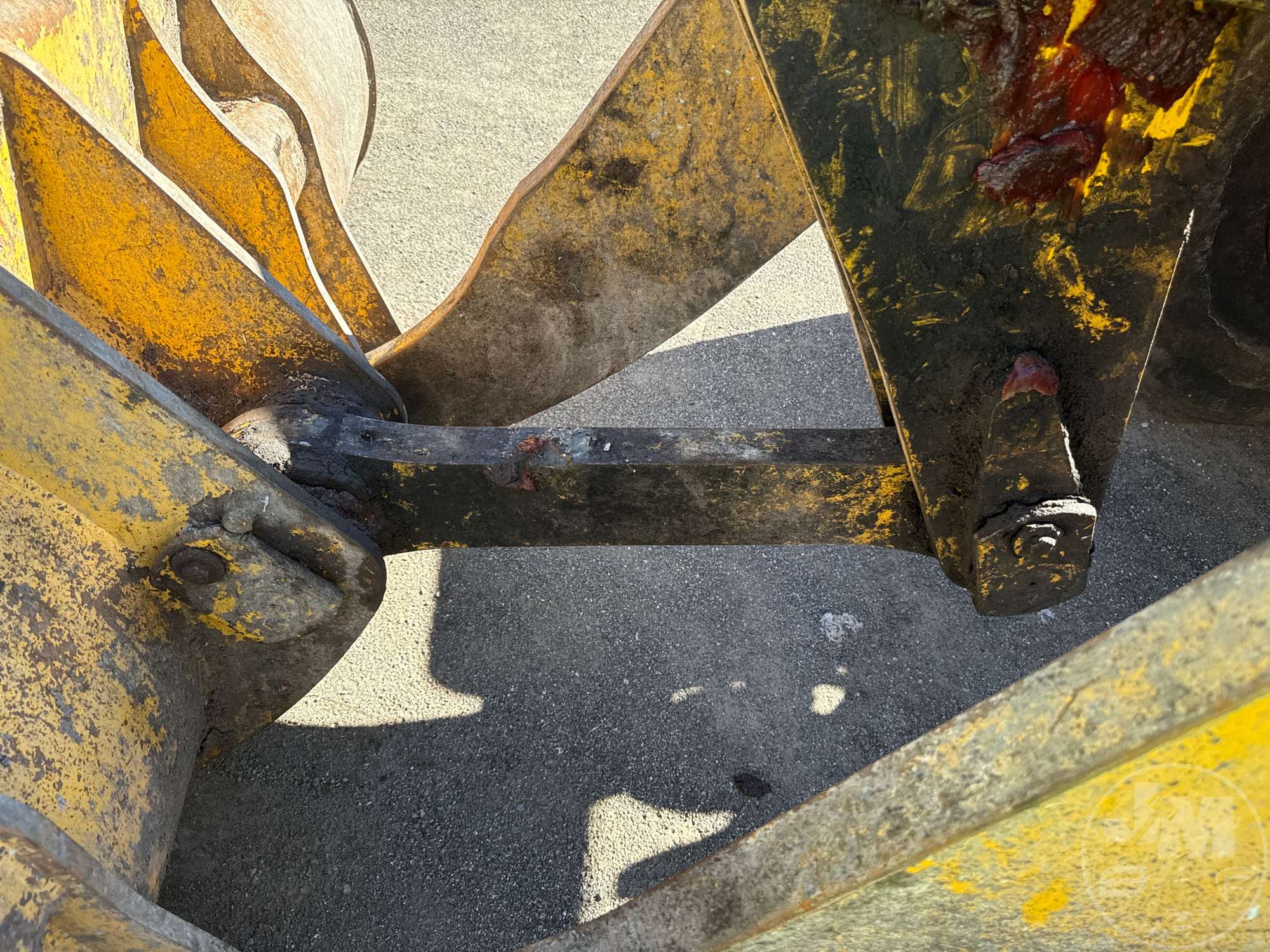

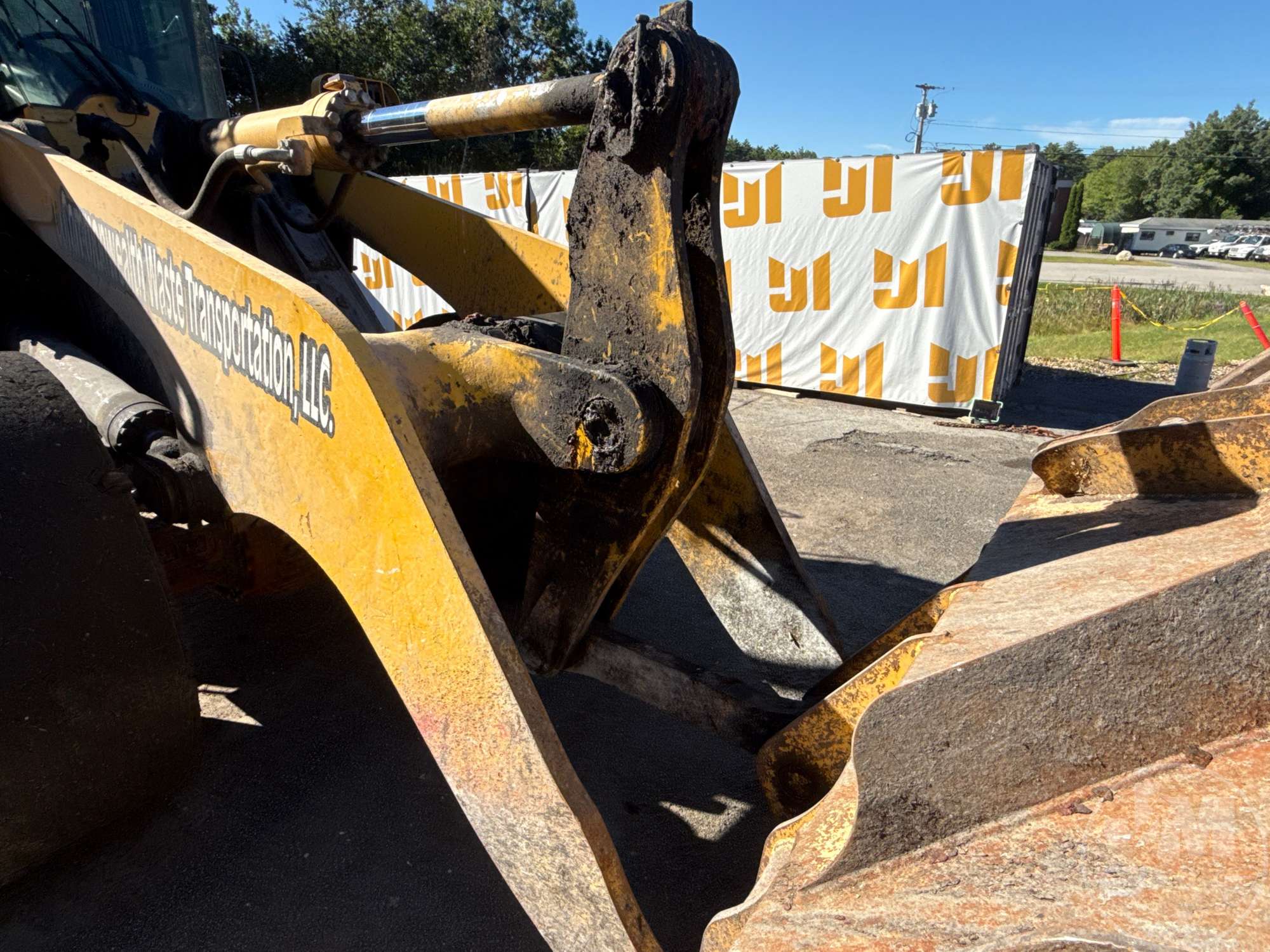

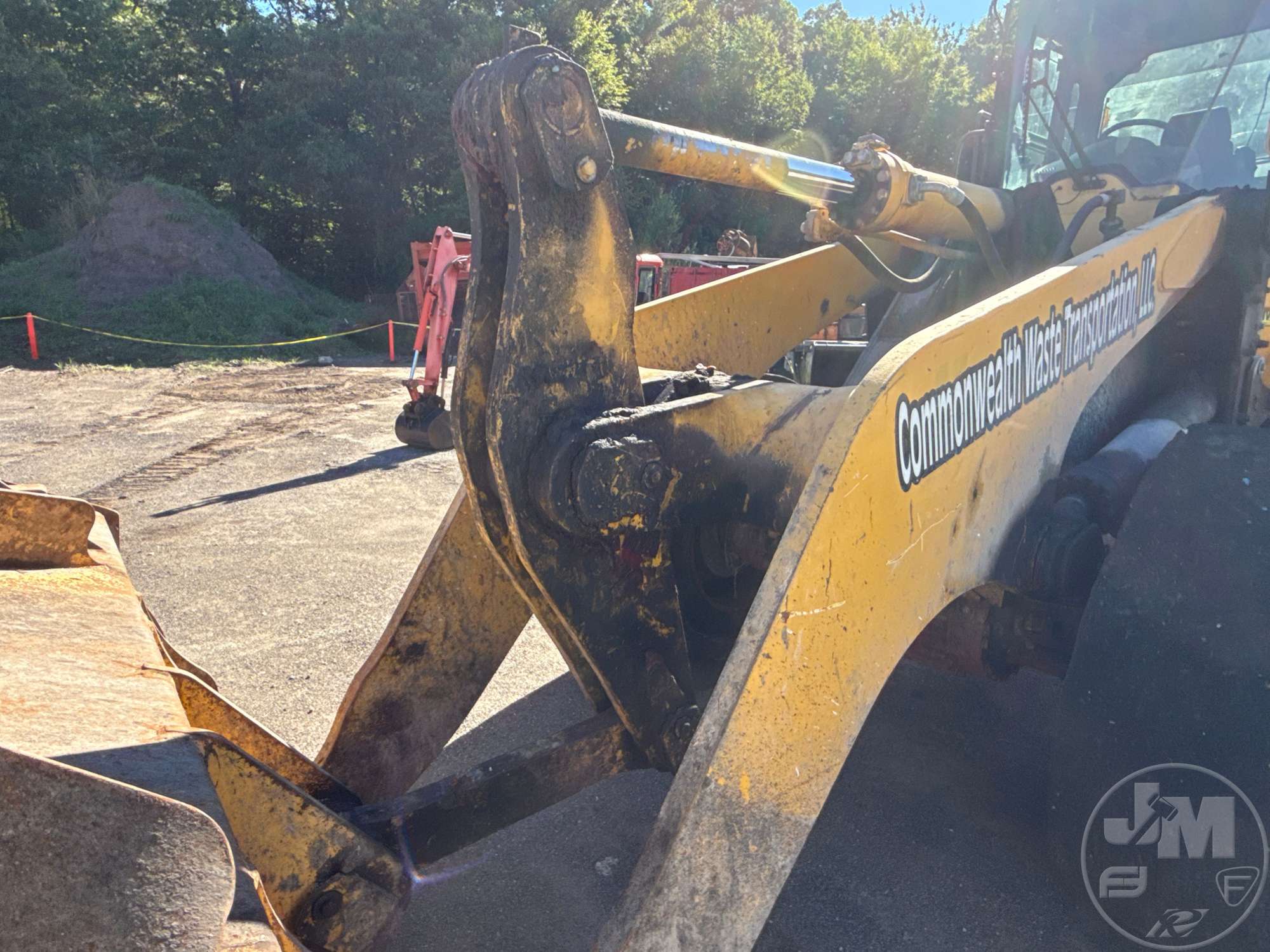

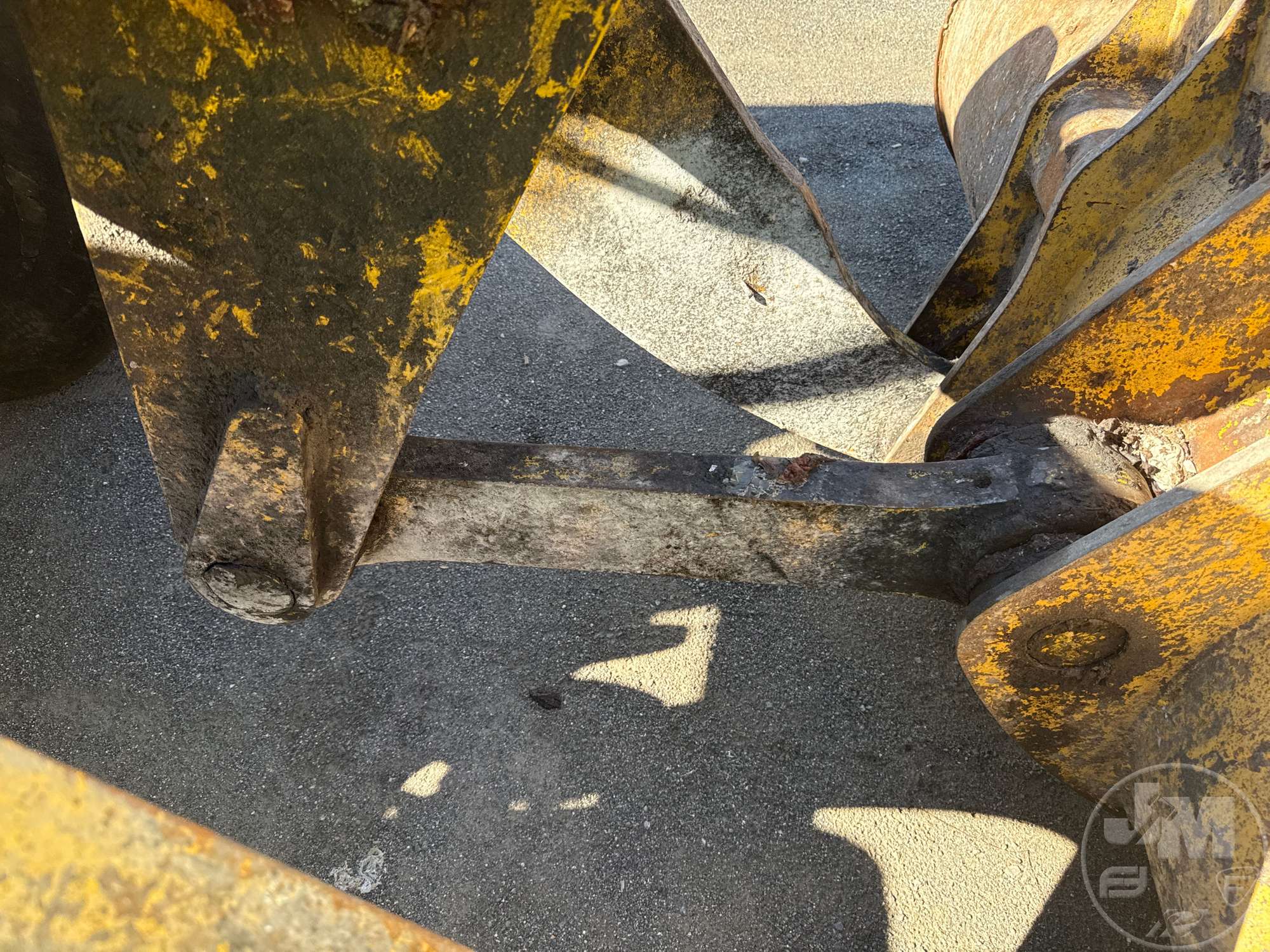

Bucket Link Type |
Z-Bar |
|
Bucket Width |
11 ft (3 m)
|
|
Dump Clearance, @45 Degrees Dump Angle |
11 ft (3 m)
|
|
Dump Reach, @45 Degrees Dump Angle |
4 ft (1 m)
|
|
Standard Bucket Capacity – Sae |
5 |
|
Static Tipping Load,Full Turn |
38,735 lbs (17,570 kg)
|

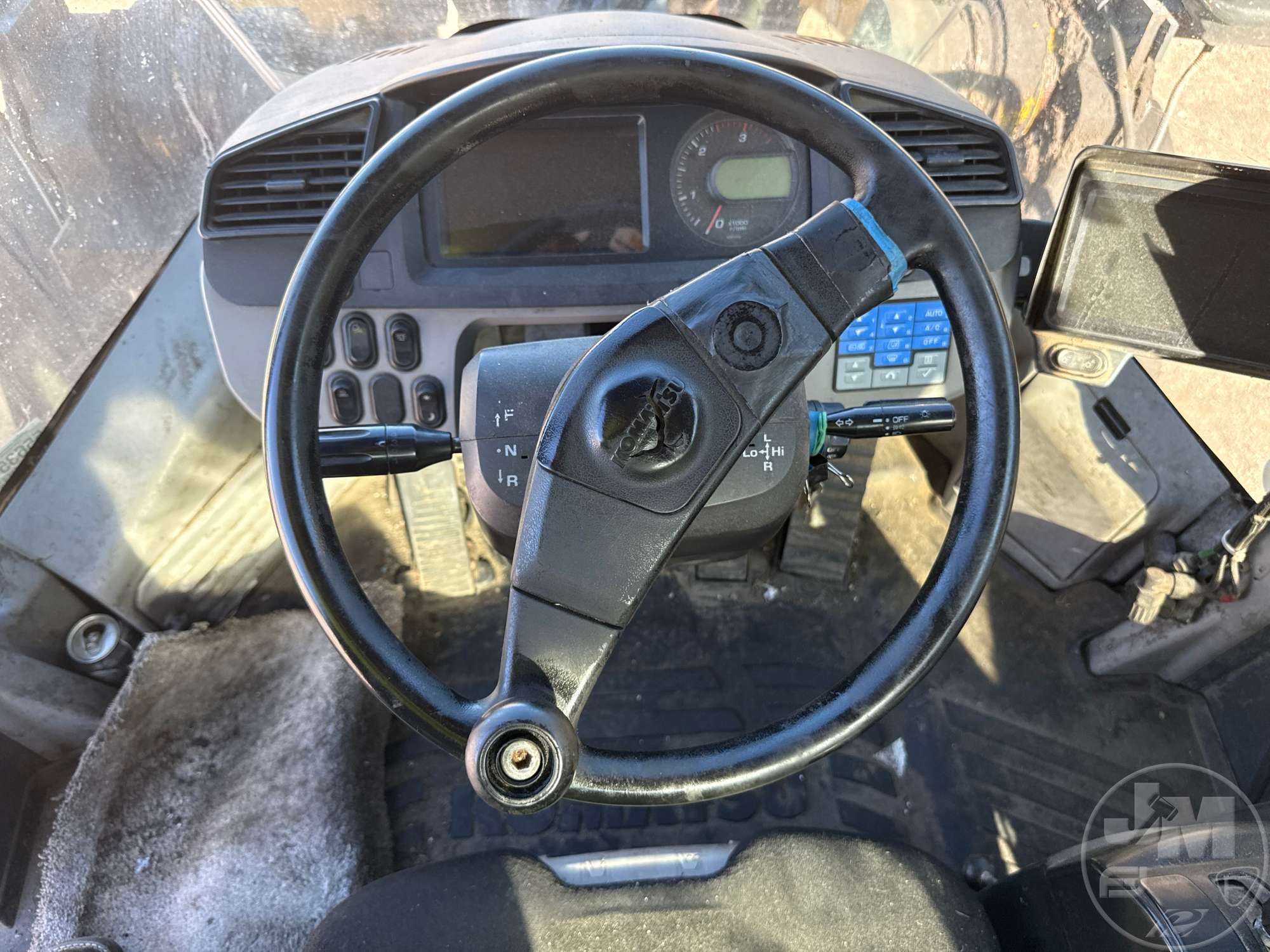

| Steering System |
|
Minimum Turning Radius At The Centre Of Outside Tire |
22 ft (7 m)
|
|
Steering Angle |
35 degrees |
|

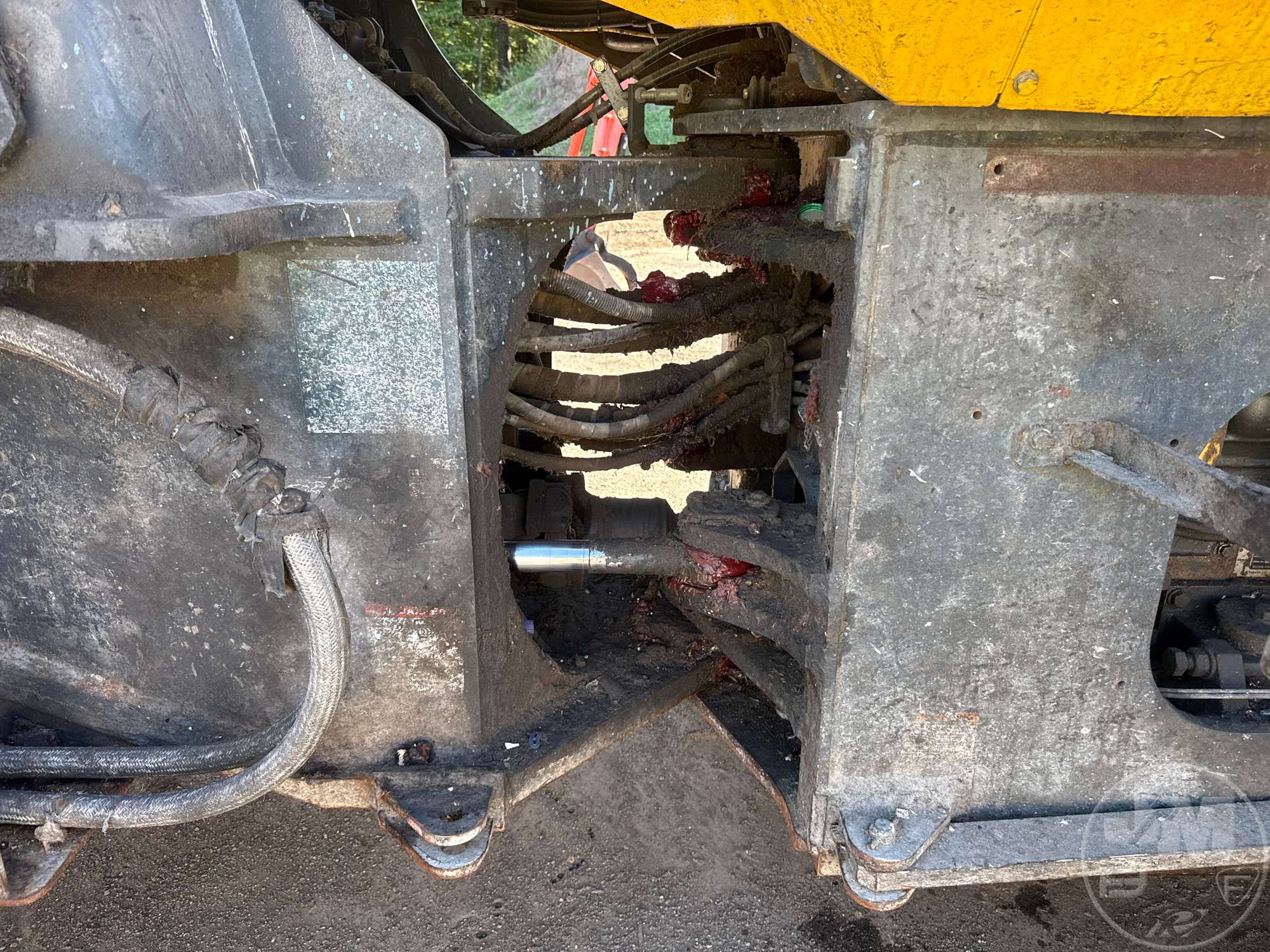

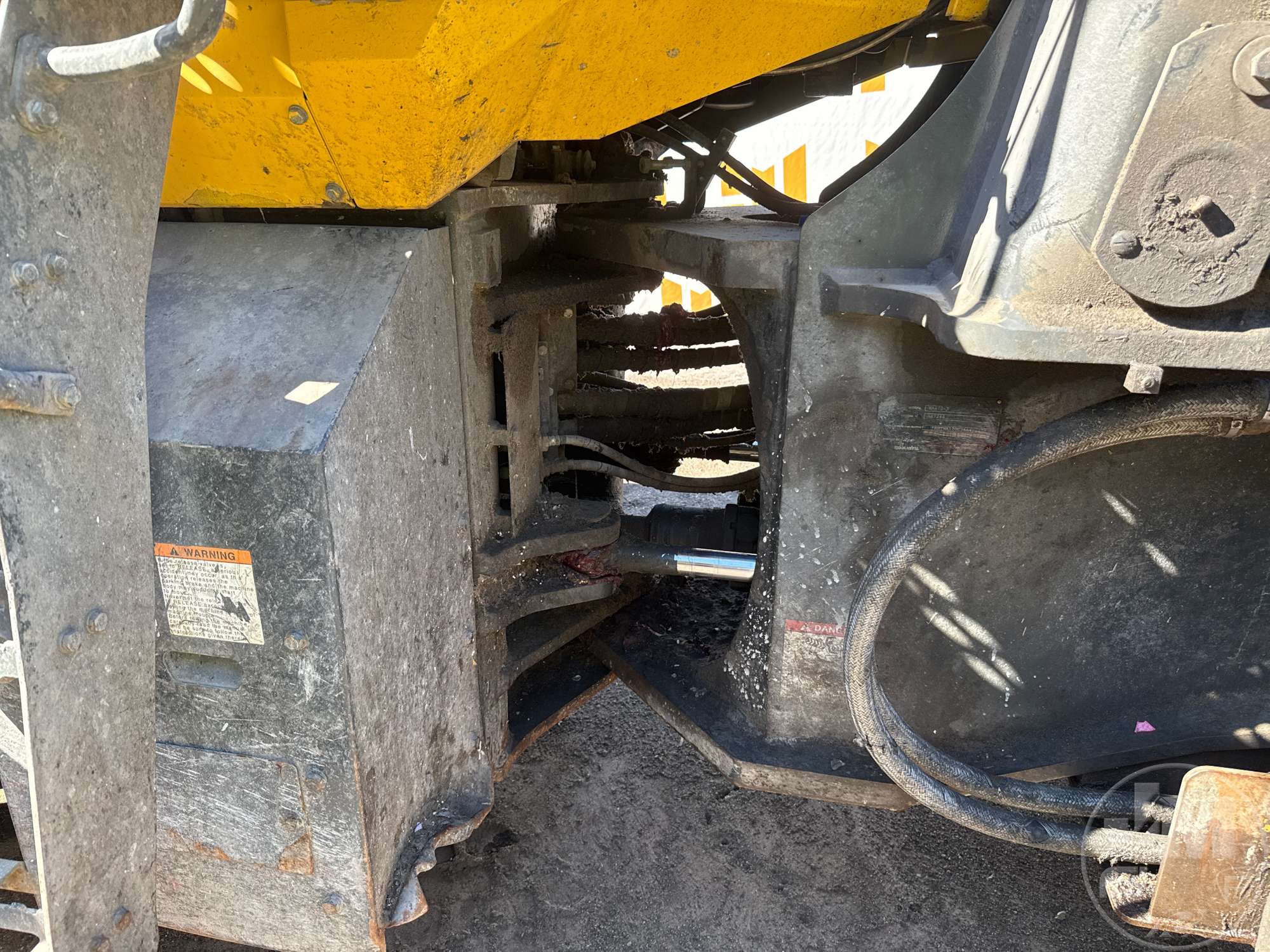

Steering System Type |
Articulated type, full-hydraulic power steering |

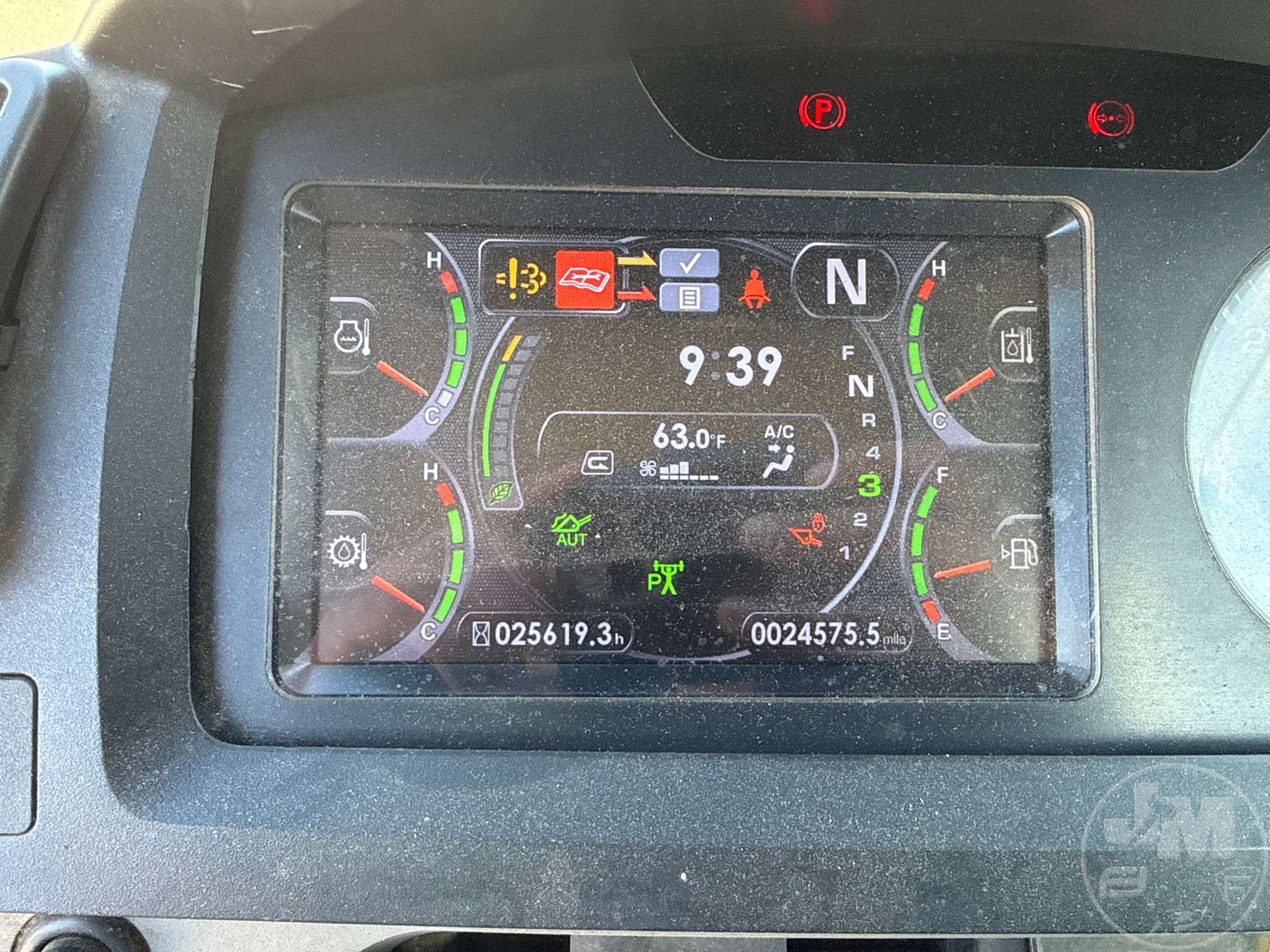

| Transmission |
|
Transmission Type |
Automatic full-powershift, countershaft type |

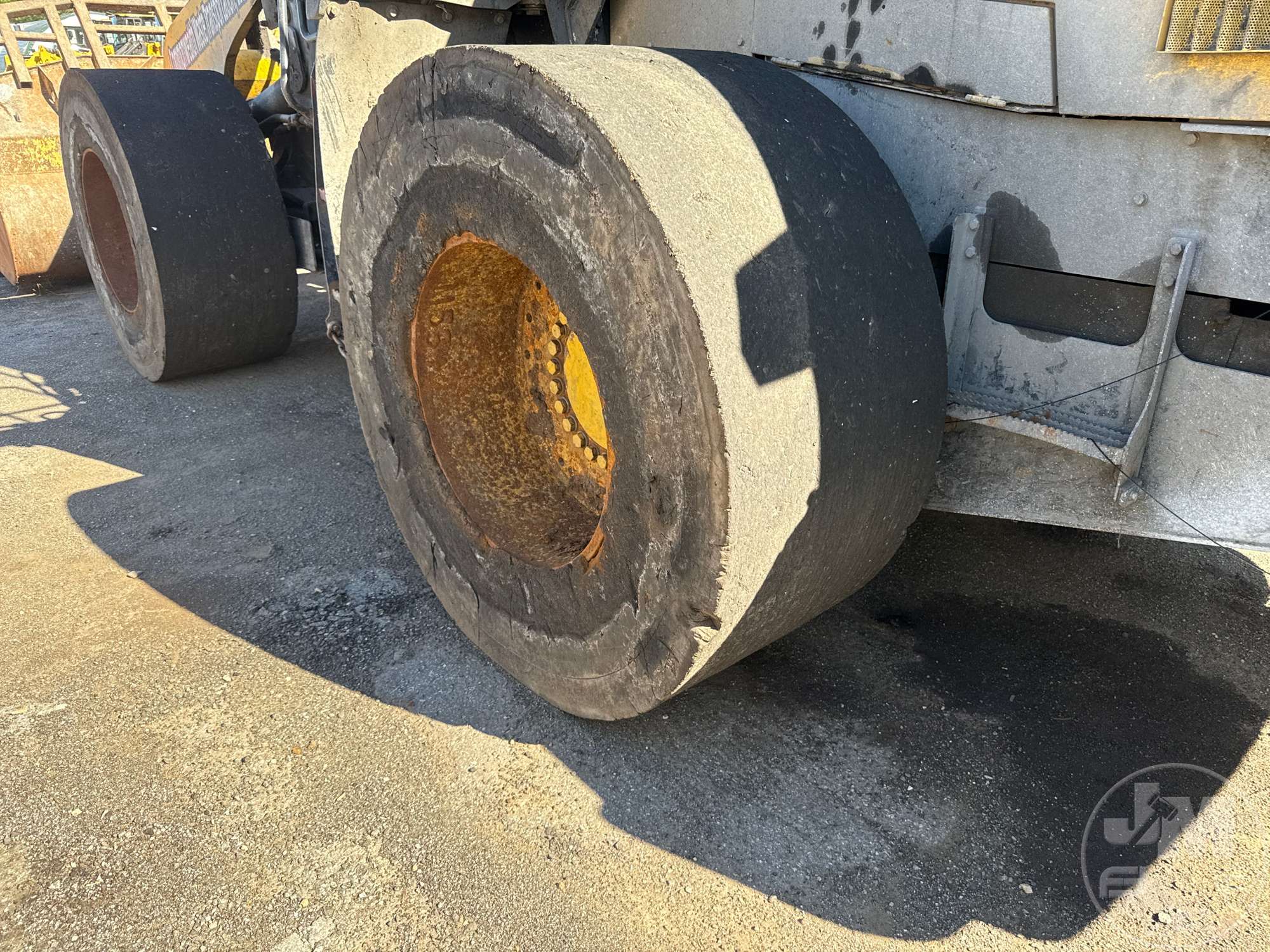

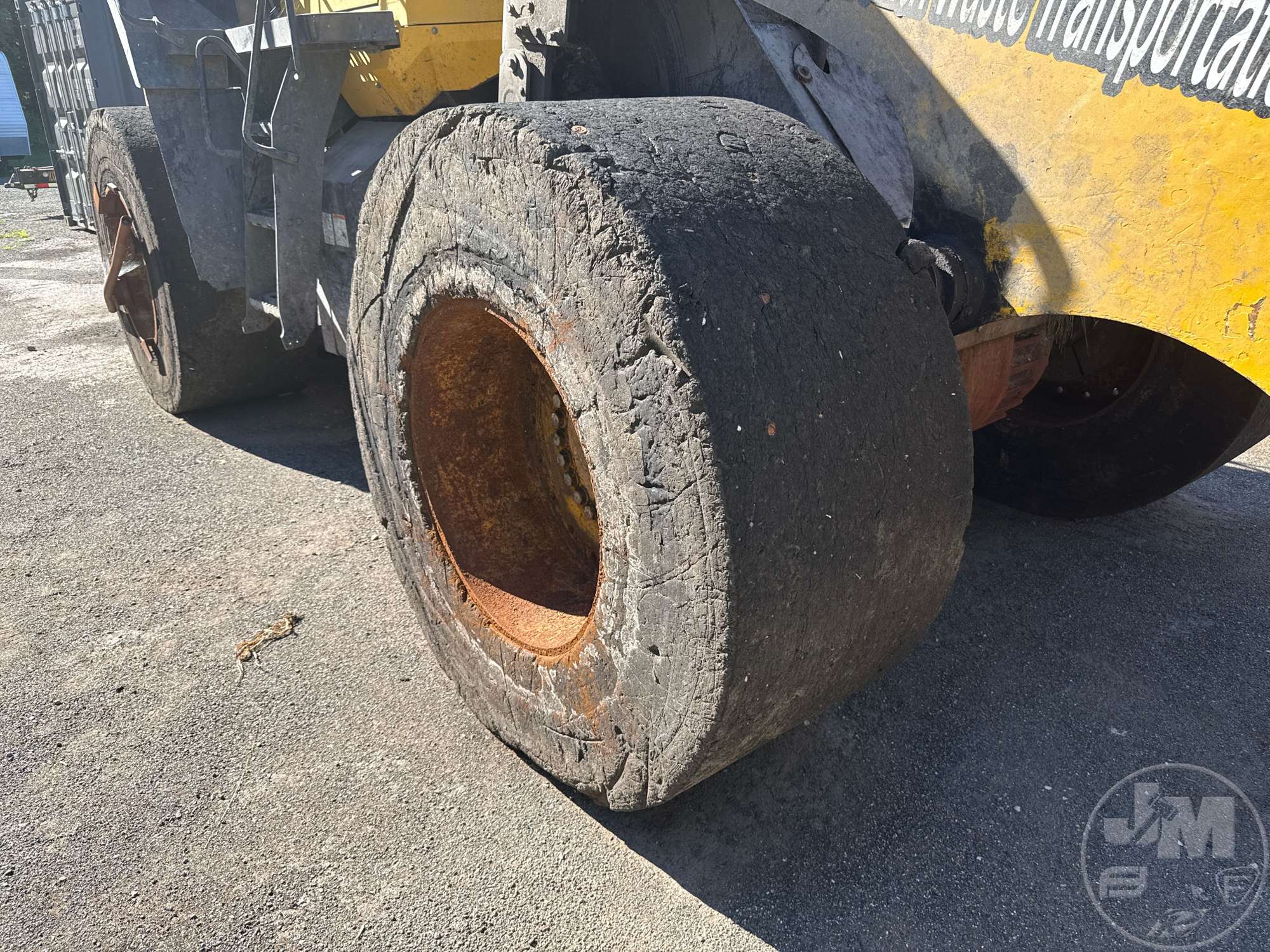

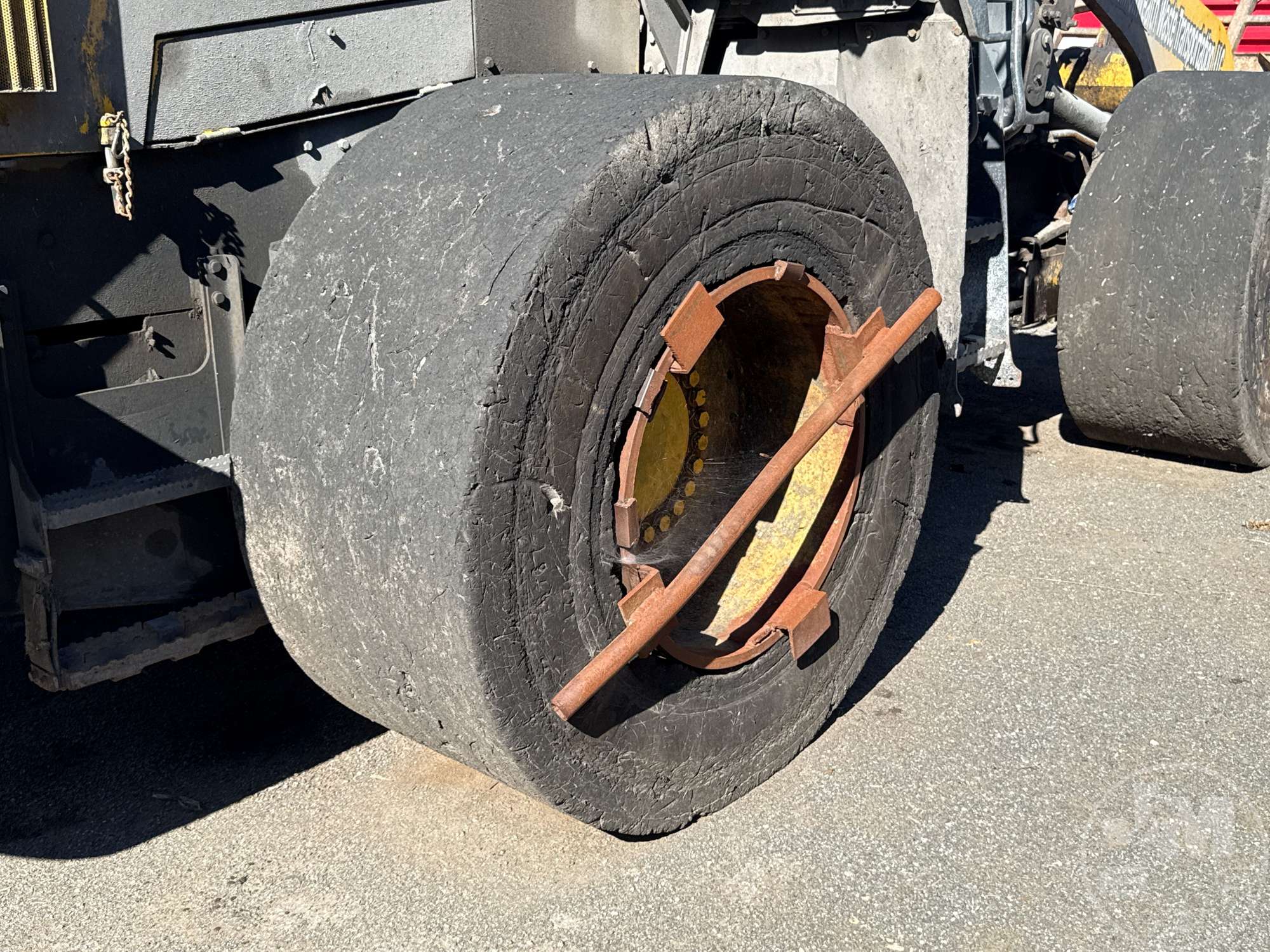

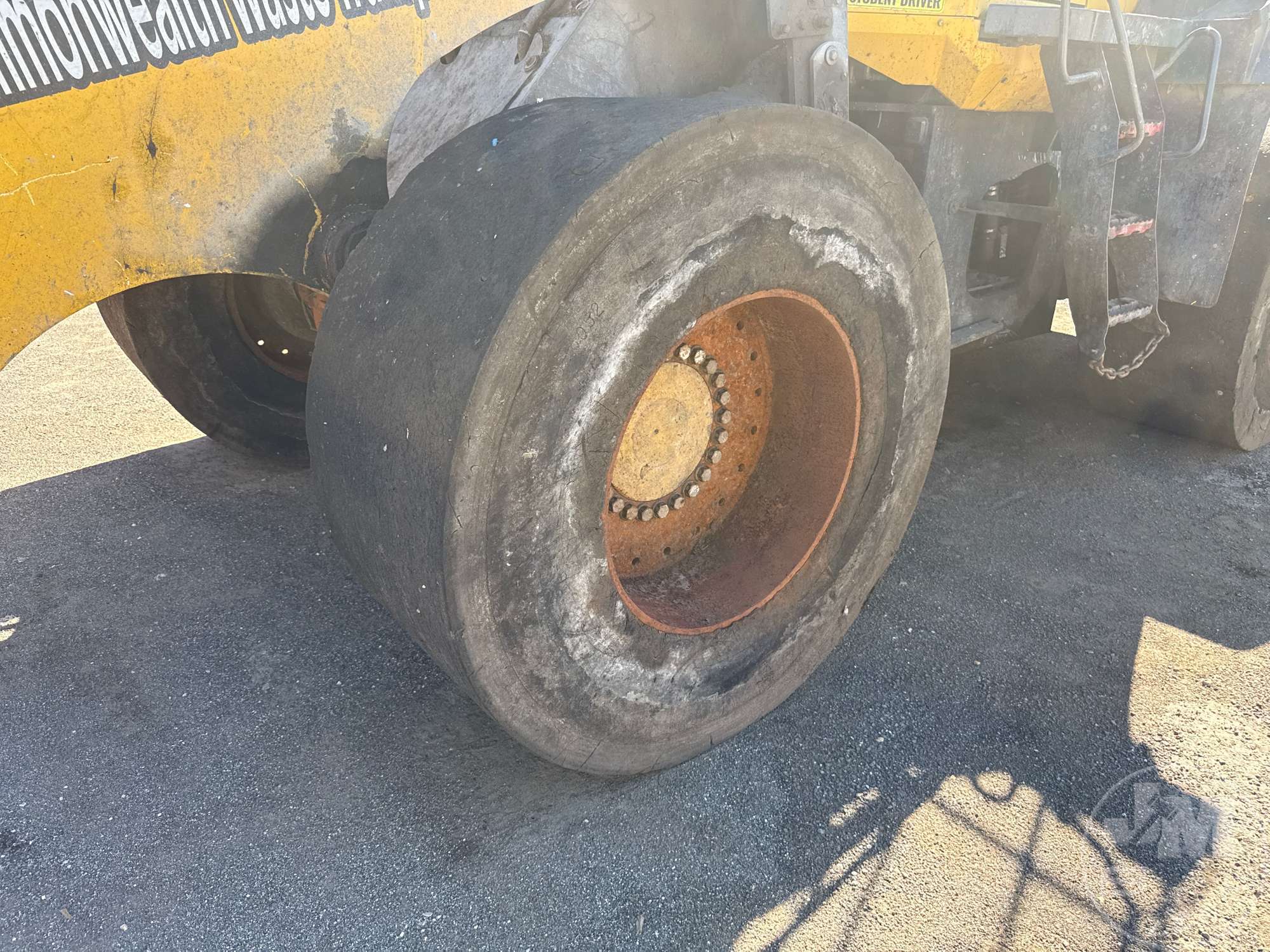

| Tyres |
|
Standard Fitment Size |
26.5 R25 L3 |
| Weights |
|
Operating Weight |
52,889 lbs (23,990 kg)
|
