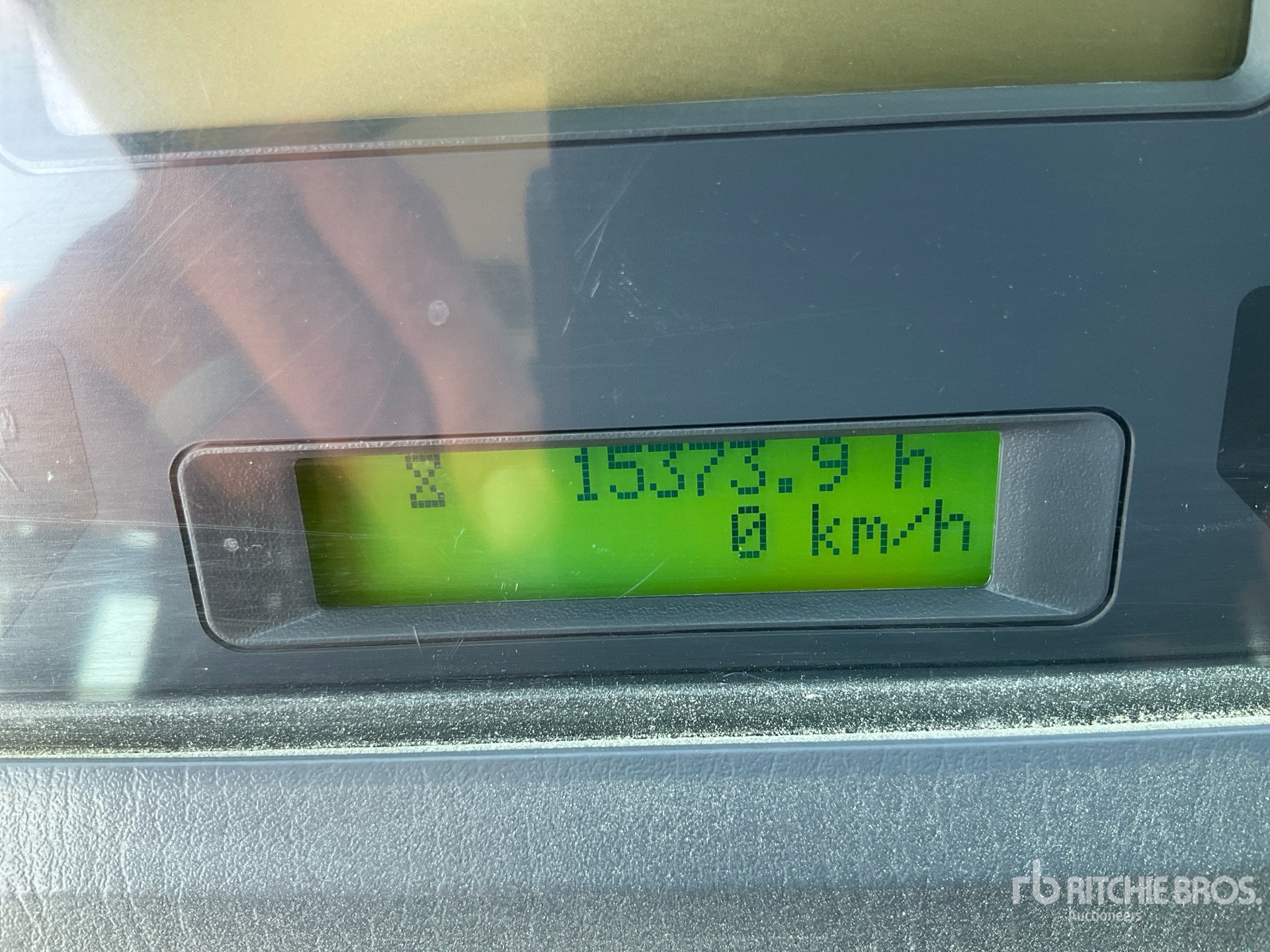

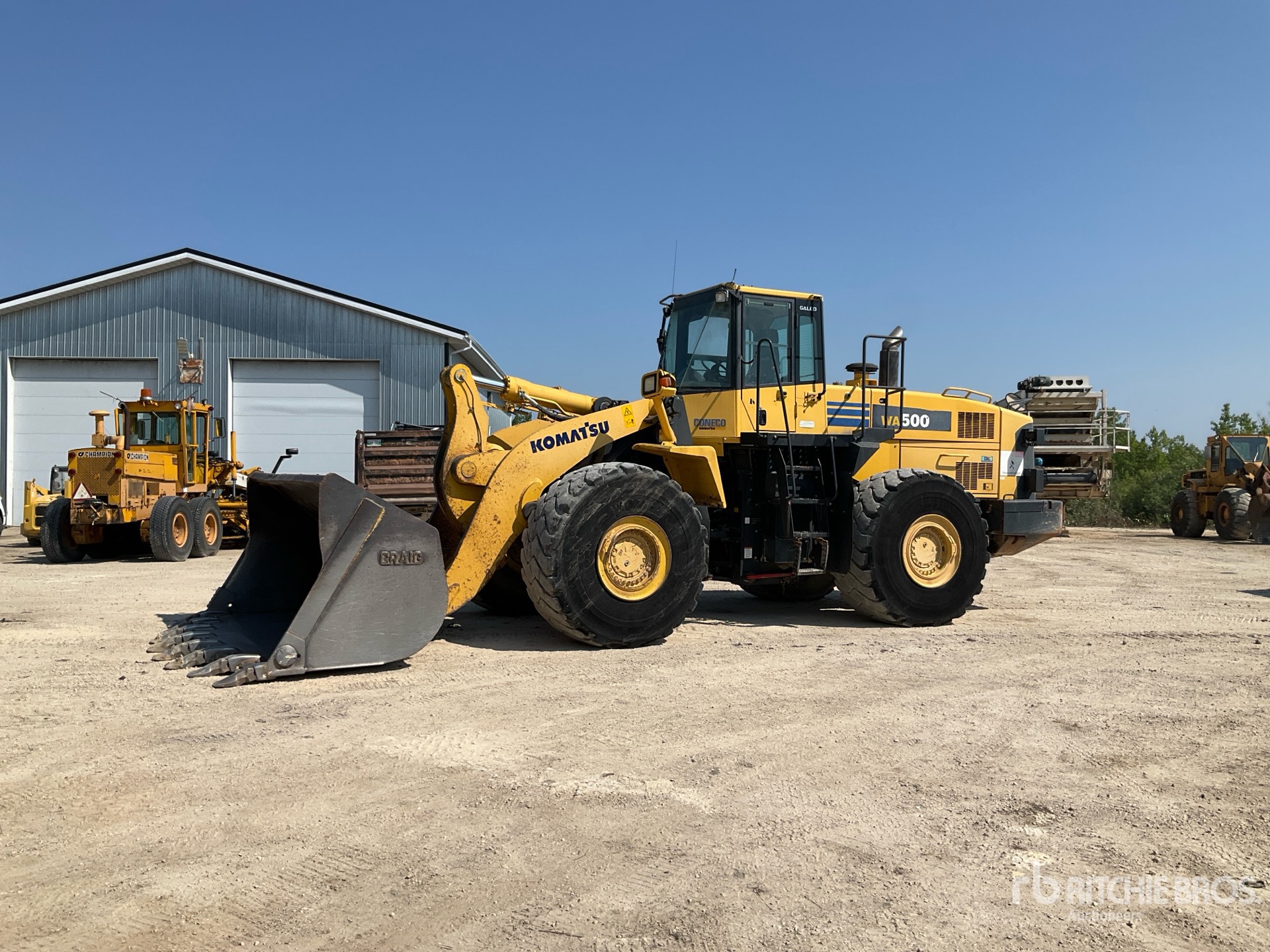

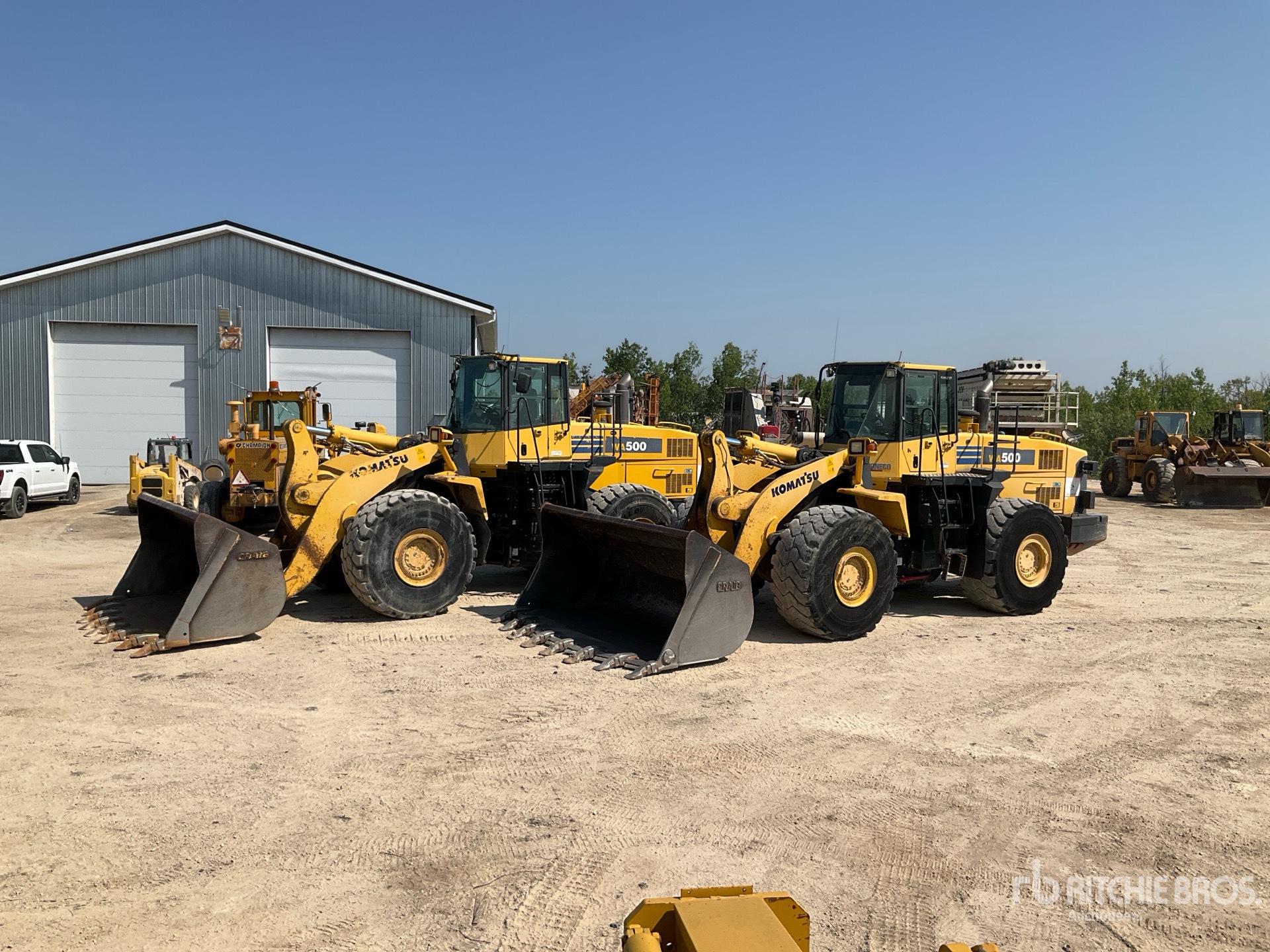

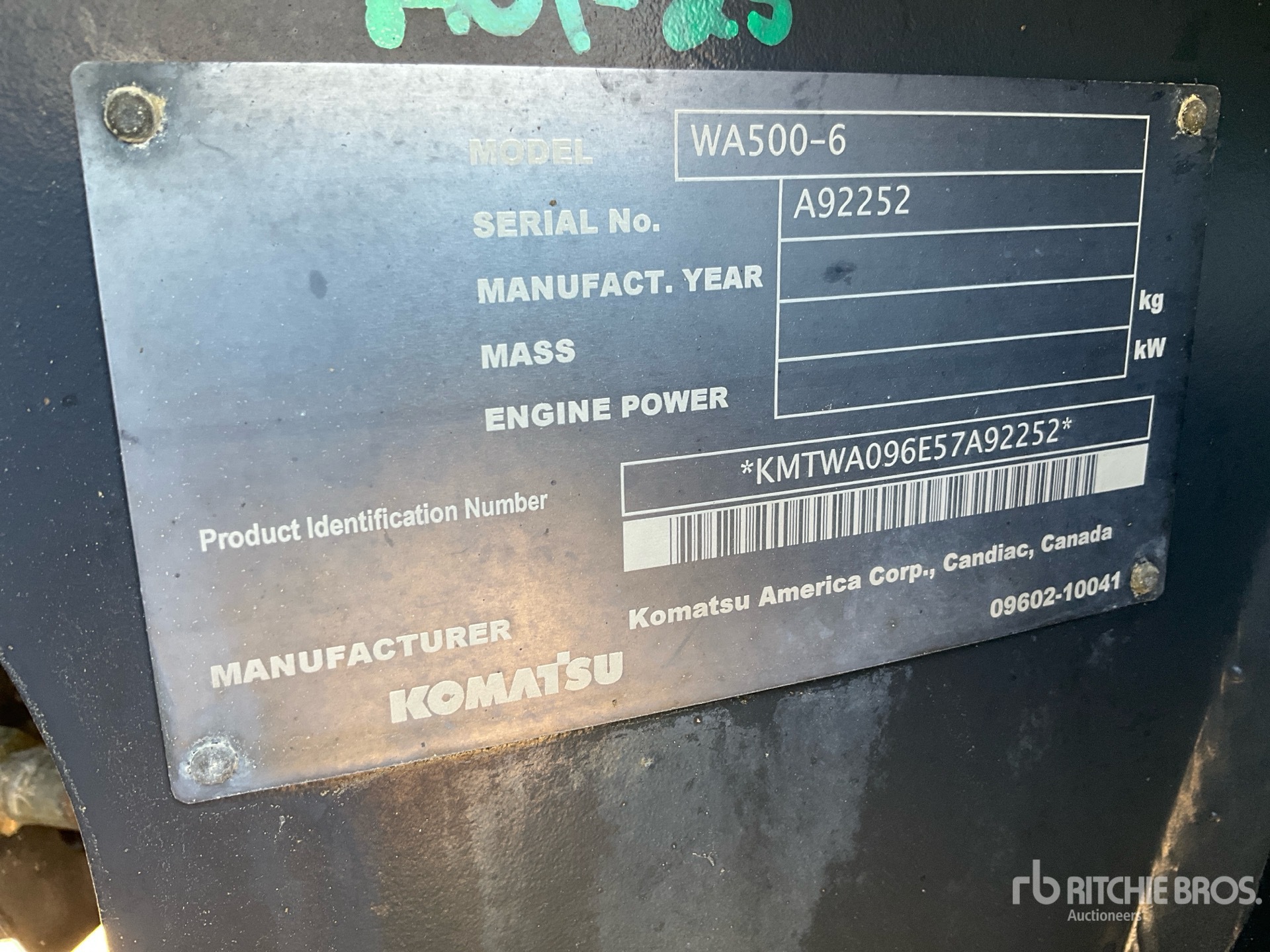

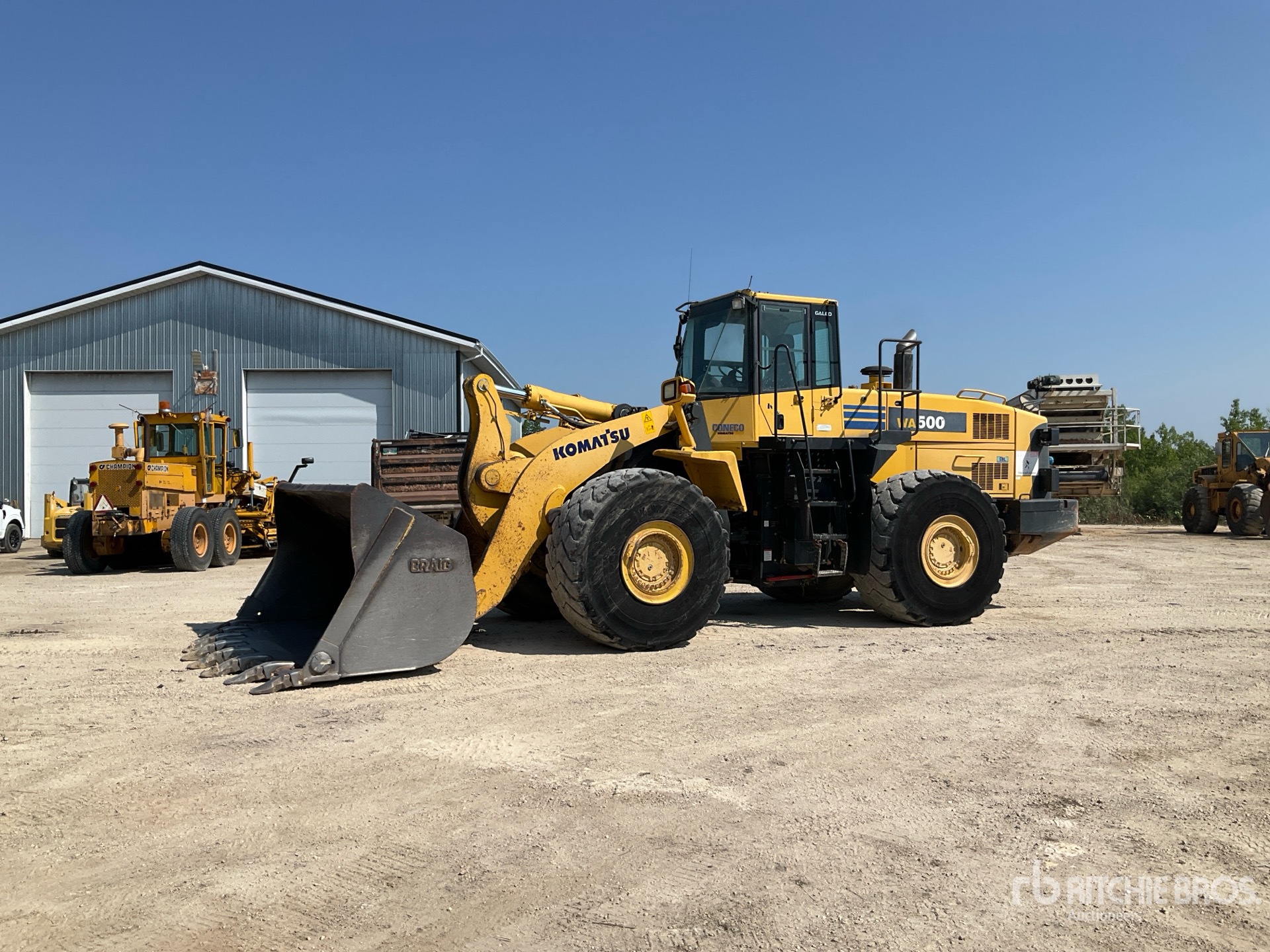

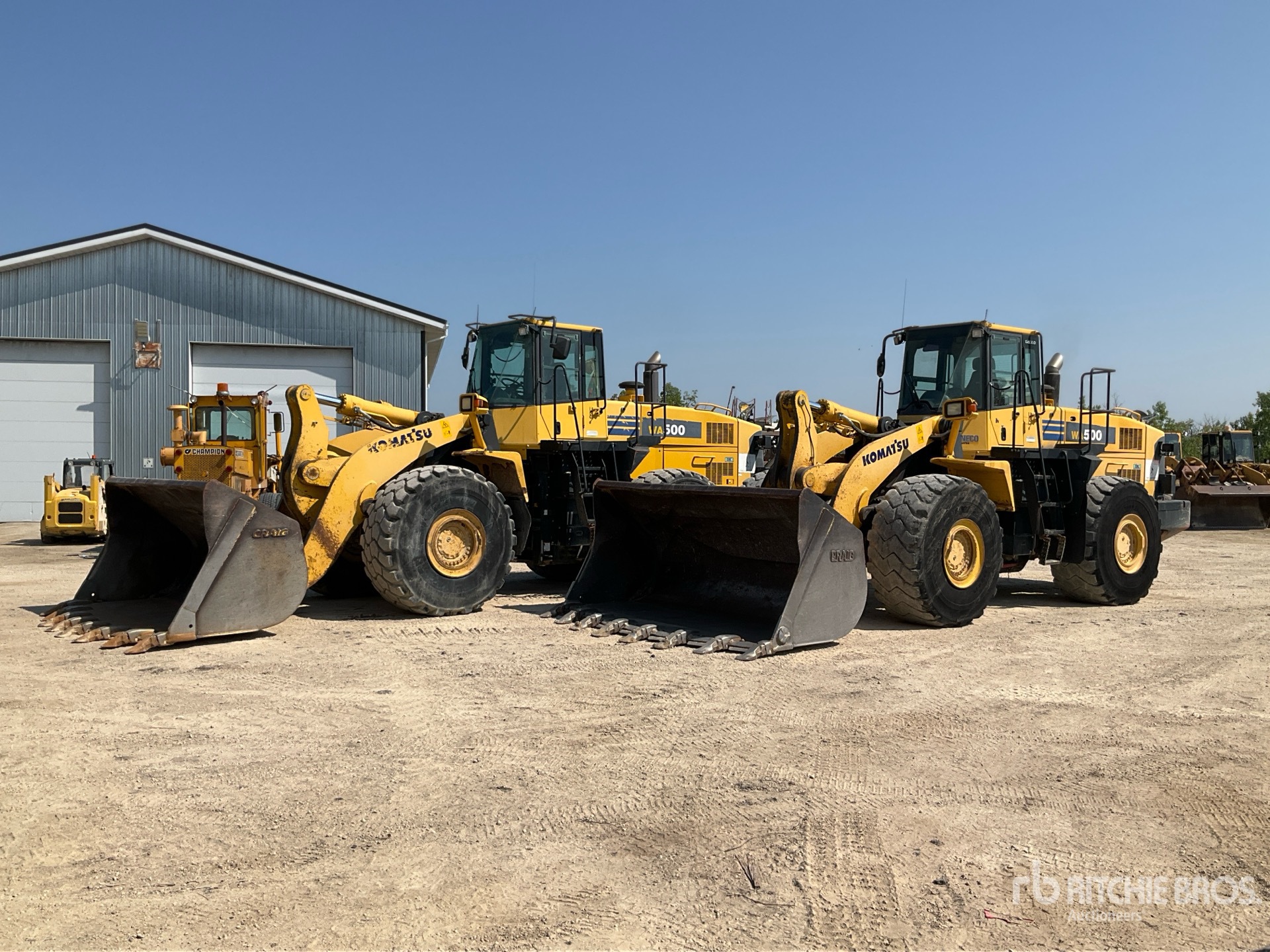

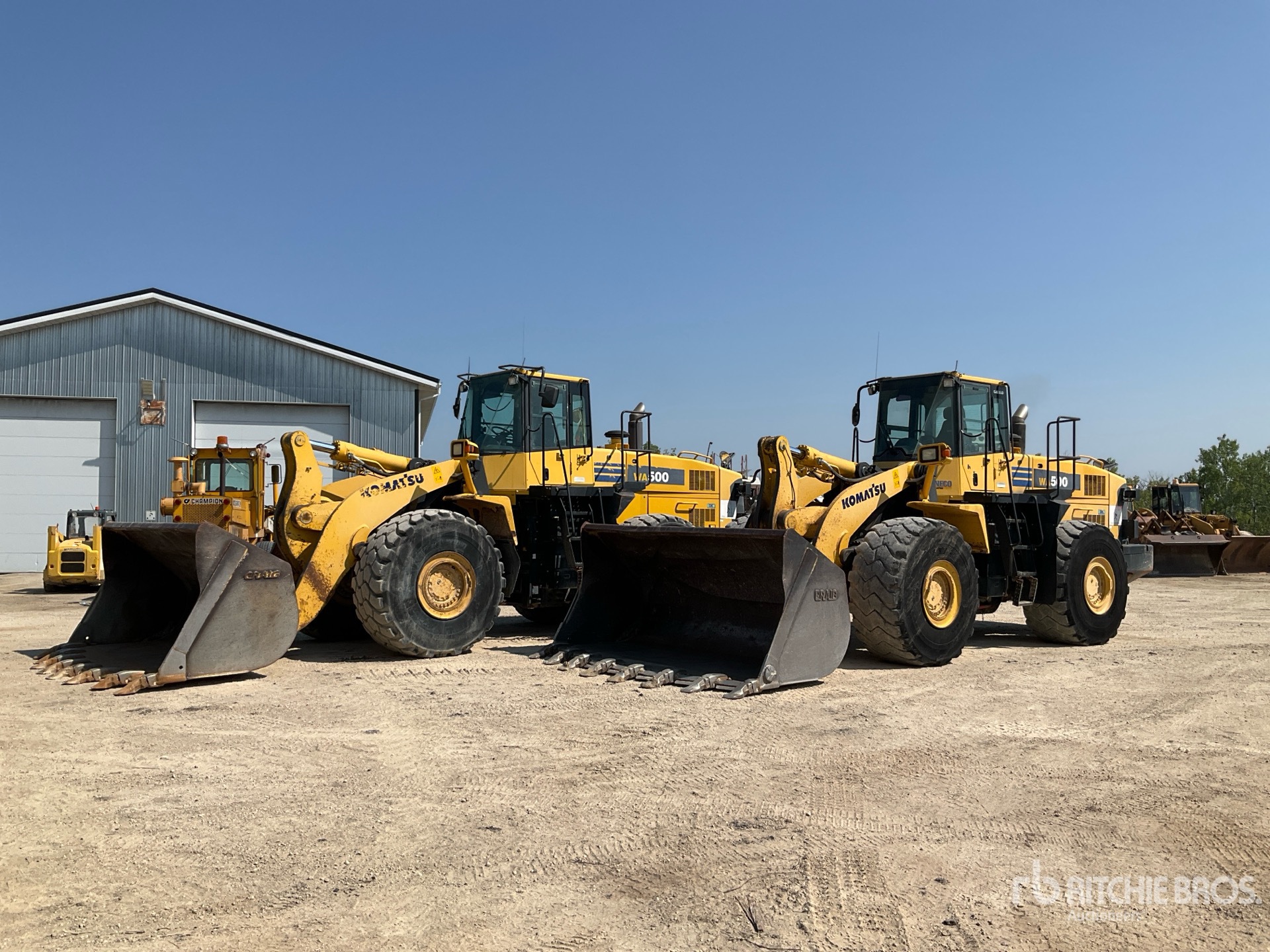

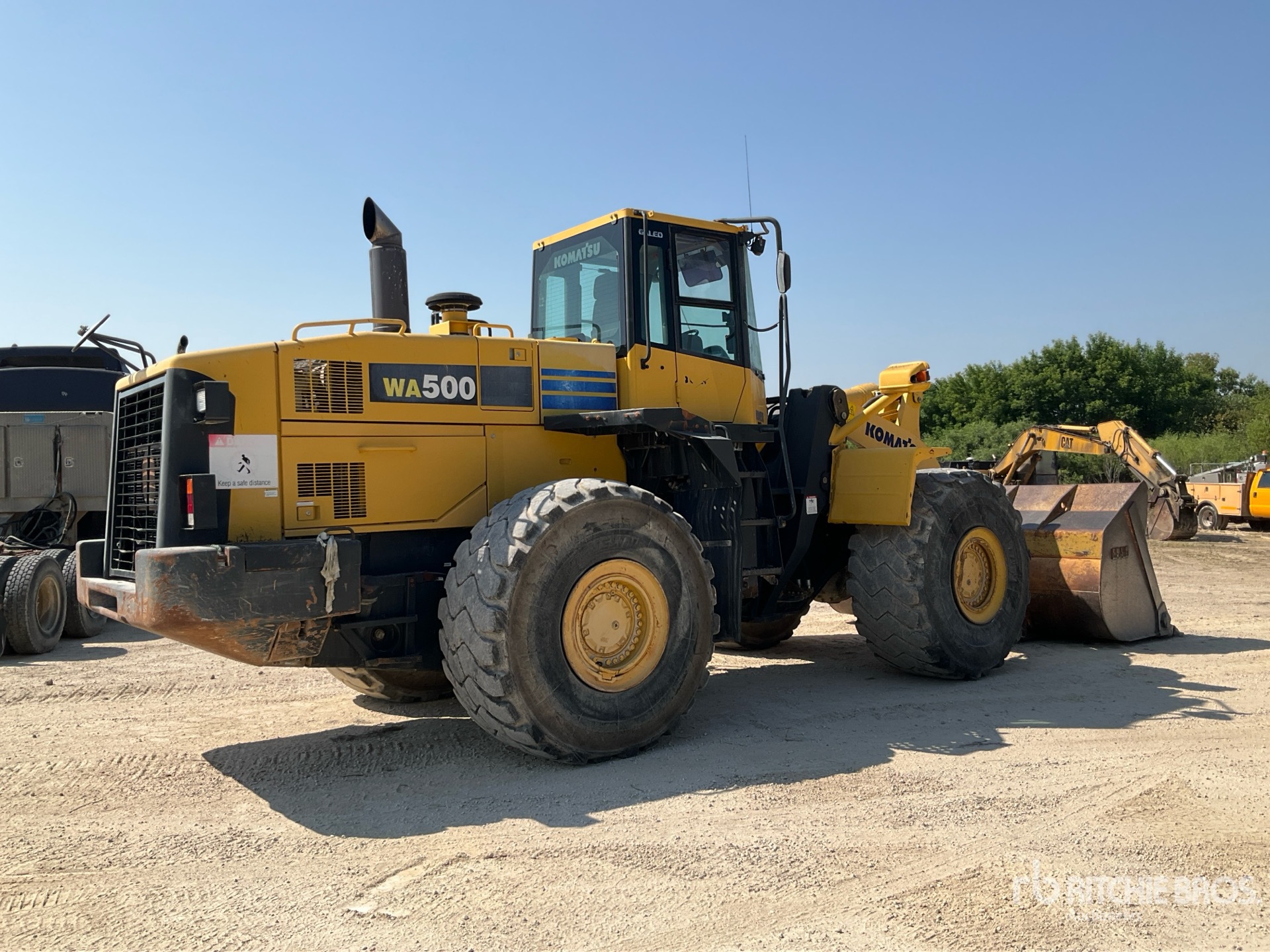

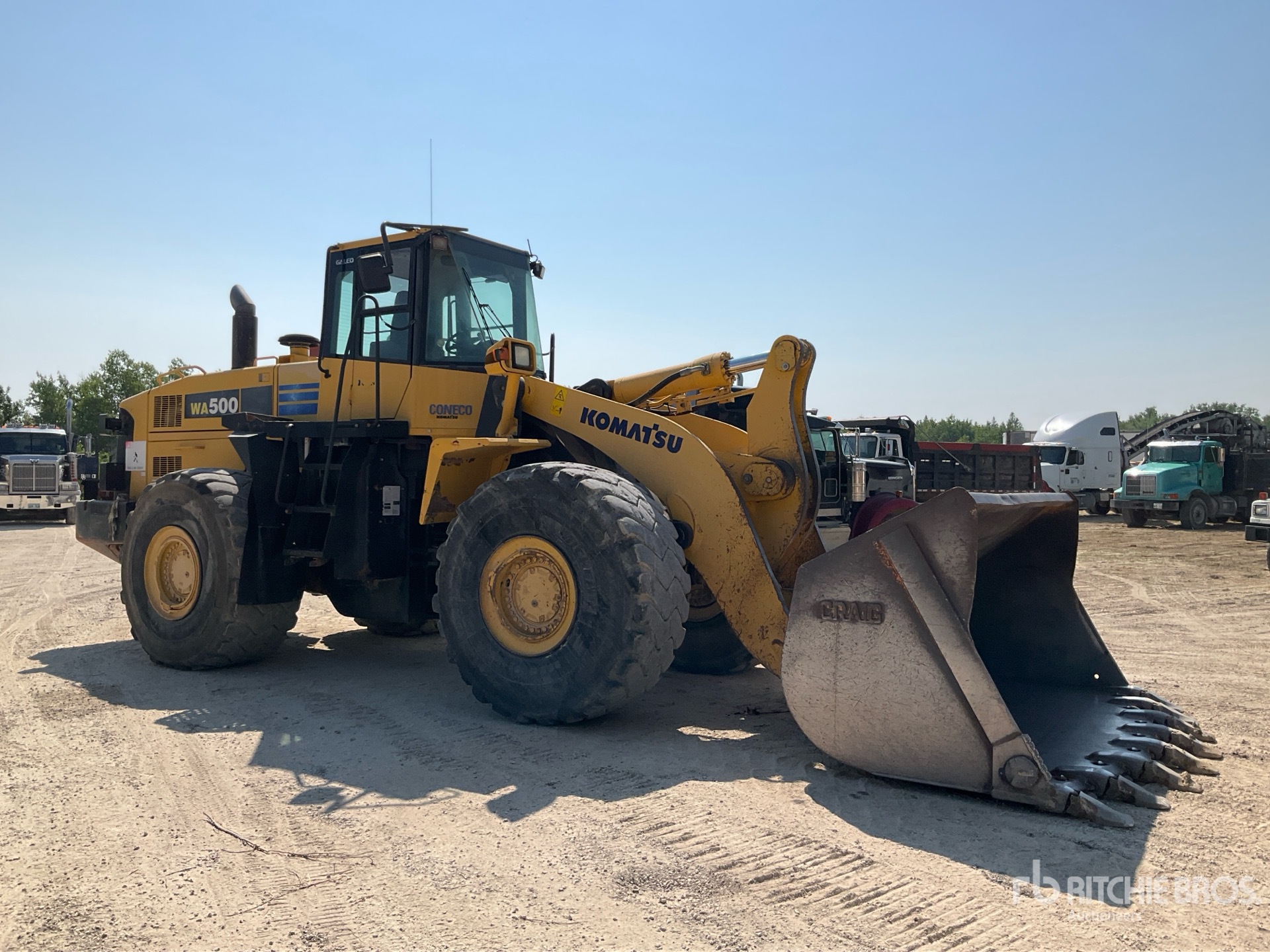

| Axles |
|
Drive System |
Four-wheel drive |
|
Front |
Fixed, semi-floating |
|
Rear |
Center-pin support, semi-floating, 24 ? total oscillation |
| Brakes |
|
Emergency Brake |
Parking brake is commonly used |
|
Parking Brake |
Wet |
|
Service Brake |
Hydraulically actuated |
| Capacities |
|
Cooling System |
32 gal (120 l)
|
|
Engine Oil |
12 gal (45 l)
|
|
Front Axle |
5,309 cu in (87,001 cu cm)
|
|
Fuel Tank |
125 gal (473 l)
|
|
Hydraulic System |
89 gal (337 l)
|
|
Rear Axle |
21 gal (81 l)
|
|
Torque Converter, Transmission And Retarder Cooling |
20 gal (76 l)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
12 ft (4 m)
|
|
Height To Top Of Cab |
12 ft (4 m)
|
|
Length |
32 ft (10 m)
|
|
Length |
386 in (982 cm)
|
|
Turning Circle |
50 ft (15 m)
|
|
Weight |
74,010 lbs (33,565 kg)
|
|
Wheelbase |
12 ft (4 m)
|
|
Width |
10 ft (3 m)
|
|
Width Over Tires |
10 ft (3 m)
|
| Driveline |
|
Brake |
Hydraulic, Wet disc |
|
Maximum Speeds/Fwd Mph (Km/H) |
35 |
|
Maximum Speeds/Rev Mph (Km/H) |
38 |
|
Number Of Speeds - Forward |
4 |
|
Number Of Speeds - Reverse |
4 |
|
Ride Control System |
Standard |
|
Transmission |
Automatic Powershift |
| Engine |
|
Air Cleaner |
Dry type |
|
Aspiration |
Turbocharged, after cooled |
|
Bore |
6 in (14 cm)
|
|
Displacement |
930 cu in (15,242 cu cm)
|
|
Engine Make |
2,238 |
|
Engine Model |
SAA6D140E-5 |
|
Engine Type |
Water-cooled, 4-cycle |
|
Fan Drive Method |
?Hydraulic |
|
Filter |
Full-flow type |
|
Fuel System |
Direct injection |
|
Governor |
All-speed, electronic |
|
Horsepower, Gross-Sae J1995 |
357 hp (266 kw)
|
|
Horsepower, Net-Iso 9249 |
353 hp (263 kw)
|
|
Horsepower, Net-Sae J1349 |
333 hp (248 kw)
|
|
Lubrication Method |
Gear pump, force-lubricatio |
|
Number Of Cylinders |
6 |
|
Piston Displacement |
930 cu in (15,242 cu cm)
|
|
Stroke |
7 in (17 cm)
|
| Final Drive |
|
Differential Gear |
Torque proportioning |
|
Final Reduction Gear |
Planetary gear, single reduction |
|
Reduction Gear |
Spiral bevel gear |
| Hydraulic System |
|
Bore |
4 in (10 cm)
|
|
Bucket Cylinde Bore |
7 in (19 cm)
|
|
Bucket Cylinde Stroke |
27 in (68 cm)
|
|
Control Positions Boom |
Raise, hold, lower, and float |
|
Control Positions Bucket |
Tilt-back, hold, and dump |
|
Control Valve |
2-spool type |
|
Dump Time |
2 sec |
|
Hydraulic Cylinders Type |
Double-acting, piston type |
|
Lift Cylinder |
2 |
|
Lift Cylinder Bore |
6 in (16 cm)
|
|
Lift Cylinder Stroke |
35 in (90 cm)
|
|
Loader Control Capacity |
85 gpm (320 lpm)
|
|
Loader Control Type |
Piston Pump |
|
Lower Time |
4 sec |
|
Number Of Cylinders |
2 |
|
Pump Flow Capacity |
32 gpm (120 lpm)
|
|
Pump Type |
Piston Pump |
|
Raise Time |
7 sec |
|
Relief Valve Setting |
34.3 MPa 350 kgf/cm 2 4,980 ps |
|
Steering Pump Type |
Piston Pump |
|
Stroke |
19 in (49 cm)
|
| Operational |
|
Breakout Force |
25,000 kgf |
|
Bucket Capacity Range – Sae |
4.3-5.6 m3 |
|
Bucket Description |
GP Bucket, Bolt Edge |
|
Bucket Link Type |
Z-bar |
|
Bucket Width |
9 ft (3 m)
|
|
Dump Clearance, @45 Degrees Dump Angle |
11 ft (3 m)
|
|
Dump Reach, @45 Degrees Dump Angle |
5 ft (2 m)
|
|
Standard Bucket Capacity – Sae |
7 cu yd |
|
Static Tipping Load,Full Turn |
50,510 lbs (22,911 kg)
|
| Steering System |
|
Minimum Turning Radius At The Centre Of Outside Tire |
21 ft (6 m)
|
|
Steering System Type |
Articulated |
| Tires |
|
Standard Fitment Size |
29.5 R25 2Star VSDL L5 |
| Transmission |
|
Max Speed - Forward |
22 mph (35 kph)
|
|
Max Speed - Reverse |
23 mph (37 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
4 |
|
Transmission Type |
Full-power shift, planetary type |
| Weights |
|
Operating Weight |
77,162 lbs (35,000 kg)
|
