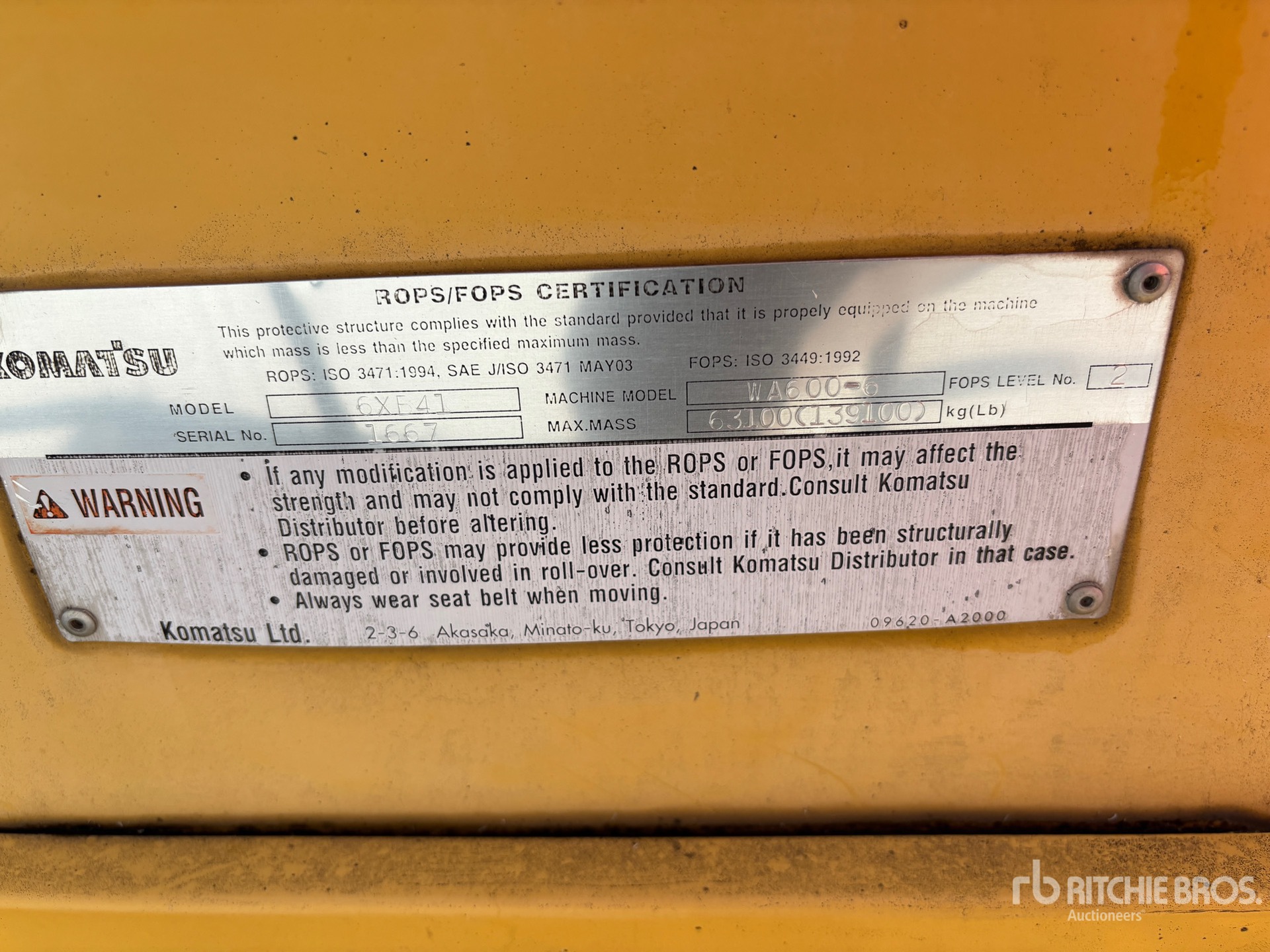

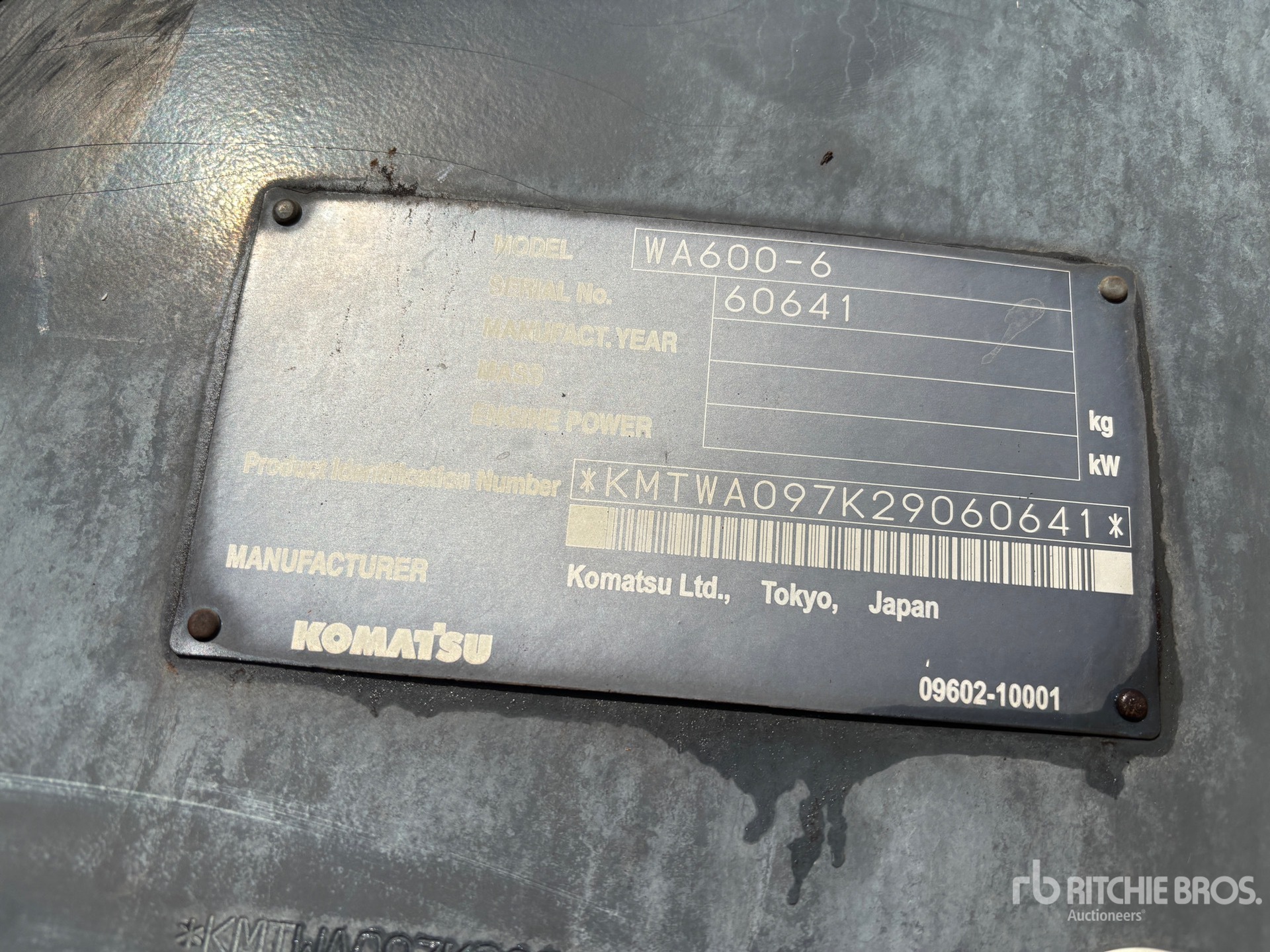

| Axles |
|
Drive System |
Four-wheel drive |
|
Front |
Fixed, semi-floating |
|
Rear |
Center-pin support, semi-floating, 24 ? total oscillation |
| Brakes |
|
Emergency Brake |
Parking brake is commonly used |
|
Parking Brake |
Wet |
|
Service Brake |
Hydraulically actuated |
| Capacities |
|
Cooling System |
39 gal (147 l)
|
|
Engine Oil |
23 gal (86 l)
|
|
Front Axle |
9,459 cu in (155,001 cu cm)
|
|
Fuel Tank - Diesel |
190 gal (718 l)
|
|
Hydraulic System |
117 gal (443 l)
|
|
Rear Axle |
41 gal (155 l)
|
|
Torque Converter, Transmission And Retarder Cooling |
22 gal (83 l)
|
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Height To Top Of Cab |
15 ft (4 m)
|
|
Length |
472 in (1,199 cm)
|
|
Turning Circle |
56 ft (17 m)
|
|
Wheelbase |
15 ft (5 m)
|
|
Width Over Tires |
12 ft (4 m)
|
| Driveline |
|
Brake |
Hydraulic, Wet disc |
|
Maximum Speeds/Fwd Mph (Km/H) |
37 |
|
Maximum Speeds/Rev Mph (Km/H) |
37 |
|
Number Of Speeds - Forward |
4 |
|
Number Of Speeds - Reverse |
4 |
|
Ride Control System |
Standard |
|
Transmission |
Automatic Powershift |
| Engine |
|
Air Cleaner |
Dry type |
|
Aspiration |
Turbocharged, after cooledEGR |
|
Bore |
7 in (17 cm)
|
|
Displacement |
1,413 cu in (23,150 cu cm)
|
|
Engine Make |
2,238 |
|
Engine Model |
SAA6D170E-5 |
|
Engine Type |
Water-cooled, 4-cycle |
|
Fan Drive Method |
?Hydraulic |
|
Filter |
Full-flow type |
|
Fuel System |
Direct injection |
|
Governor |
All-speed, electronic |
|
Horsepower, Gross-Sae J1995 |
531 hp (396 kw)
|
|
Horsepower, Net-Iso 9249 |
527 hp (393 kw)
|
|
Lubrication Method |
Gear pump, force-lubricatio |
|
Number Of Cylinders |
6 |
|
Piston Displacement |
1,413 cu in (23,150 cu cm)
|
|
Stroke |
7 in (17 cm)
|
| Final Drive |
|
Differential Gear |
Torque proportioning |
|
Final Reduction Gear |
Planetary gear, single reduction |
|
Reduction Gear |
Spiral bevel gear |
| Hydraulic System |
|
Bore |
5 in (12 cm)
|
|
Bucket Cylinde Bore |
9 in (23 cm)
|
|
Bucket Cylinde Stroke |
31 in (78 cm)
|
|
Control Positions Boom |
Raise, hold, lower, and float |
|
Control Positions Bucket |
Tilt-back, hold, and dump |
|
Control Valve |
2-spool type |
|
Dump Time |
2 sec |
|
Hydraulic Cylinders Type |
Double-acting, piston type |
|
Lift Cylinder |
2 |
|
Lift Cylinder Bore |
8 in (20 cm)
|
|
Lift Cylinder Stroke |
42 in (107 cm)
|
|
Loader Control Capacity |
126 gpm (478 lpm)
|
|
Loader Control Type |
Piston Pump |
|
Lower Time |
4 sec |
|
No.Of.Bucket Cylinders |
1 |
|
Number Of Cylinders |
2 |
|
Pump Flow Capacity |
43 gpm (163 lpm)
|
|
Pump Type |
Piston Pump |
|
Raise Time |
9 sec |
|
Relief Valve Setting |
34.3 MPa 350 kgf/cm 4,980 PSI |
|
Steering Pump Type |
Piston Pump |
|
Stroke |
20 in (51 cm)
|
| Operational |
|
Breakout Force |
25,000 kgf |
|
Bucket Capacity Range – Sae |
6.4 - 7.0 m3 |
|
Bucket Description |
GP Bucket, Bolt Edge |
|
Bucket Link Type |
Z-bar |
|
Bucket Width |
9 ft (3 m)
|
|
Dump Clearance, @45 Degrees Dump Angle |
11 ft (3 m)
|
|
Dump Reach, @45 Degrees Dump Angle |
5 ft (2 m)
|
|
Standard Bucket Capacity – Sae |
8 cu yd |
|
Static Tipping Load,Full Turn |
50,510 lbs (22,907 kg)
|
| Steering System |
|
Minimum Turning Radius At The Centre Of Outside Tire |
23 ft (7 m)
|
|
Steering System Type |
Articulated |
| Tires |
|
Standard Fitment Size |
35/65 R33 2star L5 |
| Transmission |
|
Max Speed - Forward |
21 mph (34 kph)
|
|
Max Speed - Reverse |
23 mph (37 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
4 |
|
Transmission Type |
Full-power shift, planetary type |
| Weights |
|
Operating Weight |
119,050 lbs (53,991 kg)
|
