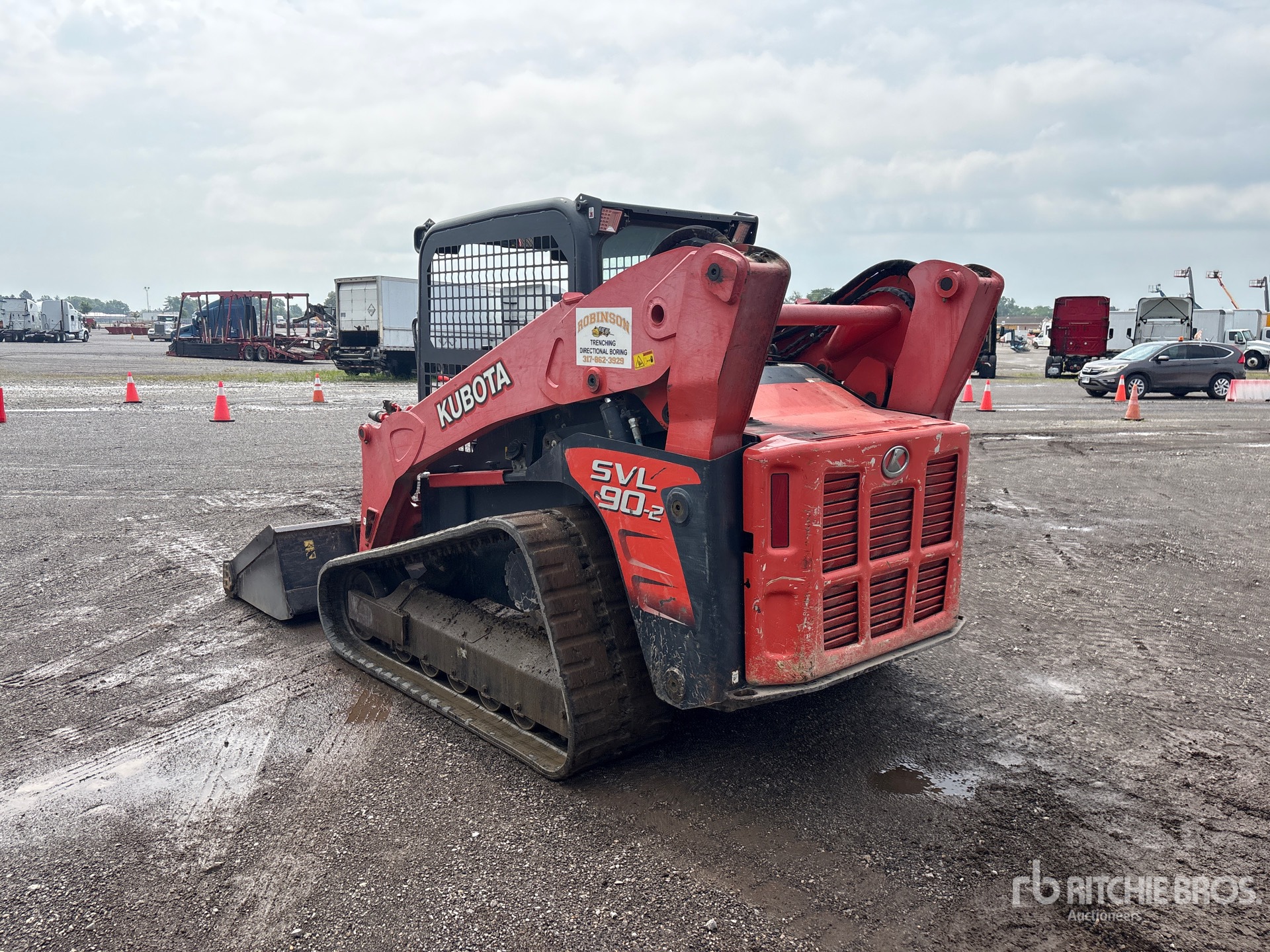

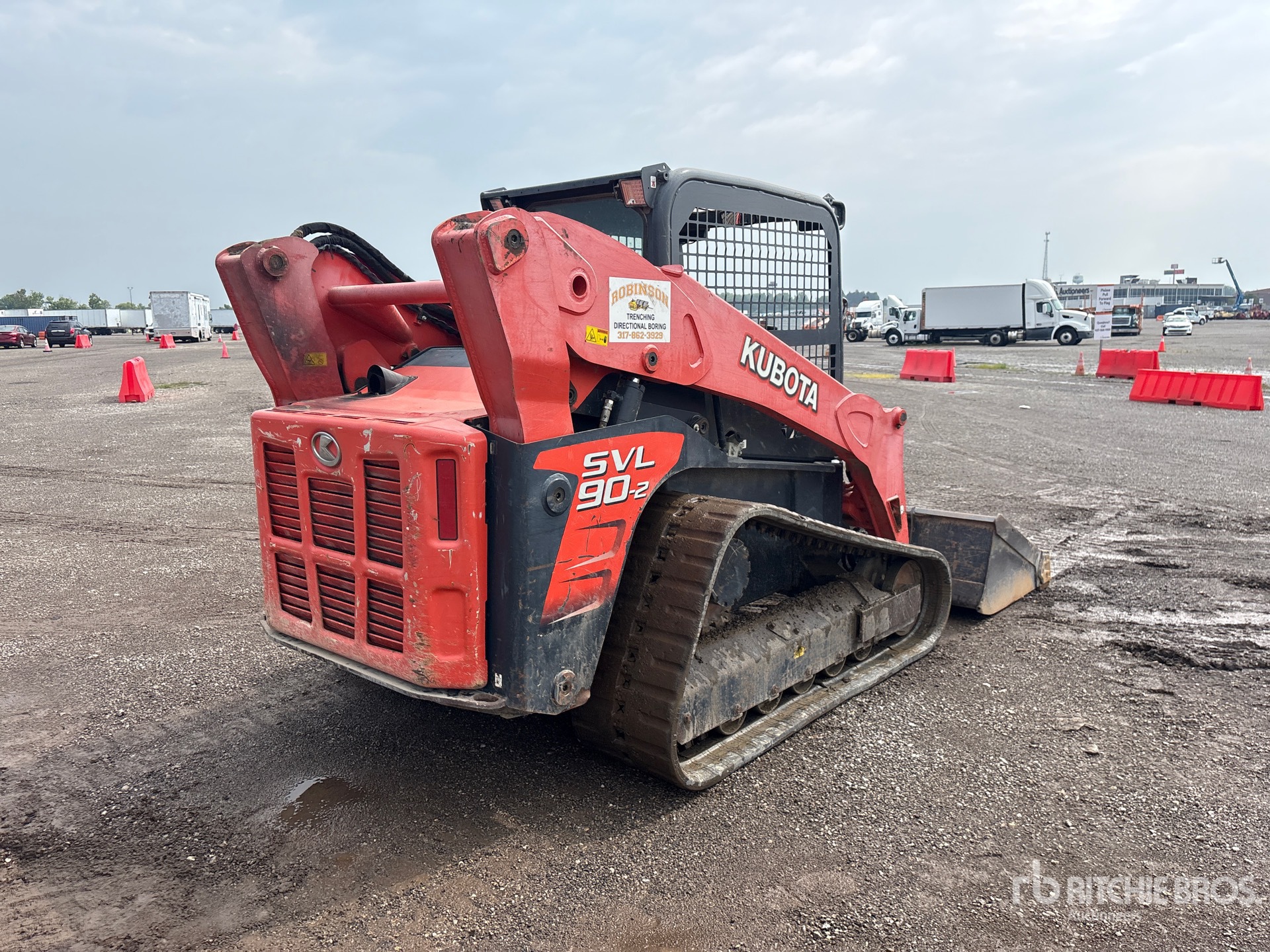

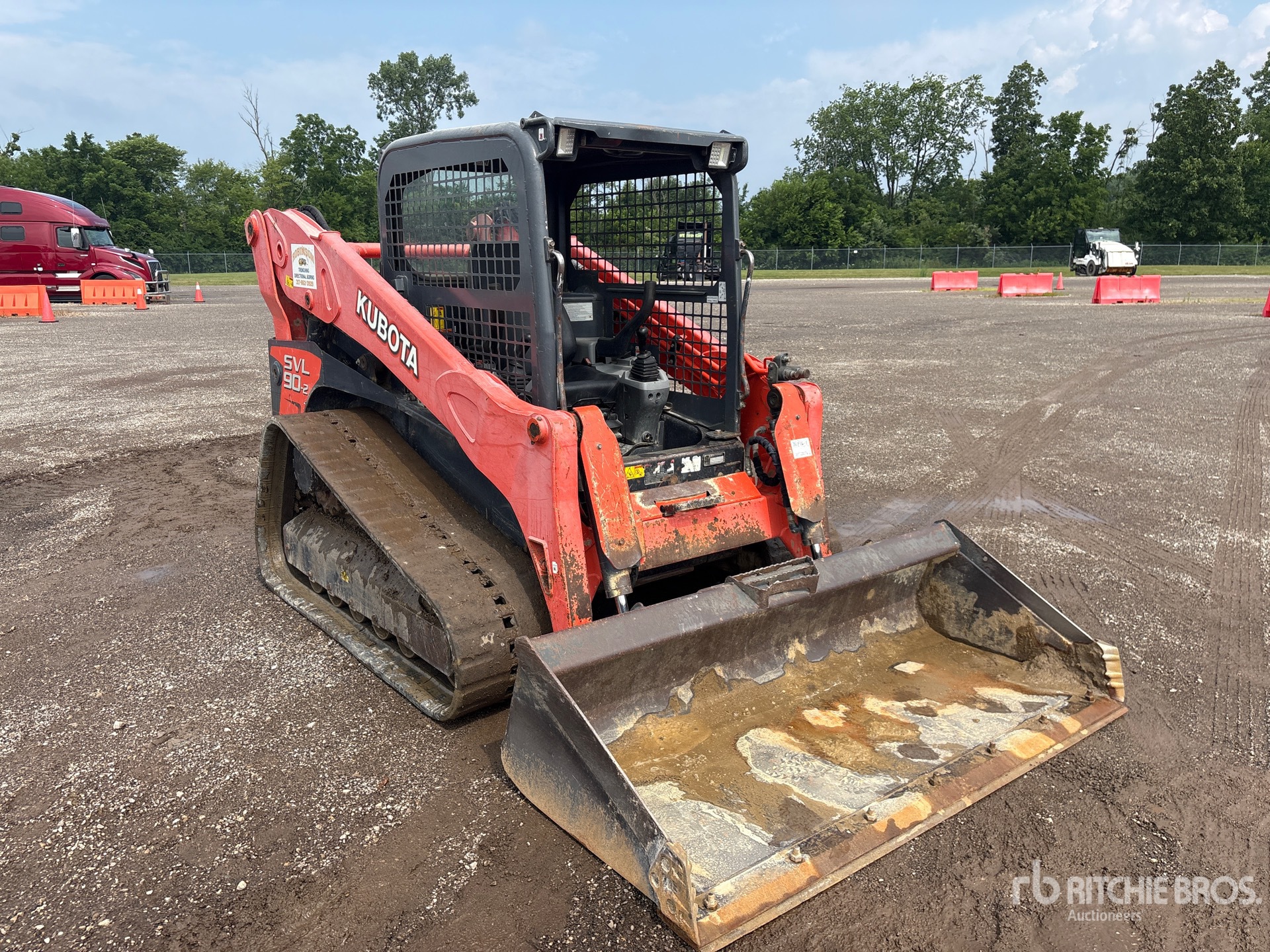

2015 Kubota SVL90-2 For Sale in Chicago, Il

Name: 2015 Kubota SVL90-2
Brand: Kubota
SKU: 89238349
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-24 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

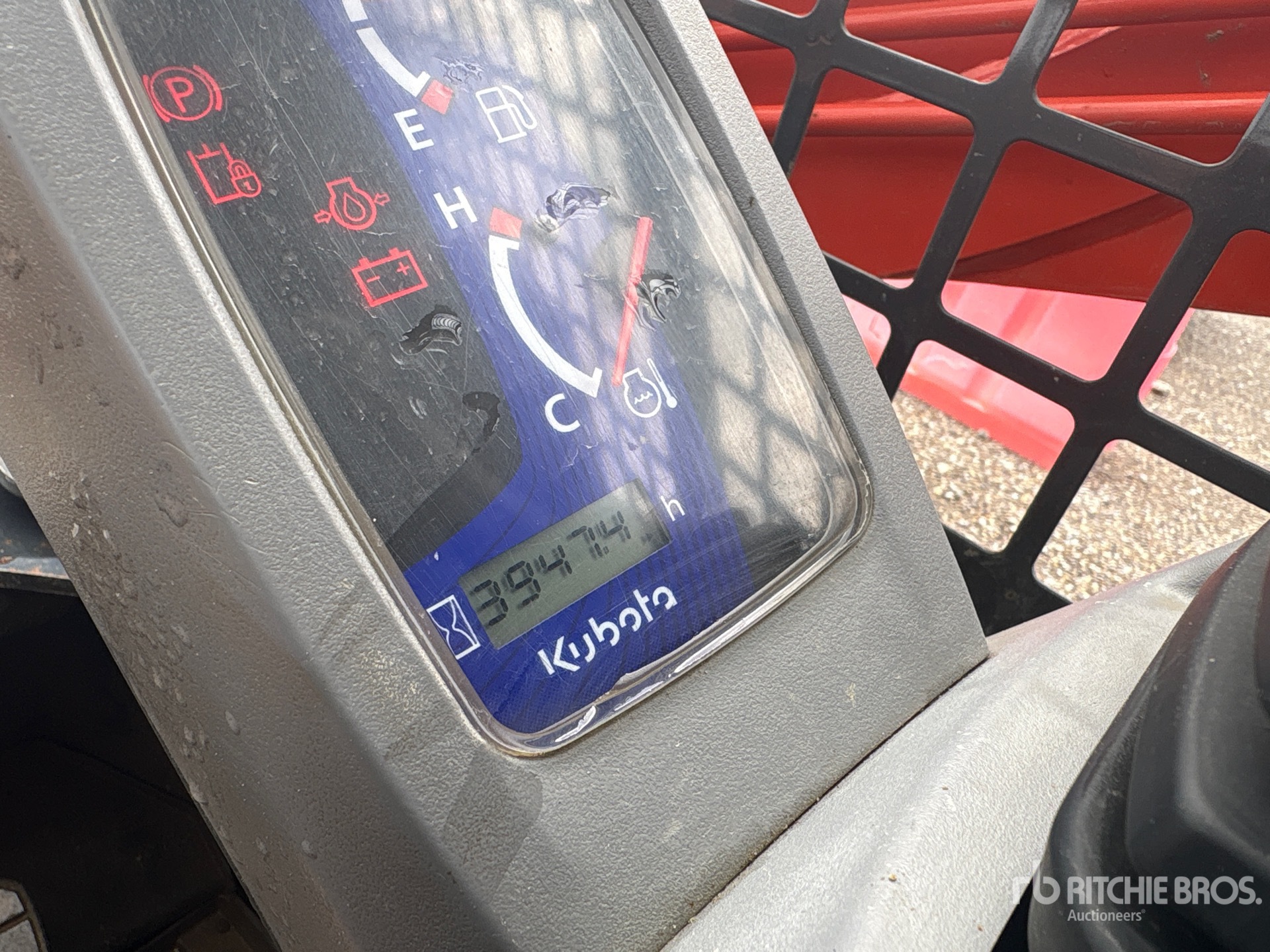

Hours:	3974

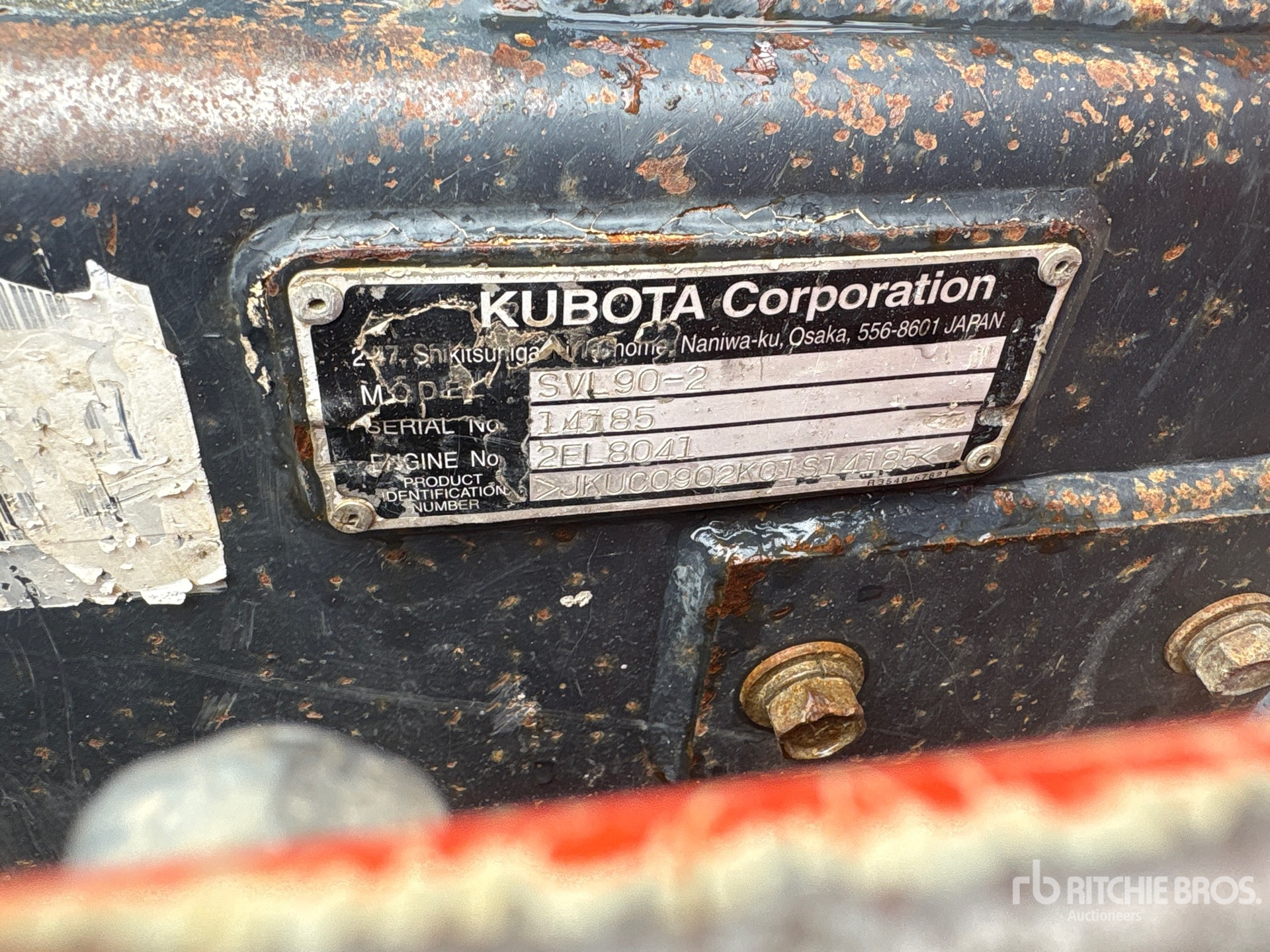

Serial Number:	JKUC0902K01S14185
Machine Location:	CHICAGO, IL

Description:

Located in Lane 32 Spot 7, Open Operator Station, Joystick Steering, 2015 US EPA Label, 18 in Track Belts, Hydraulic Coupler, 80 in Bucket Closing Time: 2026-09-24 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Kubota SVL90-2 is a compact track loader designed for construction, landscaping, agriculture, and material handling applications. It is part of Kubota's SVL series and is known for its tracked undercarriage, high traction, and stable performance on soft, uneven, or muddy ground. The SVL90-2 is commonly used for grading, loading, digging, site preparation, and attachment work. It features a compact frame for maneuverability in confined spaces and supports a range of hydraulic attachments. The model is widely referenced in the compact track loader category for its balance of operating capacity, versatility, and ground contact performance.

Dimensions
Bucket Hinge Pin	129 in (327 cm)
Dump Angle	43 degrees
Ground Clearance	12 in (30 cm)
Height	7 ft (2 m)
Height To Top Of Cab	7 ft (2 m)
Length	12 ft (4 m)
Length With Bucket	12 ft (4 m)
Length With Out Bucket	10 ft (3 m)
Overall Width	77 in (196 cm)
Reach At Max Lift And Dump	3 ft (1 m)
Turning Radius From Center - Machine Rear	113 in (288 cm)
Weight	11,299 lbs (5,125 kg)
Width	7 ft (2 m)
Width Over Tracks	1 ft (0 m)
Engine
Aspiration	Turbochar
Bore	4 in (10 cm)
Displacement	230 cu in (3,769 cu cm)
Engine Model	V3800-CR-T
Gross Power	92 hp (69 kw)
Number Of Cylinders	4
Power Measured @	2,400 rpm
Stroke	5 in (12 cm)
Hydraulic
Auxiliary Hydraulic Flow	25 gpm (95 lpm)
Pump Flow	25 gpm (95 lpm)
Relief Valve Pressure	3,555 psi
Loader
Breakout Force	6,742 lbs (3,058 kg)
Bucket Breakout Force	7,961 lbs (3,611 kg)
Lifting Capacity At Maximum Height	5,869 lbs (2,662 kg)
Operating Load	3,009 lbs (1,365 kg)
Tipping Load	8,598 lbs (3,900 kg)
Operational
Bucket Width	7 ft (2 m)
Fuel Capacity	30 gal (113 l)
Hydraulic System Fluid Capacity	18 gal (68 l)
Max Speed - High Range	7 mph (12 kph)
Max Speed - Low Range	5 mph (8 kph)
Operating Weight	11,299 lbs (5,125 kg)
Traction Force	12,178 lbs (5,524 kg)
Undercarriage
Ground Pressure	4 psi
Length Of Track On Ground	5 ft (2 m)
Number Of Track Rollers Per Side	5
Track Gauge	5 ft (2 m)
