2016 Kubota U35-4 For Sale in Birmingham, AL

Name: 2016 Kubota U35-4
Brand: Kubota
SKU: 89499875
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-10-28

JJ Kane Auctions

JJ Kane Auctions Dealer Info

JJ Kane Auctions Website

Click here to email JJ Kane Auctions.

Click for Phone Number

Machine Info:

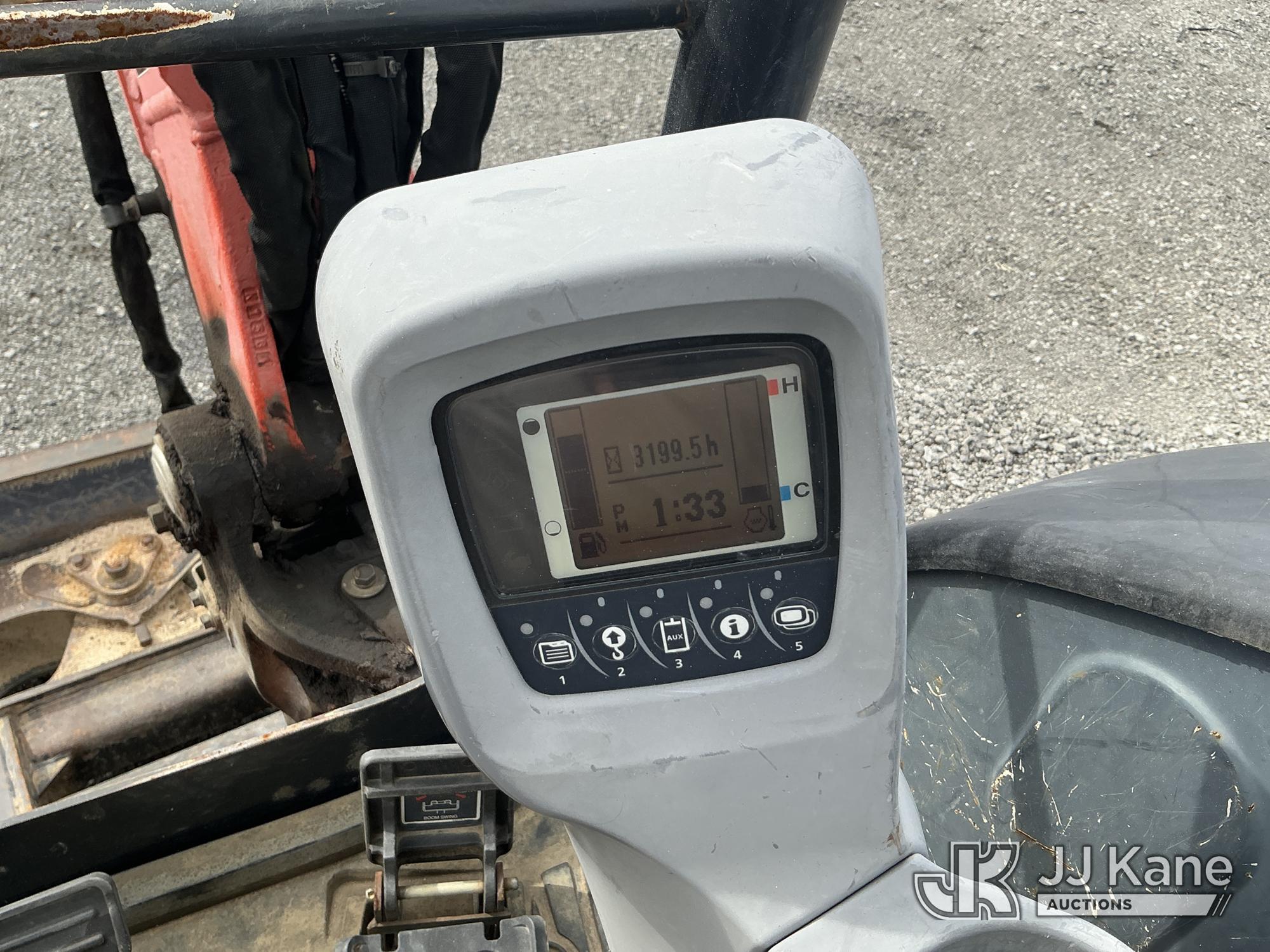

Hours:	3199

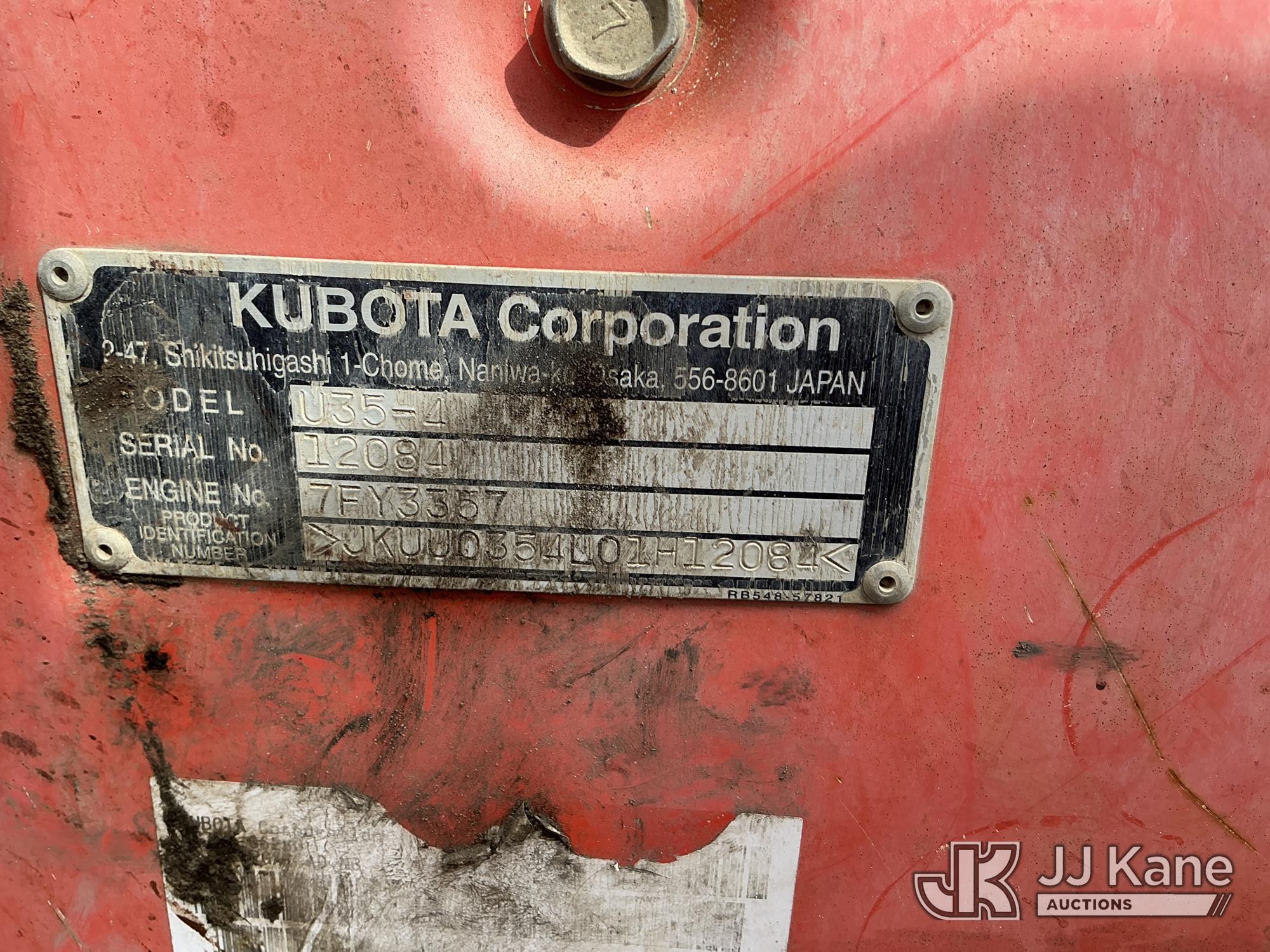

Serial Number:	JKUU0354L01H12084
Machine Location:	BIRMINGHAM, AL

Description:

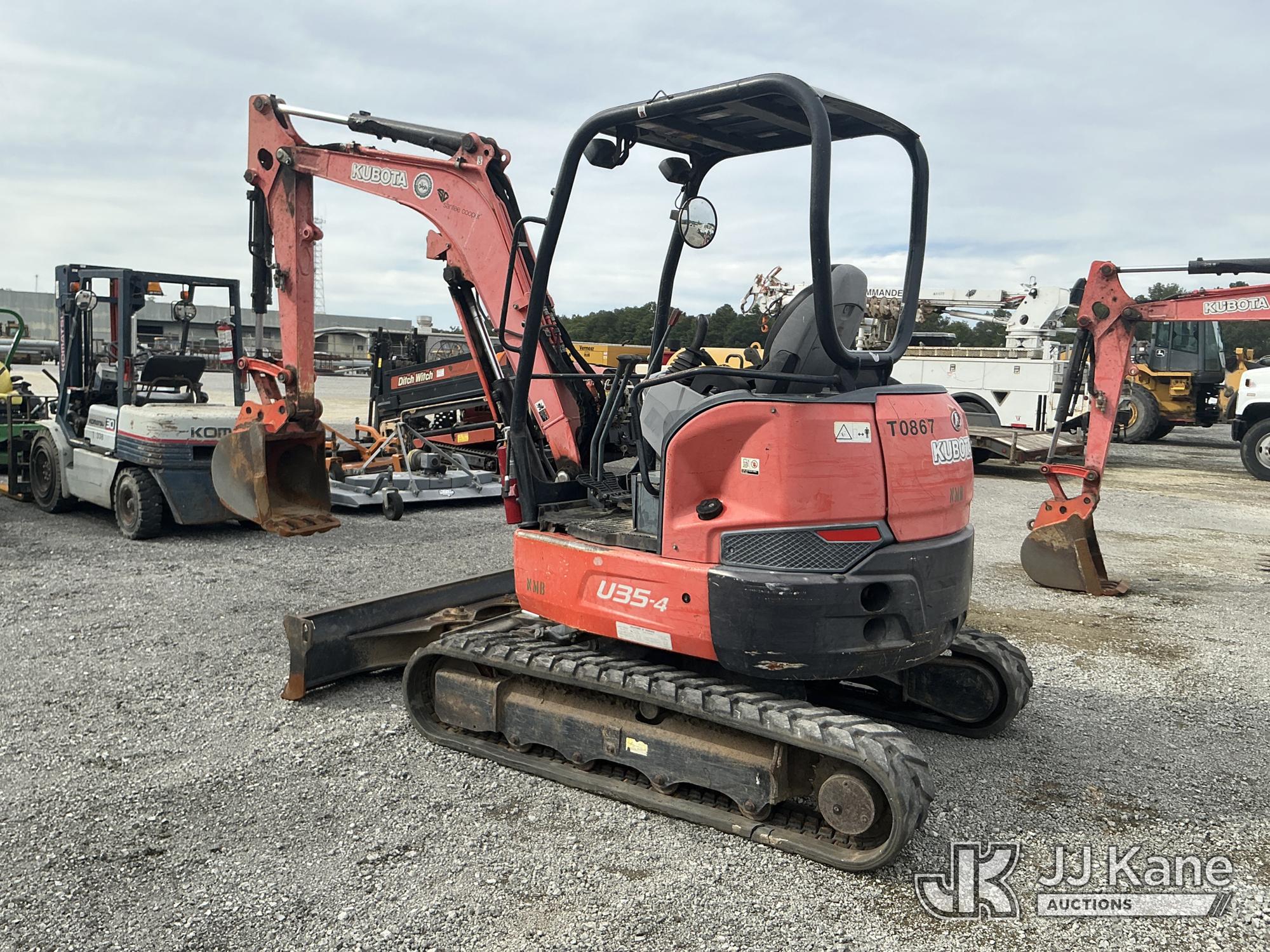

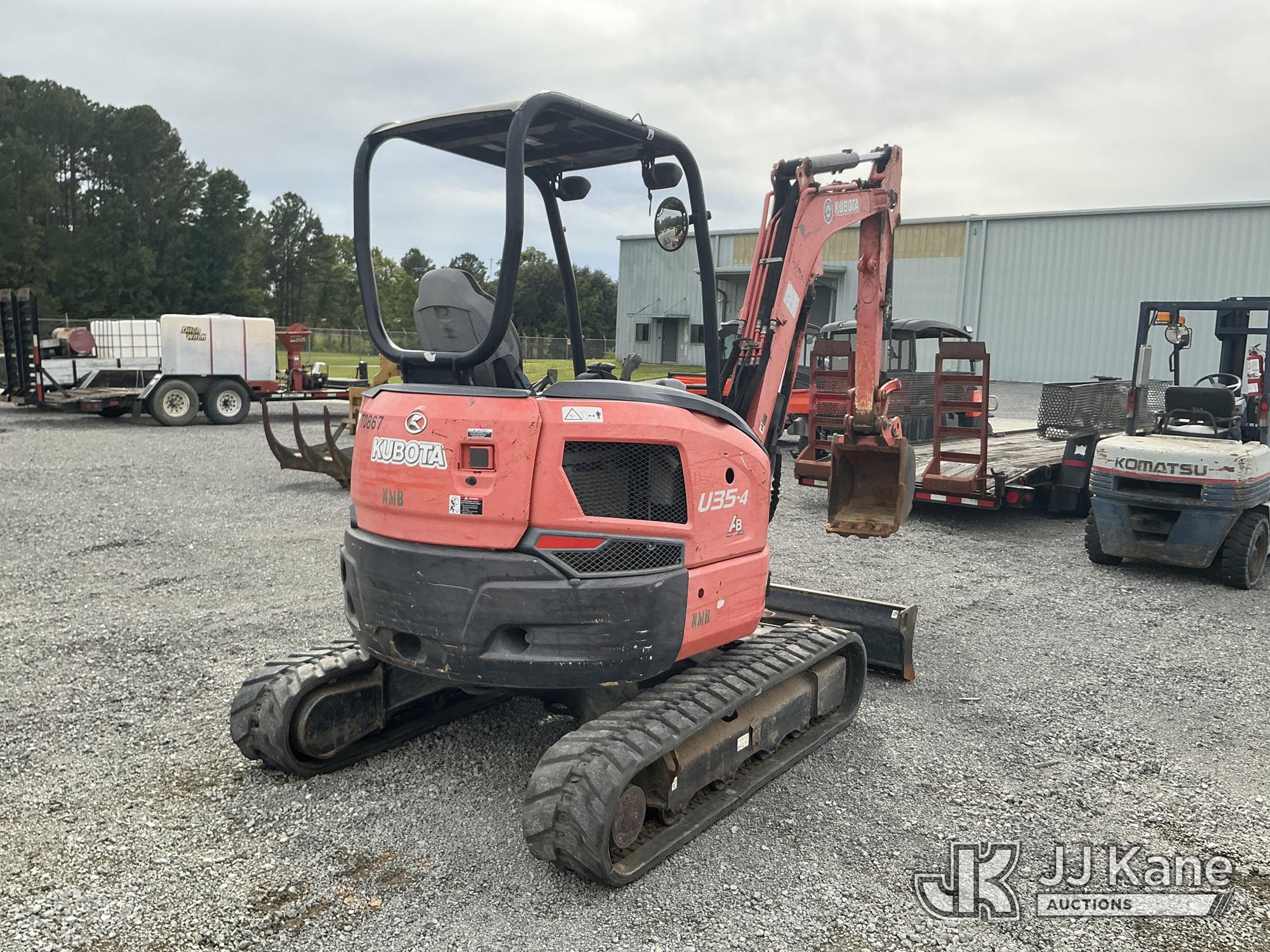

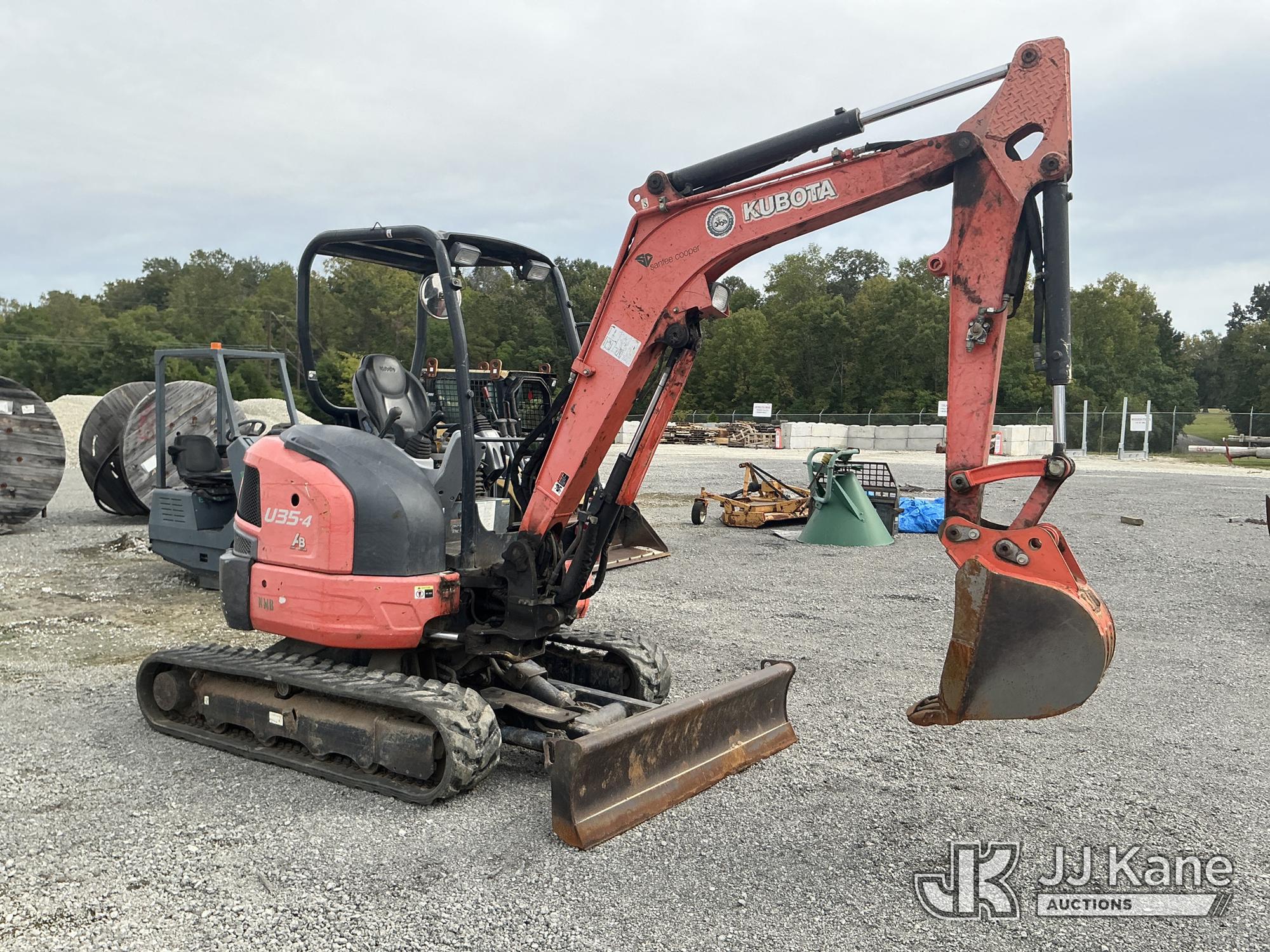

2016 Kubota U35-4 Mini Hydraulic Excavator, s/n JKUU0354L01H12084, Kubota Diesel, Hydraulic Drive, with 12in digging bucket, 4 way backfill blade, ROPS, (Reads 3,199 Engine Hours) (Runs, Moves & Operates) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Moncks Corner, SC. For more information & removal arrangements please contact Pete Klimek @ 843-323-6538. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Kubota U35-4 is a compact mini excavator designed for construction, landscaping, utility, and site preparation work in confined spaces. It features a zero-tail-swing design for improved maneuverability near walls and obstacles, along with a spacious operator station and responsive hydraulic controls. The U35-4 is commonly used for digging, trenching, grading, backfilling, and material handling. Kubota's diesel engine and hydraulic system are engineered for efficient operation and reliable performance on small to medium job sites. The machine is available with multiple attachment options, including buckets, augers, and breakers, depending on configuration and market.

Blade
Blade Lift Height	14 in (36 cm)
Blade Lift Height	14 in (36 cm)
Blade Lift Height	14 in (36 cm)
Blade Lift Height	14 in (36 cm)
Maximum Drop Below Ground	1 ft (0 m)
Maximum Drop Below Ground	1 ft (0 m)
Maximum Drop Below Ground	1 ft (0 m)
Maximum Drop Below Ground	1 ft (0 m)
Boom
Boom Swing Left	75 degrees
Boom Swing Left	75 degrees
Boom Swing Left	75 degrees
Boom Swing Left	75 degrees
Boom Swing Right	55 degrees
Boom Swing Right	55 degrees
Boom Swing Right	55 degrees
Boom Swing Right	55 degrees
Boom/Stick 1
Max Digging Depth	10 ft (3 m)
Max Digging Depth	10 ft (3 m)
Max Digging Depth	10 ft (3 m)
Max Digging Depth	10 ft (3 m)
Max Digging Height	16 ft (5 m)
Max Digging Height	16 ft (5 m)
Max Digging Height	16 ft (5 m)
Max Digging Height	16 ft (5 m)
Max Vertical Wall Digging Depth	7 ft (2 m)
Max Vertical Wall Digging Depth	7 ft (2 m)
Max Vertical Wall Digging Depth	7 ft (2 m)
Max Vertical Wall Digging Depth	7 ft (2 m)
Max.Dumping Height	11 ft (3 m)
Max.Dumping Height	11 ft (3 m)
Max.Dumping Height	11 ft (3 m)
Max.Dumping Height	11 ft (3 m)
Mximum Dig Radius	208 in (527 cm)
Mximum Dig Radius	208 in (527 cm)
Mximum Dig Radius	208 in (527 cm)
Mximum Dig Radius	208 in (527 cm)
Dimensions
Crawler Length	7 ft (2 m)
Crawler Length	7 ft (2 m)
Crawler Length	7 ft (2 m)
Crawler Length	7 ft (2 m)
Ground Clearance	1 ft (0 m)
Ground Clearance	1 ft (0 m)
Ground Clearance	1 ft (0 m)
Ground Clearance	1 ft (0 m)
Overall Height	8 ft (2 m)
Overall Height	8 ft (2 m)
Overall Height	8 ft (2 m)
Overall Height	8 ft (2 m)
Overall Length	16 ft (5 m)
Overall Length	16 ft (5 m)
Overall Length	16 ft (5 m)
Overall Length	16 ft (5 m)
Overall Width	67 in (170 cm)
Overall Width	67 in (170 cm)
Overall Width	67 in (170 cm)
Overall Width	67 in (170 cm)
Tail Swing Radius	3 ft (1 m)
Tail Swing Radius	3 ft (1 m)
Tail Swing Radius	3 ft (1 m)
Tail Swing Radius	3 ft (1 m)
Engine
Displacement	6,133 cu in (100,500 cu cm)
Displacement	6,133 cu in (100,500 cu cm)
Displacement	6,133 cu in (100,500 cu cm)
Displacement	6,133 cu in (100,500 cu cm)
Engine Make	Kubota
Engine Make	Kubota
Engine Make	Kubota
Engine Make	Kubota
Engine Model	D1703M-DI-E4
Engine Model	D1703M-DI-E4
Engine Model	D1703M-DI-E4
Engine Model	D1703M-DI-E4
Gross Power	25 hp (18 kw)
Gross Power	25 hp (18 kw)
Gross Power	25 hp (18 kw)
Gross Power	25 hp (18 kw)
Model Name	U35-4HG
Model Name	U35-4GA
Model Name	U35-4HGA
Model Name	U35-4G
Net Power	24 hp (18 kw)
Net Power	24 hp (18 kw)
Net Power	24 hp (18 kw)
Net Power	24 hp (18 kw)
Number Of Cylinders	3
Number Of Cylinders	3
Number Of Cylinders	3
Number Of Cylinders	3
Power Measured @	2,200 rpm
Power Measured @	2,200 rpm
Power Measured @	2,200 rpm
Power Measured @	2,200 rpm
General Specifications
Digging Depth (Since 2025)	9 ft (3 m)
Digging Reach (Since 2025)	16 ft (5 m)
Engine (Since 2025)	24 hp (18 kw)
Operating Weight (Since 2025)	8,129 lbs (3,687 kg)
Operational
Auxiliary Hydraulic Flow	16 gpm (60 lpm)
Auxiliary Hydraulic Flow	16 gpm (60 lpm)
Auxiliary Hydraulic Flow	16 gpm (60 lpm)
Auxiliary Hydraulic Flow	16 gpm (60 lpm)
Fuel Capacity	12 gal (47 l)
Fuel Capacity	12 gal (47 l)
Fuel Capacity	12 gal (47 l)
Fuel Capacity	12 gal (47 l)
Hydraulic Pump Flow Capacity	12 gpm (45 lpm)
Hydraulic Pump Flow Capacity	12 gpm (45 lpm)
Hydraulic Pump Flow Capacity	12 gpm (45 lpm)
Hydraulic Pump Flow Capacity	12 gpm (45 lpm)
Hydraulic System Fluid Capacity	16 gal (61 l)
Hydraulic System Fluid Capacity	16 gal (61 l)
Hydraulic System Fluid Capacity	16 gal (61 l)
Hydraulic System Fluid Capacity	16 gal (61 l)
Travel Speed, High Range	3 mph (5 kph)
Travel Speed, High Range	3 mph (5 kph)
Travel Speed, High Range	3 mph (5 kph)
Travel Speed, High Range	3 mph (5 kph)
Travel Speed, Low Range	2 mph (3 kph)
Travel Speed, Low Range	2 mph (3 kph)
Travel Speed, Low Range	2 mph (3 kph)
Travel Speed, Low Range	2 mph (3 kph)
Swing Mechanism
Swing Speed	9 rpm
Swing Speed	9 rpm
Swing Speed	9 rpm
Swing Speed	9 rpm
Undercarriage
Ground Pressure	5 psi
Ground Pressure	5 psi
Ground Pressure	5 psi
Ground Pressure	5 psi
Shoe Size	12 in (30 cm)
Shoe Size	12 in (30 cm)
Shoe Size	12 in (30 cm)
Shoe Size	12 in (30 cm)
