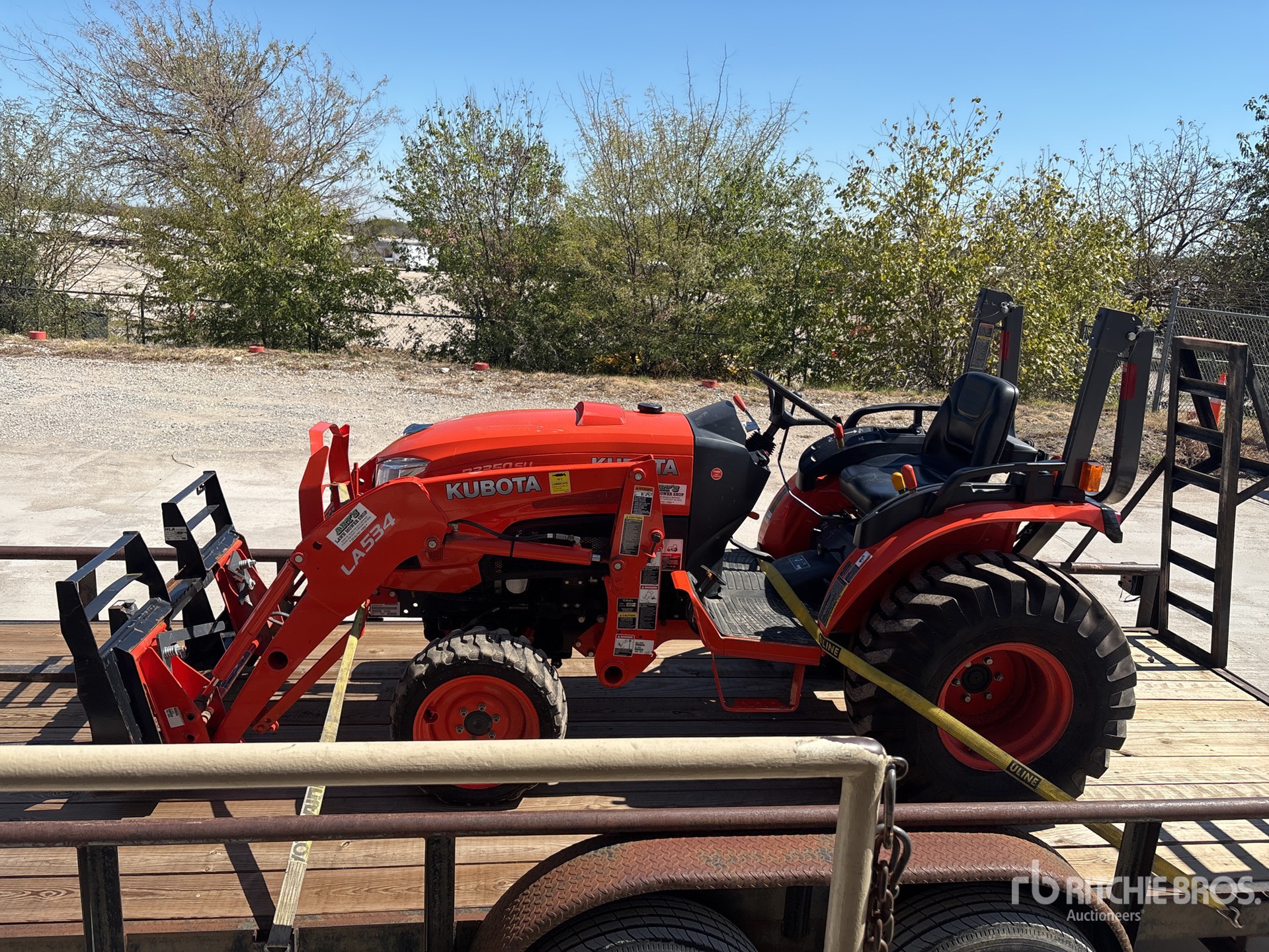

Kubota B3350HSD For Sale in Fort Worth, Tx

Name: Kubota B3350HSD
Brand: Kubota
SKU: 89416261
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-11-18 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Serial Number:	51846
Machine Location:	FORT WORTH, TX

Description:

Closing Time: 2026-11-18 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Capacities
Engine Coolant	1 gal (5 l)
Engine Oil With Filter	1 gal (5 l)
Fuel Tank	7 gal (27 l)
Transmission	4 gal (15 l)
Dimensions
Front Tread Range	37 in (94 cm)
Ground Clearance	15 in (37 cm)
Overall Height	7 ft (2 m)
Overall Length	101 in (257 cm)
Overall Width	4 ft (1 m)
Rear Tread Range	41 in (105 cm)
Turning Radius With Brakes	7 ft (2 m)
Wheelbase	5 ft (2 m)
Engine
Air Cleaner	4.5 inch Dual paper element
Alternator	60 amps
Battery	12V, RC : 80min, CCA : 430A
Bore	3 in (8 cm)
Cooling System	Pressurized radiator
Displacement	92 cu in (1,499 cu cm)
Engine Make	KUBOTA
Engine Model	V1505-T-E4-D26
Engine Type	Indirect Injection
Gross Power	33 hp (25 kw)
Lubrication	Forced lubrication
Max Torque	78 lbs ft (105 nm)
Number Of Cylinders	4
Power Measured @	2,500 rpm
Pto Power	27 hp (20 kw)
Stroke	3 in (8 cm)
Hydraulic System
Hydraulic System	Position control
Hydraulic System Type	Open center
Pump Flow Capacity	9 gpm (33 lpm)
Pump Type	Dual pump
Operational
3 Point Hitch Lift Capacity @ 24 Inches	1,676 lbs (760 kg)
3 Point Hitch Type	SAE Category 1
Operating Weight	1,896 lbs (860 kg)
Tires	Front - 7 - 12 , Rear - 12.4-16
Turning Radius	7 ft (2 m)
Power Take-Off(Pto)
Mid- Pto	USA No. 5 (KUBOTA 10-tooth) involute spline
Pto Speed Mid	2,500 rpm
Pto Speed Rear	540 rpm
Rear Pto	SAE 1-3/8, 6 splines
Transmission
Brake Type	Multi-plate wet disc
Differential Lock	Standard
Final Drive Type	Spur gear
Max Speed - Forward	14 mph (23 kph)
Max Speed - Reverse	11 mph (18 kph)
Number Of Forward Gears	3
Number Of Reverse Gears	3
Transmission Type	HST (3 ranges)
