2015 Liebherr L514 For Sale in Meppen, Deu

Name: 2015 Liebherr L514
Brand: Liebherr
SKU: 89099969
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

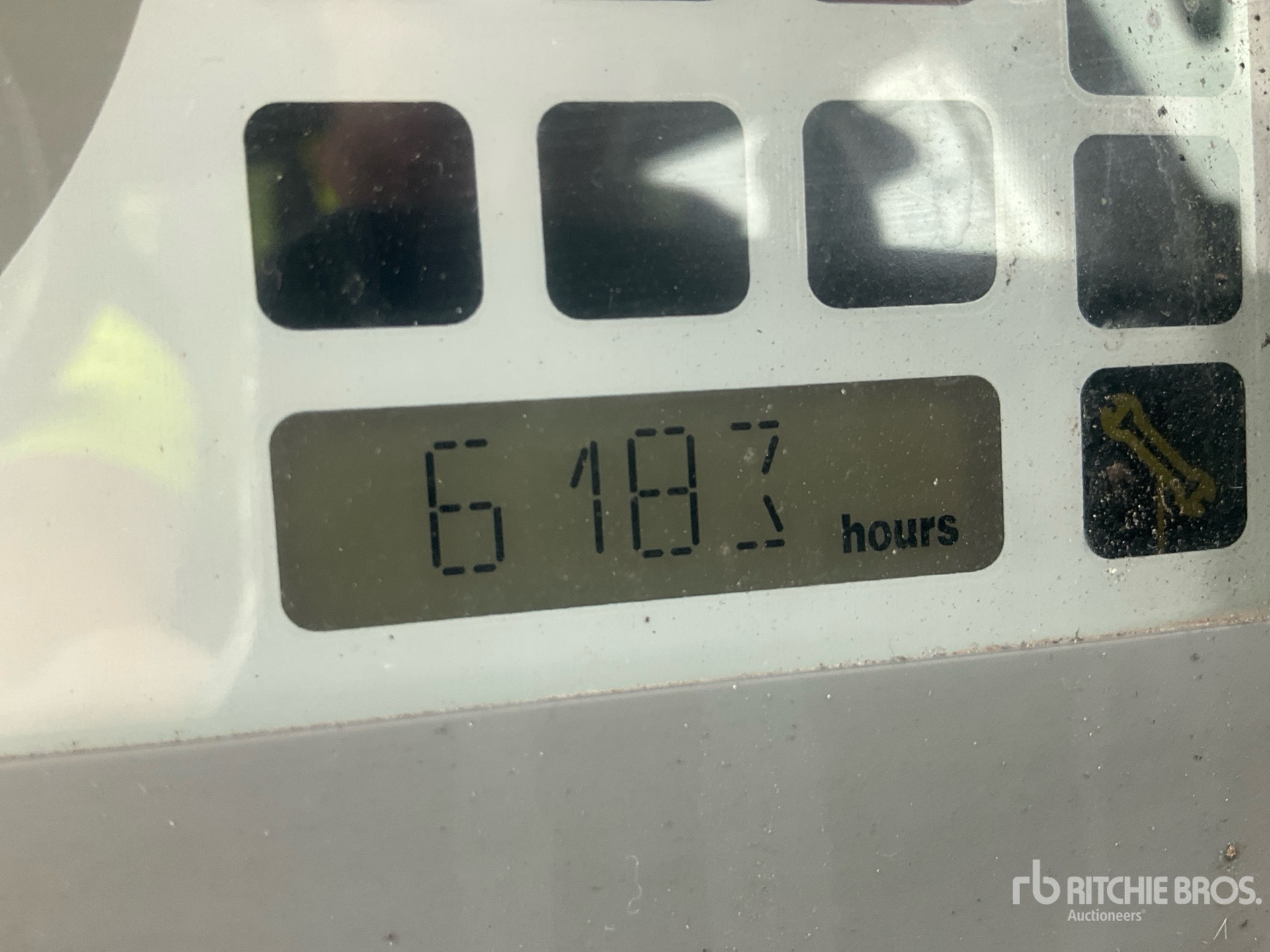

Hours:	6184

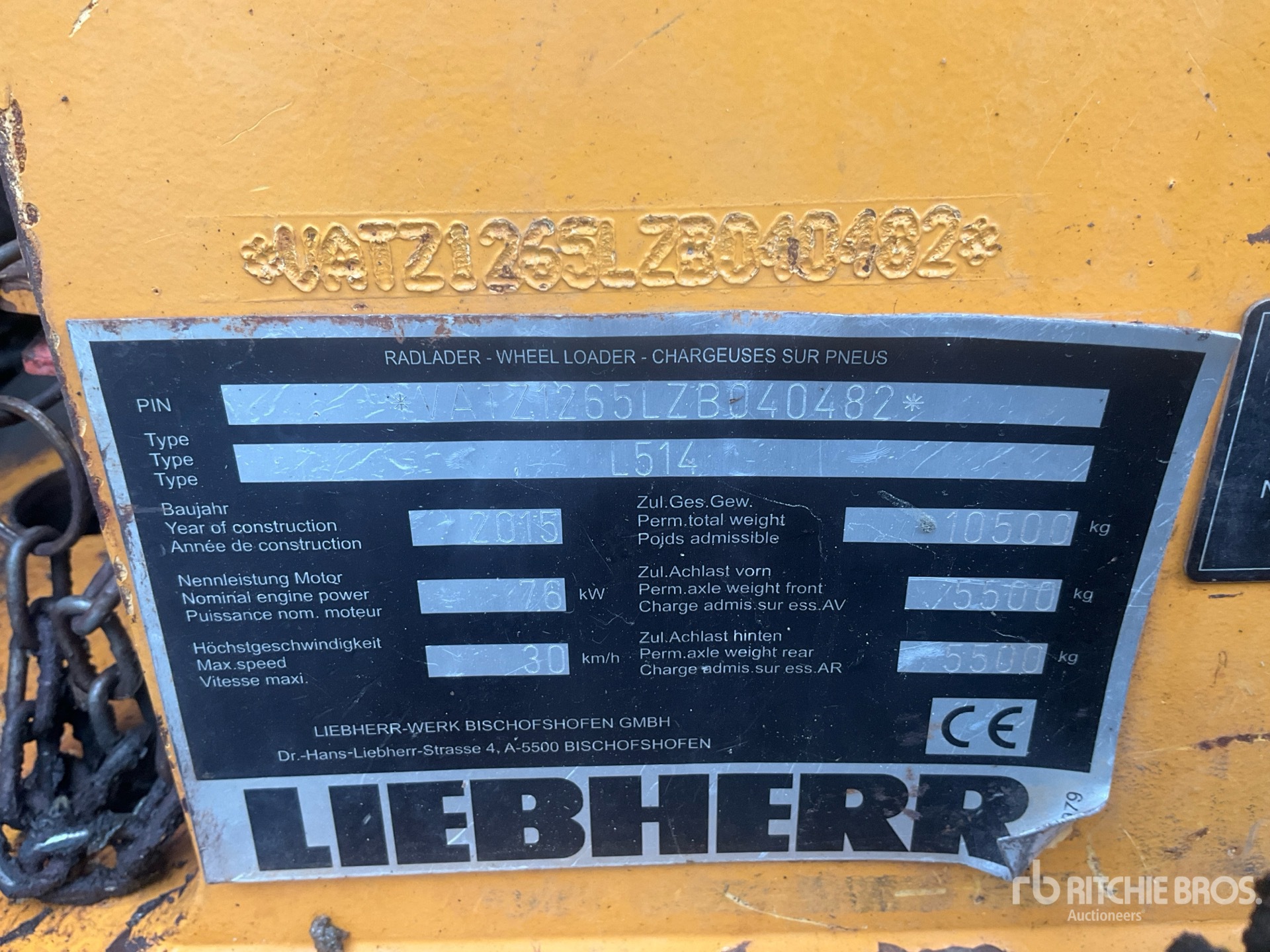

Serial Number:	VATZ1265LZB040482
Machine Location:	MEPPEN, DEU

Description:

Enclosed Cab, Air Conditioner, Rear View Camera, Ride Control, Traction Control, Auxiliary Hydraulics, Hydraulic Coupler, 620/50B22.5 Tires, Additional Rubber Solid Wheels Closing Time: 2026-09-17 10:29:20 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force	17,310 lbs (7,850 kg)
Bucket Capacity - Heaped	2 cu yd
Bucket Width	8 ft (2 m)
Dump Clearance At Max Raise	9 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height	10 ft (3 m)
Height To Top Of Cab	10 ft (3 m)
Hinge Pin - Max Height	12 ft (4 m)
Length	22 ft (7 m)
Length With Bucket On Ground	20 ft (6 m)
Reach At Max Lift And Dump	3 ft (1 m)
Weight	20,106 lbs (9,120 kg)
Wheelbase	9 ft (3 m)
Width	8 ft (2 m)
Engine
Aspiration	Inline engine, water-cooled exhaust-turbo charged
Displacement	275 cu in (4,502 cu cm)
Engine Make	2,245
Engine Model	D 504 T
Gross Power	98 hp (73 kw)
Max Torque	291 lbs ft (395 nm)
Number Of Cylinders	4
Power Measured @	2,400 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Dump Time	2 sec
Lower Time	3 sec
Pump Flow Capacity	30 gpm (115 lpm)
Pump Type	Gear pump
Raise Time	5 sec
Relief Valve Setting	3,336 psi
Operational
Alternator Supplied Amperage	65 amps
Engine Oil Fluid Capacity	4 gal (14 l)
Front Axle/Diff Fluid Capacity	3 gal (13 l)
Fuel Capacity	37 gal (140 l)
Hydraulic System Fluid Capacity	28 gal (105 l)
Operating Voltage	12 V
Operating Weight	17,020 lbs (7,719 kg)
Rear Axle Oscillation	12 degrees
Rear Axle/Diff Fluid Capacity	0 gal (1 l)
Static Tipping Weight	12,511 lbs (5,674 kg)
Tire Size	15.5R25 or 17.5R25
Turning Radius	15 ft (4 m)
Transmission
Max Speed - Forward	19 mph (30 kph)
Max Speed - Reverse	19 mph (30 kph)
Number Of Forward Gears	2
Number Of Reverse Gears	2
Transmission Type	Stepless hydrostatic travel drive
