2018 Liebherr L538 For Sale in Maltby, Gbr


/ Save to Watch List
Apply for Financing

Auction Pricing



   Auction Info: Starting on 2026-08-12   Click here to place a bid



Machine Info:

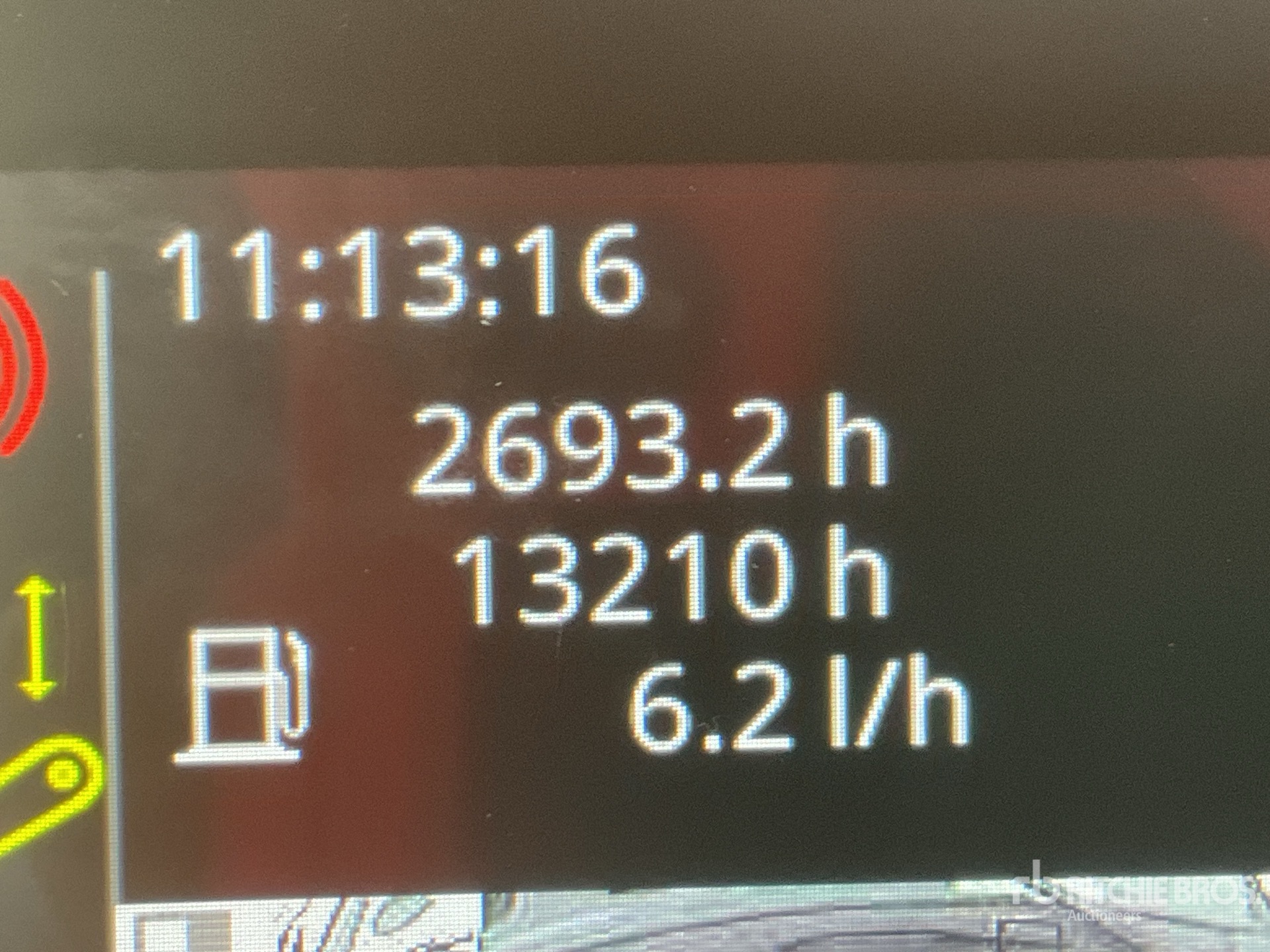

Hours:13210

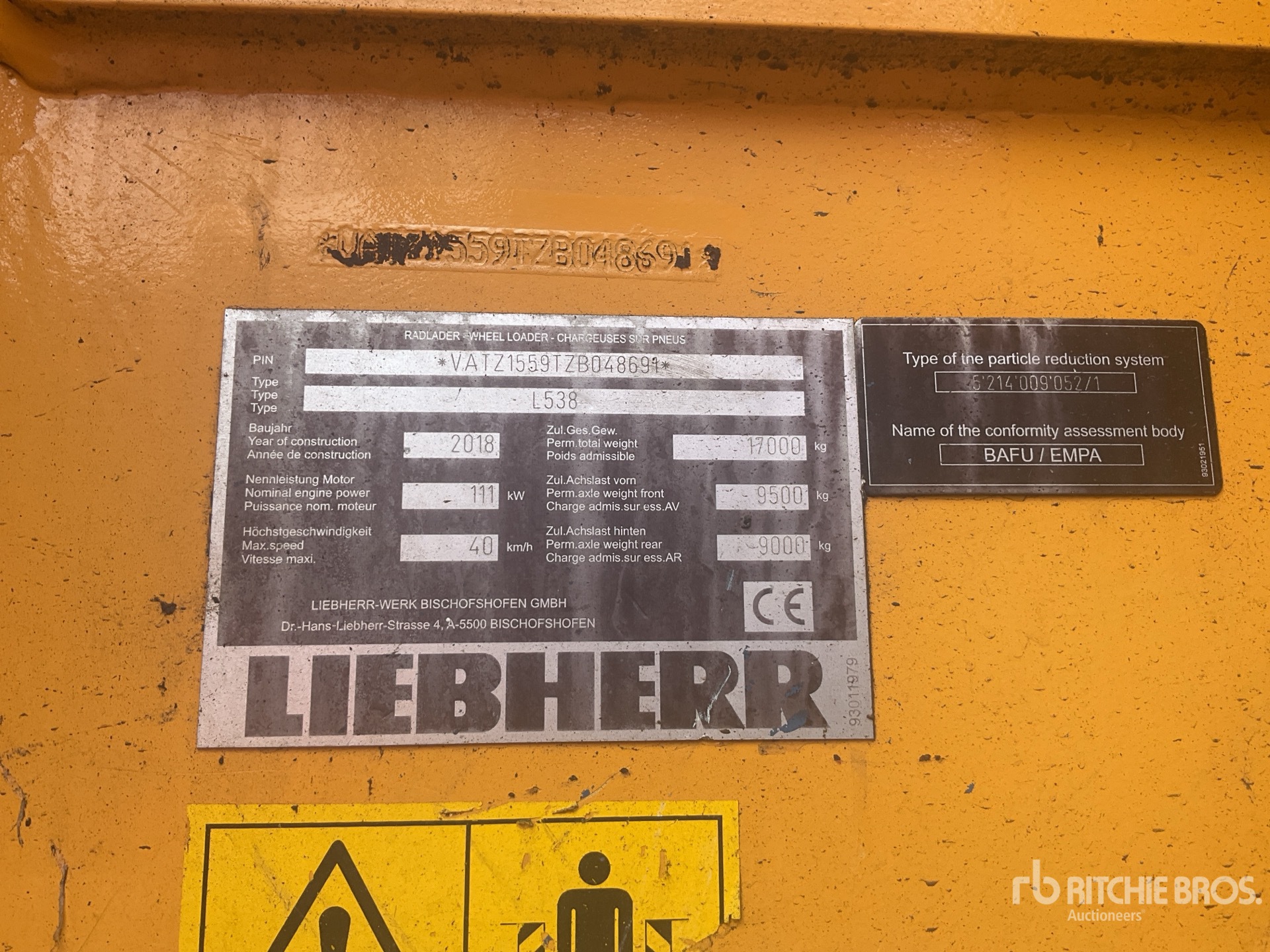

Serial Number:VATZ1559TZB048691
Machine Location:MALTBY, GBR

Description:

Enclosed Cab, Air Conditioner, Rear View Camera, Autoshift, Requires AdBlue, Manual Quick Coupler, 2450 mm Roll-Out Bucket, Auto Lube, Solid Tires, Ulrich Bucket Closing Time: 2026-08-12 10:08:00 AM


From the manufacturer:

Supplied by HeavyEquipmentData.com →

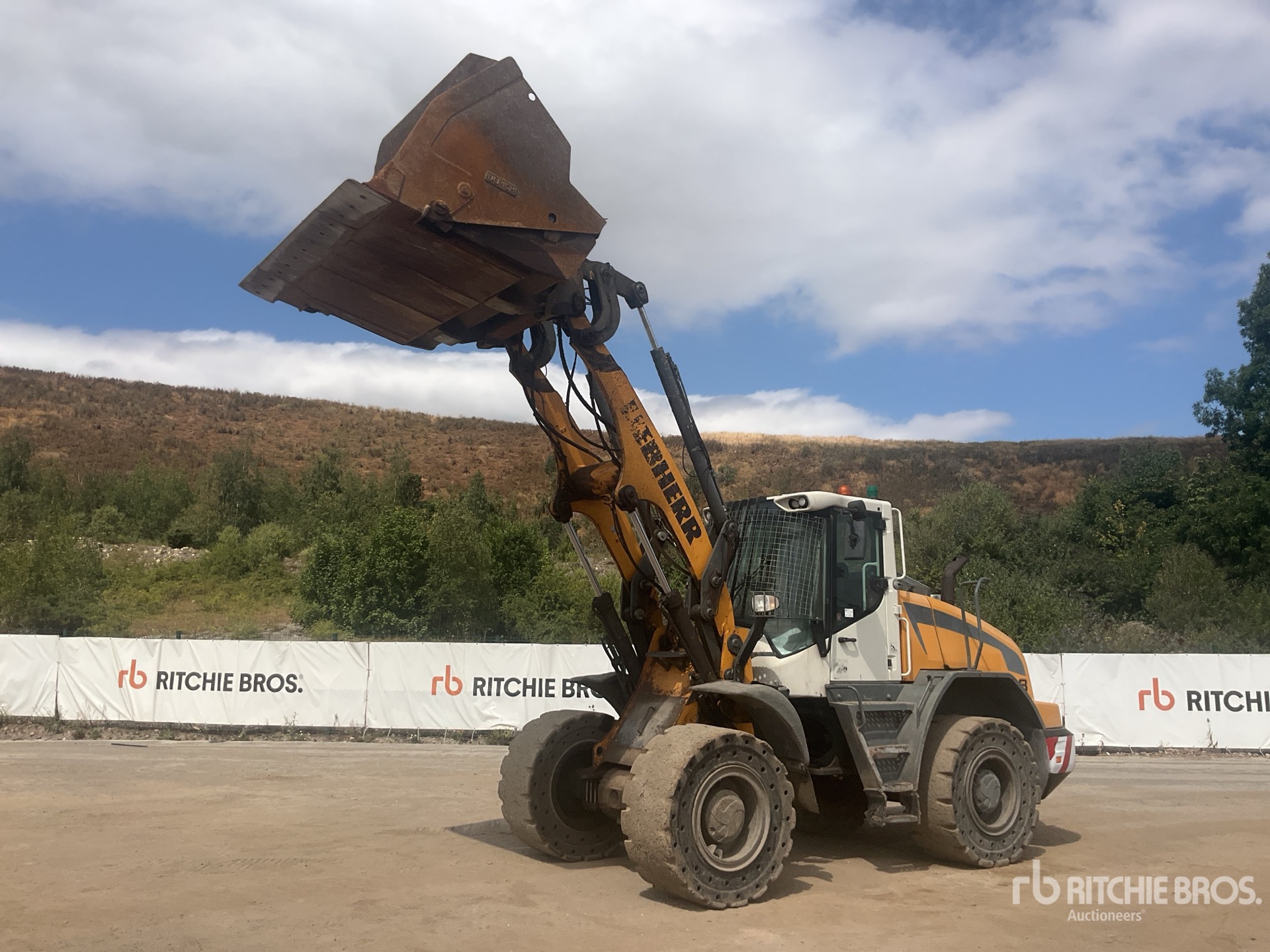

The Liebherr L538 is a wheel loader designed for material handling, loading, and site support applications in construction, aggregate, and industrial environments. It is part of Liebherr's L 538 series and is commonly used for stockpile work, truck loading, earthmoving, and general-purpose material transport. The machine is typically equipped with a front-mounted loader arm, bucket attachment, articulated steering, and a diesel powertrain suited to continuous duty cycles. The L538 is recognized for its balance of lifting performance, maneuverability, and operator visibility. It is used in quarry, recycling, municipal, and infrastructure operations where a medium-size wheel loader is required.
Bucket
Breakout Force 25,180 lbs (11,421 kg)
Bucket Capacity - heaped 3 cu yd (2 cu m)
Bucket Width 8 ft (3 m)
Dump Clearance at Max Raise 9 ft (3 m)
Dimensions
Ground Clearance 2 ft (1 m)
Height - Top of Cab 11 ft (3 m)
Hinge Pin - Max Height 13 ft (4 m)
Length with Bucket on Ground 24 ft (7 m)
Reach at Max Lift and Dump 4 ft (1 m)
Wheelbase 10 ft (3 m)
Engine
Air cleaner Dry air filter with main and safety element pre-cleaner service indicator on the display
Aspiration Inline engine water-cooled exhaust-turbo charged with intercooler
Bore 4 in (11 cm)
Displacement 275 cu in (4,506 cu cm)
Engine Model 4045HFL93
Gross Power 154 hp (115 kw)
Max Torque 454 lbs ft (616 nm)
Number of Cylinders 4
Power Measured @ 2,000 rpm
Stroke 5 in (13 cm)
Torque Measured @ 1,600 rpm
Hydraulic System
Dump Time 2 seconds
Lower Time 4 seconds
Pump Flow Capacity 45 gpm (170 lpm)
Pump Type Load-Sensing vaiable axial piston pump with output control and pressure cutoff
Raise Time 5 seconds
Relief Valve Setting 4,351 psi
Operating Specifications
Alternator Supplied Amperage 55 amps
Cooling System Fluid Capacity 10 gal (38 l)
Engine Oil Fluid Capacity 5 gal (20 l)
Front Axle/Diff Fluid Capacity 4 gal (16 l)
Fuel Capacity 54 gal (205 l)
Hydraulic System Fluid Capacity 48 gal (180 l)
Operating Voltage 24 volts
Operating Weight 27,029 lbs (12,260 kg)
Rear Axle Oscillation 12 degrees
Rear Axle/Diff Fluid Capacity 4 gal (15 l)
Static Tipping Weight 22,399 lbs (10,160 kg)
Tire Size 20.5R25 L3
Transmission Fluid Capacity 1 gal (4 l)
Turning Radius 20 ft (6 m)
Transmission
Max Speed - Forward 25 mph (40 kph)
Max Speed - Reverse 25 mph (40 kph)
Number of Forward Gears 3
Number of Reverse Gears 3
Transmission Type Stepless hydrostatic travel drive
