2000 Liebherr L538 For Sale in Meppen, Deu

Name: 2000 Liebherr L538
Brand: Liebherr
SKU: 89099962
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

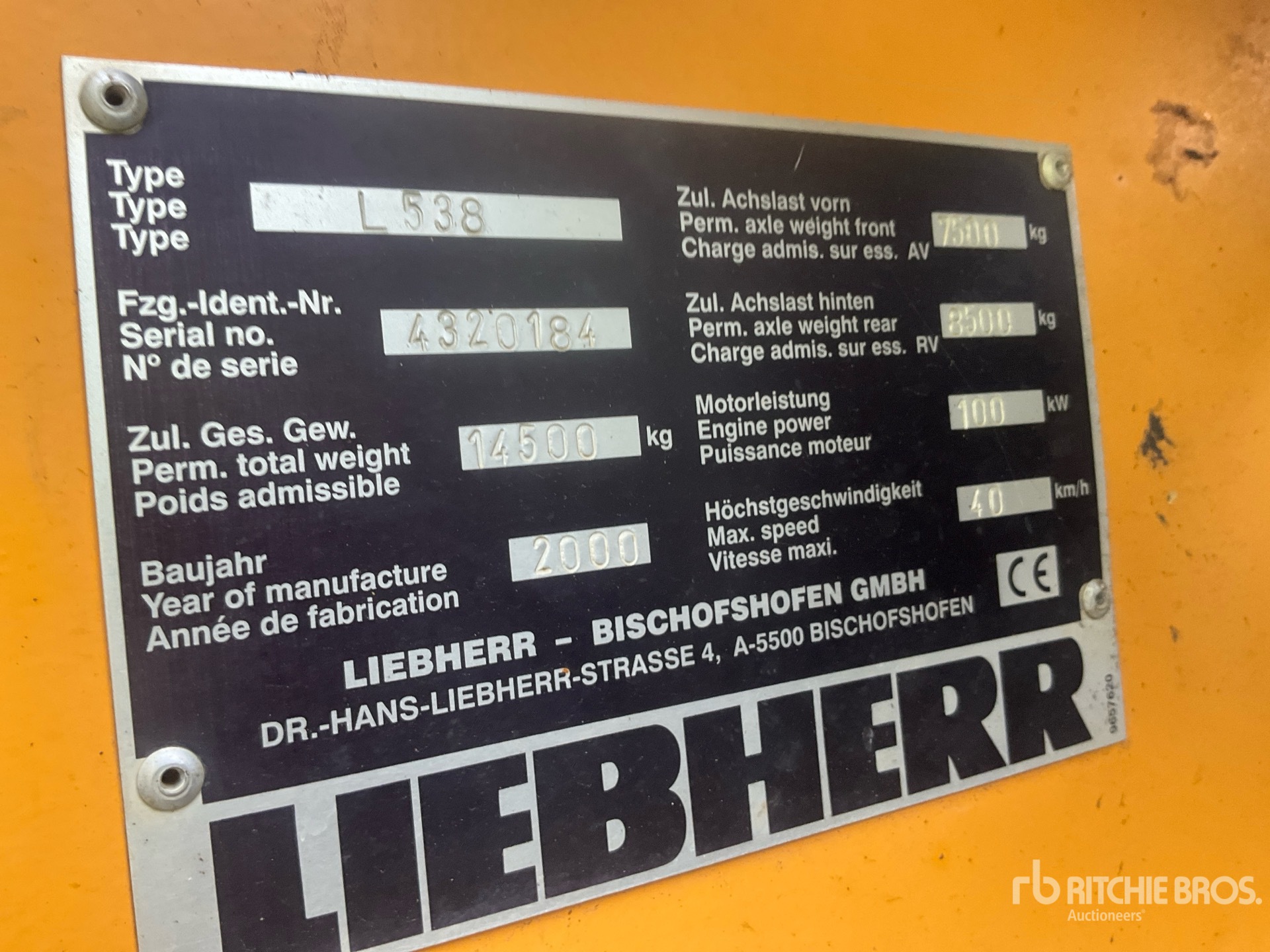

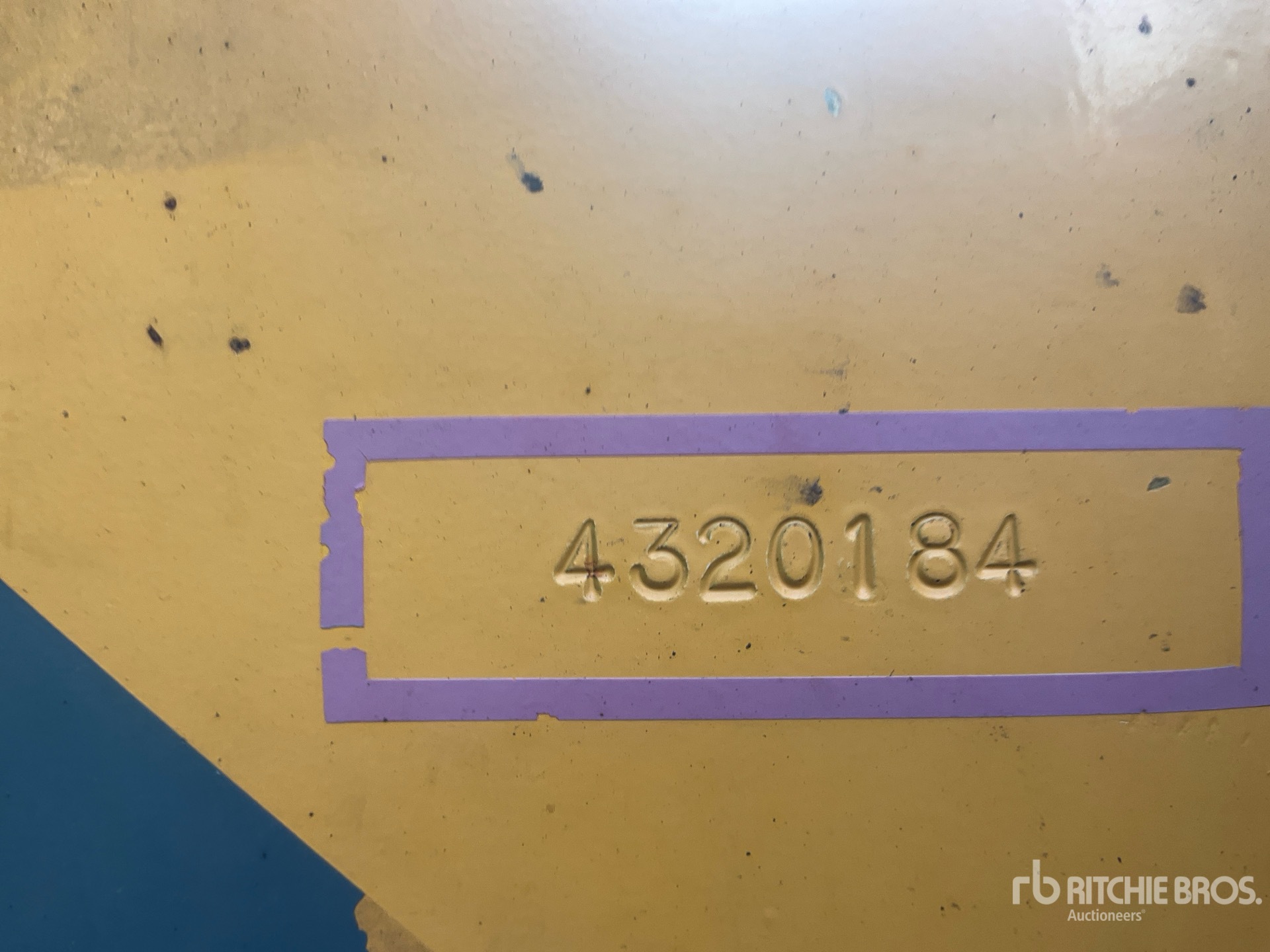

Serial Number:	4320184
Machine Location:	MEPPEN, DEU

Description:

Enclosed Cab, 2000 US EPA Label, Requires AdBlue, 2500 mm Bucket, 20.5R25 Tires, Electric Stick Control Drive Mode is Malfunctioning while Driving ** German Registration July 2000 / Deutsche Zulassung Juli 2000 Closing Time: 2026-09-17 10:30:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Liebherr L538 is a wheel loader designed for material handling, loading, and site support in construction, quarry, agriculture, and industrial applications. It is part of Liebherr's mid-size wheel loader range and is commonly used for stockpile work, truck loading, and general earthmoving tasks. The L538 typically features a hydrostatic drive, articulated steering, and a loader arm system optimized for efficient cycle times and precise control. Depending on configuration, it can be equipped with a range of buckets and attachments. The model is known for balanced performance, operator visibility, and suitability for continuous-duty loading operations.

Bucket
Breakout Force	25,180 lbs (11,420 kg)
Bucket Capacity - Heaped	3 cu yd
Bucket Width	8 ft (3 m)
Dump Clearance At Max Raise	9 ft (3 m)
Dimensions
Ground Clearance	2 ft (1 m)
Height	11 ft (3 m)
Height To Top Of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length	25 ft (8 m)
Length With Bucket On Ground	24 ft (7 m)
Reach At Max Lift And Dump	4 ft (1 m)
Weight	27,028 lbs (12,260 kg)
Wheelbase	10 ft (3 m)
Width	8 ft (2 m)
Engine
Air Cleaner	Dry air filter with main and safety element, pre-cleaner, service indicator on the display
Aspiration	Inline engine, water-cooled exhaust-turbo charged with intercooler
Bore	4 in (11 cm)
Displacement	275 cu in (4,506 cu cm)
Engine Make	2,245
Engine Model	4045HFL93
Gross Power	154 hp (115 kw)
Max Torque	454 lbs ft (616 nm)
Number Of Cylinders	4
Power Measured @	2,000 rpm
Stroke	5 in (13 cm)
Torque Measured @	1,600 rpm
Hydraulic System
Dump Time	2 sec
Lower Time	4 sec
Pump Flow Capacity	45 gpm (170 lpm)
Pump Type	Load-Sensing vaiable axial piston pump with output control and pressure cutoff
Raise Time	5 sec
Relief Valve Setting	4,351 psi
Operational
Alternator Supplied Amperage	55 amps
Cooling System Fluid Capacity	10 gal (38 l)
Engine Oil Fluid Capacity	5 gal (20 l)
Front Axle/Diff Fluid Capacity	4 gal (16 l)
Fuel Capacity	54 gal (205 l)
Hydraulic System Fluid Capacity	48 gal (180 l)
Operating Voltage	24 V
Operating Weight	27,029 lbs (12,258 kg)
Rear Axle Oscillation	12 degrees
Rear Axle/Diff Fluid Capacity	4 gal (15 l)
Static Tipping Weight	22,399 lbs (10,158 kg)
Tire Size	20.5R25 L3
Transmission Fluid Capacity	1 gal (4 l)
Turning Radius	20 ft (6 m)
Transmission
Max Speed - Forward	25 mph (40 kph)
Max Speed - Reverse	25 mph (40 kph)
Number Of Forward Gears	3
Number Of Reverse Gears	3
Transmission Type	Stepless hydrostatic travel drive
