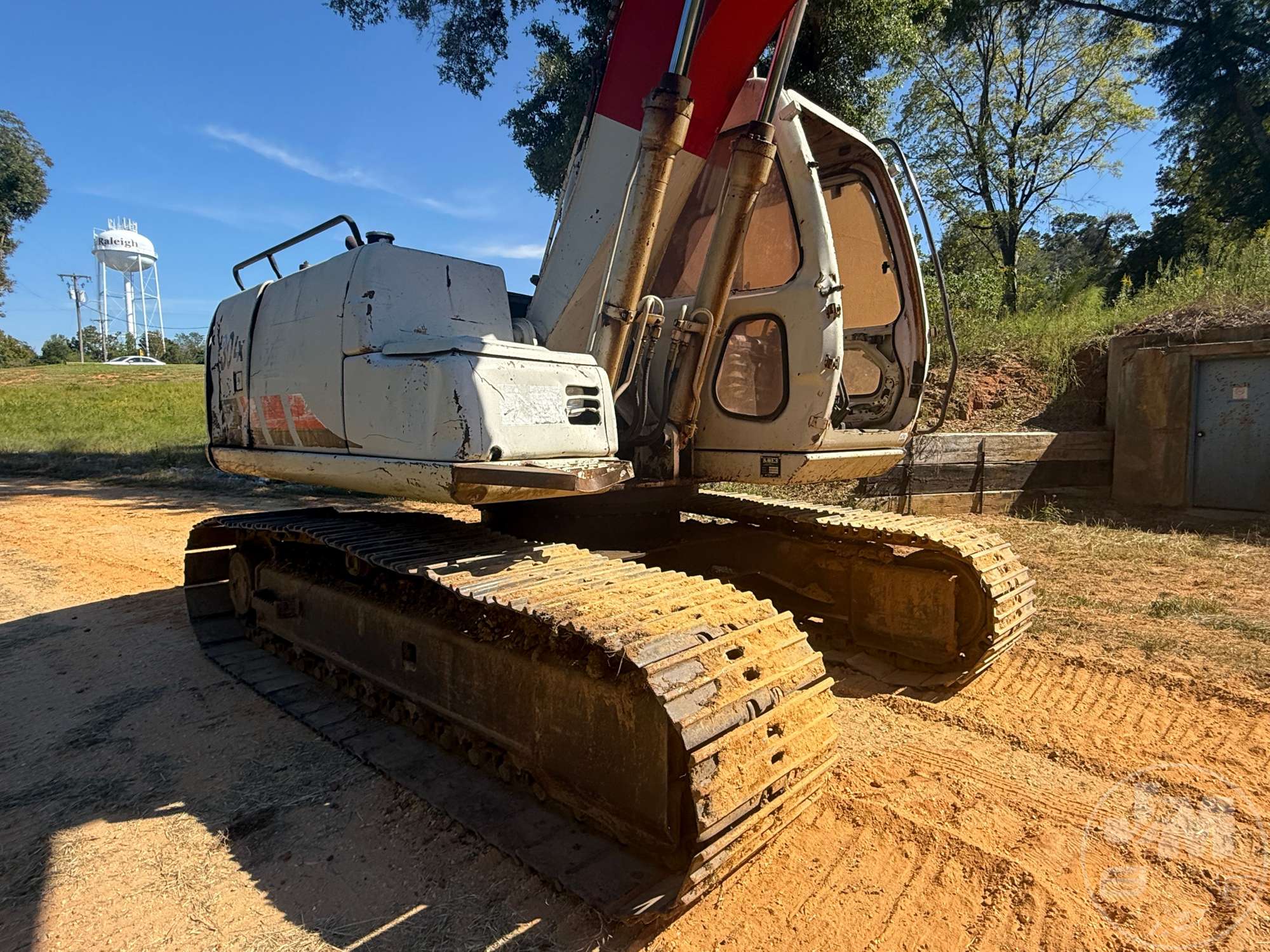

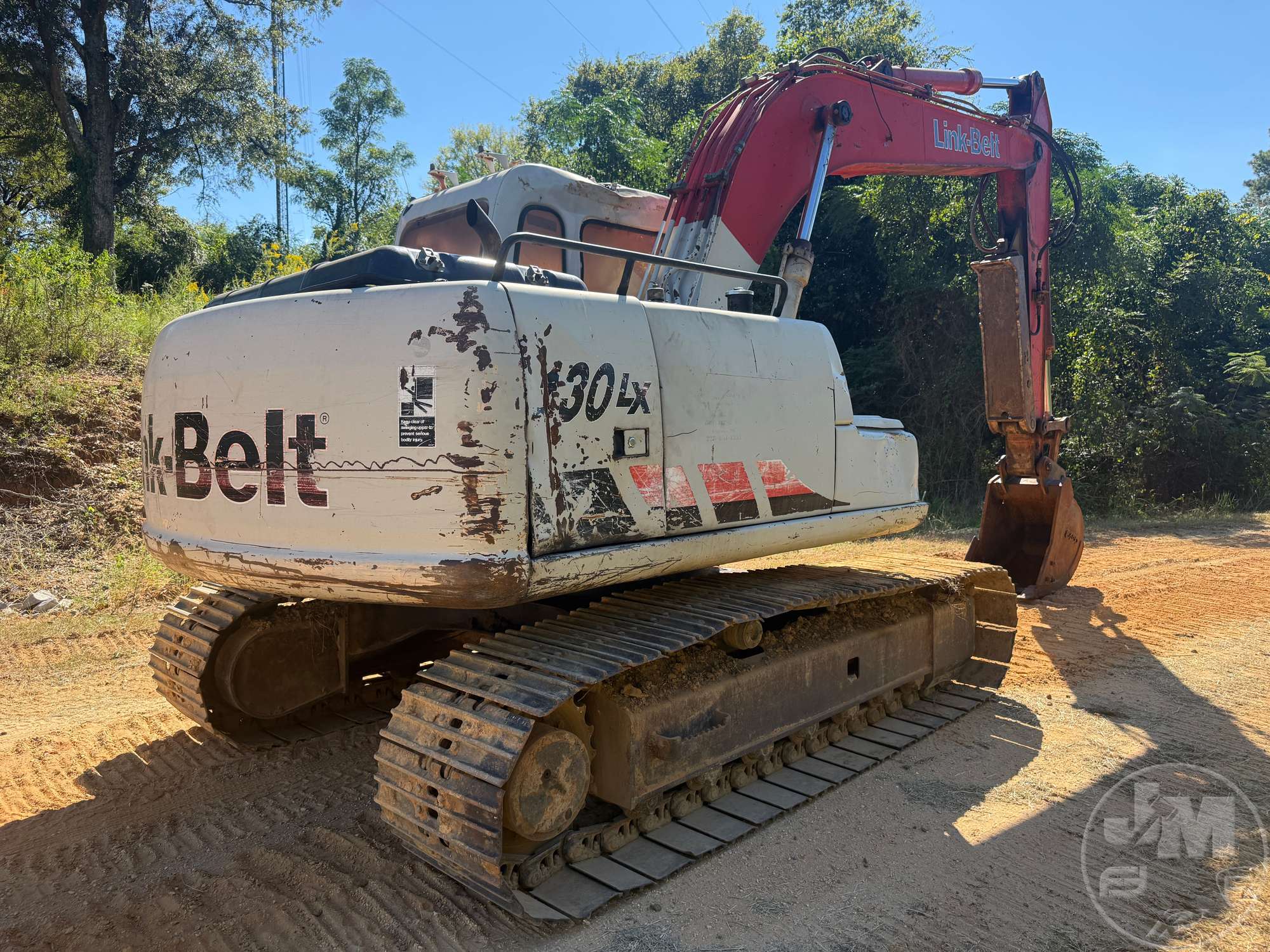

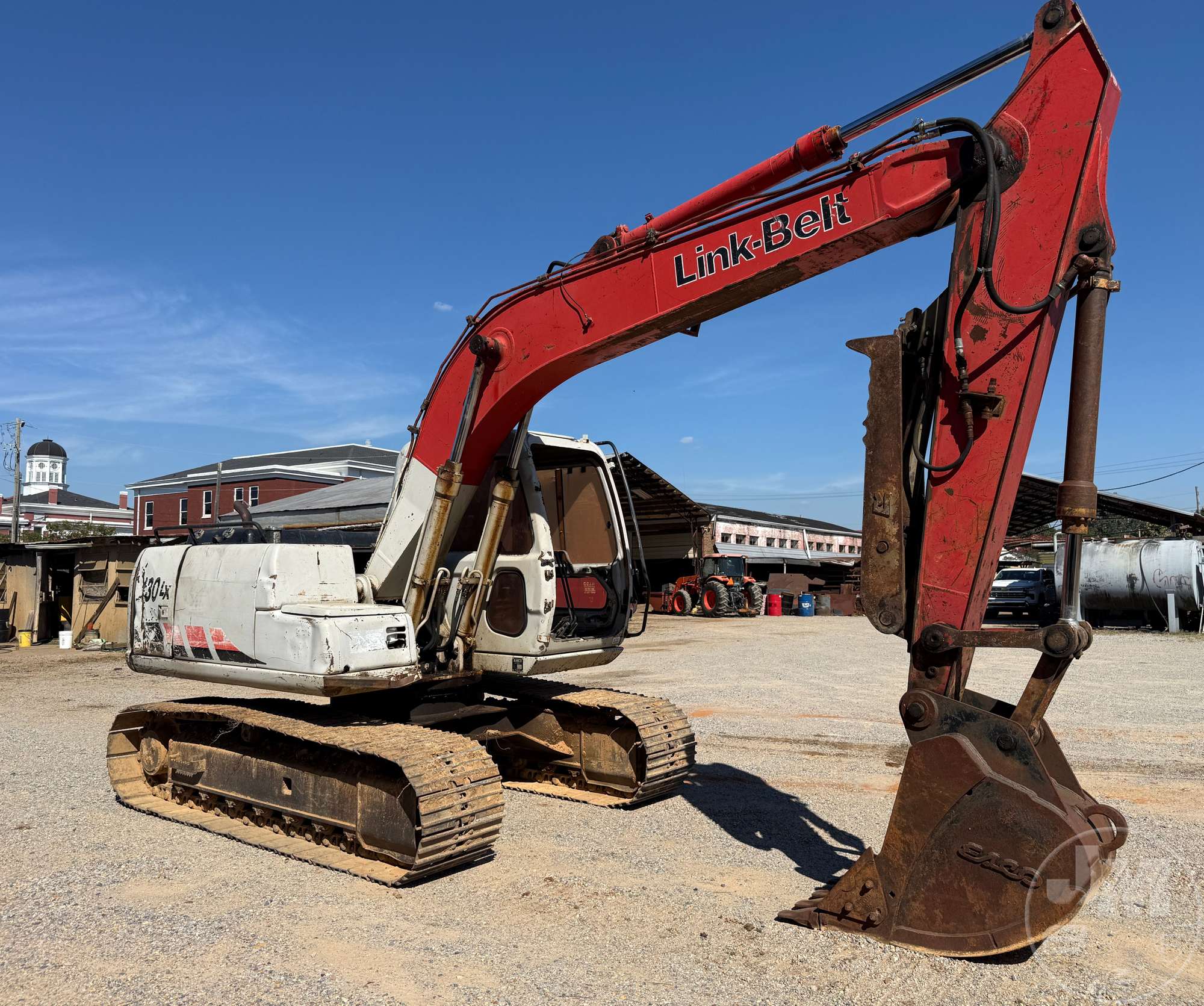

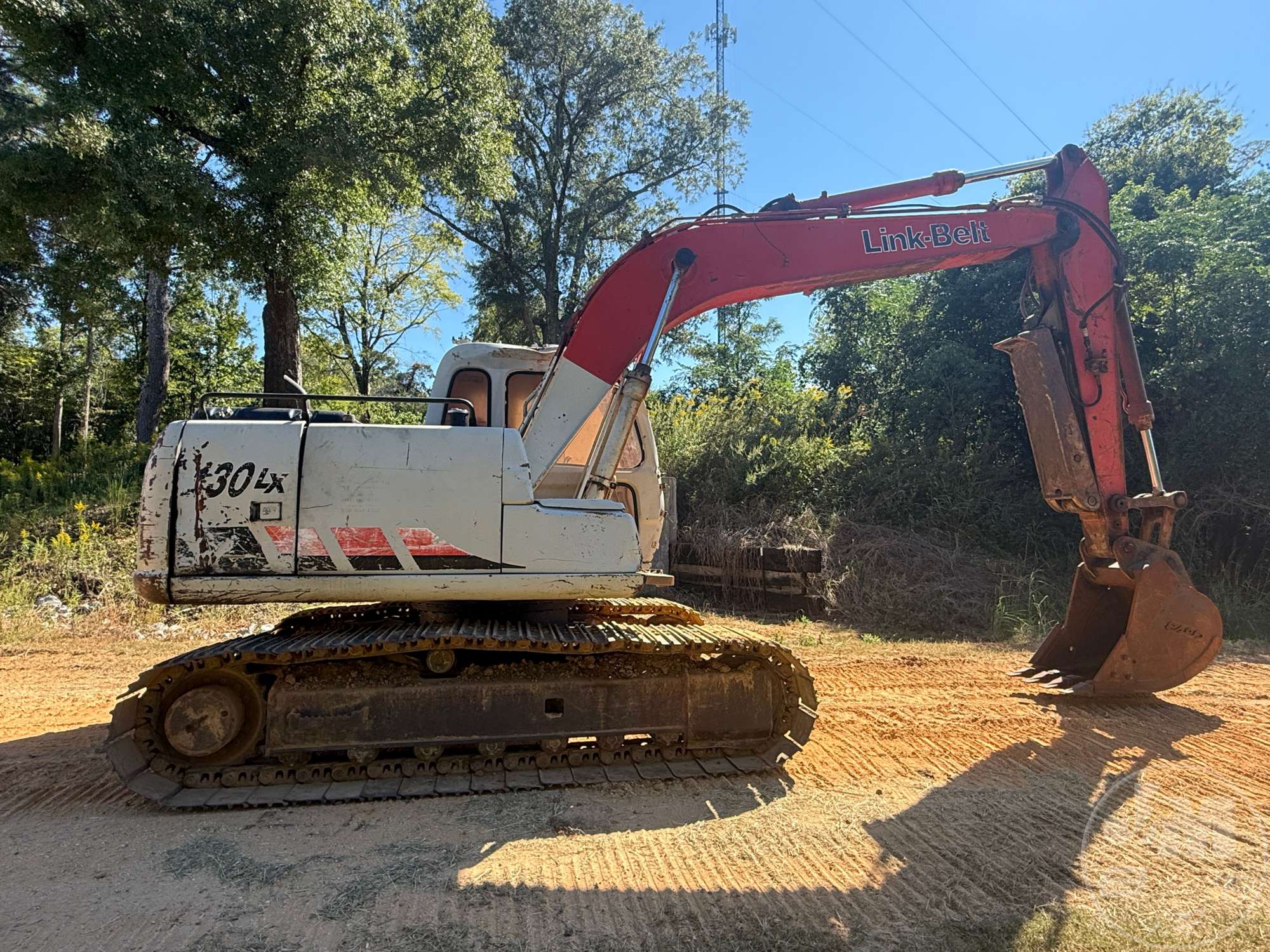

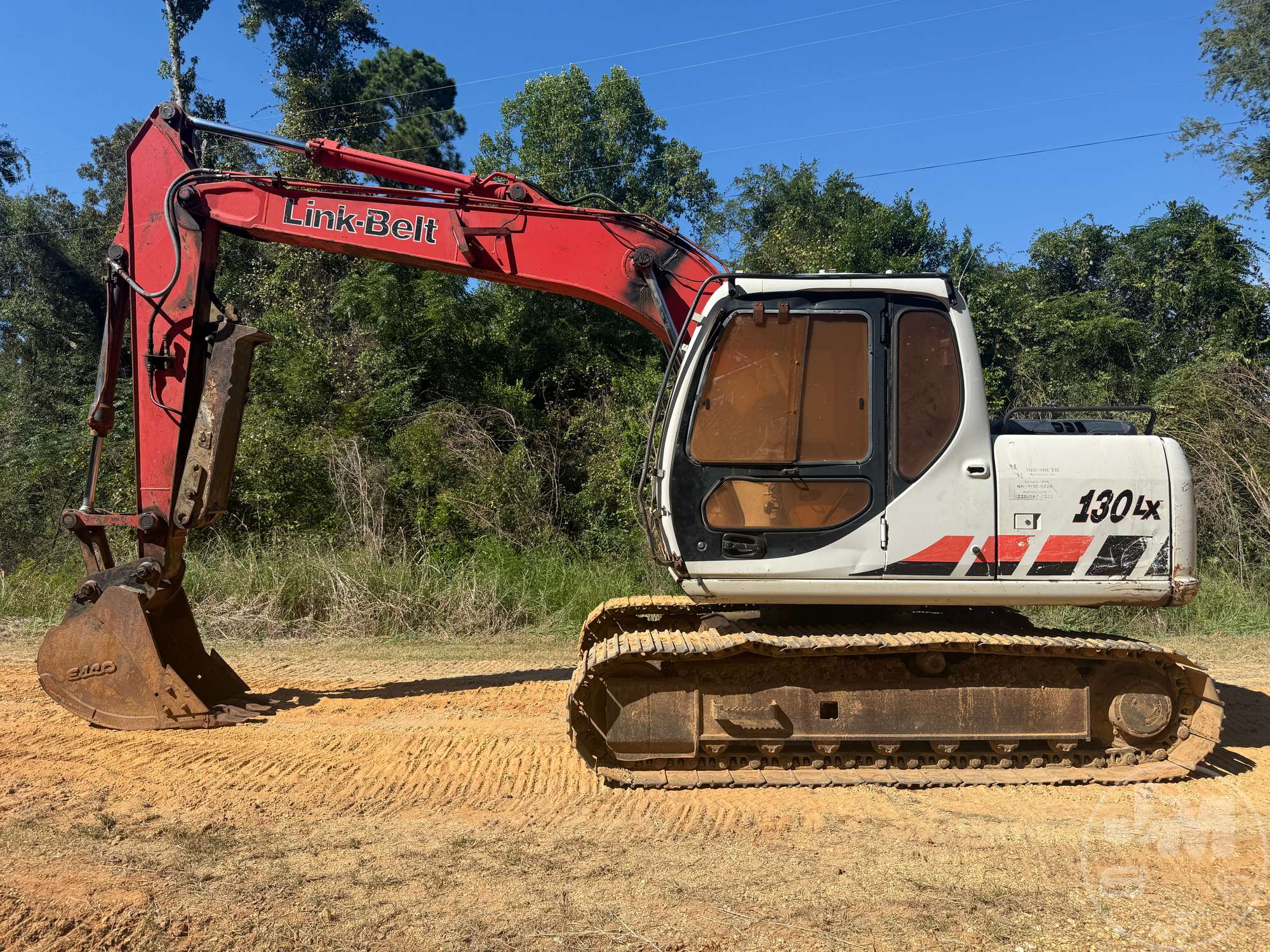

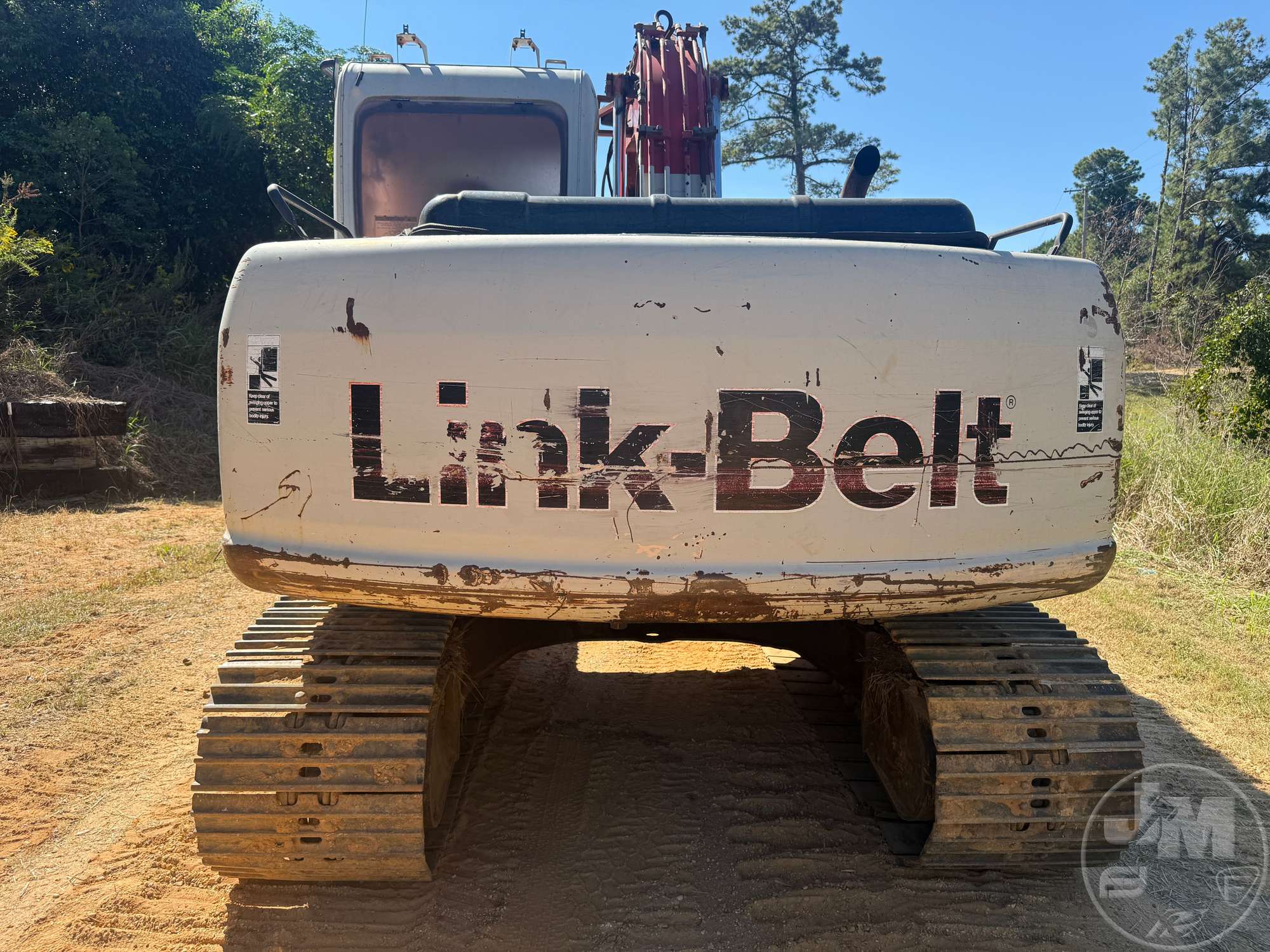

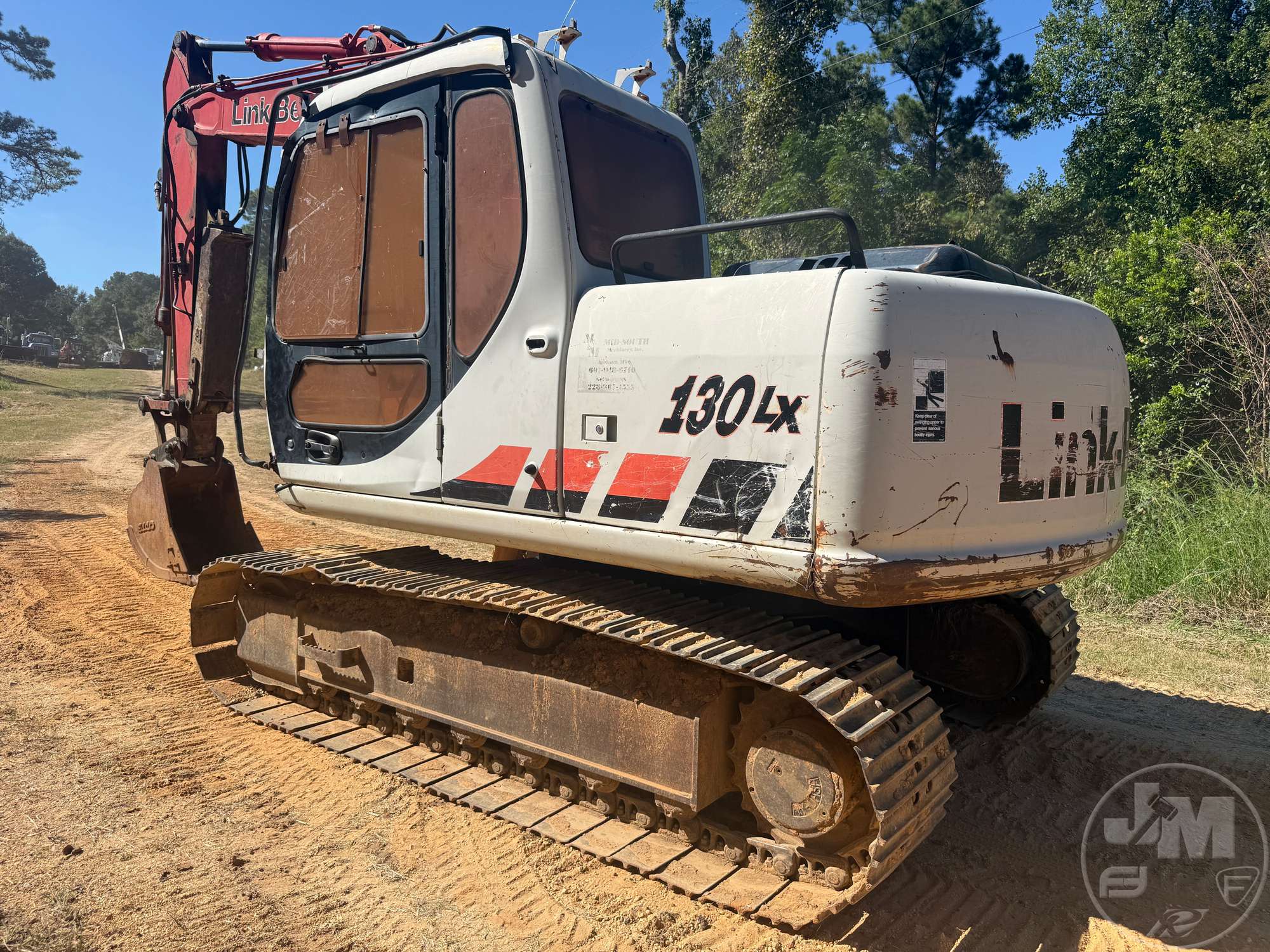

2011 Link-Belt 130 LX For Sale in Raleigh, MS

Name: 2011 Link-Belt 130 LX
Brand: Link-Belt
SKU: 89459069
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-10-29 Click here to place a bid

Jeff Martin Auctioneers, Inc

Jeff Martin Auctioneers, Inc Dealer Info

Jeff Martin Auctioneers, Inc Website

Click here to email Jeff Martin Auctioneers, Inc.

Click for Phone Number

Machine Info:

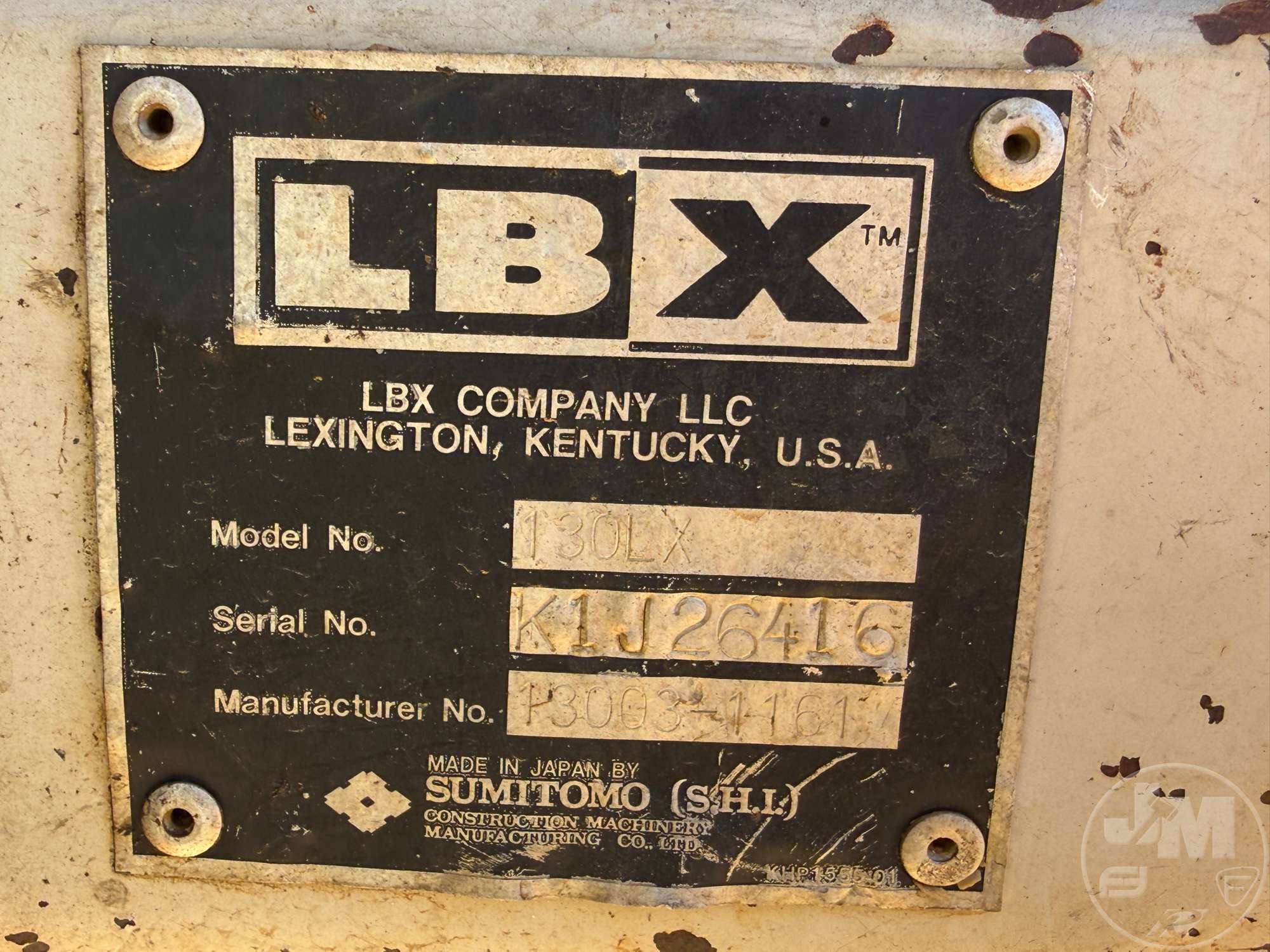

Serial Number:	K1J26416
Machine Location:	RALEIGH, MS
More Information:	https://www.jeffmartinauctioneers.com/auctions/1313/lot/347163-2011-LINK-BELT-130LX-HYDRAULIC-EXCAVATOR-SN%3A-K1J26416

Description:

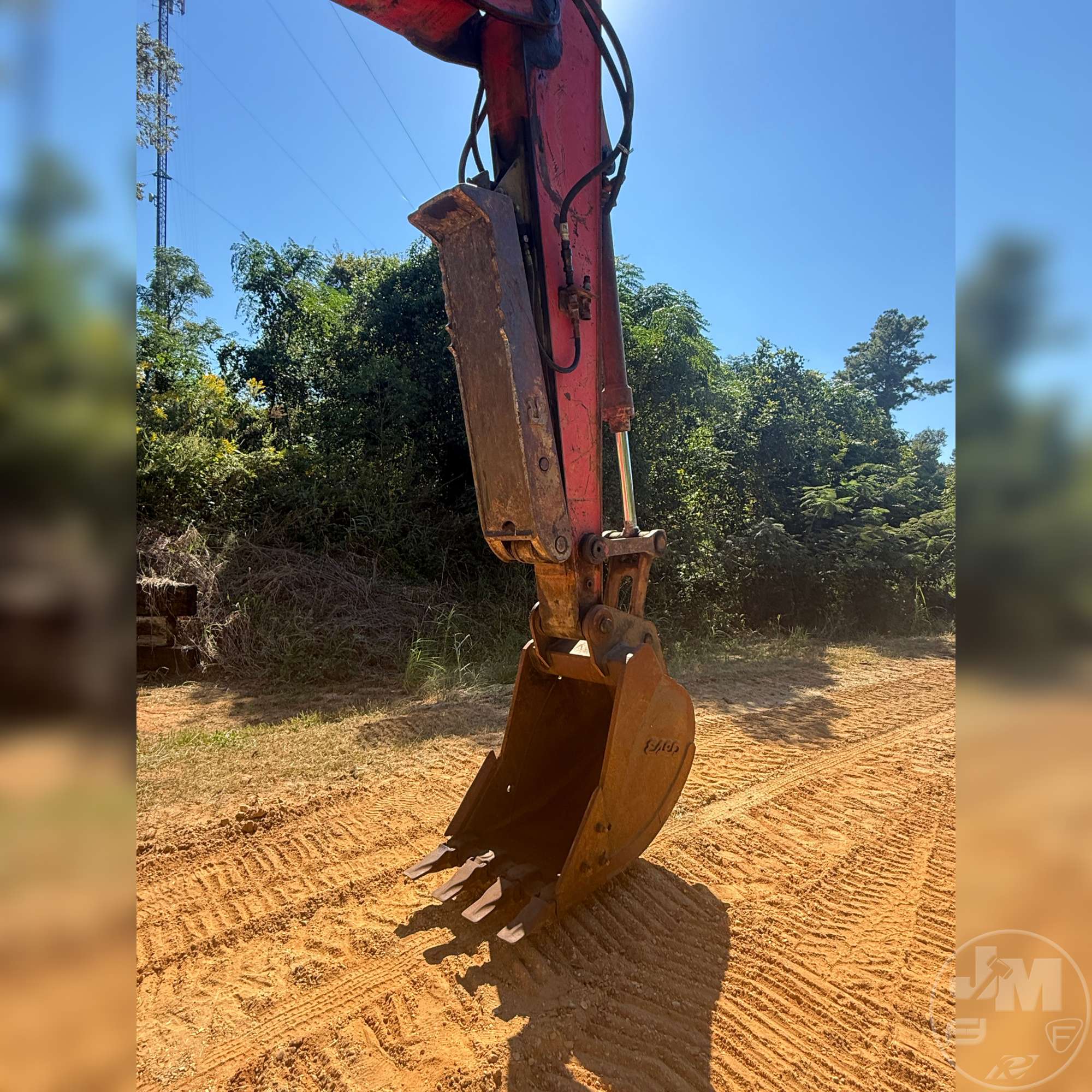

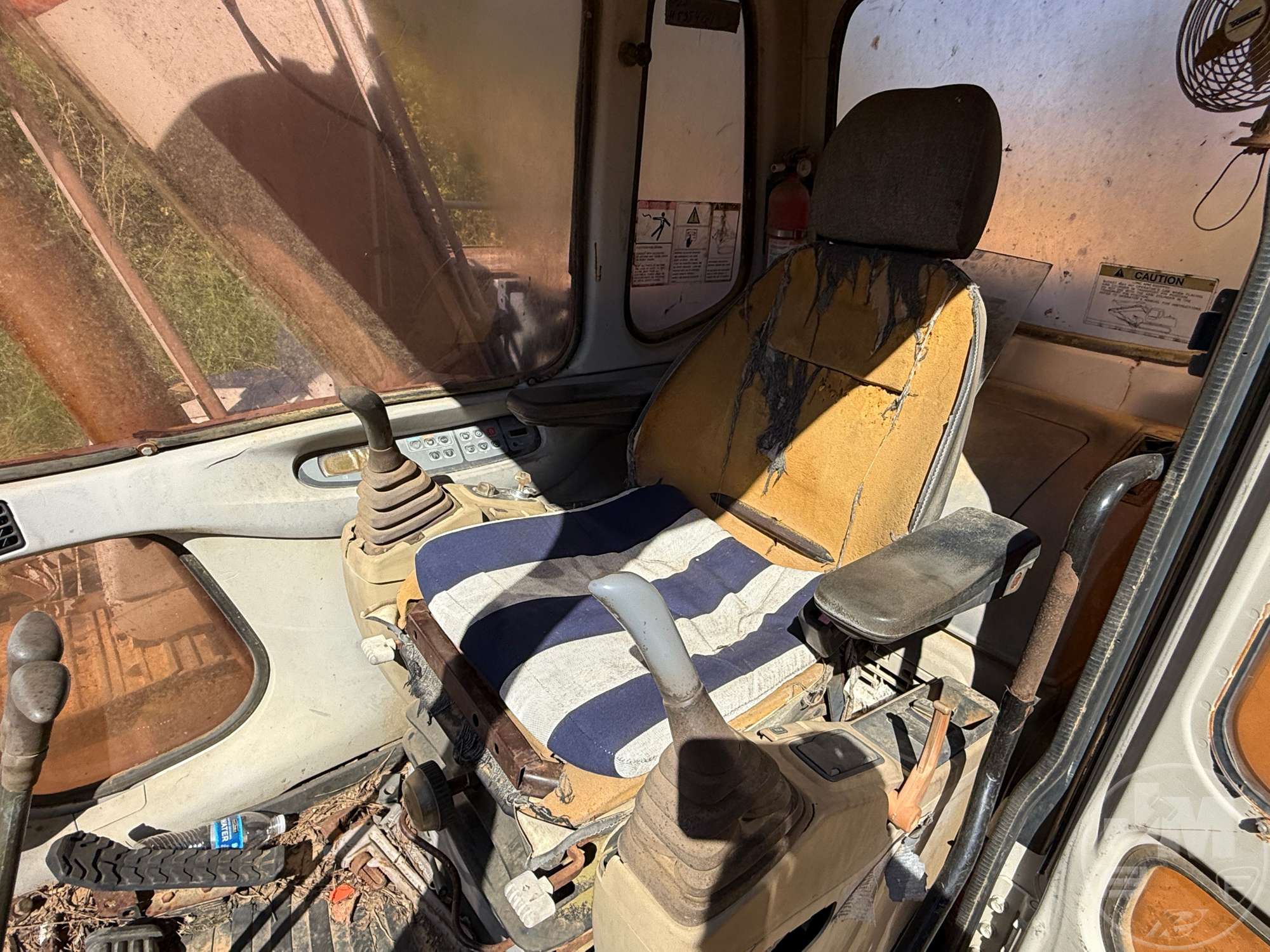

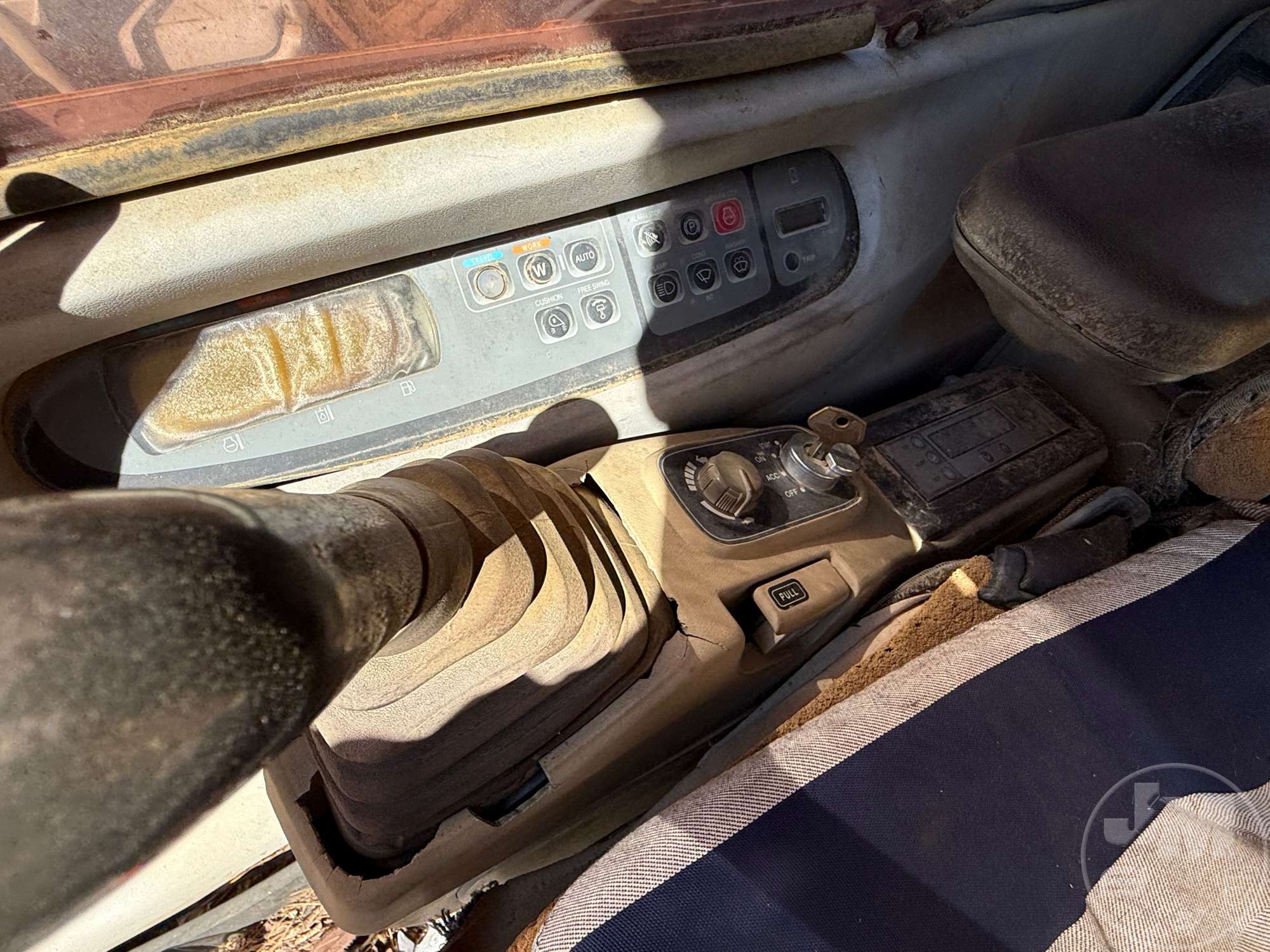

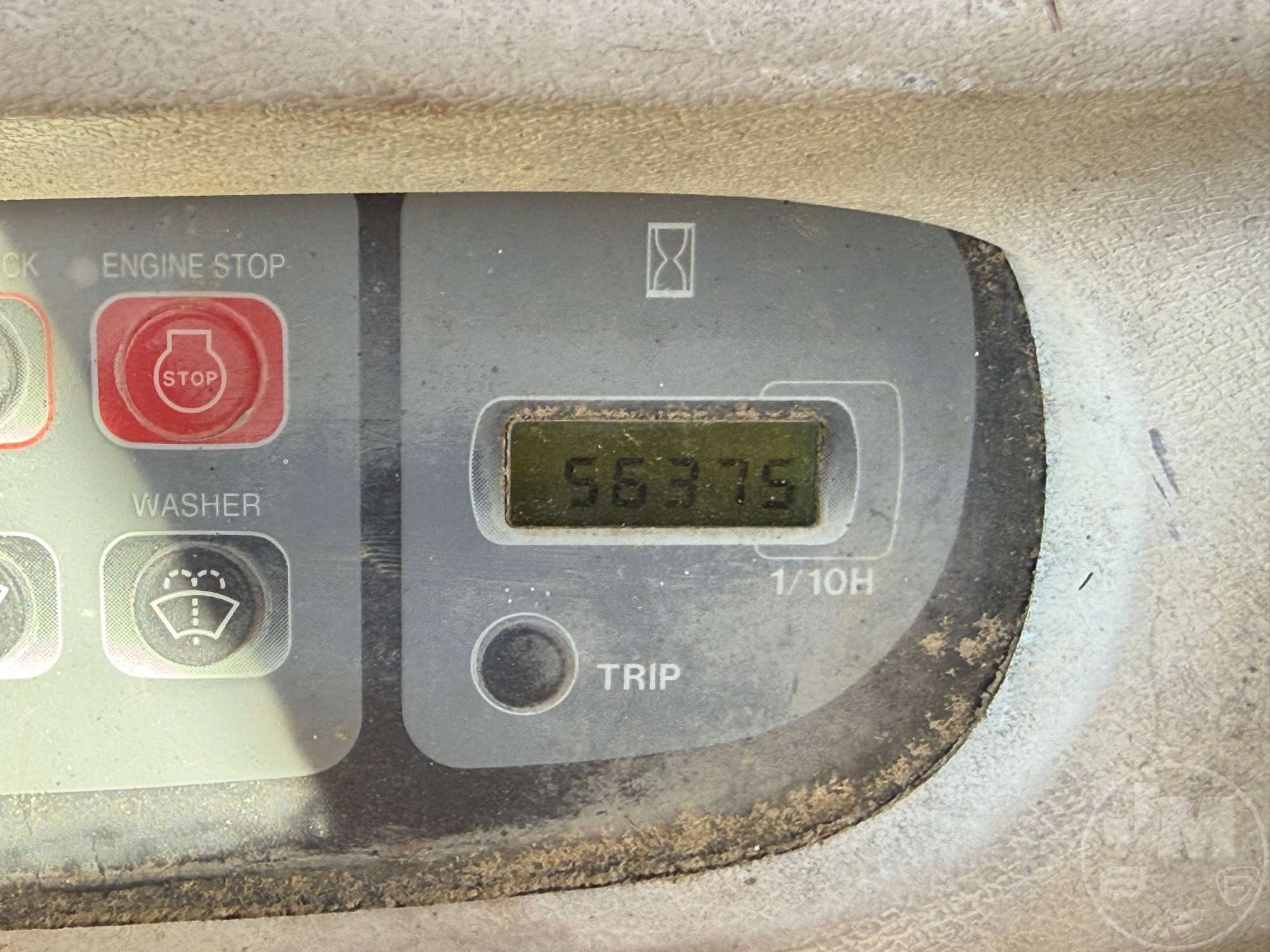

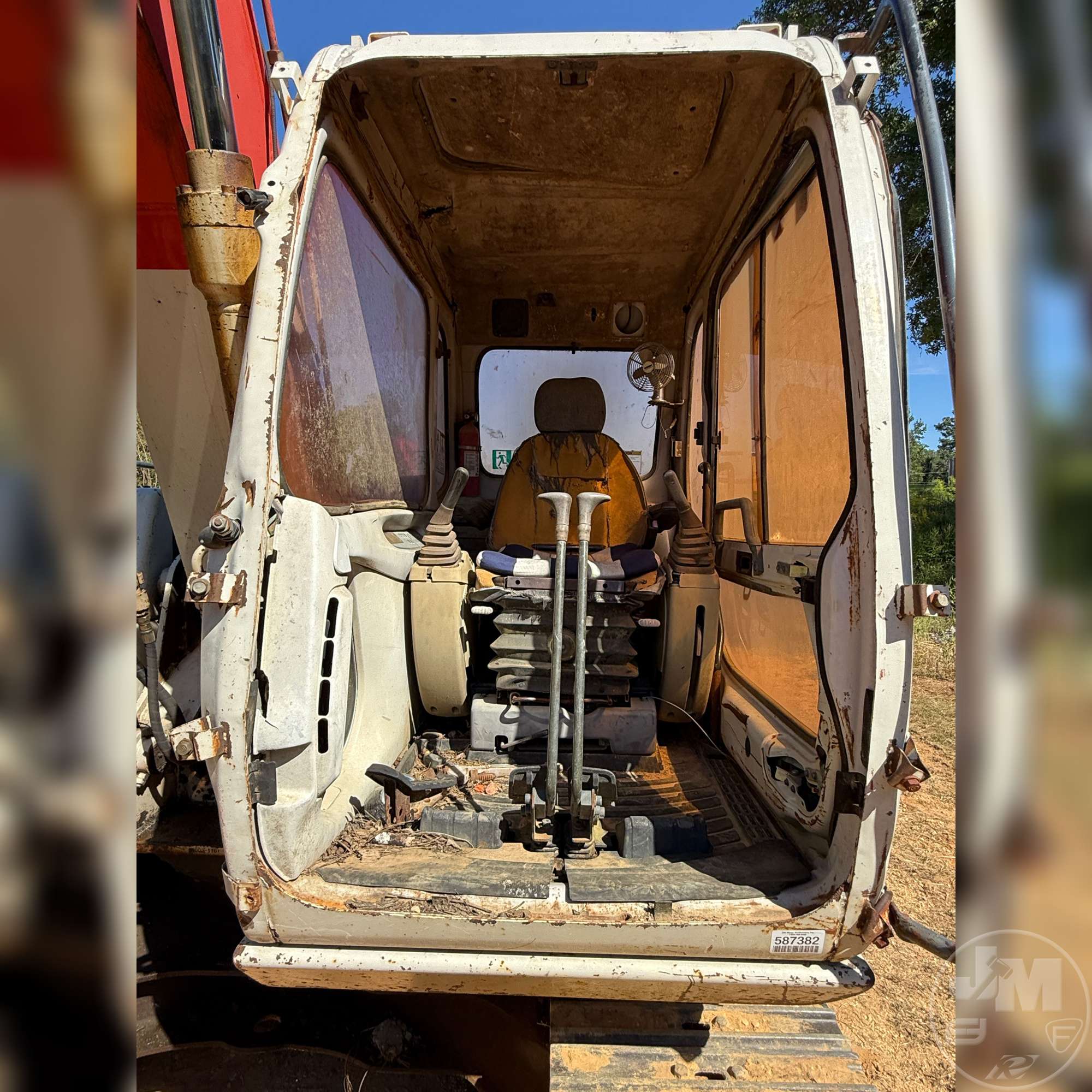

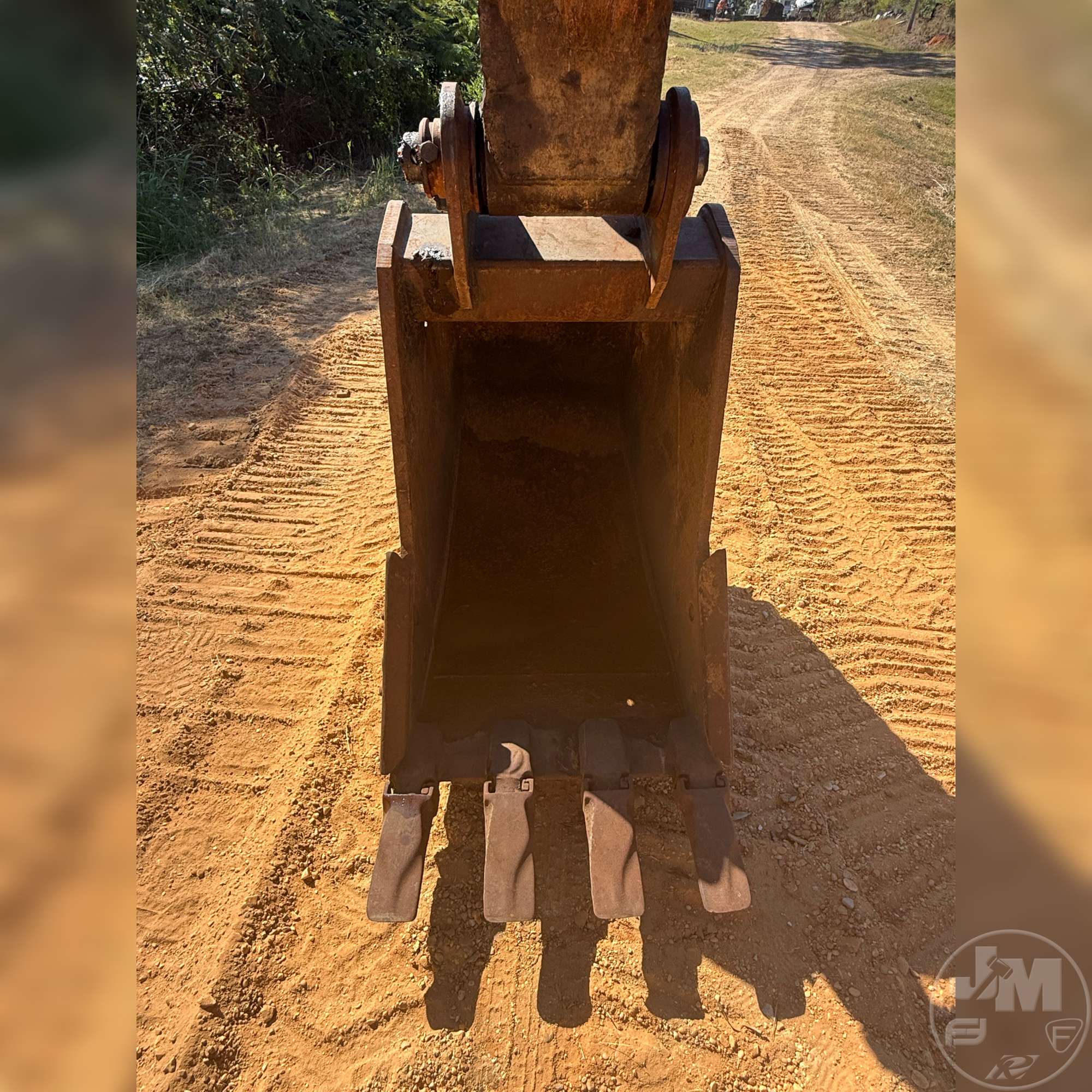

LINK-BELT HYDRAULIC EXCAVATOR,, CAB, AC, RADIO, 8'6" STICK, 24" BUCKET, AUX HYD, HYD THUMB, 23.5", TBG, HOUR METER READS: 5637

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick 1
Boom/Stick 1	Boom 15\'2\" (4630mm) / Stick 8\'2\" (2500mm)
Max Cutting Height	30 ft (9 m)
Max Digging Depth	18 ft (6 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	27 ft (8 m)
Max Vertical Wall Digging Depth	16 ft (5 m)
Shipping Height Of Unit	9 ft (3 m)
Shipping Length Of Unit	25 ft (7 m)
Boom/Stick 2
Boom/Stick 2	Boom 15\'2\" (4630mm) / Stick 10\'0\" (3060mm)
Max Cutting Height	31 ft (9 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	28 ft (9 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Shipping Height Of Unit	9 ft (3 m)
Shipping Length Of Unit	25 ft (8 m)
Buckets
Maximum Bucket Capacity	1 cu yd
Minimum Bucket Capacity	1 cu yd
Reference Bucket Capacity	1 cu yd
Dimensions
Ground Clearance	2 ft (0 m)
Height	9 ft (3 m)
Height To Top Of Cab	9 ft (3 m)
Length	25 ft (7 m)
Length Of Track On Ground	9 ft (3 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	7 ft (2 m)
Weight	27,100 lbs (12,292 kg)
Width	8 ft (3 m)
Width To Outside Of Tracks	9 ft (3 m)

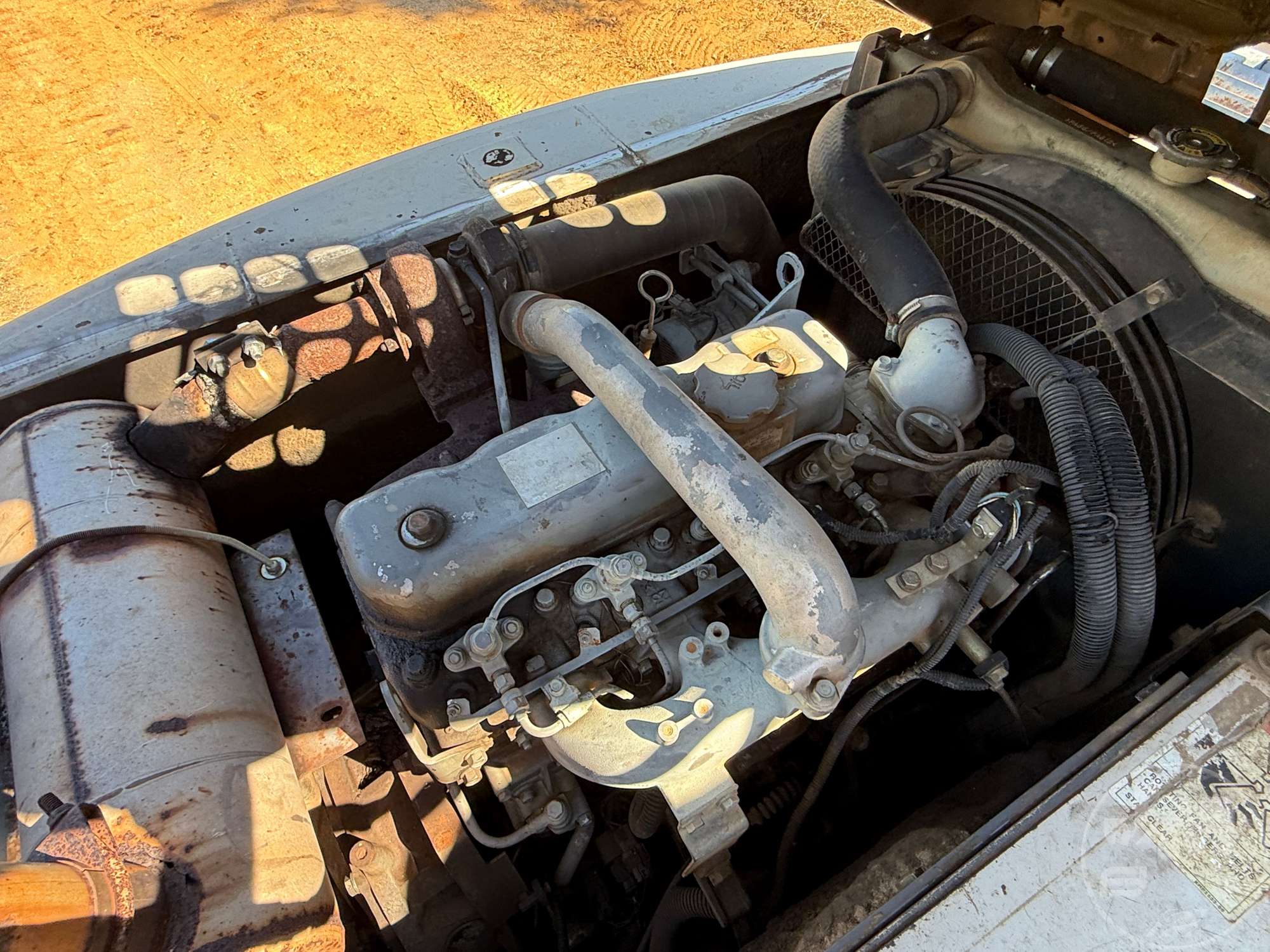

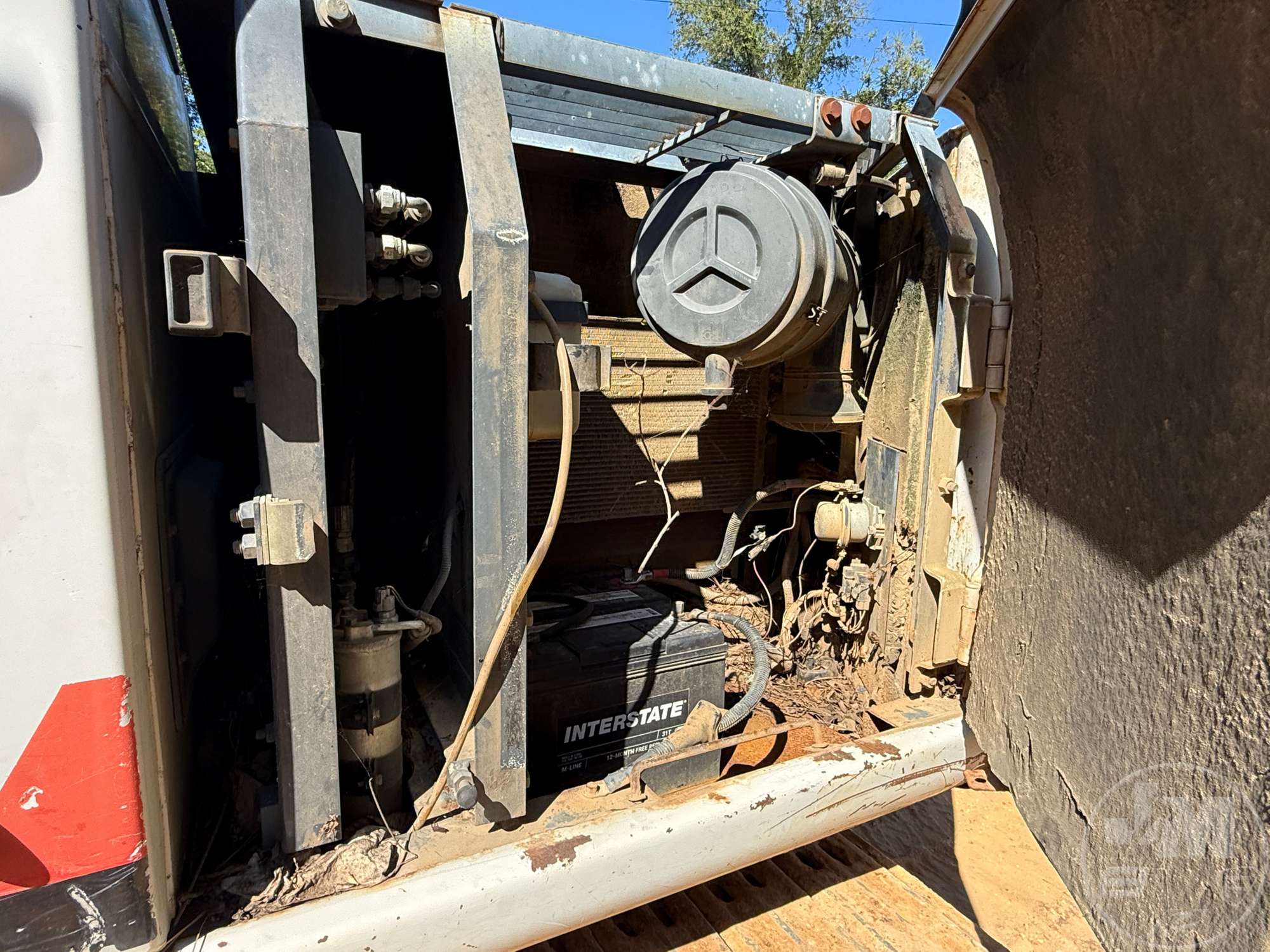

Engine
Aspiration	Turbocharged
Displacement	264 cu in (4,326 cu cm)
Engine Make	2,353
Engine Model	BB-4BG1T
Max Torque	239 lbs ft (324 nm)
Net Power	89 hp (66 kw)
Number Of Cylinders	4
Power Measured @	2,100 rpm
Torque Measured @	1,600 rpm
Operational
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	5 gal (18 l)
Engine Oil Capacity	4 gal (15 l)
Fuel Capacity	66 gal (250 l)
Hydraulic Pump Flow Capacity	65 gpm (245 lpm)
Hydraulic System Fluid Capacity	33 gal (123 l)
Hydraulic System Relief Valve Pressure	4,970 psi
Operating Voltage	24 V
Operating Weight	27,100 lbs (12,292 kg)
Swing Drive Fluid Capacity	1 gal (2 l)
Swing Mechanism
Swing Speed	13 rpm
Swing Torque	24,340 lbs ft (33,000 nm)

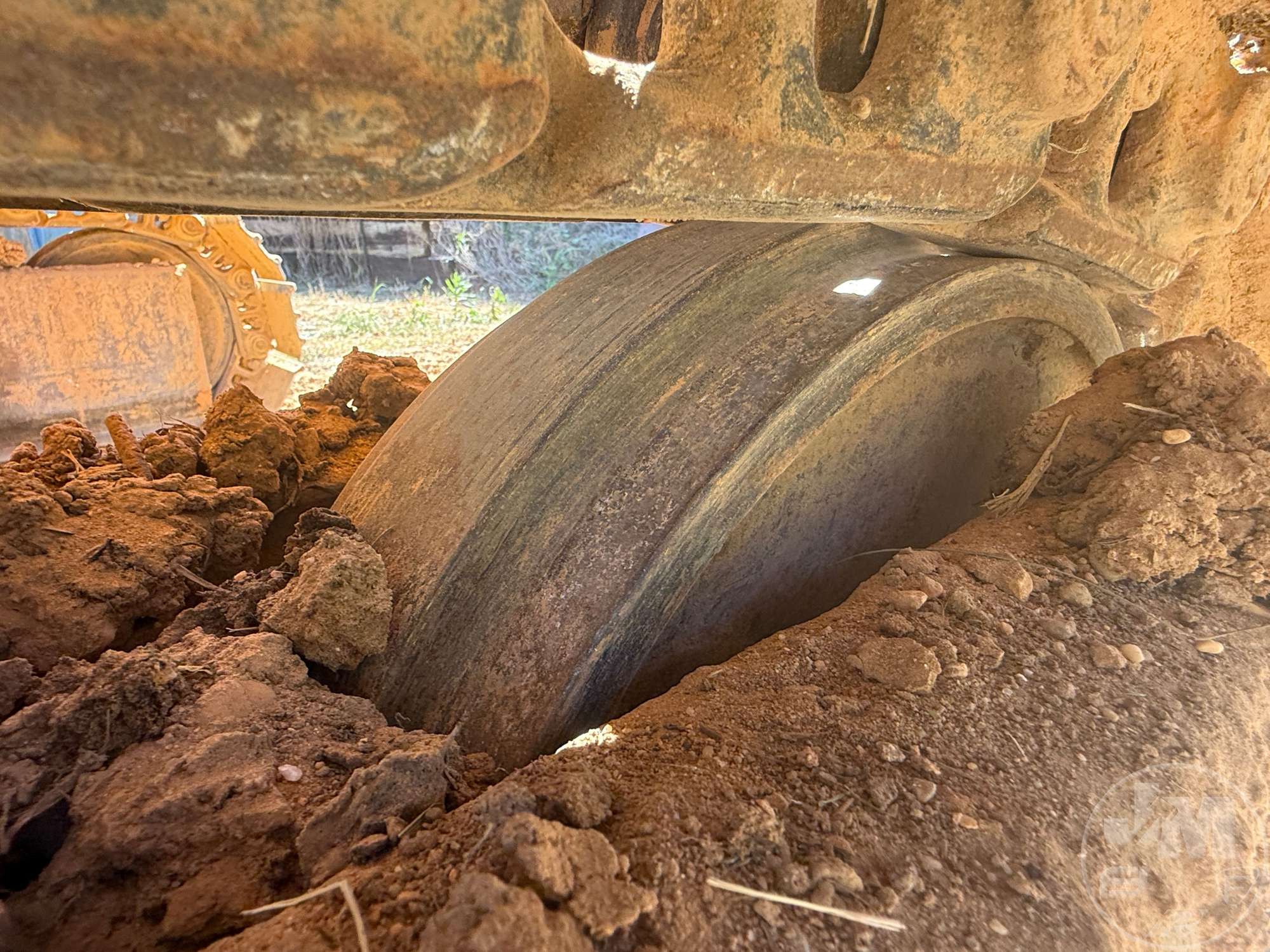

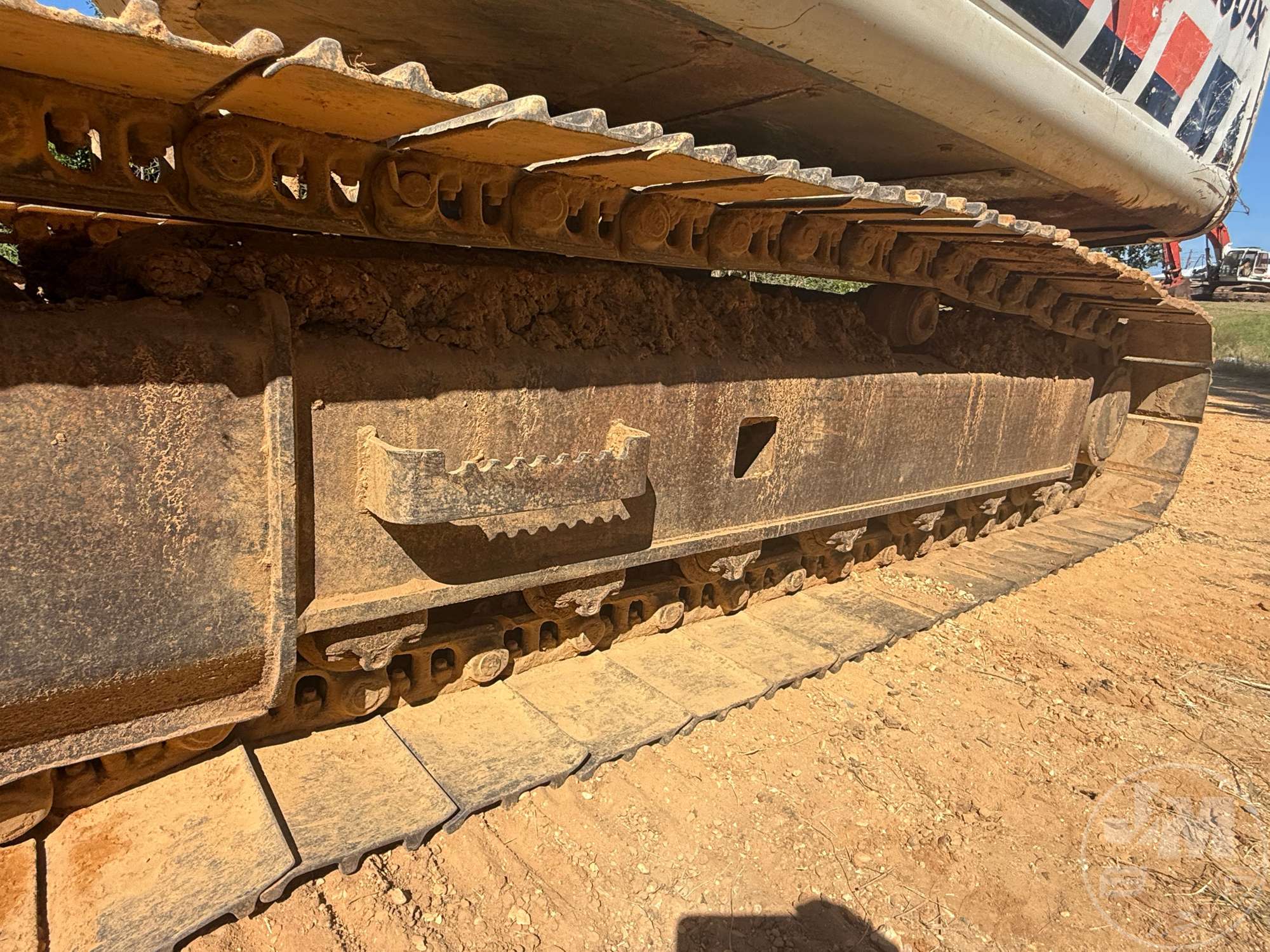

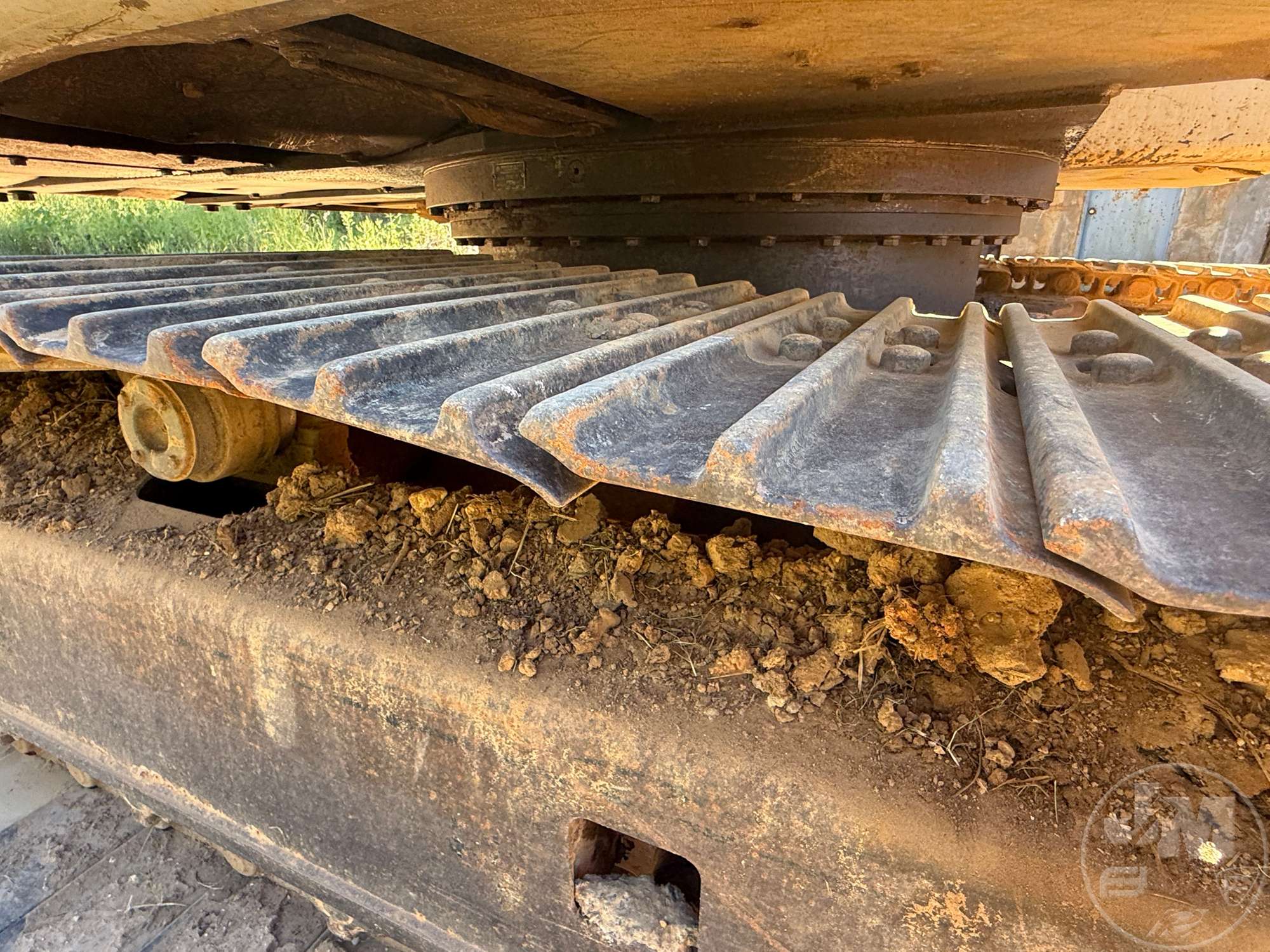

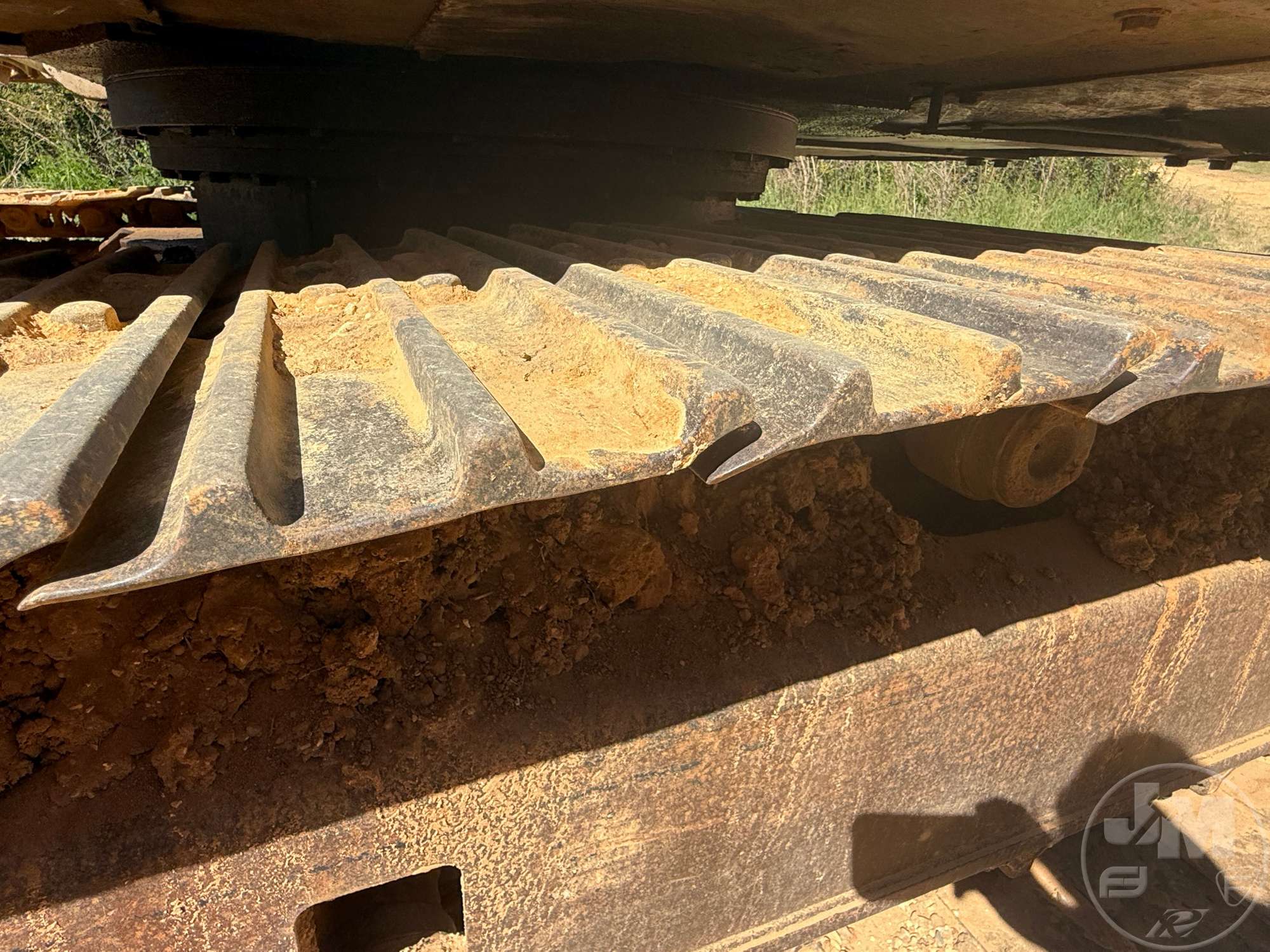

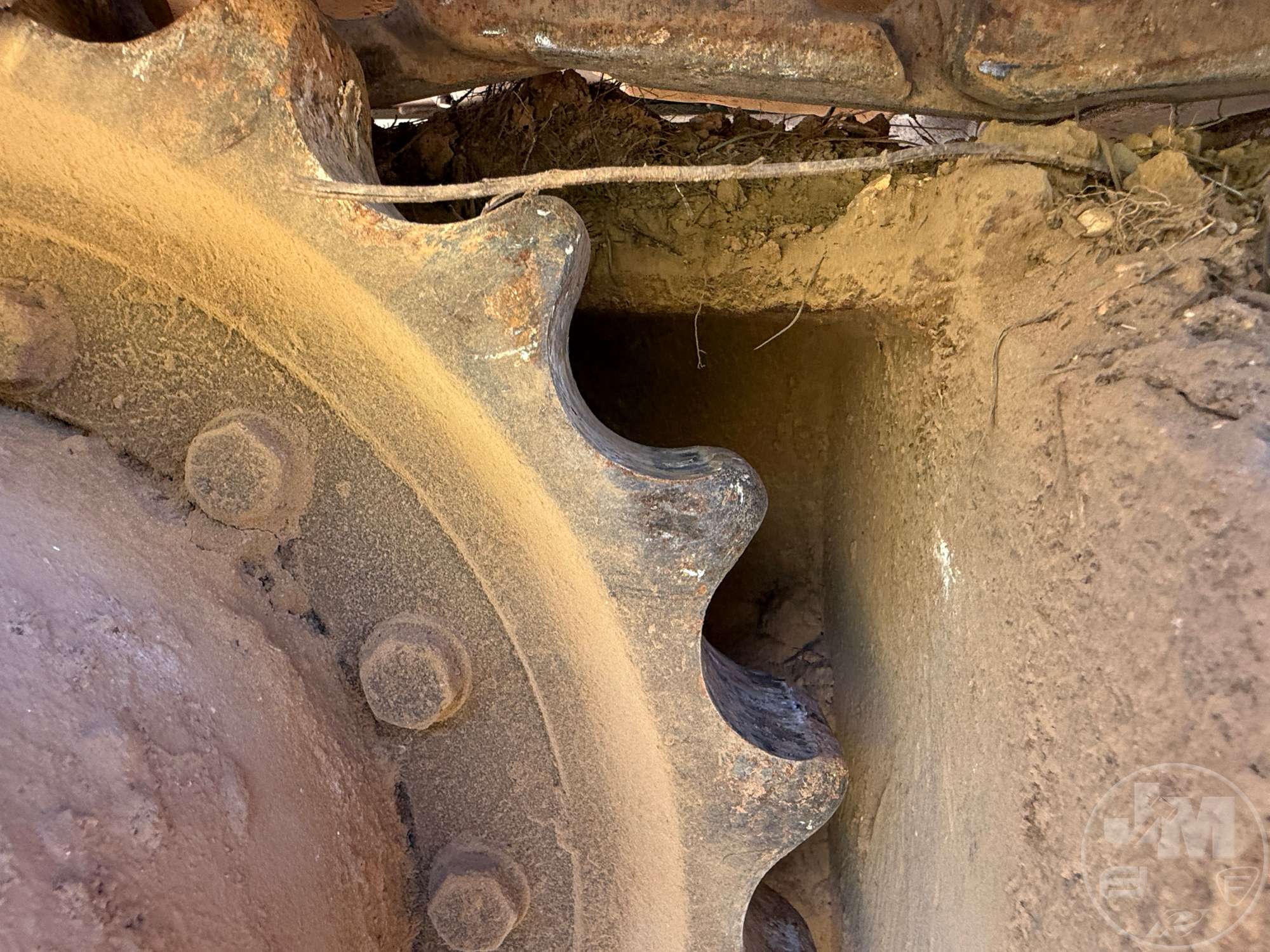

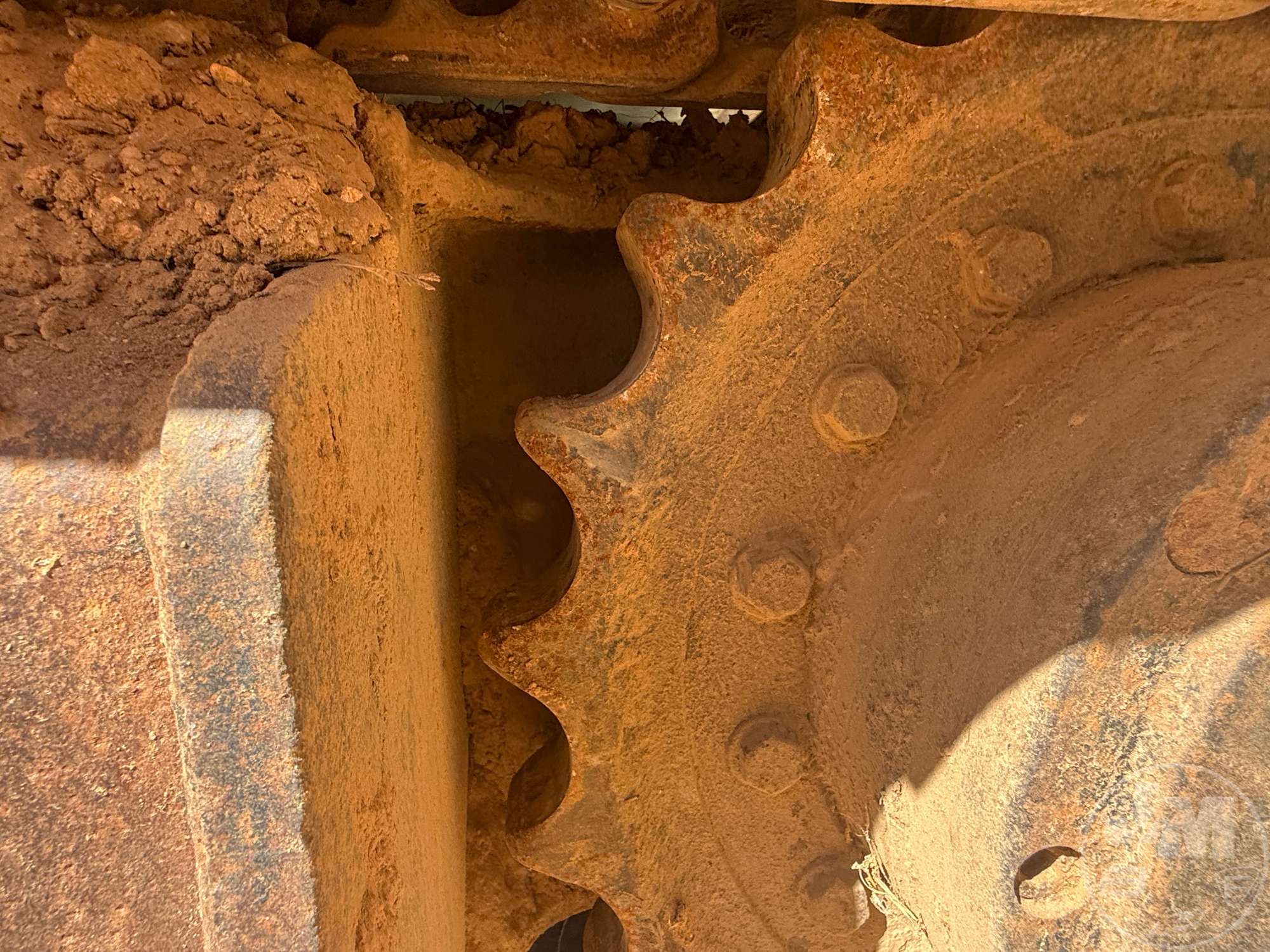

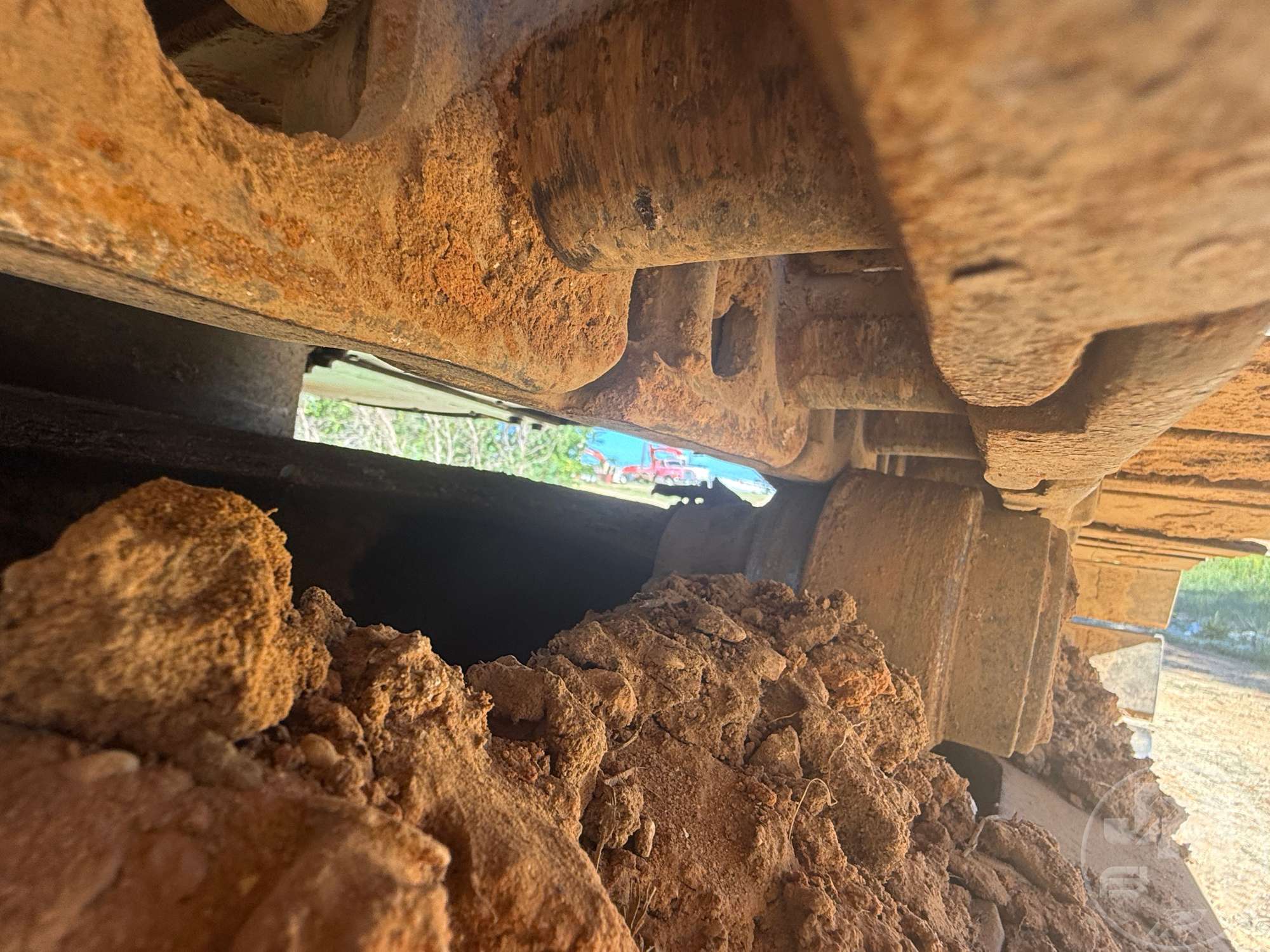

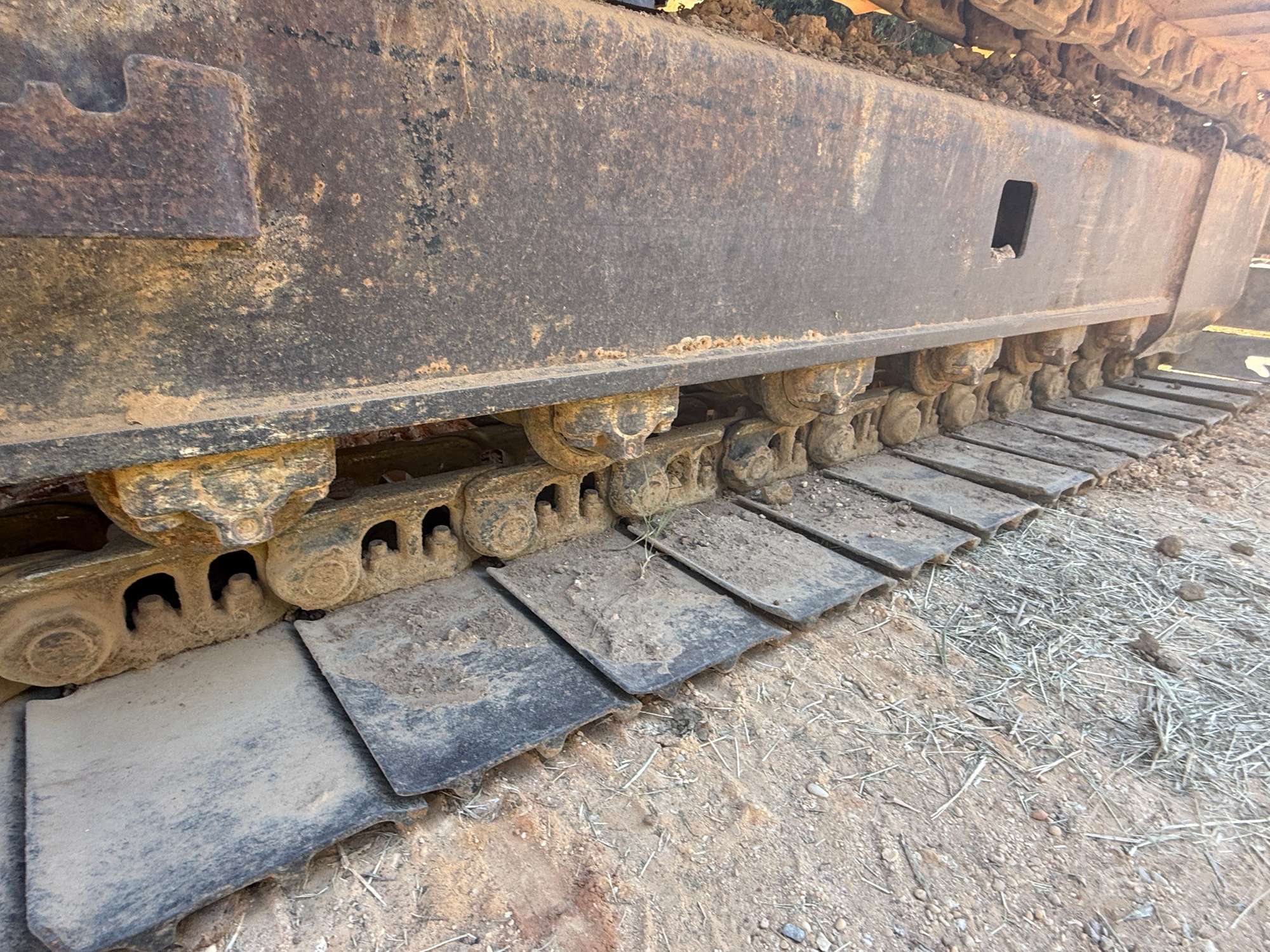

Undercarriage
Ground Pressure	5 psi
Max Travel Speed	3 mph (5 kph)
Number Of Carrier Rollers Per Side	1
Number Of Shoes Per Side	43
Number Of Track Rollers Per Side	7
Shoe Size	24 in (60 cm)
Track Gauge	7 ft (2 m)
