Link-Belt 160LX For Sale in Birmingham, AL

Name: Link-Belt 160LX
Brand: Link-Belt
SKU: 89242334
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-09-23

JJ Kane Auctions

JJ Kane Auctions Dealer Info

JJ Kane Auctions Website

Click here to email JJ Kane Auctions.

Click for Phone Number

Machine Info:

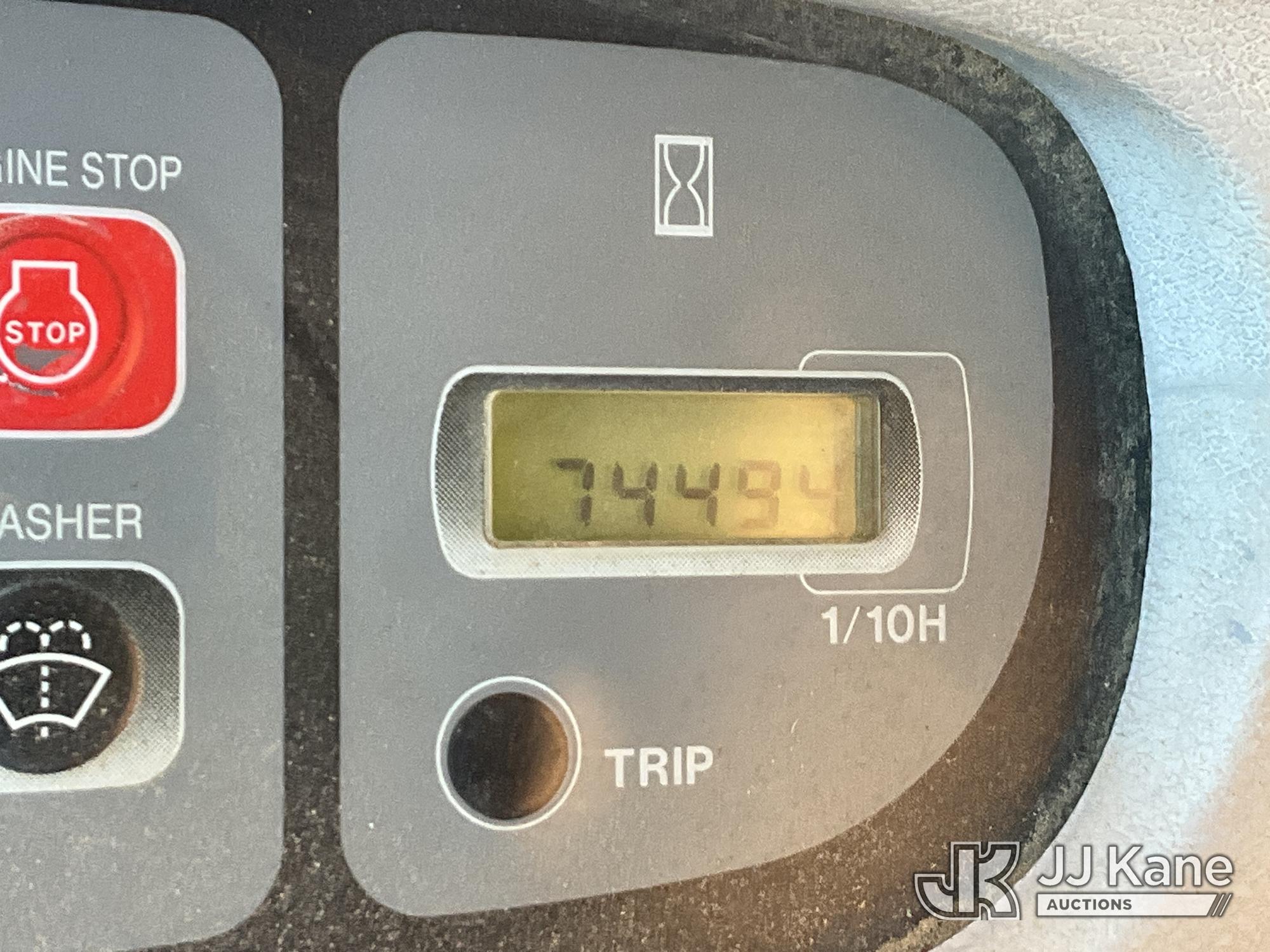

Hours:	7449

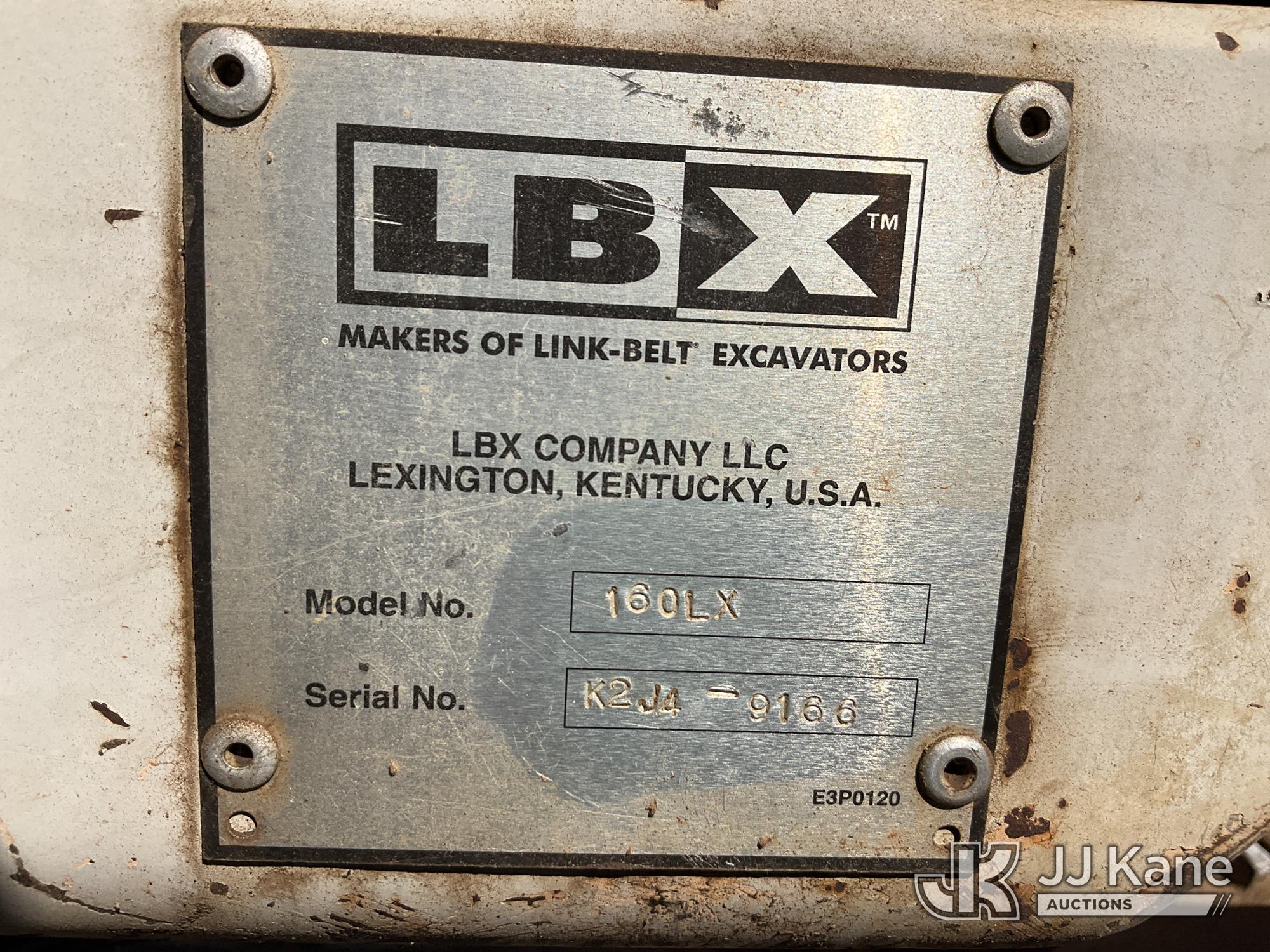

Serial Number:	K2J49166
Machine Location:	BIRMINGHAM, AL

Description:

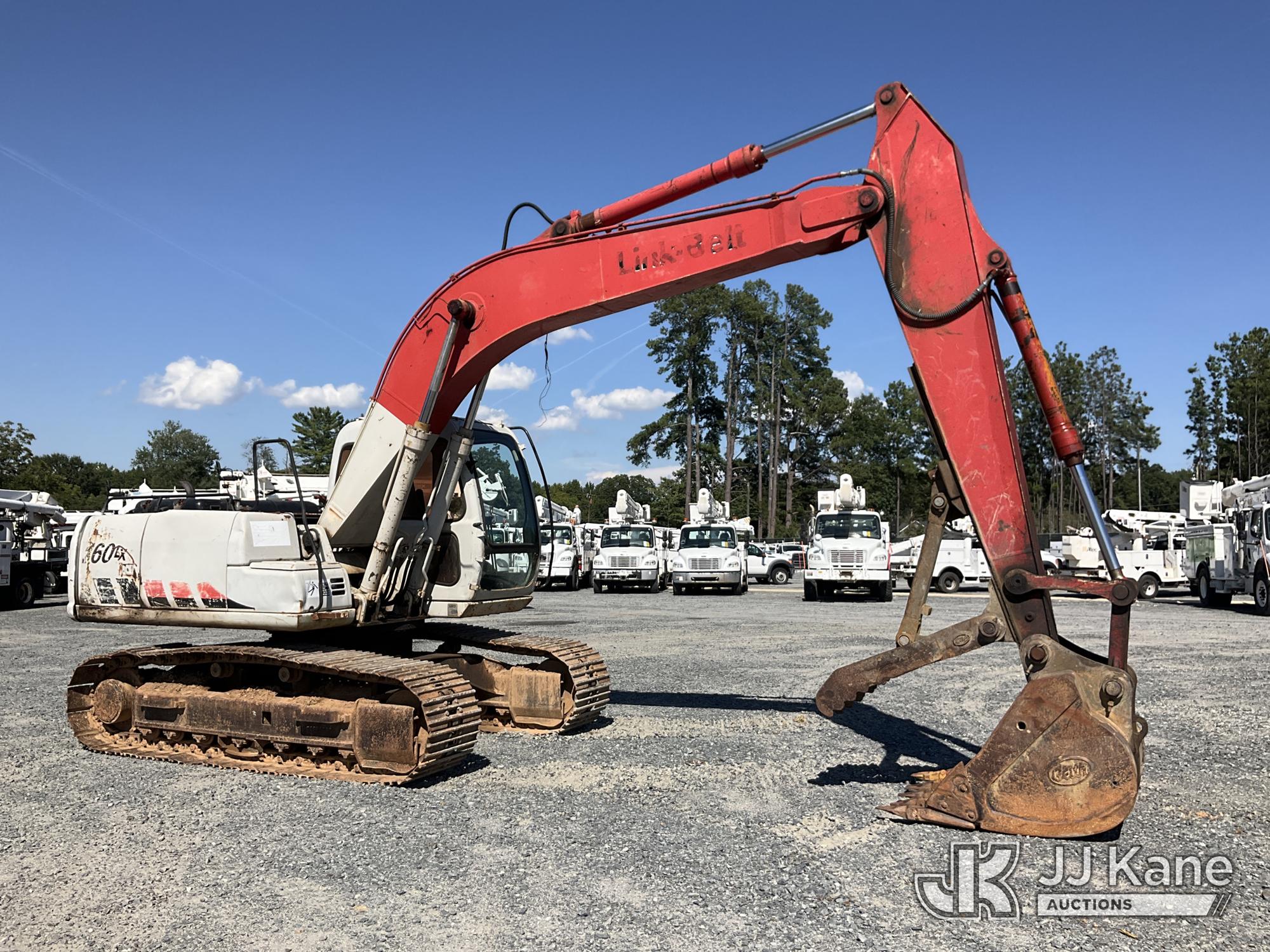

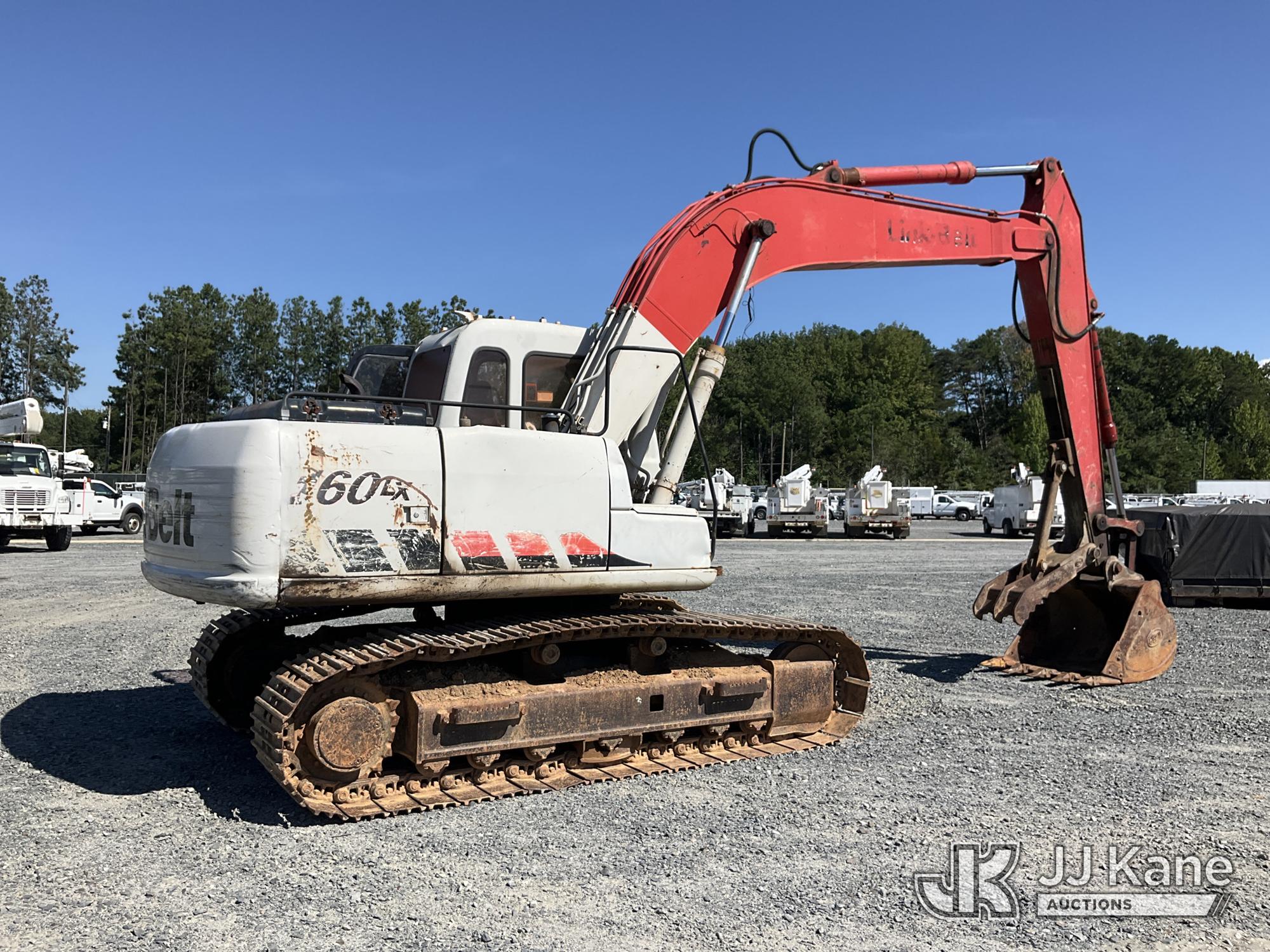

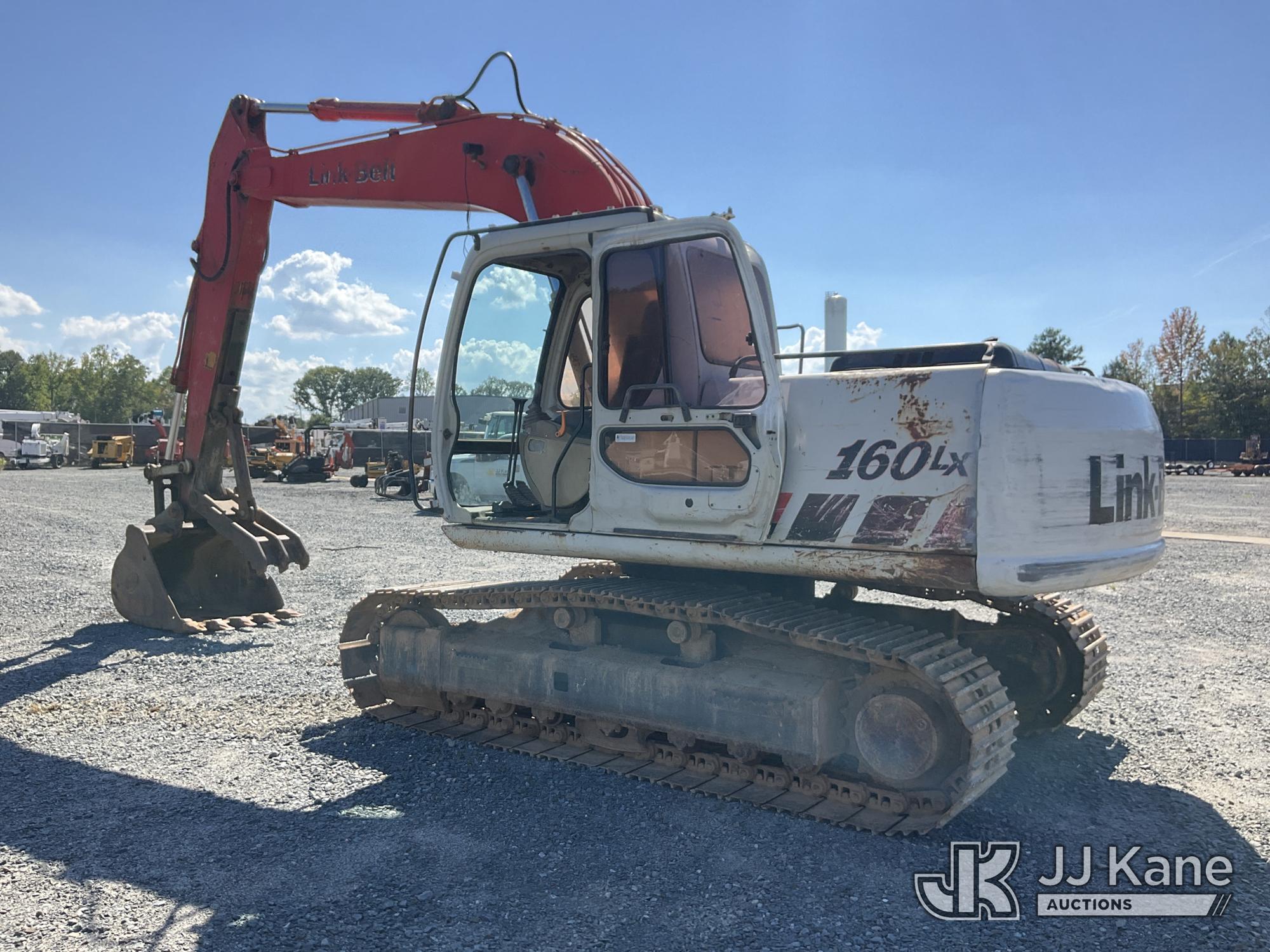

Link Belt 160LX Hydraulic Crawler Excavator, s/n K2J49166, Isuzu Diesel, Hydrostatic, with 10 ft stick, 40 in digging bucket, 24 in TBG & EROPS, (Runs, Moves & Operates ) (Reads 7,449 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in China Grove, NC. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 820 E NC Hwy 152 China Grove, NC 28023 and hours of operations are 8a-4p. For pre-sale questions, please contact Office Staff @ (704) 674-1113. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick 1
Boom/Stick 1	Boom 16\'11\" (5150mm) / Stick 8\'10\" (2700mm)
Max Cutting Height	31 ft (9 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	29 ft (9 m)
Max Vertical Wall Digging Depth	17 ft (5 m)
Shipping Height Of Unit	10 ft (3 m)
Shipping Length Of Unit	28 ft (8 m)
Boom/Stick 2
Boom/Stick 2	Boom 16\'11\" (5150mm) / Stick 10\'0\" (3050mm)
Max Cutting Height	31 ft (10 m)
Max Digging Depth	21 ft (6 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	31 ft (9 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height Of Unit	10 ft (3 m)
Shipping Length Of Unit	28 ft (8 m)
Buckets
Maximum Bucket Capacity	1 cu yd
Minimum Bucket Capacity	1 cu yd
Reference Bucket Capacity	1 cu yd
Dimensions
Ground Clearance	1 ft (0 m)
Height	10 ft (3 m)
Height To Top Of Cab	10 ft (3 m)
Length	25 ft (7 m)
Length Of Track On Ground	10 ft (3 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	8 ft (2 m)
Weight	36,200 lbs (16,420 kg)
Width	8 ft (3 m)
Width To Outside Of Tracks	9 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	264 cu in (4,326 cu cm)
Engine Make	2,353
Engine Model	DD-4BG1T
Max Torque	311 lbs ft (422 nm)
Net Power	101 hp (75 kw)
Number Of Cylinders	4
Power Measured @	2,200 rpm
Torque Measured @	1,600 rpm
Operational
Alternator Supplied Amperage	40 amps
Cooling System Fluid Capacity	5 gal (18 l)
Engine Oil Capacity	4 gal (15 l)
Fuel Capacity	66 gal (250 l)
Hydraulic Pump Flow Capacity	72 gpm (274 lpm)
Hydraulic System Fluid Capacity	39 gal (148 l)
Hydraulic System Relief Valve Pressure	4,970 psi
Operating Voltage	24 V
Operating Weight	36,200 lbs (16,420 kg)
Swing Mechanism
Swing Speed	11 rpm
Swing Torque	33,260 lbs ft (45,094 nm)
Undercarriage
Ground Pressure	6 psi
Max Travel Speed	4 mph (6 kph)
Number Of Carrier Rollers Per Side	2
Number Of Shoes Per Side	43
Number Of Track Rollers Per Side	7
Shoe Size	24 in (60 cm)
Track Gauge	7 ft (2 m)
