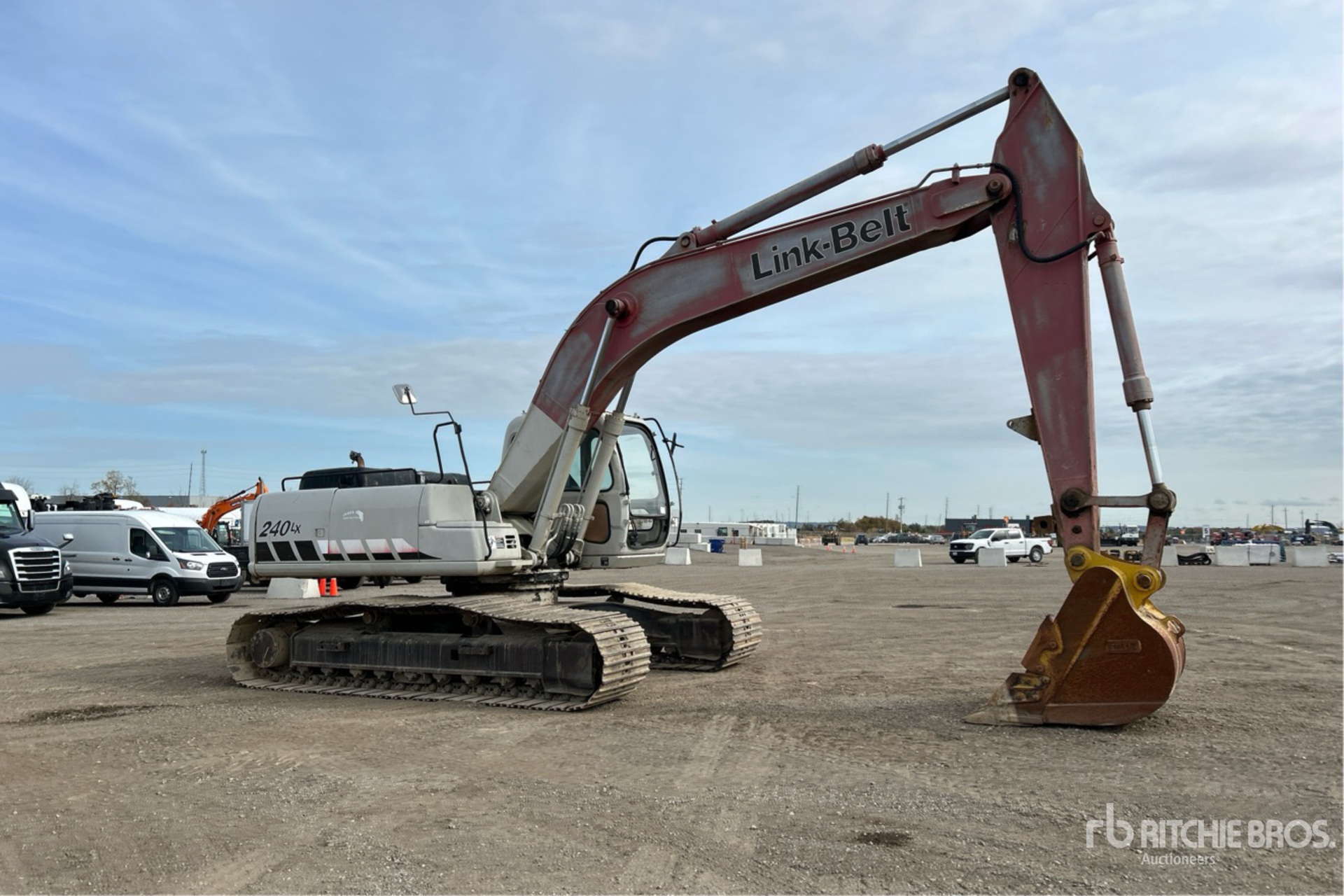

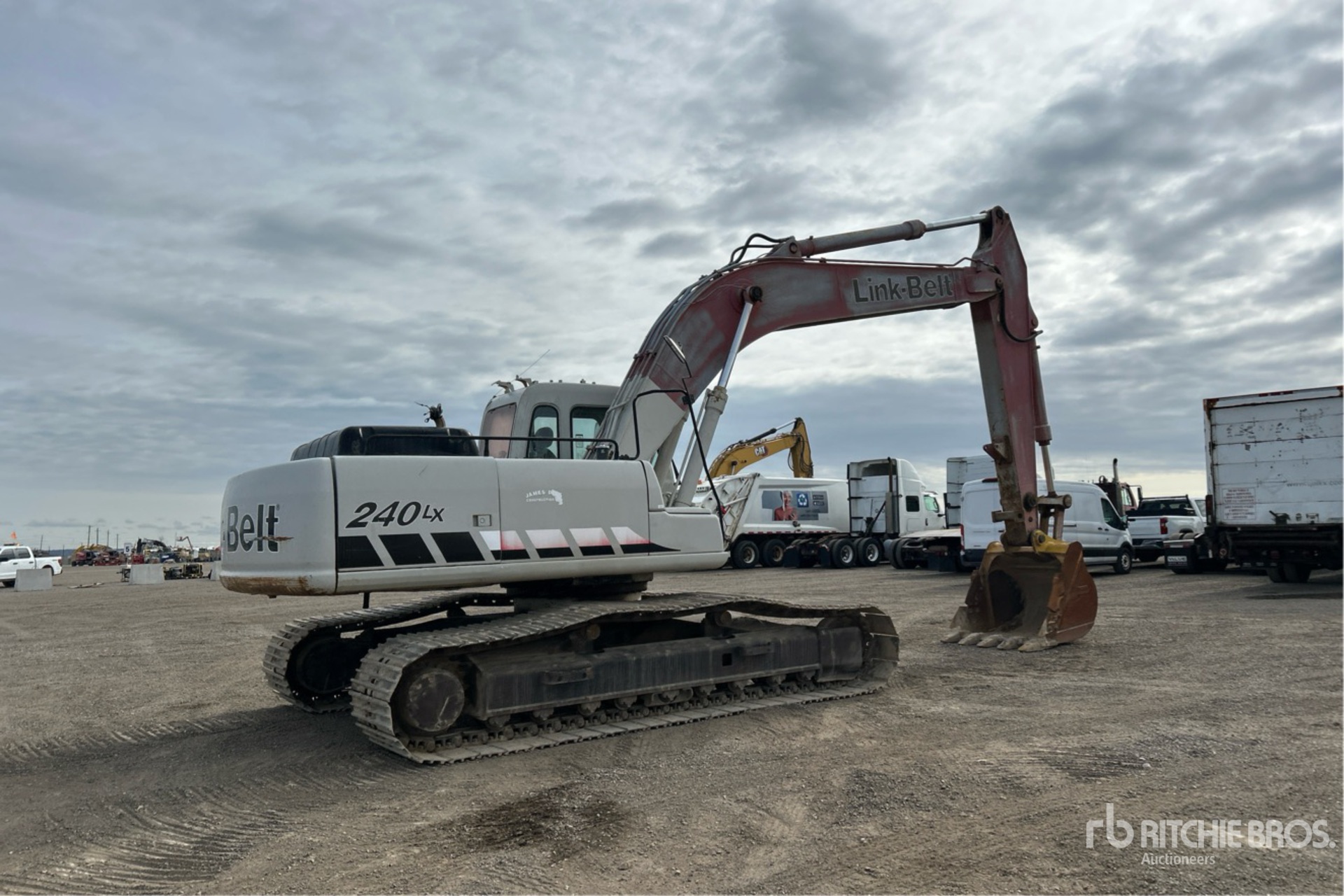

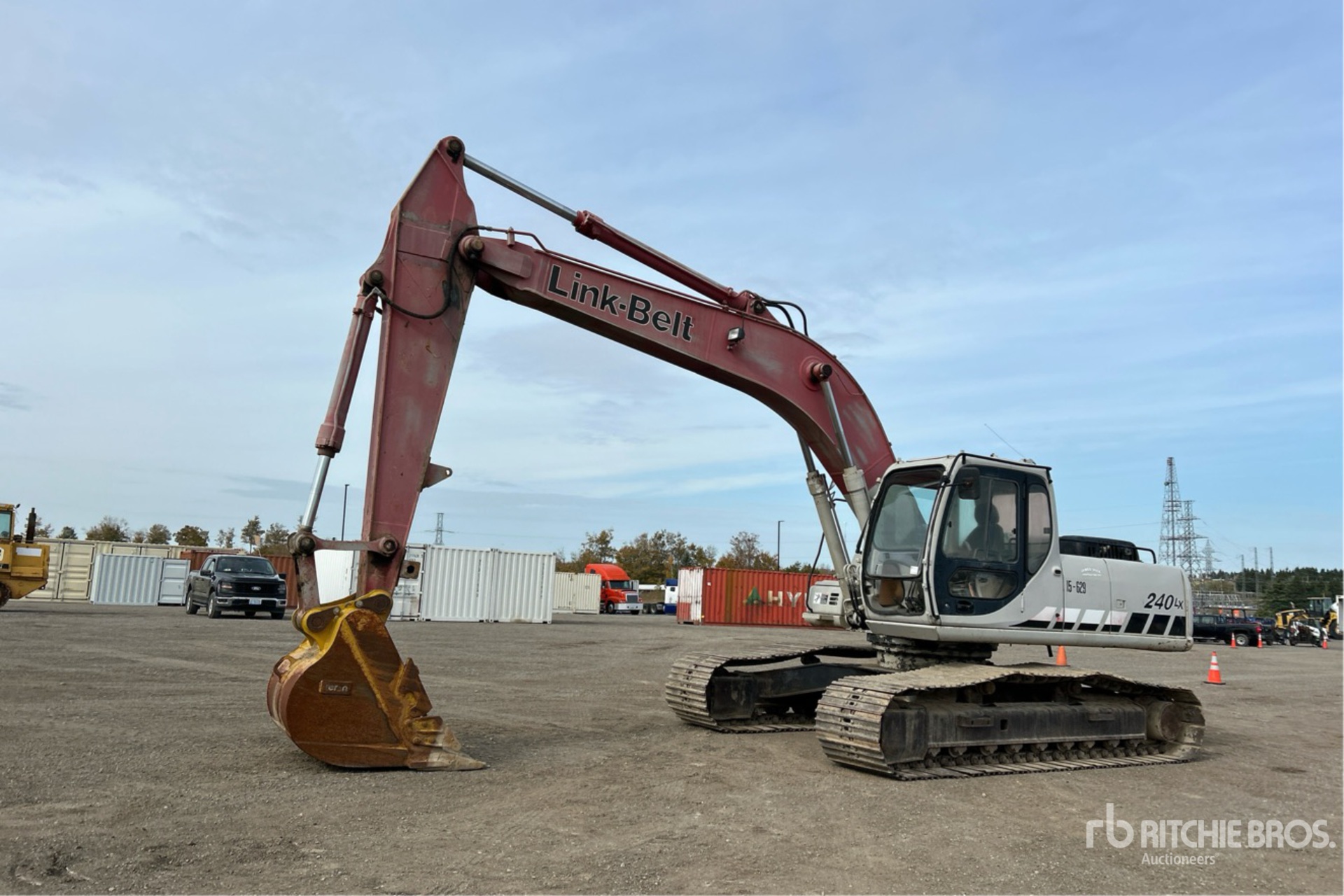

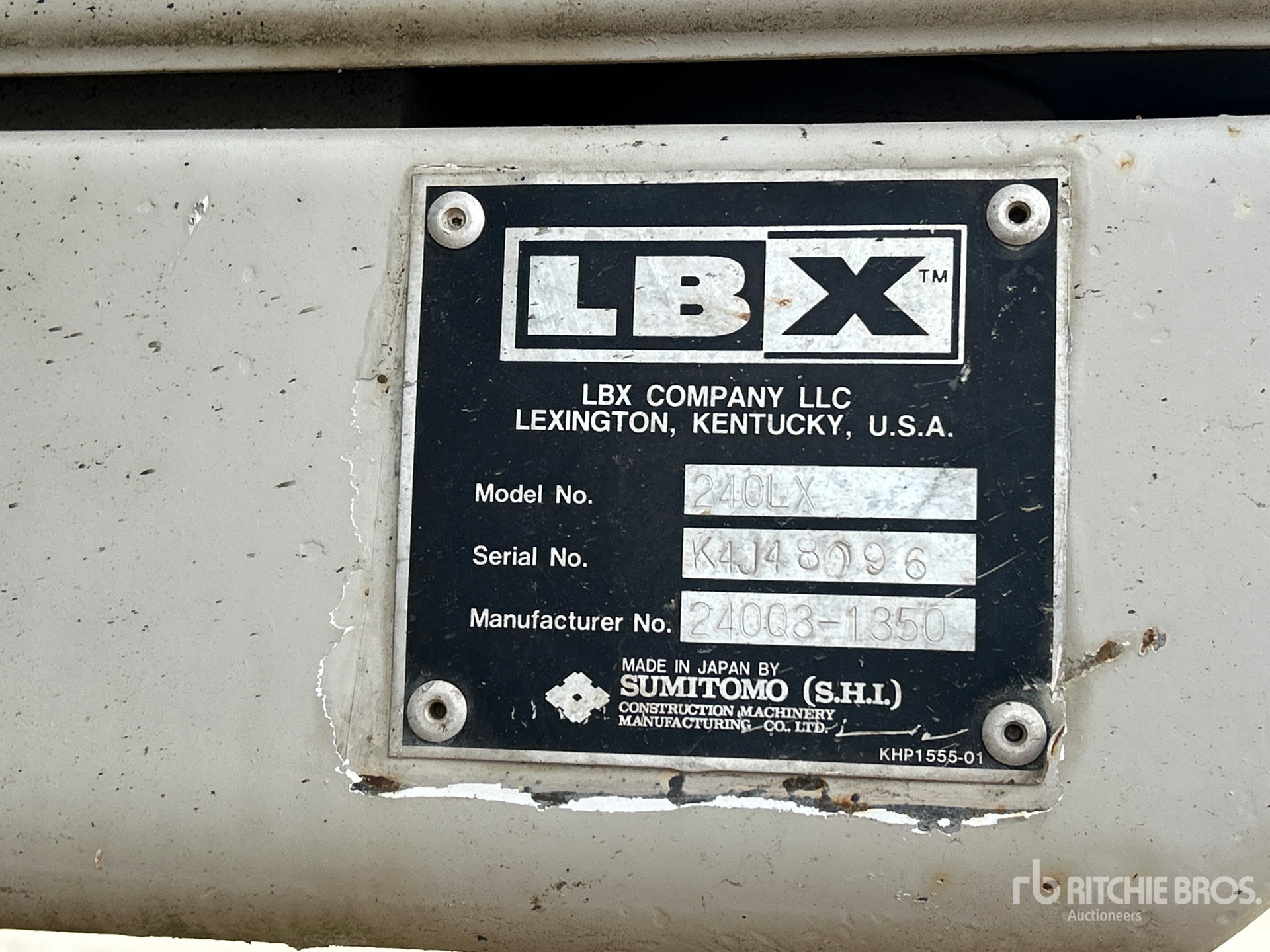

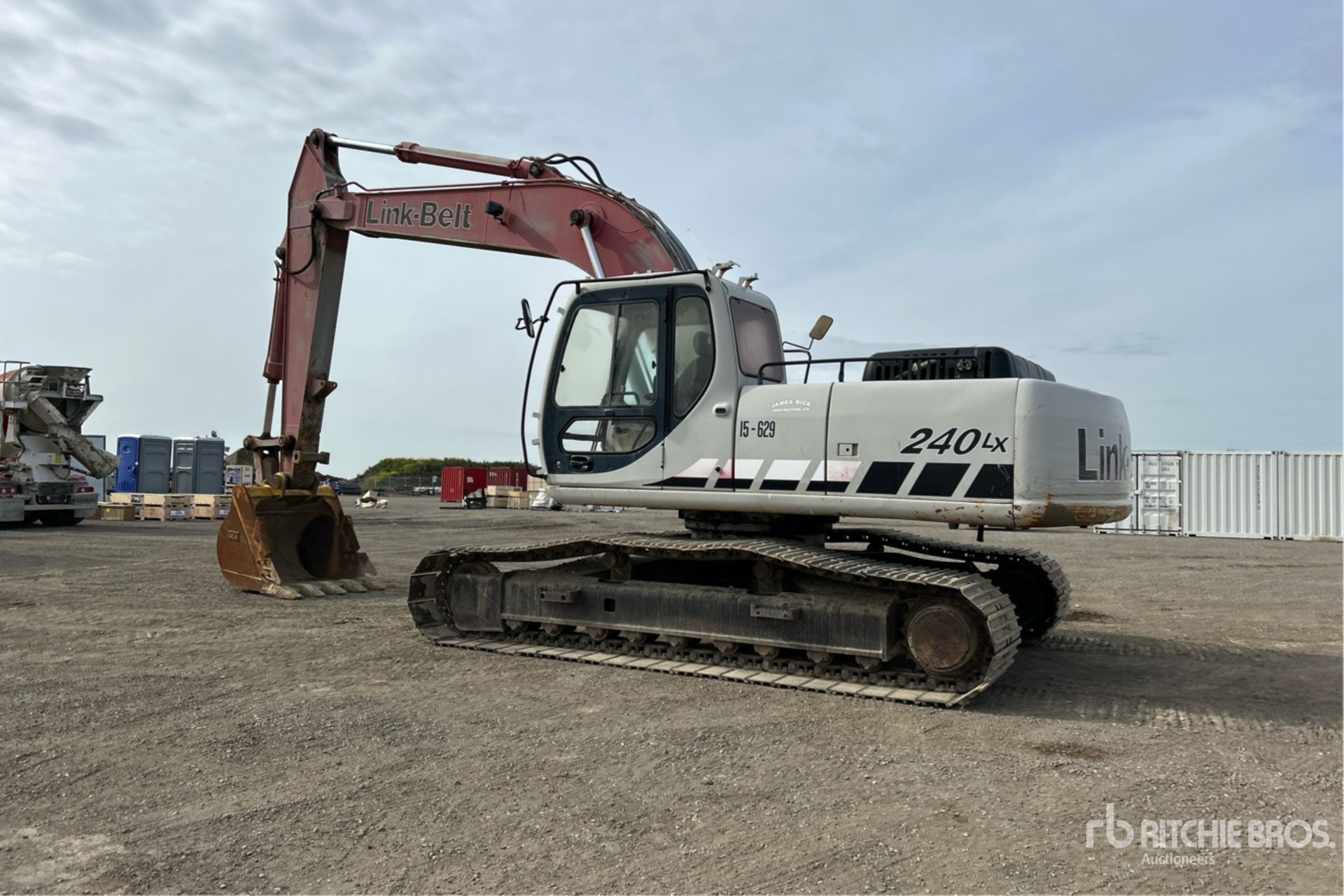

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom 19\'2\" (5850mm) / Stick 10\'2\" (3090mm) |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
23 ft (7 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
34 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
20 ft (6 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
32 ft (10 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom 19\'2\" (5850mm) / Stick 11\'7\" (3520mm) |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
24 ft (7 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
35 ft (11 m)
|
|
Max Vertical Wall Digging Depth |
22 ft (7 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
33 ft (10 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Boom 19\'2\" (5850mm) / Stick 8\'2\" (2500mm) |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
21 ft (6 m)
|
|
Max Loading Height |
21 ft (7 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
19 ft (6 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
33 ft (10 m)
|
| Boom/Stick Option (Lgl) 2 |
|
Boom/Stick Option (Lgl) 2 |
38\'0\" (11580mm) Loading Arm |
|
Max Depth Below Ground |
13 ft (4 m)
|
|
Max Height |
44 ft (13 m)
|
|
Max Reach At Ground Level |
38 ft (11 m)
|
|
Shipping Height |
11 ft (3 m)
|
|
Shipping Length |
46 ft (14 m)
|
| Buckets |
|
Maximum Bucket Capacity |
2 cu yd |
|
Minimum Bucket Capacity |
1 cu yd |
|
Reference Bucket Capacity |
1 cu yd |
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Ground Clearance |
2 ft (0 m)
|
|
Height |
10 ft (3 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length |
32 ft (10 m)
|
|
Length Of Track On Ground |
13 ft (4 m)
|
|
Length Of Track On Ground |
13 ft (4 m)
|
|
Overall Width |
12 ft (4 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Tail Swing Radius |
10 ft (3 m)
|
|
Tail Swing Radius |
10 ft (3 m)
|
|
Weight |
52,700 lbs (23,904 kg)
|
|
Width |
11 ft (3 m)
|
|
Width To Outside Of Tracks |
11 ft (3 m)
|

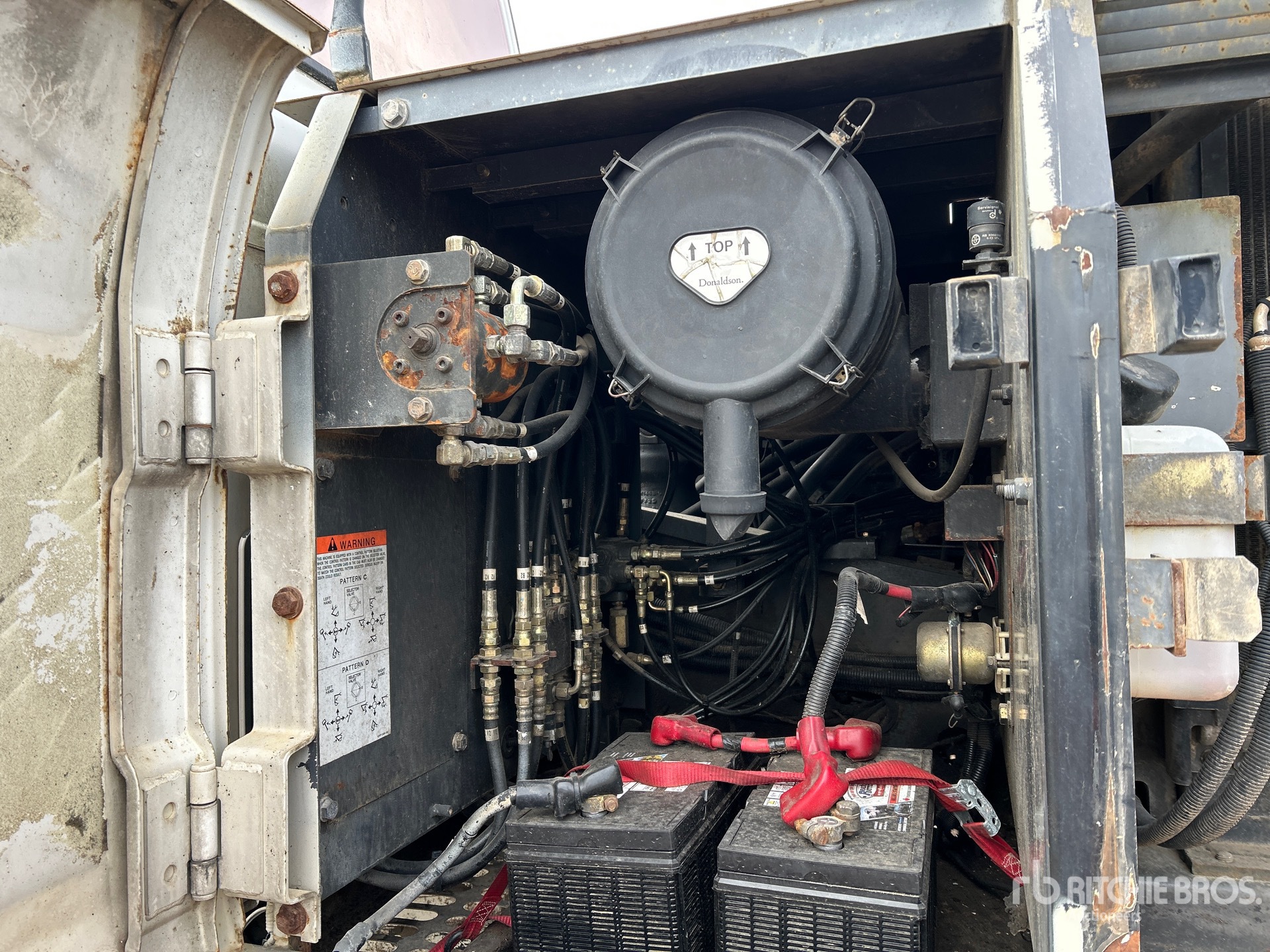

| Engine |
|
Aspiration |
Turbocharged |
|
Aspiration |
Turbocharged |
|
Displacement |
396 cu in (6,489 cu cm)
|
|
Displacement |
396 cu in (6,489 cu cm)
|
|
Engine Make |
2,353 |
|
Engine Make |
2,353 |
|
Engine Model |
BB-6BG1T |
|
Engine Model |
BB-6BG1T |
|
Max Torque |
415 lbs ft (563 nm)
|
|
Net Power |
162 hp (121 kw)
|
|
Net Power |
162 hp (121 kw)
|
|
Net Torque |
415 lbs ft (563 nm)
|
|
Number Of Cylinders |
6 |
|
Number Of Cylinders |
6 |
|
Power Measured @ |
2,150 rpm |
|
Power Measured @ |
2,150 rpm |
|
Torque Measured @ |
1,800 rpm |
|
Torque Measured @ |
1,800 rpm |
| Hydraulic |
|
Pump Flow Capacity |
112 gpm (424 lpm)
|
|
Pump Type |
2x Piston Pumps |
|
Relief Valve Pressure |
4,970 psi |

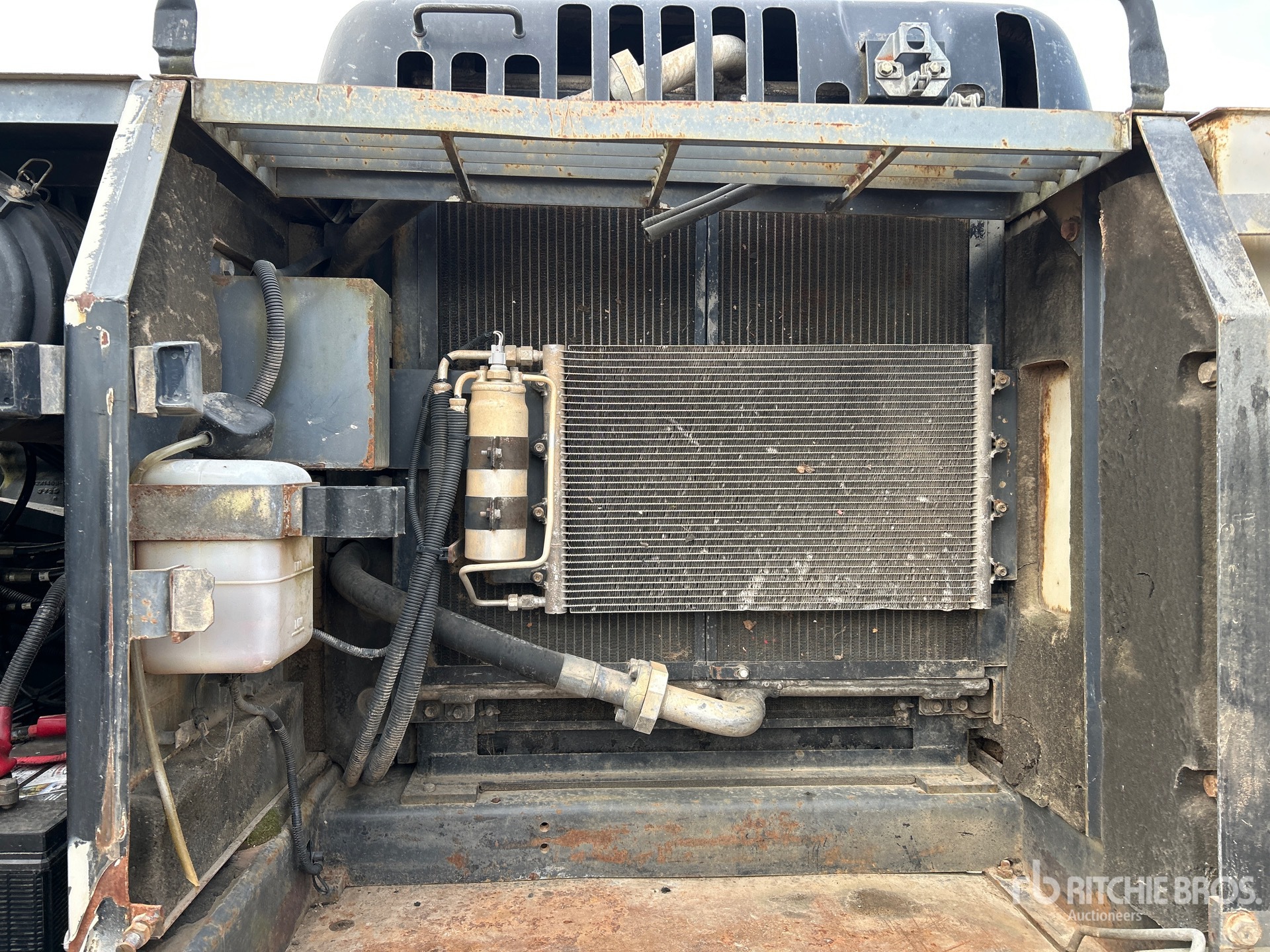

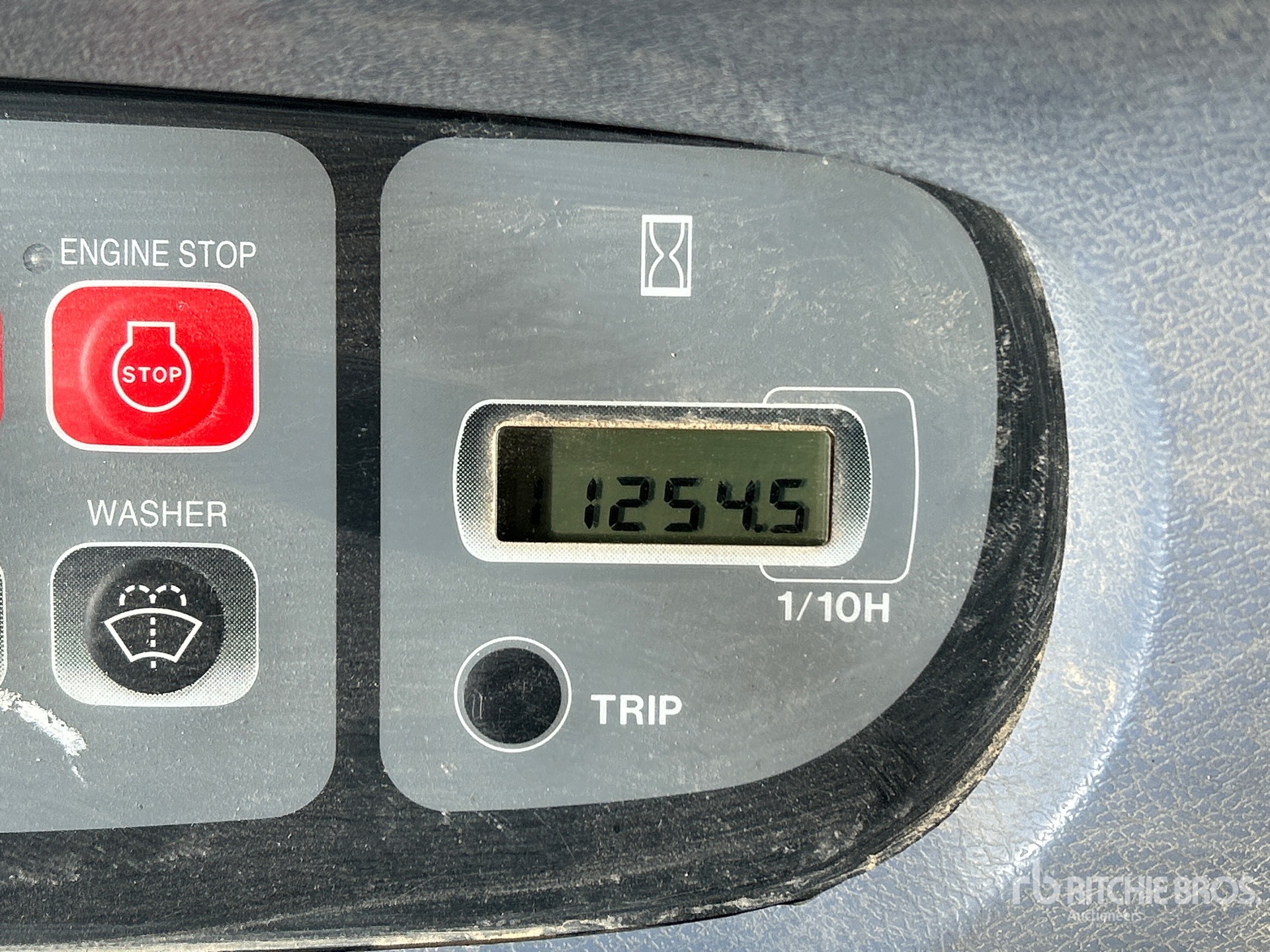

| Operational |
|
Alternator Supplied Amperage |
40 amps |
|
Alternator Supplied Amperage |
50 amps |
|
Cooling System Fluid Capacity |
7 gal (27 l)
|
|
Cooling System Fluid Capacity |
7 gal (27 l)
|
|
Engine Oil Capacity |
6 gal (24 l)
|
|
Engine Oil Capacity |
6 gal (24 l)
|
|
Fuel Capacity |
90 gal (340 l)
|
|
Fuel Capacity |
90 gal (340 l)
|
|
Hydraulic Pump Flow Capacity |
112 gpm (424 lpm)
|
|
Hydraulic System Fluid Capacity |
60 gal (225 l)
|
|
Hydraulic System Fluid Capacity |
60 gal (225 l)
|
|
Hydraulic System Relief Valve Pressure |
4,970 psi |
|
Operating Voltage |
24 V |
|
Operating Voltage |
24 V |
|
Operating Weight |
74,794 lbs (33,926 kg)
|
|
Operating Weight |
52,700 lbs (23,904 kg)
|
|
Swing Drive Fluid Capacity |
2 gal (6 l)
|
| Swing Mechanism |
|
Swing Speed |
8 rpm |
|
Swing Speed |
10 rpm |
|
Swing Torque |
73,020 lbs ft (99,001 nm)
|
|
Swing Torque |
55,130 lbs ft (74,745 nm)
|
| Undercarriage |
|
Ground Pressure |
8 psi |
|
Ground Pressure |
5 psi |
|
Max Speed |
3 mph (5 kph)
|
|
Max Travel Speed |
3 mph (5 kph)
|
|
Number Of Carrier Rollers Per Side |
2 |
|
Number Of Shoes Per Side |
51 |
|
Number Of Track Rollers Per Side |
9 |
|
Shoe Size |
28 in (70 cm)
|
|
Shoe Size |
32 in (80 cm)
|
|
Track Gauge |
10 ft (3 m)
|
|
Track Gauge |
11 ft (3 m)
|
