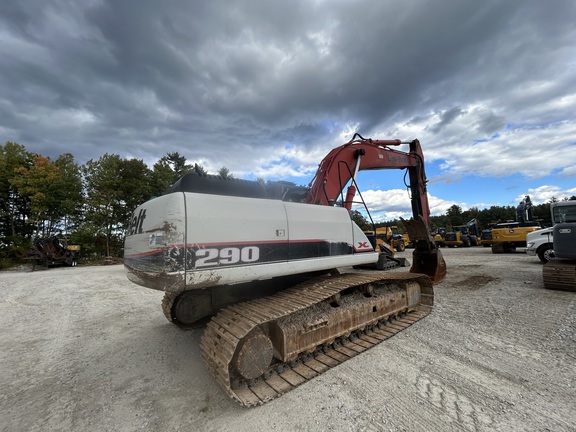

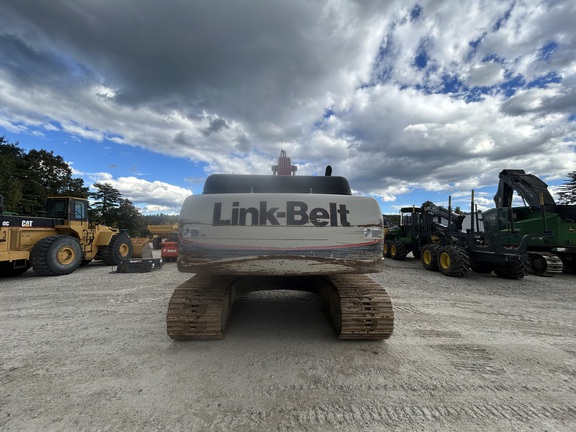

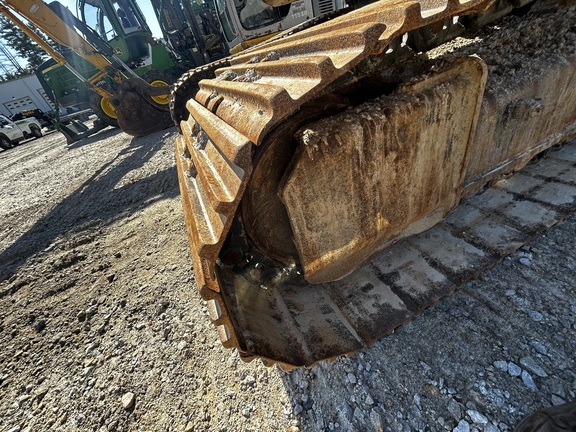

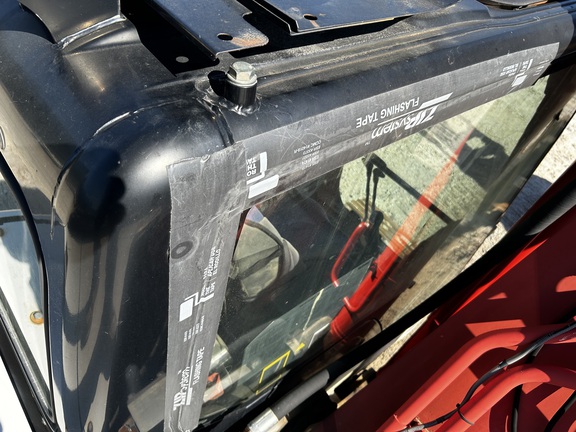

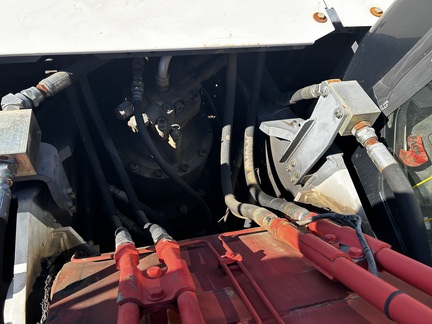

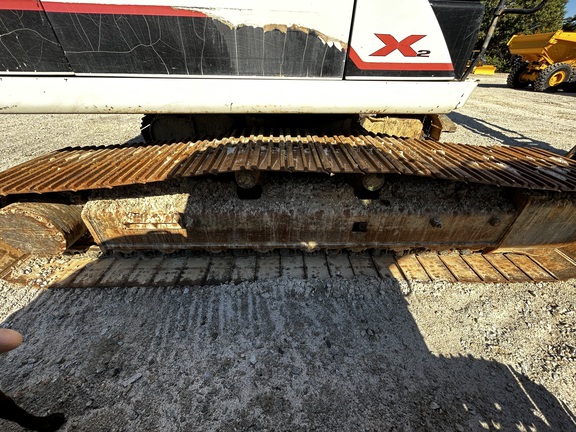

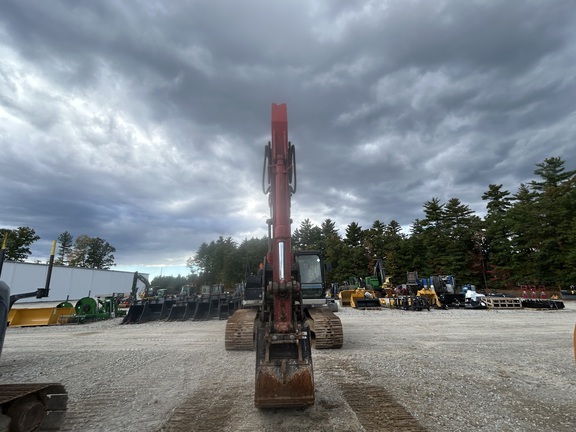

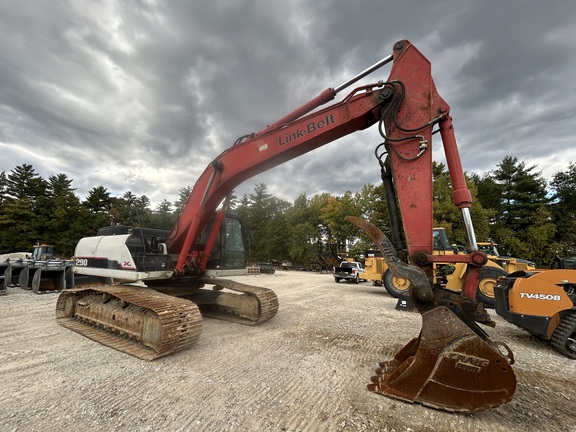

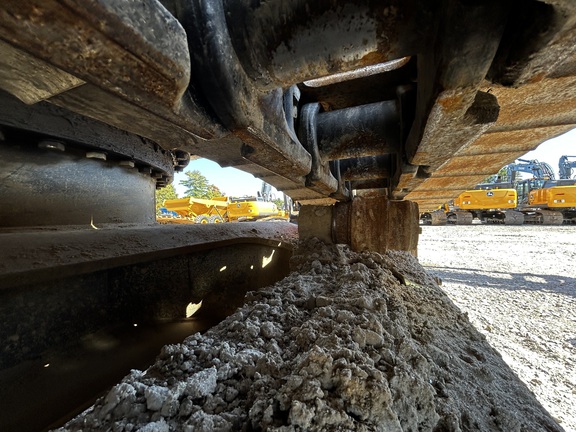

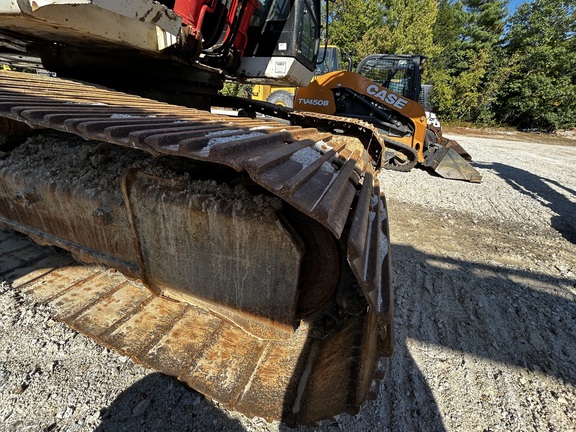

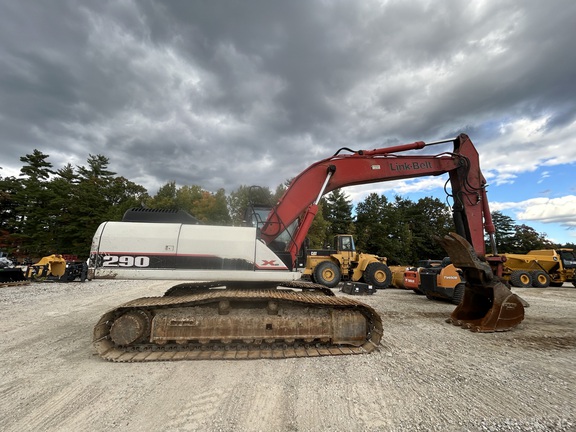

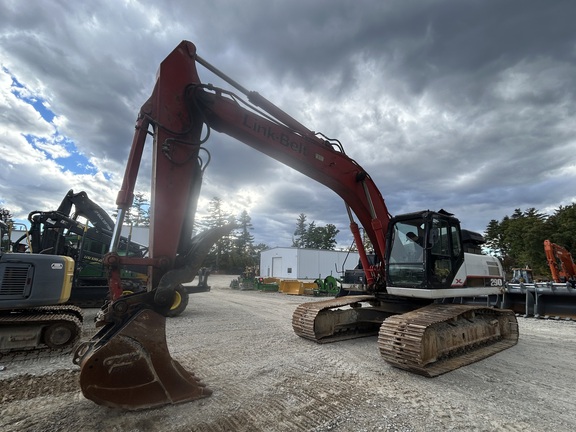

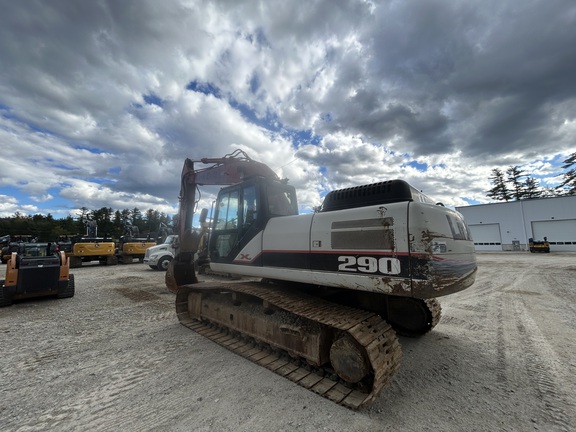

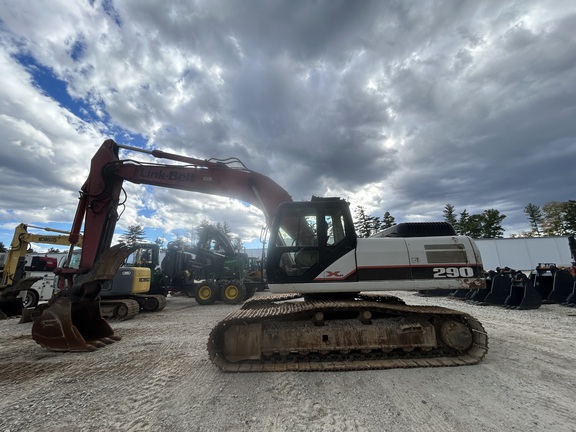

2001 Link-Belt 290LX For Sale in Pembroke, NH

Name: 2001 Link-Belt 290LX
Brand: Link-Belt
SKU: 89139497
Price: 68500 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $68,500.00 USD

Apply for Financing

United Construction & Forestry

United Construction & Forestry Dealer Info

United Construction & Forestry Website

Click here to email United Construction & Forestry.

Contact: Daniel Peabody

Click for Phone Number

Machine Info:

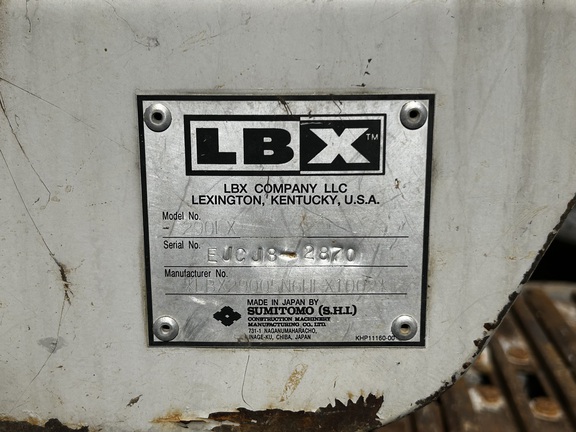

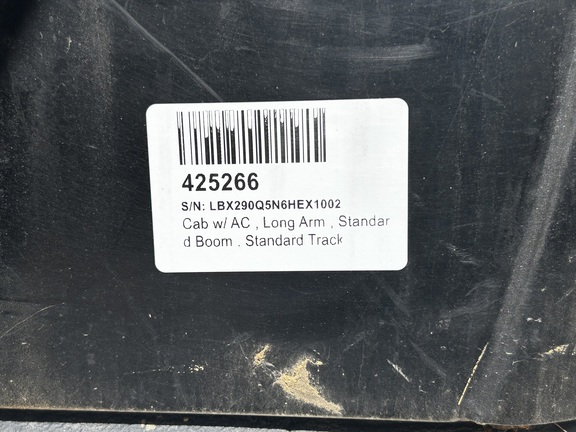

Serial Number:	LBX290Q5N6HEX1002
Stock Number:	425266
Machine Location:	PEMBROKE, NH

Machine Details:

General Specifications

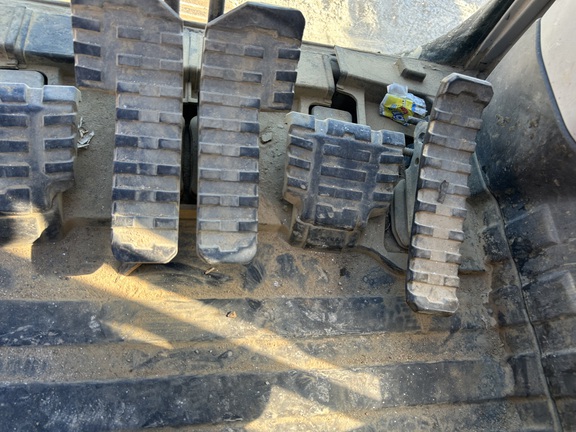

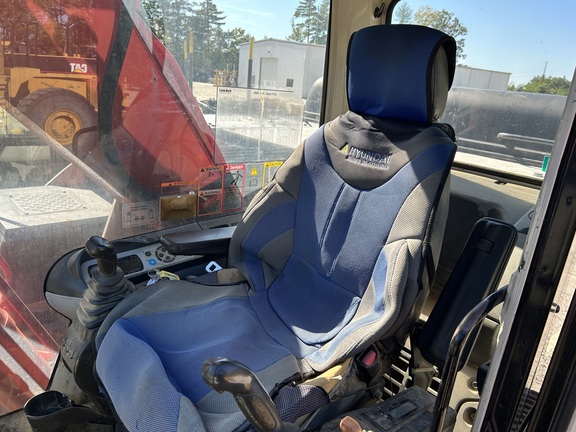

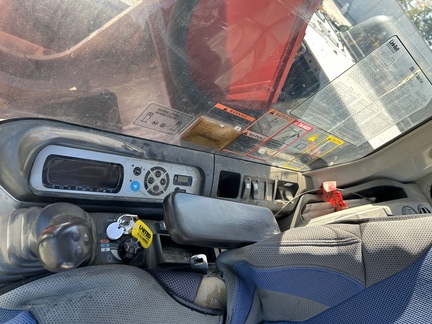

Operators Station	Cab w/ AC
Arms	Long Arm
Booms	Standard Boom
Tracks	Standard Track

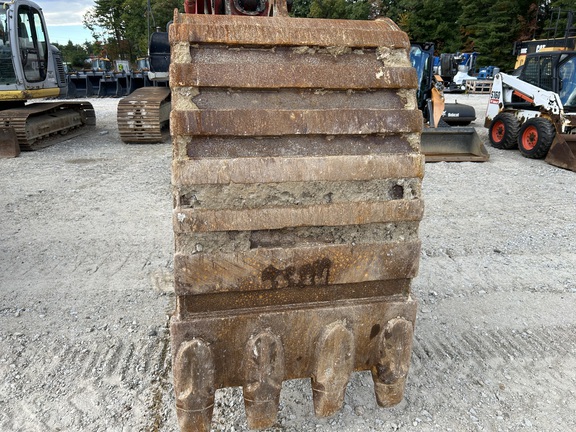

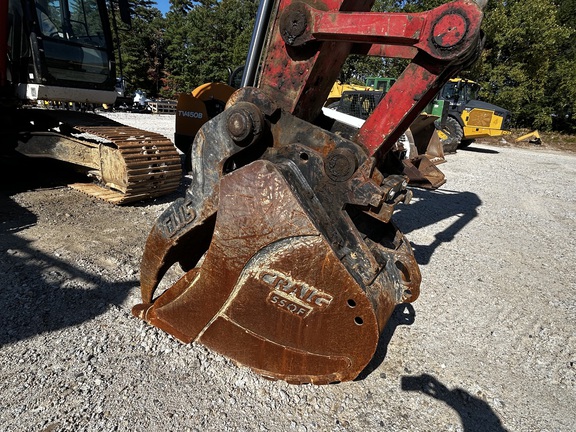

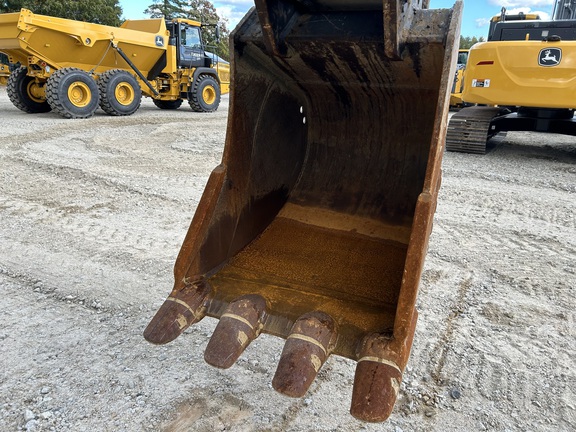

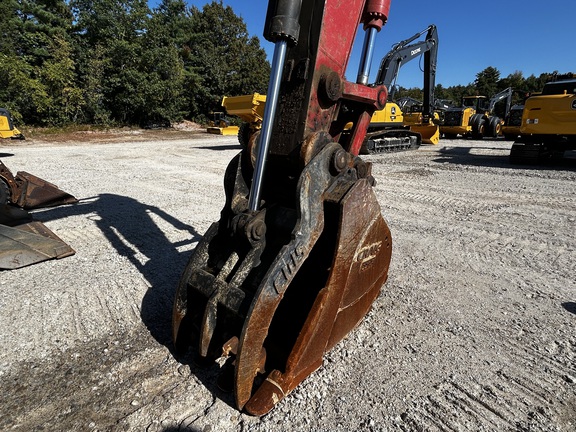

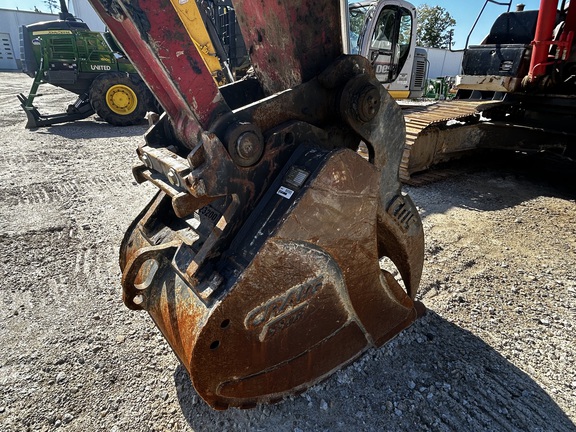

Buckets	w/ Bucket

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick 1
Boom/Stick 1	Boom 20\'2\" (6150mm) / Stick 10\'6\" (3200mm)
Max Cutting Height	33 ft (10 m)
Max Digging Depth	23 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height Of Unit	11 ft (3 m)
Shipping Length Of Unit	34 ft (10 m)
Boom/Stick 2
Boom/Stick 2	Boom 20\'2\" (6150mm) / Stick 8\'9\" (2670mm)
Max Cutting Height	33 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	33 ft (10 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height Of Unit	11 ft (3 m)
Shipping Length Of Unit	34 ft (10 m)
Boom/Stick 3
Boom/Stick 3	Boom 20\'2\" (6150mm) / Stick 12\'0\" (3660mm)
Max Cutting Height	34 ft (10 m)
Max Digging Depth	25 ft (8 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	22 ft (7 m)
Shipping Height Of Unit	11 ft (3 m)
Shipping Length Of Unit	34 ft (10 m)

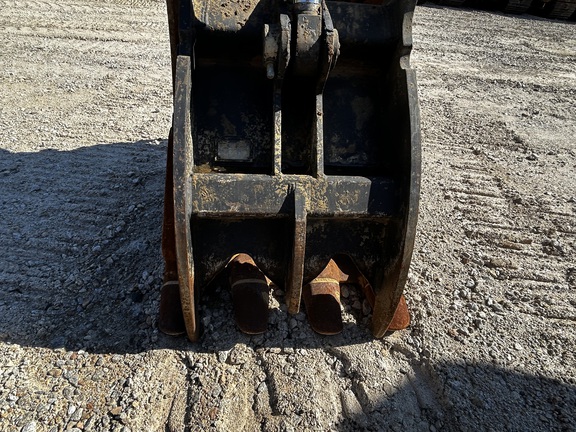

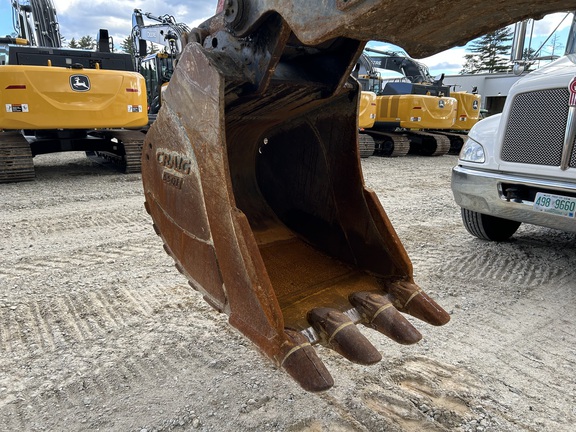

Buckets
Maximum Bucket Capacity	3 cu yd
Minimum Bucket Capacity	1 cu yd
Reference Bucket Capacity	1 cu yd
Dimensions
Ground Clearance	2 ft (0 m)
Height	11 ft (3 m)
Height To Top Of Cab	10 ft (3 m)
Length	34 ft (10 m)
Length Of Track On Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	10 ft (3 m)
Weight	64,400 lbs (29,206 kg)
Width	11 ft (3 m)
Width To Outside Of Tracks	11 ft (3 m)

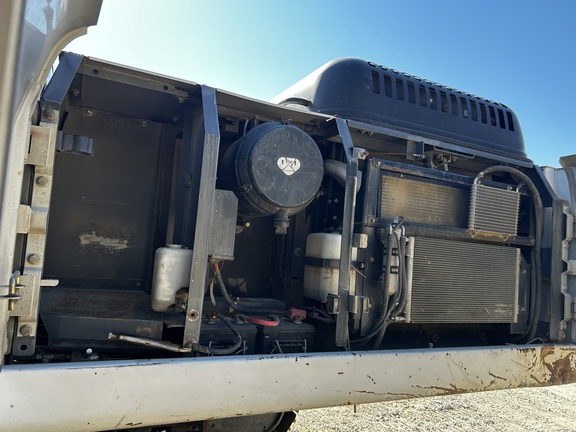

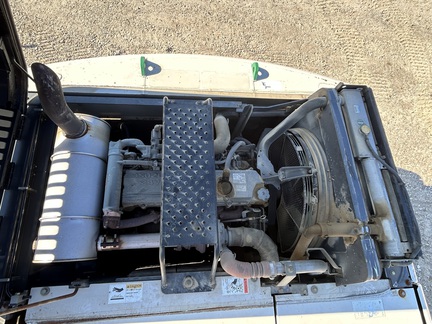

Engine
Aspiration	Turbocharged with Intercooler
Displacement	396 cu in (6,489 cu cm)
Engine Make	2,353
Engine Model	CC-6BG1TC
Max Torque	443 lbs ft (601 nm)
Net Power	177 hp (132 kw)
Number Of Cylinders	6
Power Measured @	2,200 rpm
Torque Measured @	1,800 rpm
Operational
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	8 gal (29 l)
Engine Oil Capacity	6 gal (24 l)
Fuel Capacity	90 gal (340 l)

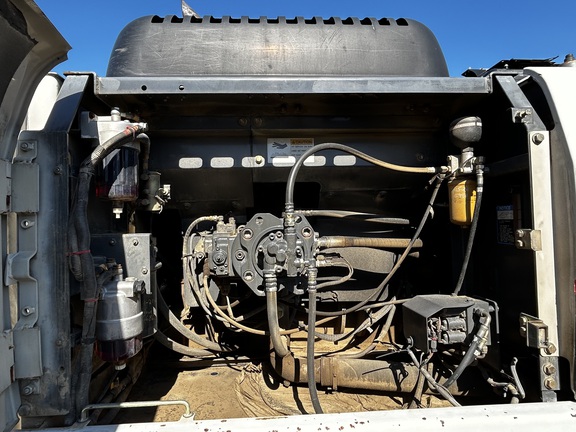

Hydraulic Pump Flow Capacity	117 gpm (442 lpm)
Hydraulic System Fluid Capacity	64 gal (240 l)
Hydraulic System Relief Valve Pressure	4,970 psi
Operating Voltage	24 V
Operating Weight	64,400 lbs (29,211 kg)
Swing Drive Fluid Capacity	2 gal (6 l)
Swing Mechanism
Swing Speed	10 rpm
Swing Torque	55,130 lbs ft (74,745 nm)

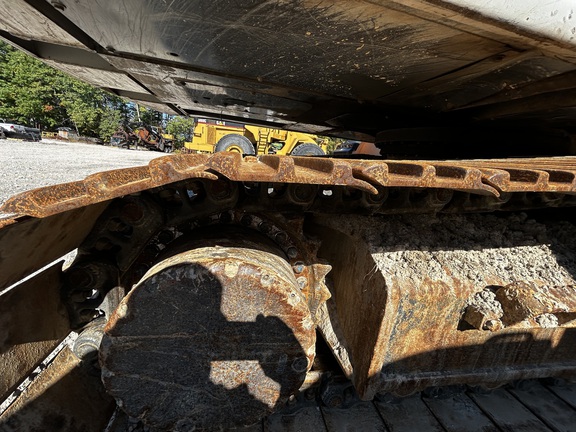

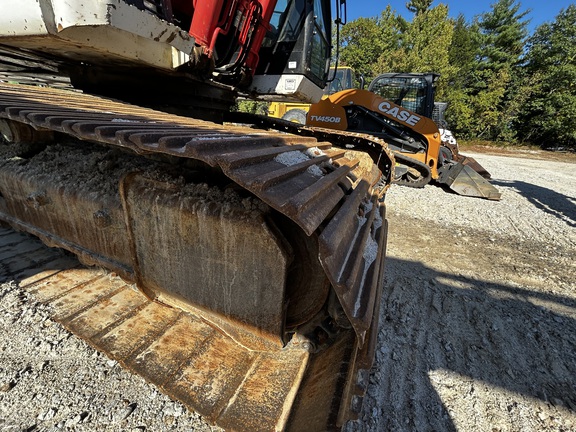

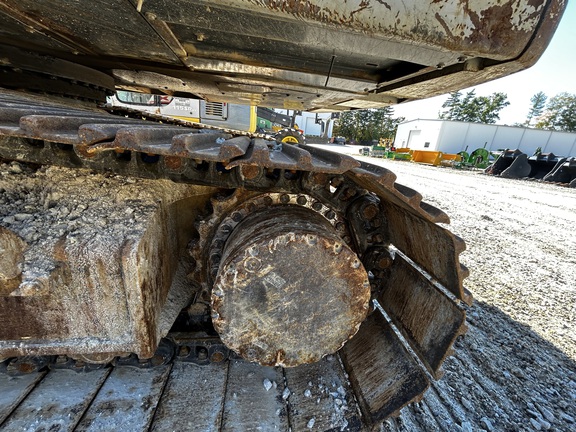

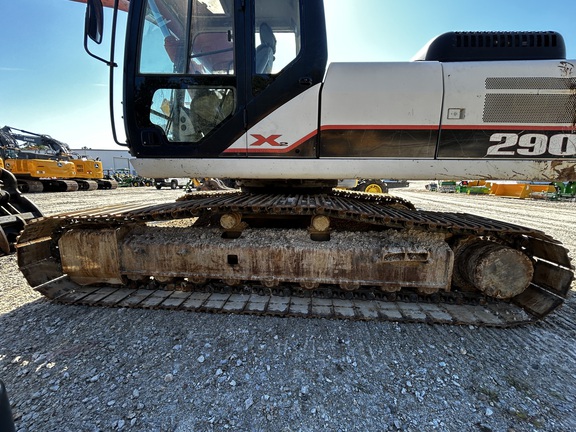

Undercarriage
Ground Pressure	6 psi
Max Travel Speed	3 mph (5 kph)
Number Of Carrier Rollers Per Side	2
Number Of Shoes Per Side	47
Number Of Track Rollers Per Side	8
Shoe Size	32 in (80 cm)
Track Gauge	9 ft (3 m)
