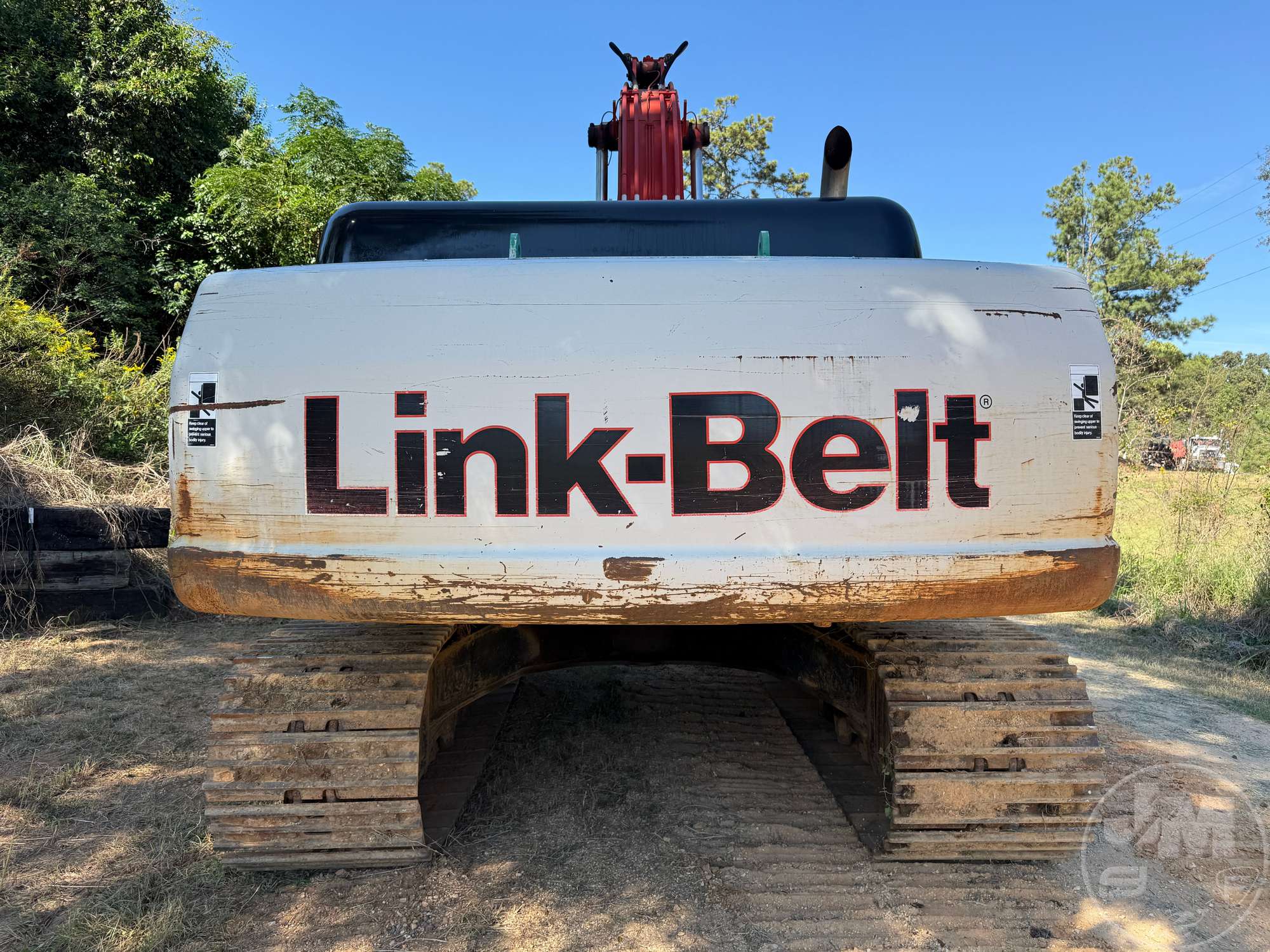

2016 Link-Belt 330 LX For Sale in Raleigh, MS

Name: 2016 Link-Belt 330 LX
Brand: Link-Belt
SKU: 89419497
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-10-29 Click here to place a bid

Jeff Martin Auctioneers, Inc

Jeff Martin Auctioneers, Inc Dealer Info

Jeff Martin Auctioneers, Inc Website

Click here to email Jeff Martin Auctioneers, Inc.

Click for Phone Number

Machine Info:

Serial Number:	K6J83604
Machine Location:	RALEIGH, MS
More Information:	https://www.jeffmartinauctioneers.com/auctions/1313/lot/347166-2016-LINK-BELT-330LX-HYDRAULIC-EXCAVATOR-SN%3A-K6J83604

Description:

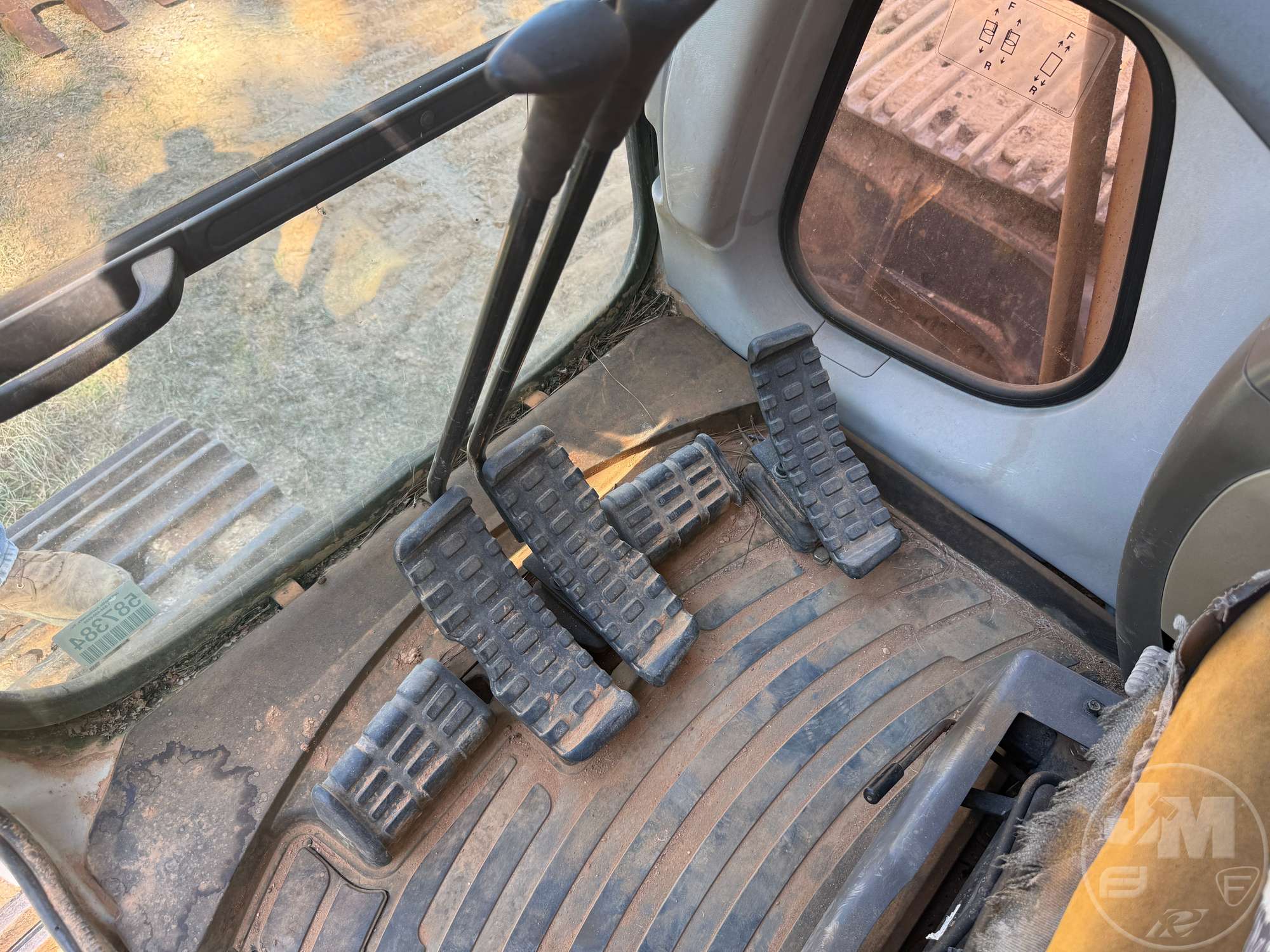

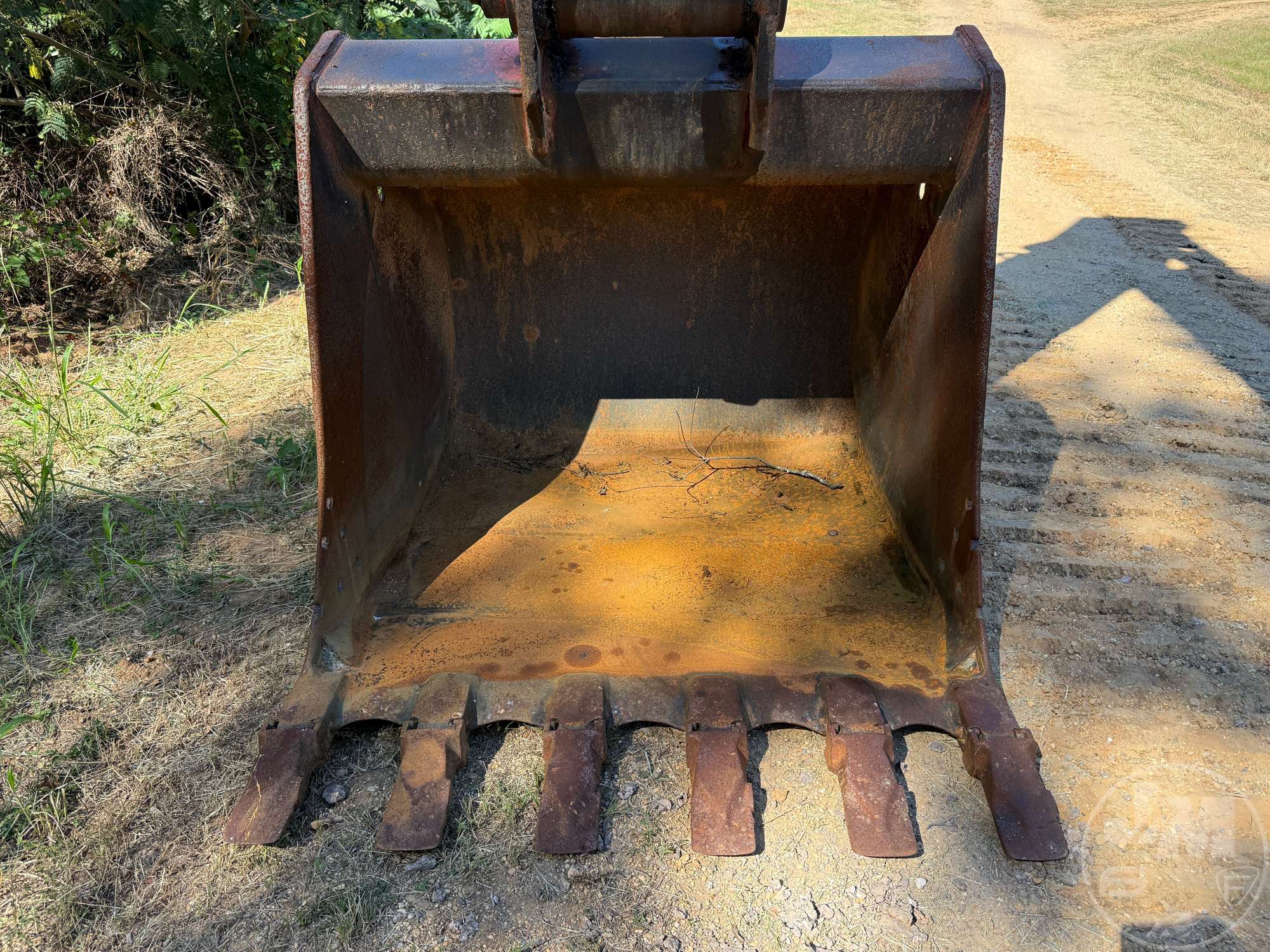

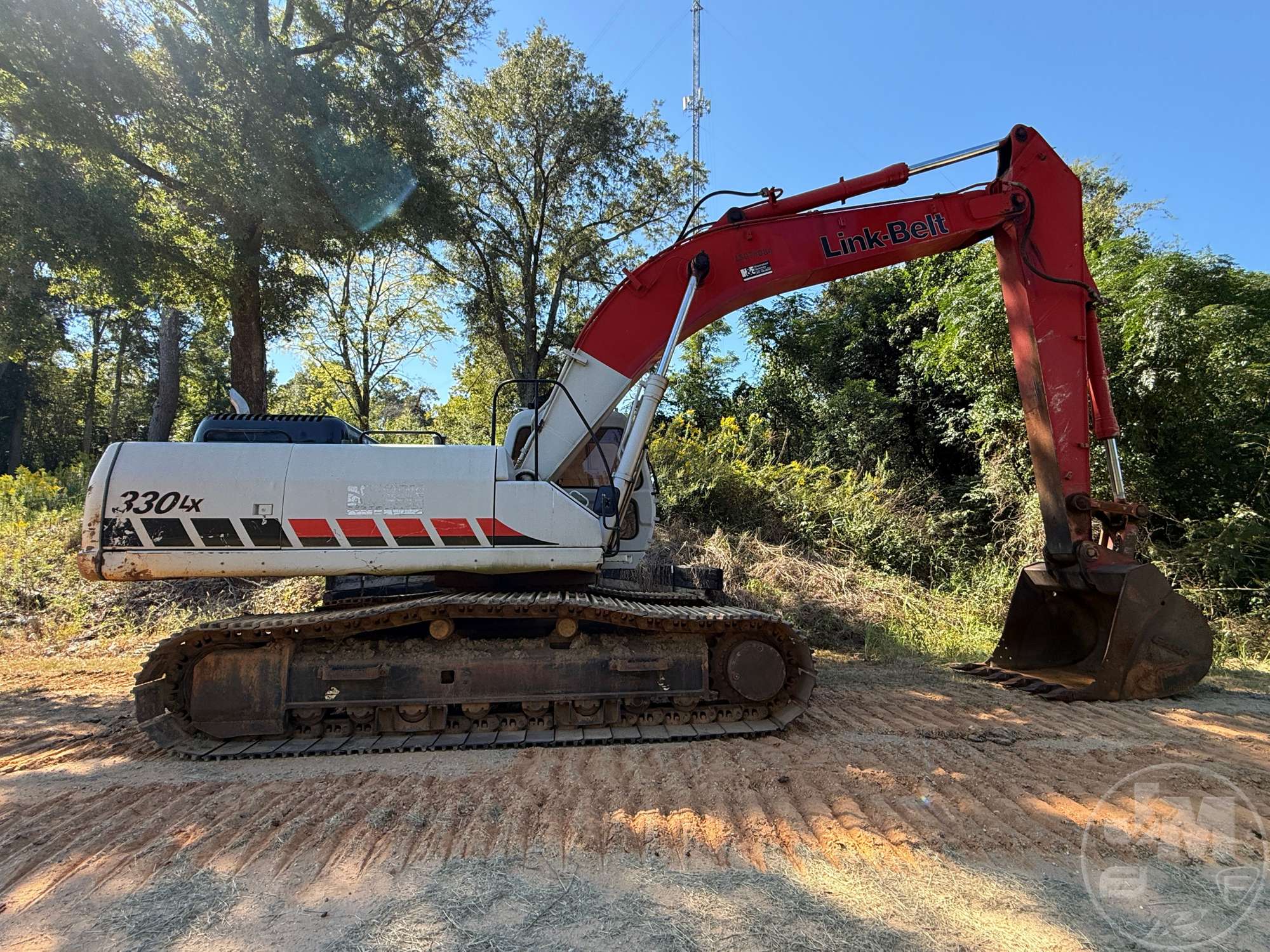

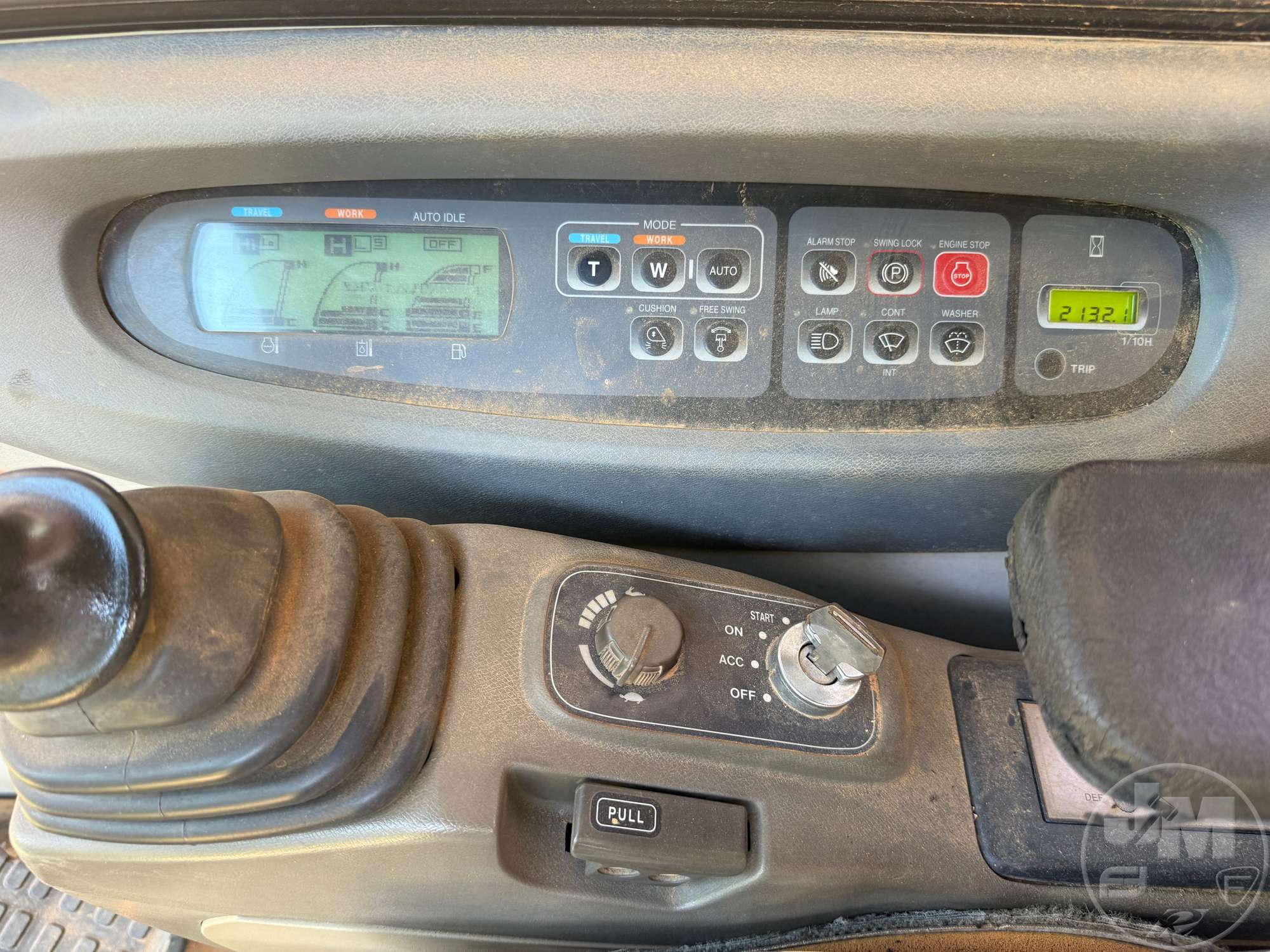

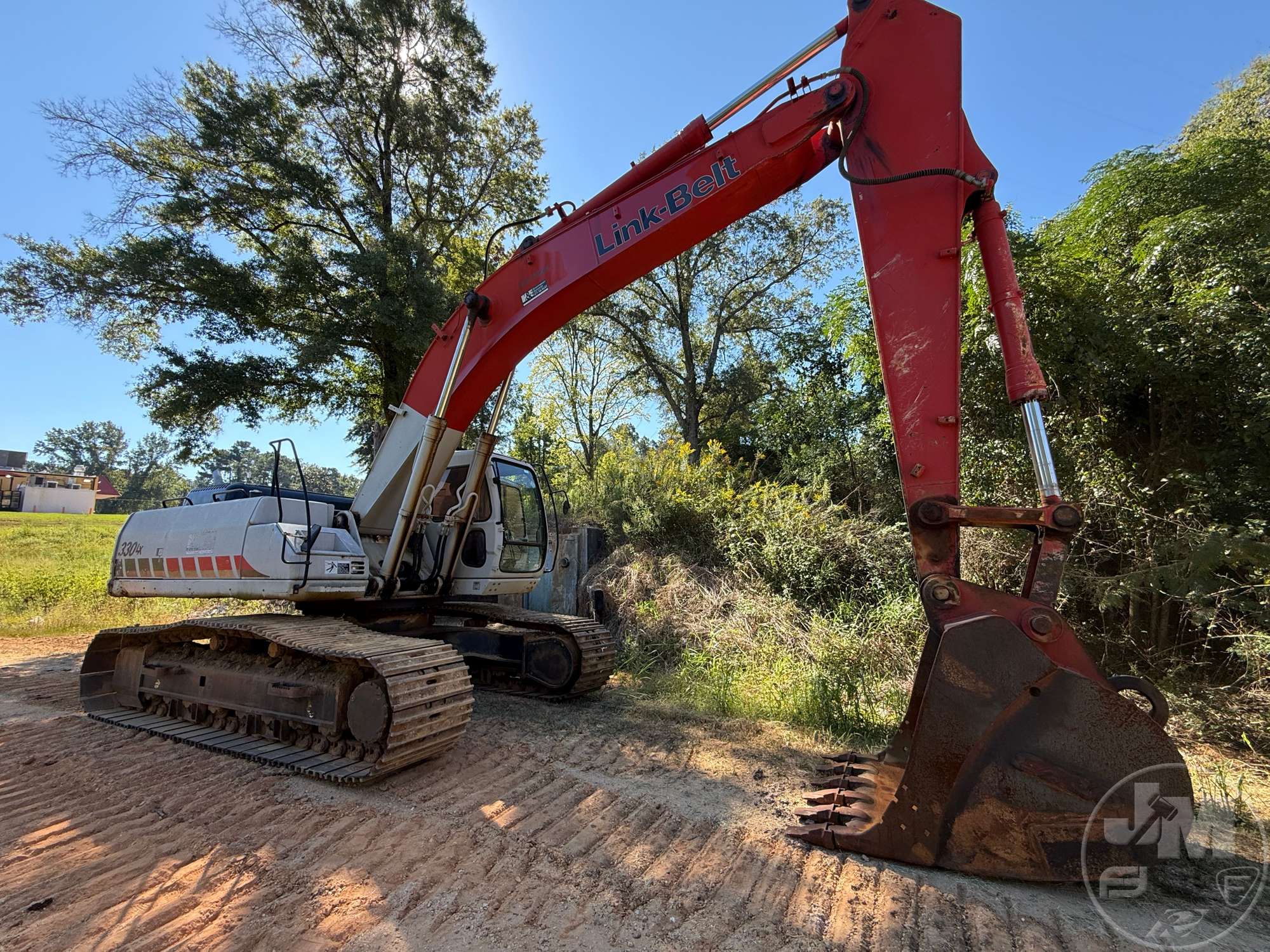

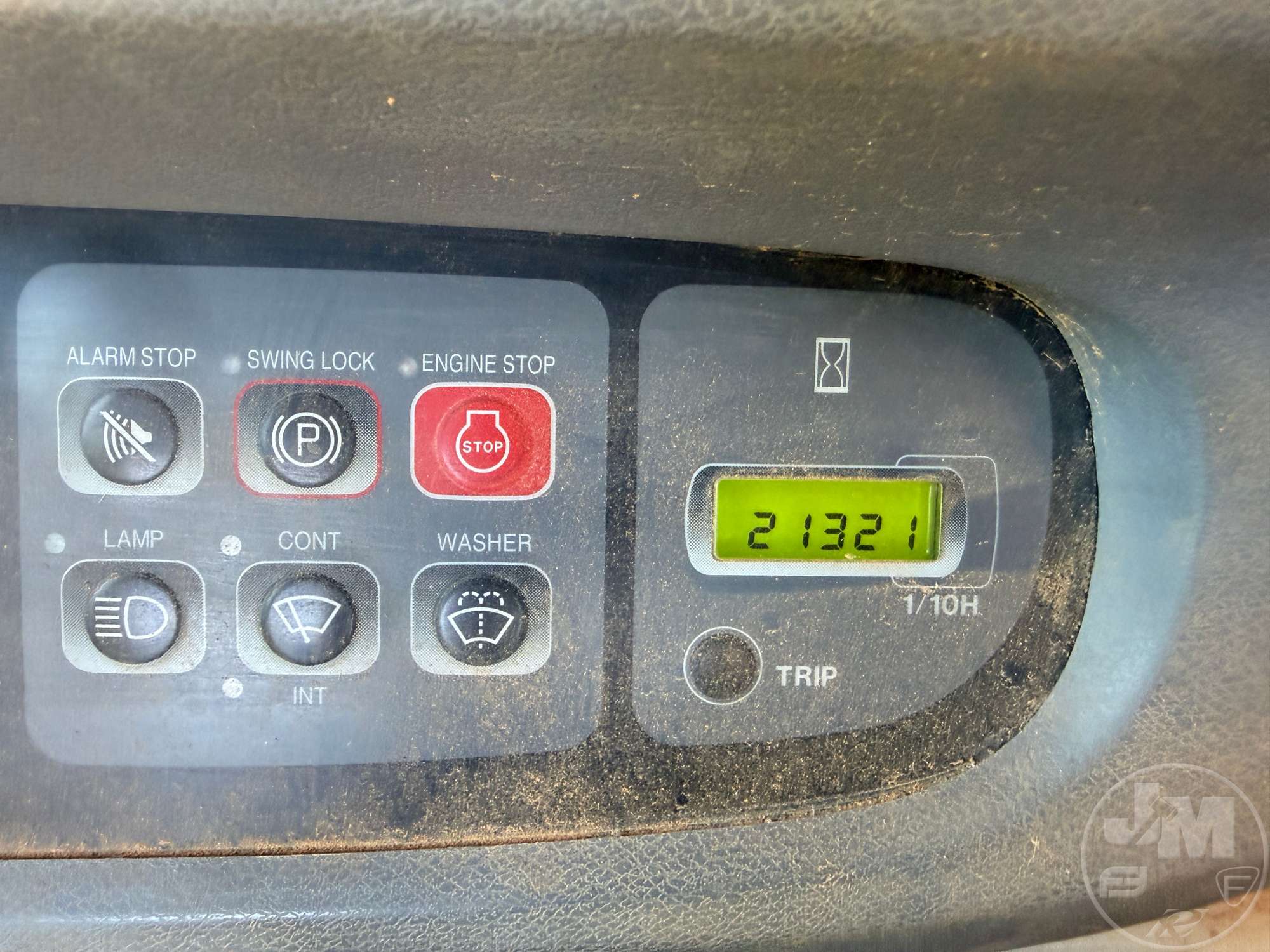

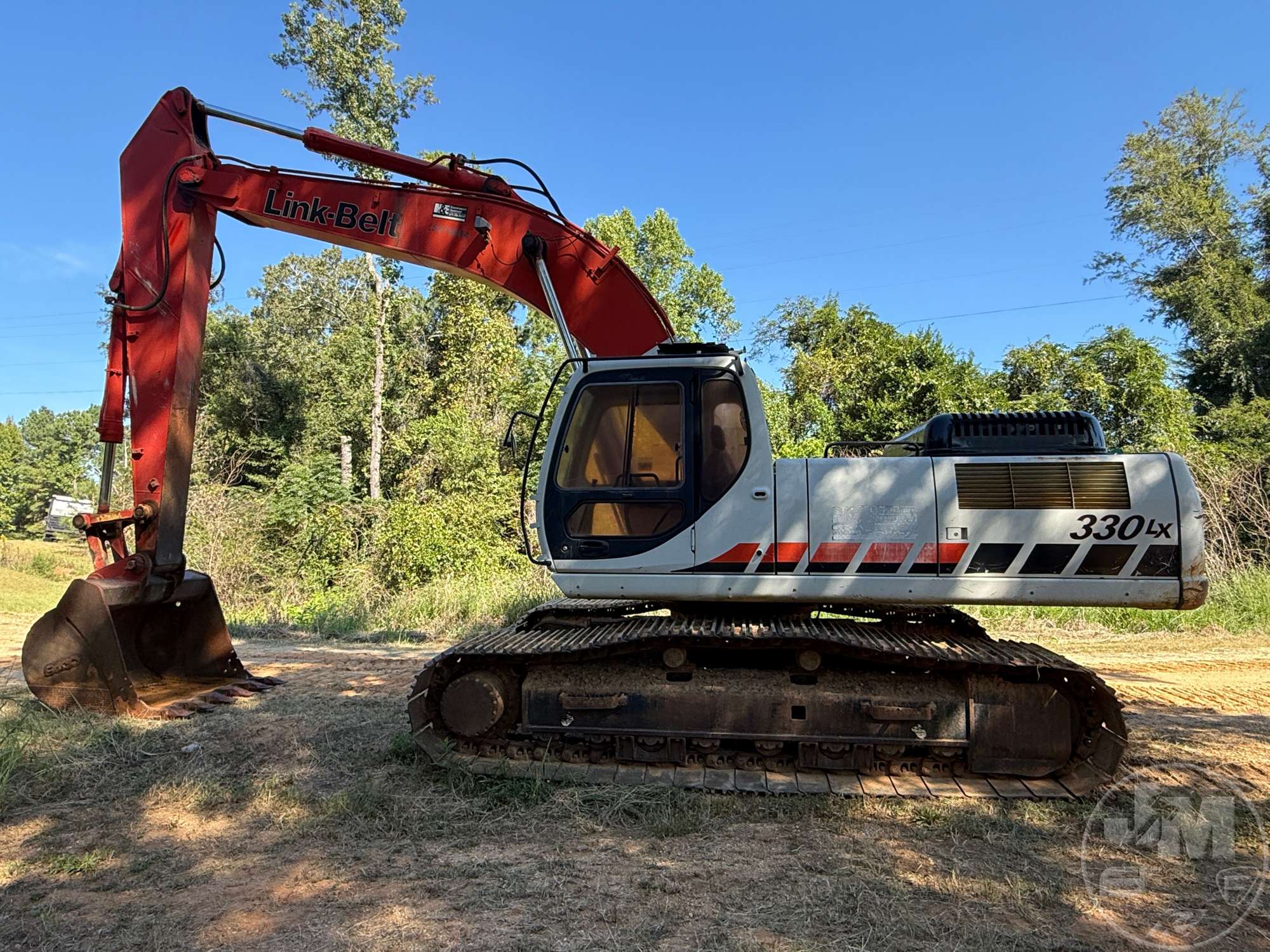

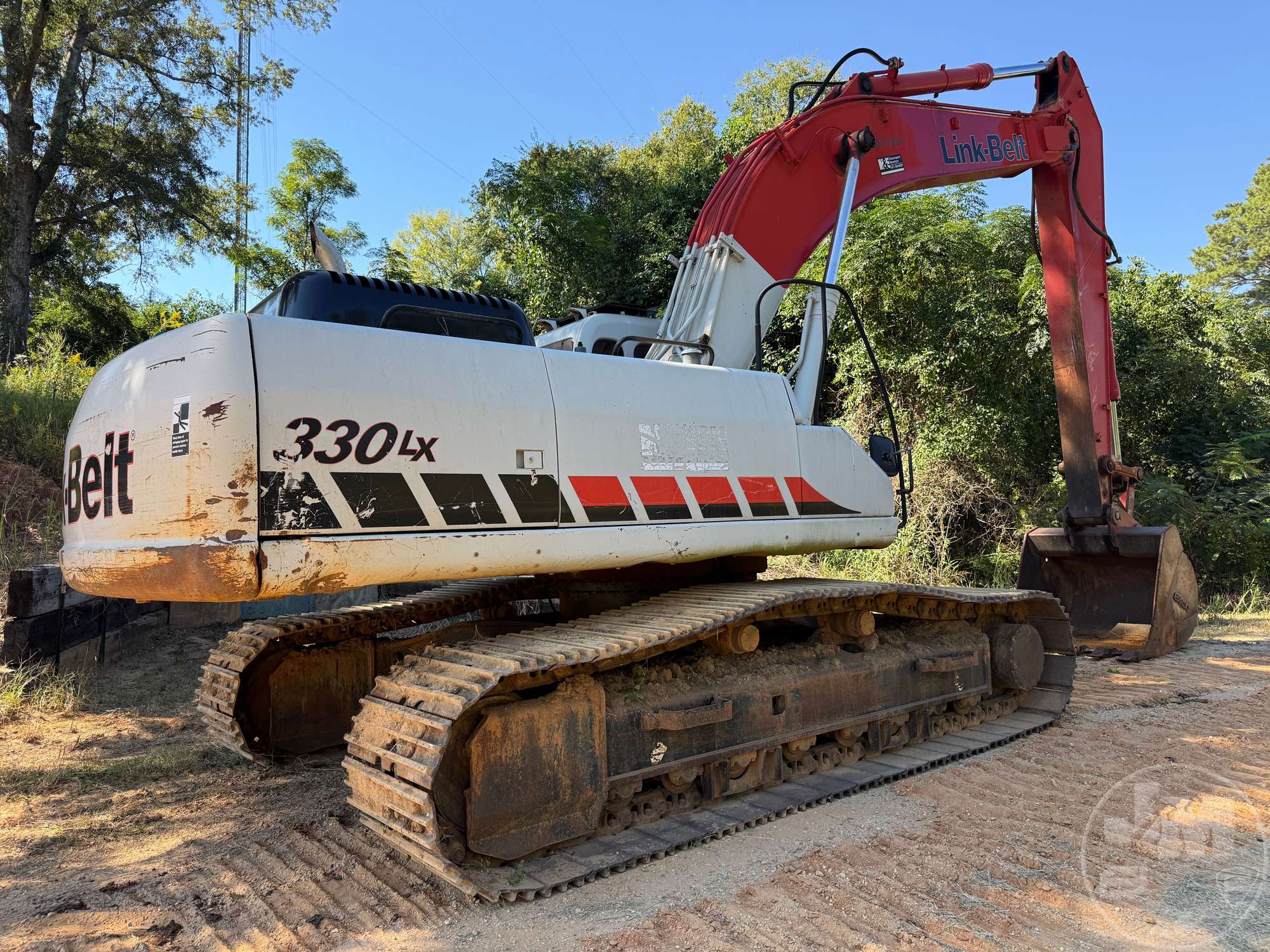

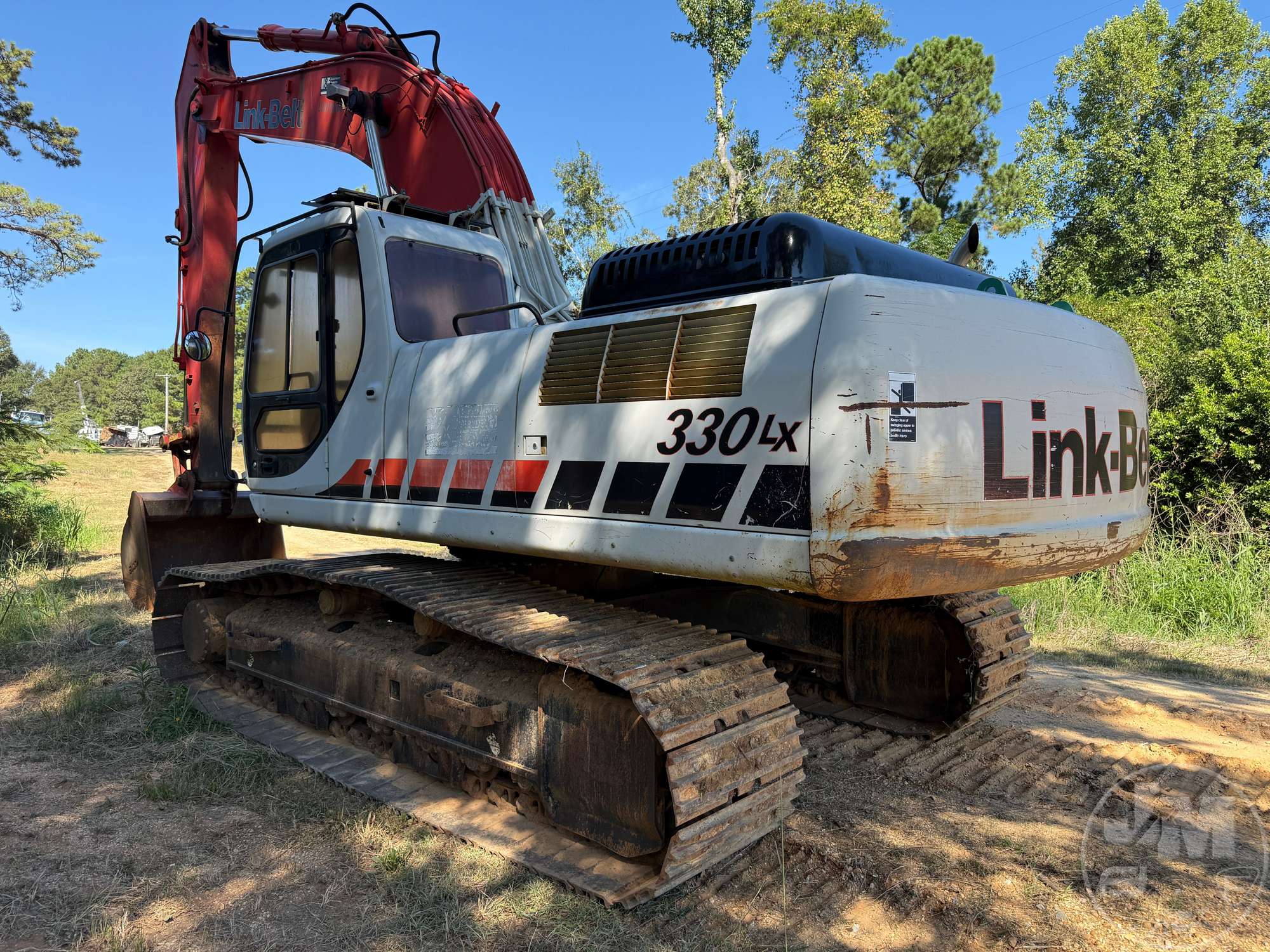

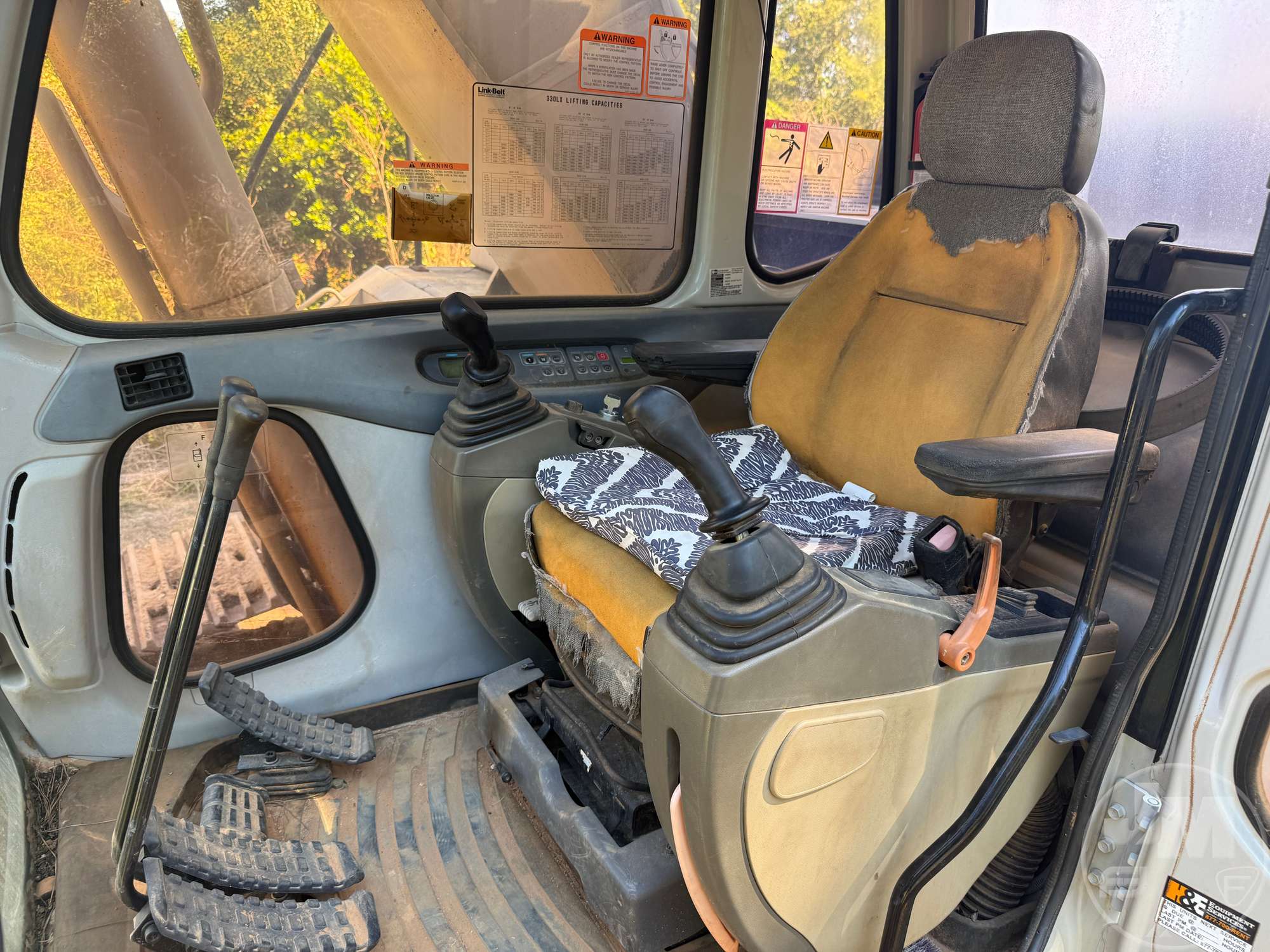

LINK-BELT HYDRAULIC EXCAVATOR, CAB, AC, RADIO, 13'2" STICK, 60" BUCKET, 32", TBG, HOUR METER READS: 2132

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Link-Belt 330 LX is a hydraulic excavator in the Link-Belt excavators lineup, designed for general earthmoving, site preparation, trenching, and material handling applications. As a 330-class machine, it is typically used on medium to large construction projects where digging depth, reach, and cycle efficiency are important. The model is associated with Link-Belt's excavator platform, which commonly includes features such as hydraulic control, operator cab comfort, and attachment compatibility. The 330 LX designation identifies a specific excavator model within the brand's product range and is commonly referenced in equipment listings, fleet records, and used machinery searches.

Boom/Stick 1
Boom/Stick 1	Boom 21\'2\" (6450mm) / Stick 10\'8\" (3250mm)
Max Cutting Height	34 ft (10 m)
Max Digging Depth	24 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Height Of Unit	11 ft (3 m)
Shipping Length Of Unit	36 ft (11 m)
Boom/Stick 2
Boom/Stick 2	Boom 21\'2\" (6450mm) / Stick 8\'8\" (2630mm)
Max Cutting Height	34 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	34 ft (10 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height Of Unit	12 ft (4 m)
Shipping Length Of Unit	37 ft (11 m)
Boom/Stick 3
Boom/Stick 3	Boom 21\'2\" (6450mm) / Stick 13\'3\" (4040mm)
Max Cutting Height	35 ft (11 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	38 ft (12 m)
Max Vertical Wall Digging Depth	23 ft (7 m)
Shipping Height Of Unit	12 ft (4 m)
Shipping Length Of Unit	36 ft (11 m)
Buckets
Maximum Bucket Capacity	3 cu yd
Minimum Bucket Capacity	1 cu yd
Reference Bucket Capacity	2 cu yd
Dimensions
Height	11 ft (3 m)
Height To Top Of Cab	11 ft (3 m)
Length	36 ft (11 m)
Length Of Track On Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	11 ft (3 m)
Weight	78,000 lbs (35,380 kg)
Width	12 ft (4 m)
Width To Outside Of Tracks	11 ft (3 m)

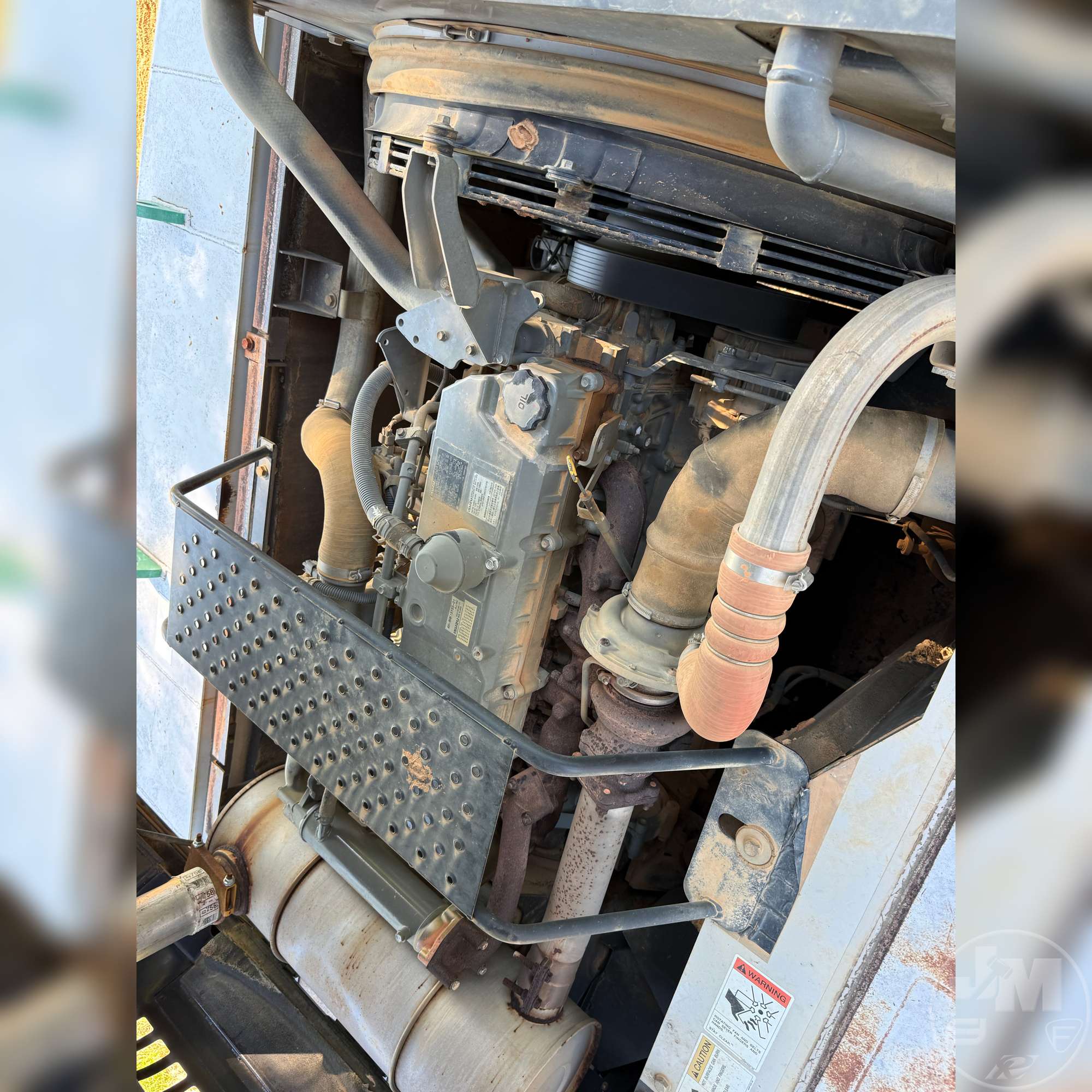

Engine
Aspiration	Turbocharged with Intercooler
Displacement	475 cu in (7,784 cu cm)
Engine Make	2,353
Engine Model	AA-6HK1XQB
Max Torque	687 lbs ft (931 nm)
Net Power	247 hp (184 kw)
Number Of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,600 rpm
Operational
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	11 gal (42 l)
Engine Oil Capacity	9 gal (33 l)
Fuel Capacity	153 gal (580 l)
Hydraulic Pump Flow Capacity	150 gpm (568 lpm)
Hydraulic System Fluid Capacity	93 gal (350 l)
Hydraulic System Relief Valve Pressure	4,970 psi
Operating Voltage	24 V
Operating Weight	78,000 lbs (35,380 kg)
Swing Drive Fluid Capacity	2 gal (6 l)
Swing Mechanism
Swing Speed	10 rpm
Swing Torque	82,680 lbs ft (112,098 nm)

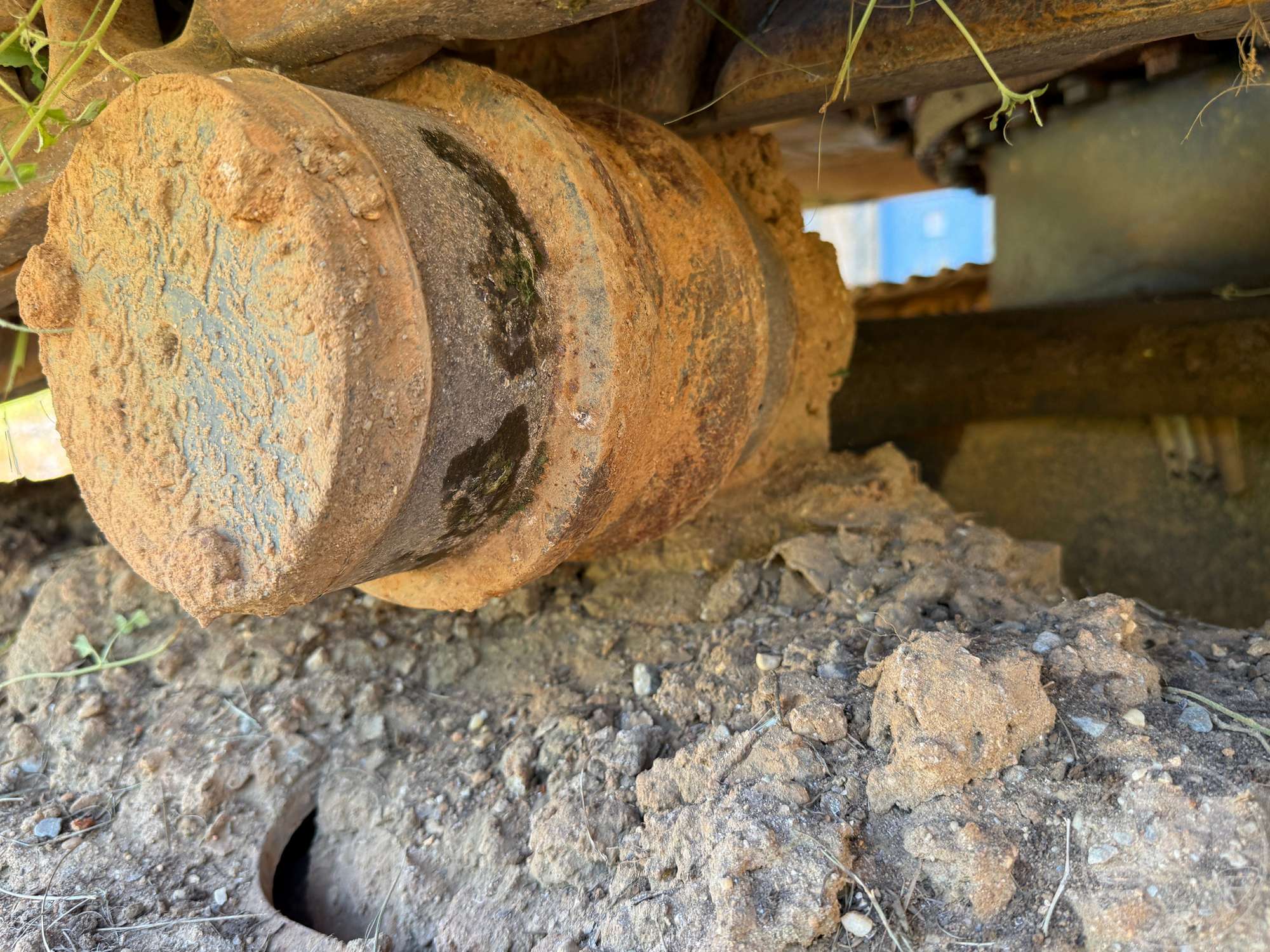

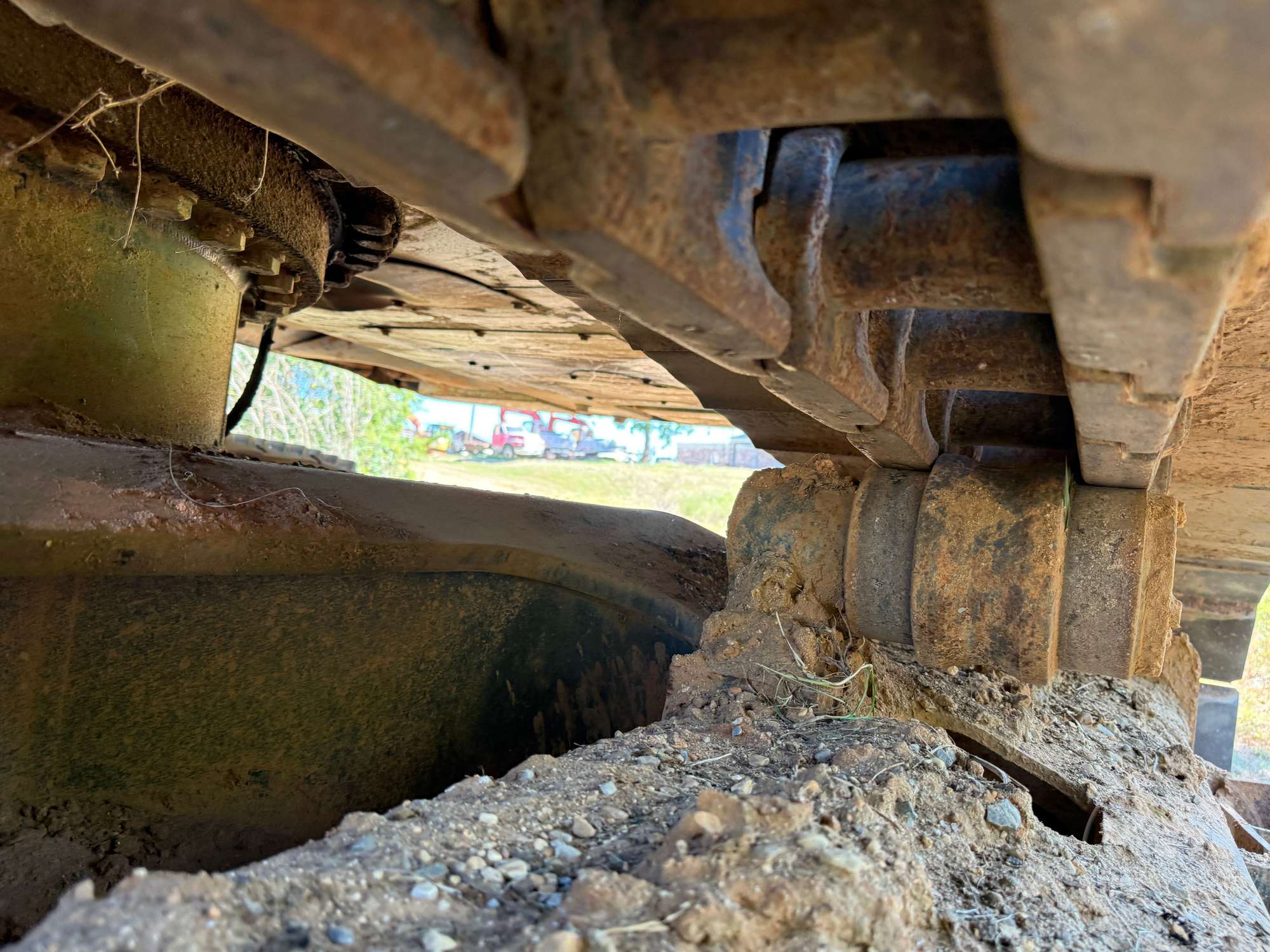

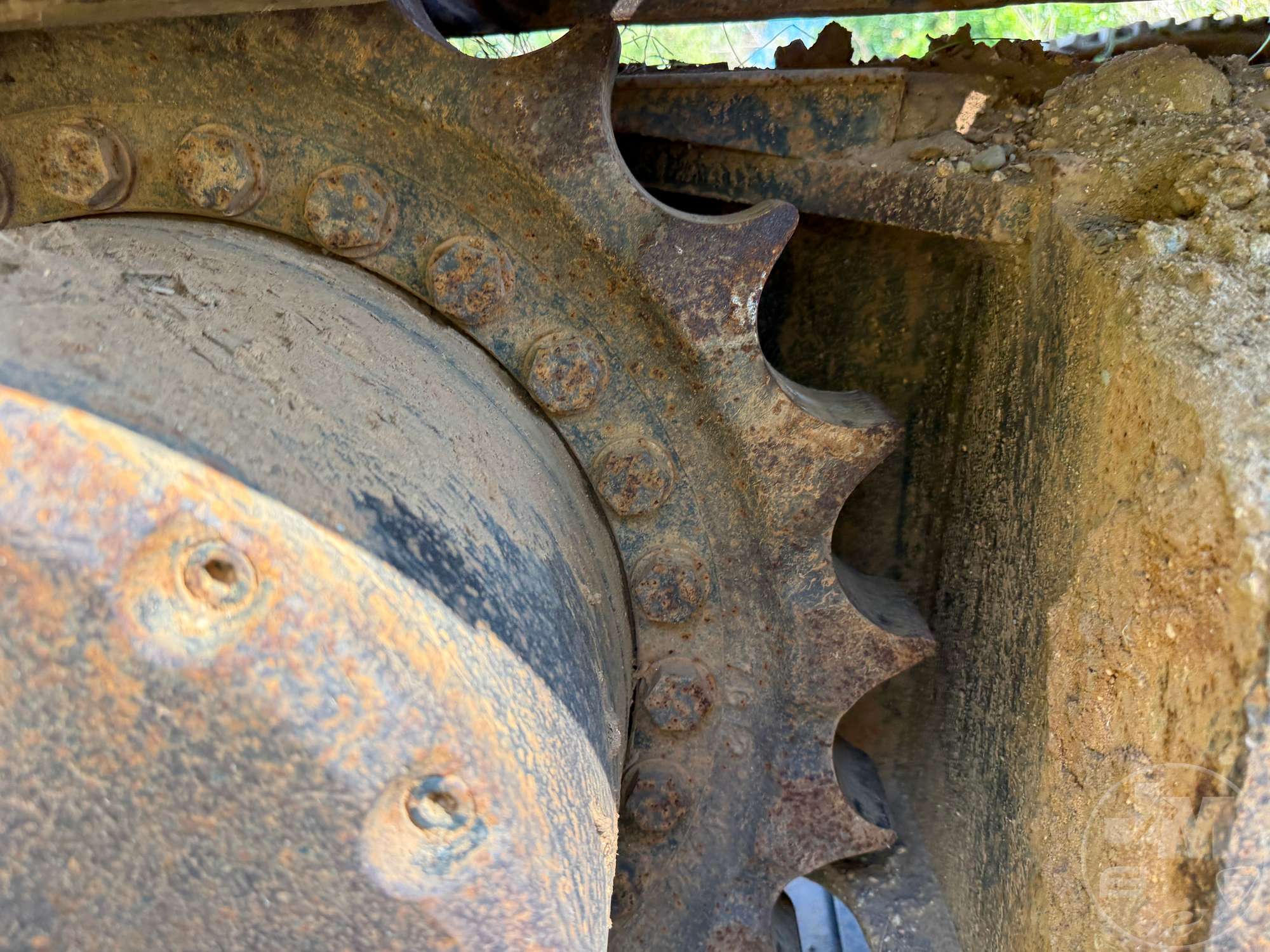

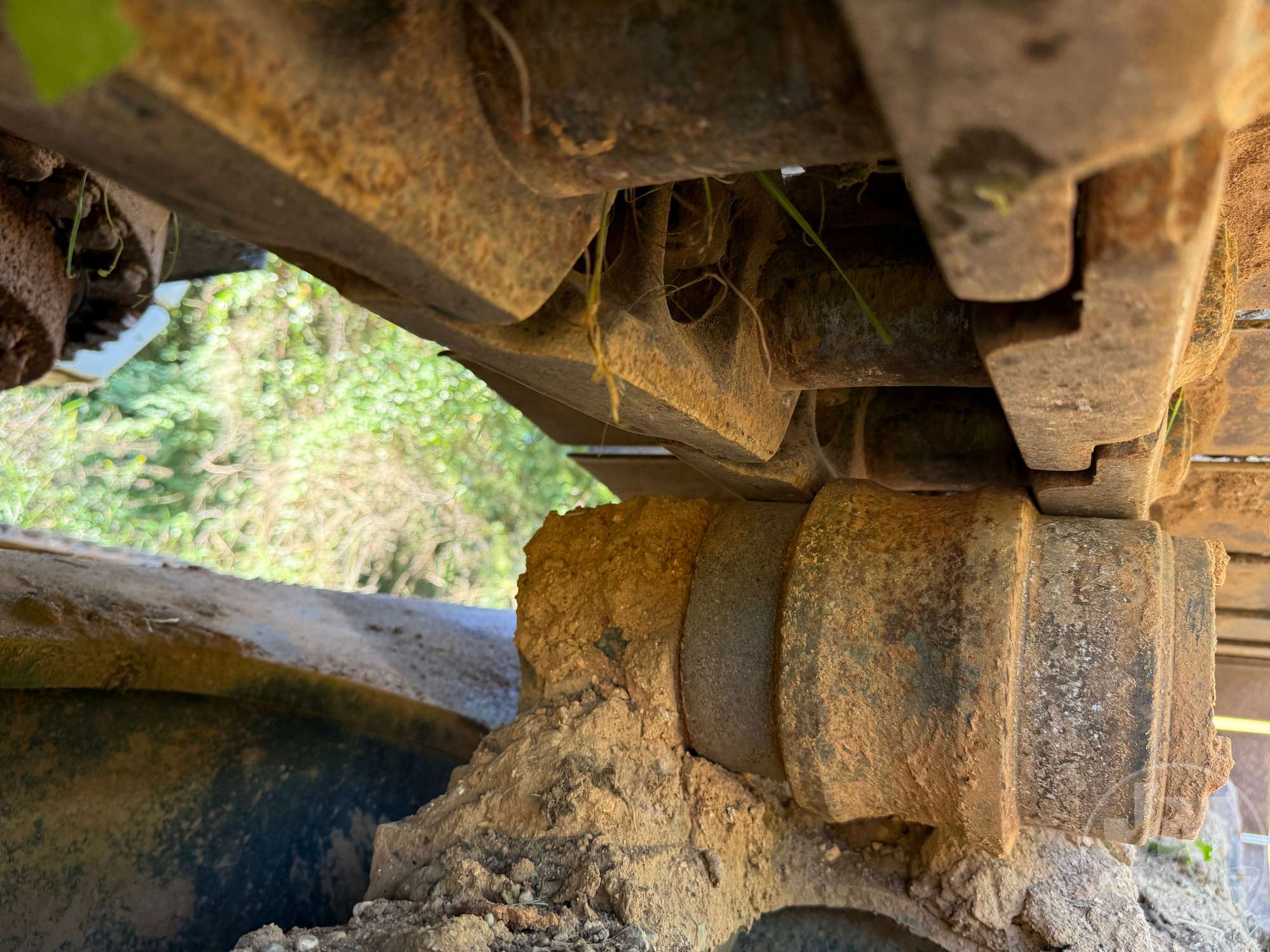

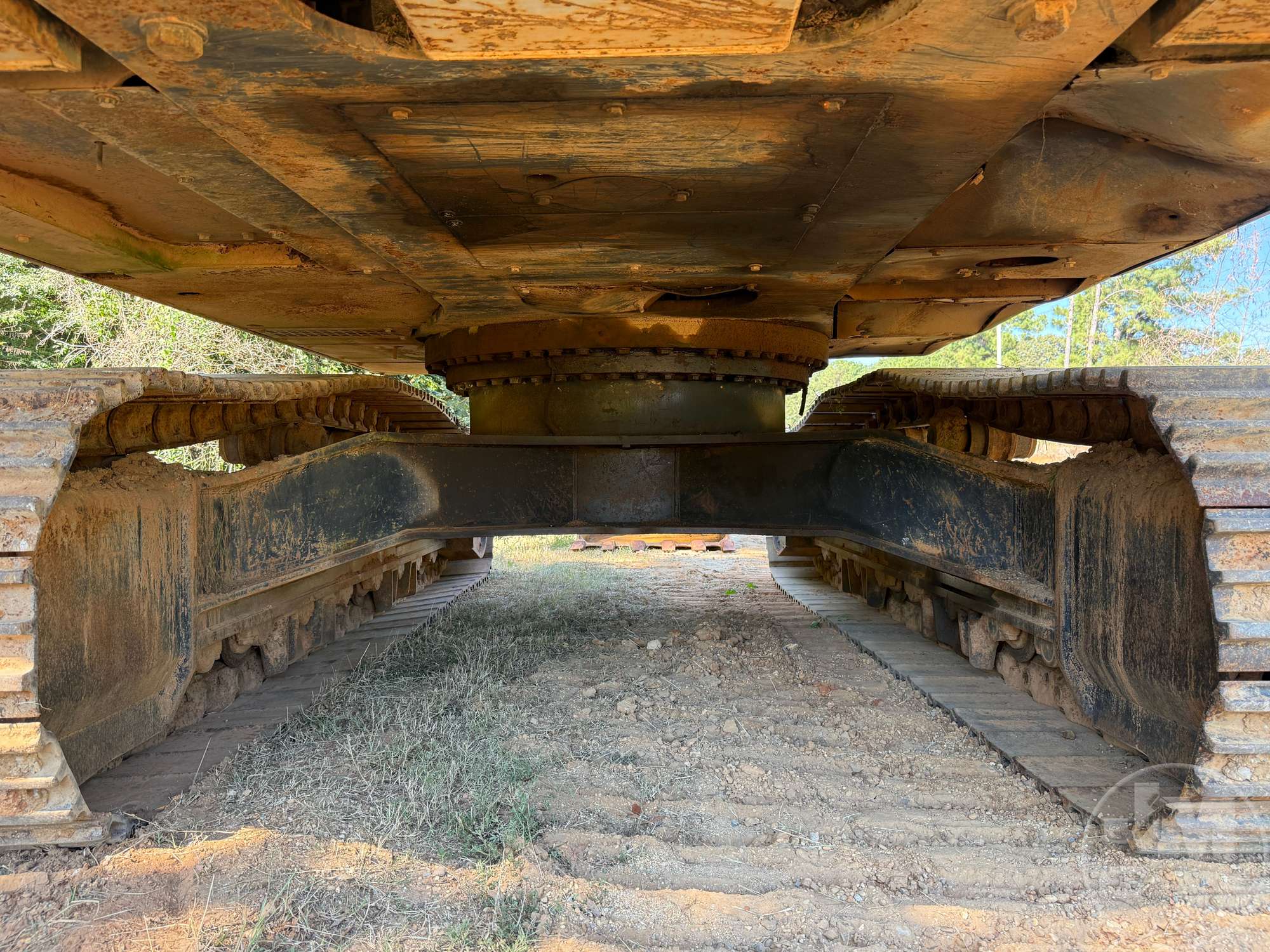

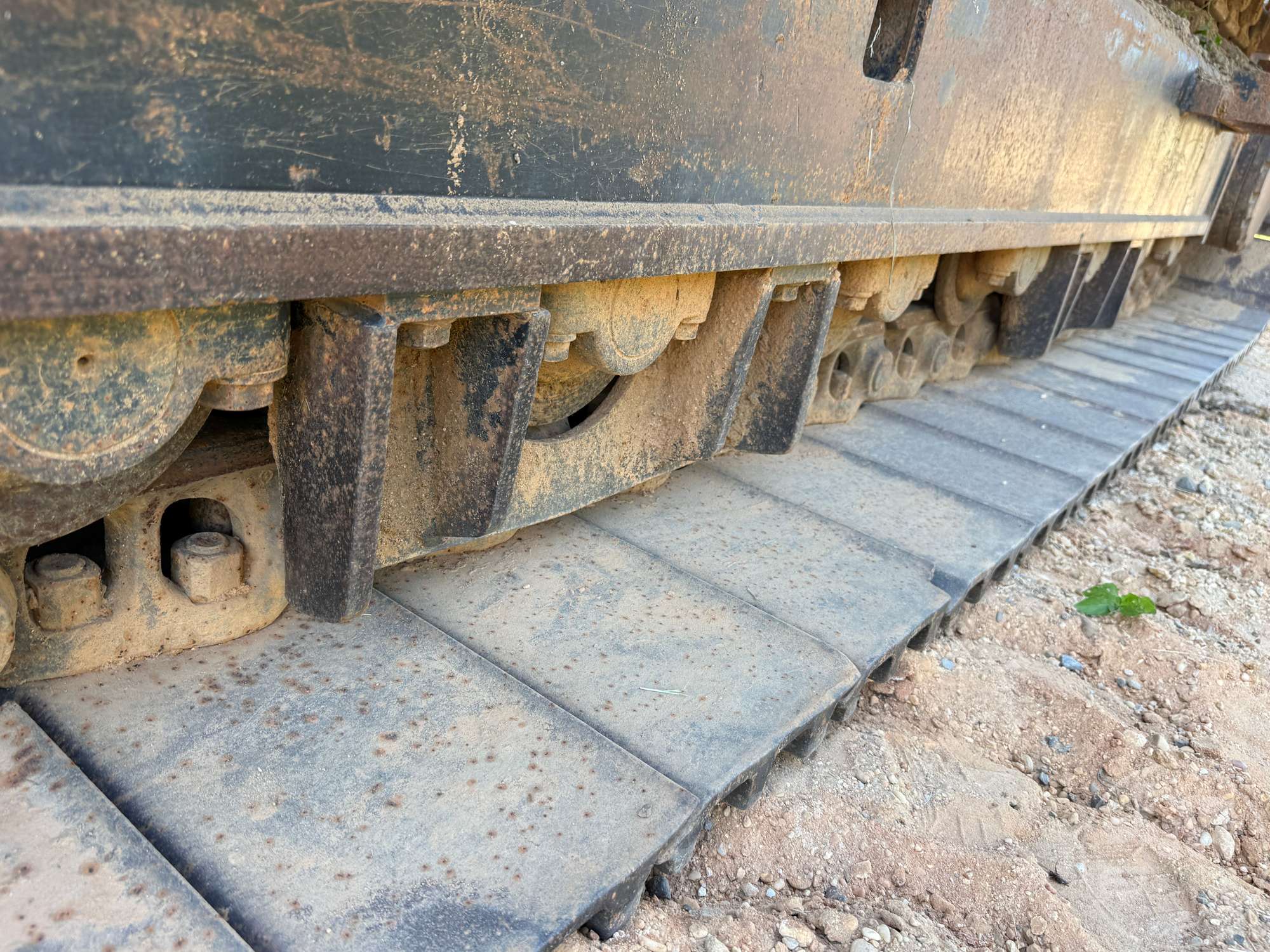

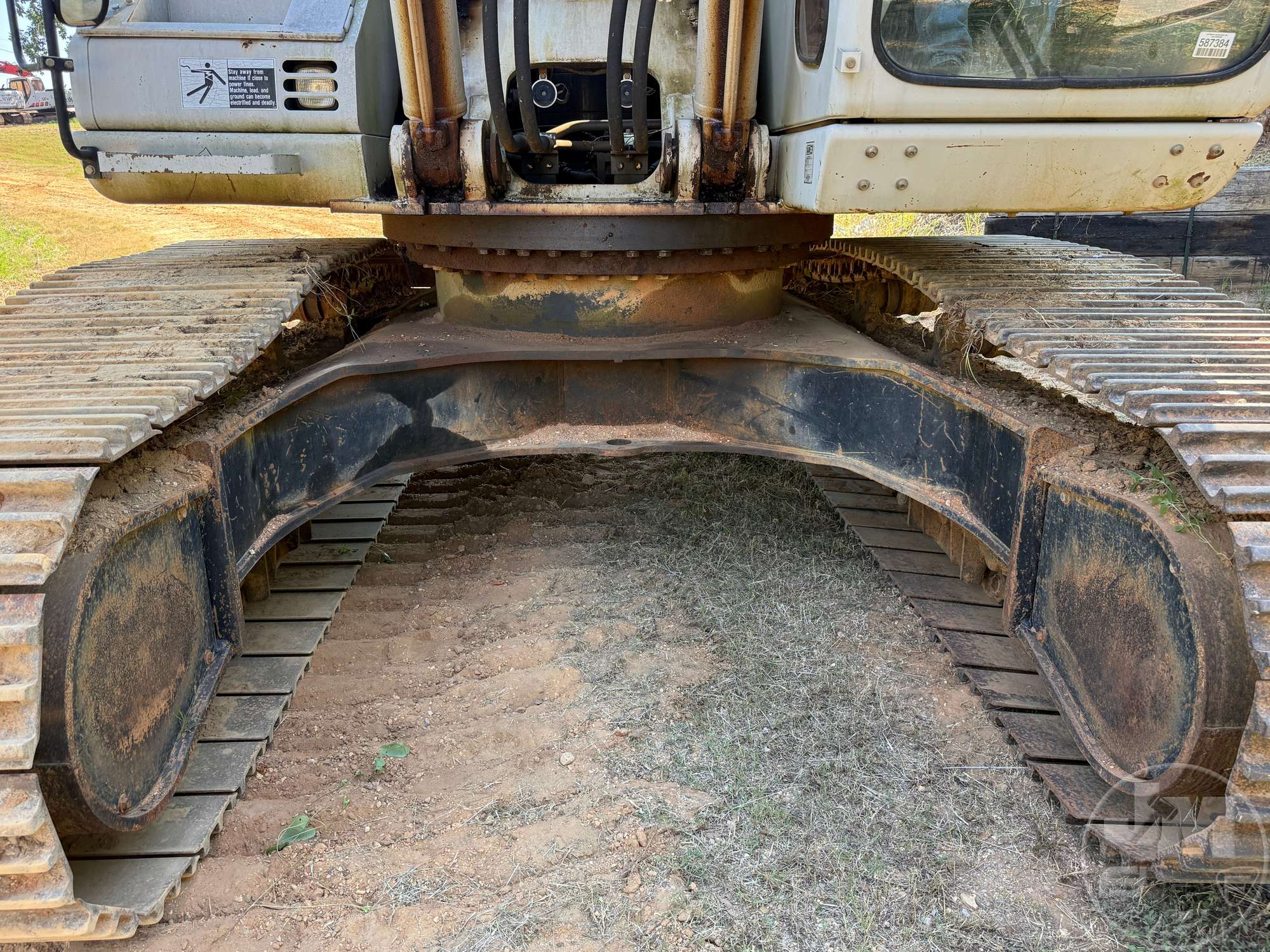

Undercarriage
Ground Pressure	7 psi
Max Travel Speed	3 mph (5 kph)
Number Of Carrier Rollers Per Side	2
Number Of Shoes Per Side	48
Number Of Track Rollers Per Side	8

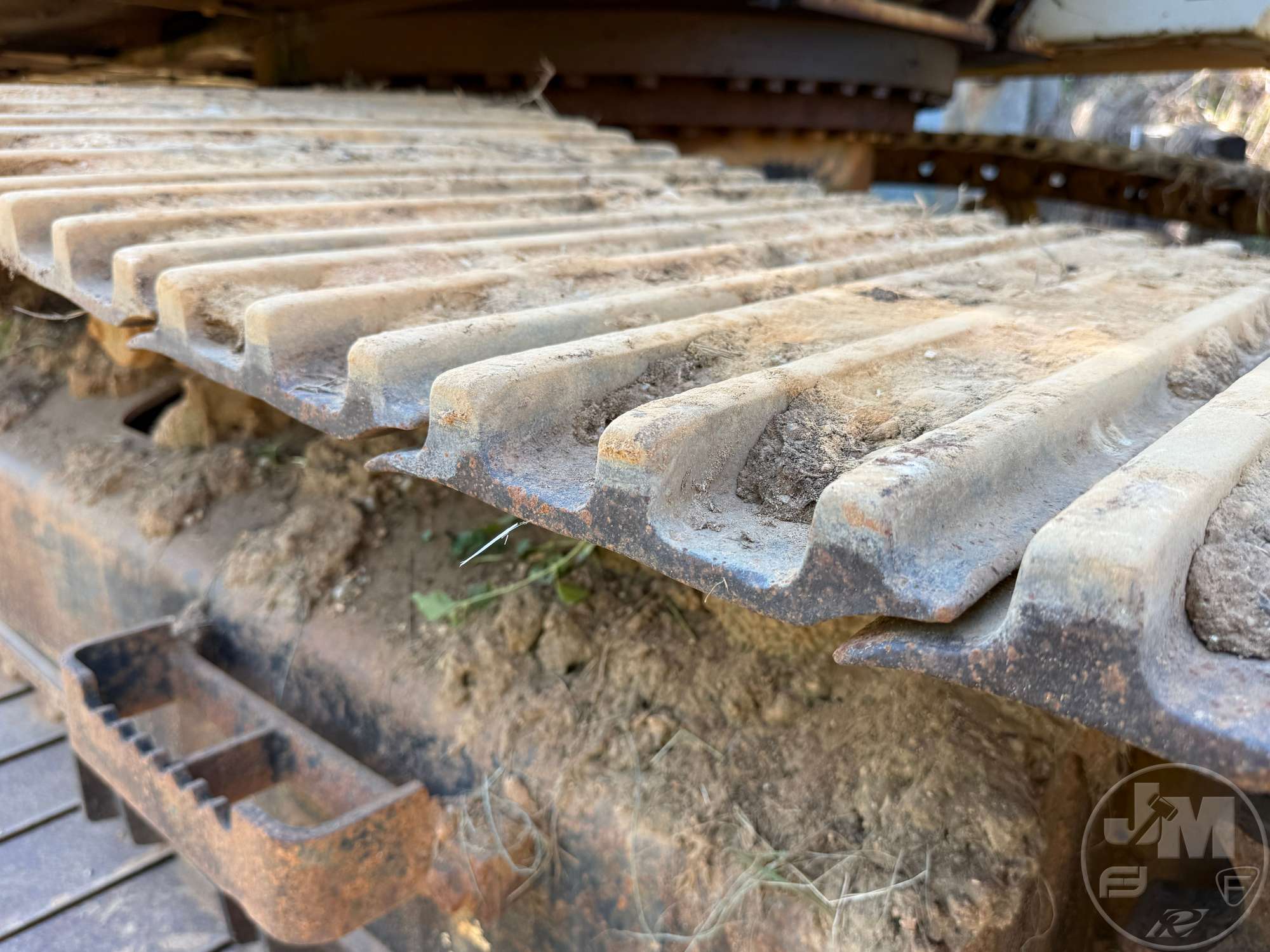

Shoe Size	32 in (80 cm)
Track Gauge	9 ft (3 m)
