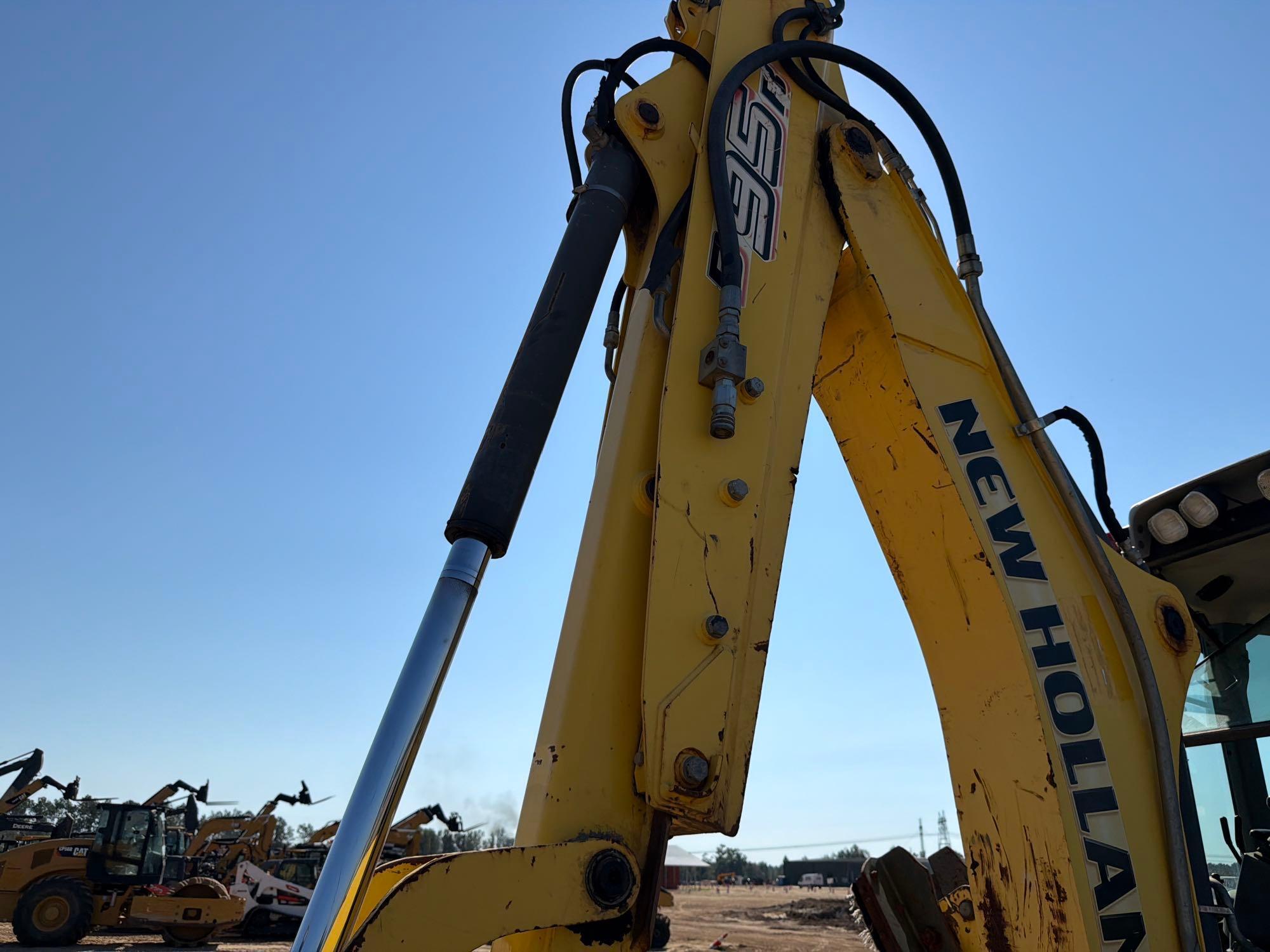

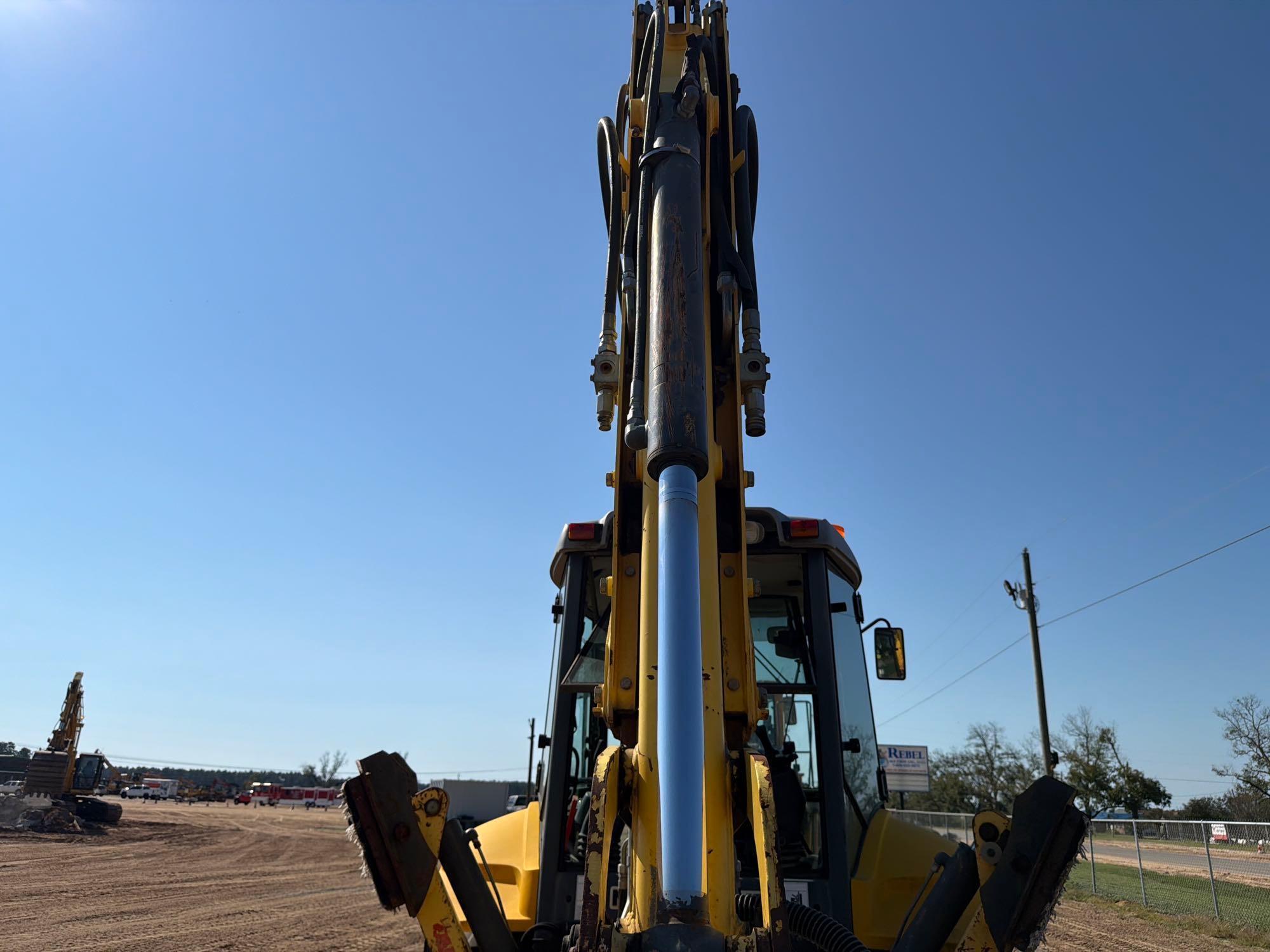

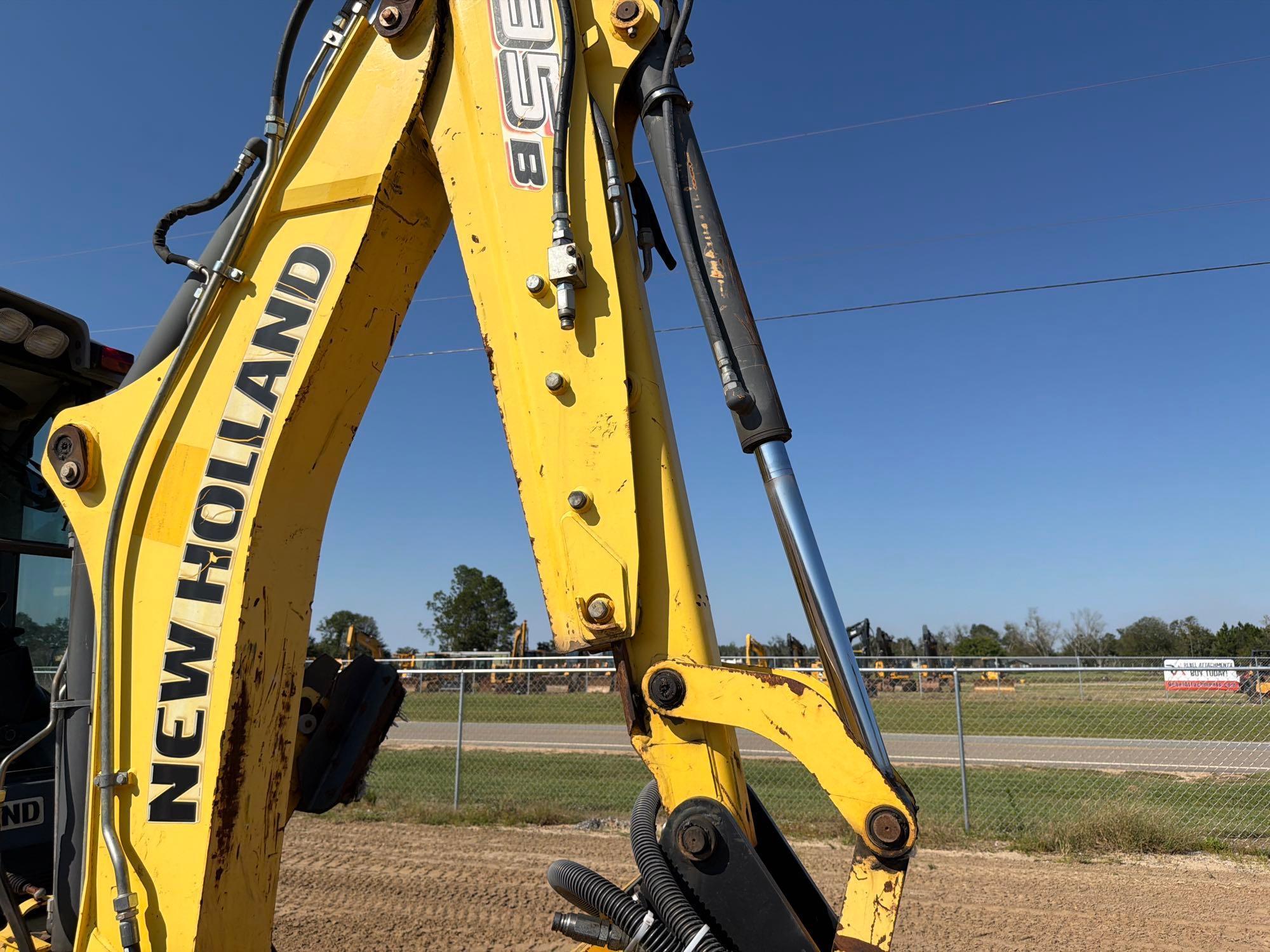

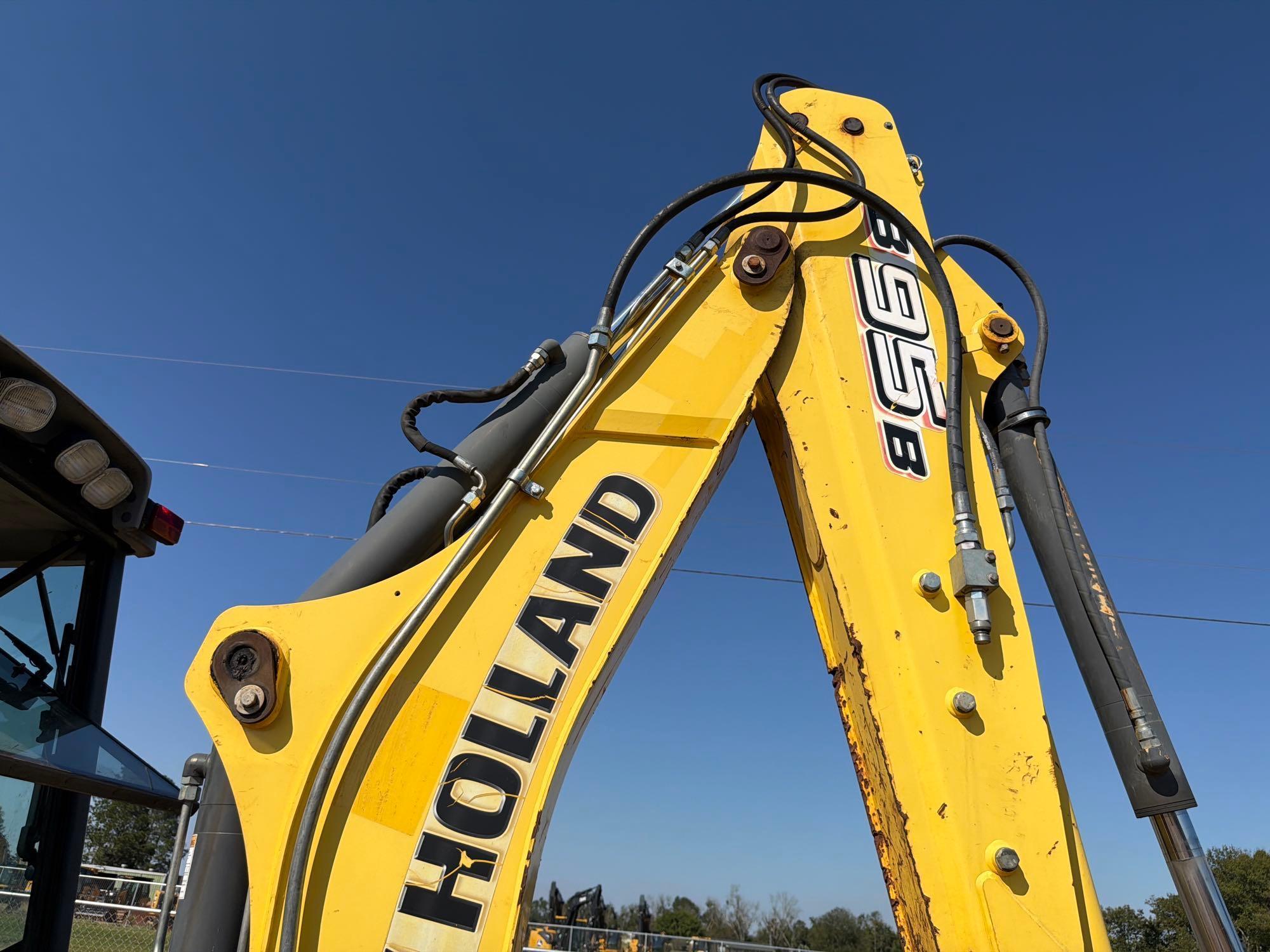

| Backhoe |
|
Bucket Dig Force - Ext |
13,254 lbs (6,012 kg)
|
|
Bucket Dig Force - Std |
12,591 lbs (5,711 kg)
|
|
Dig Depth - Ext |
18 ft (5 m)
|
|
Dig Depth - Std |
14 ft (4 m)
|
|
Load Height - Ext |
15 ft (4 m)
|
|
Load Height - Std |
12 ft (4 m)
|
|
Reach From Swivel - Ext |
22 ft (7 m)
|
|
Reach From Swivel - Std |
17 ft (5 m)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height To Top Of Suspended Cab |
9 ft (3 m)
|
|
Transport Height |
13 ft (4 m)
|
|
Transport Length |
24 ft (7 m)
|
|
Transport Width |
7 ft (2 m)
|
|
Wheelbase |
7 ft (2 m)
|
| Engine |
|
Aspiration |
Turbocharged |
|
Bore |
4 in (10 cm)
|
|
Engine Make |
New Holland |
|
Engine Model |
FPT 445TA/E3 |
|
Gross Power |
97 hp (72 kw)
|
|
Net Max Torque |
334 lbs ft (453 nm)
|
|
Net Power |
91 hp (68 kw)
|
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
|
Stroke |
5 in (13 cm)
|
|
Torque Measured @ |
1,400 rpm |
| General Specifications |
|
4TH GEAR FWD (Since 2010)
|
20 mph (32 kph)
|
|
BACKHOE LOADING HEIGHT (Since 2009)
|
15 ft (4 m)
|
|
Backhoe Loading Height (Since 2011)
|
12 ft (4 m)
|
|
BREAKOUT FORCE (Since 2010)
|
15,212 lbs (6,900 kg)
|
|
DIGGING DEPTH (Since 2010)
|
14 ft (4 m)
|
|
LIFT CAPACITY (Since 2010)
|
8,095 lbs (3,672 kg)
|
|
LOADER BREAKOUT FORCE (Since 2009)
|
15,212 lbs (6,900 kg)
|
|
Loader Breakout Force (Since 2011)
|
15,212 lbs (6,900 kg)
|
|
LOADER LIFT CAPACITY (Since 2009)
|
8,095 lbs (3,672 kg)
|
|
Loader Lift Capacity (Since 2011)
|
8,095 lbs (3,672 kg)
|
|
LOADER SAE (Since 2009)
|
91 hp (68 kw)
|
|
Loader SAE (Since 2011)
|
97 hp (72 kw)
|
|
LOADING HEIGHT (Since 2010)
|
12 ft (4 m)
|
|
MAX DIGGING DEPTH (Since 2009)
|
18 ft (6 m)
|
|
Max Digging Depth (Since 2011)
|
14 ft (4 m)
|
|
OPERATING WEIGHT (Since 2009)
|
16,008 lbs (7,261 kg)
|
|
Operating Weight (Since 2011)
|
16,008 lbs (7,261 kg)
|
|
SAE (Since 2010)
|
97 hp (72 kw)
|
|
TRAVEL SPEED 4TH GEAR FWD (Since 2009)
|
20 mph (32 kph)
|
|
Travel Speed 4th Gear Fwd (Since 2011)
|
20 mph (32 kph)
|
|
WEIGHT (Since 2010)
|
16,008 lbs (7,261 kg)
|
| Hydraulic |
|
Pump Flow Capacity |
40 gpm (151 lpm)
|
|
Pump Type |
Open center |
|
Relief Valve Pressure |
3,045 psi |

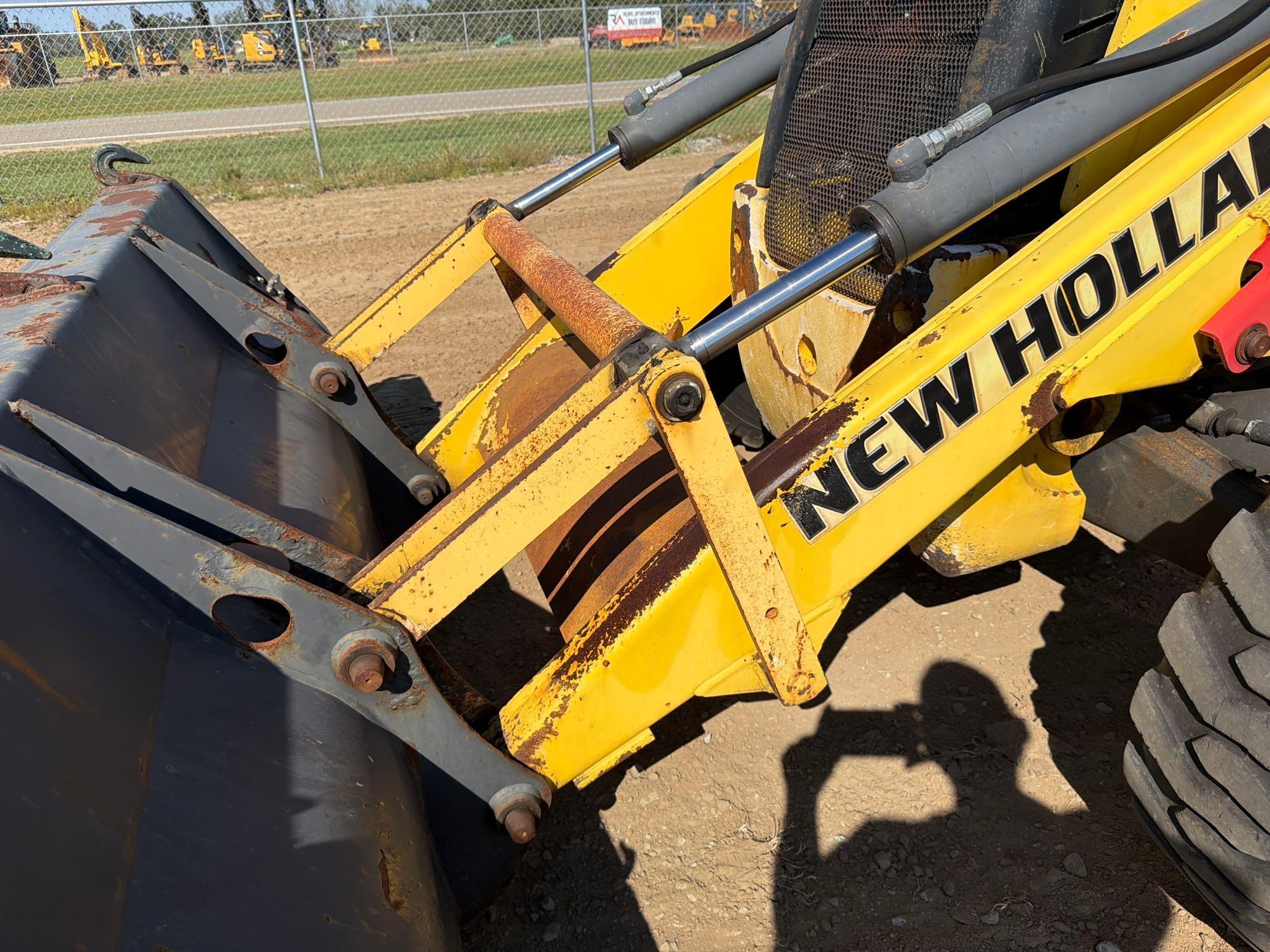

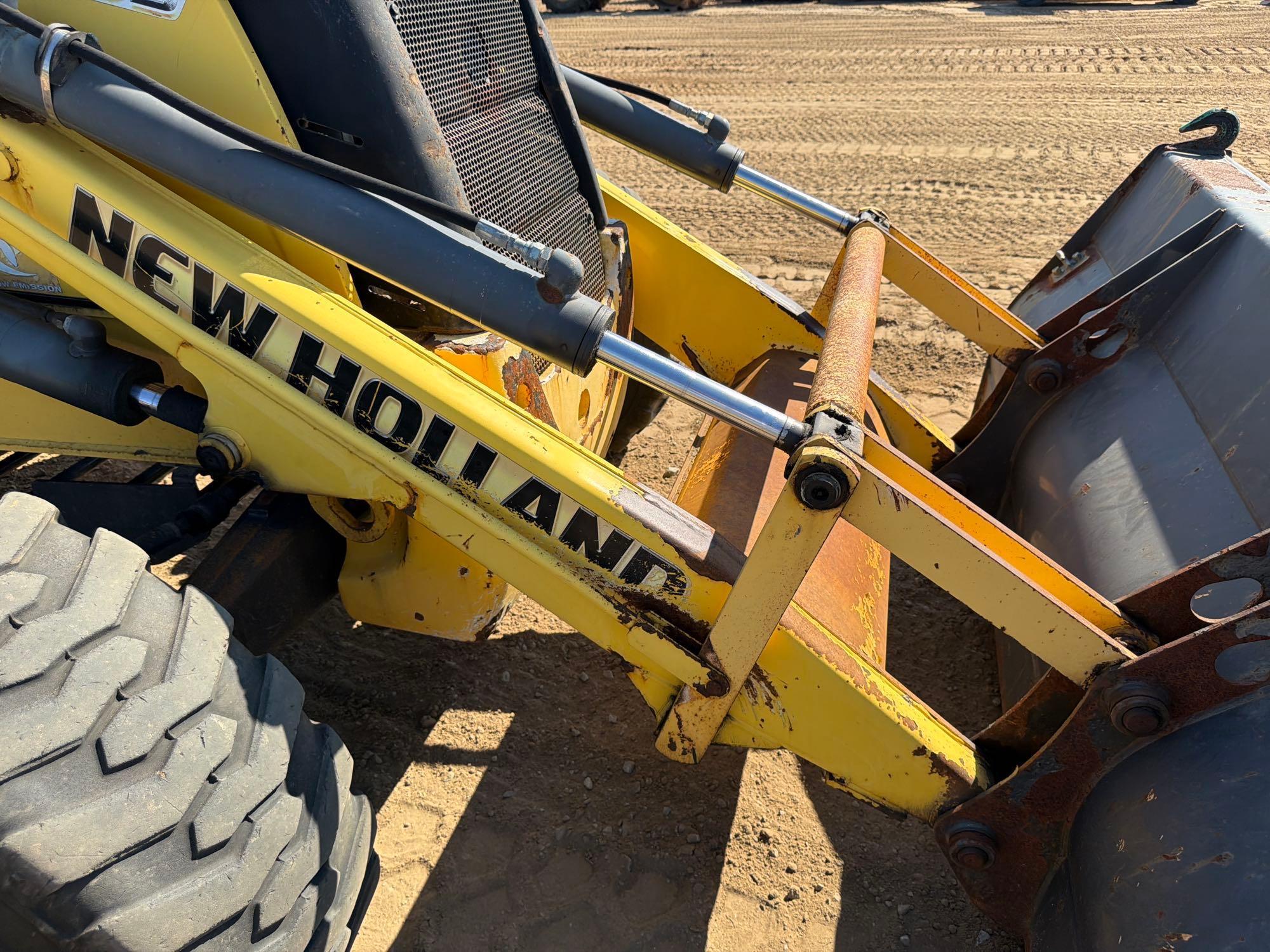

| Loader |
|
Bucket Breakout Force |
1,438,552 lbs (652,517 kg)
|
|
Bucket Width |
88 in (223 cm)
|
|
Clearance At Max Dump Height |
8 ft (2 m)
|
|
Lift Capacity At Full Height |
6,854 lbs (3,109 kg)
|
|
Reach At Max Dump Height |
4 ft (1 m)
|
| Operational |
|
Alternator Supplied Amperage |
90 amps |
|
Cooling System Fluid Capacity |
6 gal (24 l)
|
|
Fuel Capacity |
36 gal (134 l)
|
|
Hydraulic System Fluid Capacity |
31 gal (117 l)
|
|
Oil System Fluid Capacity |
4 gal (14 l)
|
|
Operating Voltage |
12 V |
|
Operating Weight 2wd |
17,350 lbs (7,870 kg)
|
|
Operating Weight 4wd |
18,135 lbs (8,226 kg)
|
|

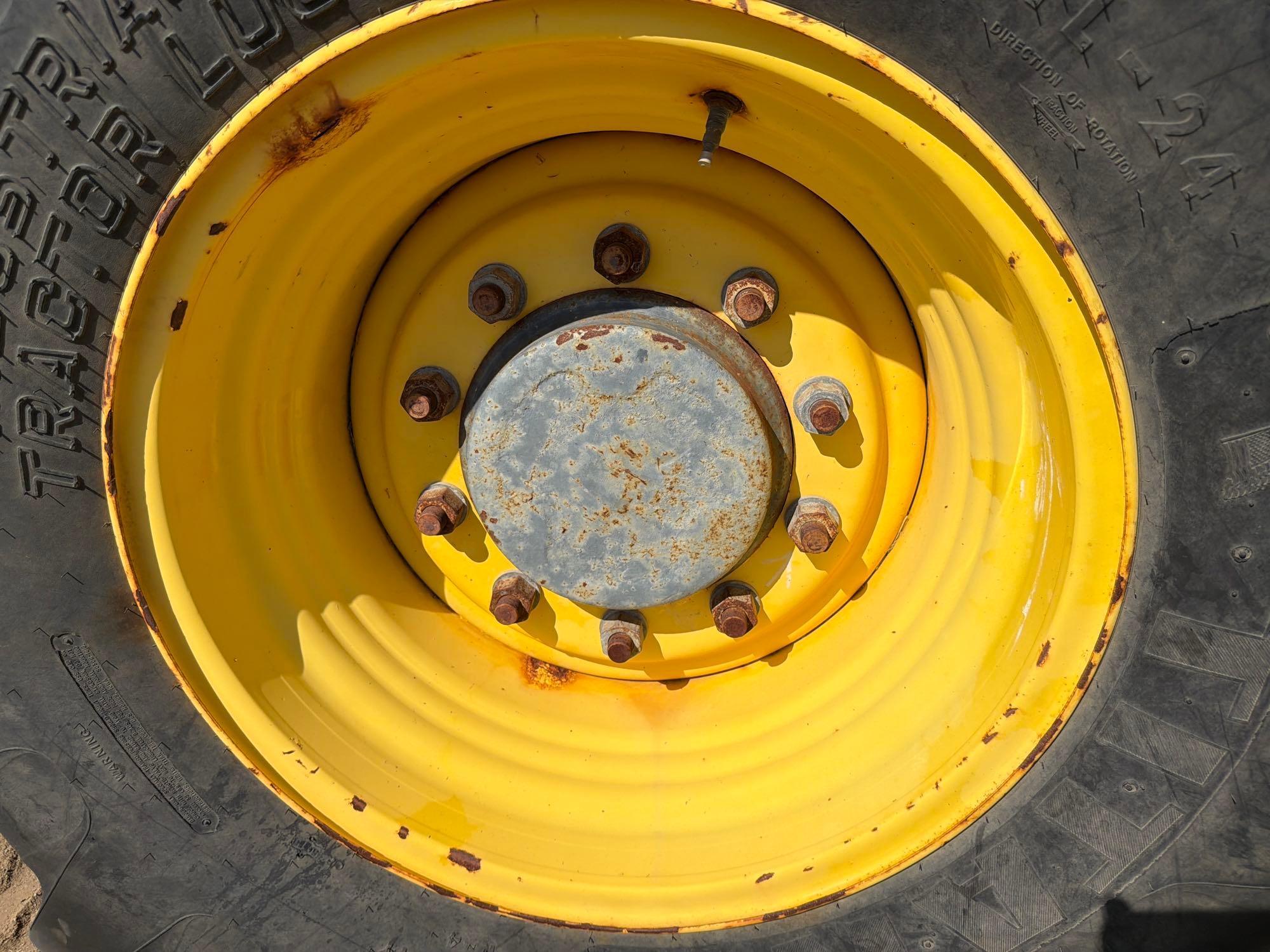

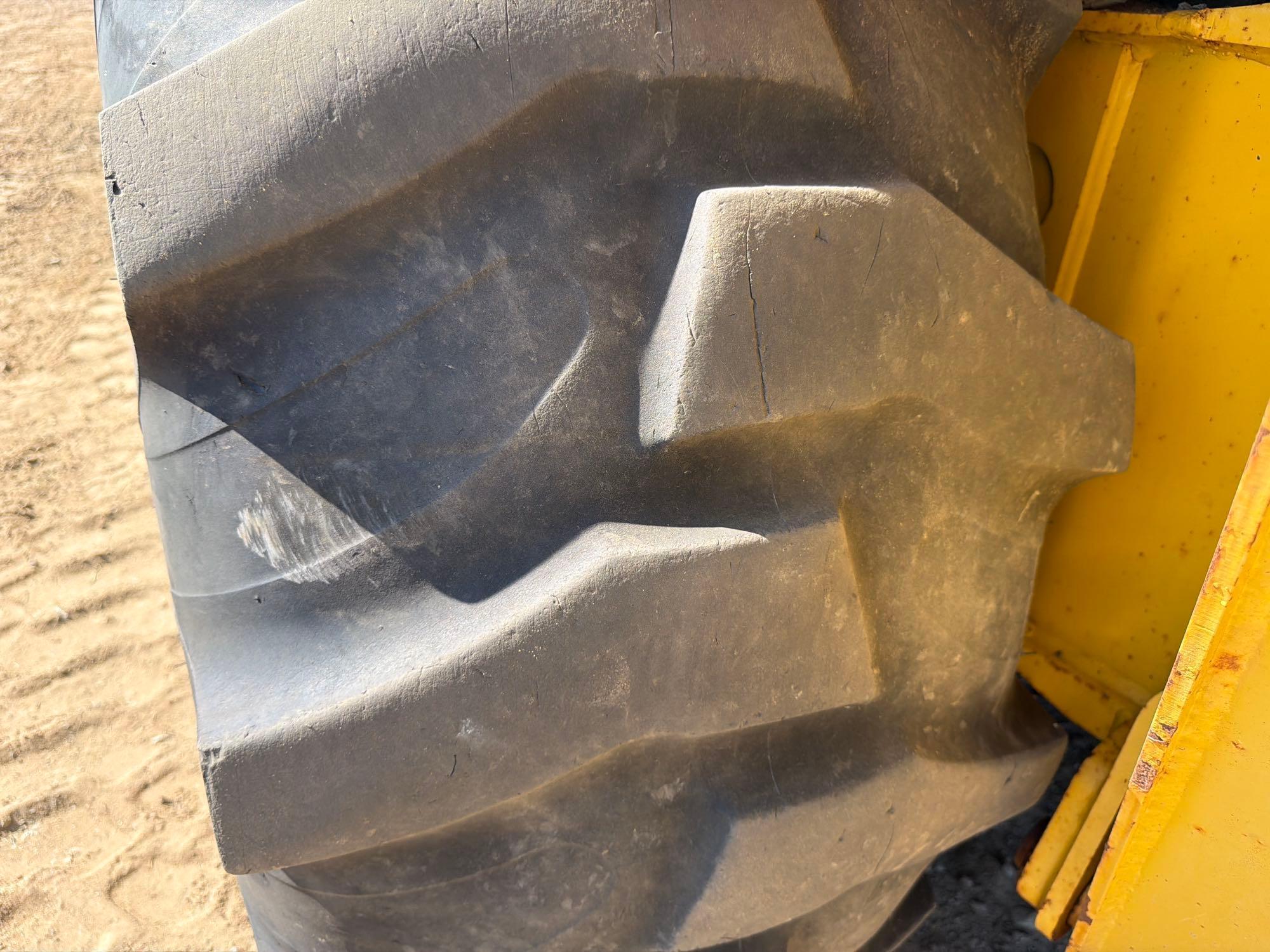

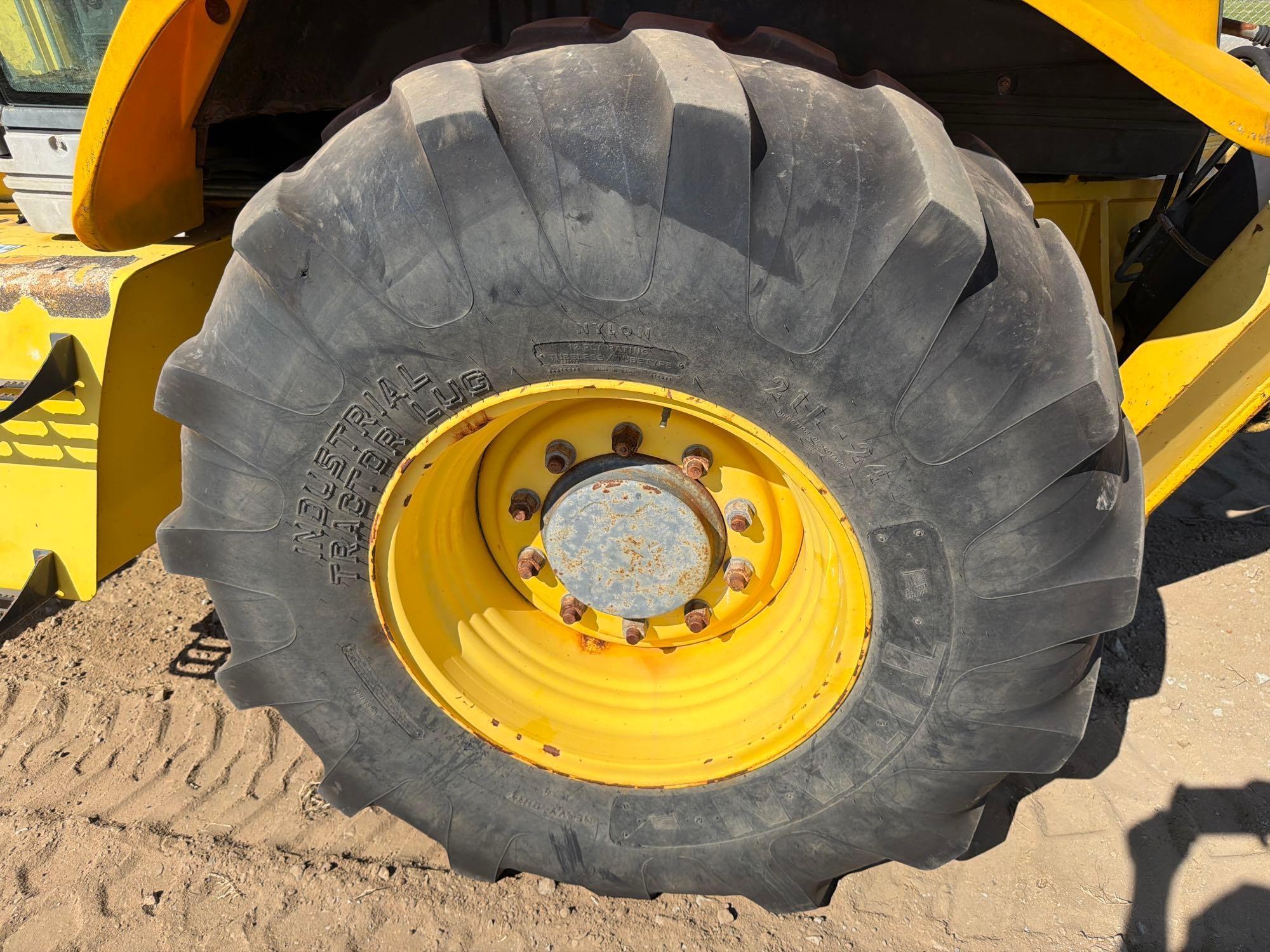

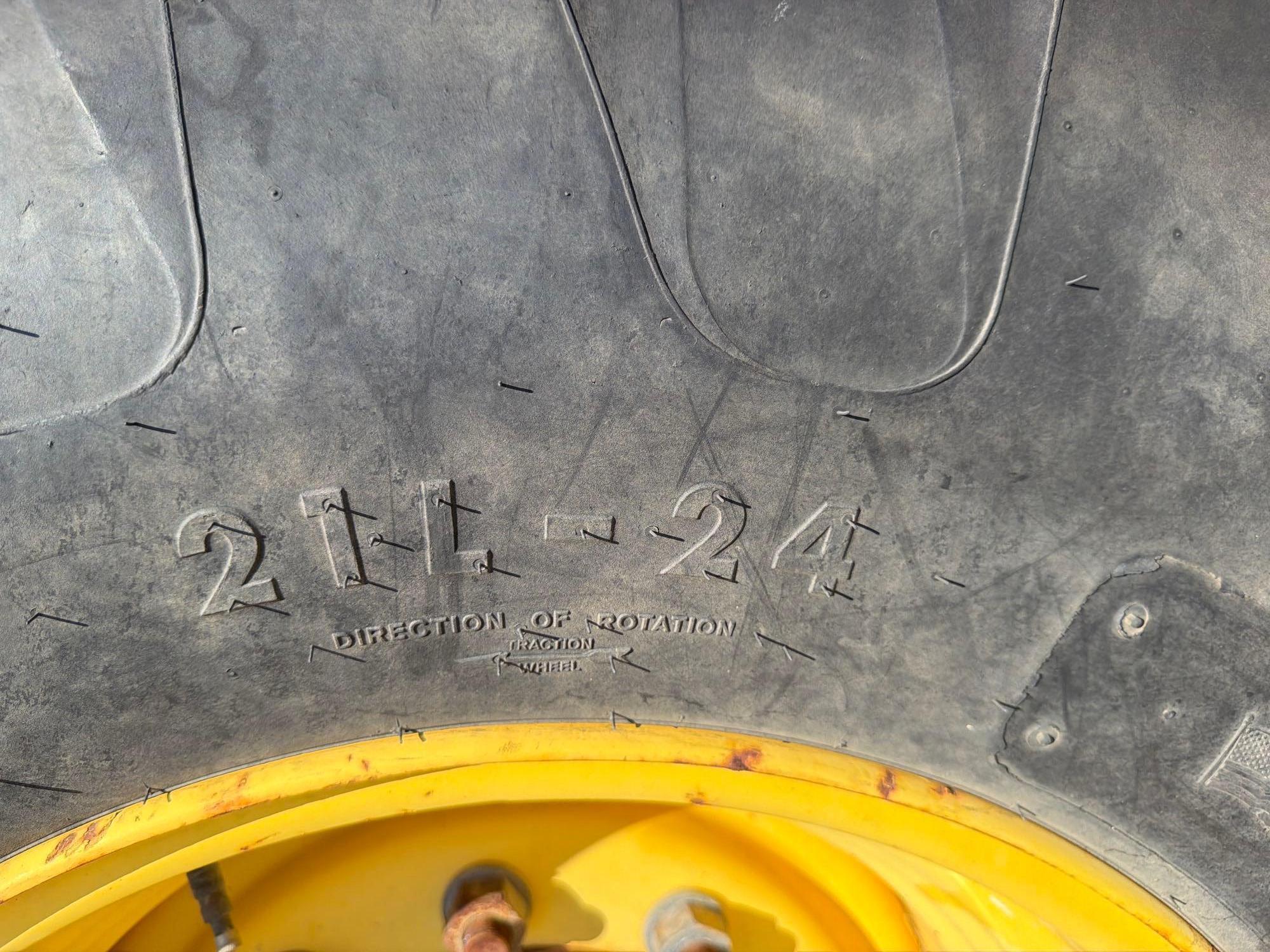

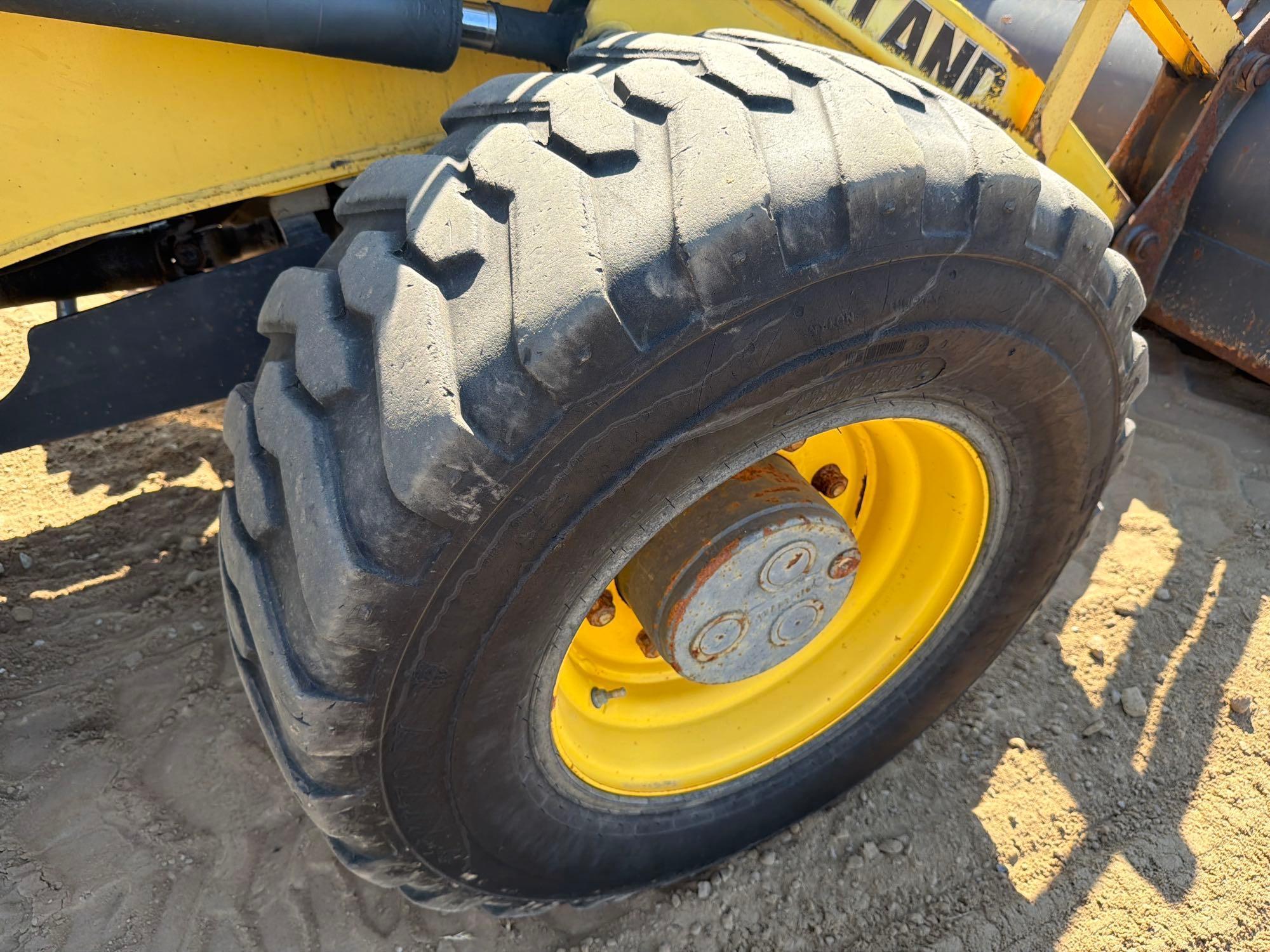

Rear Tires Size 2wd/4wd |
19.5L-24 |
|
Tire Size Front - 2wd / 4wd |
12-16.5 |

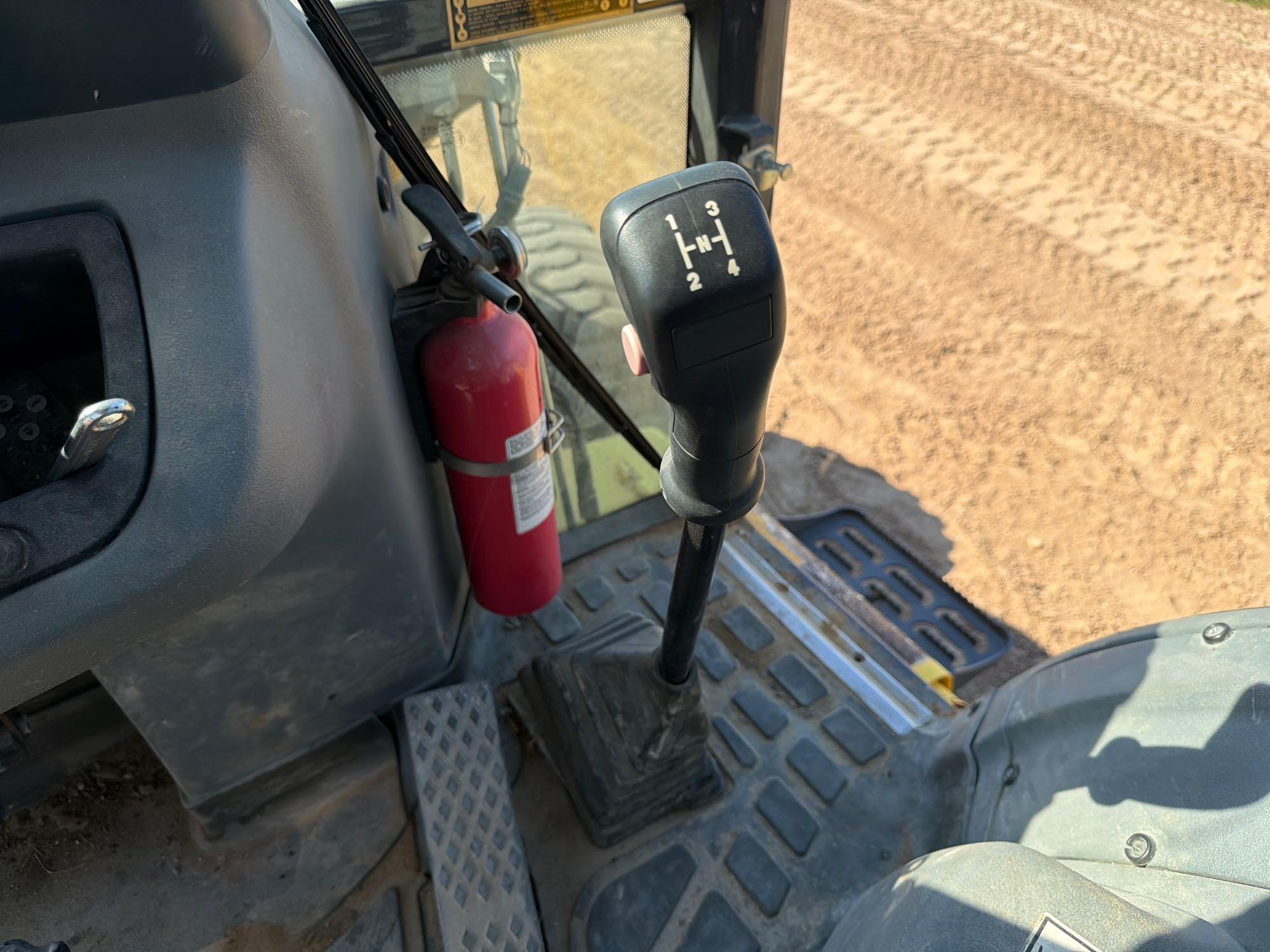

| Transmission |
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
4 |
|
Transmission Type |
Power shuttle |
