2017 New Holland L228 For Sale in Denver, Co

Name: 2017 New Holland L228
Brand: New Holland
SKU: 89463286
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-21 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

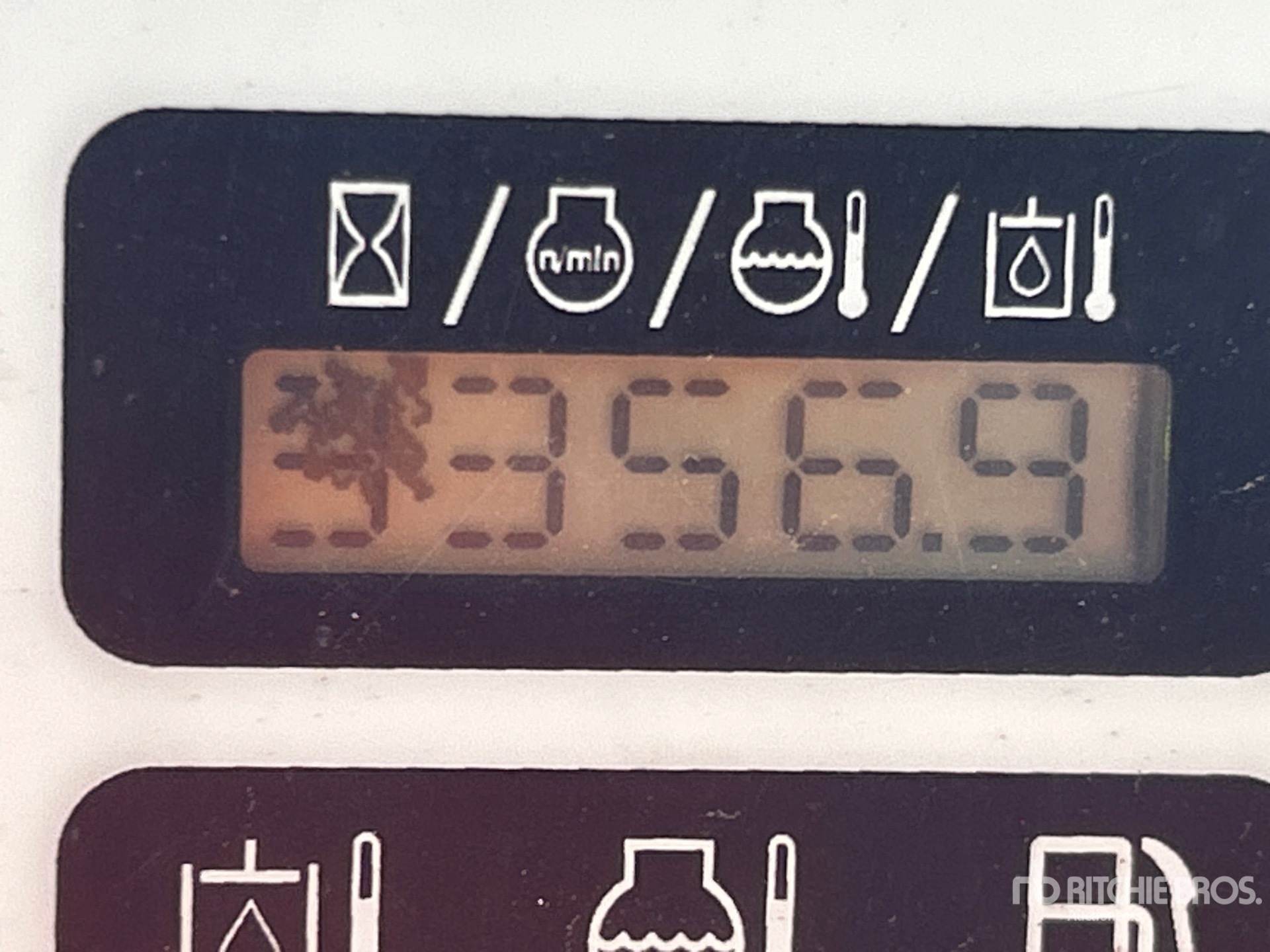

Hours:	3357

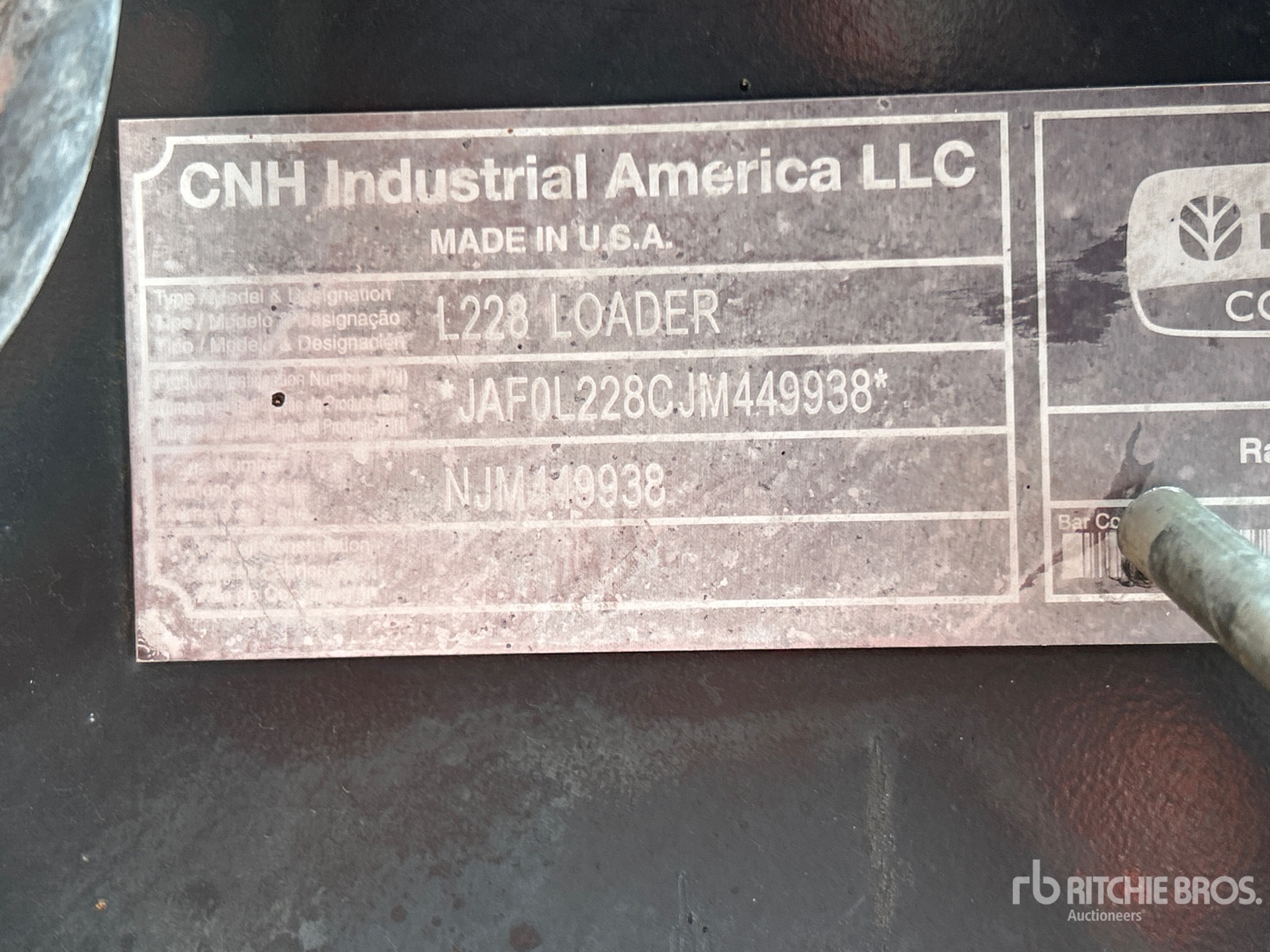

Serial Number:	JAF0L228CJM449938
Machine Location:	DENVER, CO

Description:

Located in Lane 22 Spot 50, Enclosed Cab, Air Conditioner, Hydraulic Coupler

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The New Holland L228 is a skid steer loader designed for construction, landscaping, agriculture, and material handling applications. It is part of New Holland's L Series and is known for its vertical lift design, which supports improved reach and lift height for loading trucks and handling palletized materials. The L228 typically features a compact frame, hydraulic attachment capability, and a cab designed for operator visibility and comfort. Common uses include grading, digging, loading, snow removal, and site cleanup. As a skid steer loader, the New Holland L228 is suited for work in confined spaces where maneuverability and attachment versatility are important.

Capacities
Chain Tanks	6 gal (22 l)
Engine Oil With Filter	2 gal (9 l)
Fuel Tank	26 gal (97 l)
Dimensions
Angle Of Departure	24 degrees
Bottom Of Level Bucket, Fully Raised	123 in (312 cm)
Bucket Hinge Pin	129 in (329 cm)
Dump Angle	55 degrees
Ground Clearance	8 in (20 cm)
Height	7 ft (2 m)
Length	13 ft (4 m)
Overall Width	6 ft (2 m)
Rollback, Bucket At Full Height	85 degrees
Rollback, Bucket On Ground	34 degrees
Top Of Rops	79 in (200 cm)
Weight	8,245 lbs (3,740 kg)
Wheelbase	4 ft (1 m)
Width	7 ft (2 m)
Engine
Air Intake	Turbocharged Aftercooled with external EGR
Bore	4 in (10 cm)
Displacement	208 cu in (3,400 cu cm)
Engine Model	F5H FL463A*F001
Fuel Injection	HPCR Direct
Horsepower Per Sae J1349 Gross	74 hp (55 kw)
Horsepower Per Sae J1349 Net	68 hp (51 kw)
Peak Torque	232 lbs ft (314 nm)
Rated Speed	2,500 rpm
Stroke	4 in (11 cm)
General Specifications
ENGINE POWER (Since 2016)	74 hp (55 kw)
ENGINE POWER (2017)	74 hp (55 kw)
ENGINE POWER (2019)	74 hp (55 kw)
MODEL (Since 2016)	L228
MODEL (2017)	L228
MODEL (2019)	L228
OPERATING LOAD (Since 2016)	2,800 lbs (1,270 kg)
OPERATING LOAD (2017)	2,800 lbs (1,270 kg)
OPERATING WIDTH (Since 2016)	70 in (177 cm)
OPERATING WIDTH (2017)	70 in (177 cm)
OPERATING WIDTH (2019)	70 in (177 cm)
RATED OPERATING CAPACITY (50%) (Since 2019)	2,800 lbs (1,270 kg)
Hydraulic System
Optional High Flow	38 gpm (142 lpm)
Relief Valve Pressure	3,046 psi
Standard Pump Flow	24 gpm (92 lpm)
Performance
Breakout Force, Bucket Cylinder	8,610 lbs (3,906 kg)
Breakout Force, Lift Cylinder	6,137 lbs (2,784 kg)
Operating Weight	8,245 lbs (3,740 kg)
Rated Operating Load, 50% Tip	2,800 lbs (1,270 kg)
Tipping Load	5,600 lbs (2,540 kg)
Power Train
Travel Speed, High Range	11 mph (17 kph)
Travel Speed, Low Range	7 mph (11 kph)
Weights
Operating Weight	8,245 lbs (3,740 kg)
Shipping	7,562 lbs (3,430 kg)
