Auction Pricing
Auction Info: Starting on 2026-10-22 Click here to place a bid

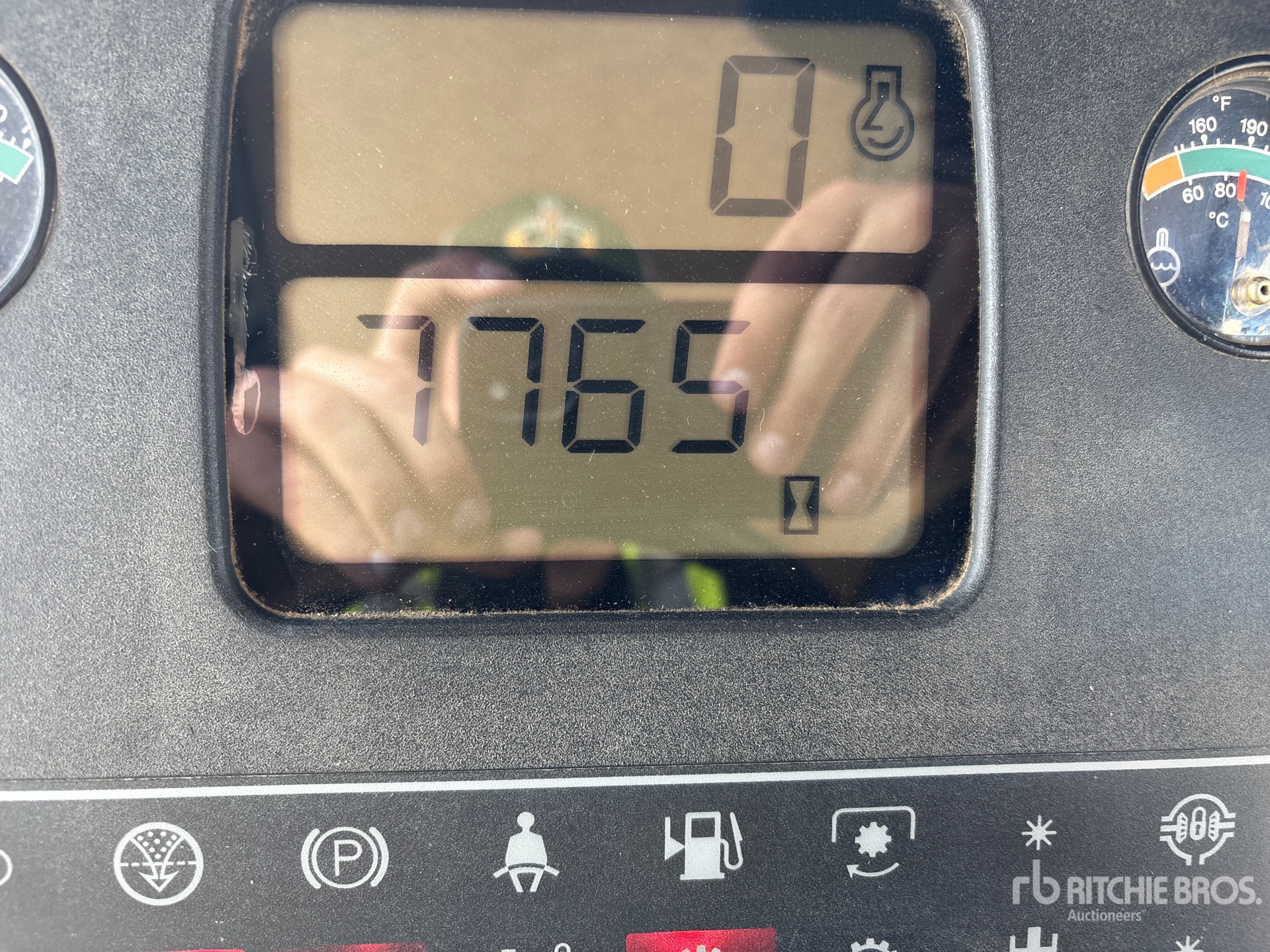

| Hours: | 7765 |
| Serial Number: | Not Available |
| Machine Location: | ROCKGLEN, SK |
Supplied by HeavyEquipmentData.com →
| Dimensions - 4WD | |
| Height To Top Of Cab | 11 ft (3 m) |
| Overall Length | 266 in (675 cm) |
| Overall Width | 13 ft (4 m) |
| Shipping Weight | 20,230 lbs (9,175 kg) |
| Wheelbase | 133 in (337 cm) |
| Engine - 4WD | |
| Aspiration | Turbocharged |
| Bore | 6 in (14 cm) |
| Displacement | 854 cu in (14,001 cu cm) |
| Engine Make | Cummins |
| Engine Model | N14 |
| Gross Power | 425 hp (317 kw) |
| Number Of Cylinders | 6 |
| Power Measured @ | 2,100 rpm |
| Stroke | 6 in (15 cm) |
| Torque | 1,400 lbs ft (1,898 nm) |
| Hydraulic System - 4WD | |
| Hydraulic System Type | Closed center load sensing |
| Number Of Remote Control Valves | 1 to 4 |
| Pump Flow Capacity | 50 gpm (189 lpm) |
| Relief Valve Pressure | 2,900 psi |
| Operational - 4WD | |
| 3 Point Hitch Lift Capacity @ 24 Inches | 13,000 lbs (5,896 kg) |
| 3 Point Hitch Type | IVN/3 |
| Alternator Supplied Amperage | 130 amps |
| Cooling System Fluid Capacity | 16 gal (61 l) |
| Engine Oil Capacity | 10 gal (39 l) |
| Front Diff Fluid Capacity | 7 gal (27 l) |
| Front Tire Size | 710/70R38 |
| Fuel Capacity | 230 gal (871 l) |
| Hydraulic System Fluid Capacity | 31 gal (117 l) |
| Operating Voltage | 12 V |
| Operating Weight | 44,000 lbs (19,955 kg) |
| Rear Diff Fluid Capacity | 7 gal (27 l) |
| Rear Tire Size | 710/70R38 |
| Transmission - 4WD | |
| Max Speed - Forward | 17 mph (28 kph) |
| Max Speed - Reverse | 6 mph (10 kph) |
| Number Of Forward Gears | 12 |
| Number Of Reverse Gears | 4 |
| Transmission Type | Partially synchronized |
