2004 Takeuchi TL150 For Sale in Birmingham, AL

Name: 2004 Takeuchi TL150
Brand: Takeuchi
SKU: 89405960
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-10-14

JJ Kane Auctions

JJ Kane Auctions Dealer Info

JJ Kane Auctions Website

Click here to email JJ Kane Auctions.

Click for Phone Number

Machine Info:

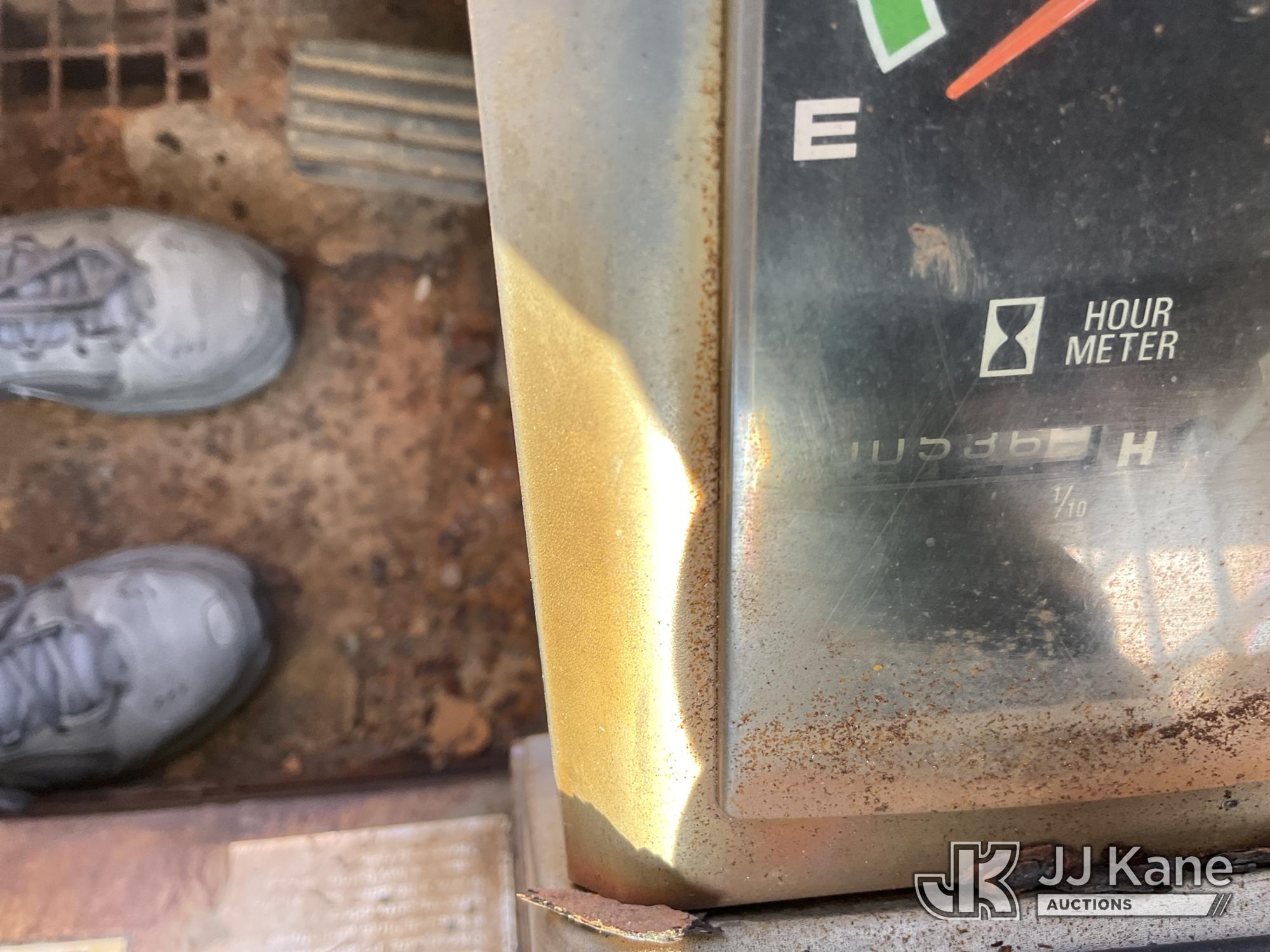

Hours:	536

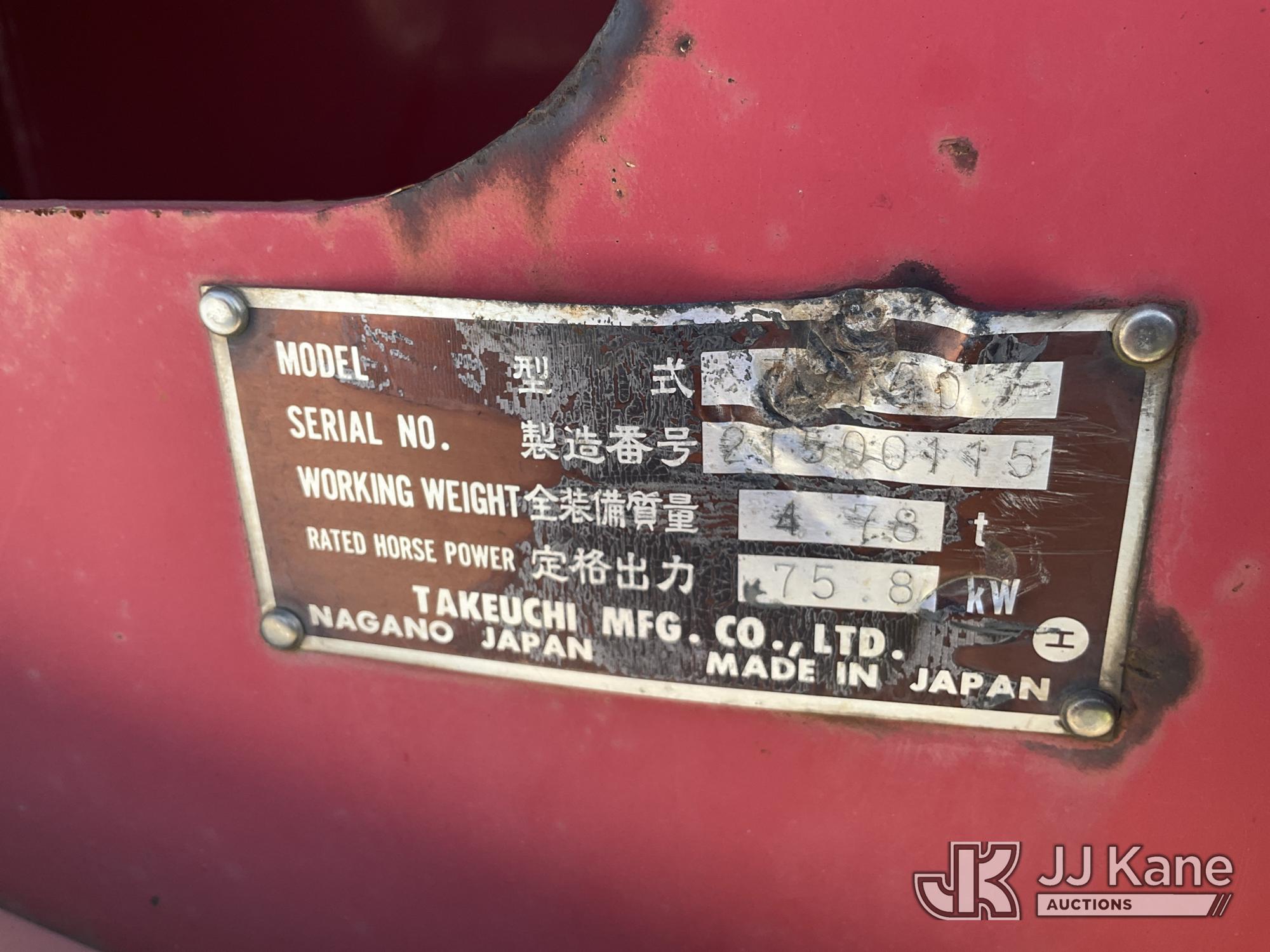

Serial Number:	21500115
Machine Location:	BIRMINGHAM, AL

Description:

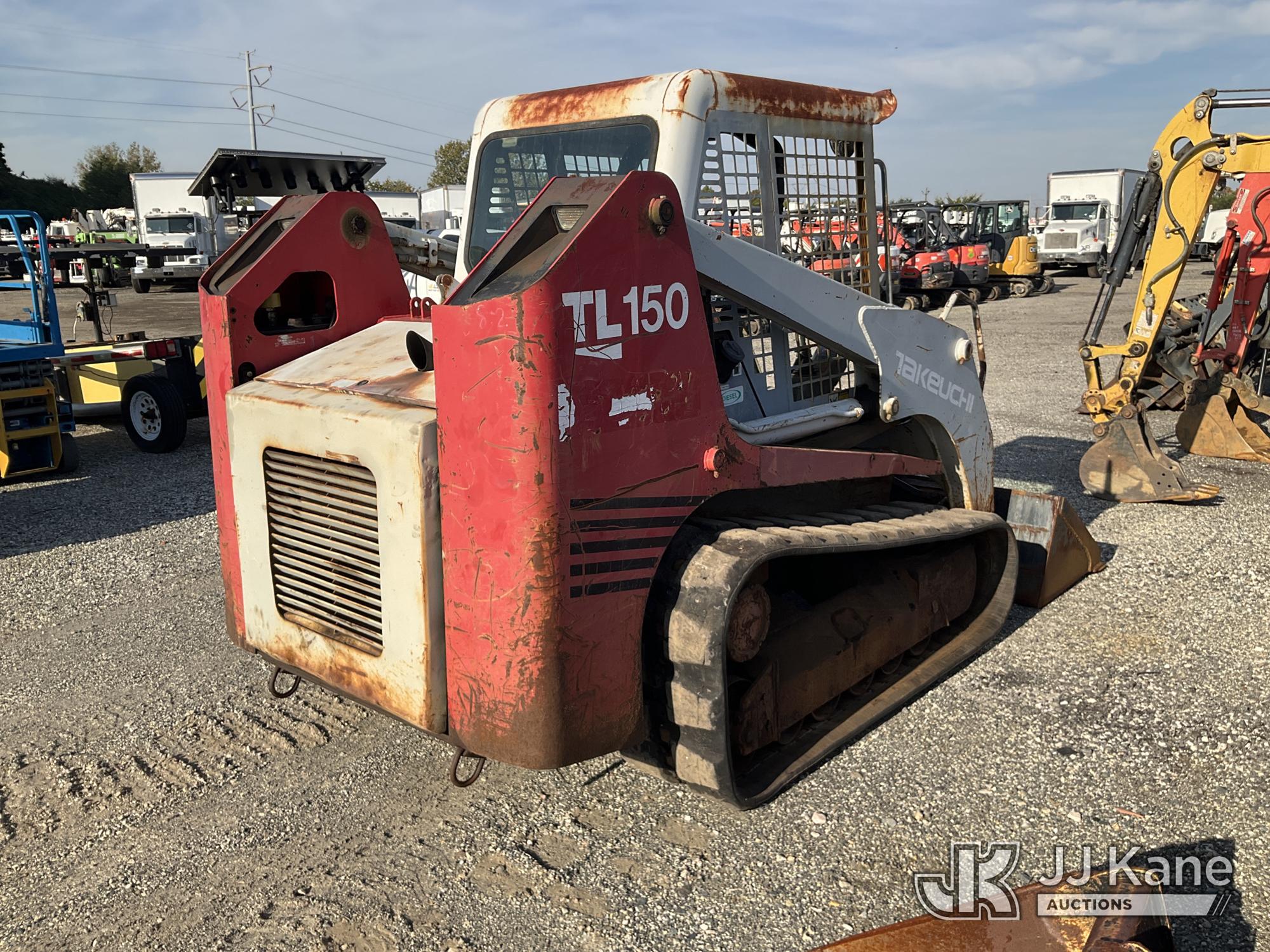

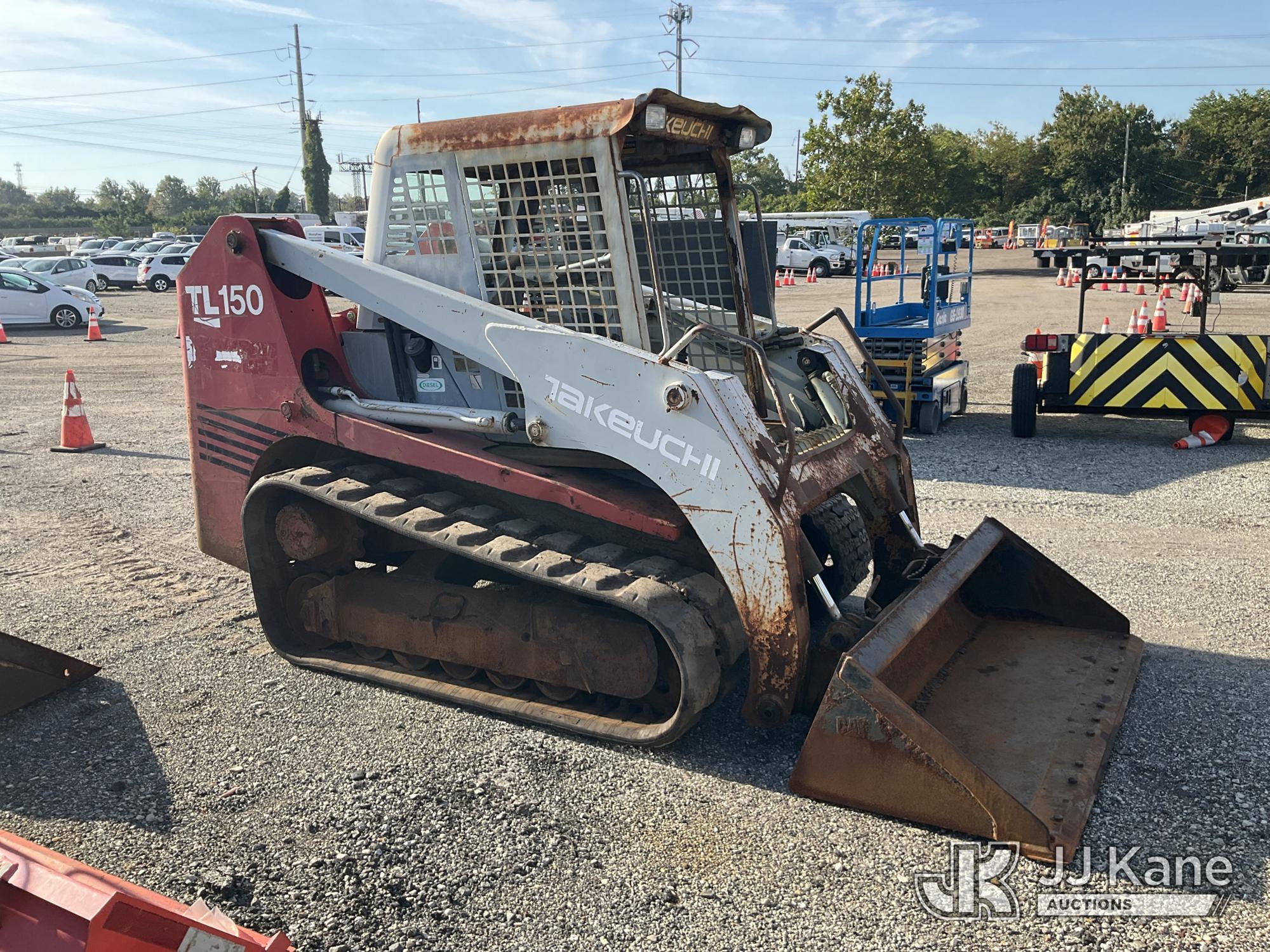

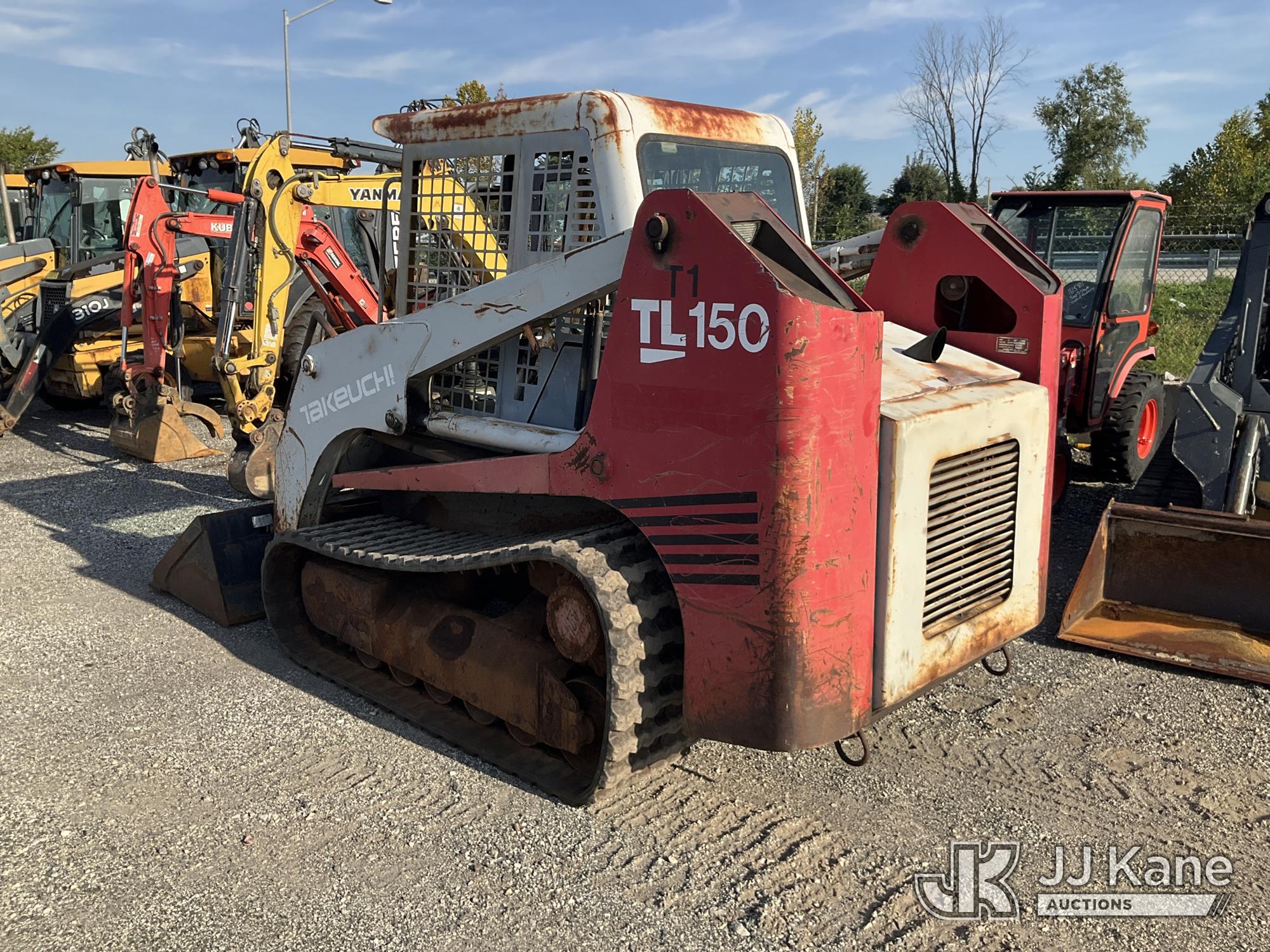

2004 Takeuchi TL150 Crawler Skid Steer Loader, s/n 21500115, Diesel, Hydraulic Drive, with QD GP Loader Bucket, Aux Hyd Outlet, Rubber Tracks & ROPS, (Runs & Moves) (Exterior Defects —Missing Seat) (Reads 536 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Plymouth Meeting, PA. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 1402 Conshohocken Rd Plymouth Meeting, PA 19462 and hours of operations are 8a-4p. For pre-sale questions, please contact Bruce Thomas @ (267) 887-0392 or [email protected]. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Clearance At Full Height And Dump	8 ft (2 m)
Clearance At Max Lift And Dump	11 ft (3 m)
Ground Clearance	13 in (34 cm)
Height	8 ft (2 m)
Height To Top Of Cab	8 ft (2 m)
Length	13 ft (4 m)
Length With Bucket	13 ft (4 m)
Length With Bucket On Ground	8 ft (2 m)
Reach At Dump Height	3 ft (1 m)
Reach At Max Lift And Dump	3 ft (1 m)
Turning Radius From Center - Inc Bucket	96 in (243 cm)
Turning Radius From Center - Machine Rear	69 in (175 cm)
Weight	10,910 lbs (4,949 kg)
Width	7 ft (2 m)
Width Over Tracks	6 ft (2 m)
Engine
Displacement	269 cu in (4,408 cu cm)
Displacement	4 cu in (66 cu cm)
Engine Make	2,348
Engine Make	2,348
Engine Model	4TNV106T
Engine Model	4TNV106T
Gross Power	97 hp (72 kw)
Number Of Cylinders	4
Peak Torque	291 lbs ft (395 nm)
Power Measured @	2,200 rpm
Torque Measured @	1,400 rpm
Hydraulic
Dump Time	3 sec
Lower Time	3 sec
Pump Flow	23 gpm (89 lpm)
Raise Time	5 sec
Relief Valve Pressure	2,986 psi
Loader
Breakout Force	8,692 lbs (3,943 kg)
Operating Load	2,470 lbs (1,120 kg)
Tipping Angle	7,056 degrees
Operational
Alternator Supplied Amperage	60 amps
Alternator Supplied Amperage	60 amps
Breakout Force - Std Bucket	8,692 lbs (3,943 kg)
Cooling System Fluid Capacity	15 gal (58 l)
Cooling System Fluid Capacity	4 gal (15 l)
Engine Oil Capacity	14 gal (53 l)
Engine Oil Capacity	4 gal (14 l)
Fuel Capacity	29 gal (108 l)
Fuel Capacity	29 gal (108 l)
Hydraulic System Fluid Capacity	17 gal (64 l)
Hydraulic System Fluid Capacity	17 gal (64 l)
Max Speed	5 mph (8 kph)
Max Speed - High Range	7 mph (11 kph)
Max Speed - Low Range	5 mph (8 kph)
Operating Voltage	12 V
Operating Voltage	12 V
Operating Weight	10,902 lbs (4,945 kg)
Operating Weight	10,902 lbs (4,945 kg)
Static Tipping Load	7,056 lbs (3,201 kg)

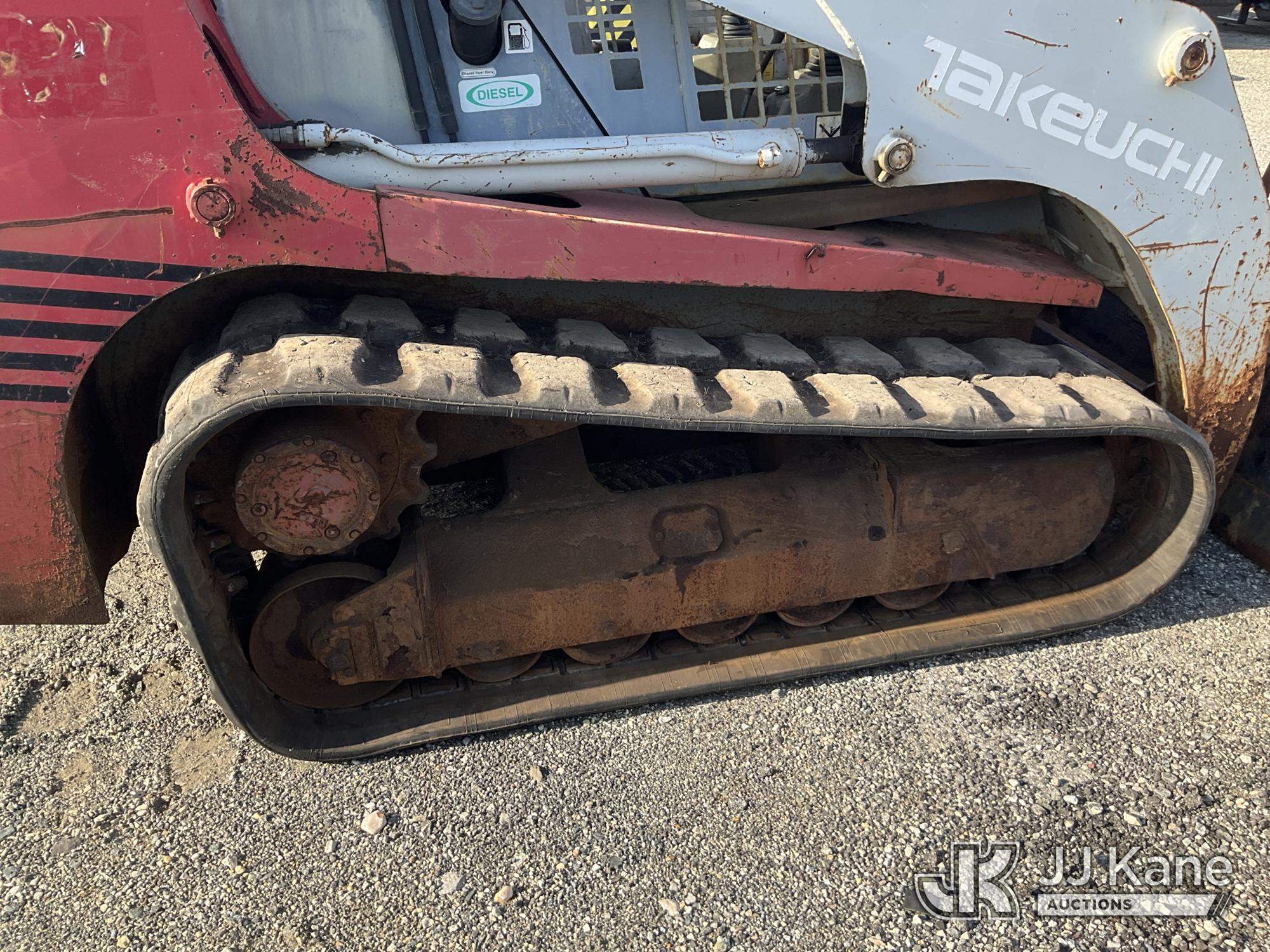

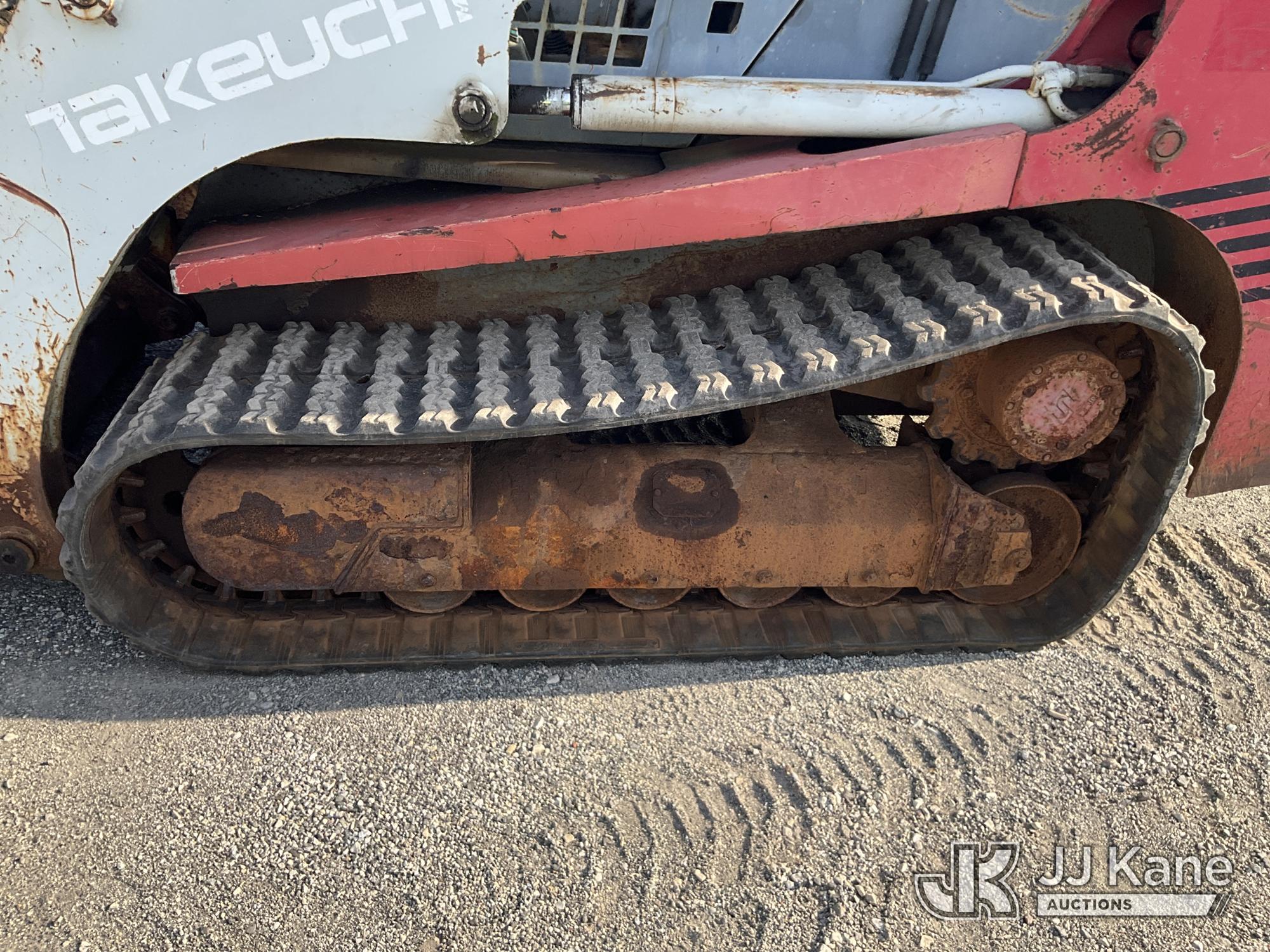

Undercarriage
Ground Pressure	4 psi
Ground Pressure	4 psi
Length Of Track On Ground	5 ft (2 m)
Length Of Track On Ground	5 ft (2 m)
Number Of Track Rollers Per Side	6
Number Of Track Rollers Per Side	6
Width Of Track	18 in (46 cm)
