2006 Takeuchi TB135 For Sale in Birmingham, AL
Auction Pricing
Auction Info: Starting on 2026-09-11
Machine Info:
| Hours: | 3918 |
| Serial Number: | 13517556 |
| Machine Location: | BIRMINGHAM, AL |
Description:

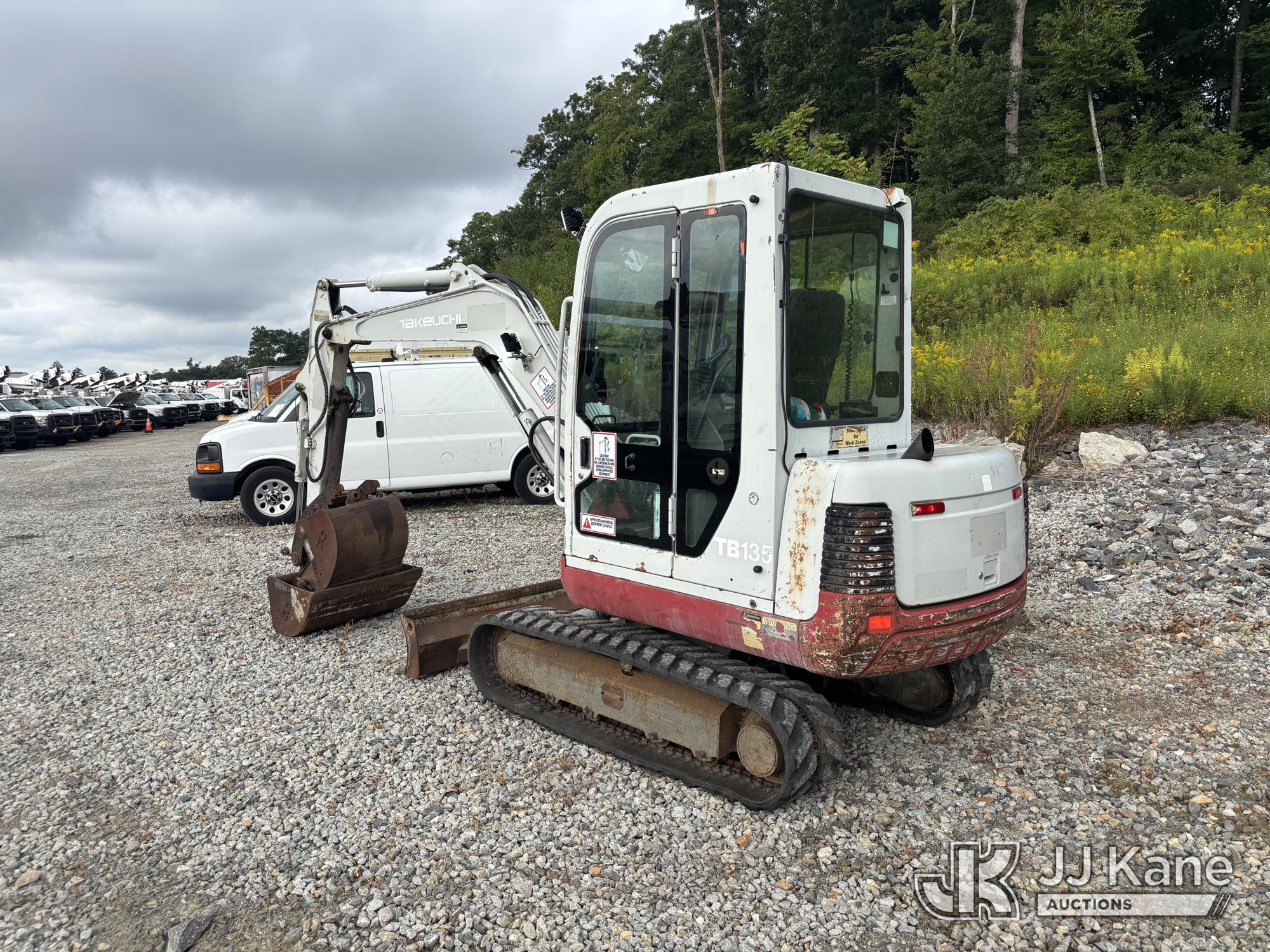

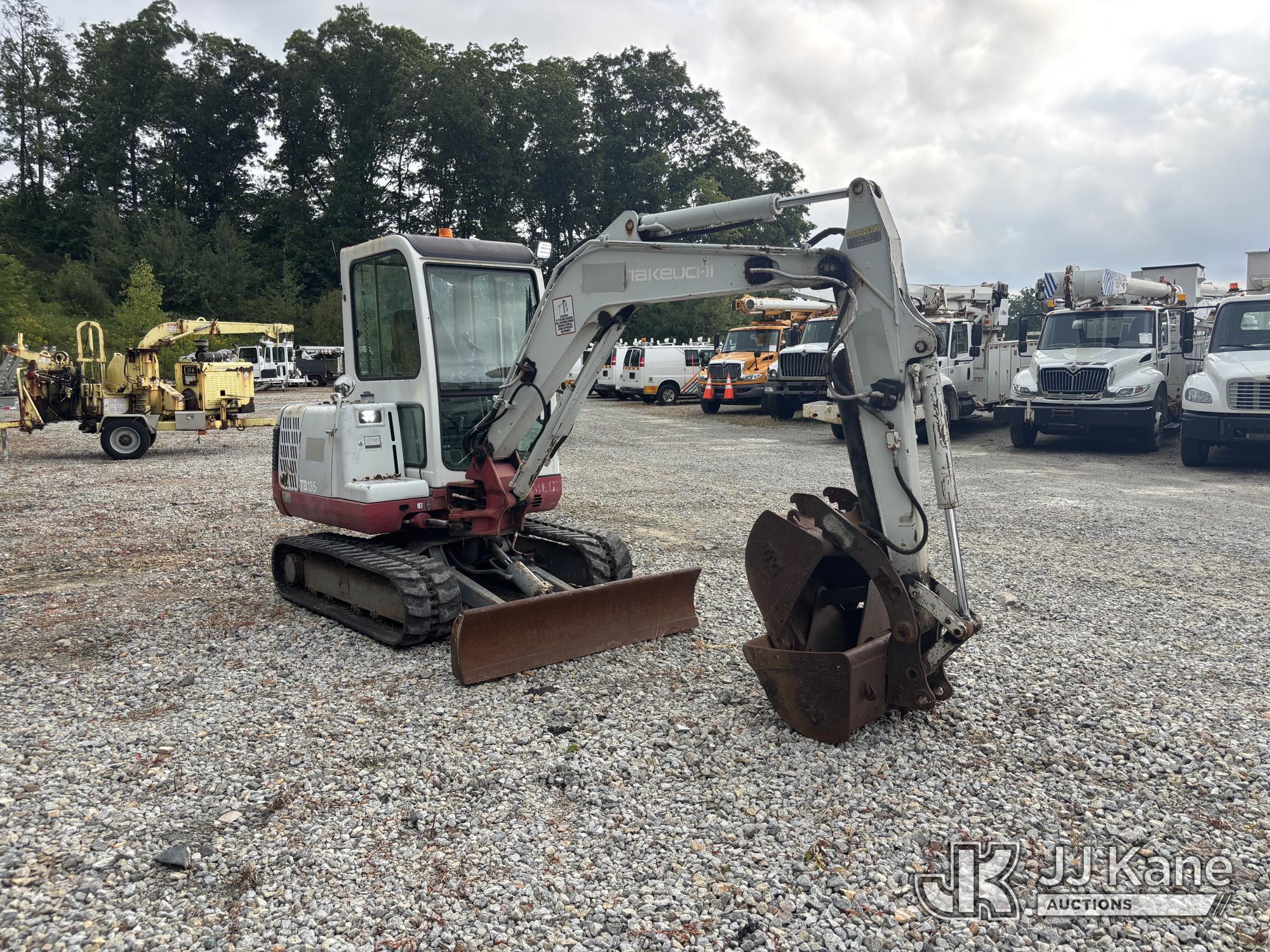

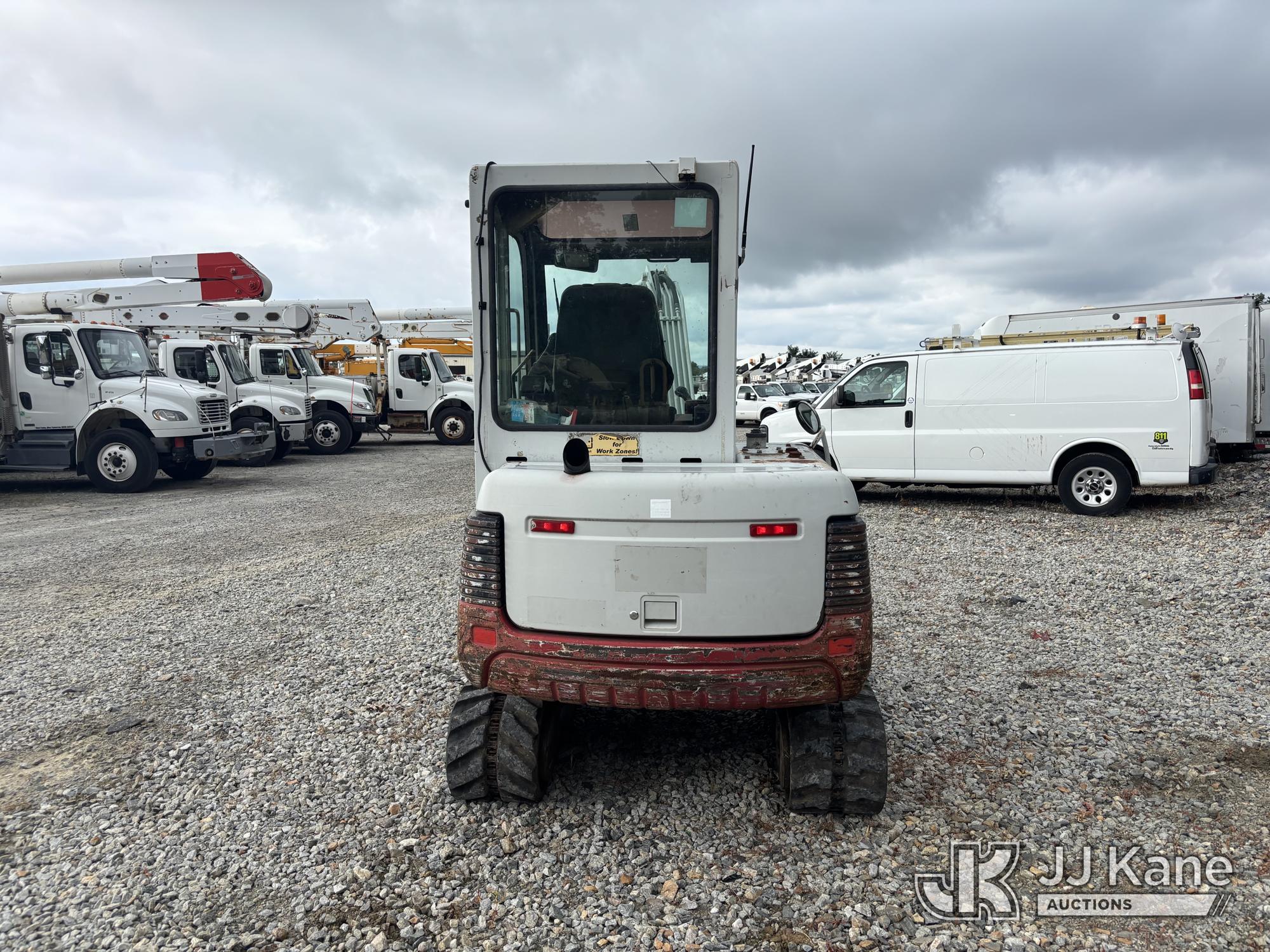

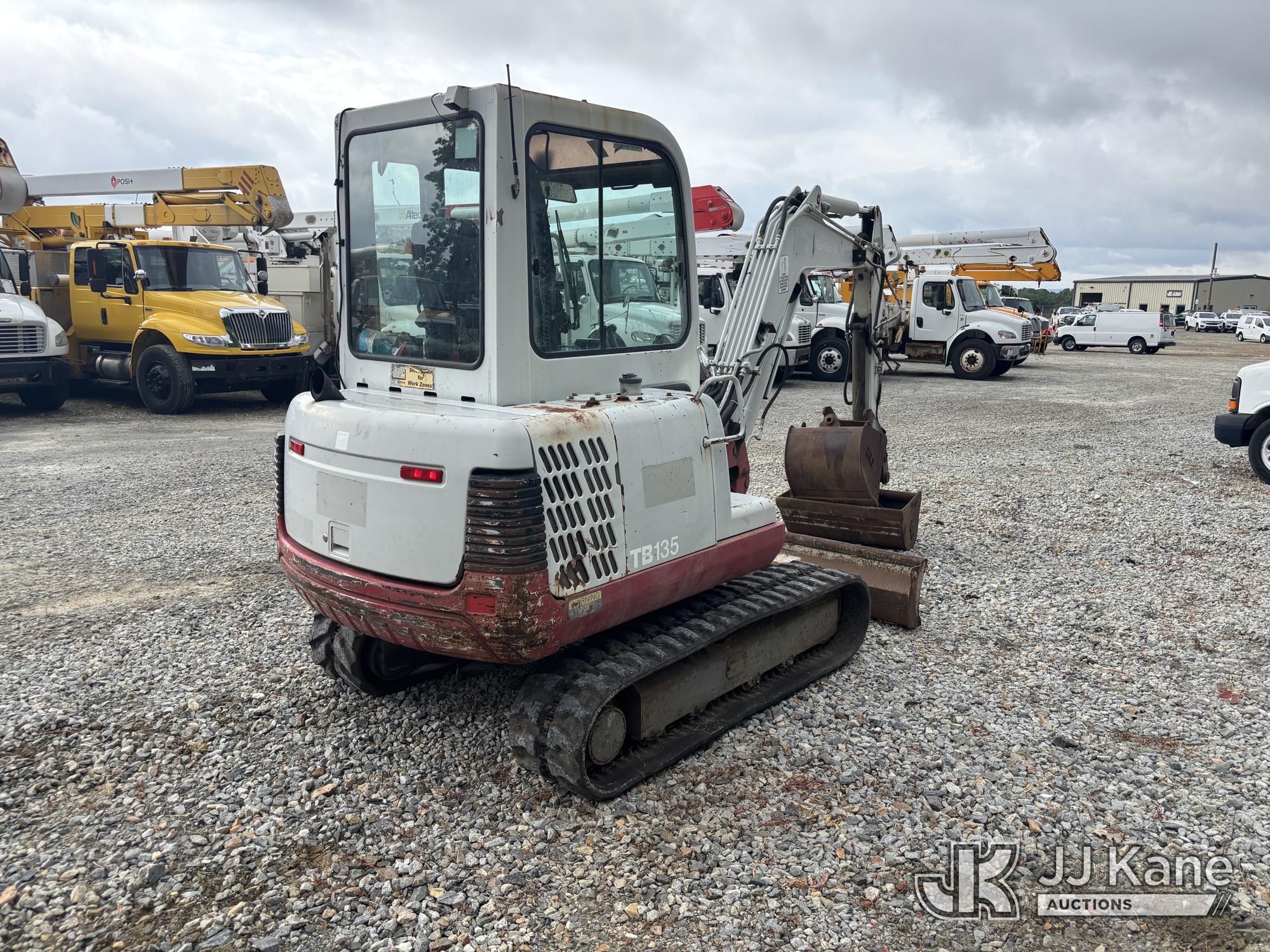

2006 Takeuchi TB135 Mini Hydraulic Excavator, s/n 13517556, Yanmar Diesel, Hydraulic Drive, with 2-speed travel, boom swing, 2 digging buckets, 1 trench bucket, hyd thumb, rubber tracks & EROPS, (Runs, Moves & Operates) (Reads 3,918 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Shrewsbury, MA. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 11 Fortune Blvd Shrewsbury, MA 01545 and hours of operations are 8a-4p. For pre-sale questions, please contact Office Staff @ (508) 864-4126. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)
From the manufacturer:
Supplied by HeavyEquipmentData.com →
The Takeuchi TB135 is a compact mini excavator designed for construction, landscaping, utility, and site preparation work. It is part of Takeuchi's TB series and is known for its small footprint, maneuverability, and suitability for confined job sites. The TB135 typically features a conventional tail swing design, hydraulic digging capability, and compatibility with a range of attachments. Its size makes it useful for trenching, grading, digging, and material handling in areas where larger excavators cannot operate efficiently. The model is commonly used by contractors needing a balance of reach, control, and transportability in a mini excavator package.
| Boom/Stick 1 |
|
Max Digging Depth |
11 ft (3 m)
|
|
Max Loading Height |
13 ft (4 m)
|
|
Max Reach Along Ground |
18 ft (5 m)
|
|
Max Vertical Wall Digging Depth |
9 ft (3 m)
|
|
Shipping Length Of Unit |
17 ft (5 m)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
8 ft (2 m)
|
|
Height To Top Of Cab |
8 ft (2 m)
|
|
Length |
17 ft (5 m)
|
|
Length Of Track On Ground |
5 ft (2 m)
|
|
Tail Swing Radius |
5 ft (1 m)
|
|
Weight |
7,606 lbs (3,449 kg)
|
|
Width |
5 ft (2 m)
|
|
Width To Outside Of Tracks |
5 ft (2 m)
|
| Engine |
|
Displacement |
100 cu in (1,639 cu cm)
|
|
Engine Make |
2,348 |
|
Engine Model |
3TNV88-QTB |
|
Gross Power |
28 hp (21 kw)
|
|
Max Torque |
79 lbs ft (107 nm)
|
|
Number Of Cylinders |
3 |
|
Power Measured @ |
2,300 rpm |
|
Torque Measured @ |
1,400 rpm |
| Operational |
|
Alternator Supplied Amperage |
40 amps |
|
Cooling System Fluid Capacity |
2 gal (6 l)
|
|
Engine Oil Capacity |
1 gal (5 l)
|
|
Fuel Capacity |
14 gal (51 l)
|
|
Hydraulic Pump Flow Capacity |
20 gpm (75 lpm)
|
|
Hydraulic System Fluid Capacity |
23 gal (85 l)
|
|
Hydraulic System Relief Valve Pressure |
3,000 psi |
|
Operating Voltage |
12 V |
|
Operating Weight |
7,831 lbs (3,552 kg)
|
| Swing Mechanism |
|
Swing Speed |
9 rpm |
| Undercarriage |
|
Ground Pressure |
4 psi |
|
Max Travel Speed |
3 mph (5 kph)
|
|
Number Of Carrier Rollers Per Side |
1 |
|
Number Of Track Rollers Per Side |
4 |
|
Shoe Size |
14 in (36 cm)
|
