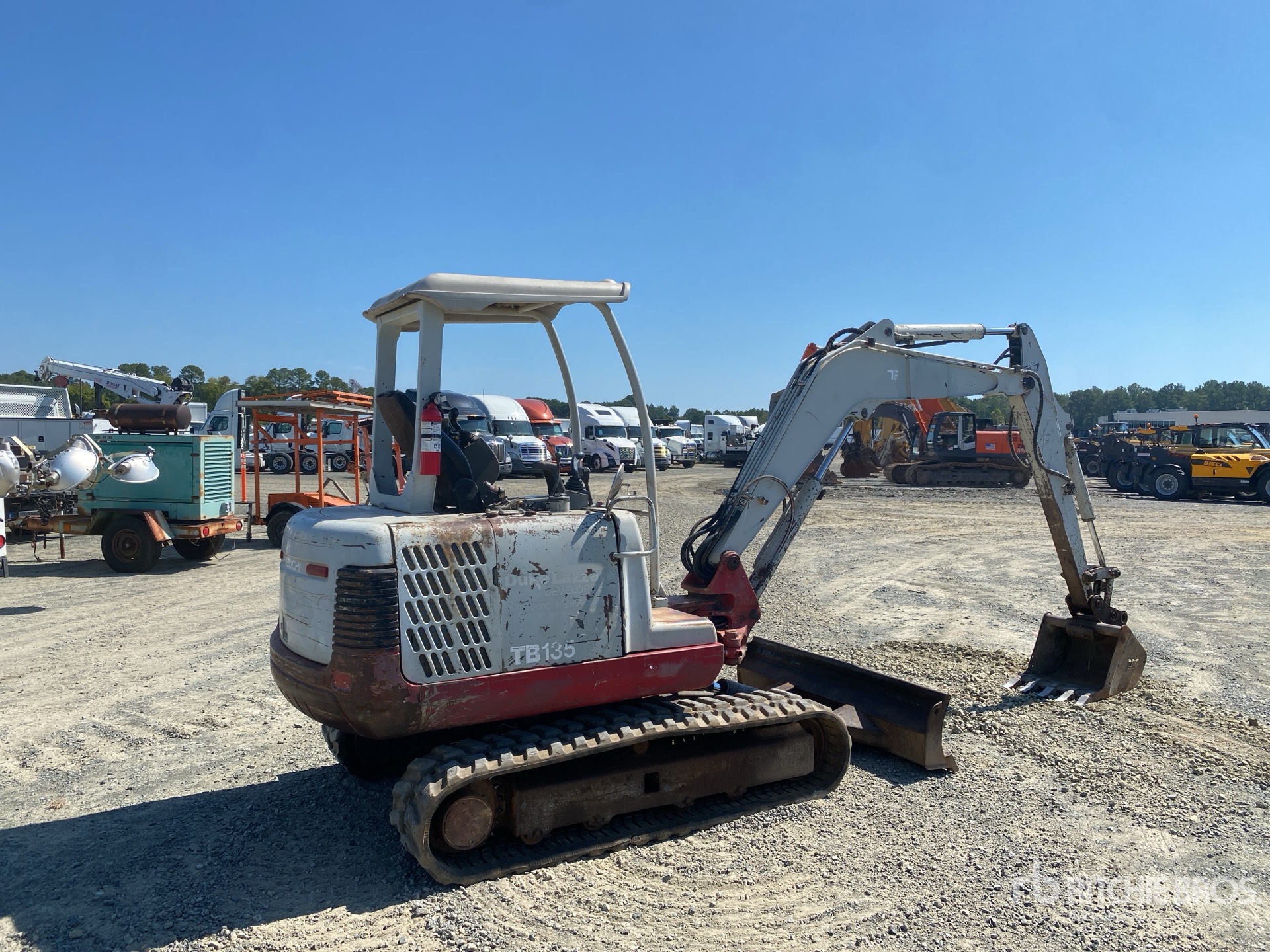

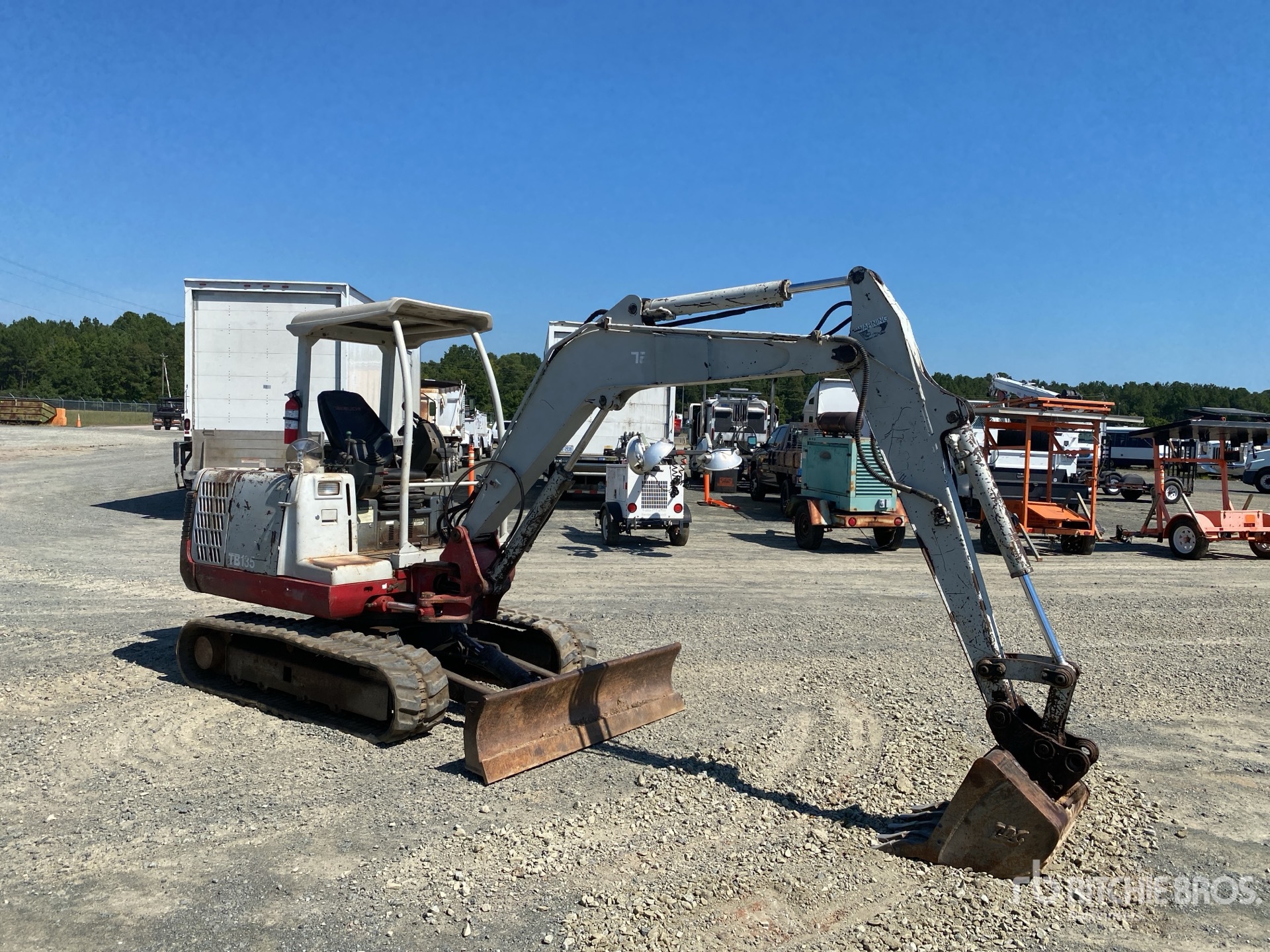

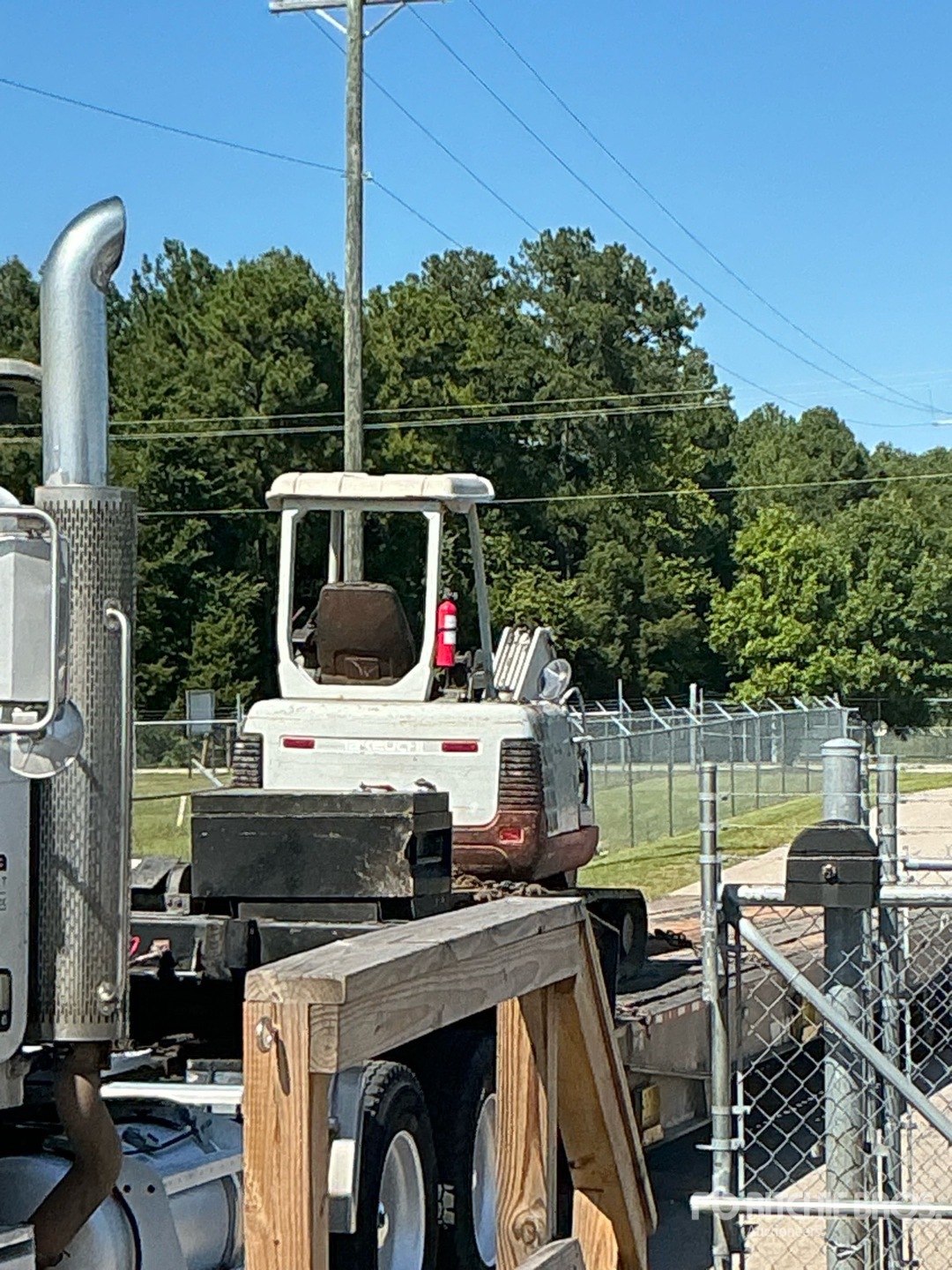

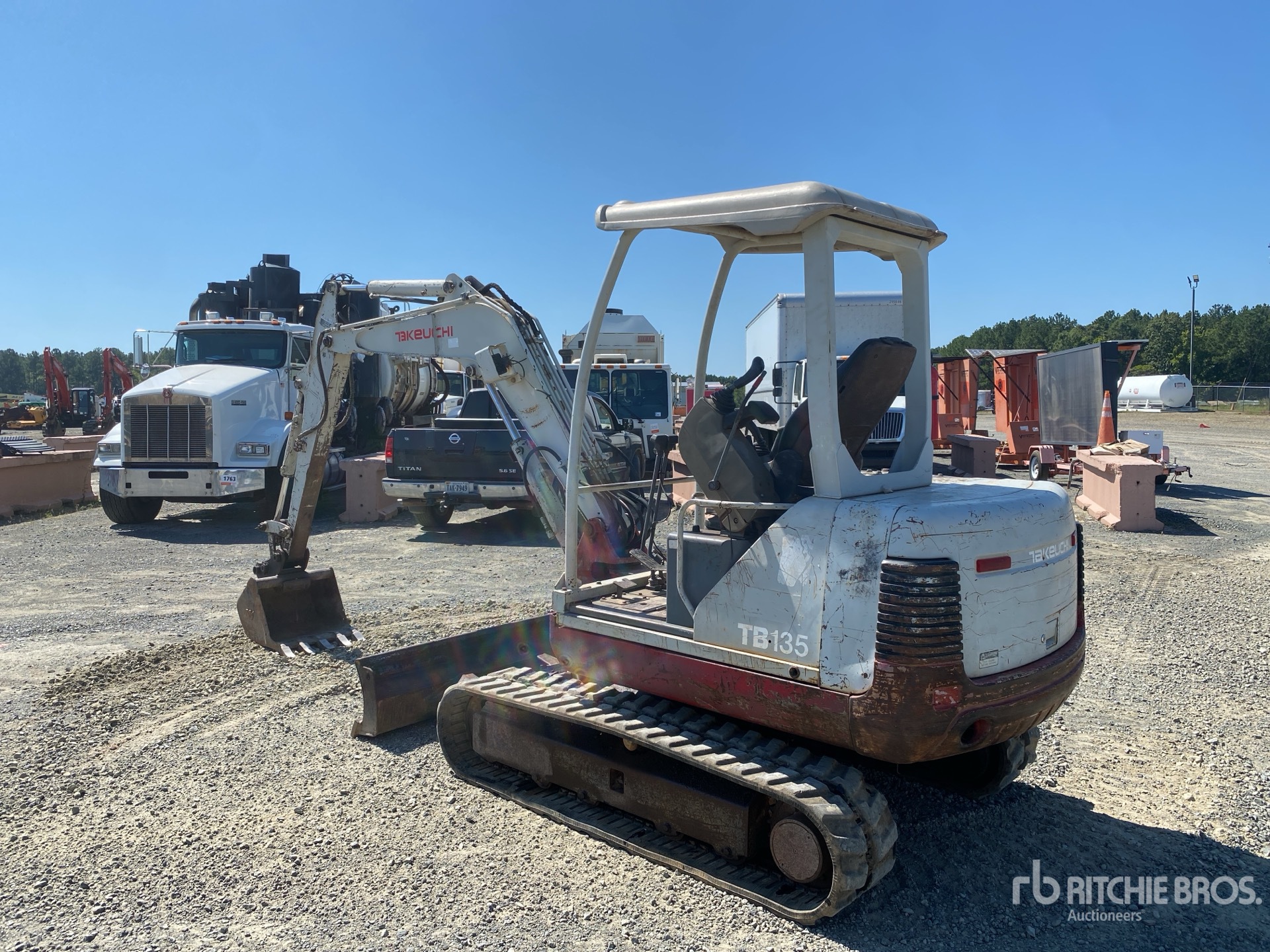

2006 Takeuchi TB135 For Sale in North East, Md

Name: 2006 Takeuchi TB135
Brand: Takeuchi
SKU: 89248601
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-28 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

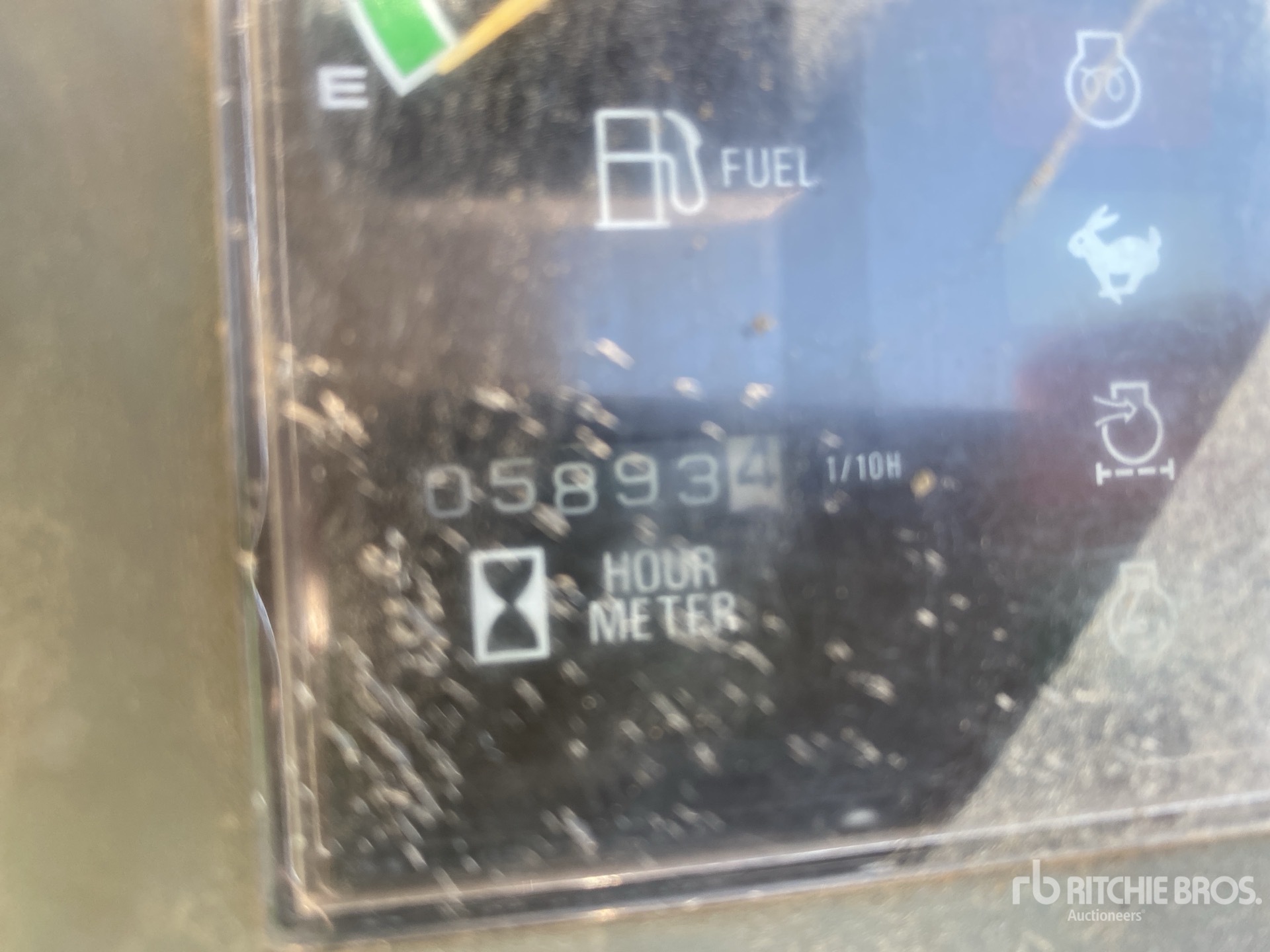

Hours:	5893

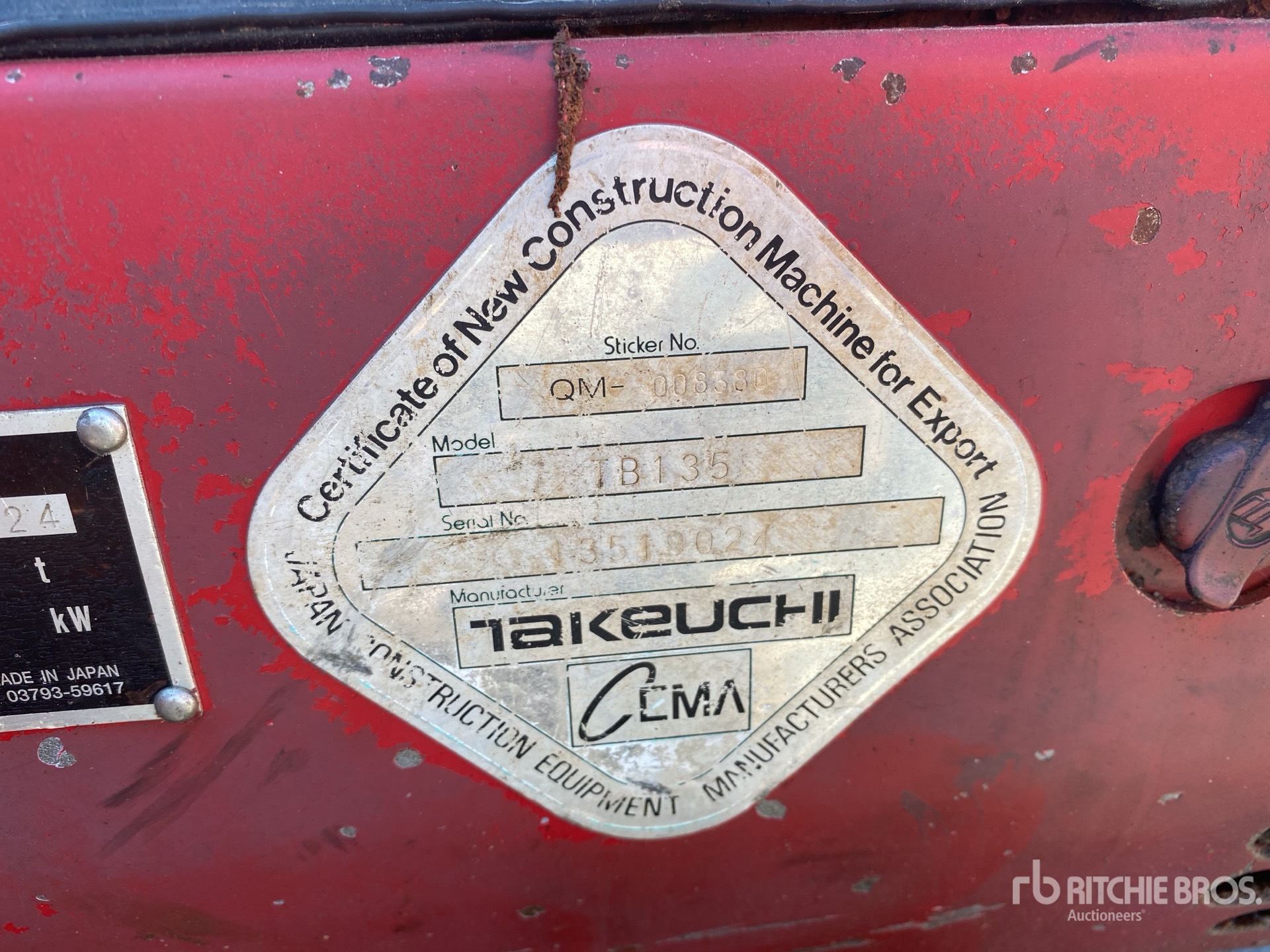

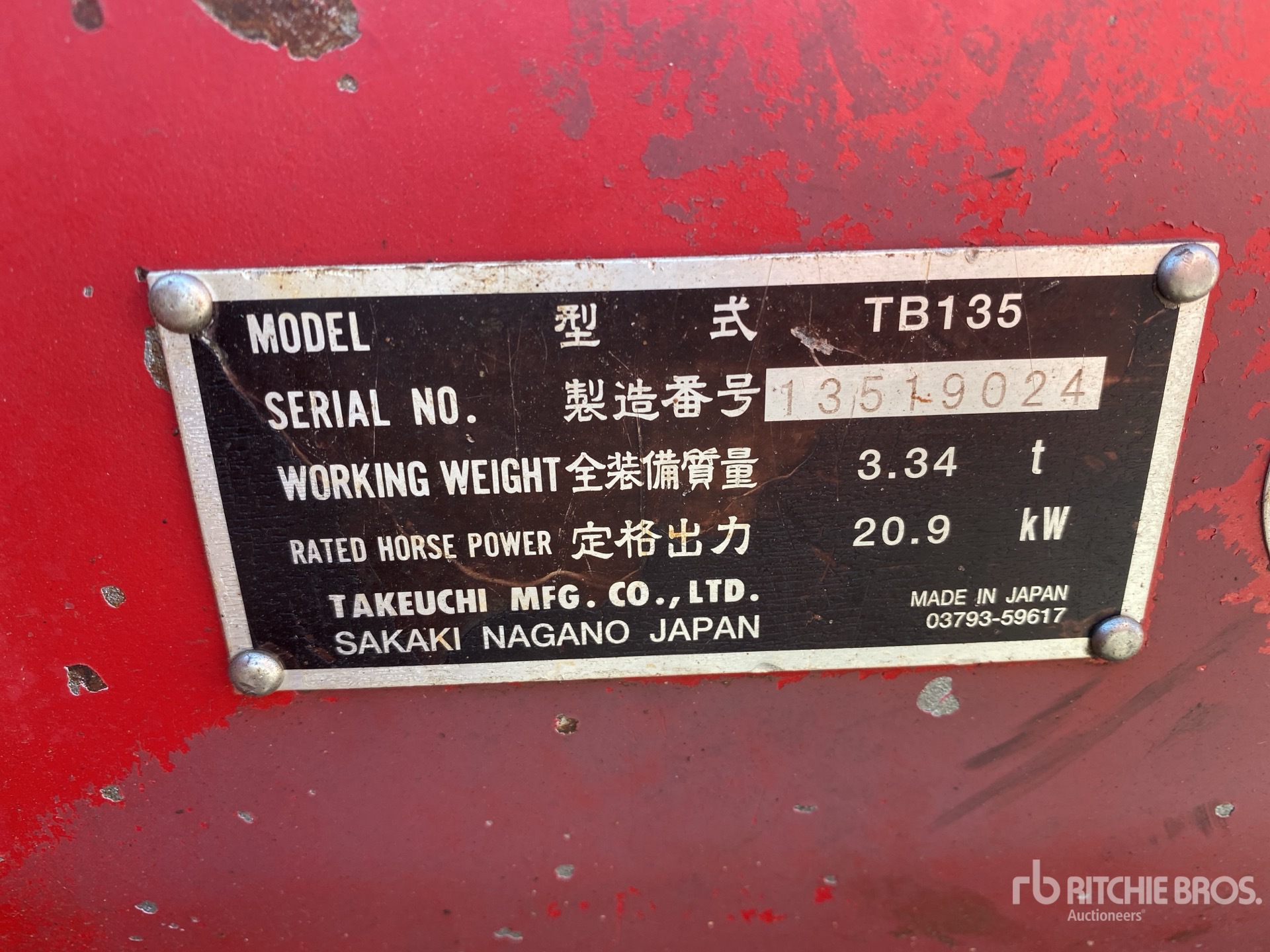

Serial Number:	13519024
Machine Location:	NORTH EAST, MD

Description:

Control Pattern Changer, 2006 US EPA Label, Swing Boom, 4 ft 6 in Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, 14 in Rubber Tracks, 18 in Digging Bucket

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Takeuchi TB135 is a compact mini excavator designed for construction, landscaping, utility, and site preparation work. It is part of Takeuchi's TB series and is known for its small footprint, maneuverability, and suitability for confined job sites. The TB135 typically features a conventional tail swing design, hydraulic digging capability, and compatibility with a range of attachments. Its size makes it useful for trenching, grading, digging, and material handling in areas where larger excavators cannot operate efficiently. The model is commonly used by contractors needing a balance of reach, control, and transportability in a mini excavator package.

Boom/Stick 1
Max Digging Depth	11 ft (3 m)
Max Loading Height	13 ft (4 m)
Max Reach Along Ground	18 ft (5 m)
Max Vertical Wall Digging Depth	9 ft (3 m)
Shipping Length Of Unit	17 ft (5 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height	8 ft (2 m)
Height To Top Of Cab	8 ft (2 m)
Length	17 ft (5 m)
Length Of Track On Ground	5 ft (2 m)
Tail Swing Radius	5 ft (1 m)
Weight	7,606 lbs (3,450 kg)
Width	5 ft (2 m)
Width To Outside Of Tracks	5 ft (2 m)
Engine
Displacement	100 cu in (1,639 cu cm)
Engine Make	2,348
Engine Model	3TNV88-QTB
Gross Power	28 hp (21 kw)
Max Torque	79 lbs ft (107 nm)
Number Of Cylinders	3
Power Measured @	2,300 rpm
Torque Measured @	1,400 rpm
Operational
Alternator Supplied Amperage	40 amps
Cooling System Fluid Capacity	2 gal (6 l)
Engine Oil Capacity	1 gal (5 l)
Fuel Capacity	14 gal (51 l)
Hydraulic Pump Flow Capacity	20 gpm (75 lpm)
Hydraulic System Fluid Capacity	23 gal (85 l)
Hydraulic System Relief Valve Pressure	3,000 psi
Operating Voltage	12 V
Operating Weight	7,831 lbs (3,552 kg)
Swing Mechanism
Swing Speed	9 rpm
Undercarriage
Ground Pressure	4 psi
Max Travel Speed	3 mph (5 kph)
Number Of Carrier Rollers Per Side	1
Number Of Track Rollers Per Side	4
Shoe Size	14 in (36 cm)
