2009 Terex TC16 For Sale in Meppen, Deu

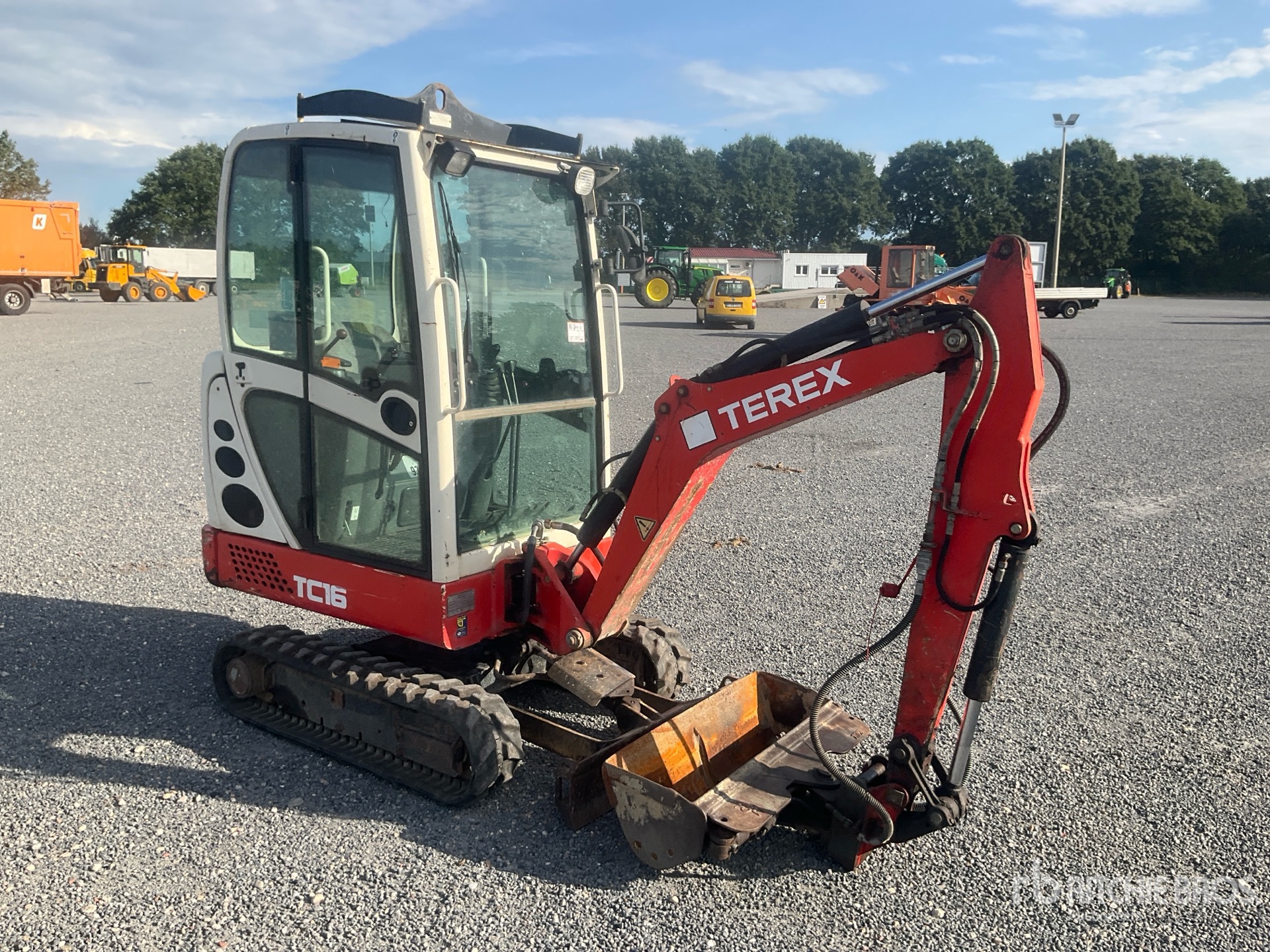

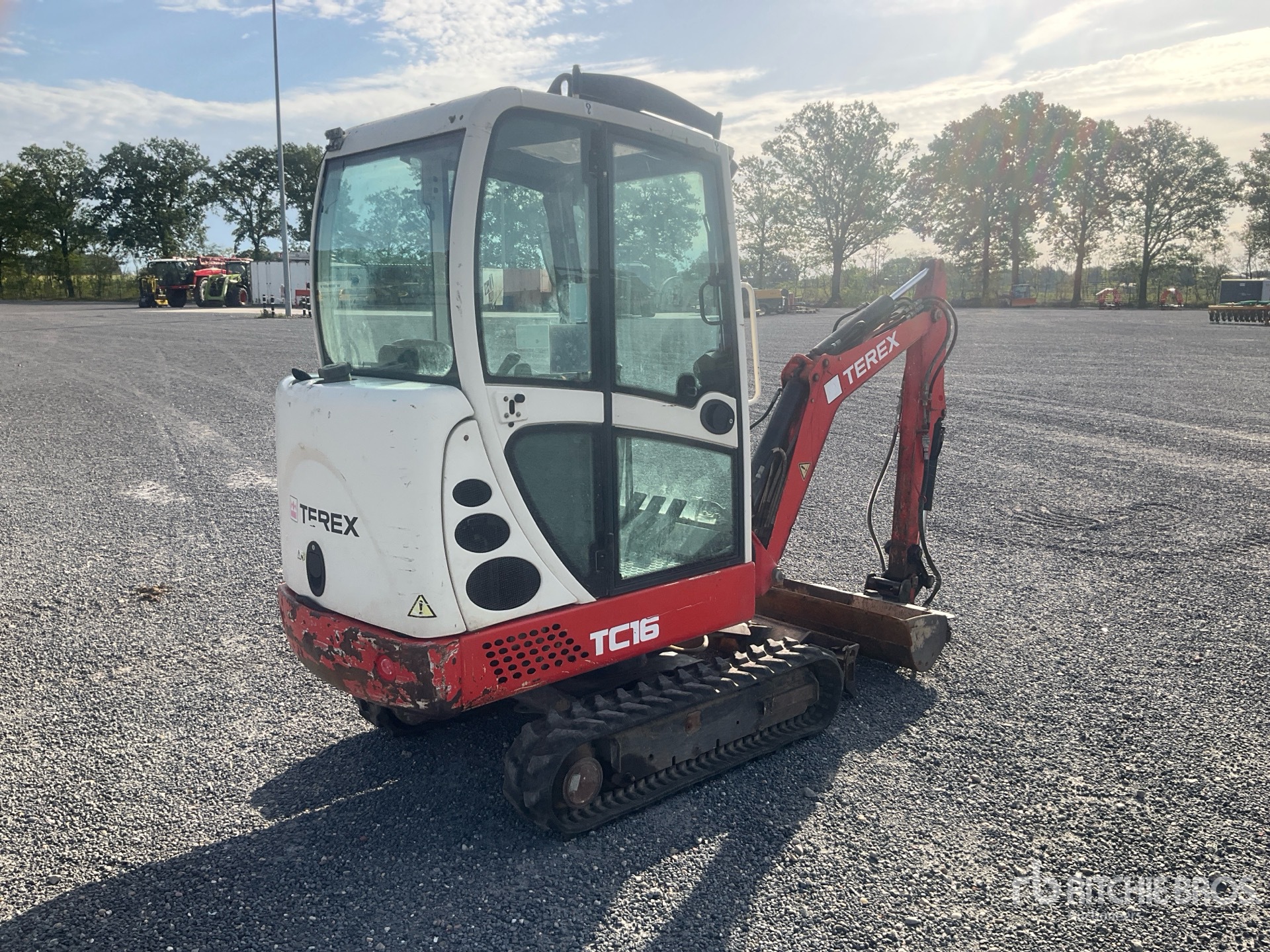

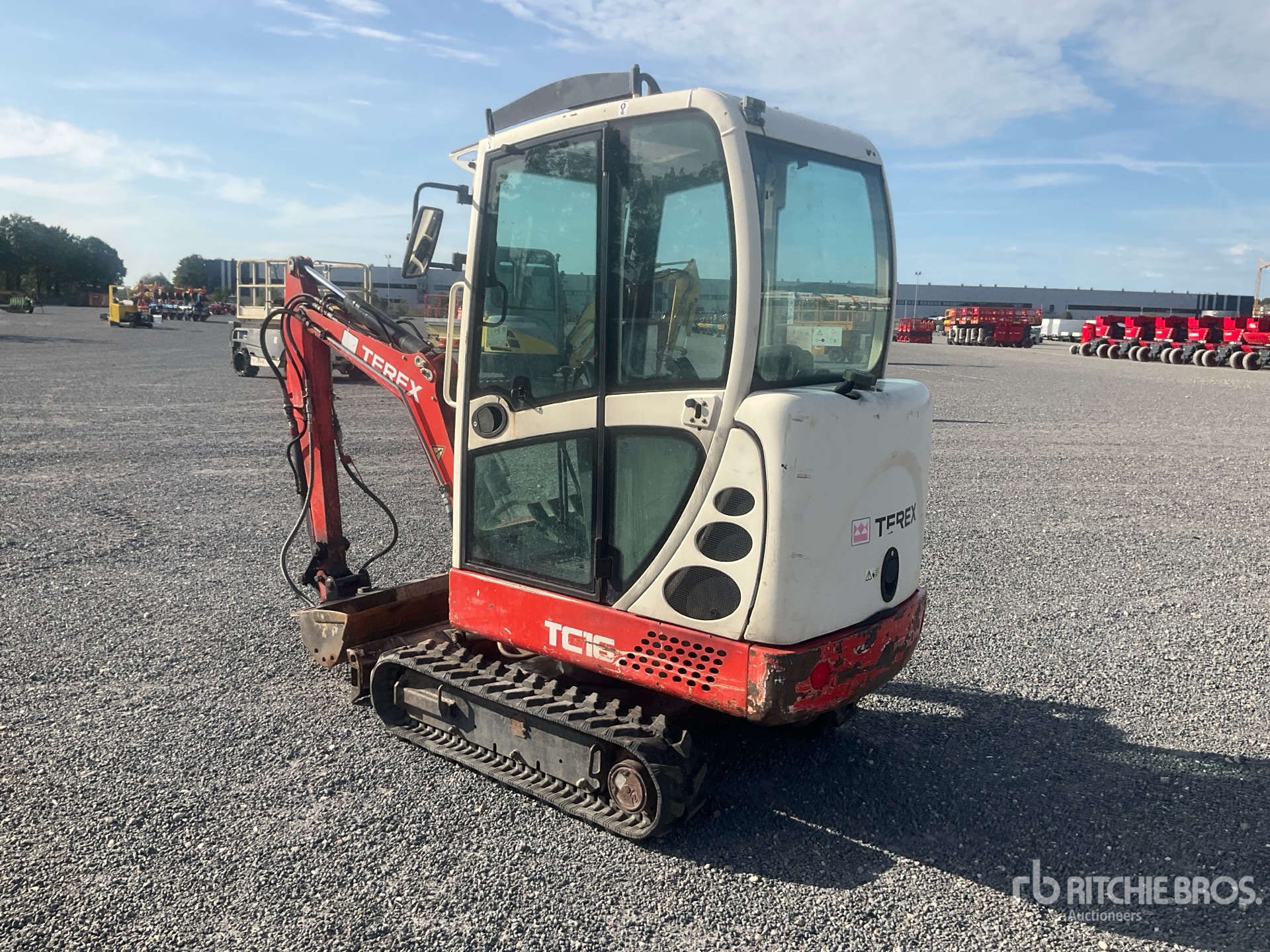

Name: 2009 Terex TC16
Brand: Terex
SKU: 89175337
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-17

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

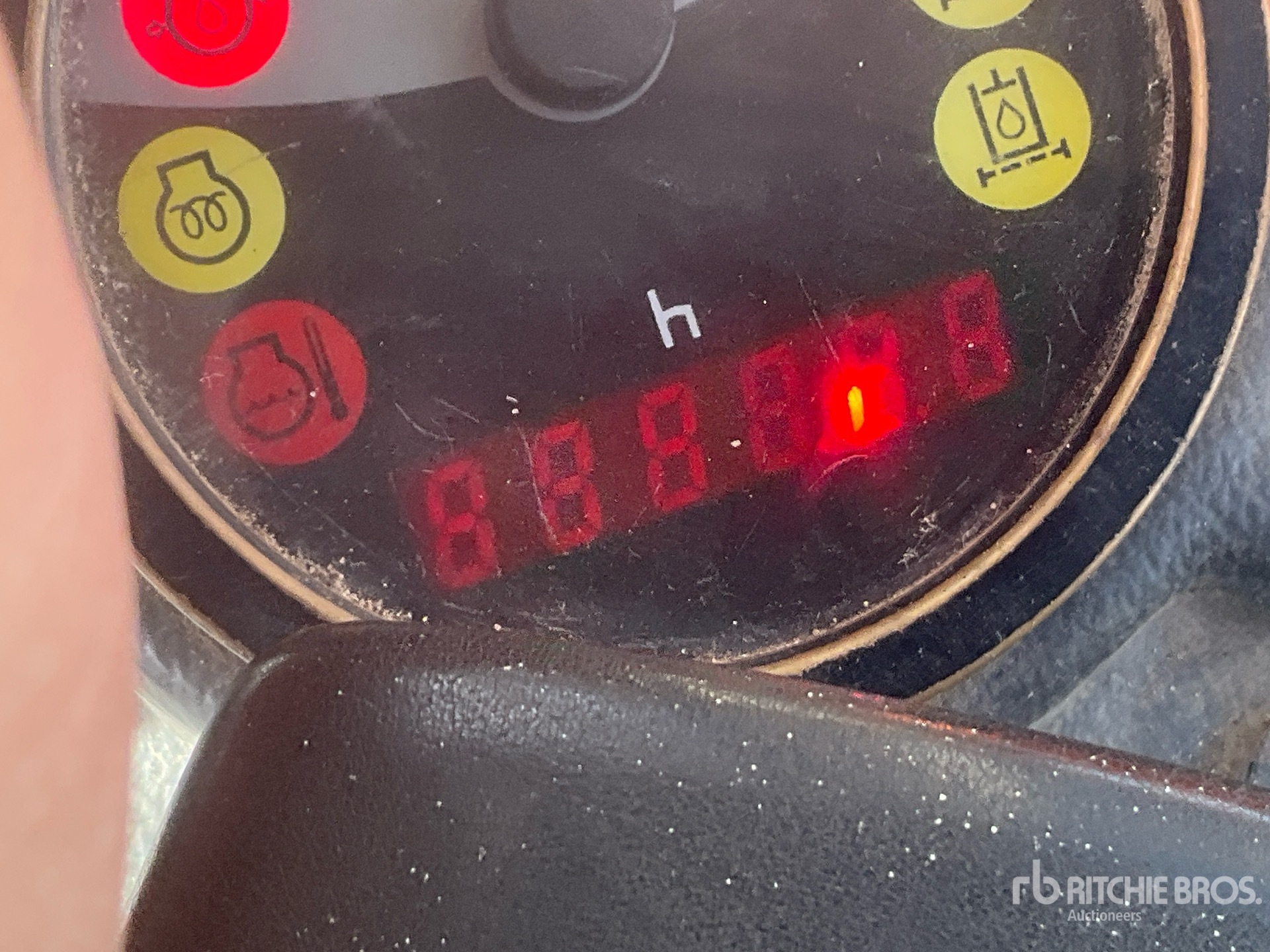

Hours:	4157

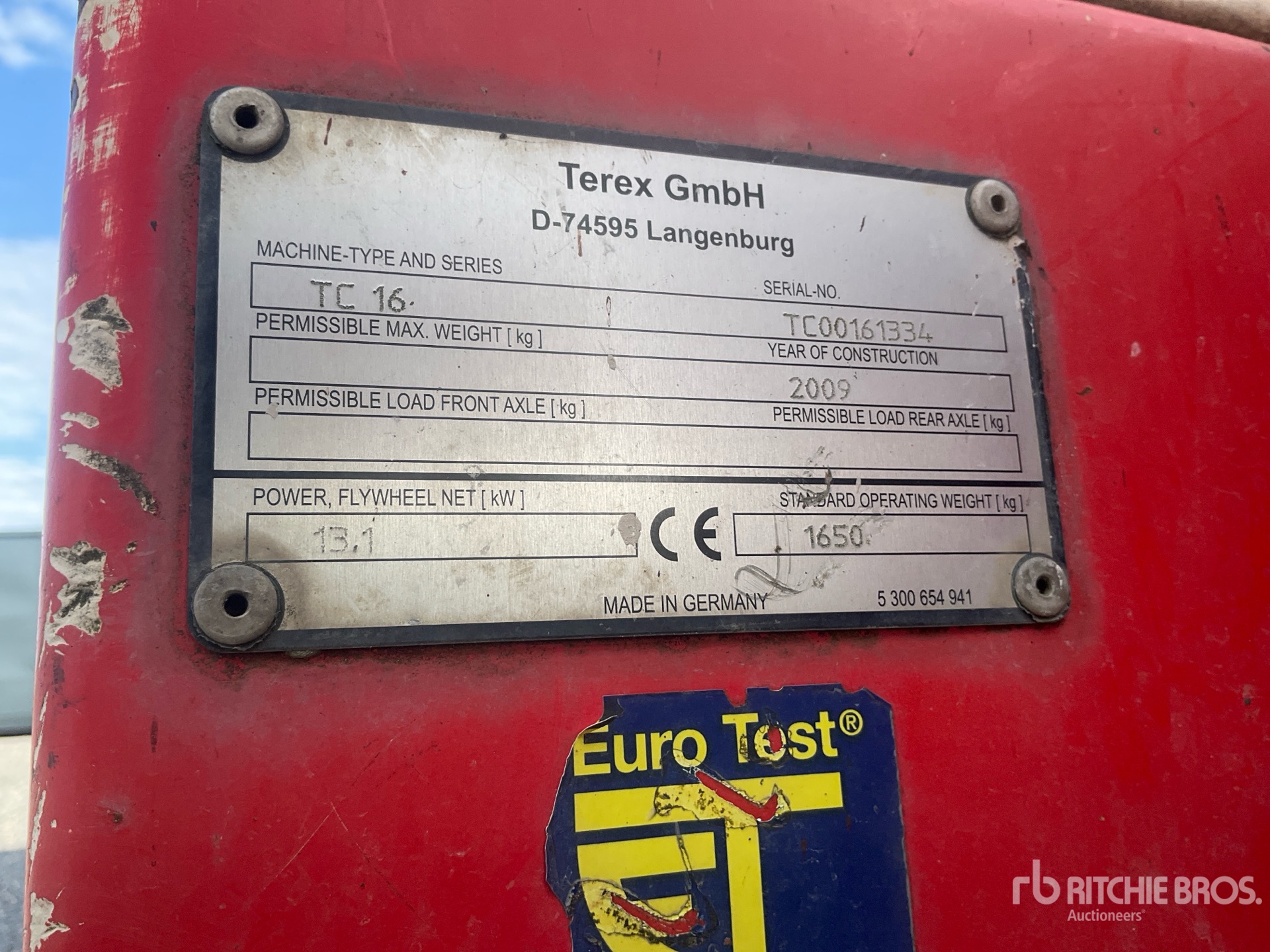

Serial Number:	TC00161334
Machine Location:	MEPPEN, DEU

Description:

Enclosed Cab, Swing Boom, 1300 mm Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, 230 mm Rubber Tracks, Expandable Width Tracks, Manual Quick Coupler, 1000 mm Hydraulic Tilting Bucket Closing Time: 2026-09-17 11:15:50 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick 1
Max Cutting Height	11 ft (4 m)
Max Digging Depth	8 ft (2 m)
Max Loading Height	8 ft (2 m)
Max Vertical Wall Digging Depth	4 ft (1 m)
Boom/Stick 2
Boom/Stick 2	boom w/ dipperstick 43'' (1100mm)
Max Cutting Height	11 ft (3 m)
Max Digging Depth	7 ft (2 m)
Max Loading Height	8 ft (2 m)
Max Vertical Wall Digging Depth	4 ft (1 m)
Buckets
Maximum Bucket Capacity	0 cu yd
Minimum Bucket Capacity	0 cu yd
Reference Bucket Capacity	0 cu yd
Dimensions
Ground Clearance	1 ft (0 m)
Height	8 ft (2 m)
Height To Top Of Cab	8 ft (2 m)
Length	13 ft (4 m)
Length Of Track On Ground	4 ft (1 m)
Tail Swing Radius	4 ft (1 m)
Weight	3,635 lbs (1,649 kg)
Width	3 ft (1 m)
Width To Outside Of Tracks	3 ft (1 m)
Engine
Displacement	58 cu in (950 cu cm)
Engine Make	2,251
Engine Model	L3E-W 262 KL
Max Torque	440 lbs ft (596 nm)
Net Power	18 hp (13 kw)
Number Of Cylinders	3
Power Measured @	2,400 rpm
Torque Measured @	2,000 rpm
Operational
Fuel Capacity	8 gal (30 l)
Hydraulic Pump Flow Capacity	14 gpm (53 lpm)
Hydraulic System Fluid Capacity	9 gal (35 l)
Hydraulic System Relief Valve Pressure	2,390 psi
Operating Voltage	12 V
Operating Weight	3,792 lbs (1,720 kg)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Drawbar Pull	2,610 lbs (1,184 kg)
Ground Pressure	3 psi
Max Travel Speed	2 mph (3 kph)
Shoe Size	9 in (23 cm)
Track Gauge	3 ft (1 m)
