2001 Terex TA40 For Sale in North East, Md

Name: 2001 Terex TA40
Brand: Terex
SKU: 89101615
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-15 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

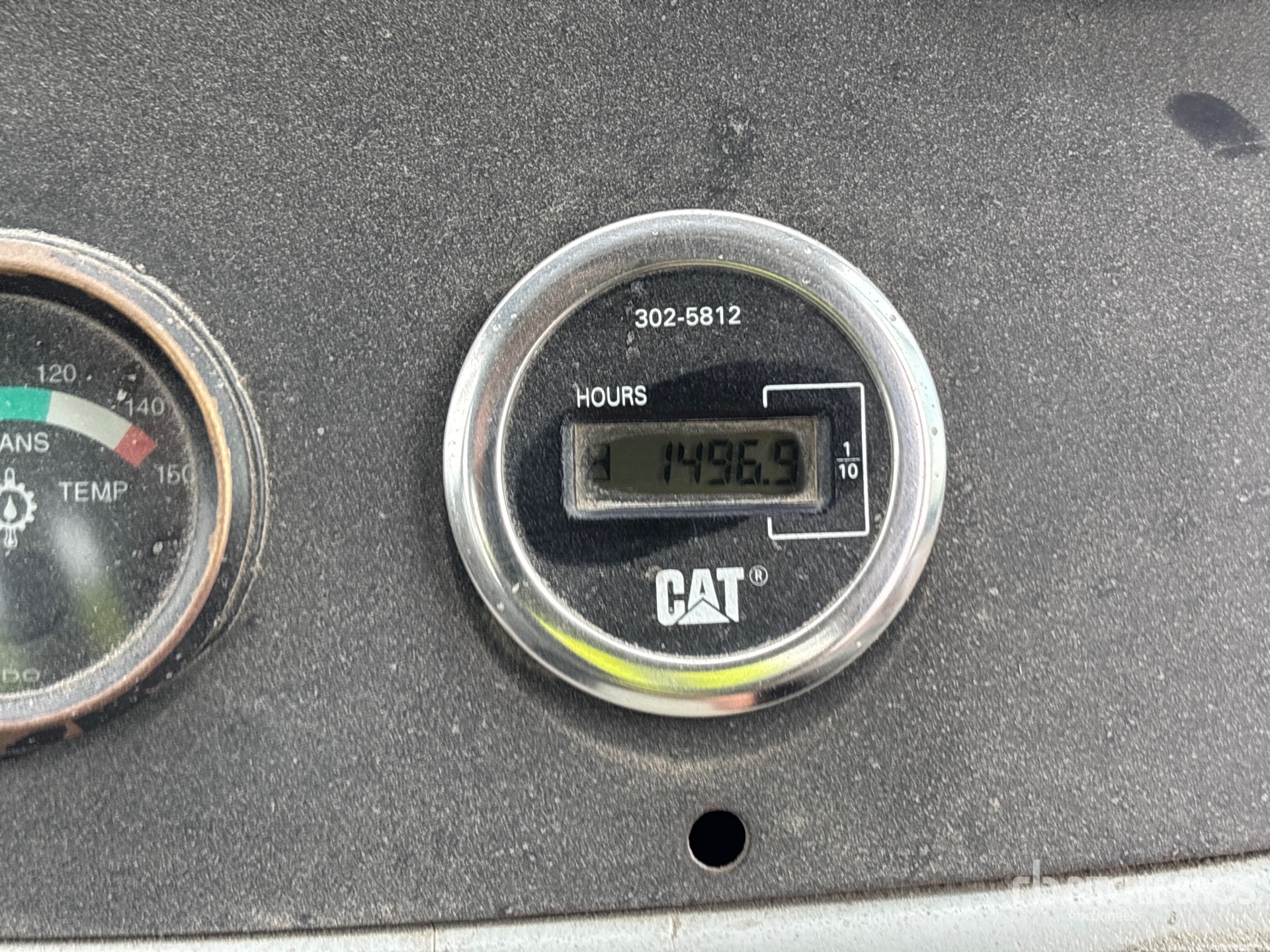

Hours:	1496

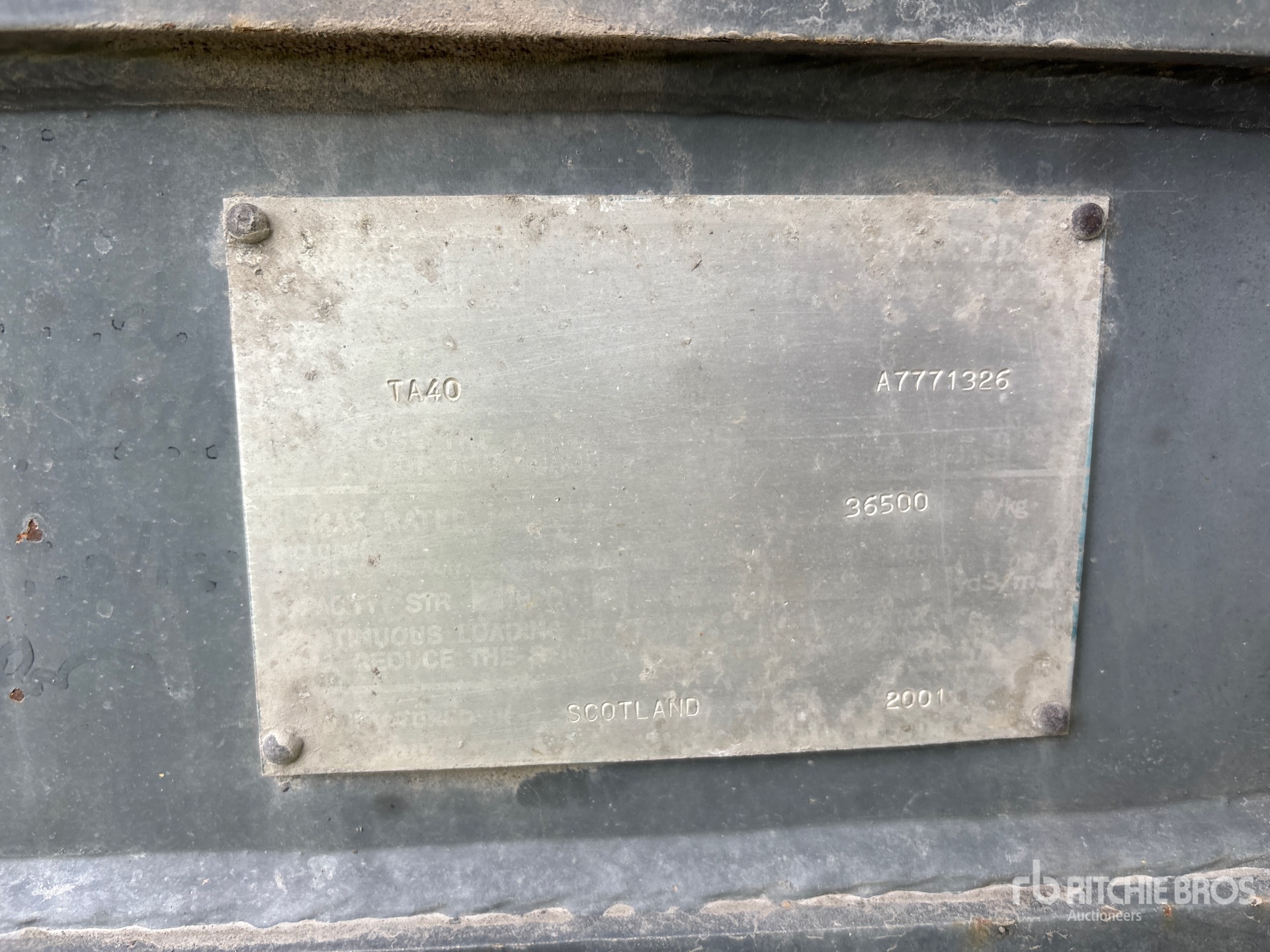

Serial Number:	A7771326
Machine Location:	NORTH EAST, MD

Description:

Located in Lane 31 Spot 63, Air Conditioner, Tailgate, 29.5R25 Tires Closing Time: 2026-09-15 08:20:50 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Terex TA40 is an off-highway articulated dump truck designed for hauling material in mining, quarrying, and large earthmoving applications. It is part of Terex's TA series and is built for rough terrain operation, high payload capacity, and efficient material transport on unpaved job sites. The TA40 typically features a diesel engine, articulated frame, all-wheel drive, and a dump body configured for bulk material handling. Common uses include overburden removal, aggregate transport, and site development work. The model is recognized for its heavy-duty chassis, traction in difficult ground conditions, and suitability for continuous off-road hauling cycles.

Dimensions
Dump Ground Clearance	3 ft (1 m)
Dump Height	23 ft (7 m)
Ground Clearance	3 ft (1 m)
Height	13 ft (4 m)
Length	36 ft (11 m)
Overall Height	13 ft (4 m)
Overall Length	36 ft (11 m)
Overall Width	11 ft (3 m)
Weight	67,804 lbs (30,755 kg)
Wheelbase	17 ft (5 m)
Width	11 ft (3 m)
Dump
Capacity - Heaped	30 cu yd
Capacity - Struck	23 cu yd
Dump Angle	66 degrees
Lower Time	8 sec
Raise Time	13 sec
Rated Payload	83,775 lbs (37,993 kg)
Engine
Aspiration	turbocharged
Displacement	855 cu in (14,011 cu cm)
Engine Make	2,350
Engine Model	Series 60
Gross Power	450 hp (336 kw)
Max Torque	1,548 lbs ft (2,099 nm)
Net Power	437 hp (326 kw)
Number Of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,350 rpm
Operational
Alternator Supplied Amperage	100 amps
Cooling System Fluid Capacity	18 gal (67 l)
Engine Oil Capacity	9 gal (32 l)
Fuel Capacity	119 gal (450 l)
Hydraulic System Fluid Capacity	87 gal (330 l)
Operating Voltage	24 V
Tire Size	29.5R25
Transmission Fluid Capacity	16 gal (61 l)
Transmission
Max Speed	37 mph (60 kph)
Number Of Forward Gears	6
Number Of Reverse Gears	1
Transmission Type	Allison 4500 ORS fully automatic transmission with planetary gearing
Weights
Center Axle - Empty	16500 %
Center Axle - Loaded	55000 %
Front Axle - Empty	34,936 lbs (15,844 kg)
Front Axle - Loaded	40304 %
Rear Axle - Empty	16,368 lbs (7,423 kg)
Rear Axle - Loaded	55,000 lbs (24,943 kg)
Total Empty	67,804 lbs (30,750 kg)
Total Loaded	151,579 lbs (68,743 kg)
