2006 Terex TA40 For Sale in Monroe, NC

Name: 2006 Terex TA40
Brand: Terex
SKU: 89470594
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-10-22 Click here to place a bid Minimum Bid: $5

Partner Auctions

Partner Auctions Dealer Info

Partner Auctions Website

Click here to email Partner Auctions.

Click for Phone Number

Machine Info:

Machine Location:	MONROE, NC
More Information:	https://www.proxibid.com:443/heavy-construction-equipment/off-road-dump-haul-trucks/2006-terex-ta40-40-ton-haul-truck/lotInformation/103415871?utm_source=ceg&utm_medium=referral&utm_campaign=atgxl_ceg&utm_content=78602

Description:

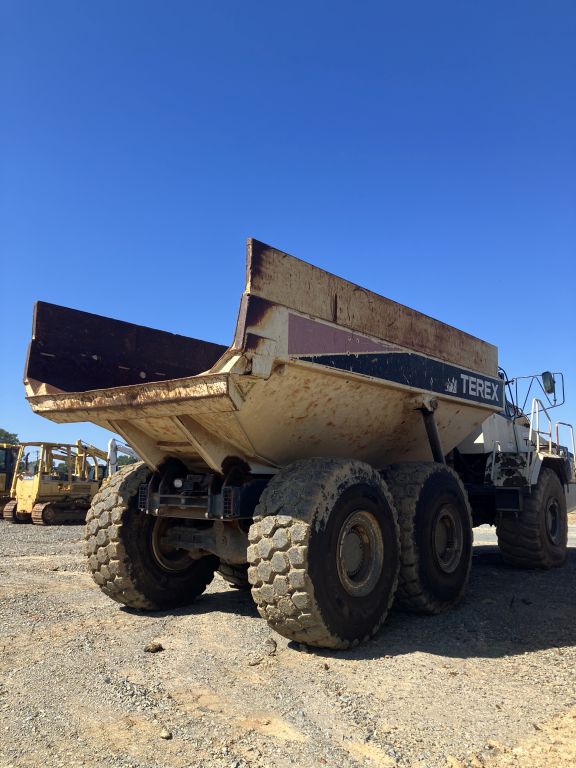

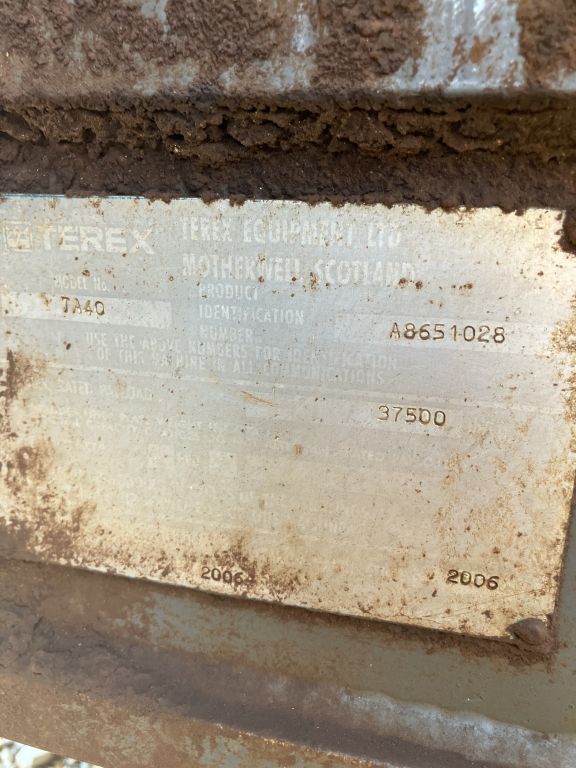

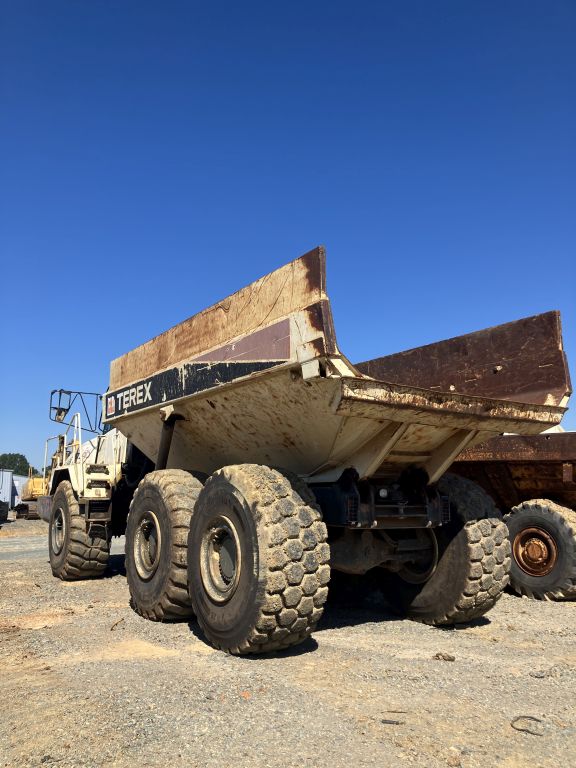

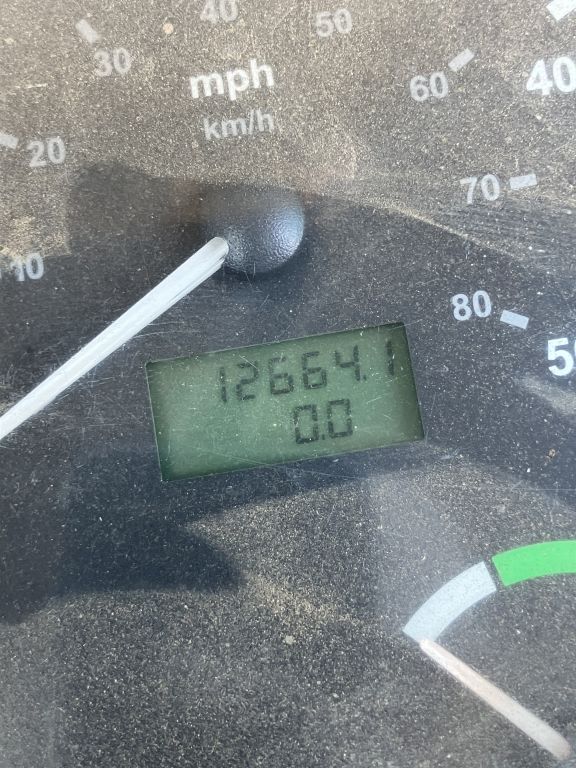

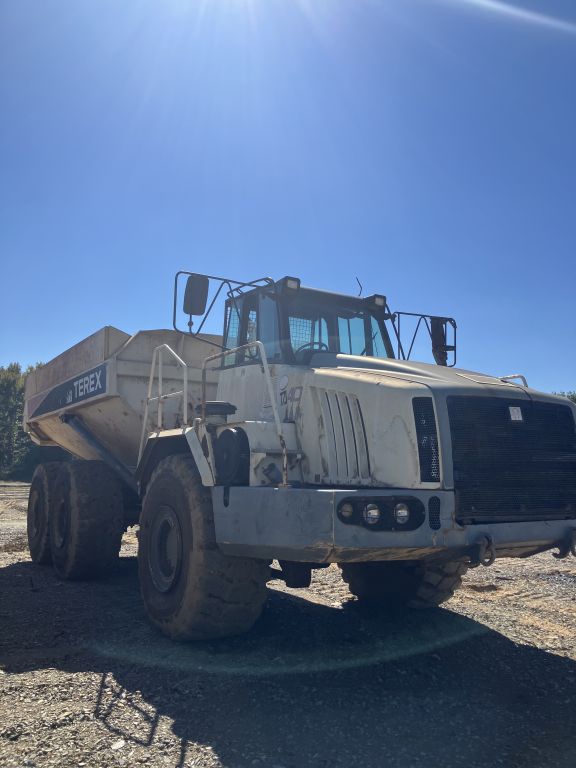

2006 Terex TA40 40 Ton Haul Truck - 12,664, Hours - SN# A8651028

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Terex TA40 is an off-highway rigid dump truck designed for heavy-duty hauling in mining, quarrying, and large earthmoving applications. It is part of Terex's articulated and rigid truck lineup and is built for transporting bulk material over rough terrain. The TA40 typically features a high-capacity dump body, diesel powertrain, and heavy-duty suspension components suited to demanding site conditions. Common uses include aggregate transport, site development, and material handling in off-road environments. As an off-highway truck, the Terex TA40 is engineered for durability, traction, and load-carrying performance in industrial and construction operations.

Dimensions
Dump Ground Clearance	3 ft (1 m)
Dump Height	23 ft (7 m)
Ground Clearance	3 ft (1 m)
Height	13 ft (4 m)
Length	36 ft (11 m)
Overall Height	13 ft (4 m)
Overall Length	36 ft (11 m)
Overall Width	11 ft (3 m)
Weight	67,804 lbs (30,755 kg)
Wheelbase	17 ft (5 m)
Width	11 ft (3 m)
Dump
Capacity - Heaped	30 cu yd
Capacity - Struck	23 cu yd
Dump Angle	66 degrees
Lower Time	8 sec
Raise Time	13 sec
Rated Payload	83,775 lbs (38,000 kg)
Engine
Aspiration	turbocharged
Displacement	855 cu in (14,011 cu cm)
Engine Make	2,350
Engine Model	Series 60
Gross Power	450 hp (336 kw)
Max Torque	1,548 lbs ft (2,099 nm)
Net Power	437 hp (326 kw)
Number Of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,350 rpm
Operational
Alternator Supplied Amperage	100 amps
Cooling System Fluid Capacity	18 gal (67 l)
Engine Oil Capacity	9 gal (32 l)
Fuel Capacity	119 gal (450 l)
Hydraulic System Fluid Capacity	87 gal (330 l)
Operating Voltage	24 V
Tire Size	29.5R25
Transmission Fluid Capacity	16 gal (61 l)
Transmission
Max Speed	37 mph (60 kph)
Number Of Forward Gears	6
Number Of Reverse Gears	1
Transmission Type	Allison 4500 ORS fully automatic transmission with planetary gearing
Weights
Center Axle - Empty	16500 %
Center Axle - Loaded	55000 %
Front Axle - Empty	34,936 lbs (15,847 kg)
Front Axle - Loaded	40304 %
Rear Axle - Empty	16,368 lbs (7,424 kg)
Rear Axle - Loaded	55,000 lbs (24,948 kg)
Total Empty	67,804 lbs (30,755 kg)
Total Loaded	151,579 lbs (68,755 kg)
