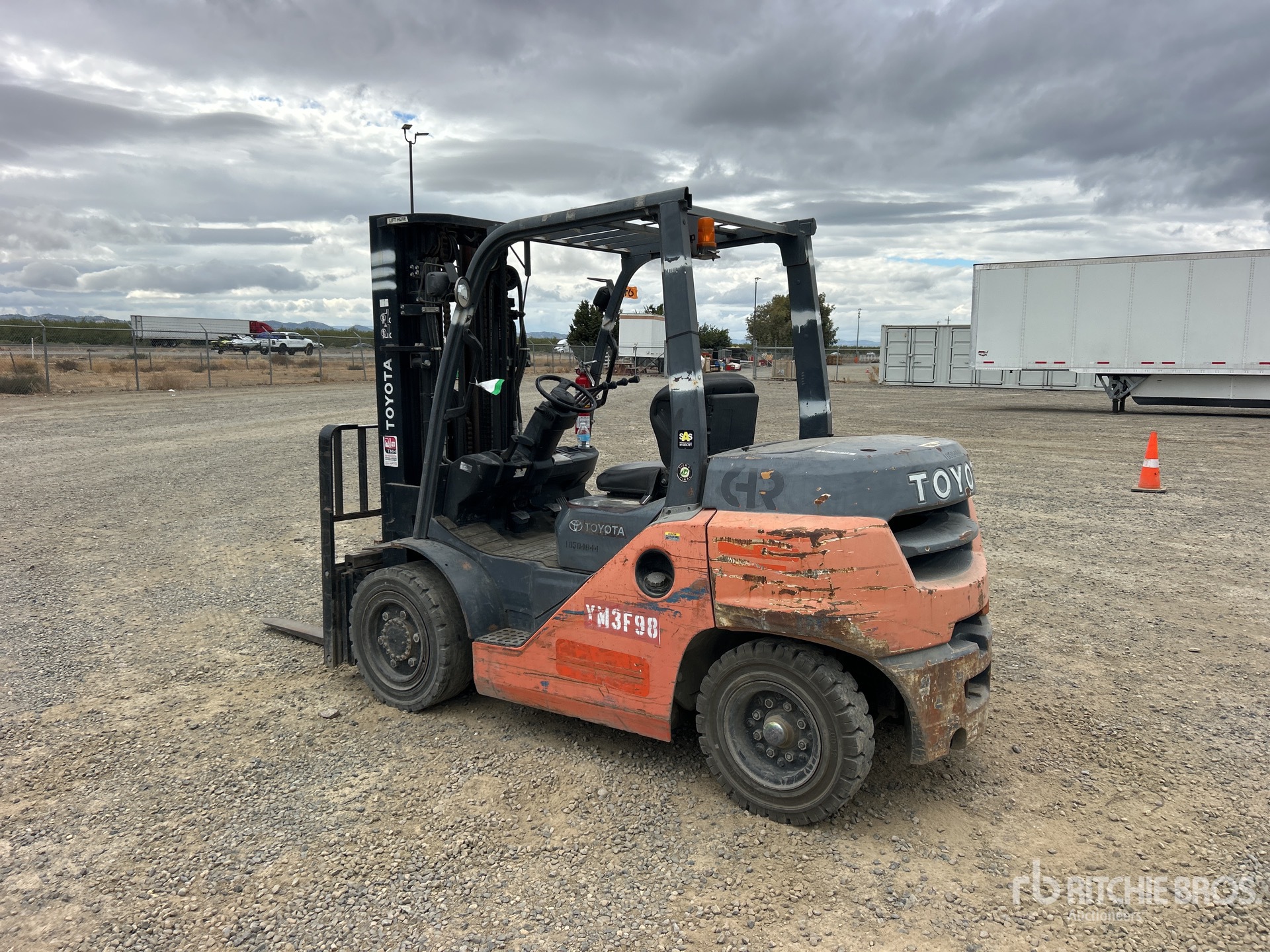

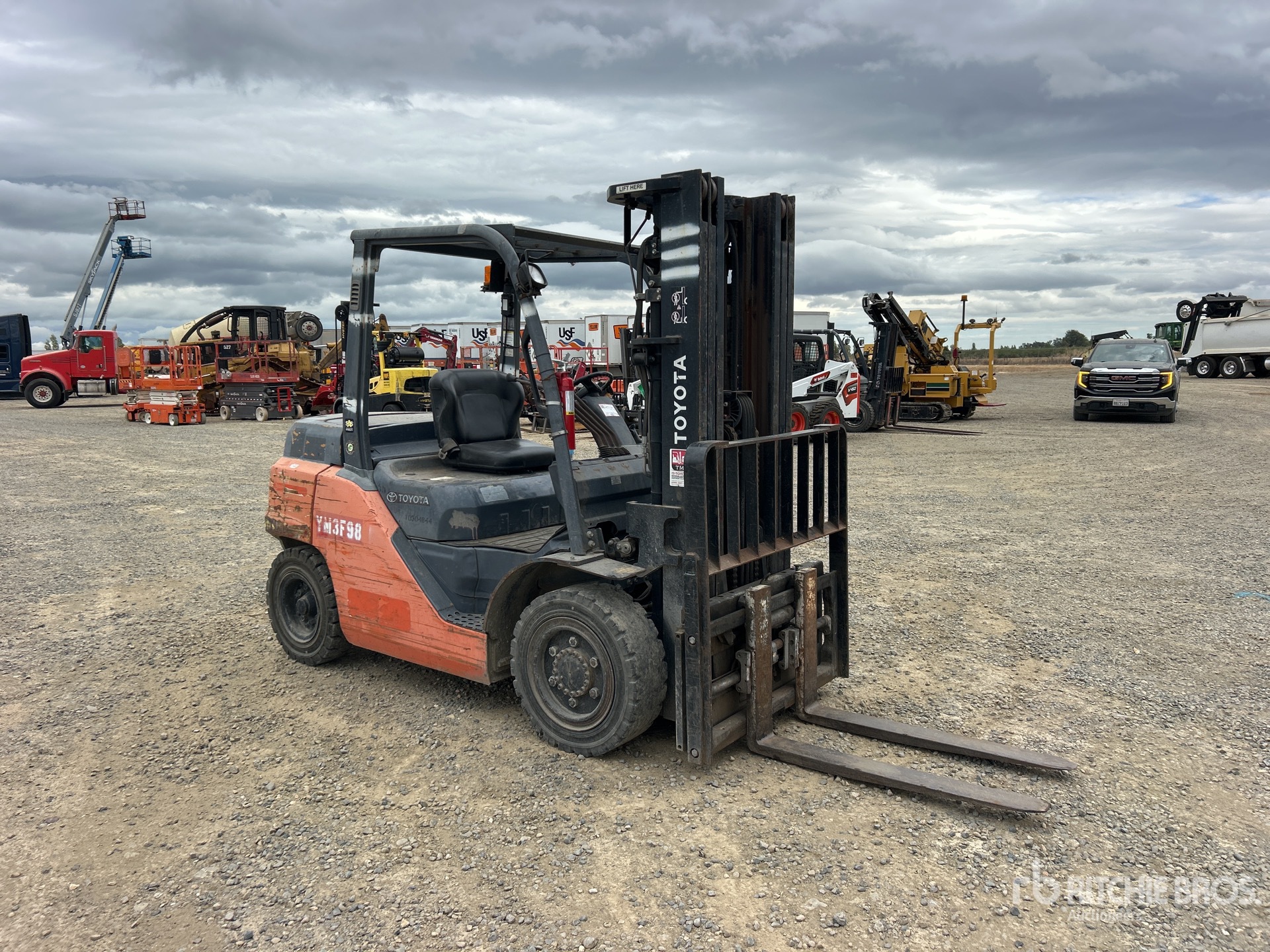

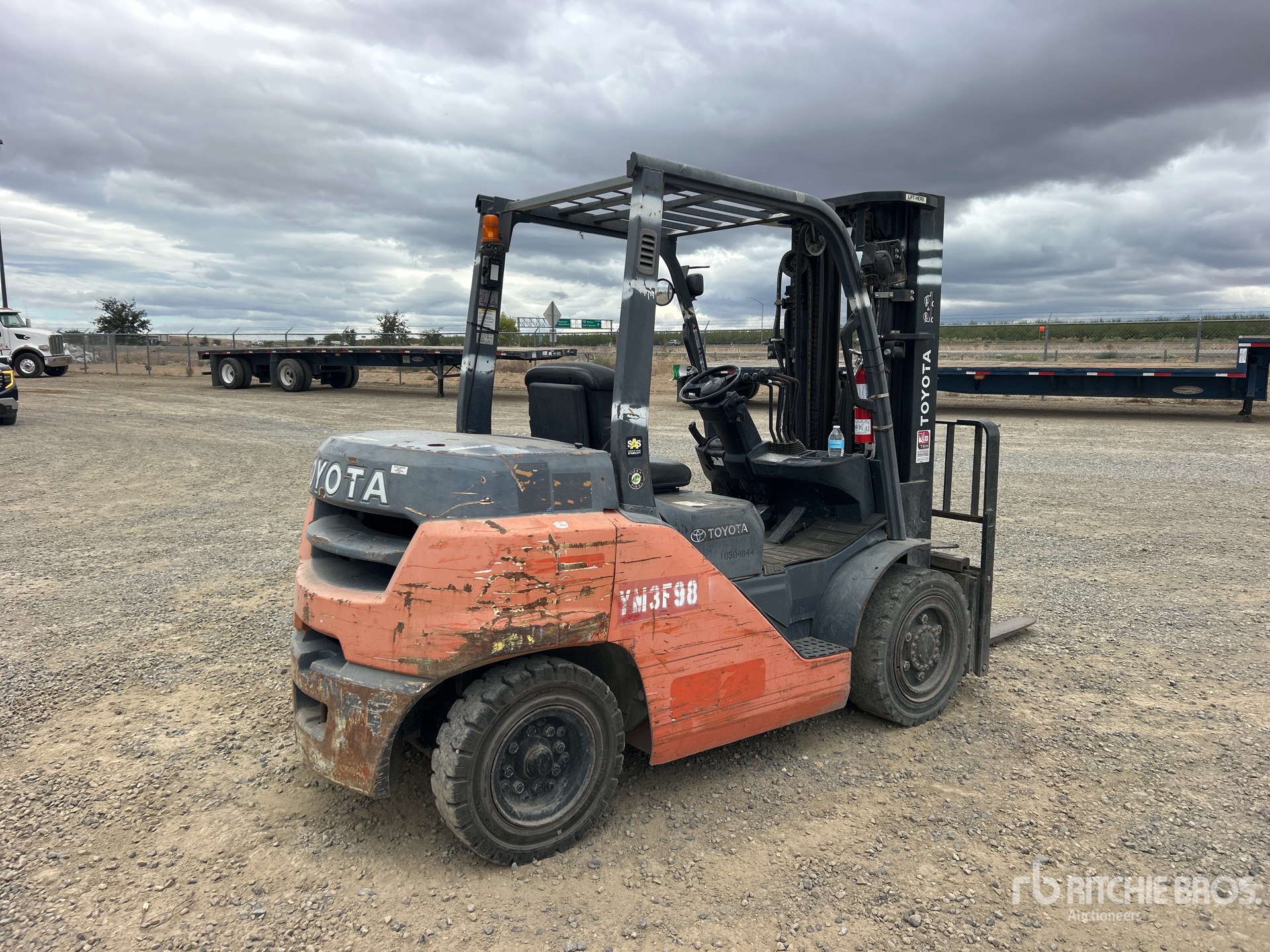

2016 Toyota 8FD35U For Sale in Los Angeles, Ca

Name: 2016 Toyota 8FD35U
Brand: Toyota
SKU: 89150346
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-15 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

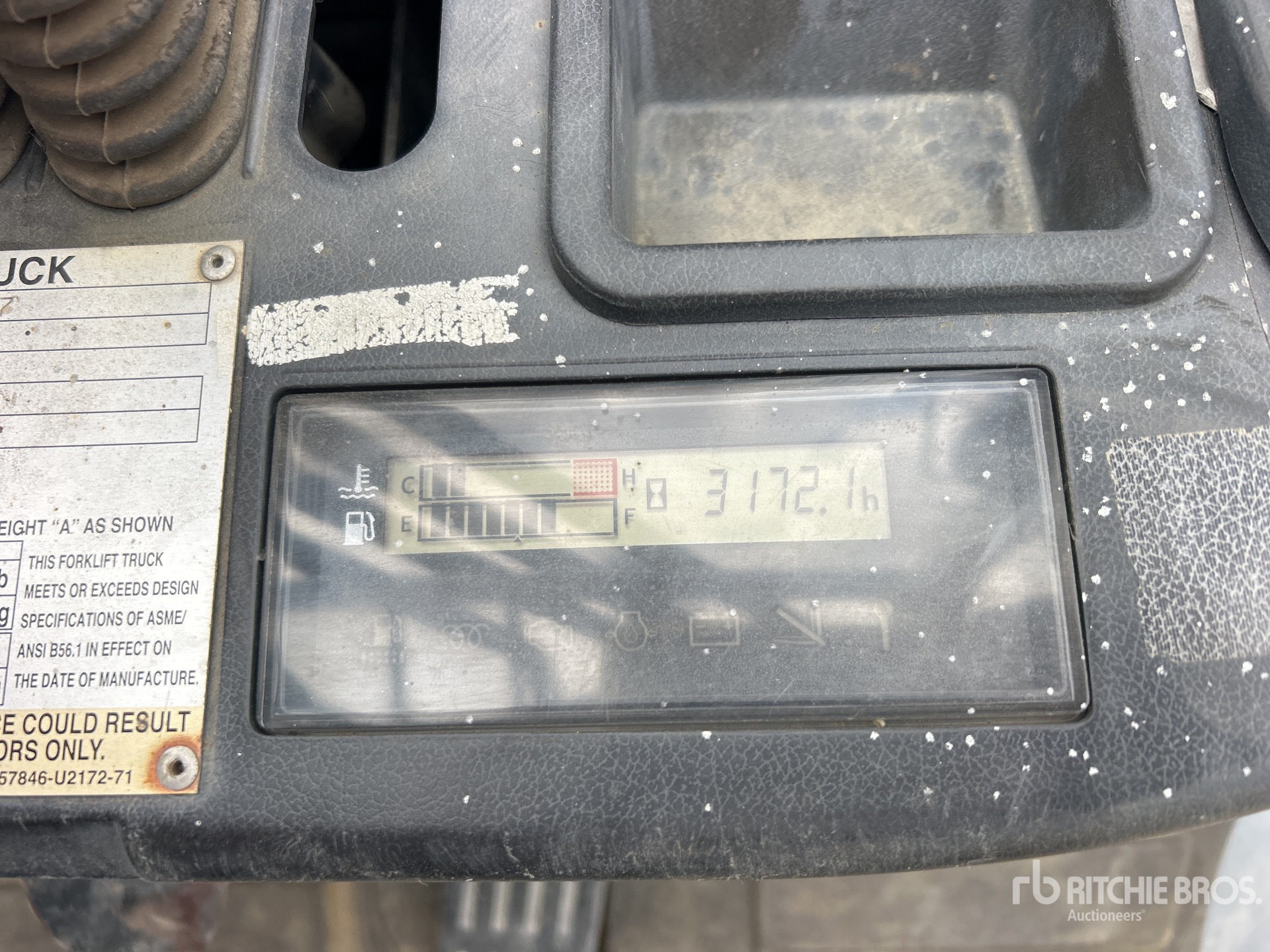

Hours:	3172
Serial Number:	8FD35U-11337
Machine Location:	LOS ANGELES, CA

Description:

3 Stage Mast, 187 in Max Lift Height, 89 in Lowered Mast Height, 42 in Forks, Side Shift, Fork Positioner, 2016 US EPA Label, Toyota 4 Cylinder 2.98 L Diesel Engine Closing Time: 2026-09-15 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Toyota 8FD35U is a diesel forklift in Toyota's 8-Series, designed for material handling in warehouses, yards, and industrial sites. It has a 3.5-ton lifting capacity and is commonly used for pallet transport, loading, unloading, and general freight movement. The 8FD35U features a sit-down operator layout, pneumatic tires, and a compact chassis for maneuverability in confined spaces. As part of Toyota's industrial forklift range, it is built for dependable daily operation and service access. The model is often selected for applications requiring stable lifting performance, outdoor use, and efficient handling of medium-duty loads.

Brakes
Parking brake	Hand
Service brake	Hydraulic
Dimensions
Free lift	4 in (11 cm)
Gradeability	43%
Ground Clearance	5 in (12 cm)
Height to Top of Overhead Guard	7 ft (2 m)
Length to Fork Face	10 ft (3 m)
Max Fork Height	10 ft (3 m)
Overall Height - mast lowered	7 ft (2 m)
Overall Width	5 ft (1 m)
Right Angle Stack	10 ft (3 m)
Turning Radius	9 ft (3 m)
Wheelbase	6 ft (2 m)
Engine
Battery	12 V
Displacement	182 cu in (2,982 cu cm)
Engine Make	TOYOTA
Engine Model	1KD
Fuel Type	Diesel
Number of Cylinders	4
Power	74 hp (55 kw)
Power Measured @	2,200 rpm
Torque	220 lbs ft (298 nm)
Torque Measured @	1,500 rpm
Hydraulic System
Main pump flow standard	34 gpm (128 lpm)
Maximum operating pressure	2,630 psi
MAST
Fork Turn L/R	6 degrees
Lift Speed	103 ft/min (31 m/min)
Load Capacity	7,716 lbs (3,500 kg)
Load Center	24 in (61 cm)
Lower Speed	104 ft/min (32 m/min)
Mast Tip Forward	6 degrees
Mast Tip Rear	12 degrees
Max Fork Spread	46 in (117 cm)
Operating Specifications
Drawbar Pull	8,157 lbs (3,700 kg)
Fuel Capacity	24 gal (90 l)
Number of Front Wheels	2
Number of Rear Wheels	2
Operating Weight	12,743 lbs (5,780 kg)
Tire Type	Pneumatic
Tires
Standard_Option_Front	250-15-18PR
Standard_Rear	7.00-12-12PR
Transmission
Max Speed - Forward	14 mph (22 kph)
Max Speed - Reverse	14 mph (22 kph)
Transmission Type	Powershift
Travelspeeds(BACKWRD)Speed range	1
Travelspeeds(FRWD)Speed range	1
