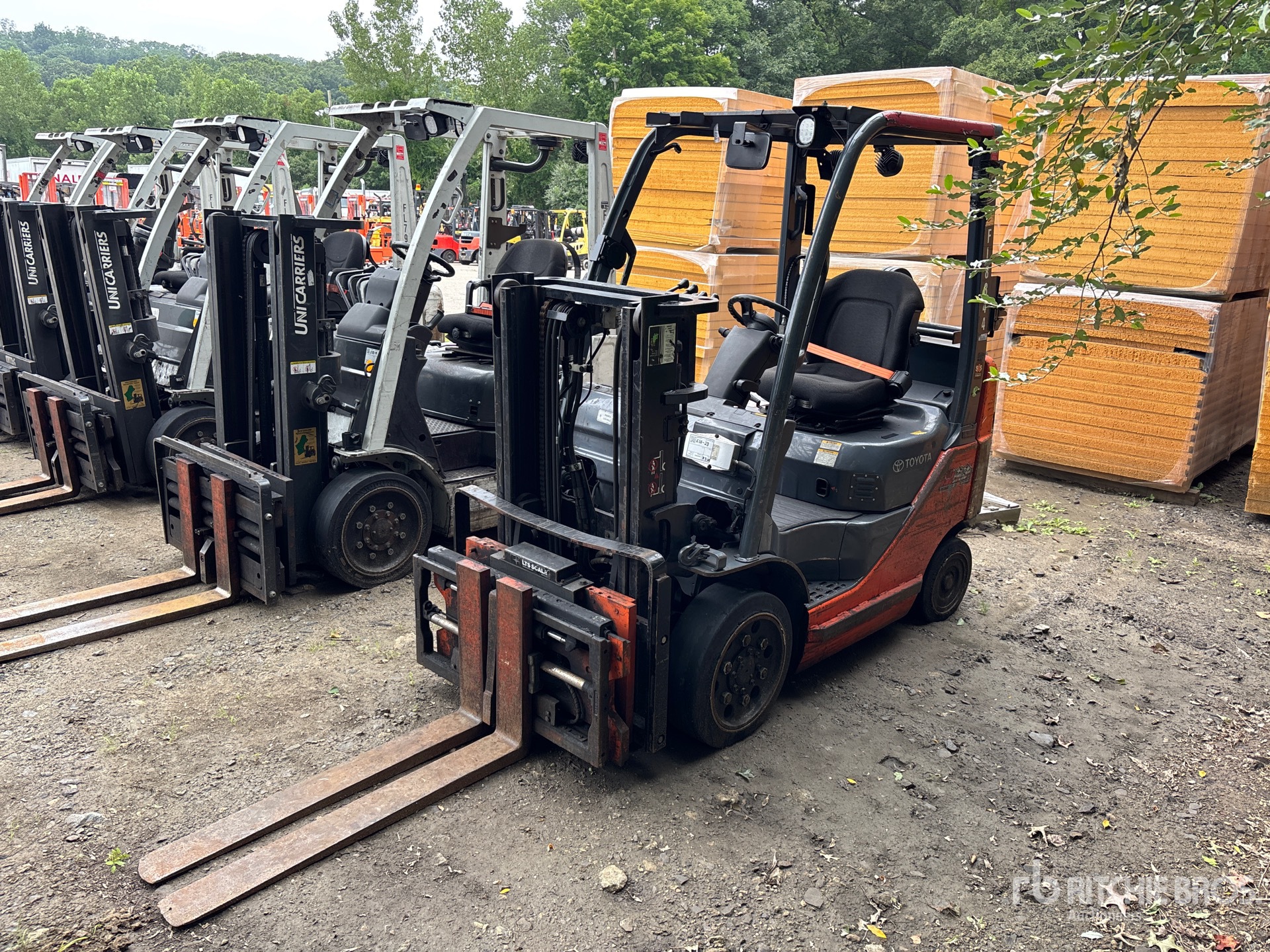

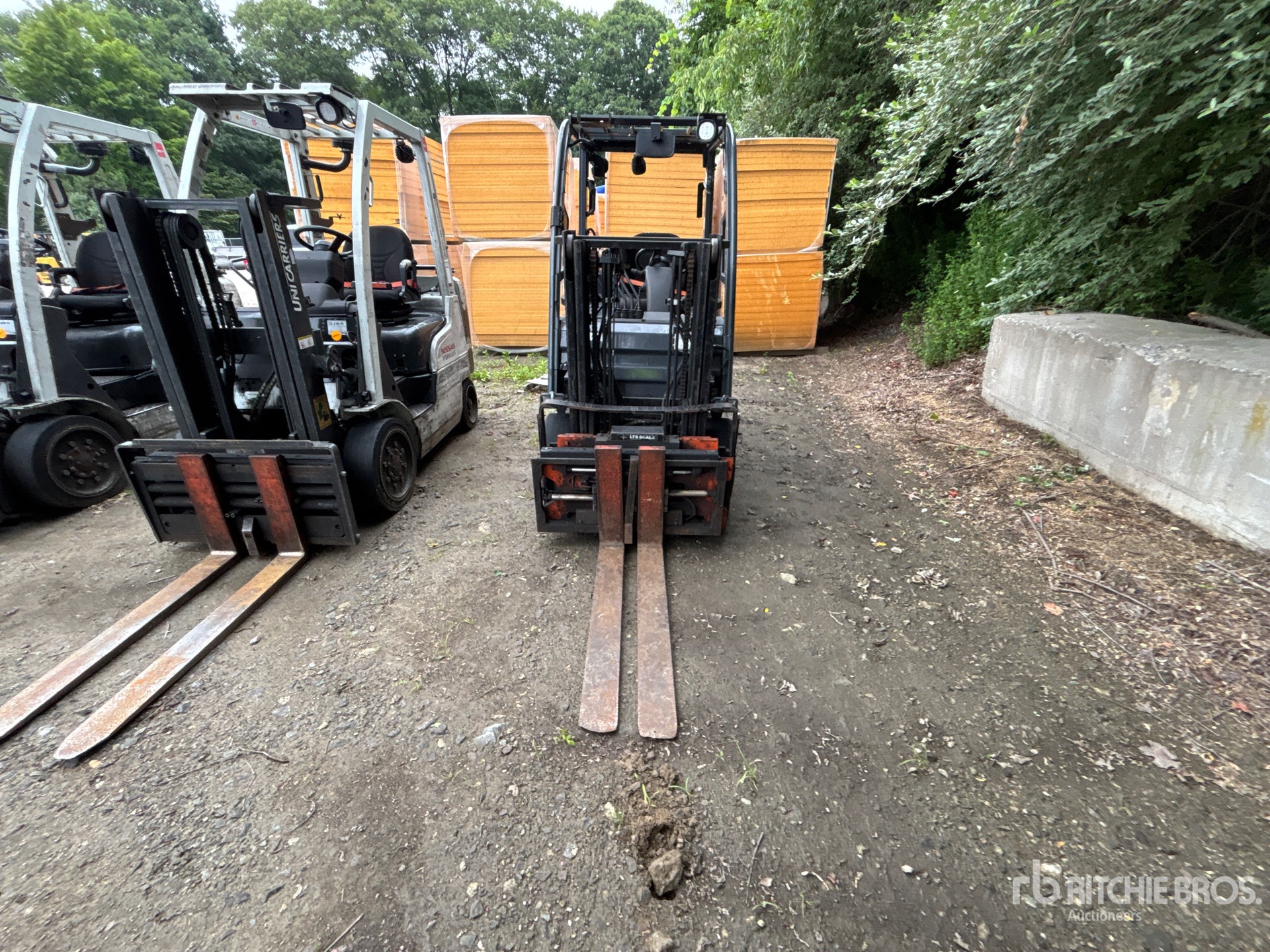

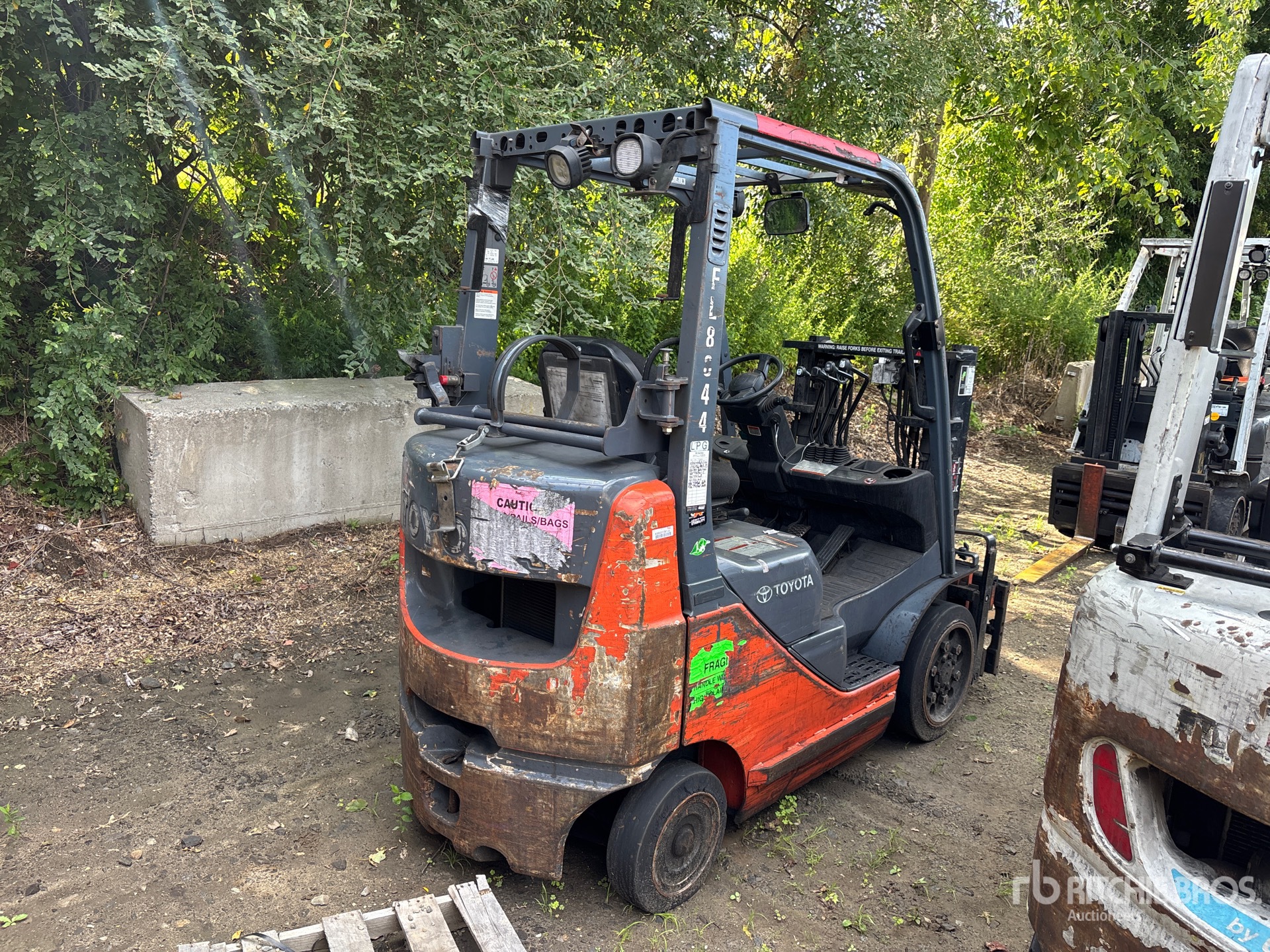

2014 Toyota 8FGCU20 For Sale in North East, Md

Name: 2014 Toyota 8FGCU20
Brand: Toyota
SKU: 88920761
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-15 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

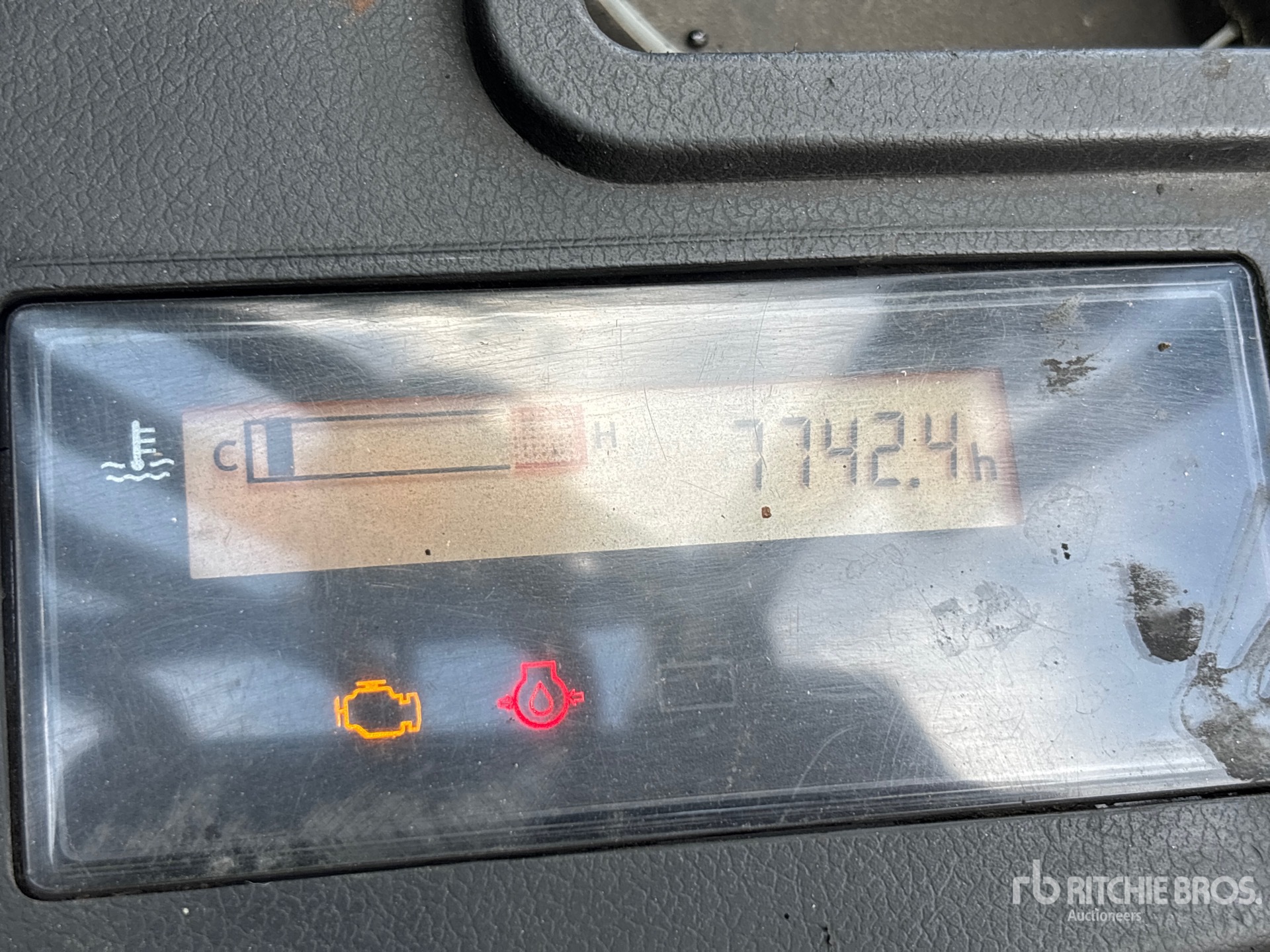

Hours:	7742

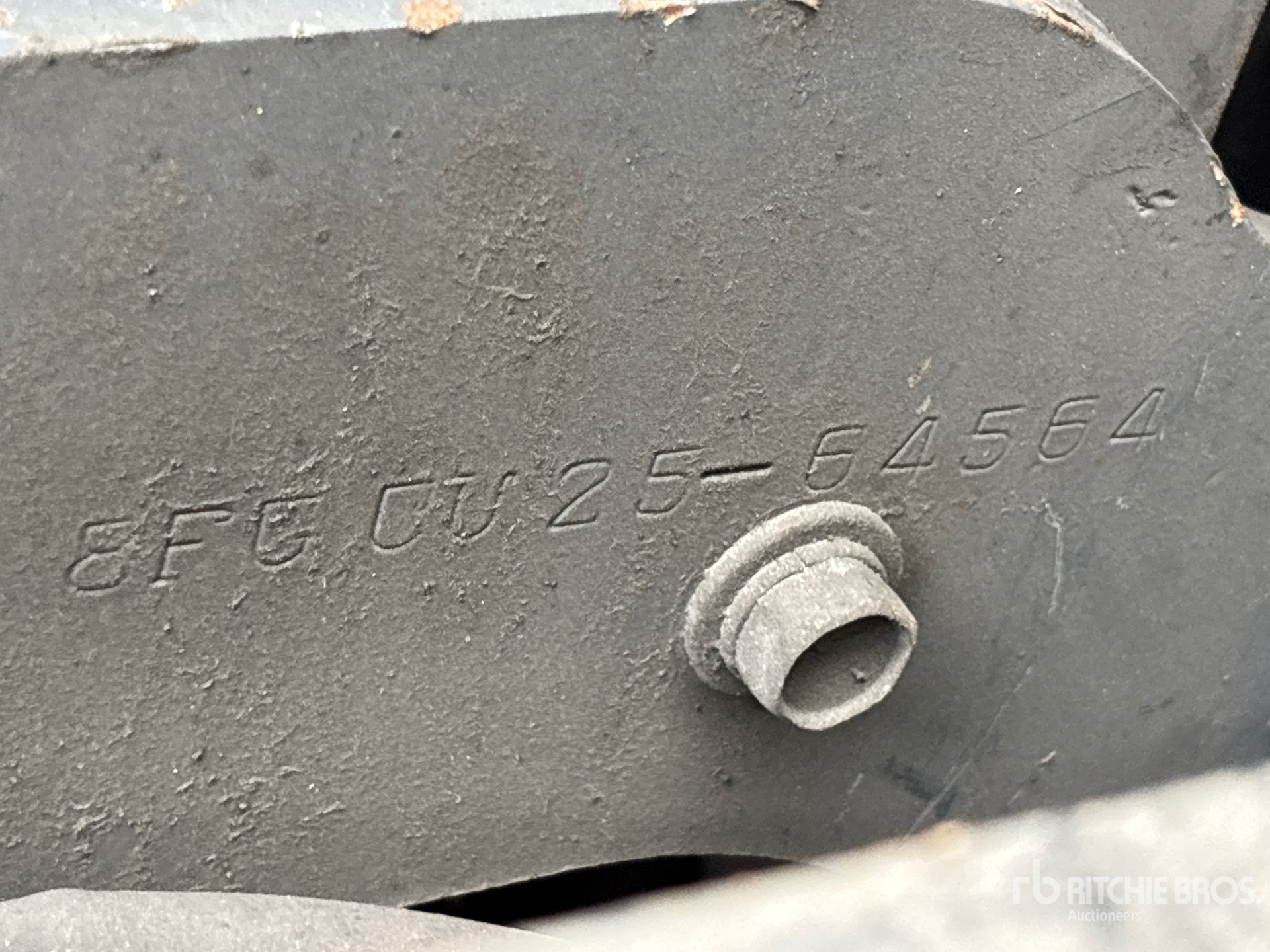

Serial Number:	64564
Machine Location:	NORTH EAST, MD

Description:

Located in Lane 48 Spot 13, 2 Stage Mast, 80 in Max Lift Height, 57 in Lowered Mast Height, 41 in Forks, Side Shift, Fork Positioner, 2014 US EPA Label, CARB Compliant, Toyota 4 Cylinder 2.2 L LPG Engine Deficiencies noted - Please inspect Closing Time: 2026-09-15 12:31:10 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Toyota 8FGCU20 is a cushion-tire forklift in Toyota's 8-Series, designed for indoor material handling and warehouse operations. It is powered by a gasoline or LPG engine, depending on configuration, and is commonly used for pallet transport, loading, unloading, and general lift truck duties on smooth surfaces. The 8FGCU20 has a nominal 4,000 lb lift capacity at a standard load center, with a compact chassis suited to narrow aisles and dock work. Toyota's System of Active Stability and ergonomic operator controls are typical features on this model. It is part of Toyota's industrial forklift lineup for light to medium-duty applications.

Brakes
Parking brake	Foot
Service brake	Hydraulic
Dimensions
Fork Spread Max	3 ft (1 m)
Fork Spread Min-outer edge to edge	10 in (25 cm)
Free lift	6 in (15 cm)
Gradeability	36%
Height to Top of Overhead Guard	7 ft (2 m)
Length to Fork Face	8 ft (2 m)
Max Fork Height	11 ft (3 m)
Overall Height - mast lowered	7 ft (2 m)
Overall Width	4 ft (1 m)
Turning Radius	6 ft (2 m)
Wheelbase	5 ft (1 m)
Engine
Displacement	136 cu in (2,229 cu cm)
Engine Make	TOYOTA
Engine Model	4Y-ECS
Number of Cylinders	4
Power	51 hp (38 kw)
Power Measured @	2,250 rpm
Torque	118 lbs ft (160 nm)
Torque Measured @	2,100 rpm
MAST
Load Capacity	4,000 lbs (1,814 kg)
Load Center	24 in (60 cm)
Mast Tip Forward	6 degrees
Mast Tip Rear	10 degrees
Operating Specifications
Fuel Capacity	12 gal (45 l)
Hydraulic System Fluid Capacity	20 gal (76 l)
Hydraulic System Relief Valve Pressure	2,275 psi
Max Speed	11 mph (17 kph)
Number of Front Wheels	2
Number of Rear Wheels	2
Operating Weight	7,143 lbs (3,239 kg)
Tire Type	Cushion
Performance
Drawbar Pull Max -Full Load	40,786 lbs (18,497 kg)
Drawbar Pull Max -No Load	18,298 lbs (8,299 kg)
