| Bucket |
|
Breakout force, curl |
7,187 lbs (3,260 kg)
|
|
Breakout force, lift |
5,807 lbs (2,634 kg)
|
|
General Purpose Bucket Heaped |
1 cu yd (1 cu m)
|
|
General Purpose Bucket Height |
2 ft (1 m)
|
|
General Purpose Bucket Length |
3 ft (1 m)
|
|
General Purpose Bucket Weight |
542 lbs (246 kg)
|
|
General Purpose Bucket Width |
7 ft (2 m)
|
|
Landscape Bucket Heaped cap |
1 cu yd (1 cu m)
|
|
Landscape Bucket Height |
2 ft (1 m)
|
|
Landscape Bucket Length |
3 ft (1 m)
|
|
Landscape Bucket Weight |
1 cu in (8 cu cm)
|
|
Landscape Bucket Width |
7 ft (2 m)
|
|
Multi Purpose Bucket Heaped cap |
1 cu yd (1 cu m)
|
|
Multi Purpose Bucket Height |
2 ft (1 m)
|
|
Multi Purpose Bucket Length |
3 ft (1 m)
|
|
Multi Purpose Bucket Weight |
842 lbs (382 kg)
|
|
Multi Purpose Bucket Width |
7 ft (2 m)
|
| Capacities |
|
Cooling system |
4 gal (16 l)
|
|
Engine oil w/ filter change |
4 gal (15 l)
|
|
Fuel Tank |
27 gal (103 l)
|
|
Hydraulic oil reservoir |
7 gal (26 l)
|
|
Hydraulic system |
16 gal (60 l)
|
|
Tipping Load |
7,990 lbs (3,624 kg)
|
| Dimensions |
|
Angle of departure |
29 degrees |
|
Attachment roll back angle |
30 degrees |
|
Clearance at Max Lift and Dump |
8 ft (2 m)
|
|
Dump angle |
42 degrees |
|
Dump Height |
8 ft (2 m)
|
|
Dump reach |
34 in (87 cm)
|
|
Height - Top of Cab |
7 ft (2 m)
|
|
Height to Hinge Pin |
125 in (318 cm)
|
|
Length - with Bucket |
12 ft (4 m)
|
|
Length - without Bucket |
9 ft (3 m)
|
|
Overall height |
7 ft (2 m)
|
|
Overall length (L/bucket) |
10 ft (3 m)
|
|
Overall length (W/bucket) |
12 ft (4 m)
|
|
Reach at Max Lift and Dump |
3 ft (1 m)
|
|
Turning Radius |
6 ft (2 m)
|
|
Turning Radius from Center - inc bucket |
69 in (176 cm)
|
|
Turning Radius from Center - machine rear |
69 in (176 cm)
|
|
Turning radius front L/bucket |
5 ft (1 m)
|
|
Turning radius front W/bucket |
8 ft (2 m)
|
|
Wheelbase |
6 ft (2 m)
|
|
Width Over Tracks |
7 ft (2 m)
|
| Engine |
|
Alternator |
342,000 amps |
|
Battery |
12 - 109 (V - Ah) |
|
Fuel Type |
Diesel |
|
Gross horsepower - SAE J1995 |
74 hp (55 kw)
|
|
Max Torque |
295 lbs ft (400 nm)
|
|
Net Power |
84 hp (63 kw)
|
|
Number of Cylinders |
4 |
|
Peak Torque |
267 lbs ft (362 nm)
|
|
Power Measured @ |
2,200 rpm |
|
Starter |
6 hp (4 kw)
|
|
Torque Measured @ |
1,800 rpm |
| General Specifications |
|
ENGINE POWER (Since 2016)
|
74 hp (55 kw)
|
|
ENGINE POWER (2017)
|
74 hp (55 kw)
|
|
MODEL (Since 2016)
|
MCT125C |
|
MODEL (2017)
|
MCT125C |
|
OPERATING LOAD (Since 2016)
|
2,600 lbs (1,179 kg)
|
|
OPERATING LOAD (2017)
|
2,600 lbs (1,179 kg)
|
|
OPERATING WIDTH (Since 2016)
|
78 in (198 cm)
|
|
OPERATING WIDTH (2017)
|
78 in (198 cm)
|
| Hydraulic System |
|
Pump Flow |
23 gpm (87 lpm)
|
|
Relief Valve Pressure |
3,335 psi |
| Loader |
|
Bucket Capacity |
1 cu yd (1 cu m)
|
|
Bucket Width |
78 in (198 cm)
|
|
High flow pump output |
33 gpm (125 lpm)
|
|
Operating Load |
2,600 lbs (1,179 kg)
|
|
Operating Load Rating |
2,797 lbs (1,269 kg)
|
|
Operating Width |
78 in (198 cm)
|
|
Standard hydraulic pump output |
24 gpm (90 lpm)
|
|
System pressure |
3,335 psi |
|
Tipping Angle |
7,991 degrees |
| Operating Specifications |
|
Alternator Supplied Amperage |
95 amps |
|
Cooling System Fluid Capacity |
4 gal (16 l)
|
|
Engine Oil Capacity |
4 gal (15 l)
|
|
Fuel Capacity |
27 gal (103 l)
|
|
Hydraulic System Fluid Capacity |
16 gal (60 l)
|
|
Max Speed - high range |
8 mph (13 kph)
|
|
Max Speed - low range |
6 mph (9 kph)
|
|
Operating Voltage |
12 volts |
|
Operating Weight |
10,205 lbs (4,629 kg)
|
| Performance |
|
Curl |
1 seconds |
|
Dump |
2 seconds |
|
Lift arm path |
Vertical |
|
Lower (power down) |
4 seconds |
|
Raise (lifting) |
5 seconds |
|
Rated operating load, 35% tip |
2,599 lbs (1,179 kg)
|
| Speeds |
|
Single speed |
6 mph (9 kph)
|

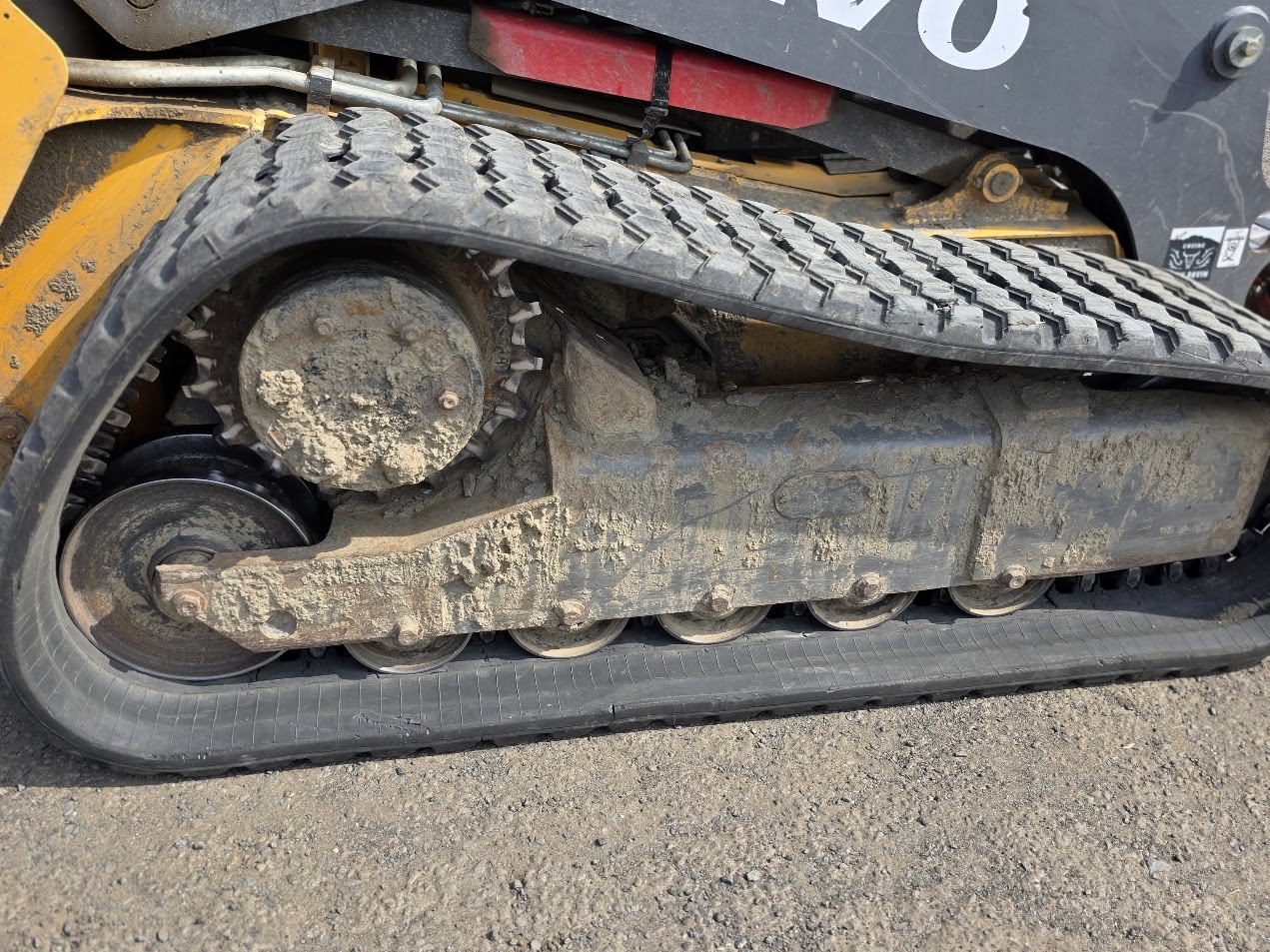

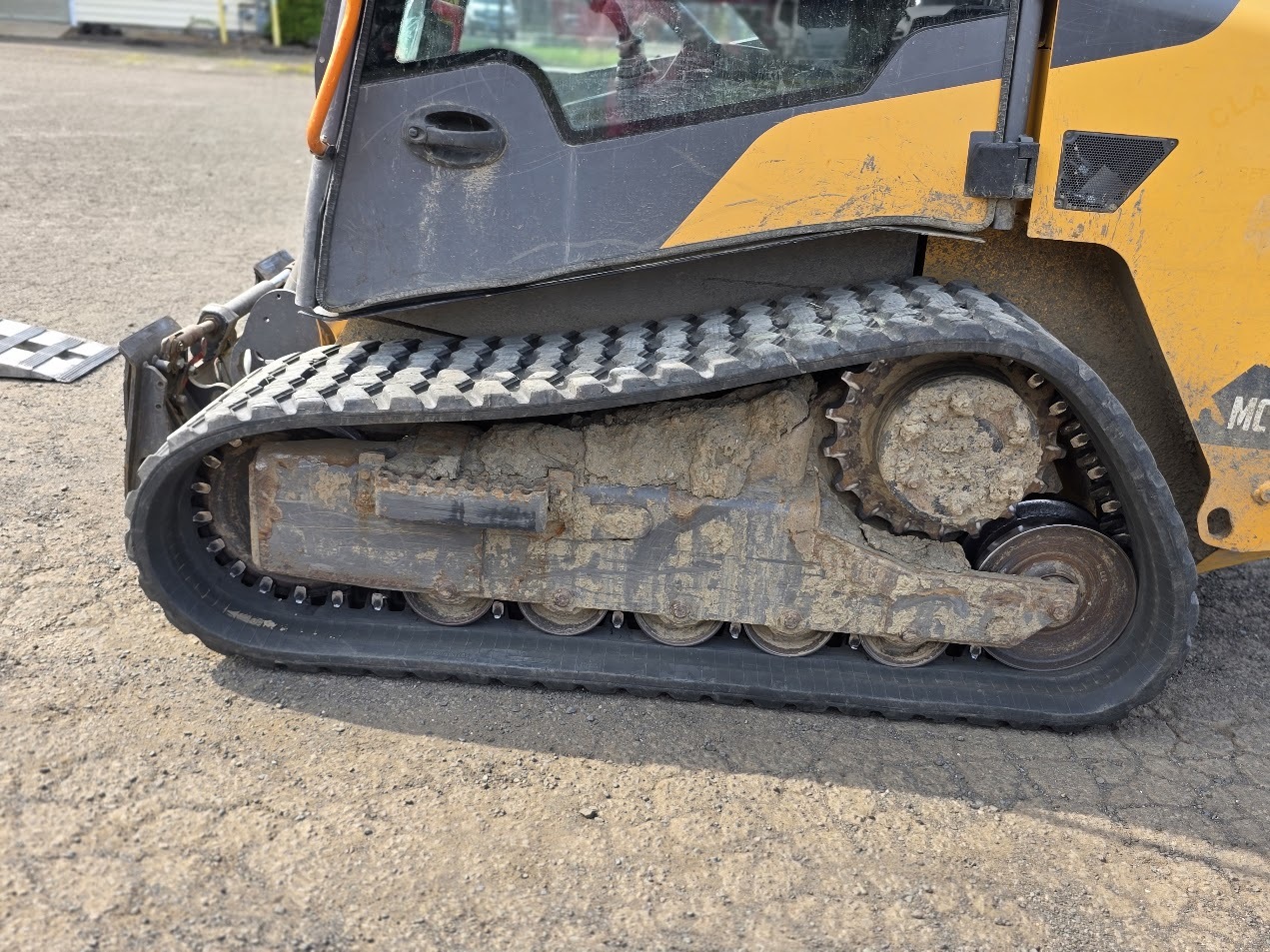

| Undercarriage |
|
Width of Track |
18 in (45 cm)
|
| Weights |
|
Weight |
10,756 lbs (4,879 kg)
|
