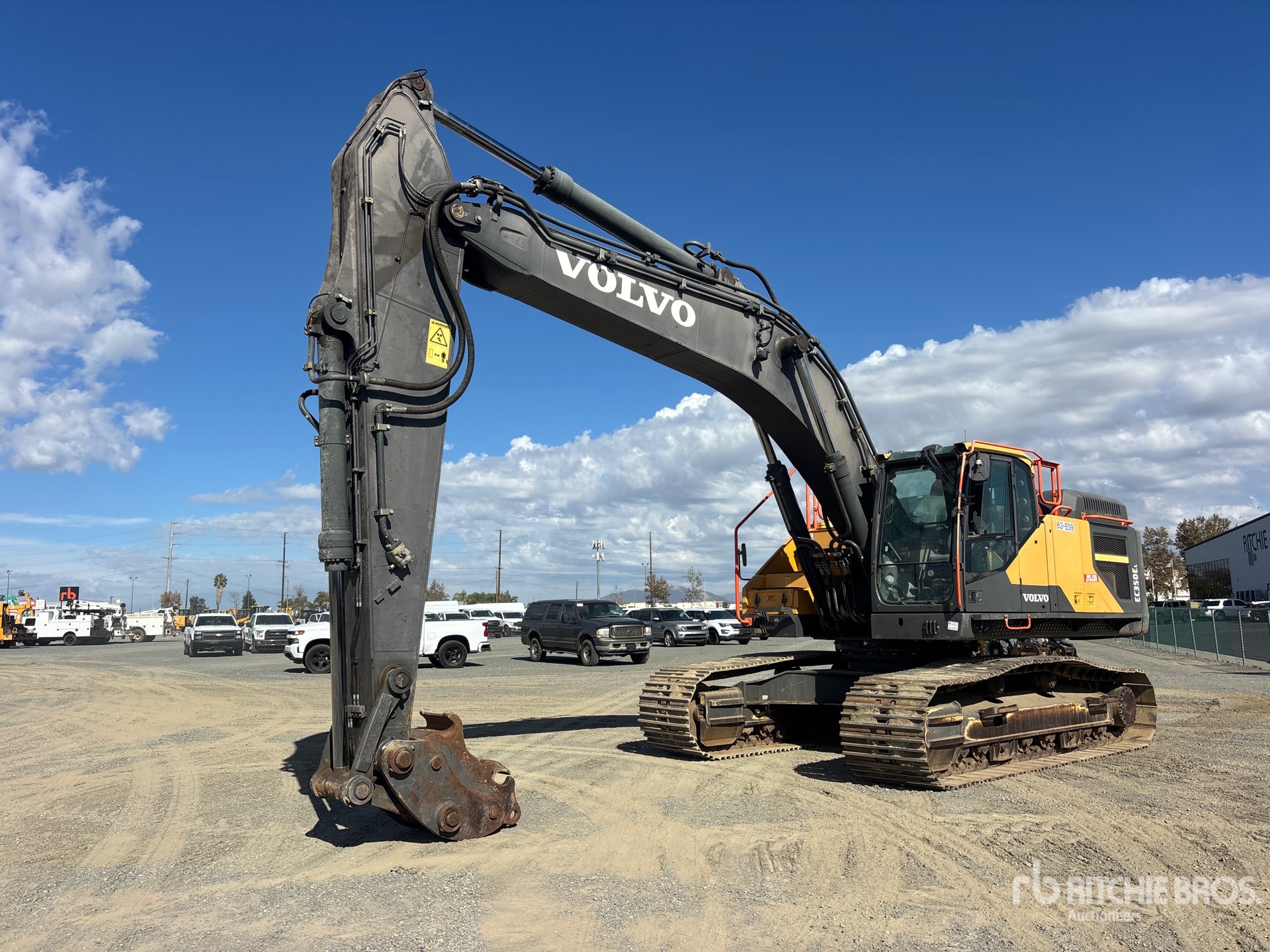

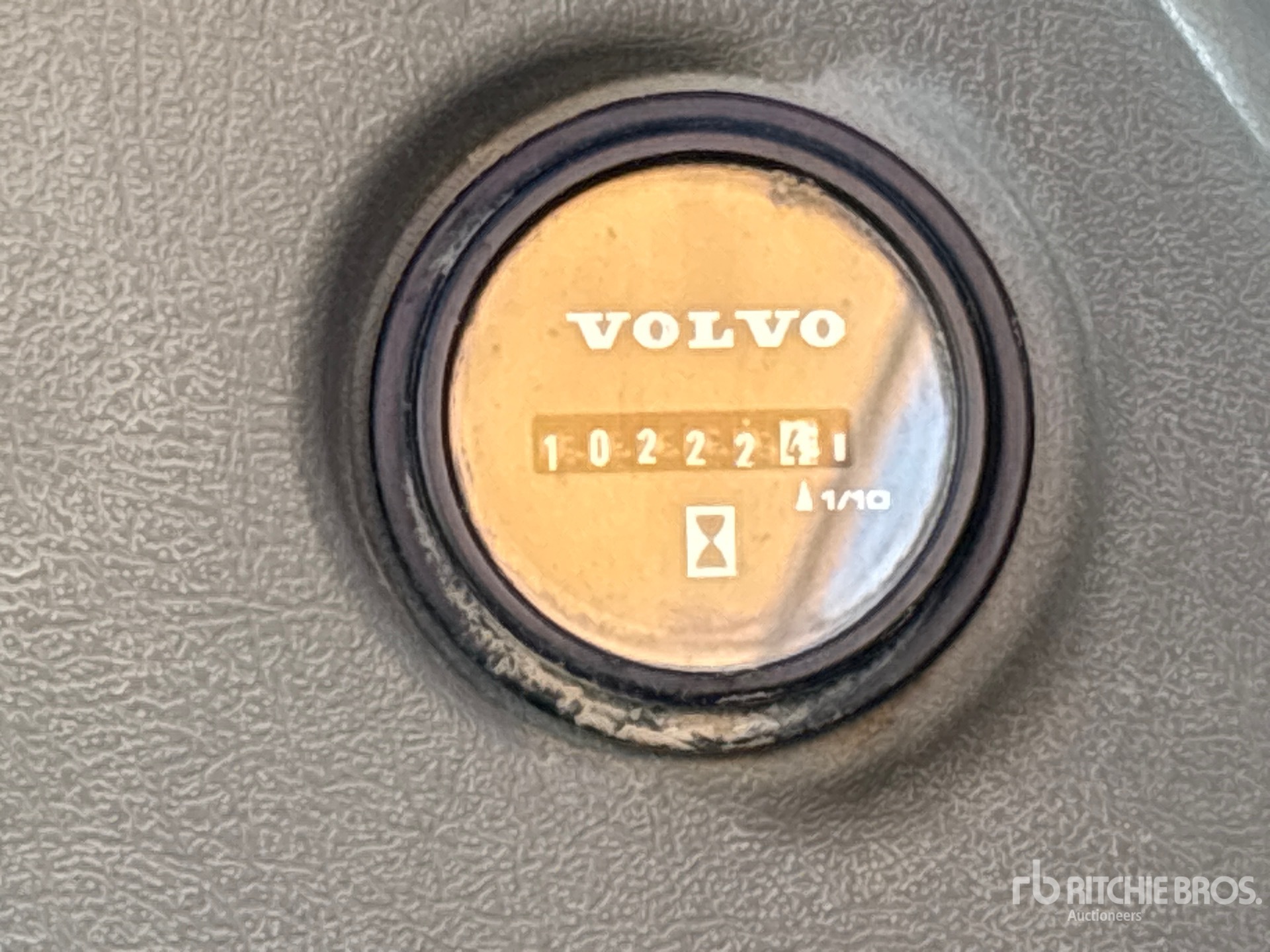

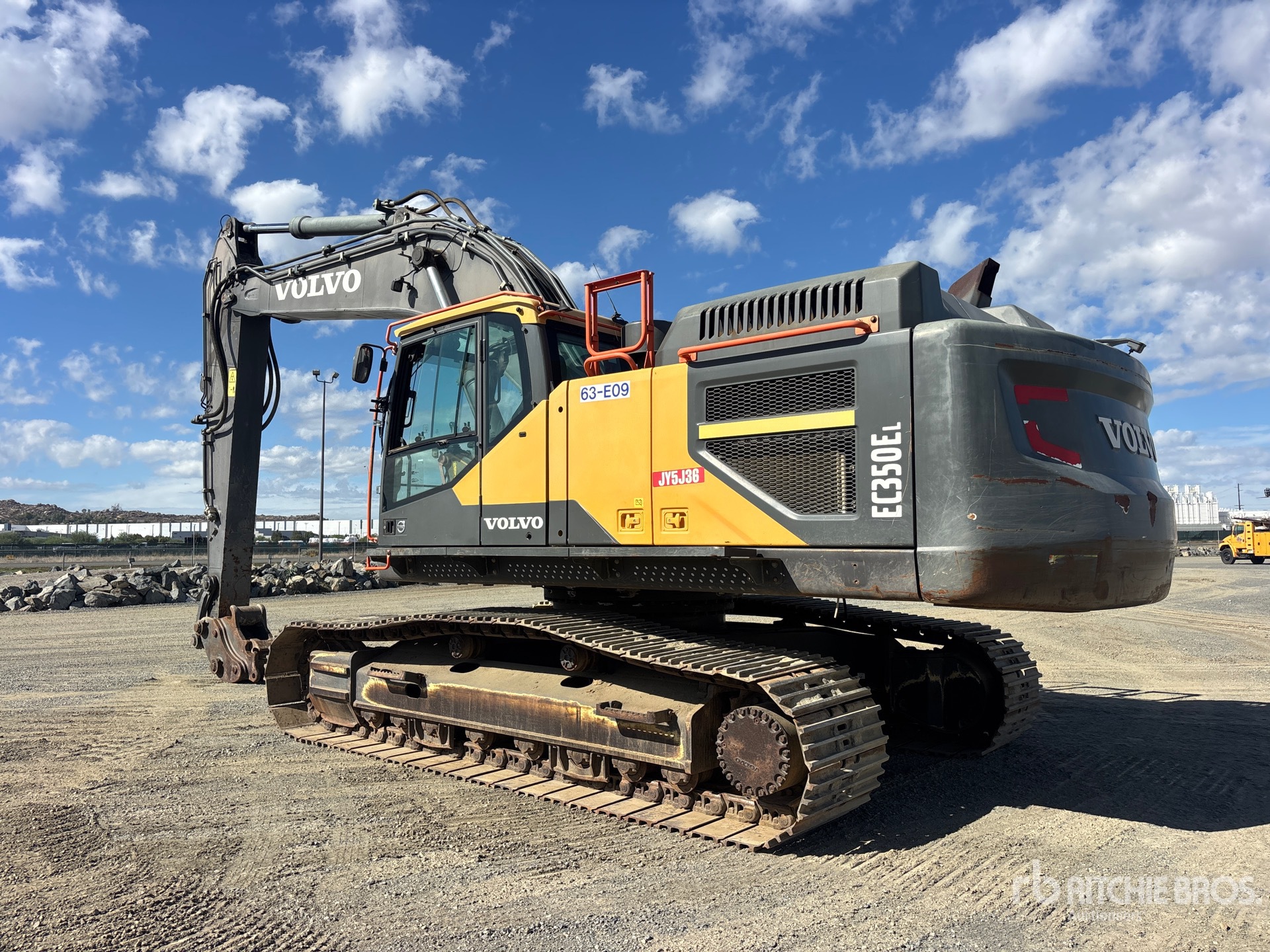

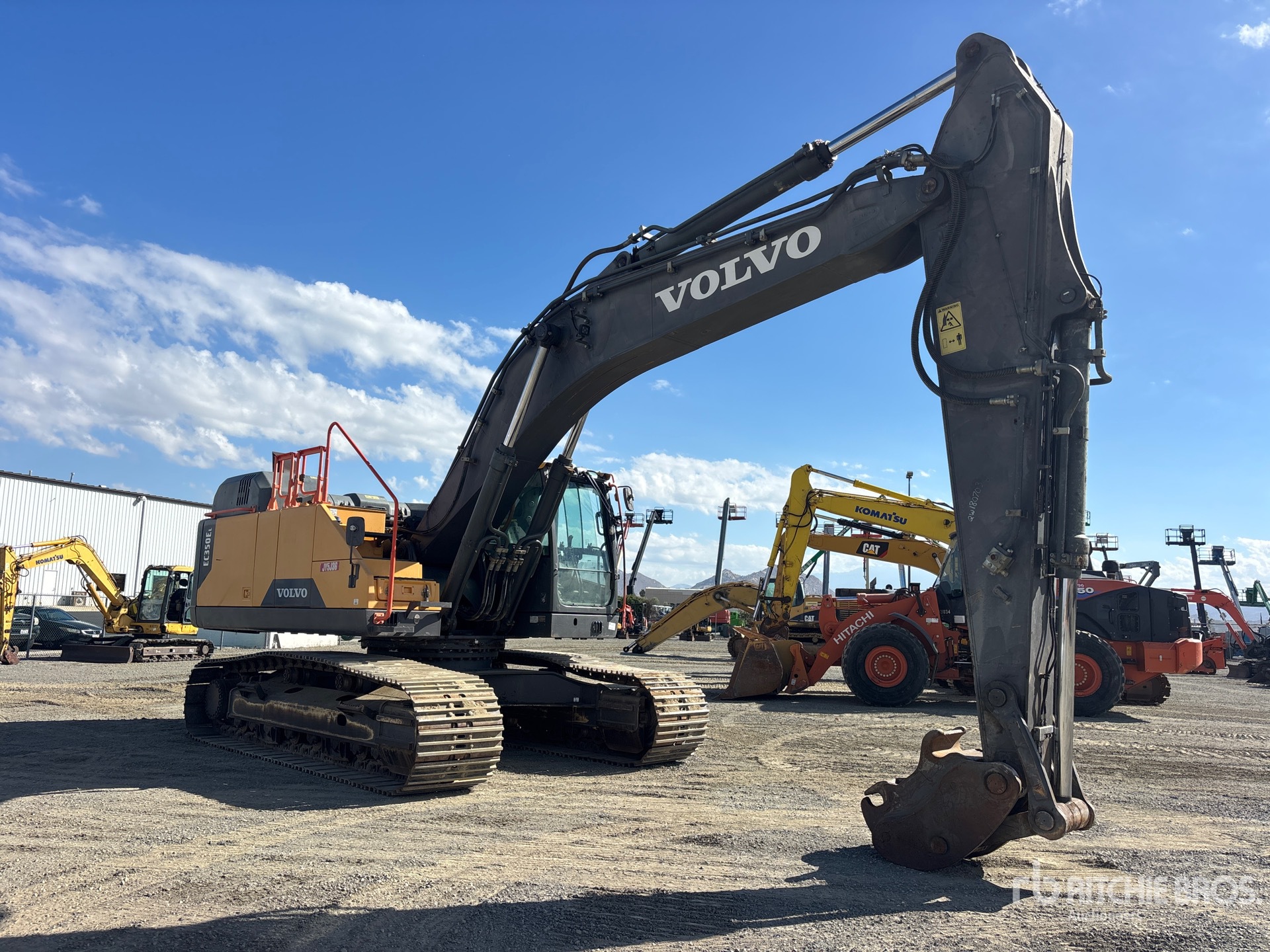

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom - 6.2 m, 20.4 ft in / Arm - 2.6 m, 8.6 ft in |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Digging Reach |
34 ft (10 m)
|
|
Max Digging Reach On Ground |
34 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
16 ft (5 m)
|
|
Max.Dumping Height |
22 ft (7 m)
|
|
Min - Front Slew Radius |
13 ft (4 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom - 6.45 m,21.2 ft in / Arm - 2.6 m, 8.6 ft in |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
23 ft (7 m)
|
|
Max Digging Reach |
35 ft (11 m)
|
|
Max Digging Reach On Ground |
34 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
16 ft (5 m)
|
|
Max.Dumping Height |
23 ft (7 m)
|
|
Min - Front Slew Radius |
14 ft (4 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Boom - 6.45 m,21.2 ft in / Arm - 3.2 m, 10.6 ft in |
|
Max Cutting Height |
34 ft (10 m)
|
|
Max Digging Depth |
25 ft (8 m)
|
|
Max Digging Reach |
37 ft (11 m)
|
|
Max Digging Reach On Ground |
36 ft (11 m)
|
|
Max Vertical Wall Digging Depth |
18 ft (6 m)
|
|
Max.Dumping Height |
23 ft (7 m)
|
|
Min - Front Slew Radius |
14 ft (4 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
Boom - 6.45 m,21.2 ft in / Arm - 3.9 m, 12.10 ft in |
|
Max Cutting Height |
35 ft (11 m)
|
|
Max Digging Depth |
27 ft (8 m)
|
|
Max Digging Reach |
39 ft (12 m)
|
|
Max Digging Reach On Ground |
38 ft (12 m)
|
|
Max Vertical Wall Dig Depth |
20 ft (6 m)
|
|
Max.Dumping Height |
24 ft (7 m)
|
|
Min - Front Slew Radius |
14 ft (4 m)
|
| Capacities |
|
Diesel Exhaust Fluid (Def) Tank |
17 gal (63 l)
|
|
Engine Coolant |
16 gal (60 l)
|
|
Engine Oil |
11 gal (42 l)
|
|
Fuel Tank |
164 gal (620 l)
|
|
Hydraulic System |
132 gal (500 l)
|
|
Hydraulic Tank |
60 gal (225 l)
|
|
Slew Reduction |
2 gal (6 l)
|
|
Travel Reduction |
4 gal (14 l)
|
| Dimensions |
|
Counterweight Clearance |
4 ft (1 m)
|
|
Ground Clearance (Minimum) |
2 ft (1 m)
|
|
Overall Height (To Top Of Boom) |
12 ft (4 m)
|
|
Overall Height (To Top Of Cab) |
11 ft (3 m)
|
|
Overall Length |
36 ft (11 m)
|
|
Overall Width |
133 in (339 cm)
|
|
Overall Width -Upper Structure |
10 ft (3 m)
|
|
Shoe Width |
3 ft (1 m)
|
|
Tail Swing Radius |
12 ft (4 m)
|
|
Track Length |
195 in (496 cm)
|
| Electrical System |
|
Alternator |
28/80 (V/A) |
|
Batteries |
2 |
|
Battery |
200 (Ah) |
|
Voltage |
24 V V |
| Engine |
|
Bore |
5 in (13 cm)
|
|
Displacement |
781 cu in (12,802 cu cm)
|
|
Engine Model |
Volvo D13J |
|
Gross Power |
309 hp (230 kw)
|
|
Max Power |
1,700 rpm |
|
Max Torque |
1,248 lbs ft (1,692 nm)
|
|
Net Power |
307 hp (229 kw)
|
|
Number Of Cylinders |
6 |
|
Rated Engine Speed |
1,275 rpm |
|
Stroke |
6 in (16 cm)
|

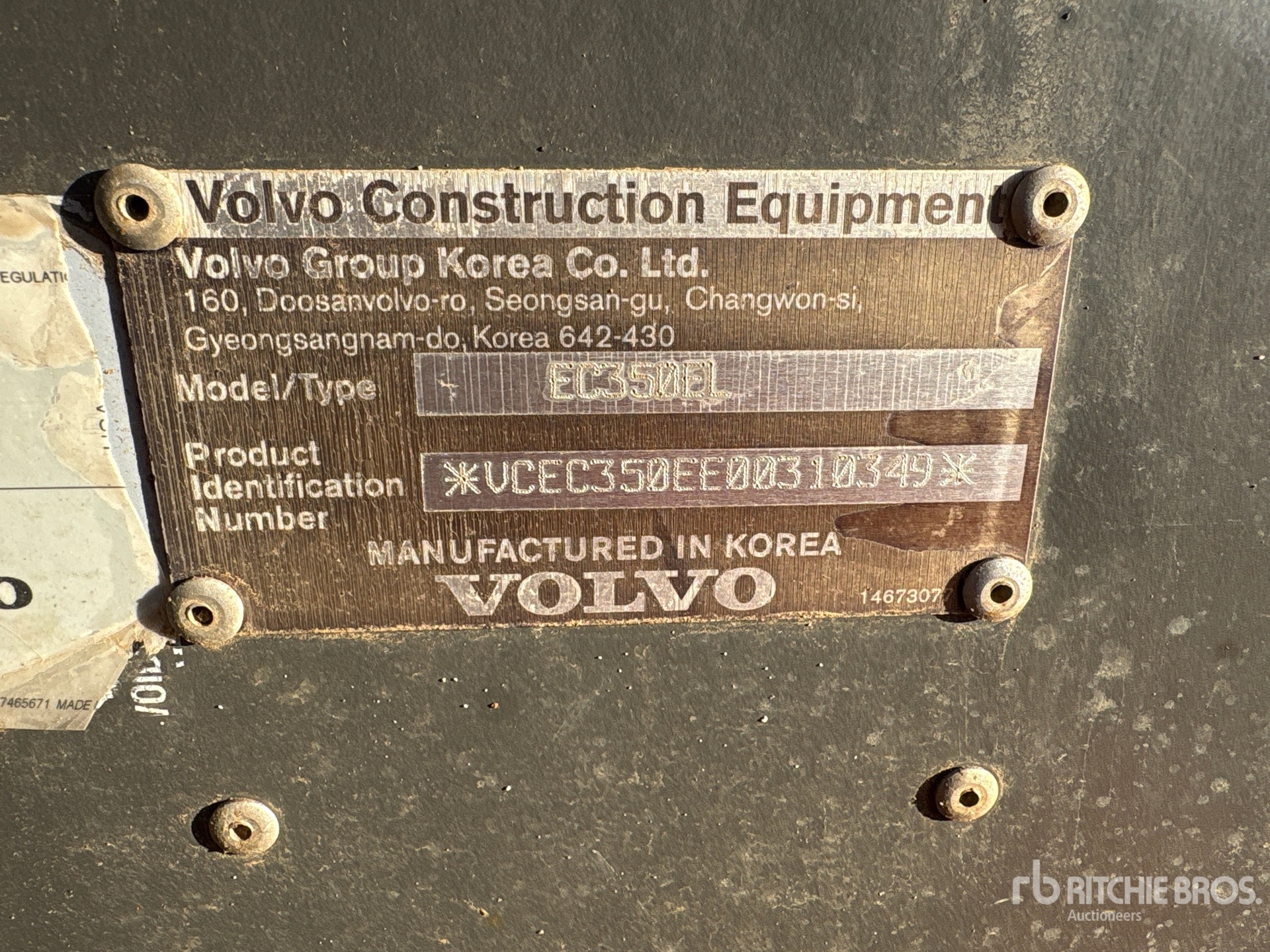

| General Specifications |
|
Digging Depth (Since 2025)
|
25 ft (8 m)
|
|
Digging Reach (Since 2025)
|
37 ft (11 m)
|
|
Engine (Since 2025)
|
307 hp (229 kw)
|
|
Operating Weight (Since 2025)
|
84,450 lbs (38,306 kg)
|
| Hydraulic System |
|
Implement |
5,120 psi |
|
Main Pump - Maximum Flow |
159 gpm (600 lpm)
|
|
Pilot Circuit |
566 psi |
|
Pilot Pump - Maximum Flow |
9 gpm (33 lpm)
|
|
Slew Circuit |
3,700 psi |
|
Travel Circuit |
5,120 psi |
| Performance |
|
Drawbar Pull Force |
62,160 lbs (28,195 kg)
|
|
Gradeability |
35 % |
|
Travel Speed - High |
3 mph (5 kph)
|
|
Travel Speed Low |
2 mph (4 kph)
|
| Swing System |
|
Max - Slew Speed |
10 rpm |
|
Max - Slew Torque |
878 lbs ft (1,190 nm)
|

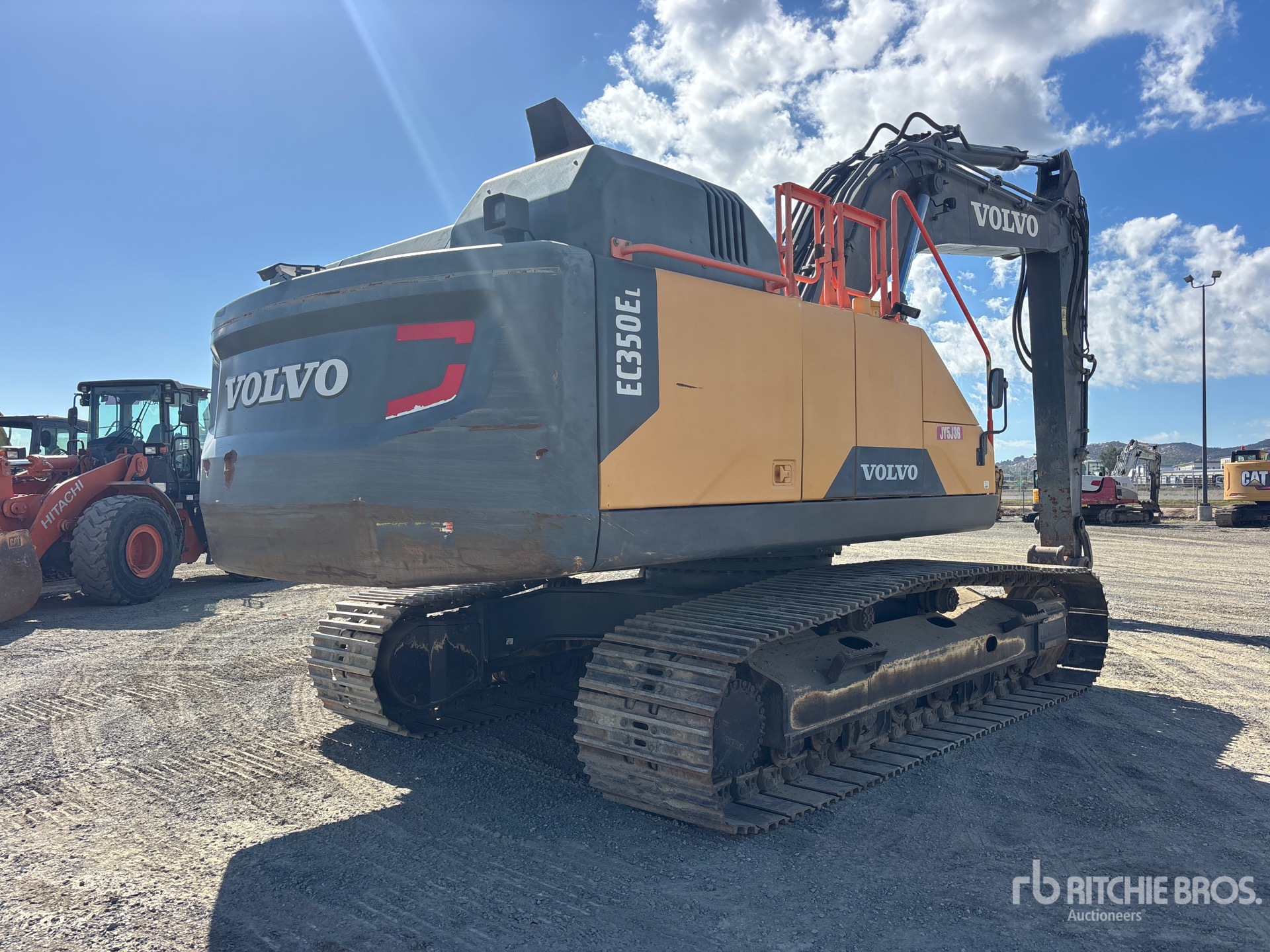

| Undercarriage |
|
Link Pitch |
9 in (22 cm)
|
|
Number Of Bottom Rollers Per Side |
2 x 8 |
|
Number Of Top Rollers Per Side |
2 x 2 |
|
Shoe Width (Standard) |
24 in (60 cm)
|
