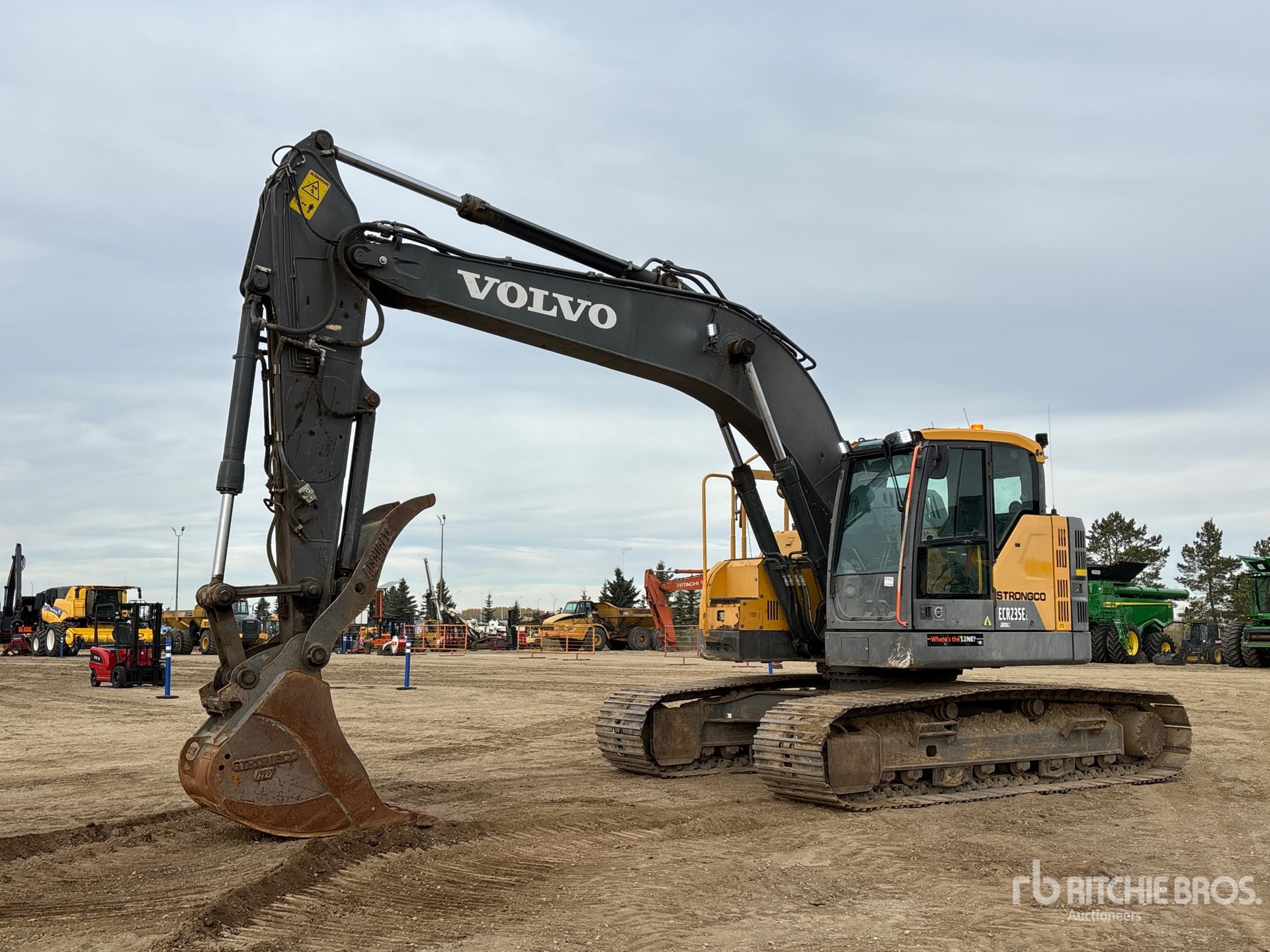

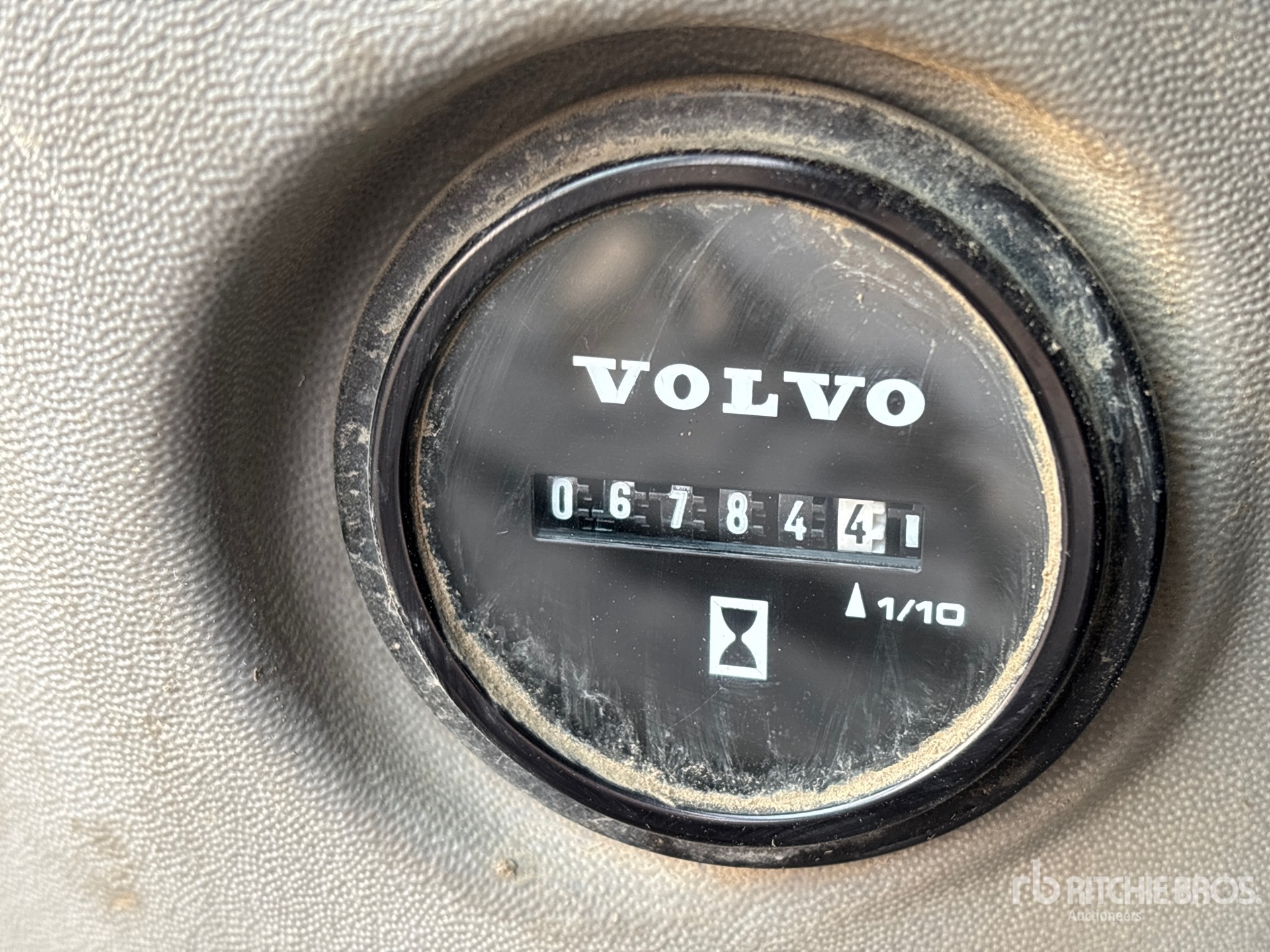

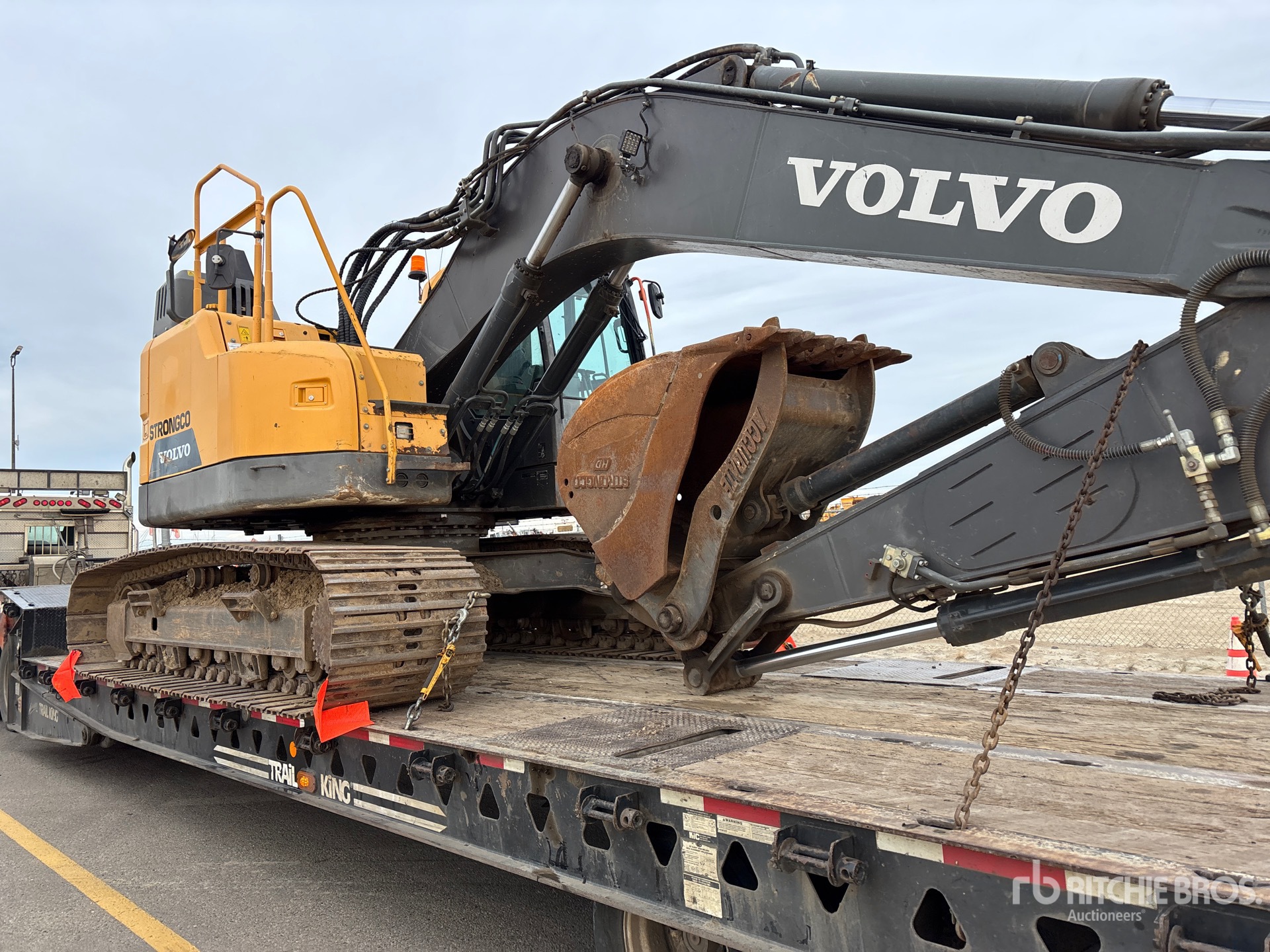

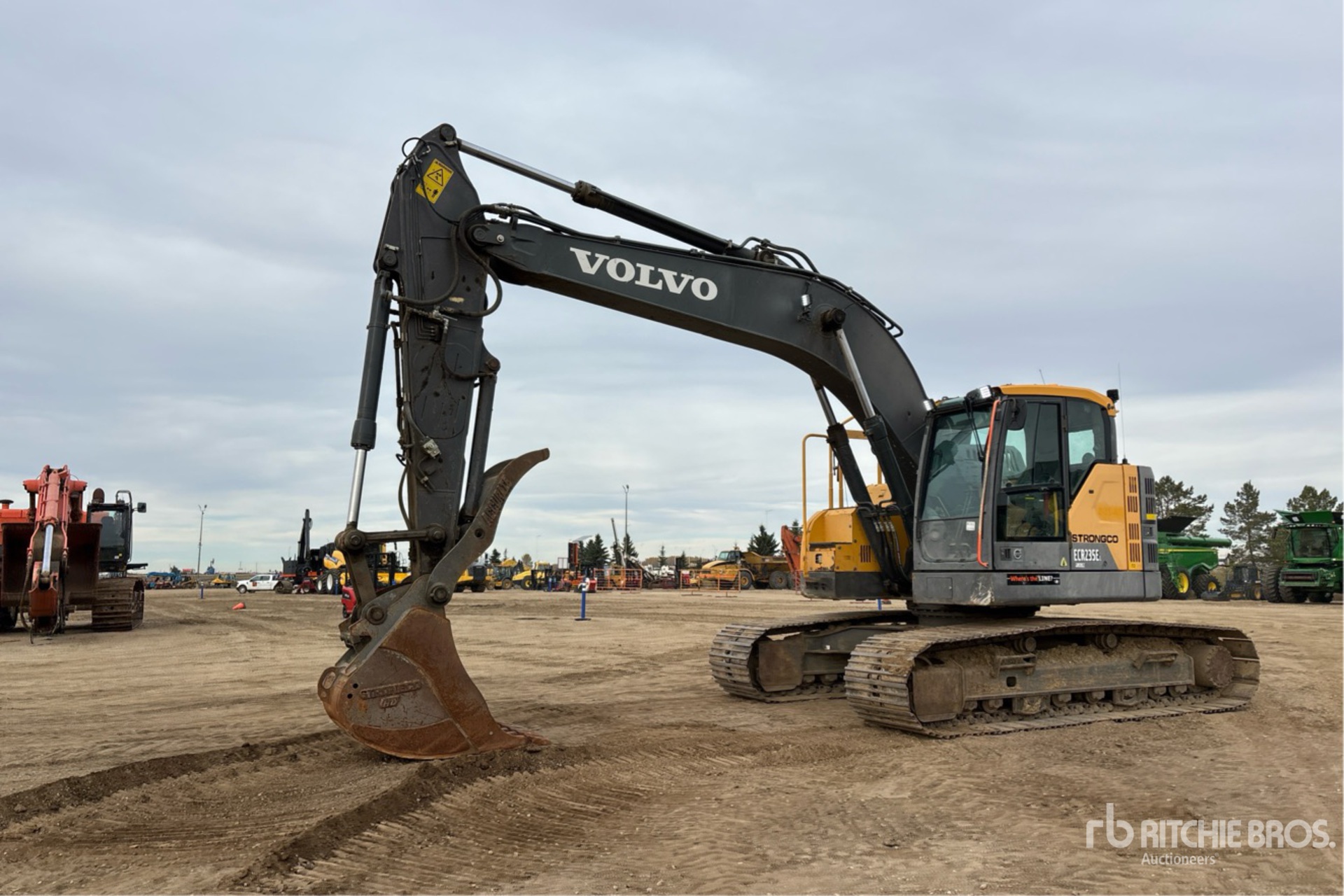

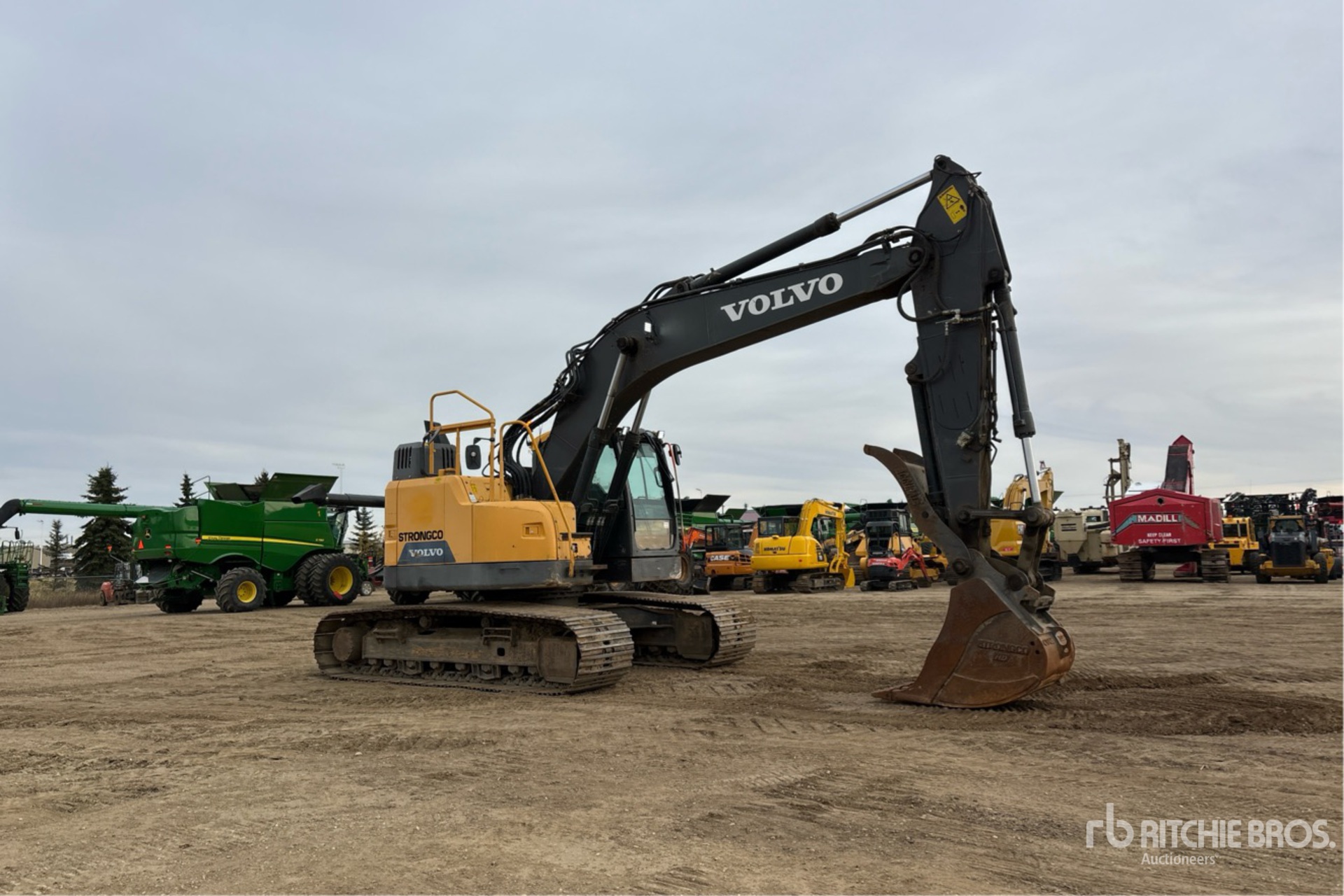

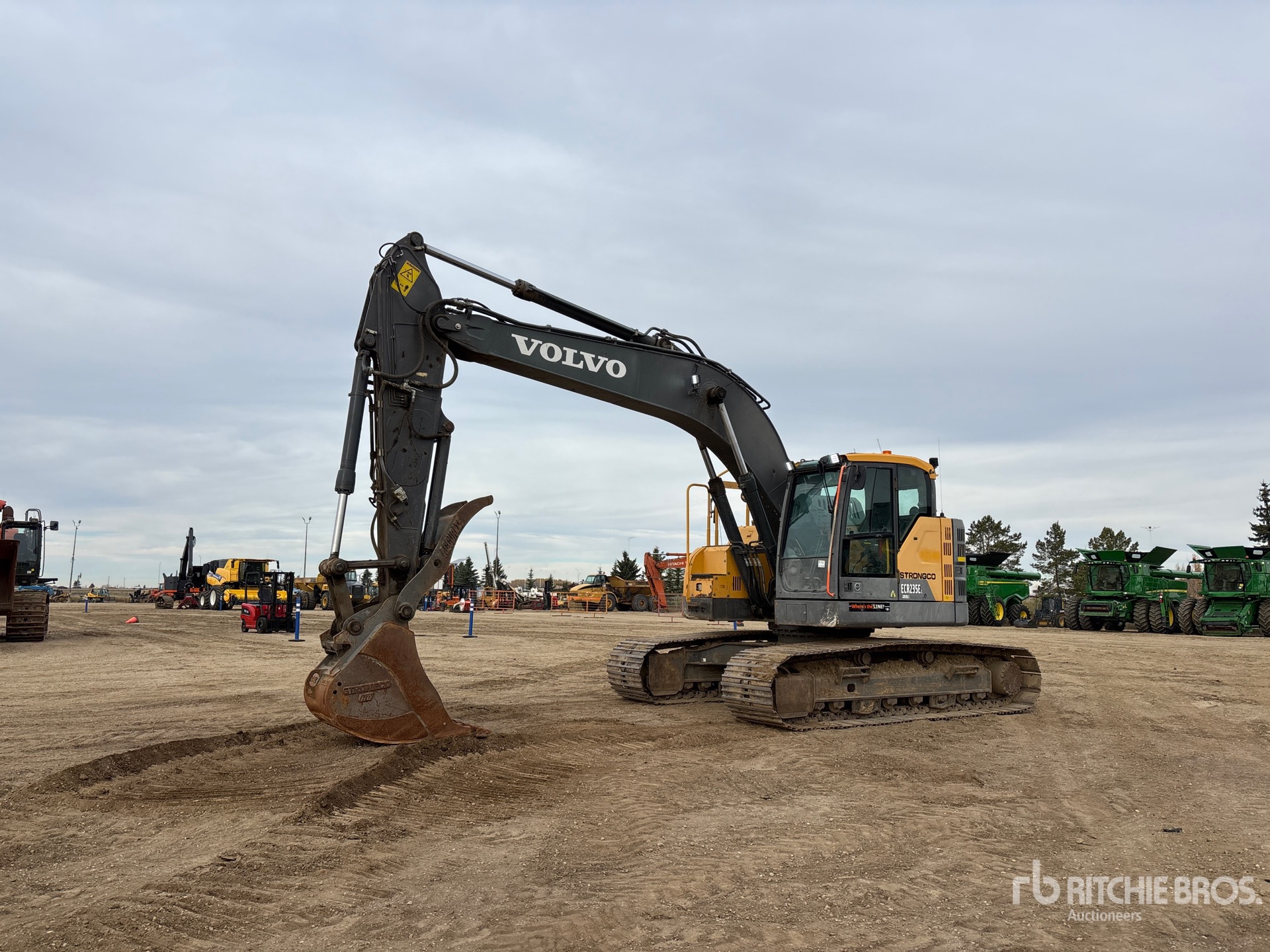

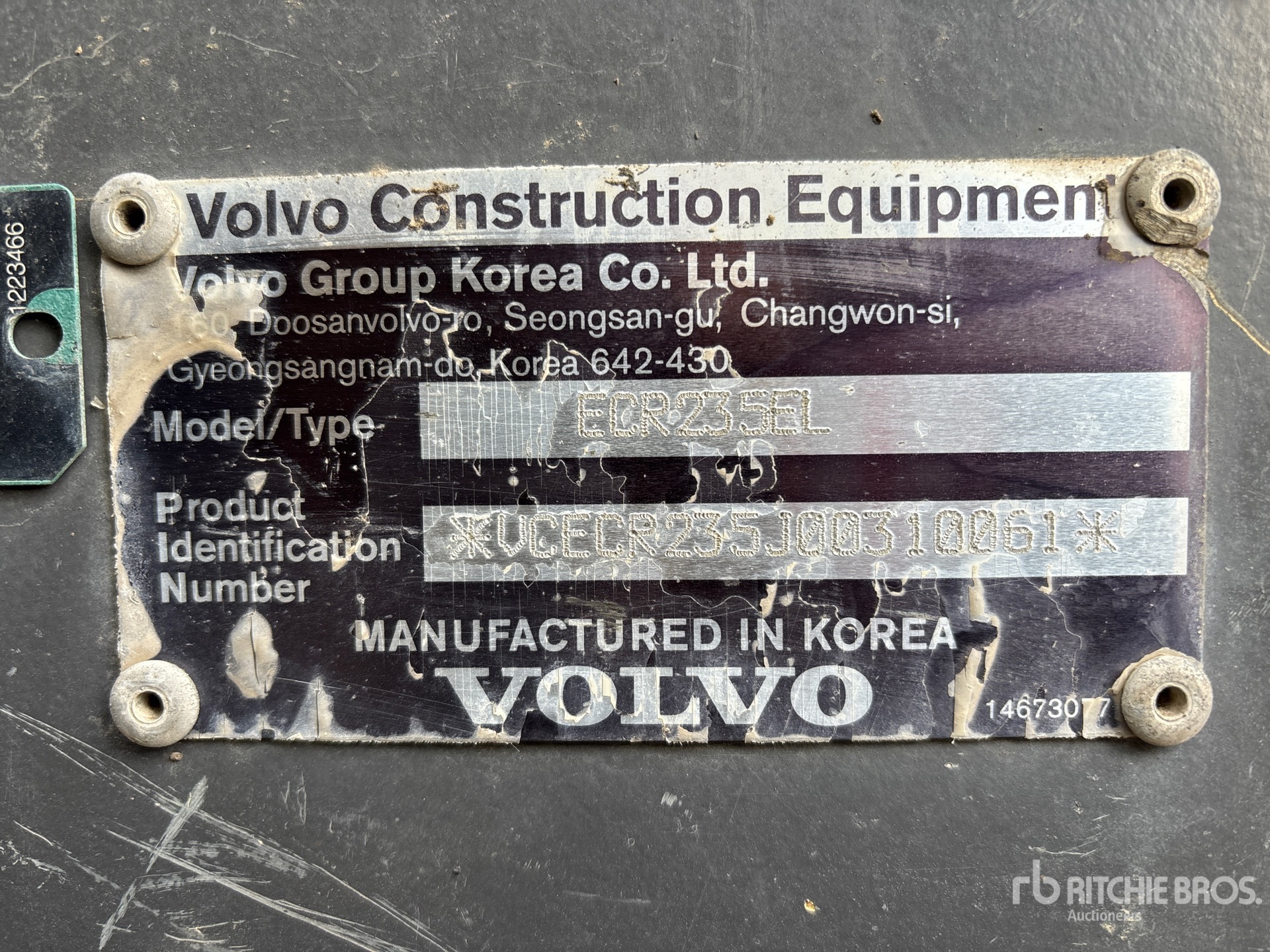

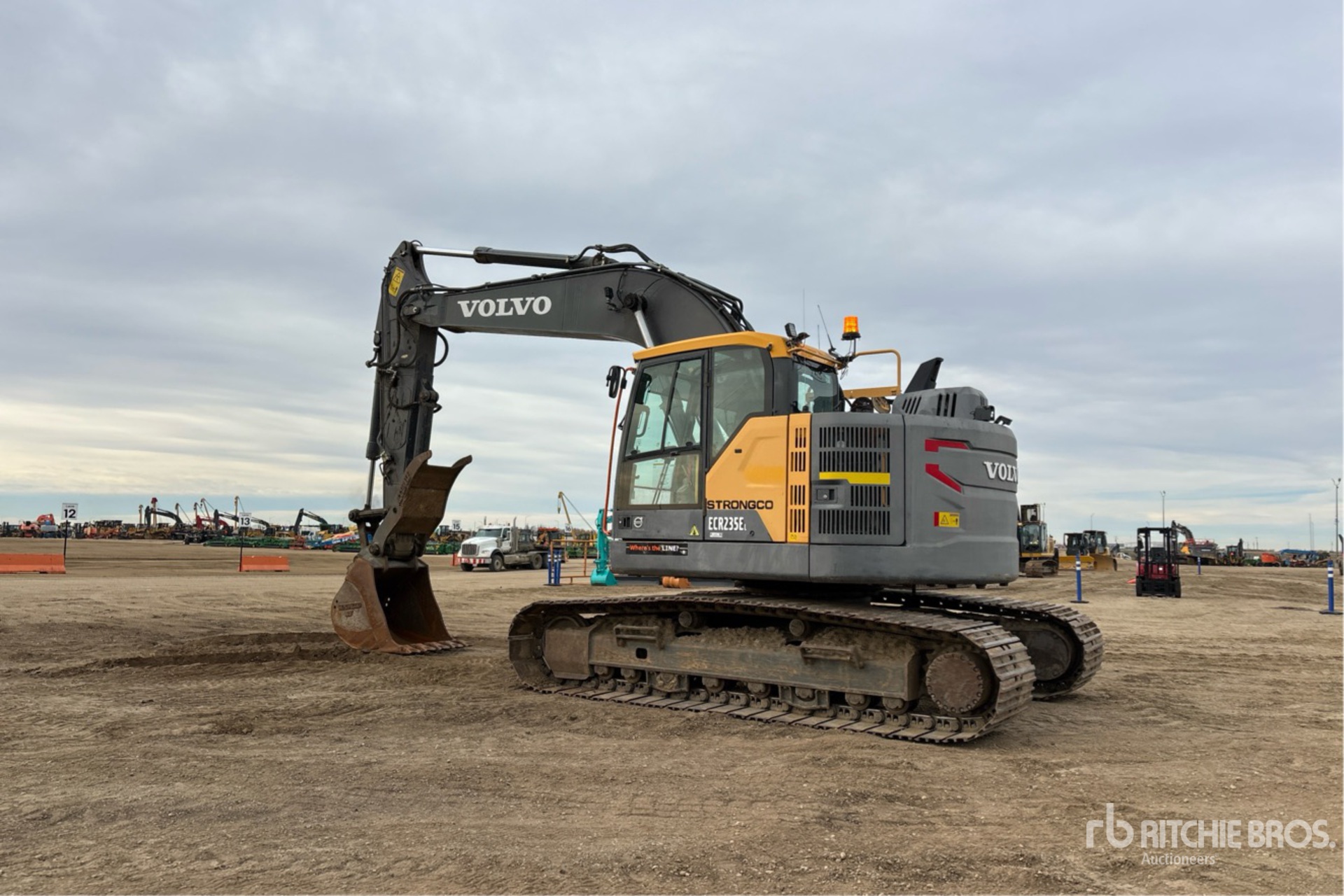

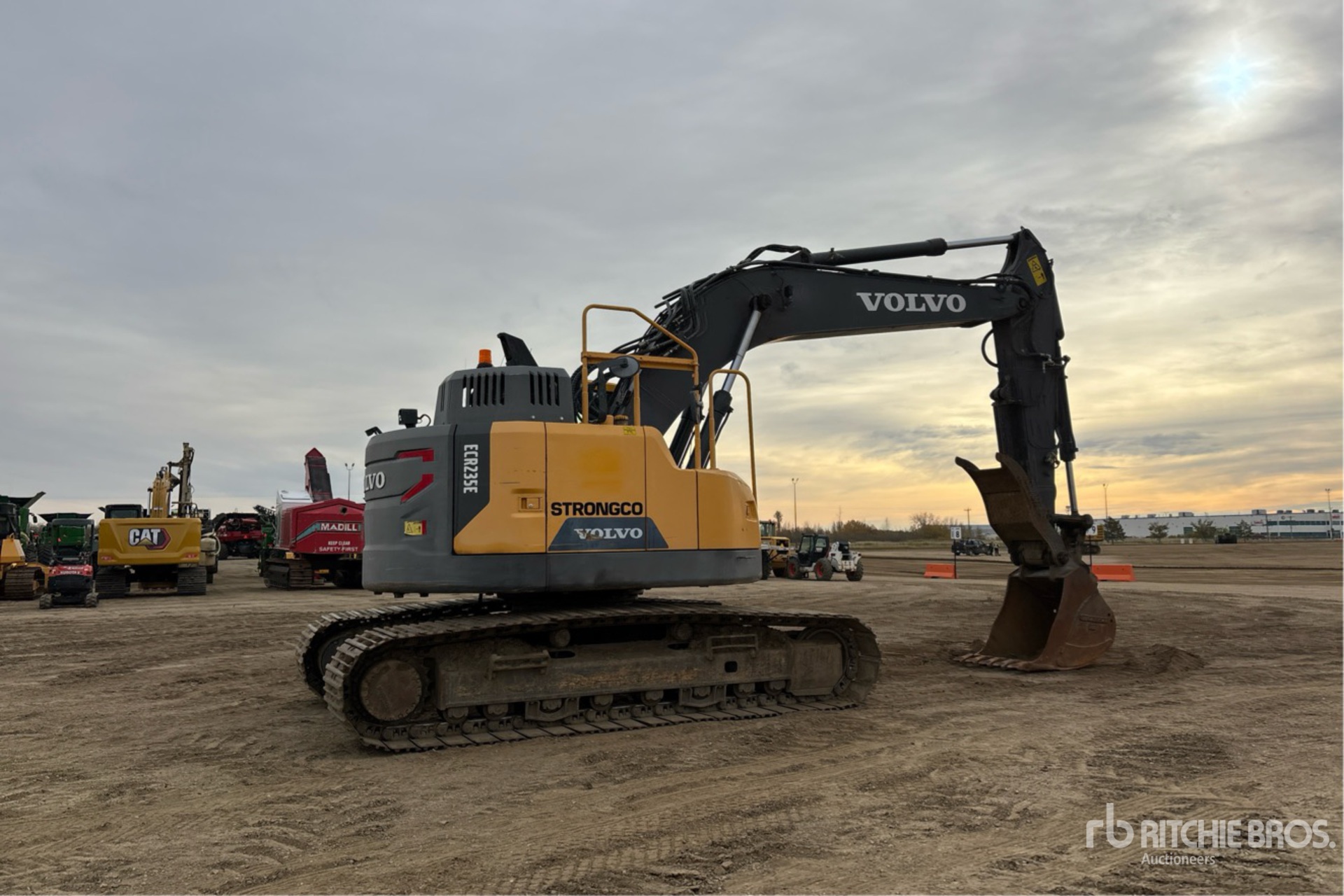

| Boom/Stick 1 |
|
Boom/Stick 1 |
Mono Boom - 5.7 m, 18.8 ft in / Arm - 2.5 m, 8.2 ft in |
|
Max Cutting Height |
35 ft (11 m)
|
|
Max Digging Depth |
21 ft (6 m)
|
|
Max Digging Reach |
31 ft (10 m)
|
|
Max Digging Reach On Ground |
31 ft (9 m)
|
|
Max Vertical Wall Digging Depth |
17 ft (5 m)
|
|
Max.Dumping Height |
25 ft (8 m)
|
|
Min.Front Swing Radius |
8 ft (2 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Mono Boom - 5.7 m, 18.8 ft in / Arm - 2.9 m, 9.6 ft in |
|
Max Cutting Height |
31 ft (9 m)
|
|
Max Digging Depth |
18 ft (6 m)
|
|
Max Digging Reach |
27 ft (8 m)
|
|
Max Digging Reach On Ground |
27 ft (8 m)
|
|
Max Vertical Wall Digging Depth |
14 ft (4 m)
|
|
Max.Dumping Height |
23 ft (7 m)
|
|
Min.Front Swing Radius |
7 ft (2 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
2-piece Boom - 5.57 m, 18.3 ft in / Arm - 2.5 m, 8.2 ft in |
|
Max Cutting Height |
37 ft (11 m)
|
|
Max Digging Depth |
20 ft (6 m)
|
|
Max Digging Reach |
32 ft (10 m)
|
|
Max Digging Reach On Ground |
32 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
16 ft (5 m)
|
|
Max.Dumping Height |
27 ft (8 m)
|
|
Min.Front Swing Radius |
7 ft (2 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
2-piece Boom - 5.57 m, 18.3 ft in / Arm - 2.9 m, 9.6 ft in |
|
Max Cutting Height |
38 ft (12 m)
|
|
Max Digging Depth |
21 ft (6 m)
|
|
Max Digging Reach |
33 ft (10 m)
|
|
Max Digging Reach On Ground |
33 ft (10 m)
|
|
Max Vertical Wall Dig Depth |
17 ft (5 m)
|
|
Max.Dumping Height |
28 ft (8 m)
|
|
Min.Front Swing Radius |
7 ft (2 m)
|
| Capacities |
|
Diesel Exhaust Fluid (Def) Tank |
7 gal (25 l)
|
|
Engine Coolant |
8 gal (30 l)
|
|
Engine Oil |
7 gal (25 l)
|
|
Fuel Tank |
76 gal (286 l)
|
|
Hydraulic System |
74 gal (280 l)
|
|
Hydraulic Tank |
33 gal (126 l)
|
|
Travel Reduction |
3 gal (10 l)
|
| Dimensions |
|
Counterweight Clearance |
3 ft (1 m)
|
|
Ground Clearance (Minimum) |
2 ft (0 m)
|
|
Overall Height (To Top Of Boom) |
11 ft (3 m)
|
|
Overall Height (To Top Of Cab) |
10 ft (3 m)
|
|
Overall Length |
30 ft (9 m)
|
|
Overall Width |
122 in (309 cm)
|
|
Overall Width -Upper Structure |
10 ft (3 m)
|
|
Shoe Width |
2 ft (1 m)
|
|
Tail Swing Radius |
6 ft (2 m)
|
|
Track Length |
176 in (446 cm)
|
| Electrical System |
|
Alternator |
28/110 (V/A) |
|
Batteries |
2 x 12 / 150 V/Ah |
|
Starter Motor |
132 V/KW |
|
Voltage |
24 V V |
| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
348 cu in (5,701 cu cm)
|
|
Engine Model |
Volvo D6J |
|
Gross Power |
173 hp (129 kw)
|
|
Max Power |
1,800 rpm |
|
Max Torque |
627 lbs ft (850 nm)
|
|
Net Power |
172 hp (128 kw)
|
|
Number Of Cylinders |
6 |
|
Rated Engine Speed |
1,350 rpm |
|
Stroke |
5 in (13 cm)
|
| Hydraulic System |
|
Main Pump - Maximum Flow |
109 gpm (414 lpm)
|
|
Pilot Circuit |
570 psi |
|
Pilot Pump - Maximum Flow |
5 gpm (18 lpm)
|
|
Power Boost |
5,260 psi |
|
Slew Circuit |
4,050 psi |
|
Standard Pressure |
4,980 psi |
|
Travel Circuit |
4,980 psi |
| Performance |
|
Drawbar Pull Force |
46,963 lbs (21,302 kg)
|
|
Gradeability |
35 % |
|
Travel Speed |
4 mph (6 kph)
|
| Swing System |
|
Max - Slew Speed |
12 rpm |
|
Max - Slew Torque |
61,220 lbs ft (83,002 nm)
|
|
Swing Reduction |
7 L, 2 gal |
| Undercarriage |
|
Link Pitch |
7 in (19 cm)
|
|
Number Of Bottom Rollers Per Side |
2 x 8 |
|
Number Of Top Rollers Per Side |
2 x 2 |
|
Shoe Width (Standard) |
28 in (70 cm)
|
|
Shoe Width – Rubber |
24 in (60 cm)
|
