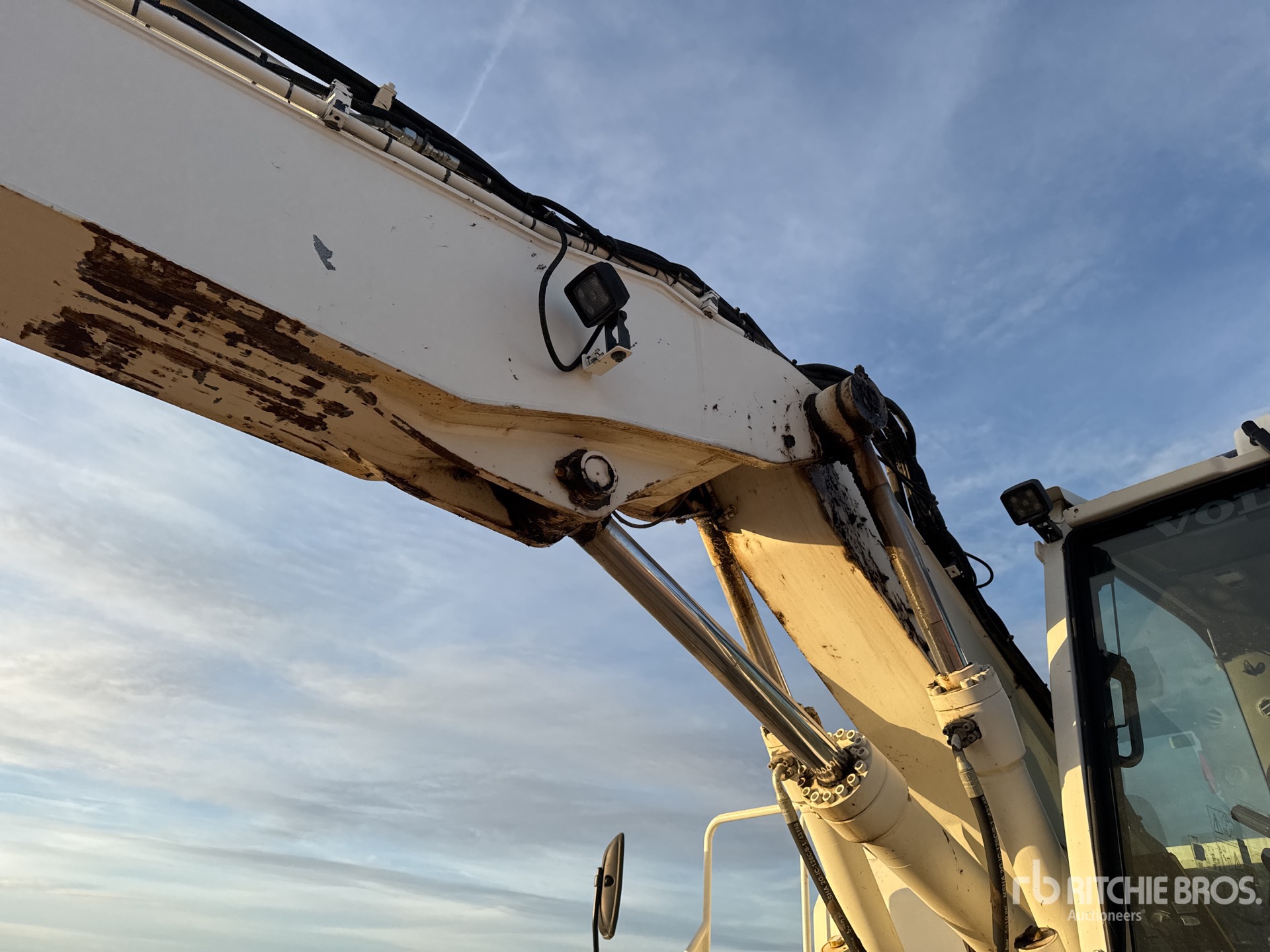

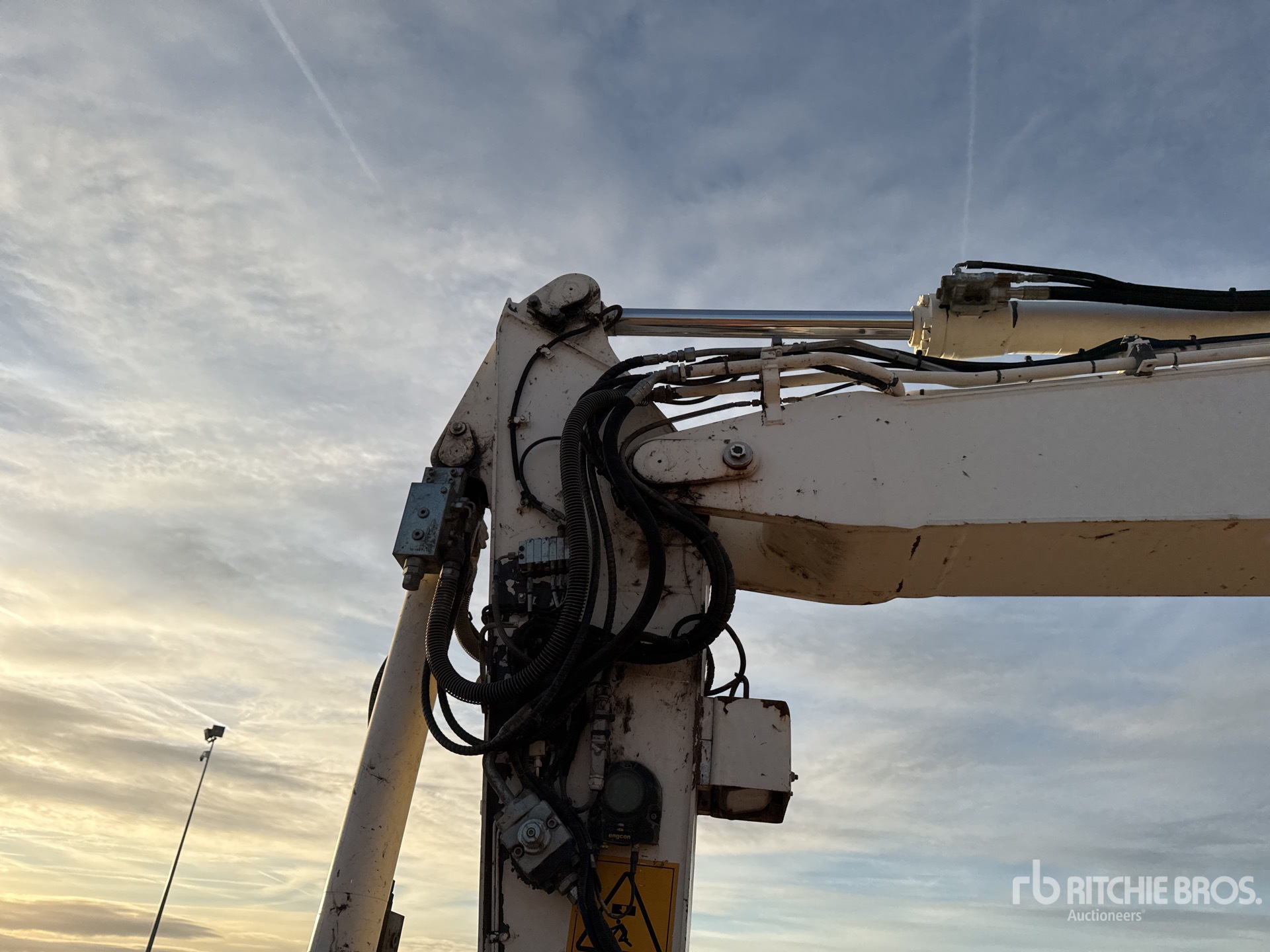

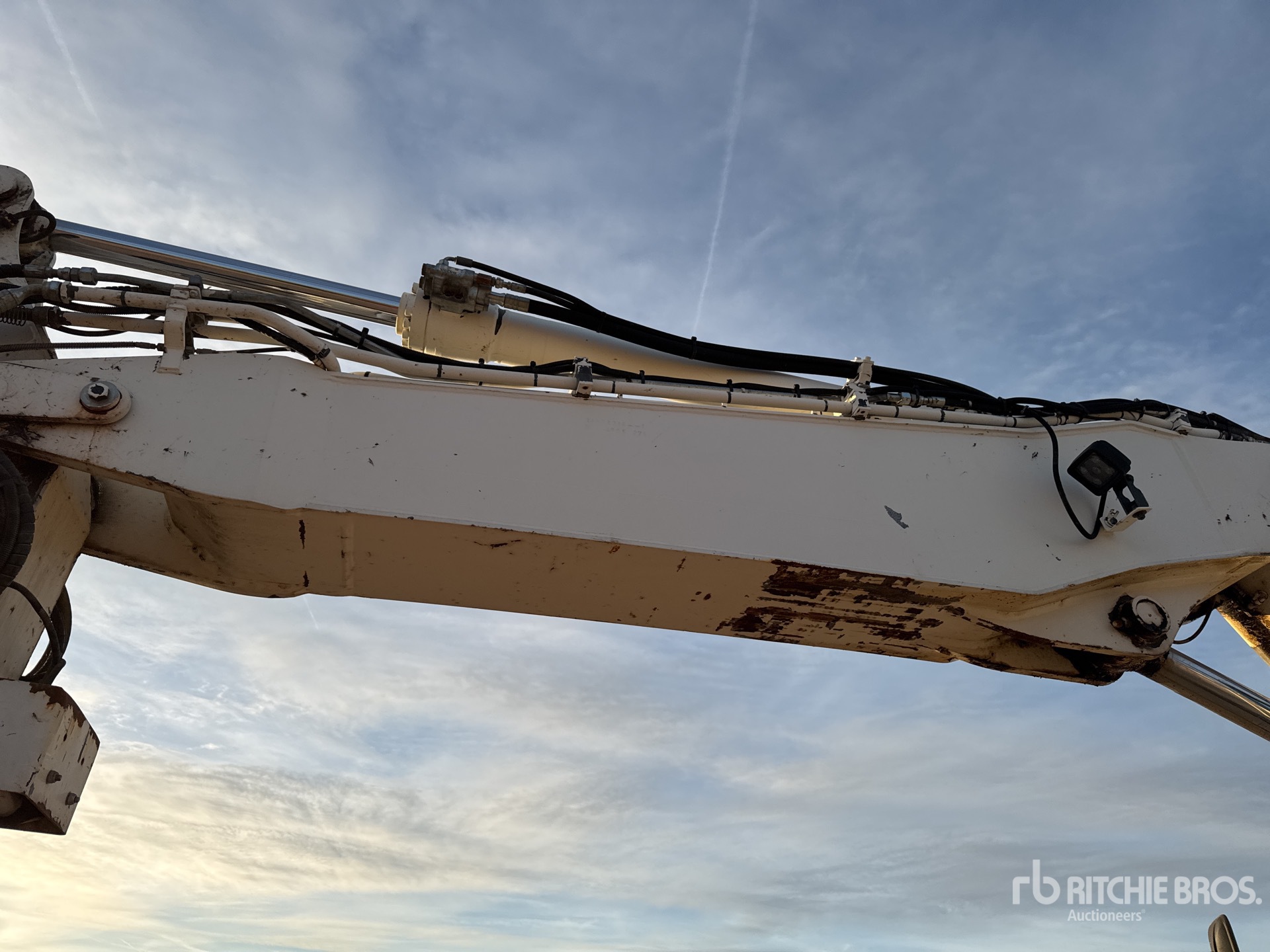

| Boom/Stick 1 |
|
Boom/Stick 1 |
MoonBoom 4.5m,(Ft,in-149),Arm 20 m,(Ft,in-6,7) |
|
Max Cutting Height |
27 ft (8 m)
|
|
Max Digging Depth |
15 ft (5 m)
|
|
Max Digging Height |
18 ft (6 m)
|
|
Max Digging Reach |
26 ft (8 m)
|
|
Max Digging Reach On Ground |
26 ft (8 m)
|
|
Max Vertical Wall Digging Depth |
12 ft (4 m)
|
|
Min - Front Slew Radius |
9 ft (3 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
MoonBoom 4.5m,(Ft,in-149),Arm 245 m,(Ft,in-8,0) |
|
Max Cutting Height |
28 ft (9 m)
|
|
Max Digging Depth |
17 ft (5 m)
|
|
Max Digging Reach |
28 ft (8 m)
|
|
Max Digging Reach On Ground |
27 ft (8 m)
|
|
Max Vertical Wall Digging Depth |
13 ft (4 m)
|
|
Max.Dumping Height |
19 ft (6 m)
|
|
Min - Front Slew Radius |
9 ft (3 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
MoonBoom 4.5m,(Ft,in-149),Arm 26 m,(Ft,in-8,6) |
|
Max Cutting Height |
28 ft (9 m)
|
|
Max Digging Depth |
17 ft (5 m)
|
|
Max Digging Reach |
28 ft (9 m)
|
|
Max Digging Reach On Ground |
27 ft (8 m)
|
|
Max Vertical Wall Digging Depth |
14 ft (4 m)
|
|
Max.Dumping Height |
19 ft (6 m)
|
|
Min - Front Slew Radius |
9 ft (3 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
MoonBoom 4.5m,(Ft,in-149),Arm 31m,(Ft,in-10,2) |
|
Max Cutting Height |
29 ft (9 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Digging Reach |
30 ft (9 m)
|
|
Max Digging Reach On Ground |
29 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
16 ft (5 m)
|
|
Max.Dumping Height |
20 ft (6 m)
|
|
Min - Front Slew Radius |
9 ft (3 m)
|
| Capacities |
|
Engine Coolant |
9 gal (32 l)
|
|
Engine Oil |
4 gal (16 l)
|
|
Final Drive |
3 gal (10 l)
|
|
Front Axle |
580 cu in (9,501 cu cm)
|
|
Fuel Tank |
53 gal (200 l)
|
|
Hydraulic Tank |
28 gal (104 l)
|
|
Hydraulic Tank - Total System |
61 gal (230 l)
|
|
Rear Axle |
3 gal (13 l)
|
|
Transmission |
1 gal (3 l)
|

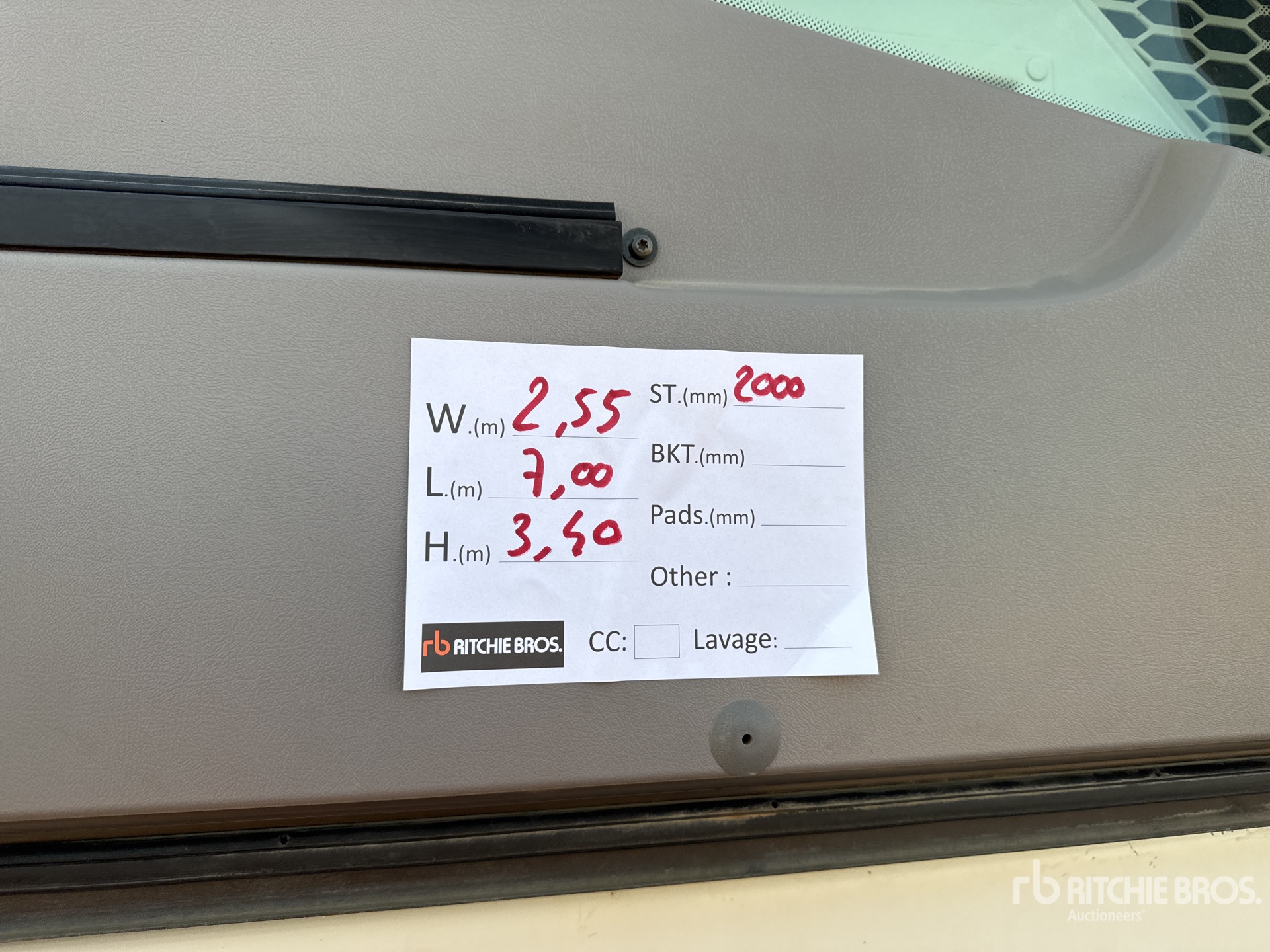

| Dimensions |
|
Counterweight Clearance |
4 ft (1 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Max Height Of Boom |
10 ft (3 m)
|
|
Overall Length |
25 ft (8 m)
|
|
Overall Width |
99 in (252 cm)
|
|
Tail Swing Radius |
6 ft (2 m)
|
|
Wheelbase |
9 ft (3 m)
|
| Electrical System |
|
Alternator |
24/120 V/Ah |
|
Alternator Rating |
3360 W |
|
Batteries |
2 X12 V |
|
Battery Capacity |
2 X 100 Ah |
|
Voltage |
24 V V |

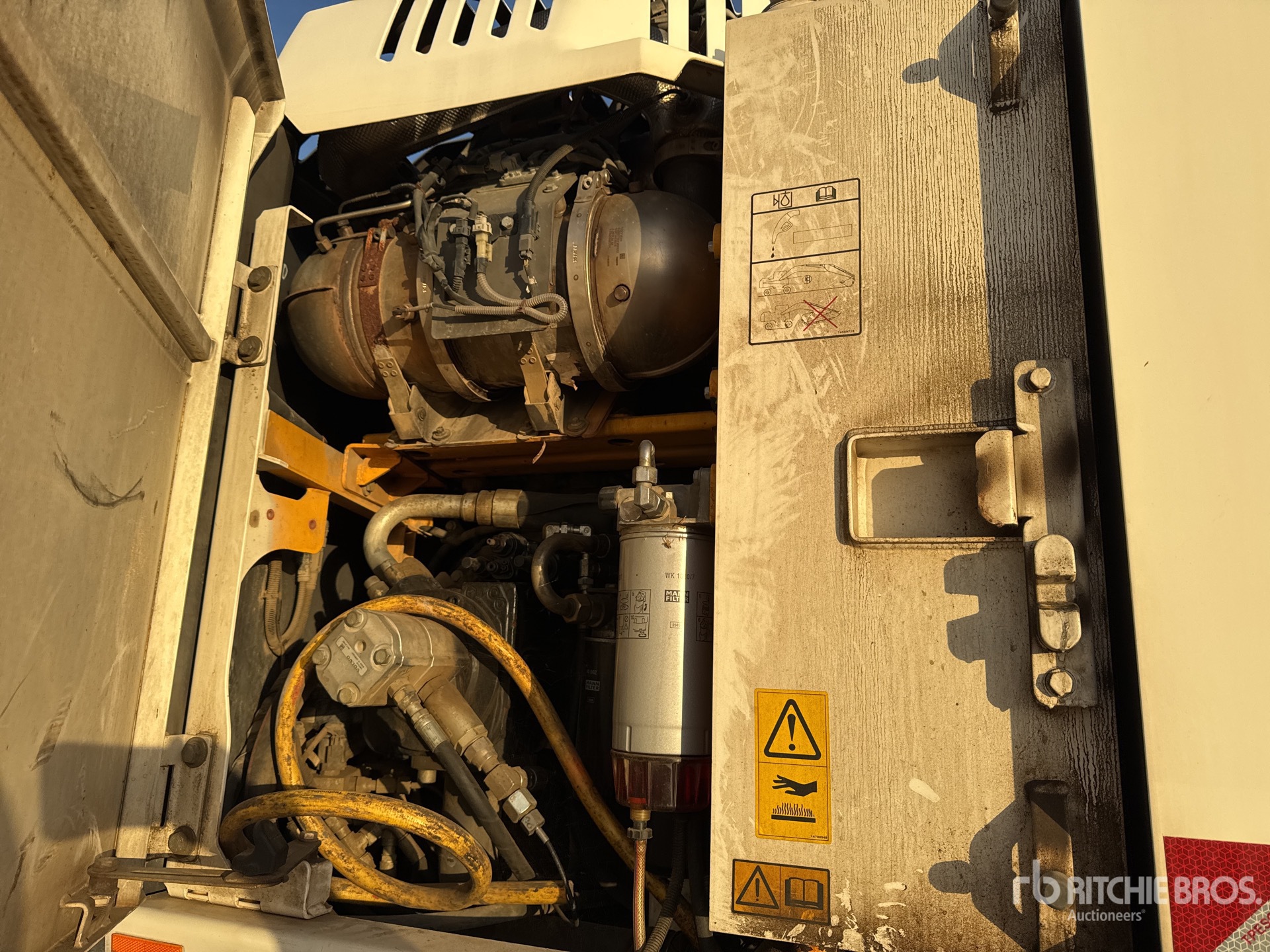

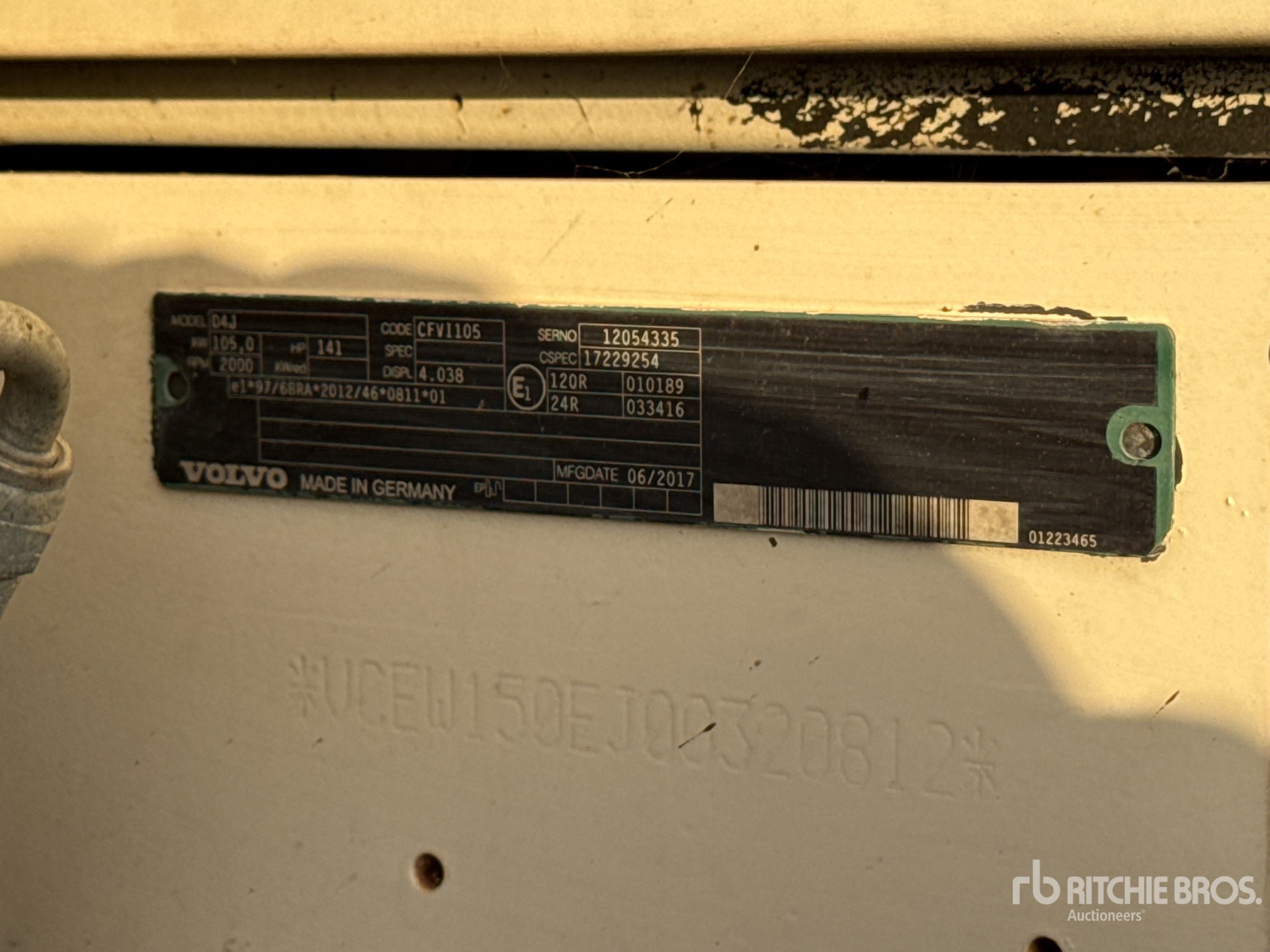

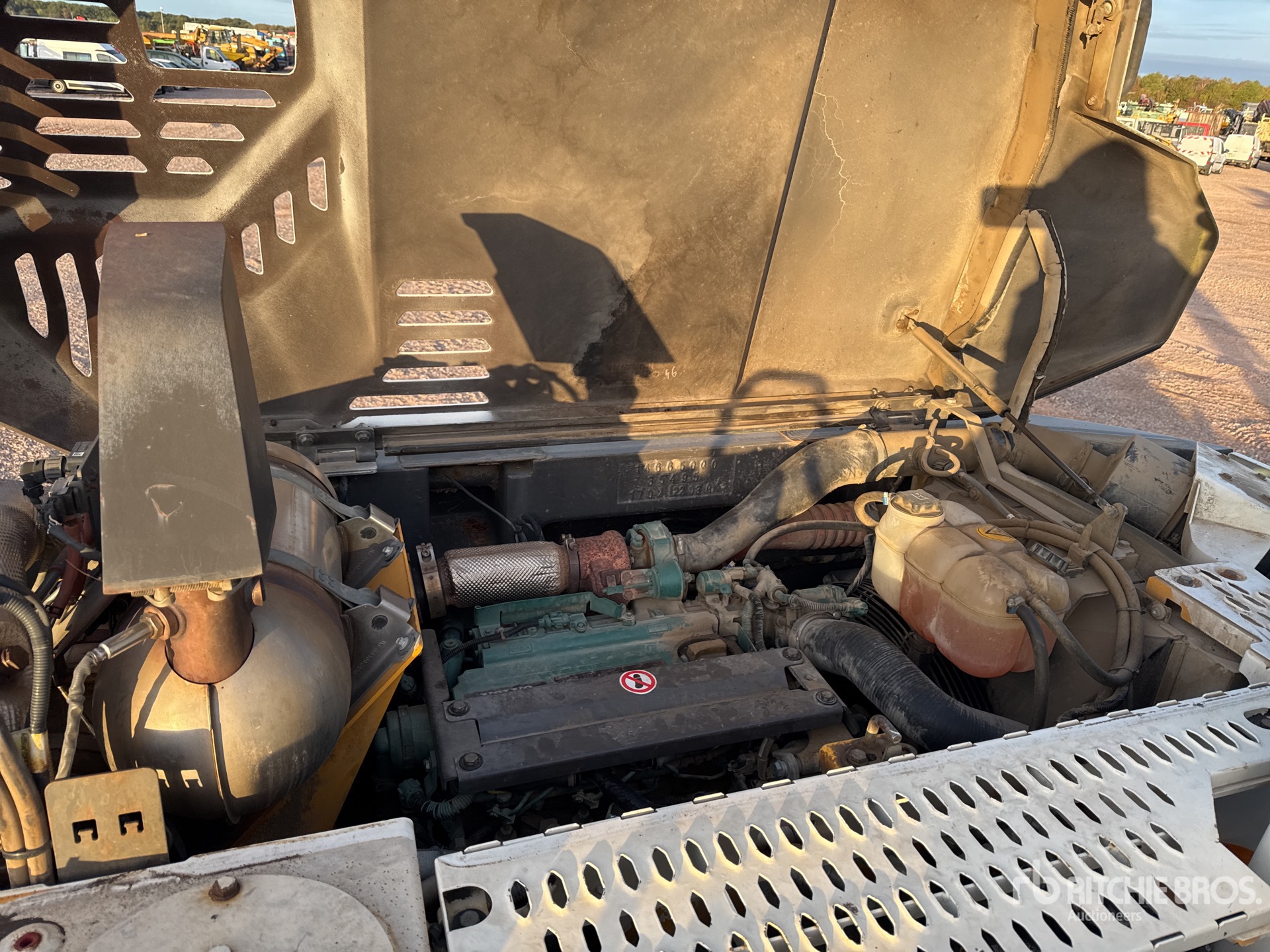

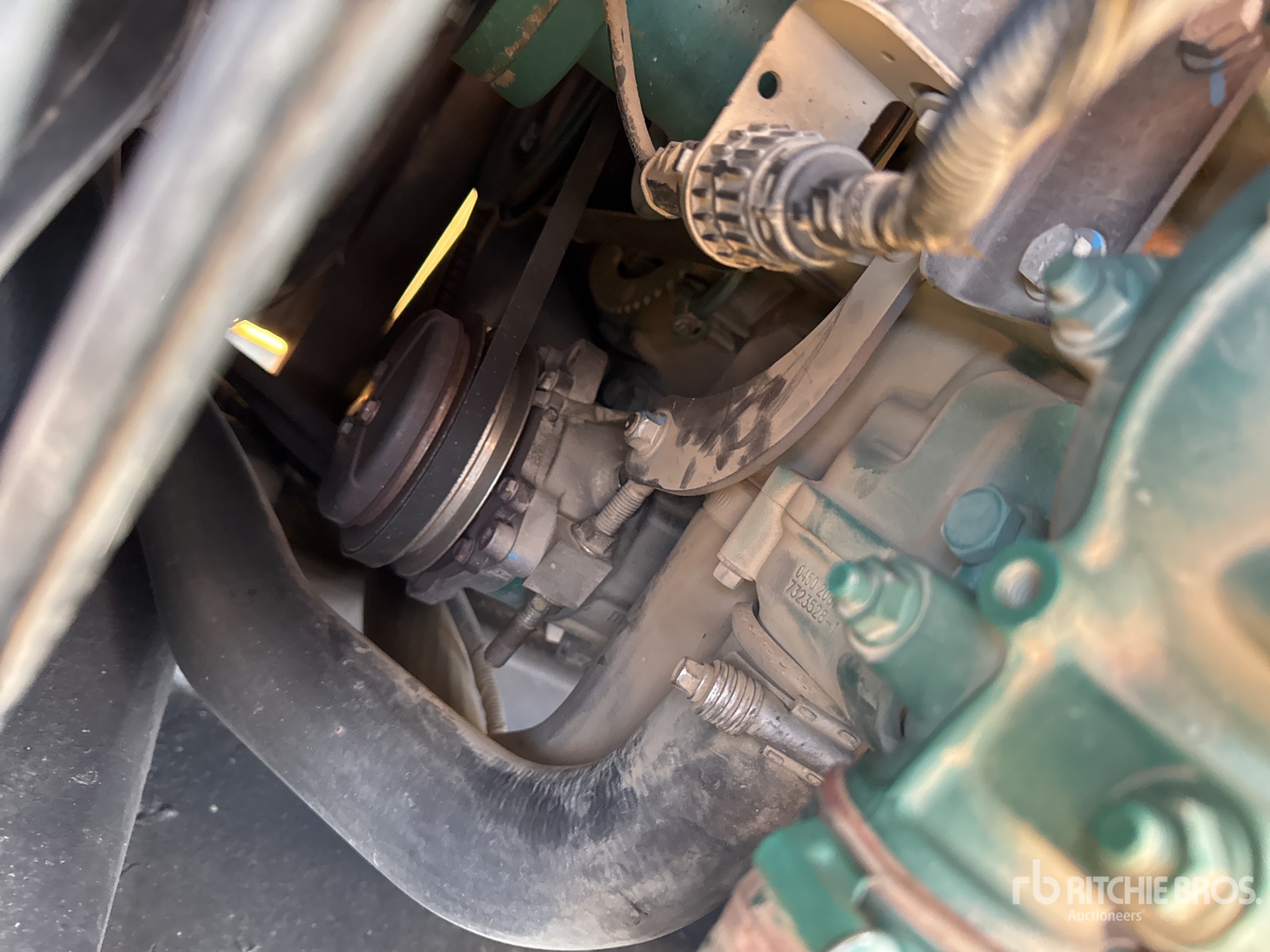

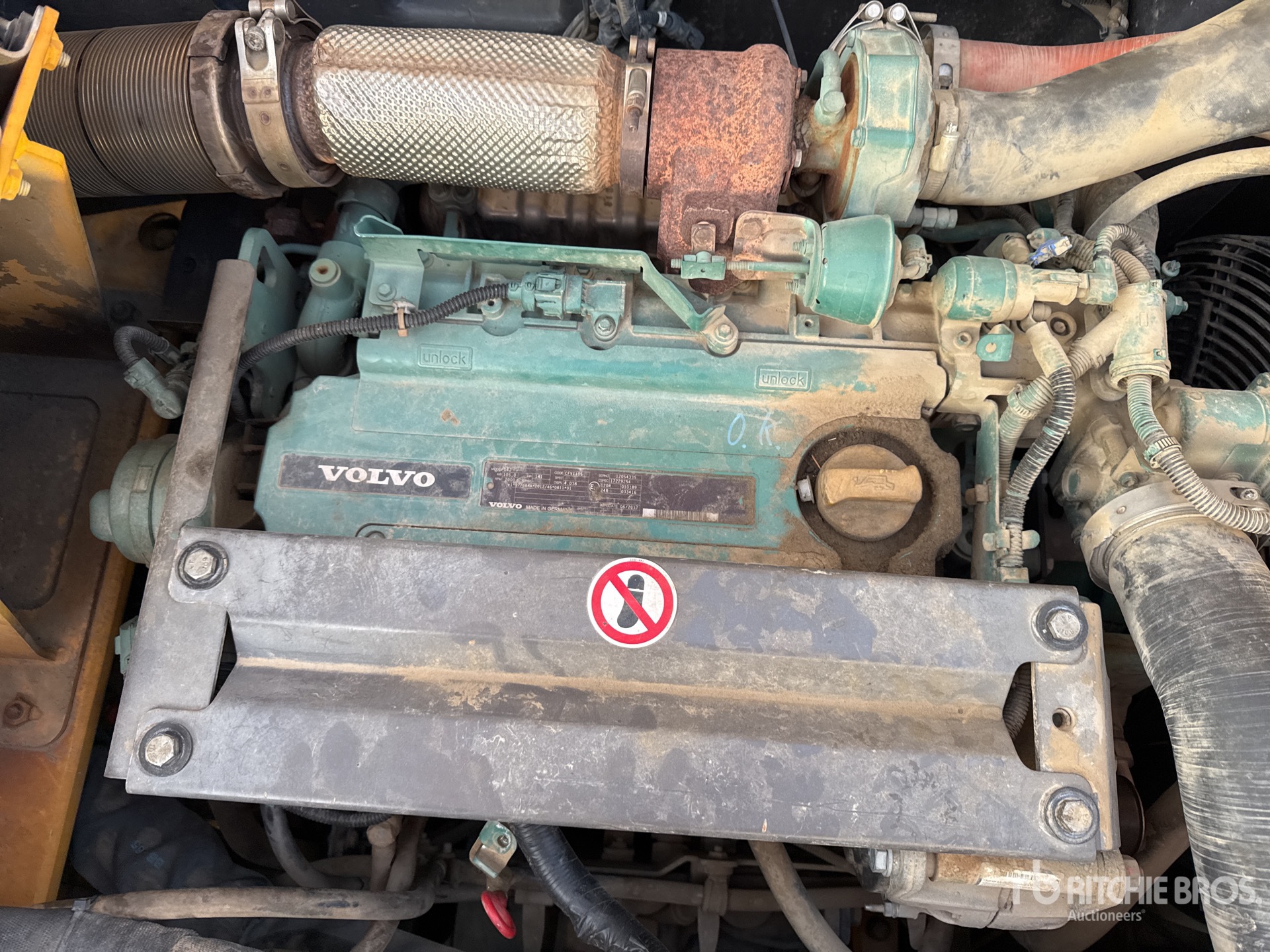

| Engine |
|
Bore |
4 in (10 cm)
|
|

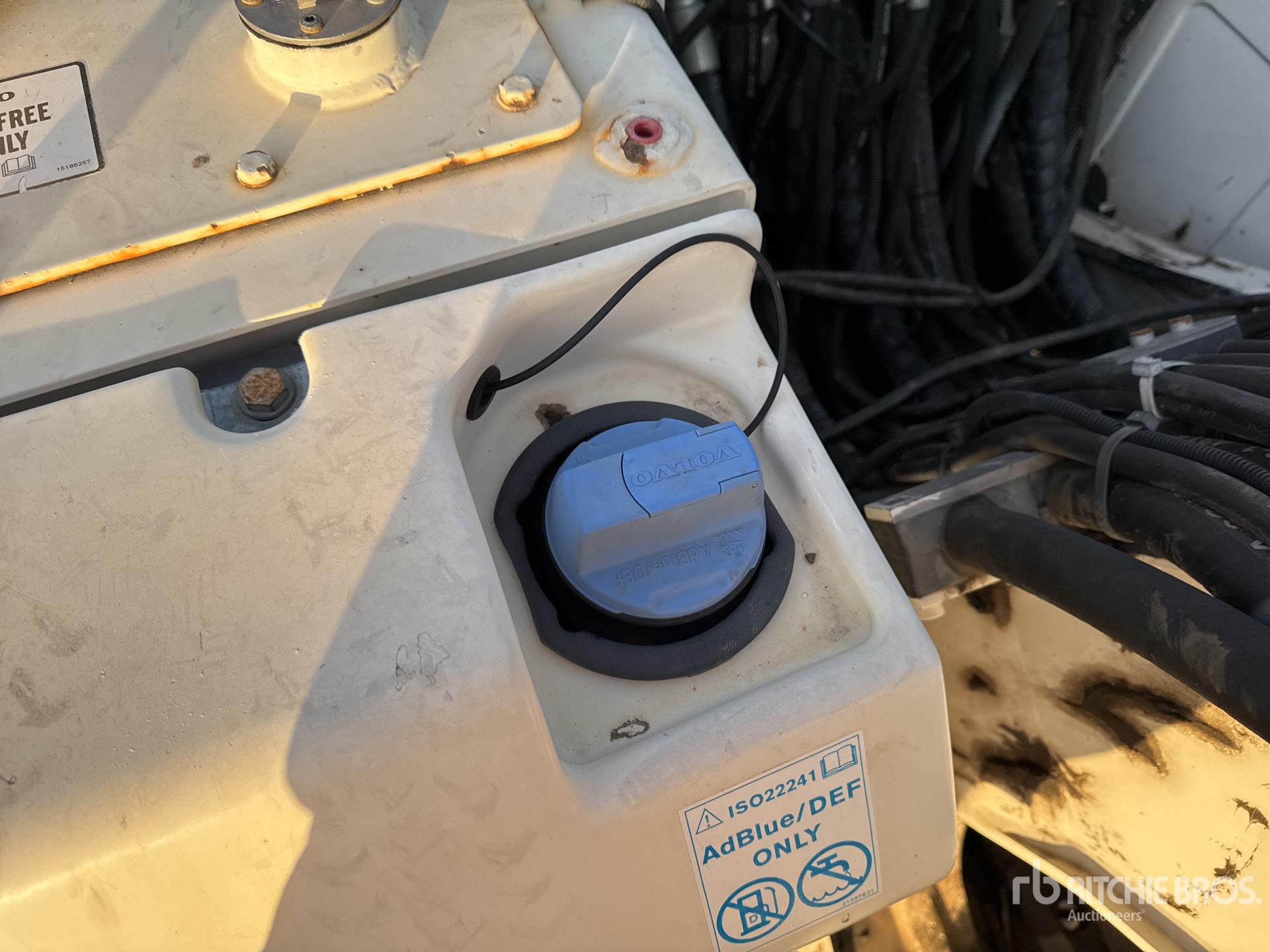

Def/Adblue® Tank Capacity |
7 gal (25 l)
|
|
Displacement |
247 cu in (4,041 cu cm)
|
|
Engine Model |
D4J |
|
Gross Power |
141 hp (105 kw)
|
|
Max Power |
2,000 rpm |
|
Net Power |
137 hp (102 kw)
|
|
Net Torque |
446 lbs ft (605 nm)
|
|
Number Of Cylinders |
4 |
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
Digging Depth (Since 2025)
|
19 ft (6 m)
|
|
Digging Reach (Since 2025)
|
29 ft (9 m)
|
|
Engine (Since 2025)
|
141 hp (105 kw)
|
|
Operating Weight (Since 2025)
|
33,951 lbs (15,400 kg)
|

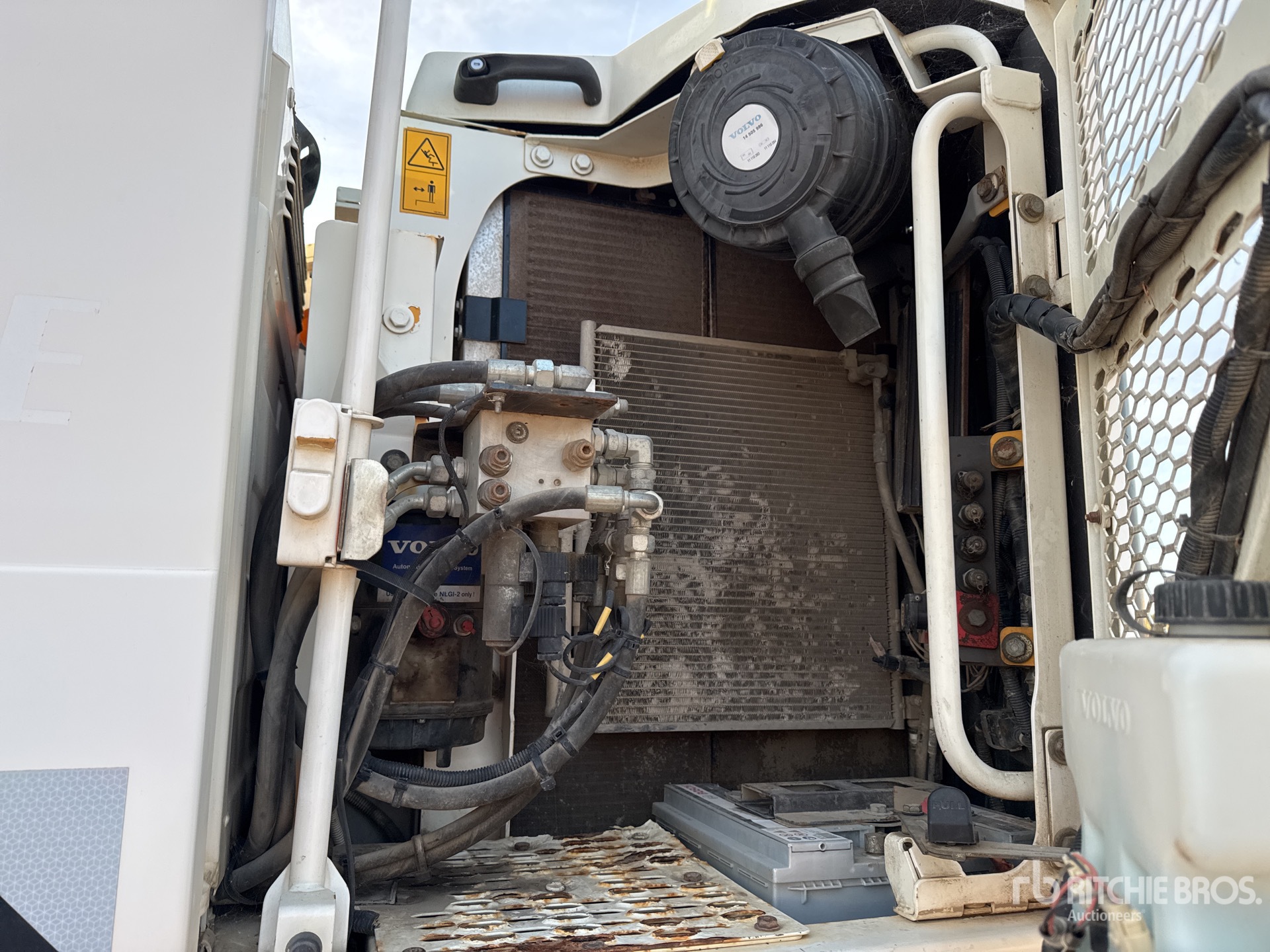

| Hydraulic System |
|
Implement |
5,221 psi |
|
Main Pump- Low Noise Axial Piston Pump-Max Flow |
73 gpm (275 lpm)
|
|
Pilot Circuit |
508 psi |
| Speeds |
|
Creep |
3 mph (4 kph)
|
|
Min Turning Radius |
7 ft (2 m)
|
|
Speed -Off Road |
5 mph (9 kph)
|
|
Speed -On Road |
2 mph (4 kph)
|
| Swing Mechanism |
|
Swing Speed |
9 rpm |
