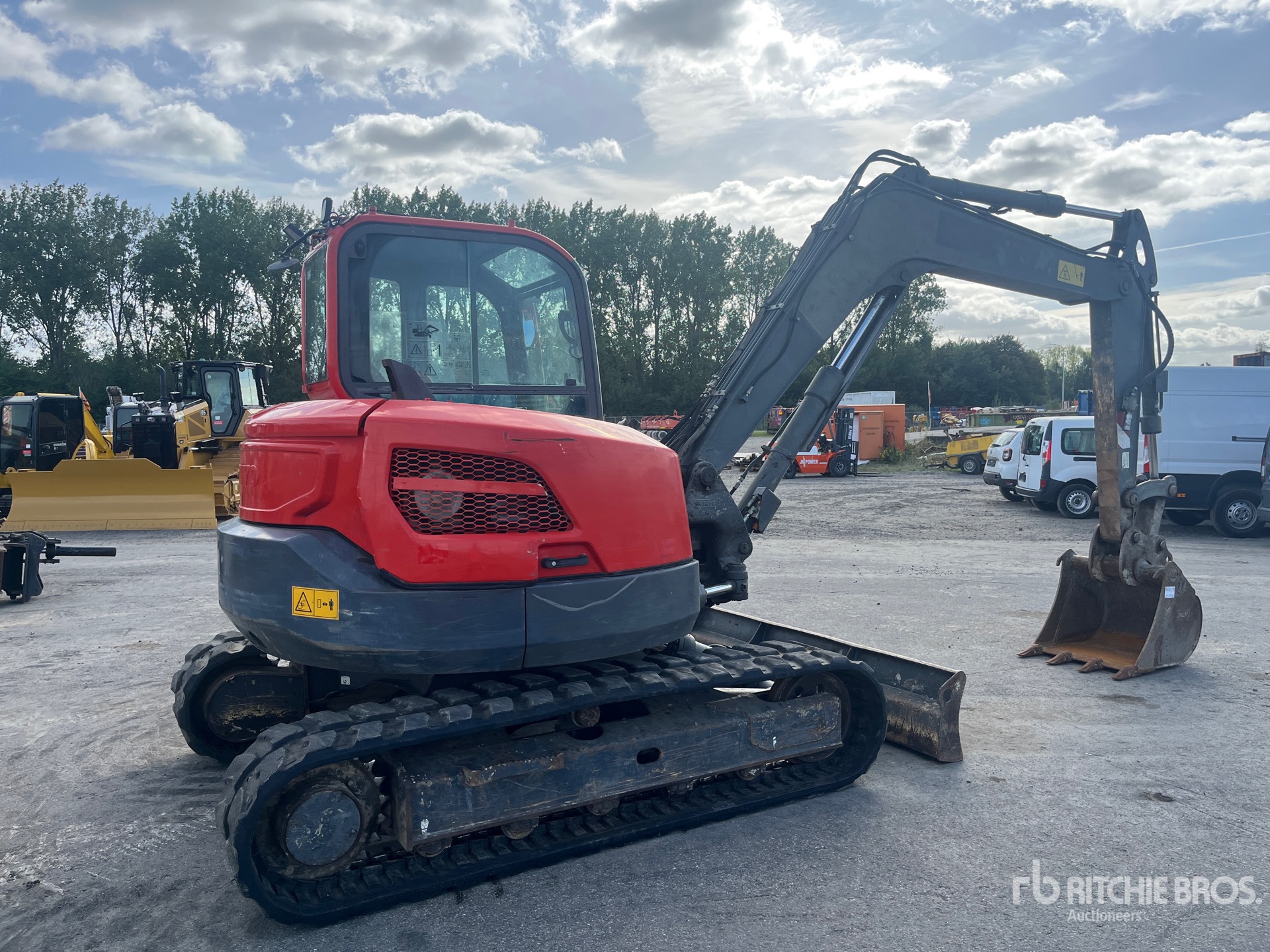

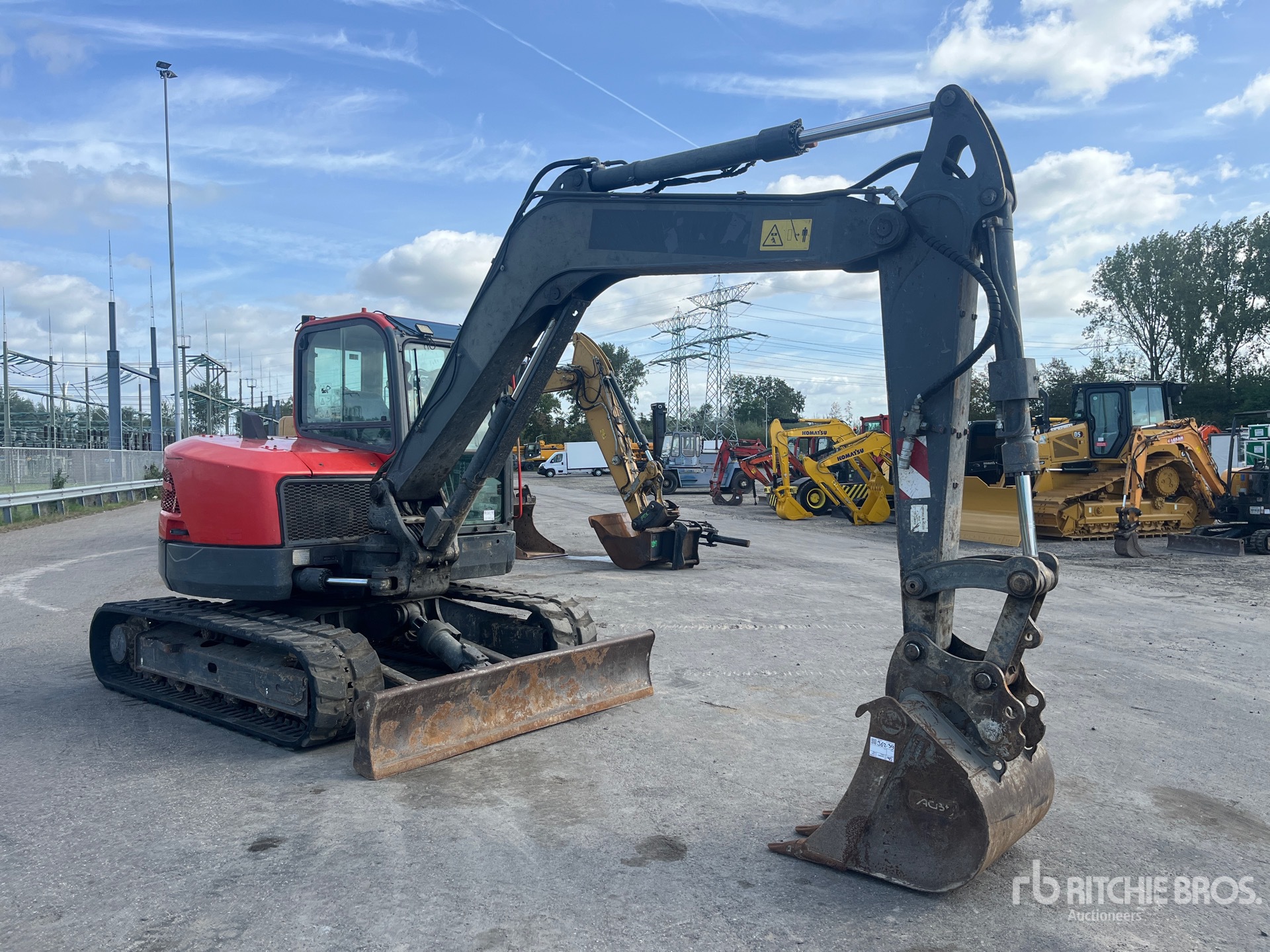

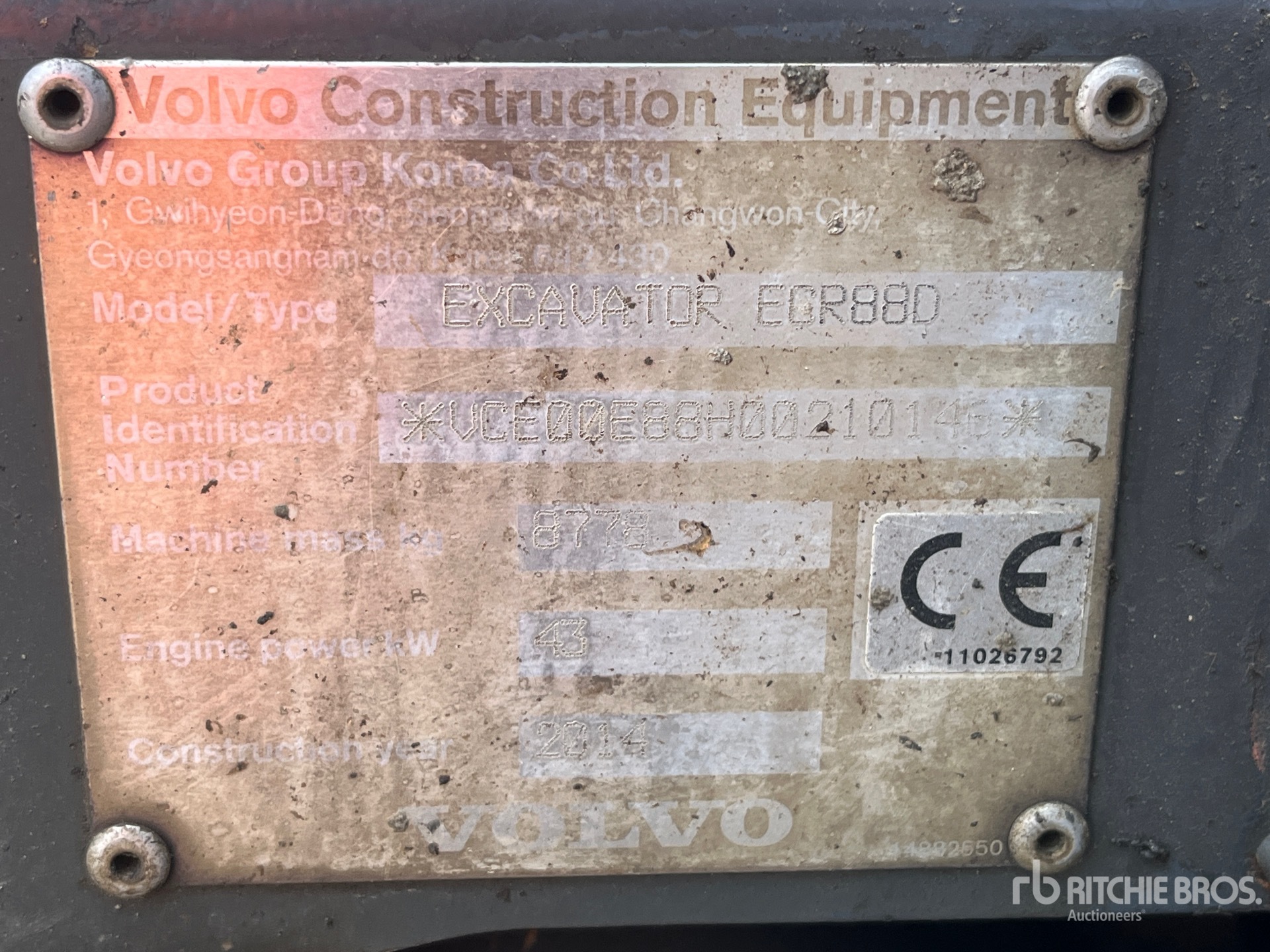

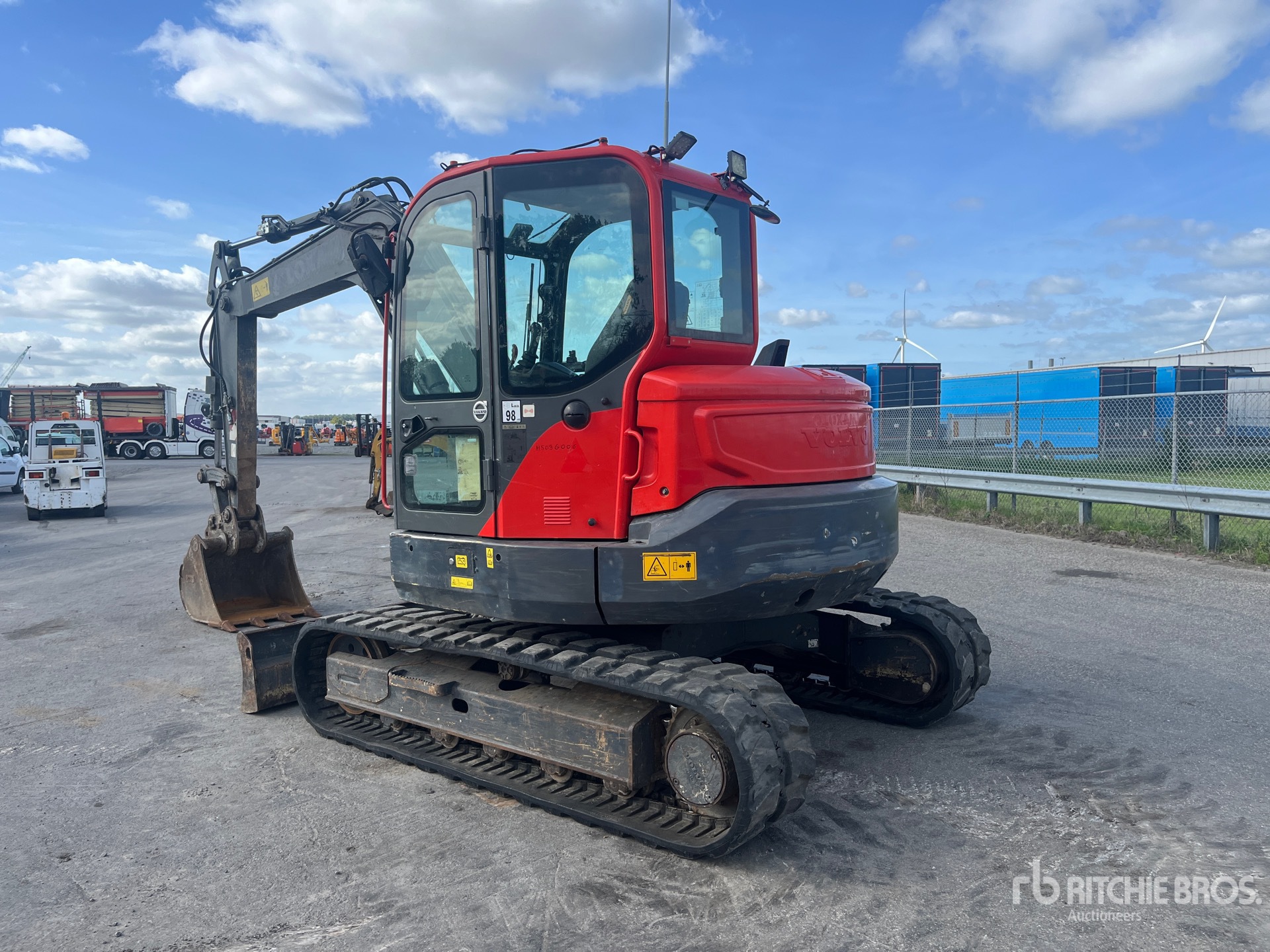

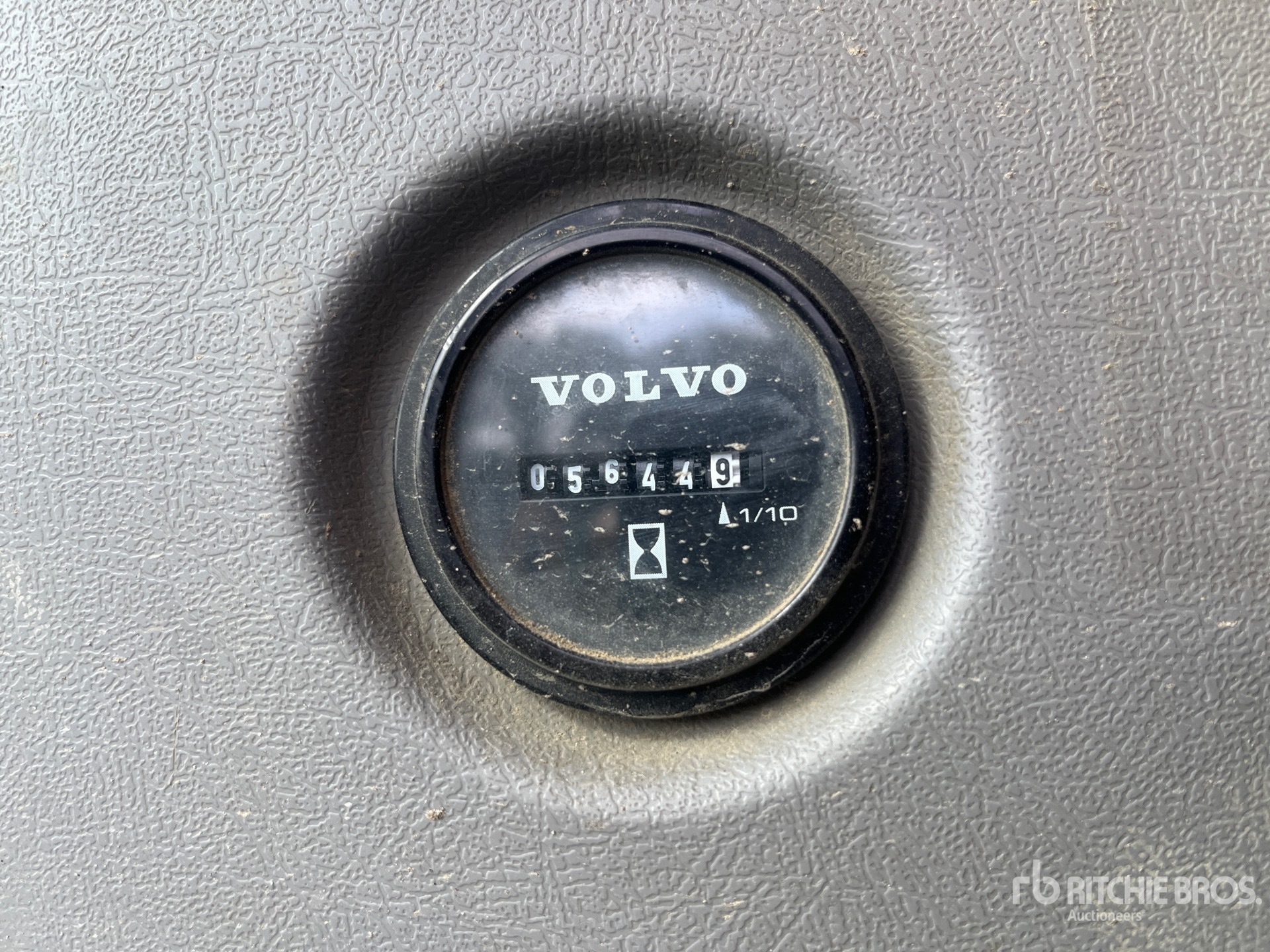

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom - 3.55 m, 11.8 ft in / Arm - 1.7 m, 5.7 ft in |
|
Max Cutting Height |
22 ft (7 m)
|
|
Max Digging Depth |
14 ft (4 m)
|
|
Max Digging Reach |
23 ft (7 m)
|
|
Max Digging Reach On Ground |
22 ft (7 m)
|
|
Max Vertical Wall Digging Depth |
9 ft (3 m)
|
|
Max.Dumping Height |
16 ft (5 m)
|
|
Min.Front Swing Radius |
8 ft (3 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom - 3.55 m, 11.8 ft in / Arm - 2.1 m, 6.11 ft in |
|
Max Cutting Height |
23 ft (7 m)
|
|
Max Digging Depth |
15 ft (5 m)
|
|
Max Digging Reach |
24 ft (7 m)
|
|
Max Digging Reach On Ground |
24 ft (7 m)
|
|
Max Vertical Wall Digging Depth |
11 ft (3 m)
|
|
Max.Dumping Height |
17 ft (5 m)
|
|
Min.Front Swing Radius |
9 ft (3 m)
|
| Buckets |
|
Reference Bucket Capacity |
1 cu yd |
| Capacities |
|
Engine Oil |
3 gal (10 l)
|
|
Hydraulic System |
10 gal (37 l)
|
|
Hydraulic Tank |
6 gal (22 l)
|
|
Hydraulic Tank (Since 2026)
|
22 gal (US) |
|
Travel Reduction |
1 gal (3 l)
|
| Description |
|
Max Arm Length (Since 2026)
|
6ft 11in ft/in |
|
Mono Boom Size (Since 2026)
|
11ft 8in ft/in |
|
Number Of Arm Options (Since 2026)
|
2 |
|
Operating Weight (Since 2026)
|
19,758 lb |
|
Total Number Of Boom Options (Since 2026)
|
1 |
| Dimensions |
|
Boom Swing |
70 degrees |
|
Counterweight Clearance |
3 ft (1 m)
|
|
Dig Depth - Mono Boom (Since 2026)
|
13ft 7in ft/in |
|
Dig Height - Mono Boom (Since 2026)
|
22ft 3in ft/in |
|
Digging Reach - Mono Boom (Since 2026)
|
22ft 10in ft/in |
|
Dump Height - Mono Boom (Since 2026)
|
16ft 3in ft/in |
|
Ground Clearance (Since 2026)
|
16 in (41 cm)
|
|
Height To Top Of Cab |
9 ft (3 m)
|
|
Max Transport Height (Since 2026)
|
8ft 11in ft/in |
|
Minimum Ground Clearance |
16 in (41 cm)
|
|
Overall Height Of Engine Hood |
4 ft (1 m)
|
|
Overall Length |
21 ft (6 m)
|
|
Overall Width |
8 ft (2 m)
|
|
Overall Width -Upper Structure |
7 ft (2 m)
|
|
Shoe Width |
1 ft (0 m)
|
|
Superstructure Width (Since 2026)
|
7ft 5in ft/in |
|
Tail Swing Radius |
4 ft (1 m)
|
|
Tailswing Radius (Since 2026)
|
4ft 3in ft/in |
|
Track Gauge |
6 ft (2 m)
|
|
Track Length |
111 in (283 cm)
|
|
Track Length On Ground (Since 2026)
|
7ft 3in ft/in |
|
Transport Length Mono Boom (Since 2026)
|
20ft 11in ft/in |
|
Tumbler Length |
7 ft (2 m)
|
|
Undercarriage Width (Since 2026)
|
7ft 7in ft/in |
|
Vertical Wall - Mono Boom (Since 2026)
|
9ft 3in ft/in |
|
Zero Tailswing (Since 2026)
|
No |
| Driveline |
|
Aspiration (Since 2026)
|
Turbo |
|
Displacement (Since 2026)
|
160 in³ |
|
Engine Model (Since 2026)
|
D 2.6H |
|
Engine Output - Net (Since 2026)
|
55 hp (41 kw)
|
|
Number Of Carrier Rollers - Each Side (Since 2026)
|
1 |
|
Number Of Track Rollers - Each Side (Since 2026)
|
5 |
|
Rated Speed (Since 2026)
|
2,000 |
|
Track Shoe Width (Since 2026)
|
18 in (46 cm)
|
| Electrical System |
|
Batteries |
1 |
|
Battery |
100(Ah) |
|
Voltage |
12V V |
| Engine |
|
Bore |
0 in (1 cm)
|
|
Displacement |
160 cu in (2,620 cu cm)
|
|
Engine Model |
D2.6H |
|
Fuel Tank |
8 gal (29 l)
|
|
Gross Power |
55 hp (41 kw)
|
|
Max Power |
2,000 rpm |
|
Max Torque |
162 lbs ft (220 nm)
|
|
Net Power |
58 hp (43 kw)
|
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
|
Rated Engine Speed |
1,300 rpm |
|
Stroke |
0 in (1 cm)
|
| General Specifications |
|
Digging Depth (Since 2025)
|
15 ft (5 m)
|
|
Digging Reach (Since 2025)
|
24 ft (7 m)
|
|
Engine (Since 2025)
|
58 hp (43 kw)
|
|
Operating Weight (Since 2025)
|
19,300 lbs (8,754 kg)
|
| Hydraulic System |
|
Hydraulic System |
140 L, (37 gal) |
|
Implement |
619 psi |
|
Main Pump - Maximum Flow |
45 gpm (169 lpm)
|
|
Pilot Circuit |
3 psi |
|
Pilot Pump - Maximum Flow |
4 gpm (14 lpm)
|
|
Swing Circuit |
515 psi |
|
Travel Circuit |
619 psi |
| Loader |
|
Breakout Force |
12860 (IBF) |
| Operational |
|
Fuel Capacity |
13 gal (49 l)
|
|
Operating Weight |
6,012 lbs (2,727 kg)
|
| Performance |
|
Arm Tearout (Since 2026)
|
8,950 lbf |
|
Bucket Breakout (Since 2026)
|
12,860 lbf |
|
End Lift - Max Reach (Since 2026)
|
3,285 lb |
|
Gradeability |
35 % |
|
Ground Bearing Pressure (Since 2026)
|
6 psi |
|
Main Pump - Flow (Since 2026)
|
50 gal (US)/min |
|
Side Lift - Max Reach (Since 2026)
|
2,161 lb |
|
Travel Speed - High (Since 2026)
|
3 mph (5 kph)
|
| Swing Mechanism |
|
Swing Speed |
9 rpm |
|
Swing Torque |
16,890 lbs ft (22,899 nm)
|
| Undercarriage |
|
Drawbar Pull |
14,613 lbs (6,628 kg)
|
|
Link Pitch |
6 in (15 cm)
|
|
Number Of Bottom Rollers Per Side |
2X5 |
|
Number Of Top Rollers Per Side |
2X1 |
|
Shoe Width - Steel |
450/600 in, (177/236 mm) |
|
Shoe Width – Rubber |
18 in (45 cm)
|
