2002 Volvo G710B For Sale in Ocana, Esp

2002 Volvo G710B
2002 Volvo G710B
2002 Volvo G710B
2002 Volvo G710B
2002 Volvo G710B
2002 Volvo G710B
2002 Volvo G710B 2002 Volvo G710B 2002 Volvo G710B 2002 Volvo G710B 2002 Volvo G710B 2002 Volvo G710B

/ Save to Watch List
Apply for Financing

Auction Pricing



   Auction Info: Starting on 2026-09-16   Click here to place a bid


Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info
Ritchie Bros. Auctioneers Website
Click here to email Ritchie Bros. Auctioneers.

Request an equipment inspection

Get shipping quotes
Click for Phone Number


Machine Info:

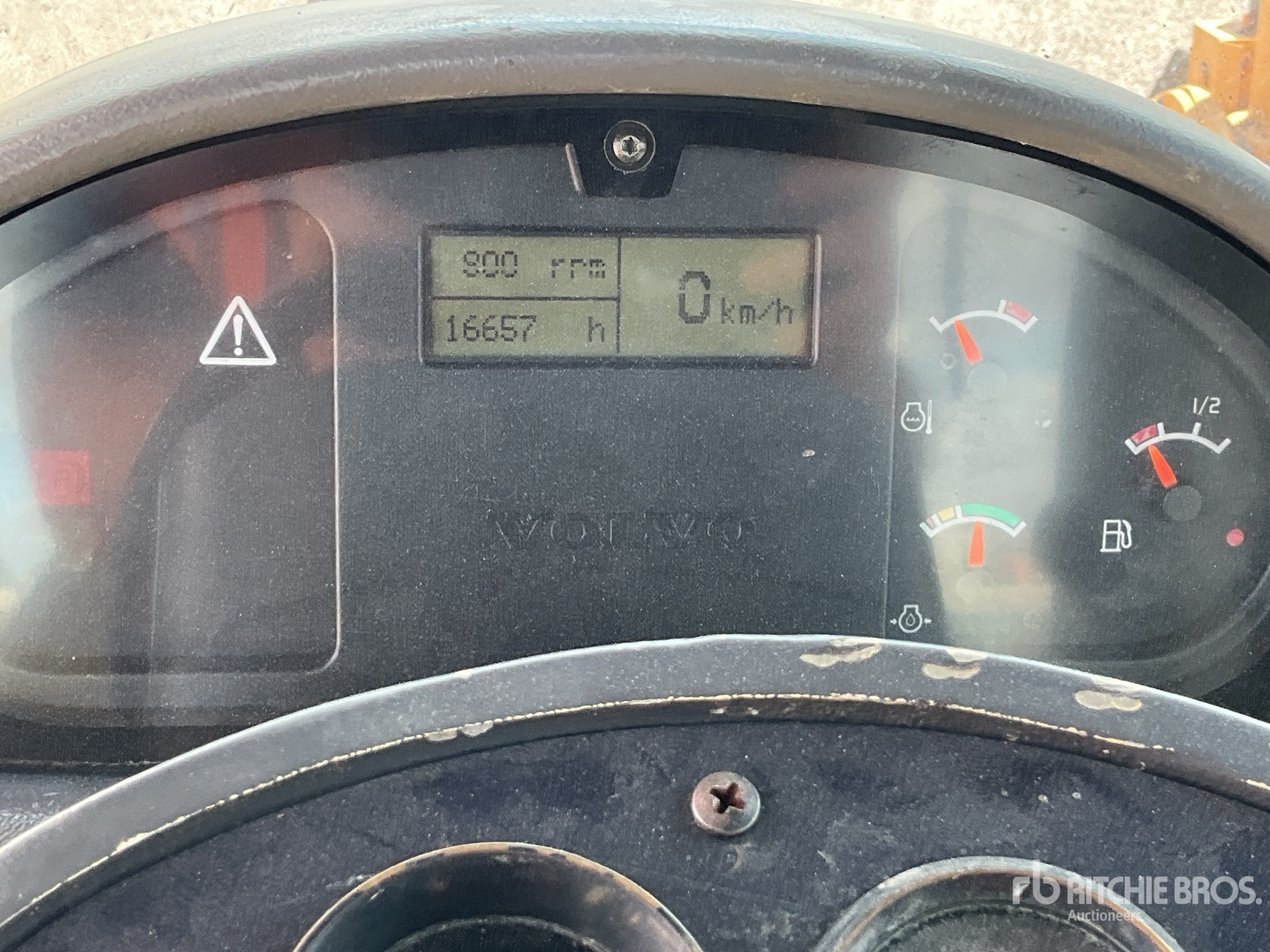

Hours:16657

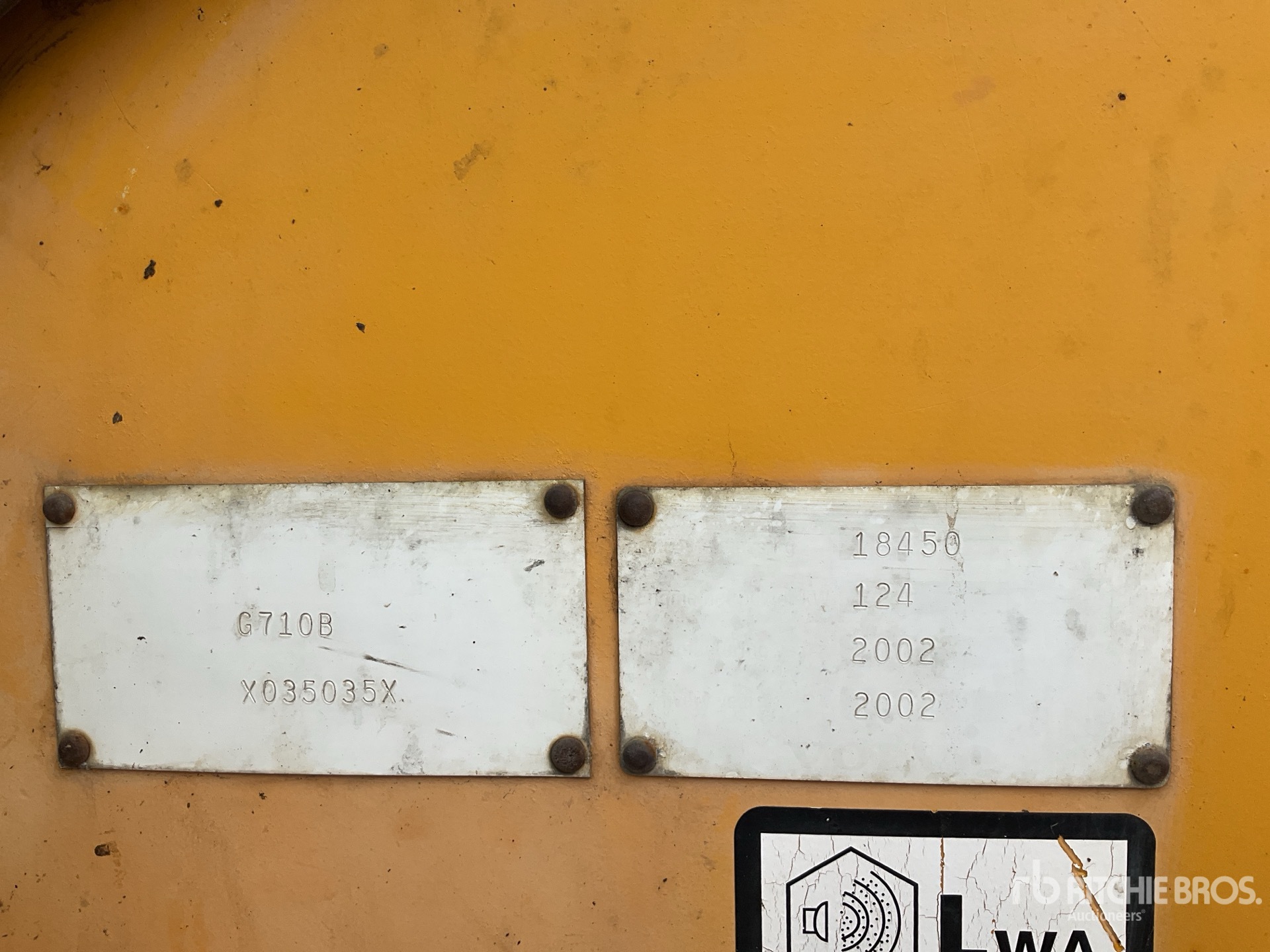

Serial Number:035035
Machine Location:OCANA, ESP

Description:

Enclosed Cab, Air Conditioner, Push Block, Rear Auxiliary Hydraulics, 14.00-24 Tires **COPIA CERTIFICADO CE DISPONIBLE/ COPY CE CERTIFICATE AVAILABLE**


From the manufacturer:

Supplied by HeavyEquipmentData.com →

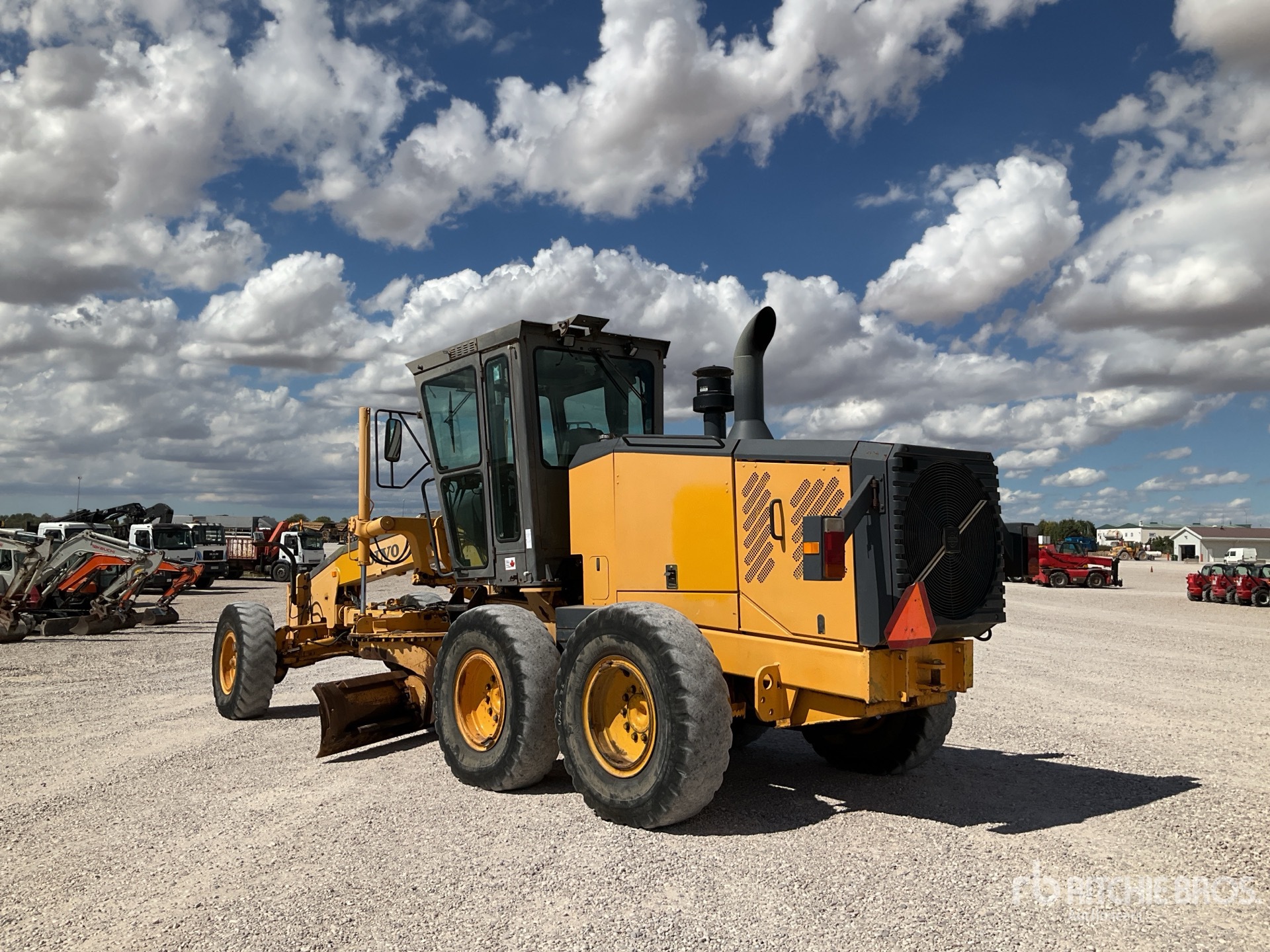

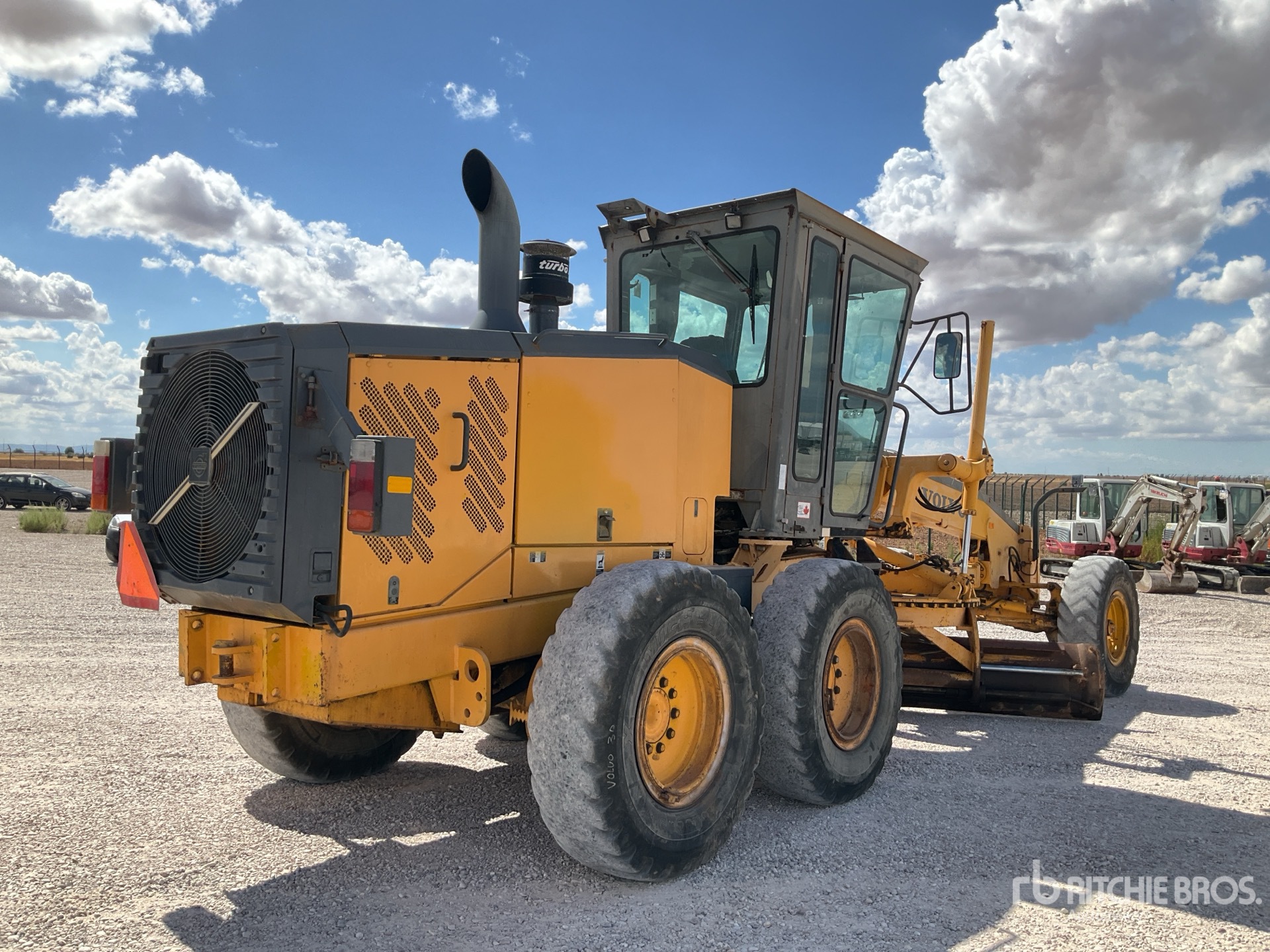

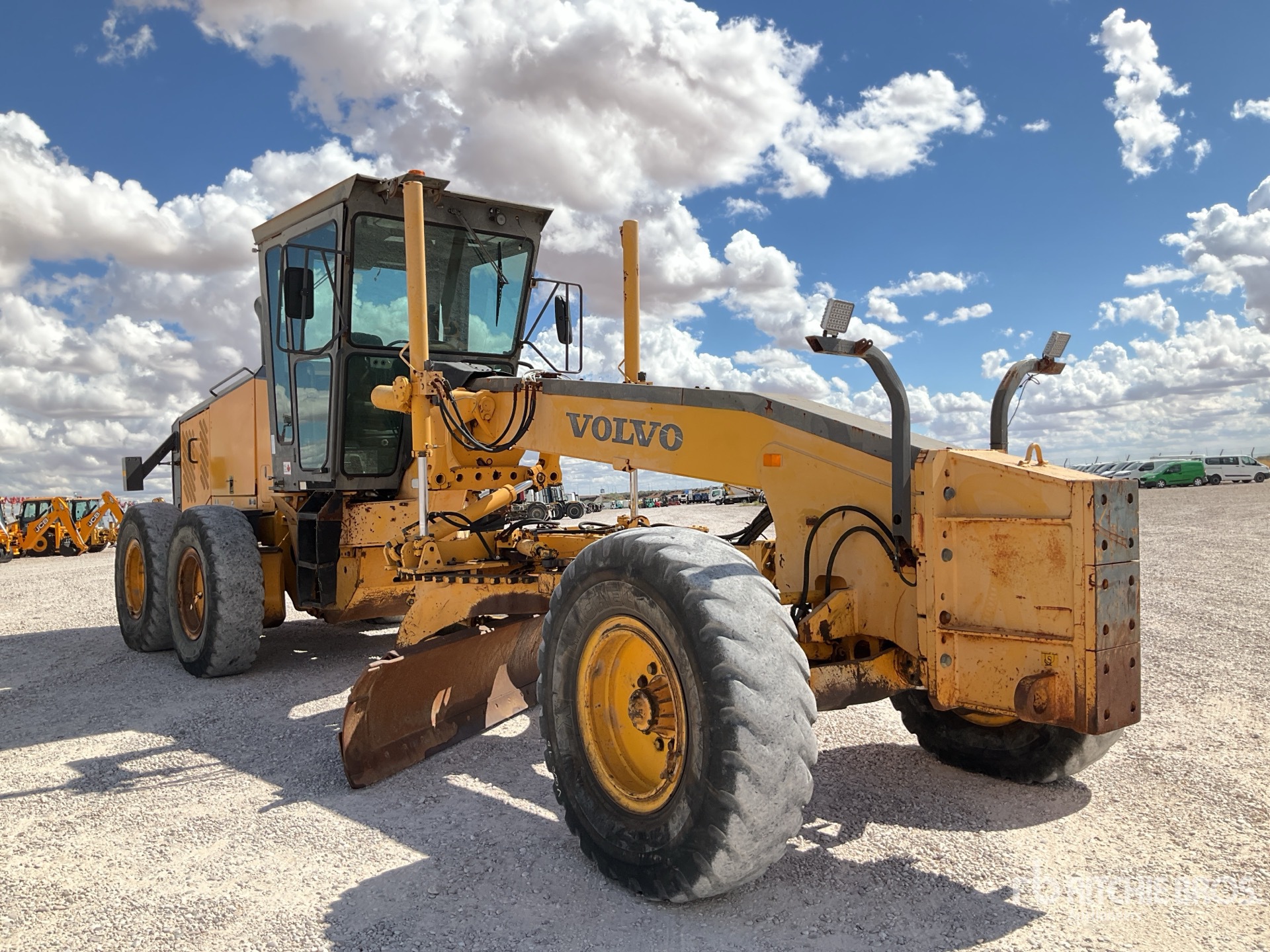

The Volvo G710B is a motor grader designed for road construction, grading, and surface maintenance applications. Built for precision earthmoving, it is used to shape and level soil, gravel, and aggregate materials on highways, site preparation projects, and municipal roads. The G710B features a grader blade, articulated frame, and operator controls intended for accurate blade positioning and consistent grading performance. As part of Volvo's motor grader lineup, it is associated with durable construction and serviceability for demanding work environments. The model is commonly referenced in used equipment, parts, and fleet maintenance listings.
Circle
Blade Tip Angle - Front 47 degrees
Blade Tip Angle - Rear 5 degrees
Diameter 66 in (168 cm)
Max Lift Above Ground 17 in (43 cm)
Max Reach Outside Tires - Left 80 in (202 cm)
Max Reach Outside Tires - Right 81 in (204 cm)
Rotation 360 degrees
Shift Left 31 in (77 cm)
Shift Right 30 in (75 cm)
Dimensions
Blade Base 9 ft (3 m)
Height 10 ft (3 m)
Height To Top Of Isomount Cab 10 ft (3 m)
Length 30 ft (9 m)
Overall Length 30 ft (9 m)
Weight 33,400 lbs (15,150 kg)
Wheelbase 20 ft (6 m)
Width 8 ft (2 m)
Width Over Tires 8 ft (2 m)
Engine
Aspiration Turbocharged
Displacement 436 cu in (7,145 cu cm)
Engine Make 2,244
Engine Model D7DGAE2
Max Power 173 hp (129 kw)
Net Power Gears 7-8 173 hp (129 kw)
Net Torque Gears 7-8 591 lbs ft (801 nm)
Power Measured @ 2,200 rpm
Torque Measured @ 1,400 rpm
Front Axle
Ground Clearance 2 ft (1 m)
Oscillation - Total 16 degrees
Wheel Lean 18 degrees
Hydraulic System
Pump Flow 75 gpm (284 lpm)
Pump Type load sensing hydraulic
Relief Valve Pressure 2,700 psi
Moldboard
Blade Down Pressure 16,968 lbs (7,695 kg)
Blade Pull At Max Weight 20,157 lbs (9,142 kg)
Max Depth Of Cut 32 in (81 cm)
Moldboard Height 25 in (64 cm)
Moldboard Thickness 1 in (2 cm)
Moldboard Width 12 ft (4 m)
Side Shift Left 27 in (67 cm)
Side Shift Right 27 in (67 cm)
Operational
Alternator Supplied Amperage 75 amps
Cooling System Fluid Capacity 13 gal (47 l)
Fuel Capacity 100 gal (379 l)
Hydraulic System Fluid Capacity 35 gal (134 l)
Operating Voltage 24 V
Rear Diff/Final Drive Fluid Capacity 6 gal (23 l)
Std Operation Weight - Front Axle 9,687 lbs (4,393 kg)
Std Operation Weight - Rear Axle 23,715 lbs (10,755 kg)
Std Operation Weight - Total 33,400 lbs (15,147 kg)
Tandem Case Fluid Capacity (Each) 27 gal (100 l)
Tire Size 13.00 x 24, G-2
Transmission Fluid Capacity 10 gal (38 l)
Steering
Articulation Angle 22 degrees
Transmission
Max Speed - Forward 25 mph (40 kph)
Max Speed - Reverse 18 mph (29 kph)
Number Of Gears - Forward 8
Number Of Gears - Reverse 4
Transmission Type Powershift
