2003 Volvo G746B For Sale in Edmonton, Ab

Name: 2003 Volvo G746B
Brand: Volvo
SKU: 88925462
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-22

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

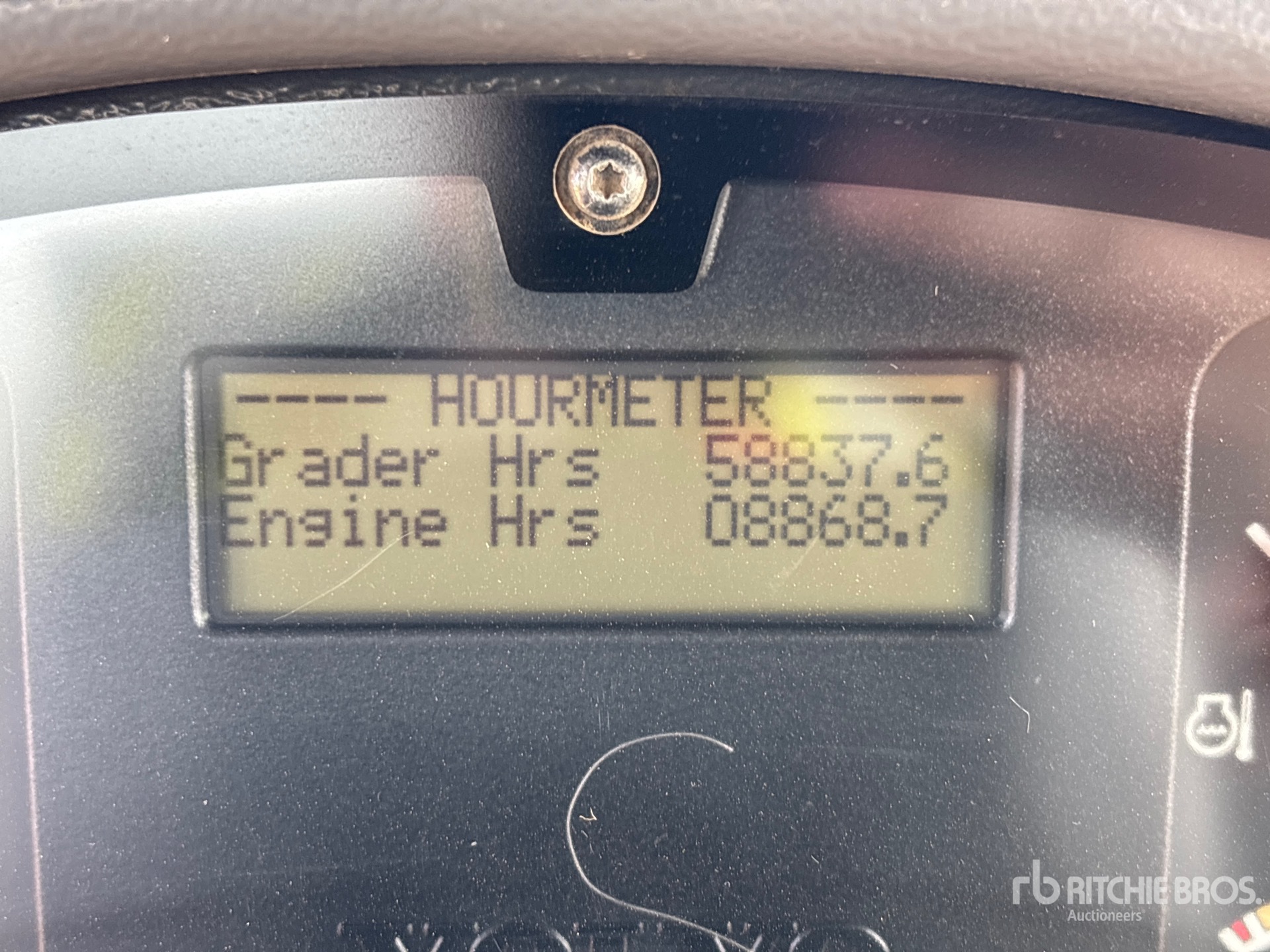

Hours:	58837

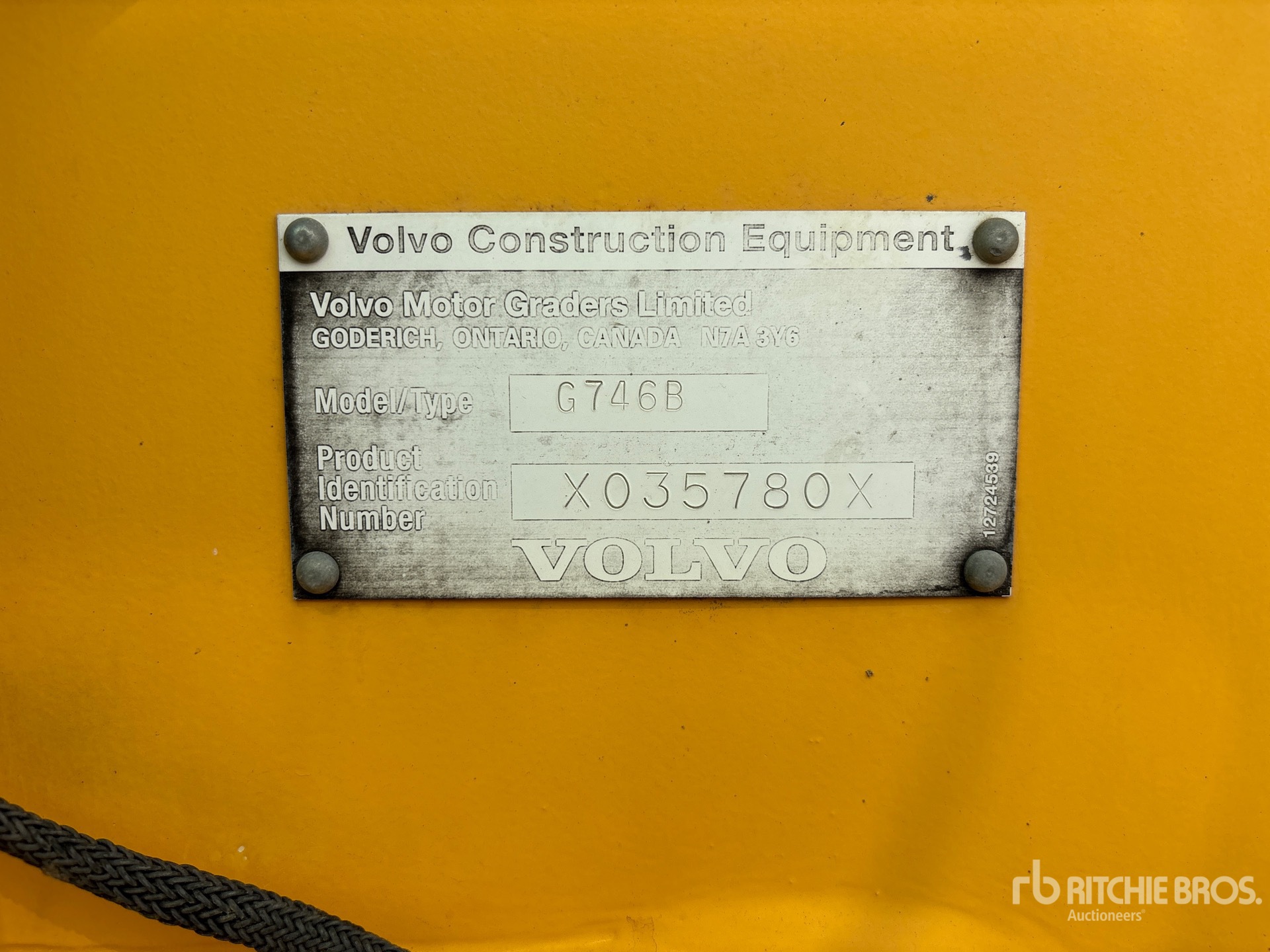

Serial Number:	035780
Machine Location:	EDMONTON, AB

Description:

Enclosed Cab, 14 ft / 4.27 m Moldboard, Push Block, Combination Ripper/Scarifier, 16.00R24 Tires

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Circle
Blade Tip Angle - Front	44 degrees
Blade Tip Angle - Rear	7 degrees
Diameter	66 in (168 cm)
Max Lift Above Ground	18 in (44 cm)
Max Reach Outside Tires - Left	80 in (202 cm)
Max Reach Outside Tires - Right	79 in (201 cm)
Rotation	360 degrees
Shift Left	31 in (77 cm)
Shift Right	30 in (75 cm)
Dimensions
Blade Base	9 ft (3 m)
Height to Top of Isomount Cab	10 ft (3 m)
Overall Length	30 ft (9 m)
Wheelbase	9 ft (3 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	586 cu in (9,603 cu cm)
Engine Model	D10BGAE2
Max Power	243 hp (181 kw)
Net Power Gears 7-8	243 hp (181 kw)
Net Torque Gears 7-8	846 lbs ft (1,147 nm)
Power Measured @	2,100 rpm
Torque Measured @	1,100 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	16 degrees
Wheel Lean	15 degrees
Hydraulic System
Pump Flow	75 gpm (284 lpm)
Pump Type	load sensing hydraulic
Relief Valve Pressure	2,700 psi
Moldboard
Blade Down Pressure	20,308 lbs (9,212 kg)
Blade Pull at Max Weight	24,098 lbs (10,931 kg)
Max Depth of Cut	32 in (81 cm)
Moldboard Height	29 in (74 cm)
Moldboard Thickness	1 in (3 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (67 cm)
Side Shift Right	27 in (67 cm)
Operating Specifications
Alternator Supplied Amperage	80 amps
Cooling System Fluid Capacity	8 gal (31 l)
Fuel Capacity	120 gal (454 l)
Hydraulic System Fluid Capacity	35 gal (134 l)
Operating Voltage	24 volts
Rear Diff/Final Drive Fluid Capacity	6 gal (23 l)
Std Operation Weight - Front Axle	11,475 lbs (5,205 kg)
Std Operation Weight - Rear Axle	26,775 lbs (12,145 kg)
Std Operation Weight - Total	38,250 lbs (17,350 kg)
Tandem Case Fluid Capacity (each)	27 gal (100 l)
Tire Size	14.00 x 24 G-2
Transmission Fluid Capacity	10 gal (38 l)
Steering System
Articulation Angle	22 degrees
Transmission
Max Speed - Forward	27 mph (44 kph)
Max Speed - Reverse	20 mph (31 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	4
Transmission Type	Powershift
