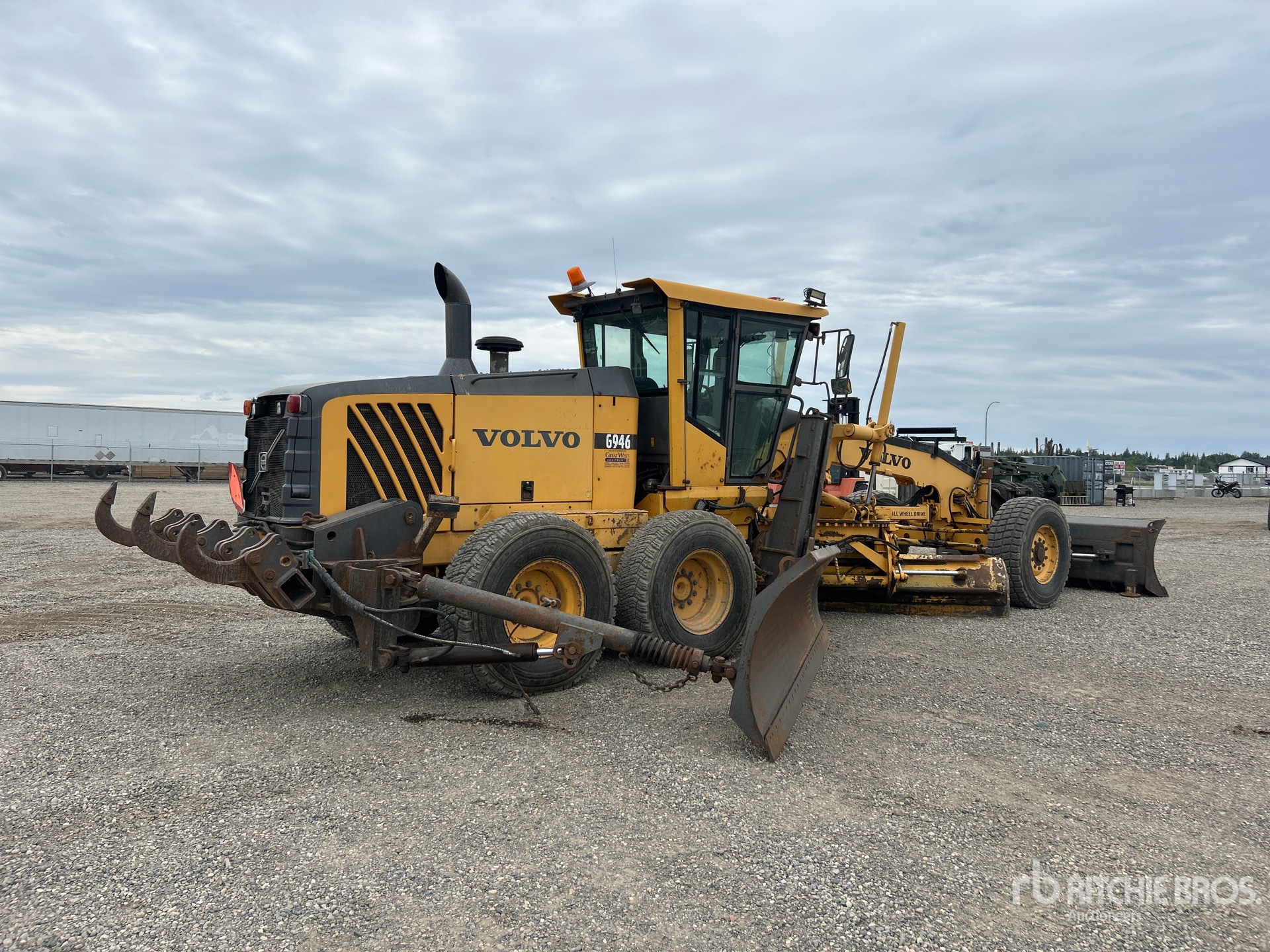

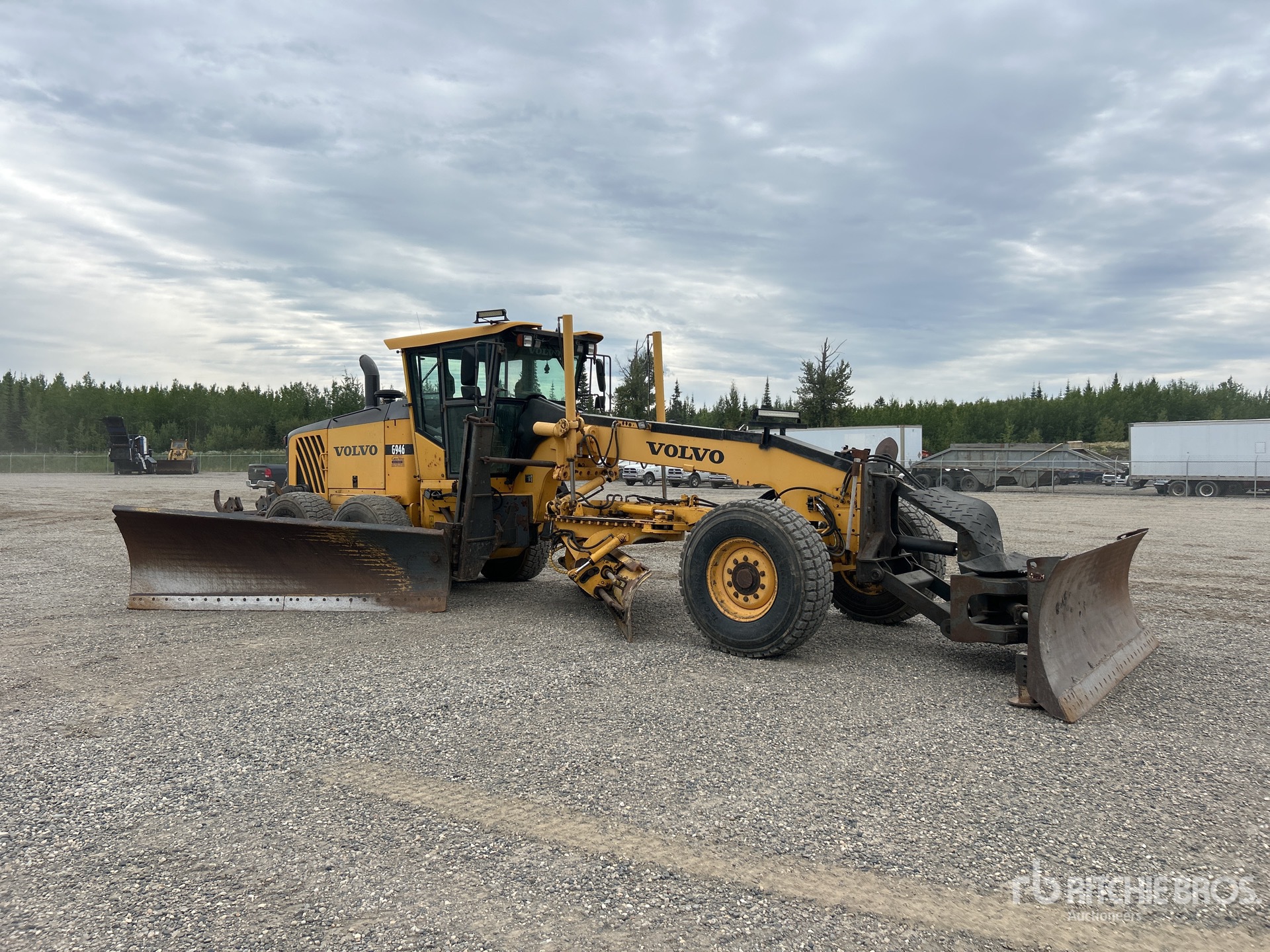

2008 Volvo G946 For Sale in Grande Prairie, Ab

Name: 2008 Volvo G946
Brand: Volvo
SKU: 89011283
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-02 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

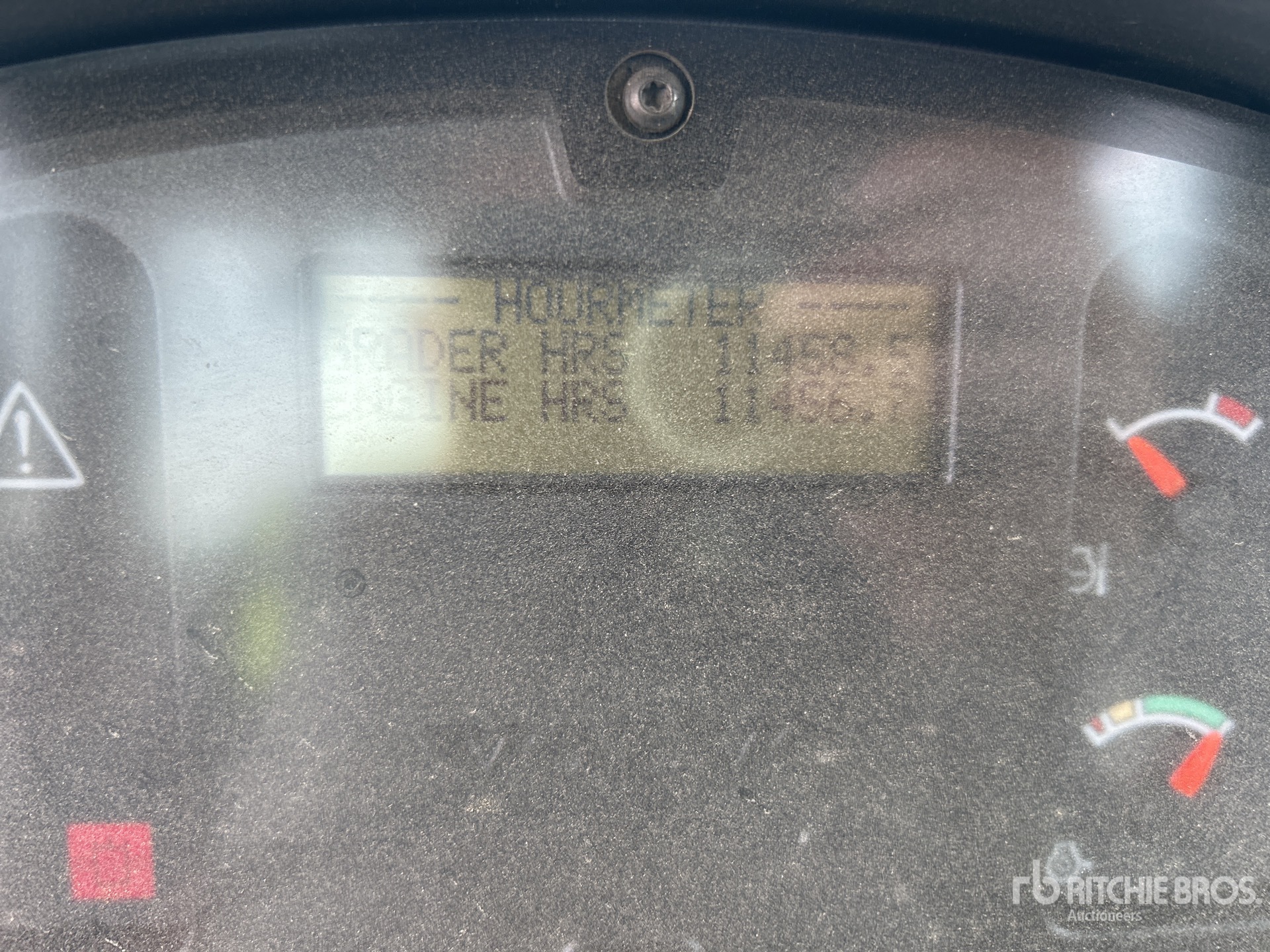

Hours:	11458

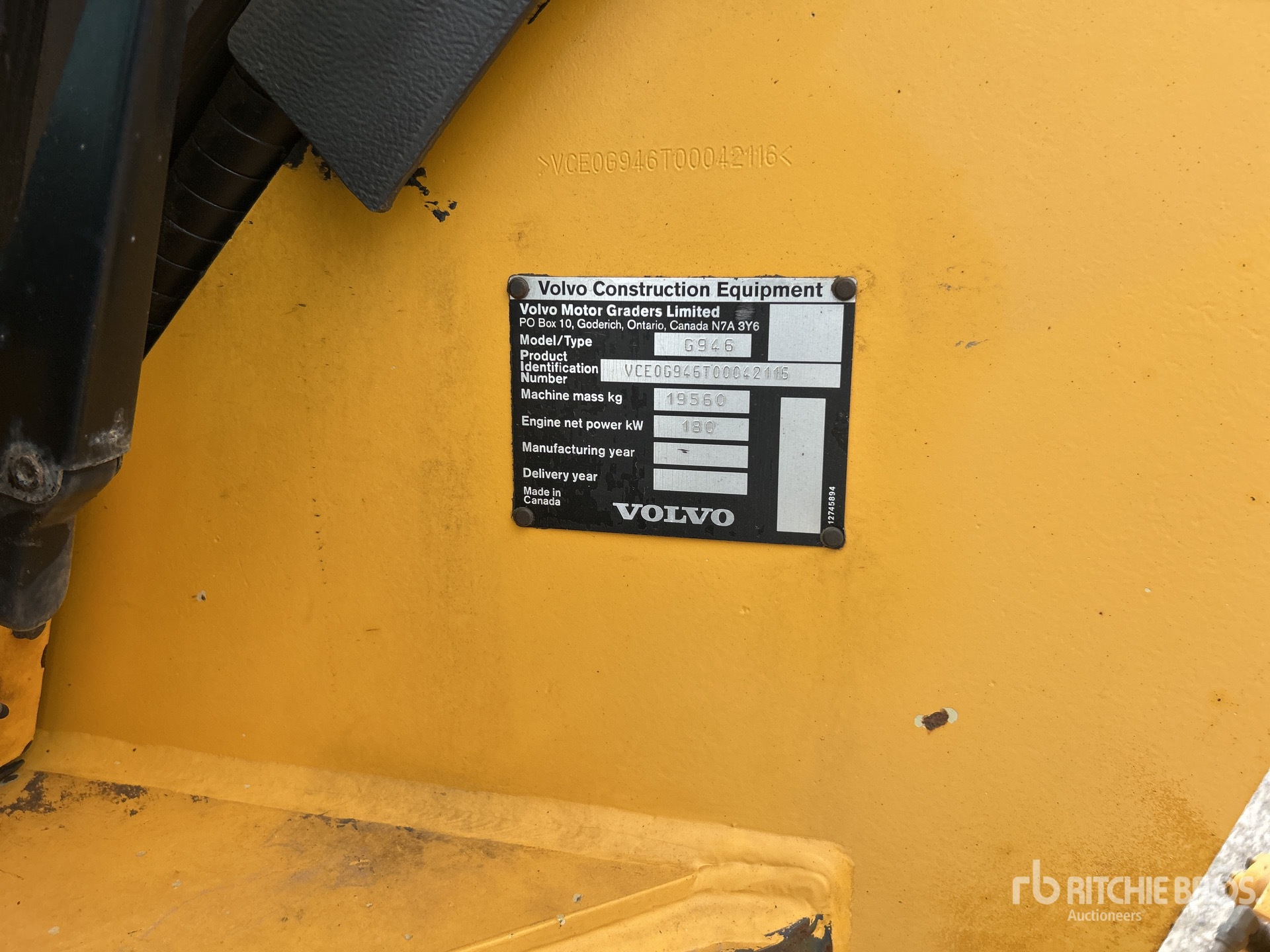

Serial Number:	VCE0G946T00042116
Machine Location:	GRANDE PRAIRIE, AB

Description:

Enclosed Cab, Air Conditioner, Air Ride Seat, Differential Lock, 14 ft / 4.27 m Moldboard, Front Auxiliary Hydraulics, Lift Group, Straight Front Blade, Snow Wing, Combination Ripper/Scarifier, Rear Auxiliary Hydraulics, 17.5R25 Tires Equipment from JV Logging

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Volvo G946 is a motor grader designed for road construction, maintenance, and site preparation. It is part of Volvo's grader lineup and is used for grading, leveling, ditching, and shaping surfaces on highways, municipal roads, and large earthmoving projects. The G946 typically features a front-mounted blade, articulated frame, and operator cab configured for visibility and control during precision grading work. As a motor grader, it is commonly used in applications requiring accurate surface finish and material distribution. The Volvo G946 is recognized in the heavy equipment market as a mid-size grader for general-purpose grading operations.

Circle
Blade Tip Angle - Front	45 degrees
Blade Tip Angle - Rear	6 degrees
Diameter	64 in (163 cm)
Max Reach Outside Tires - Left	80 in (203 cm)
Max Reach Outside Tires - Right	79 in (201 cm)
Rotation	360 degrees
Shift Left	31 in (77 cm)
Shift Right	30 in (75 cm)
Dimensions
Blade Base	9 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height	11 ft (3 m)
Height To Top Of Isomount Cab	10 ft (3 m)
Length	30 ft (9 m)
Overall Length	30 ft (9 m)
Weight	38,140 lbs (17,297 kg)
Wheelbase	20 ft (6 m)
Width	8 ft (3 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	Turbocharged, Aftercooled
Displacement	436 cu in (7,145 cu cm)
Engine Make	2,244
Engine Model	D7E
Max Power	225 hp (168 kw)
Net Power Gears 7-8	225 hp (168 kw)
Net Torque Gears 7-8	754 lbs ft (1,022 nm)
Number Of Cylinders	6
Power Measured @	1,800 rpm
Torque Measured @	1,500 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	16 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	55 gpm (208 lpm)
Pump Type	Axial piston pump
Relief Valve Pressure	3,000 psi
Moldboard
Blade Down Pressure	19,035 lbs (8,634 kg)
Blade Pull At Max Weight	36,760 lbs (16,674 kg)
Max Depth Of Cut	31 in (79 cm)
Moldboard Height	25 in (64 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (67 cm)
Side Shift Right	27 in (67 cm)
Operational
Alternator Supplied Amperage	80 amps
Cooling System Fluid Capacity	9 gal (34 l)
Fuel Capacity	107 gal (405 l)
Hydraulic System Fluid Capacity	38 gal (144 l)
Max Operation Weight - Front Axle	16,700 lbs (7,575 kg)
Max Operation Weight - Rear Axle	31,400 lbs (14,243 kg)
Max Operation Weight - Total	48,000 lbs (21,772 kg)
Oil System Fluid Capacity	6 gal (22 l)
Operating Voltage	24 V
Std Operation Weight - Front Axle	11,020 lbs (4,999 kg)
Std Operation Weight - Rear Axle	27,120 lbs (12,301 kg)
Std Operation Weight - Total	38,140 lbs (17,300 kg)
Tandem Case Fluid Capacity (Each)	26 gal (100 l)
Tire Size	14:00 x 24, G-2
Transmission Fluid Capacity	16 gal (61 l)
Steering
Articulation Angle	23 degrees
Turning Radius	24 ft (7 m)
Transmission
Max Speed - Forward	28 mph (46 kph)
Max Speed - Reverse	20 mph (32 kph)
Number Of Gears - Forward	8
Number Of Gears - Reverse	4
Transmission Type	HTE 840, Fully sequential, direct drive, Volvo powershift transmission
