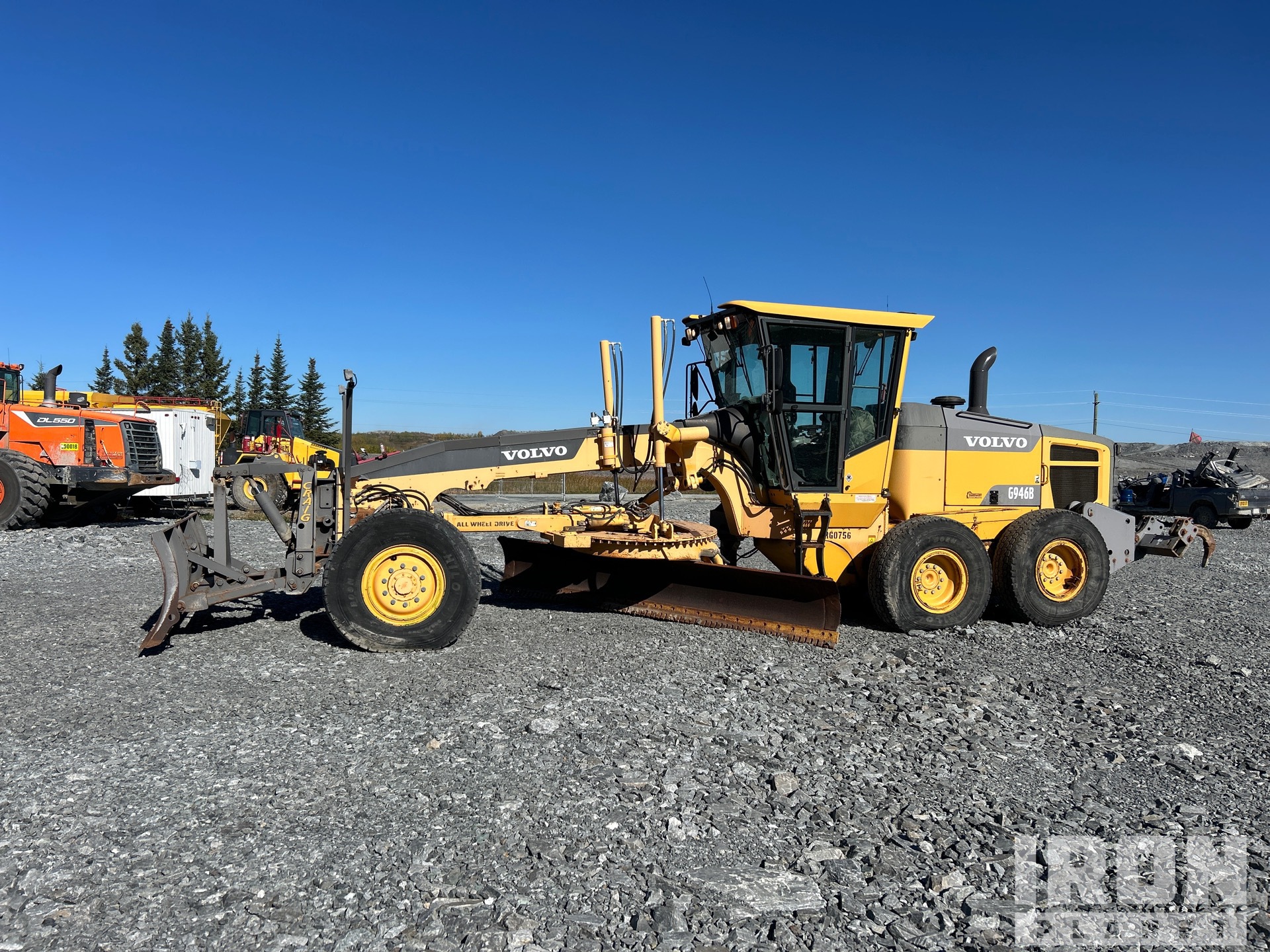

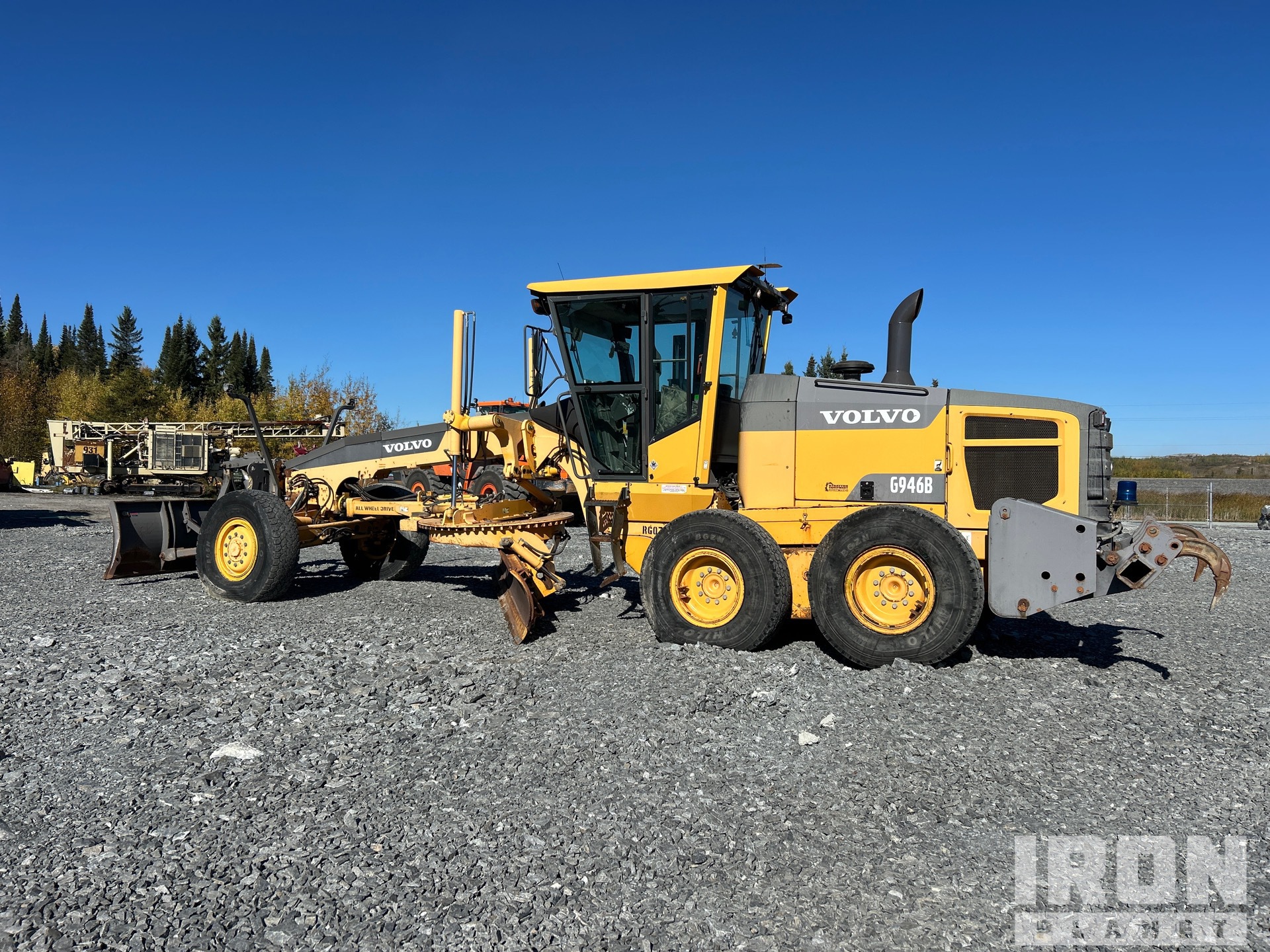

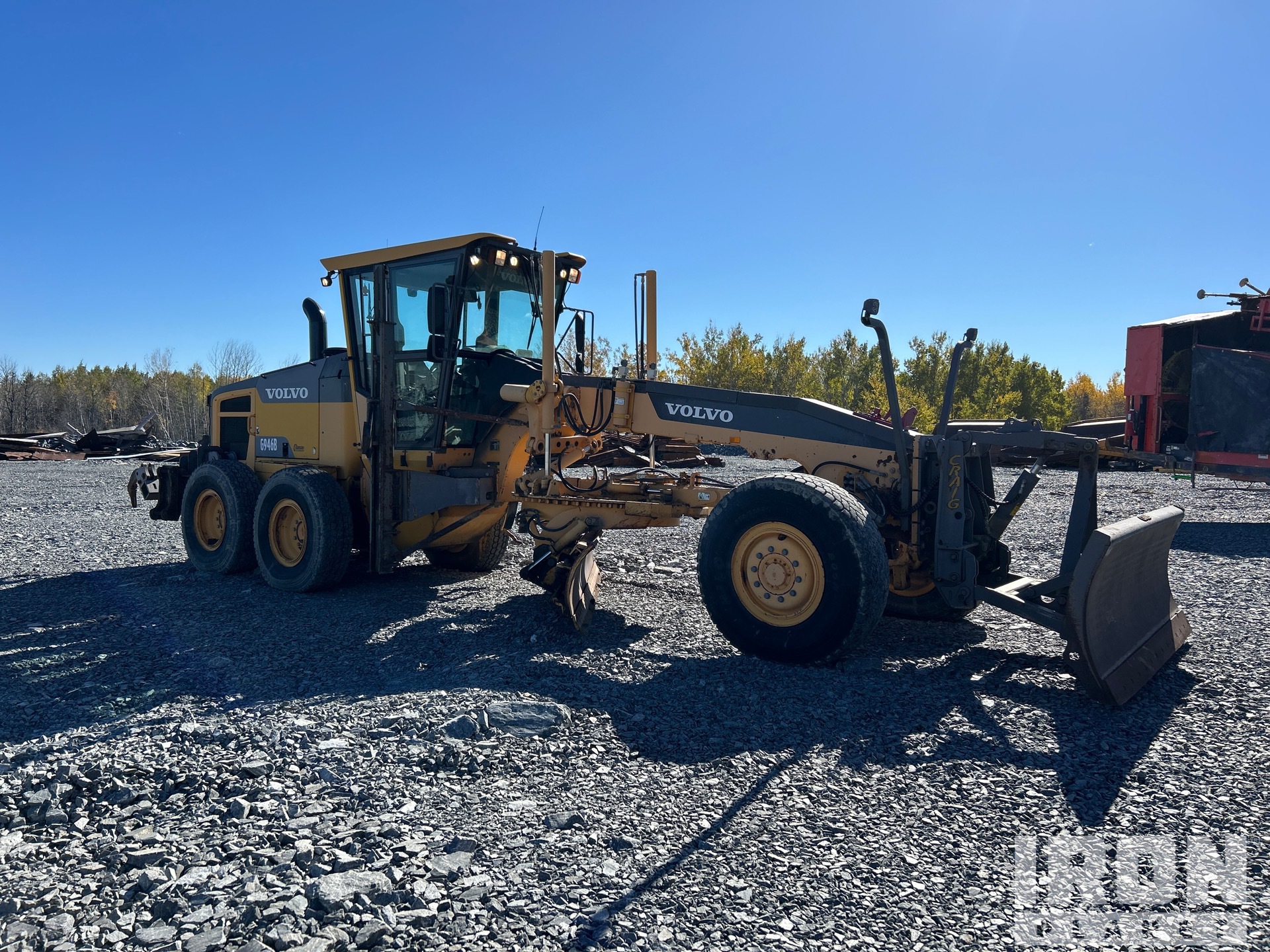

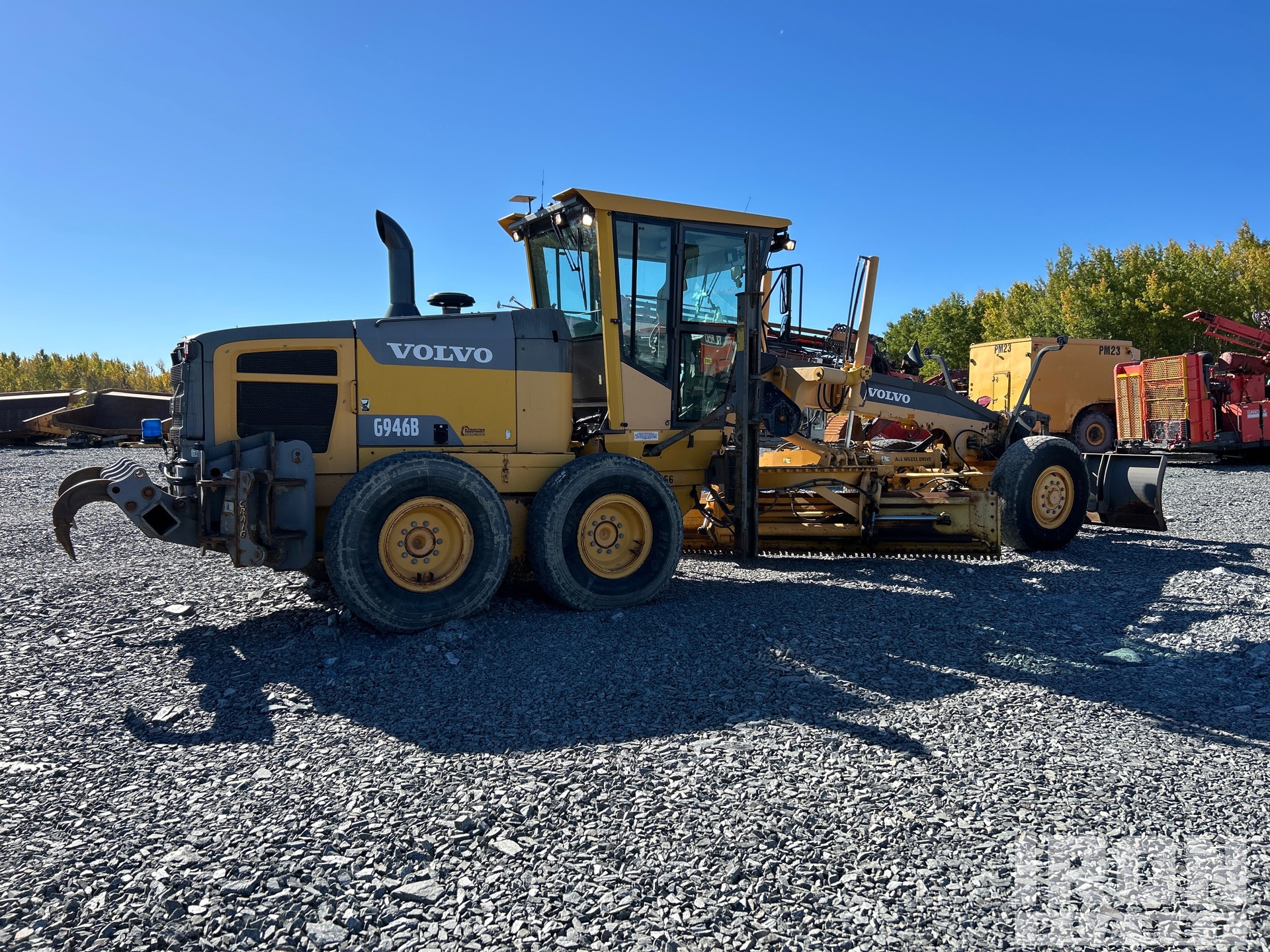

2012 Volvo G946B For Sale in Manitoba, Mb

Name: 2012 Volvo G946B
Brand: Volvo
SKU: 89416006
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-11-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

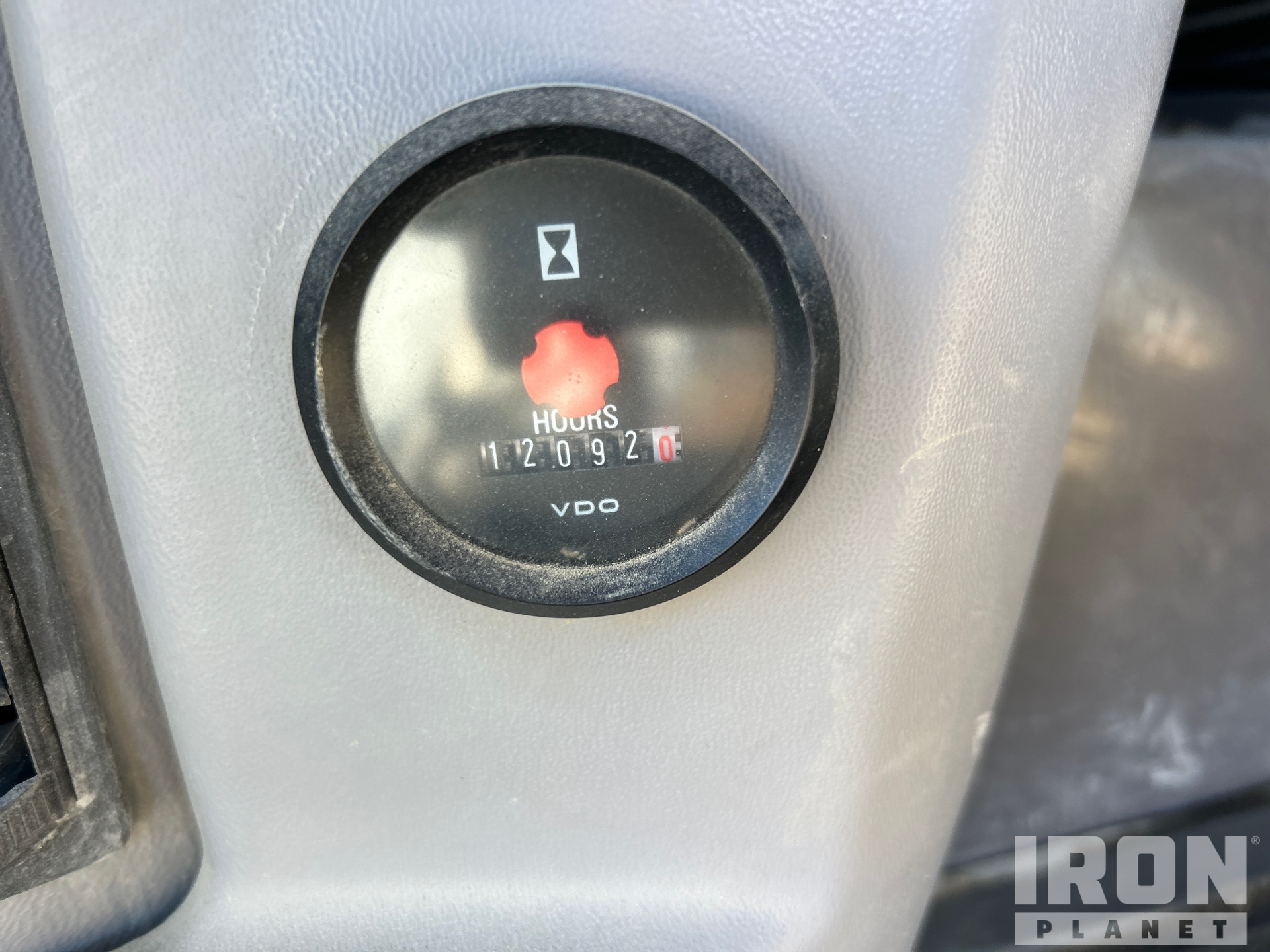

Hours:	12092

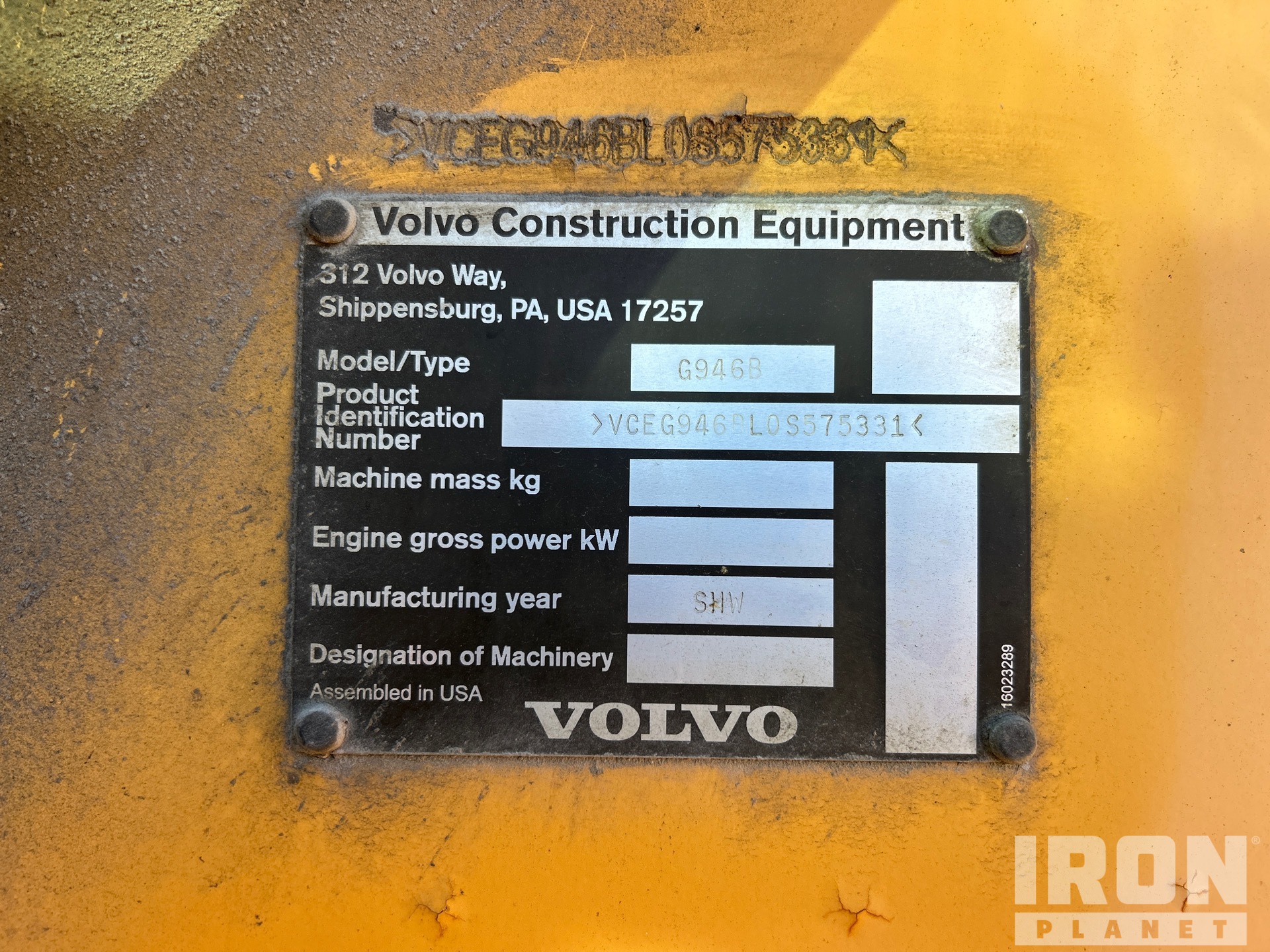

Serial Number:	VCEG946BL0S575331
Machine Location:	MANITOBA, MB

Description:

Enclosed Cab, Air Conditioner, Air Ride Seat, Rear View Camera, 14 ft / 4.27 m Moldboard w/ Extension, Straight Front Blade, Accumulators, Ripper, 385/95R24 Tires For more information, please contact TM: James Nicholls PH: 807.708.1383 - Item removal deadline: Dec 1, 2026 - Buyer responsible for load out and all associated costs - Closing Time: 2026-11-17 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Circle
Blade Tip Angle - Front	45 degrees
Blade Tip Angle - Rear	6 degrees
Diameter	64 in (163 cm)
Max Reach Outside Tires - Left	80 in (203 cm)
Max Reach Outside Tires - Right	79 in (201 cm)
Rotation	360 degrees
Shift Left	31 in (77 cm)
Shift Right	30 in (75 cm)
Dimensions
Blade Base	9 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height To Top Of Isomount Cab	10 ft (3 m)
Overall Length	30 ft (9 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	Turbocharged, Aftercooled
Bore	4 in (11 cm)
Displacement	476 cu in (7,800 cu cm)
Engine Model	D8HGAE4
Net Power Gear 1-2	146 hp (109 kw)
Net Torque Gears 1-2	730 lbs ft (990 nm)
Number Of Cylinders	6
Stroke	5 in (14 cm)
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	16 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	55 gpm (208 lpm)
Pump Type	Axial piston pump
Relief Valve Pressure	3,002 psi
Moldboard
Blade Down Pressure	18,651 lbs (8,460 kg)
Blade Pull At Max Weight	36,760 lbs (16,674 kg)
Max Depth Of Cut	31 in (79 cm)
Moldboard Height	25 in (64 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (67 cm)
Side Shift Right	27 in (67 cm)
Operational
Alternator Supplied Amperage	120 amps
Cooling System Fluid Capacity	9 gal (34 l)
Fuel Capacity	106 gal (400 l)
Hydraulic System Fluid Capacity	38 gal (144 l)
Max Operation Weight - Front Axle	16,700 lbs (7,575 kg)
Max Operation Weight - Rear Axle	31,401 lbs (14,243 kg)
Max Operation Weight - Total	47,999 lbs (21,772 kg)
Oil System Fluid Capacity	6 gal (22 l)
Operating Voltage	24 V
Rear Diff/Final Drive Fluid Capacity	6 gal (23 l)
Std Operation Weight - Front Axle	10,781 lbs (4,890 kg)
Std Operation Weight - Rear Axle	27,734 lbs (12,580 kg)
Std Operation Weight - Total	38,515 lbs (17,470 kg)
Tandem Case Fluid Capacity (Each)	35 gal (134 l)
Tire Size	14:00 x 24, G-2
Transmission Fluid Capacity	16 gal (61 l)
Steering
Articulation Angle	23 degrees
Turning Radius	23,835 ft (7,265 m)
Transmission
Max Speed - Forward	27 mph (44 kph)
Max Speed - Reverse	19 mph (31 kph)
Number Of Gears - Forward	8
Number Of Gears - Reverse	4
Transmission Type	Fully sequential, direct drive, Volvo powershift transmission
