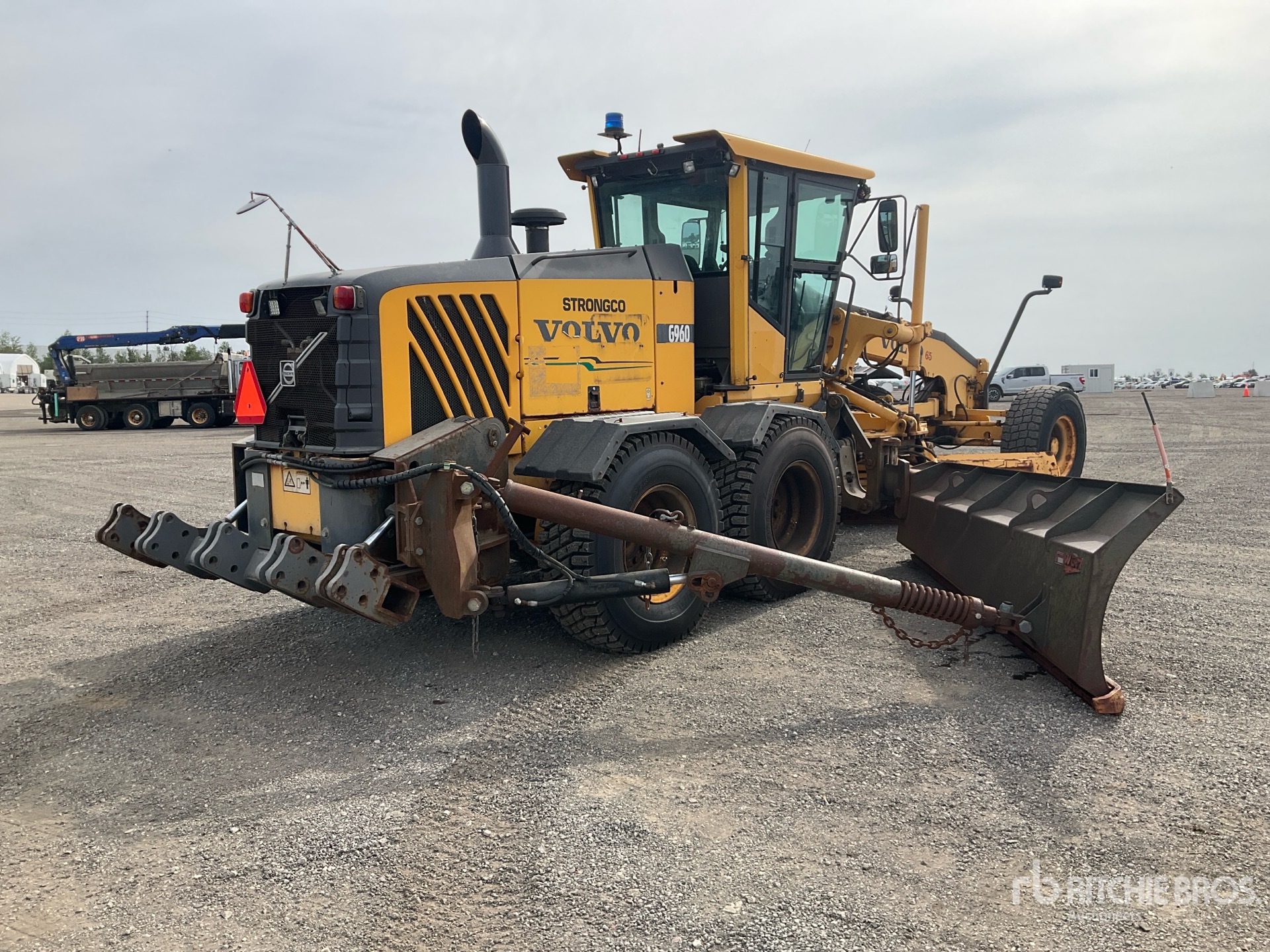

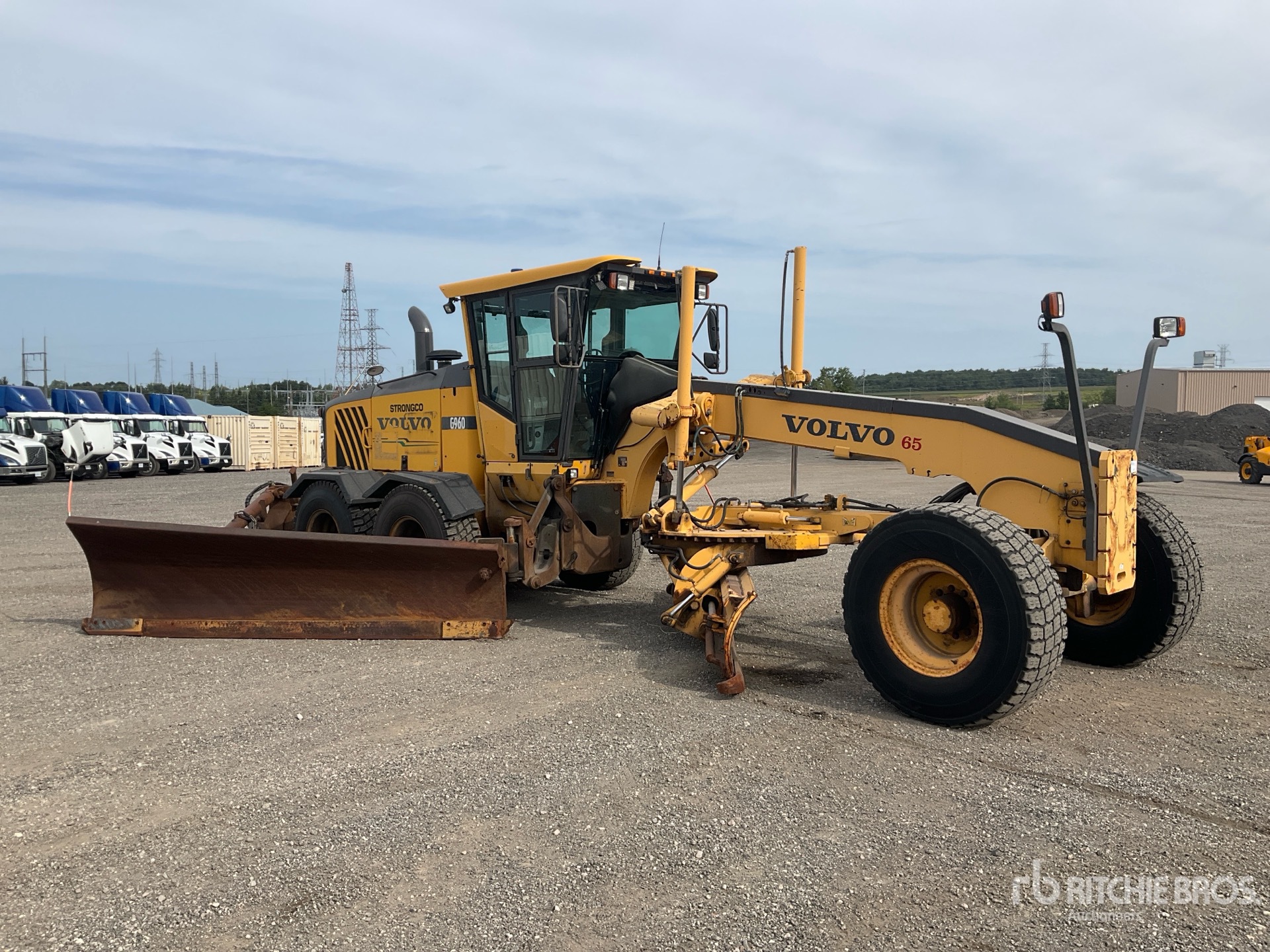

2010 Volvo G960 For Sale in Toronto, On

Name: 2010 Volvo G960
Brand: Volvo
SKU: 89031155
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-16 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

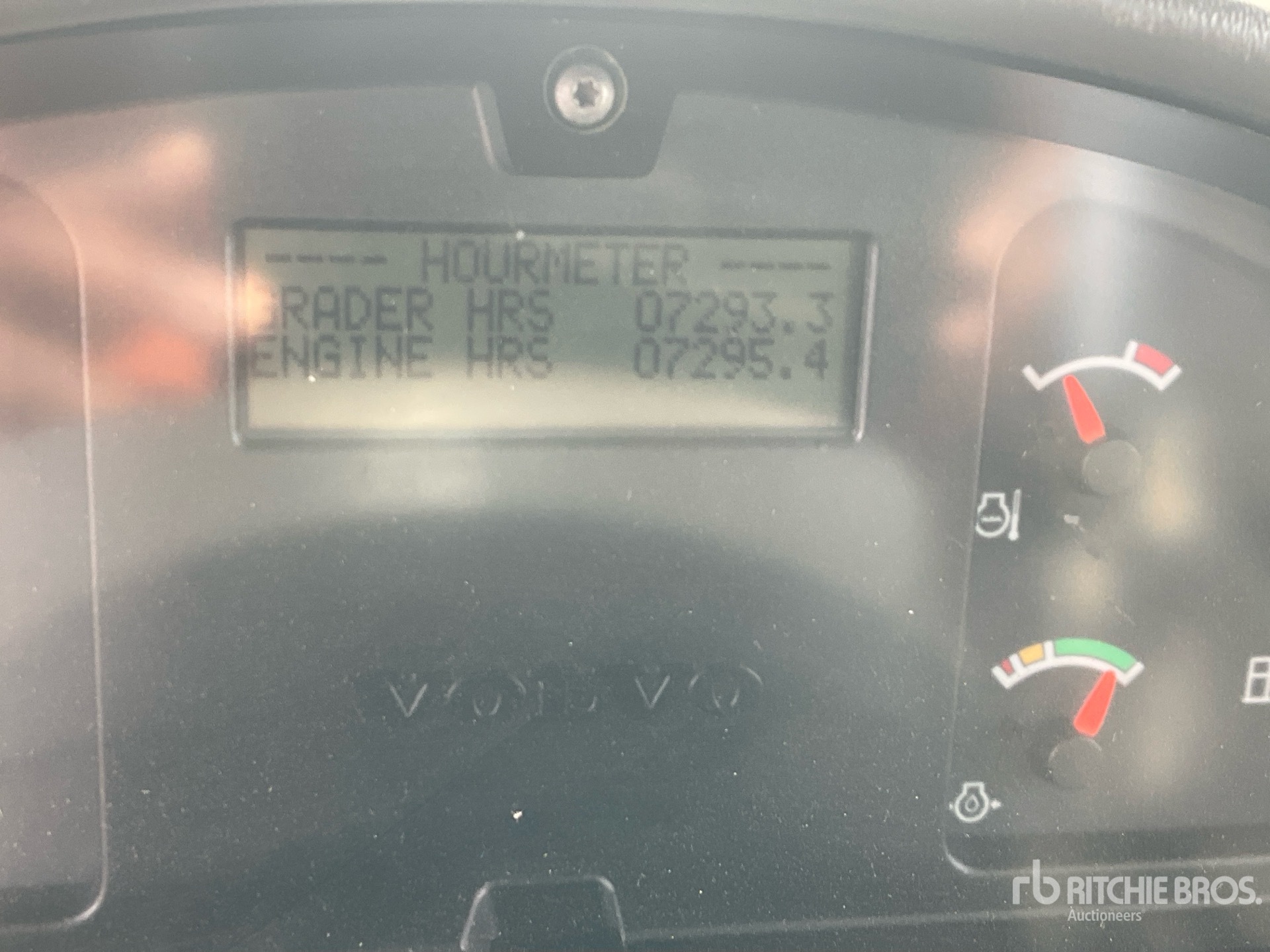

Hours:	7295

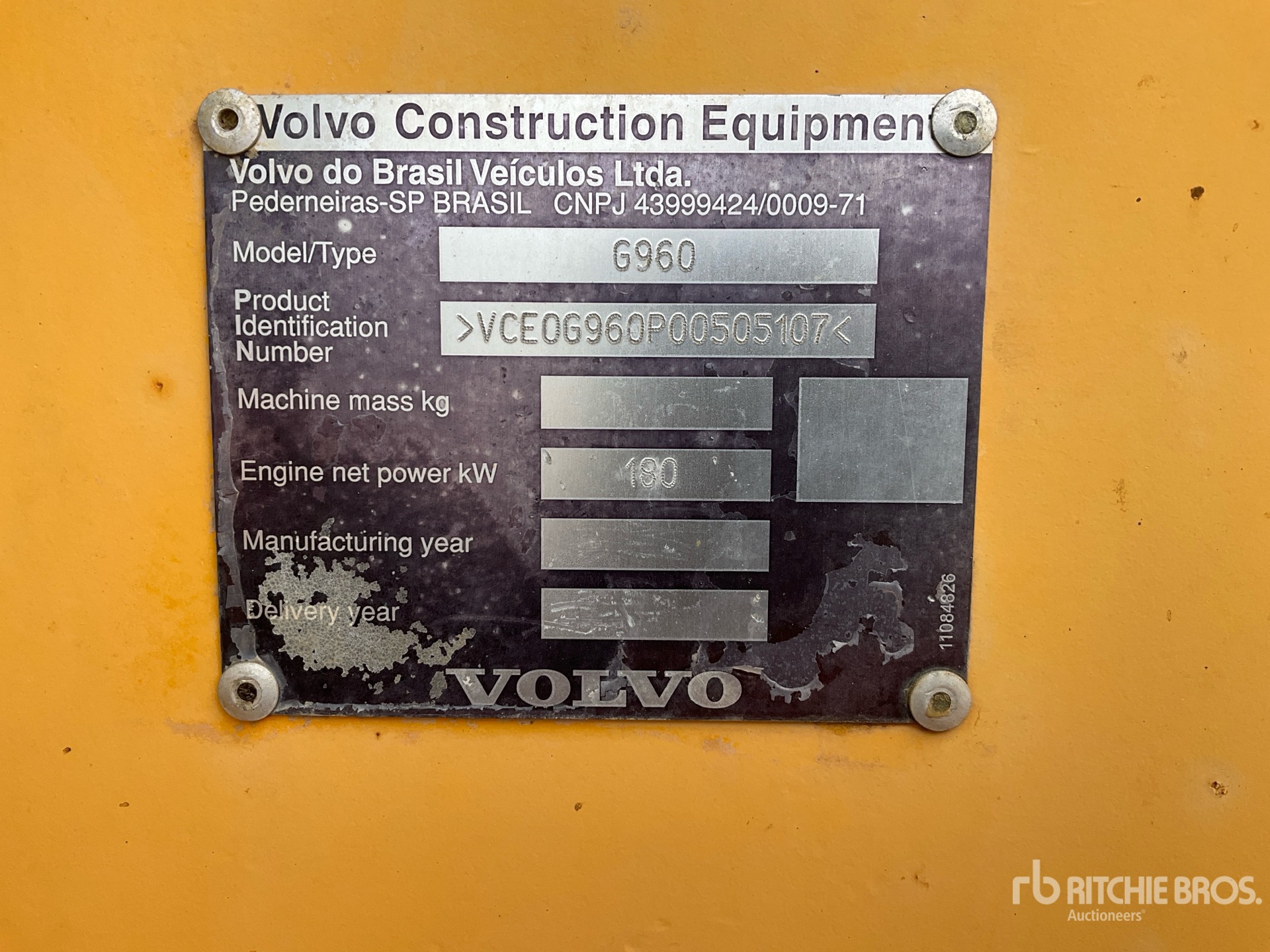

Serial Number:	VCE0G960P00505107
Machine Location:	TORONTO, ON

Description:

Enclosed Cab, Air Conditioner, Low Profile, Differential Lock, 2010 US EPA Label, CARB Compliant, 14 ft / 4.27 m Moldboard, Snow Wing, Combination Ripper/Scarifier, 17.5R25 Tires Closing Time: 2026-09-16 09:23:24 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Volvo G960 is a motor grader designed for road construction, maintenance, and earthmoving applications. It is used to shape and level surfaces, maintain gravel roads, and prepare subgrades for paving. The G960 is part of Volvo's grader lineup and is typically equipped with a moldboard, articulated frame, and hydraulic controls for precise blade positioning. Common applications include grading, ditching, snow removal, and site preparation. As a heavy equipment machine, the Volvo G960 is valued for its control, visibility, and versatility in grading operations across municipal, highway, and construction environments.

Circle
Blade Tip Angle - Front	45 degrees
Blade Tip Angle - Rear	6 degrees
Diameter	64 in (163 cm)
Max Reach Outside Tires - Left	80 in (203 cm)
Max Reach Outside Tires - Right	79 in (201 cm)
Rotation	360 degrees
Shift Left	31 in (77 cm)
Shift Right	30 in (75 cm)
Dimensions
Blade Base	9 ft (3 m)
Height to Top of Isomount Cab	11 ft (3 m)
Overall Length	30 ft (9 m)
Rear Ground Clearance	2 ft (1 m)
Wheelbase	21 ft (6 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	Turbocharged Aftercooled
Displacement	436 cu in (7,145 cu cm)
Engine Model	D7E
Max Power	242 hp (180 kw)
Net Power Gears 7-8	242 hp (180 kw)
Net Torque Gears 7-8	791 lbs ft (1,072 nm)
Number of Cylinders	6
Power Measured @	1,800 rpm
Torque Measured @	1,500 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	16 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	55 gpm (208 lpm)
Pump Type	Axial piston pump
Relief Valve Pressure	3,000 psi
Moldboard
Blade Down Pressure	19,421 lbs (8,808 kg)
Blade Pull at Max Weight	28,350 lbs (12,857 kg)
Max Depth of Cut	31 in (79 cm)
Moldboard Height	25 in (64 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (67 cm)
Side Shift Right	27 in (67 cm)
Operating Specifications
Alternator Supplied Amperage	80 amps
Cooling System Fluid Capacity	9 gal (34 l)
Fuel Capacity	107 gal (405 l)
Hydraulic System Fluid Capacity	24 gal (91 l)
Max Operation Weight - Front Axle	16,700 lbs (7,574 kg)
Max Operation Weight - Rear Axle	31,500 lbs (14,286 kg)
Max Operation Weight - Total	48,200 lbs (21,859 kg)
Oil System Fluid Capacity	6 gal (22 l)
Operating Voltage	24 volts
Std Operation Weight - Front Axle	11,240 lbs (5,098 kg)
Std Operation Weight - Rear Axle	27,450 lbs (12,449 kg)
Std Operation Weight - Total	38,690 lbs (17,546 kg)
Tandem Case Fluid Capacity (each)	26 gal (100 l)
Tire Size	14:00 x 24 G-2
Transmission Fluid Capacity	16 gal (61 l)
Steering System
Articulation Angle	23 degrees
Turning Radius	24 ft (7 m)
Transmission
Max Speed - Forward	28 mph (46 kph)
Max Speed - Reverse	20 mph (32 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	4
Transmission Type	HTE 840 Fully sequential direct drive Volvo powershift transmission
