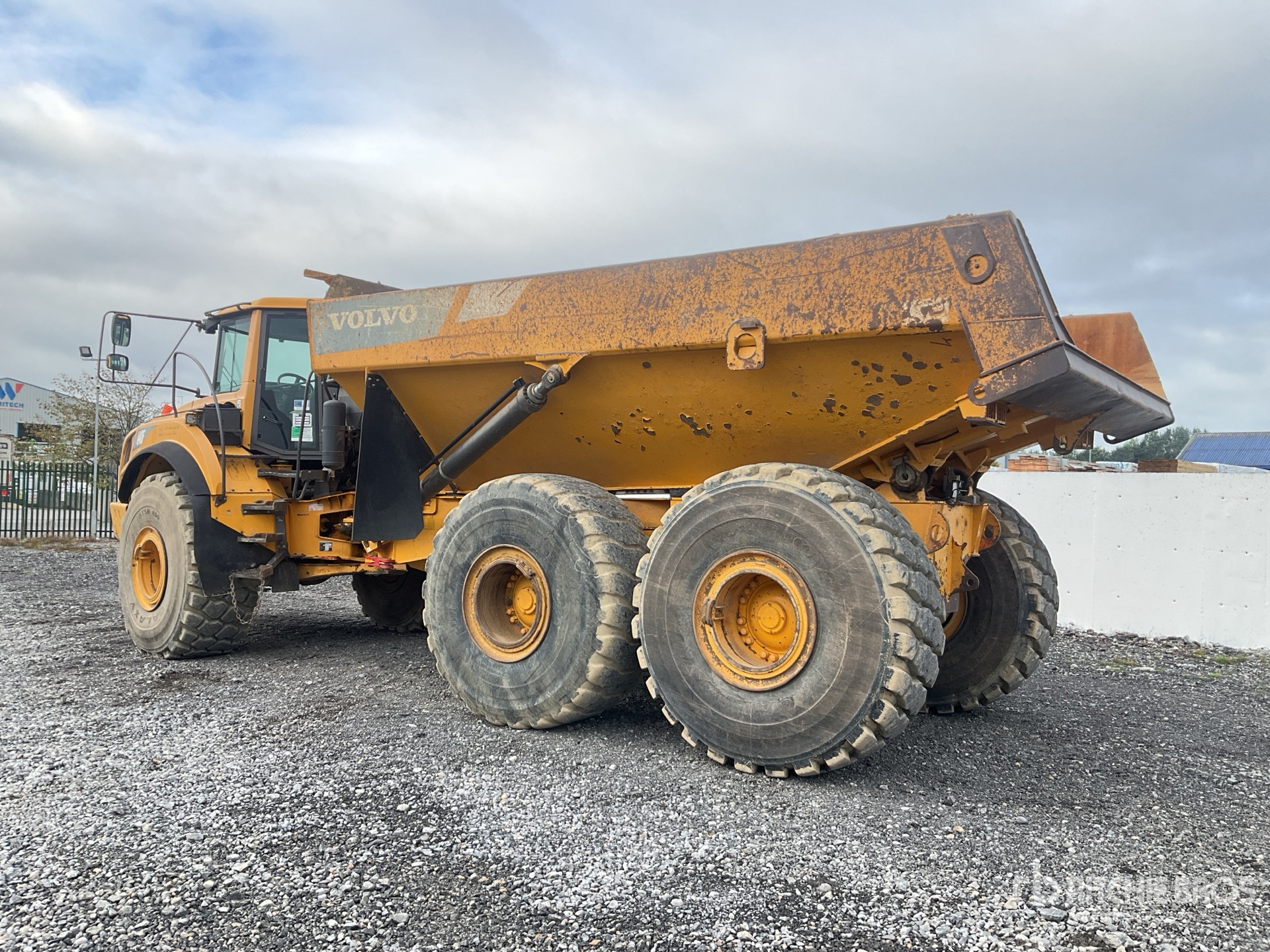

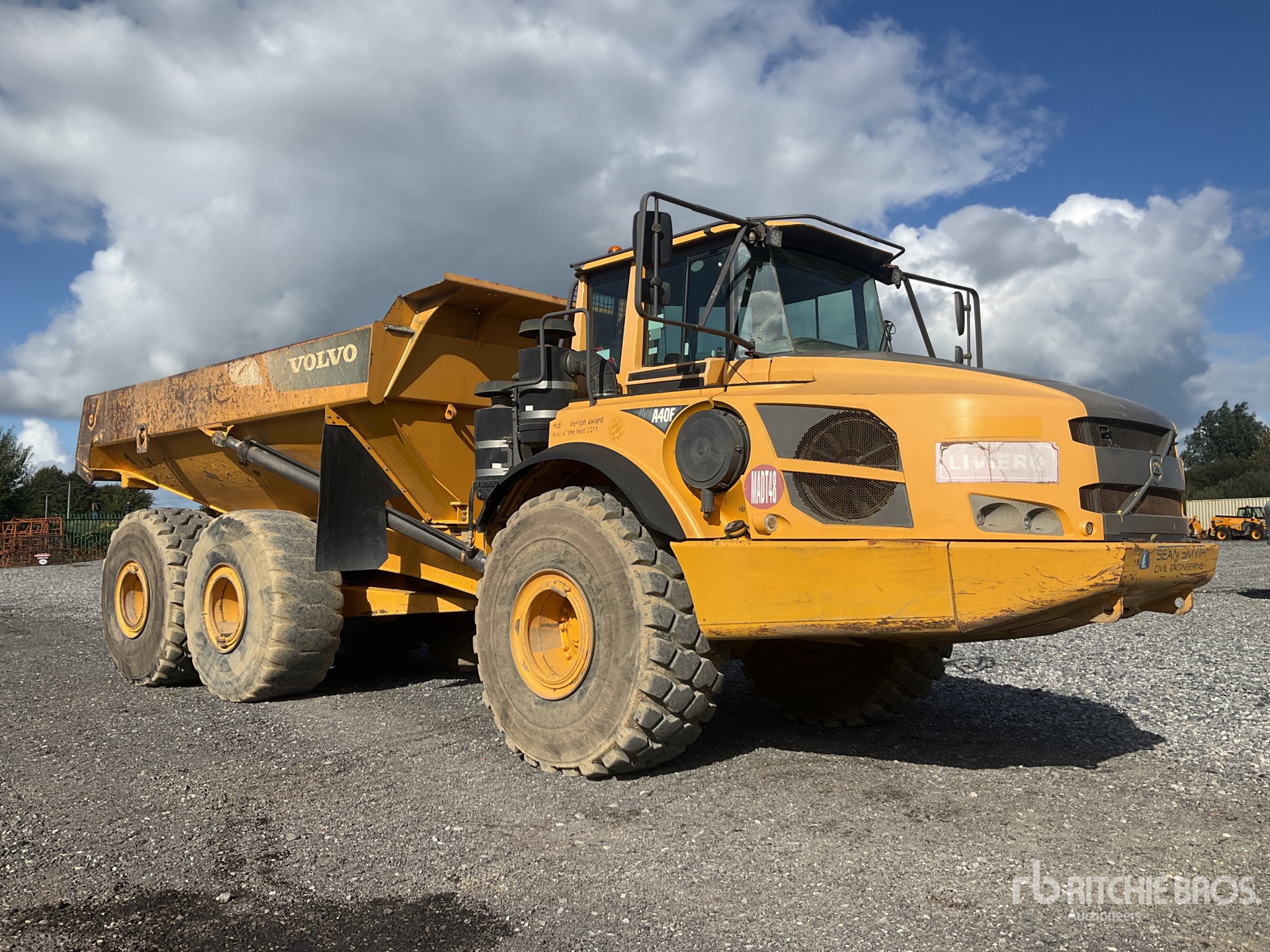

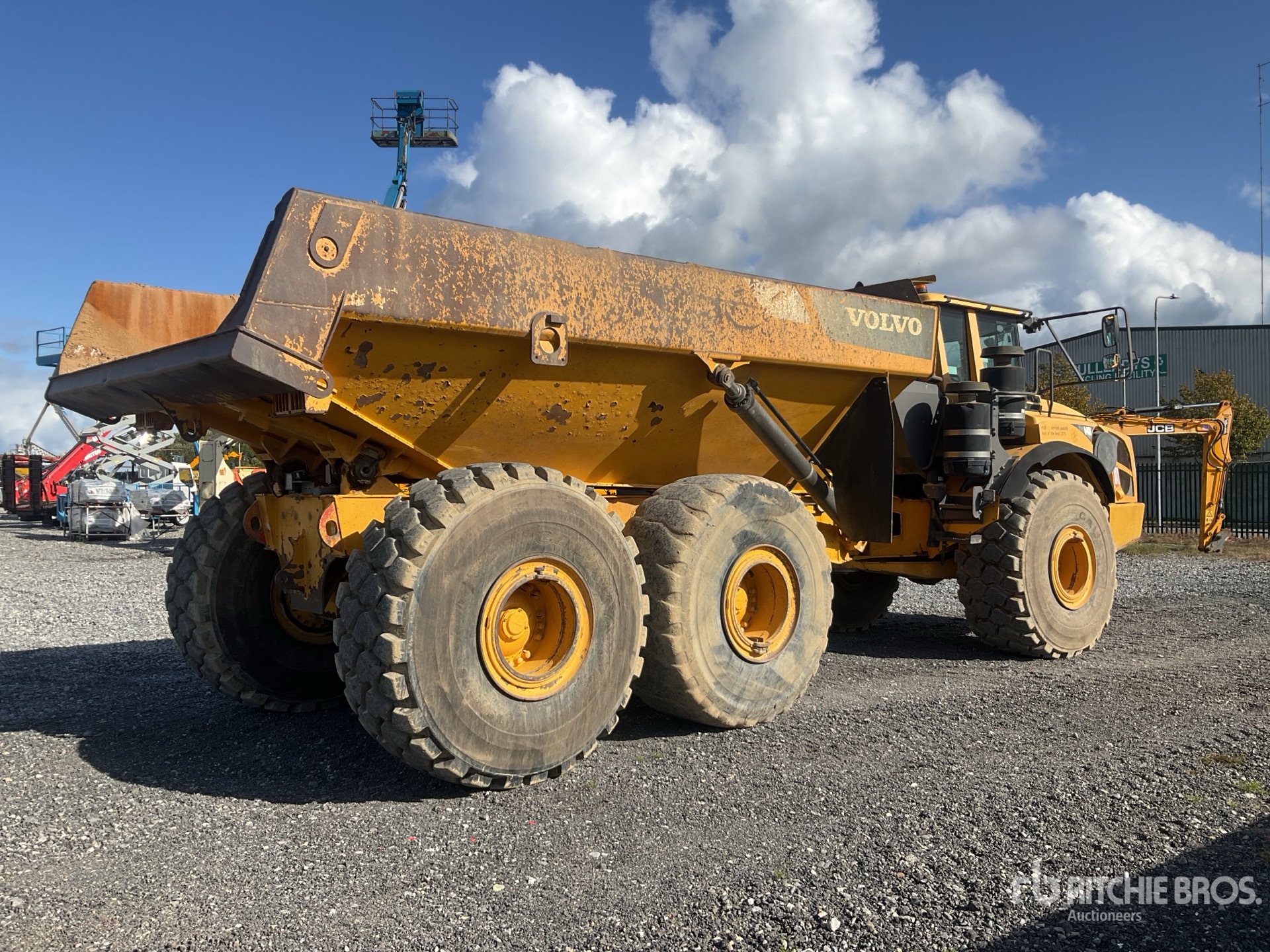

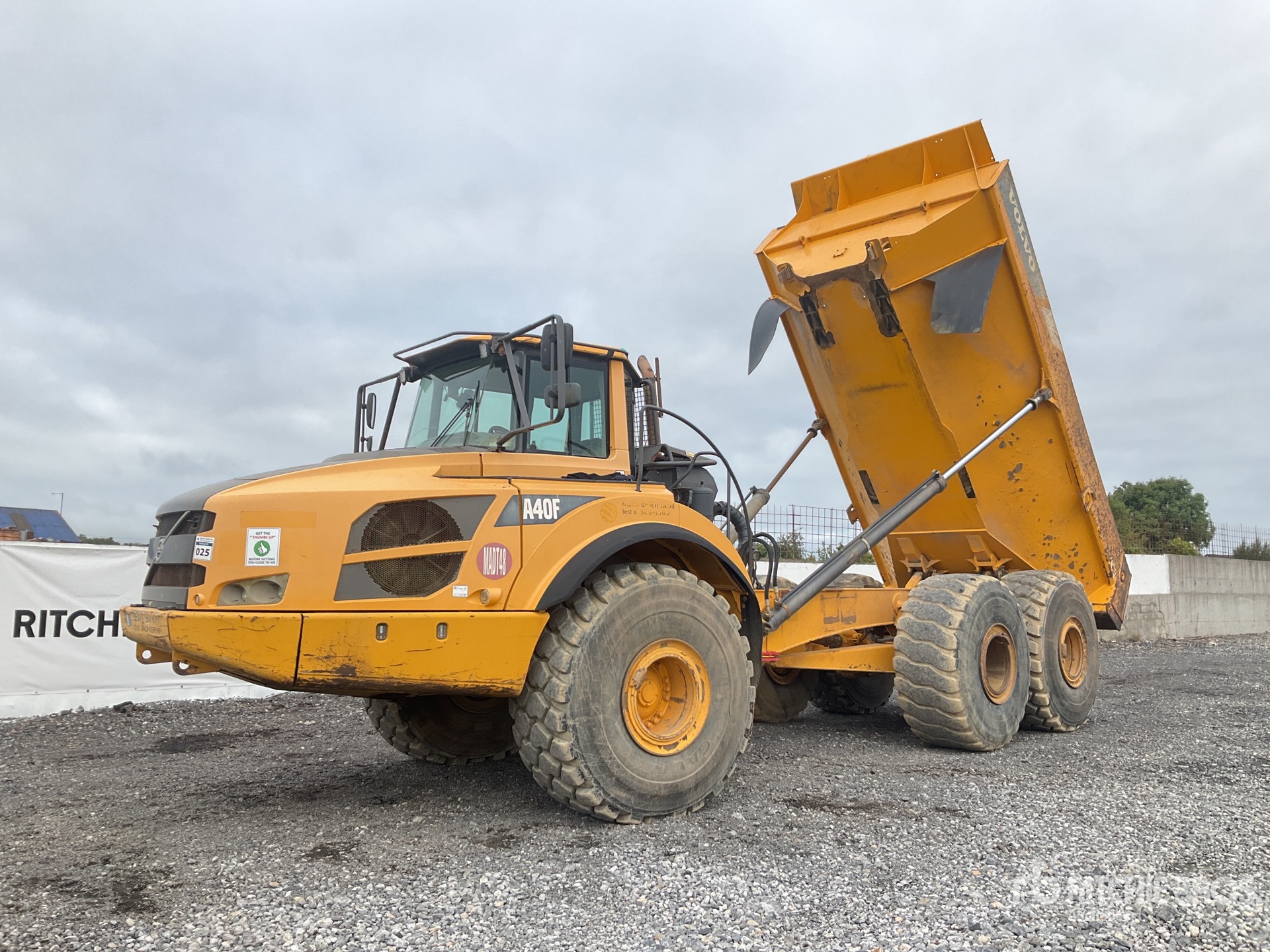

2012 Volvo A40F For Sale in Maltby, Gbr

Name: 2012 Volvo A40F
Brand: Volvo
SKU: 89247900
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-23 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

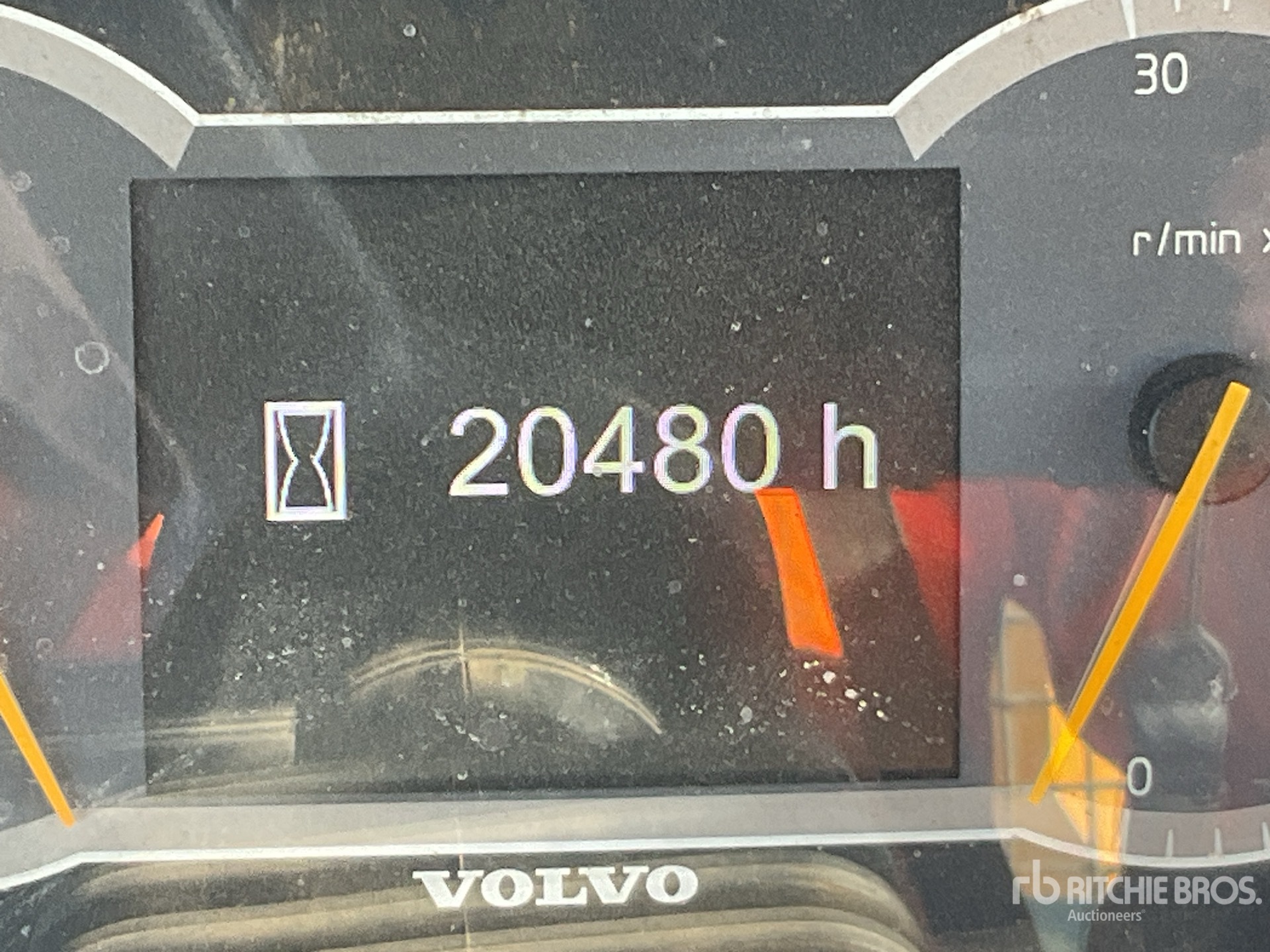

Hours:	20480

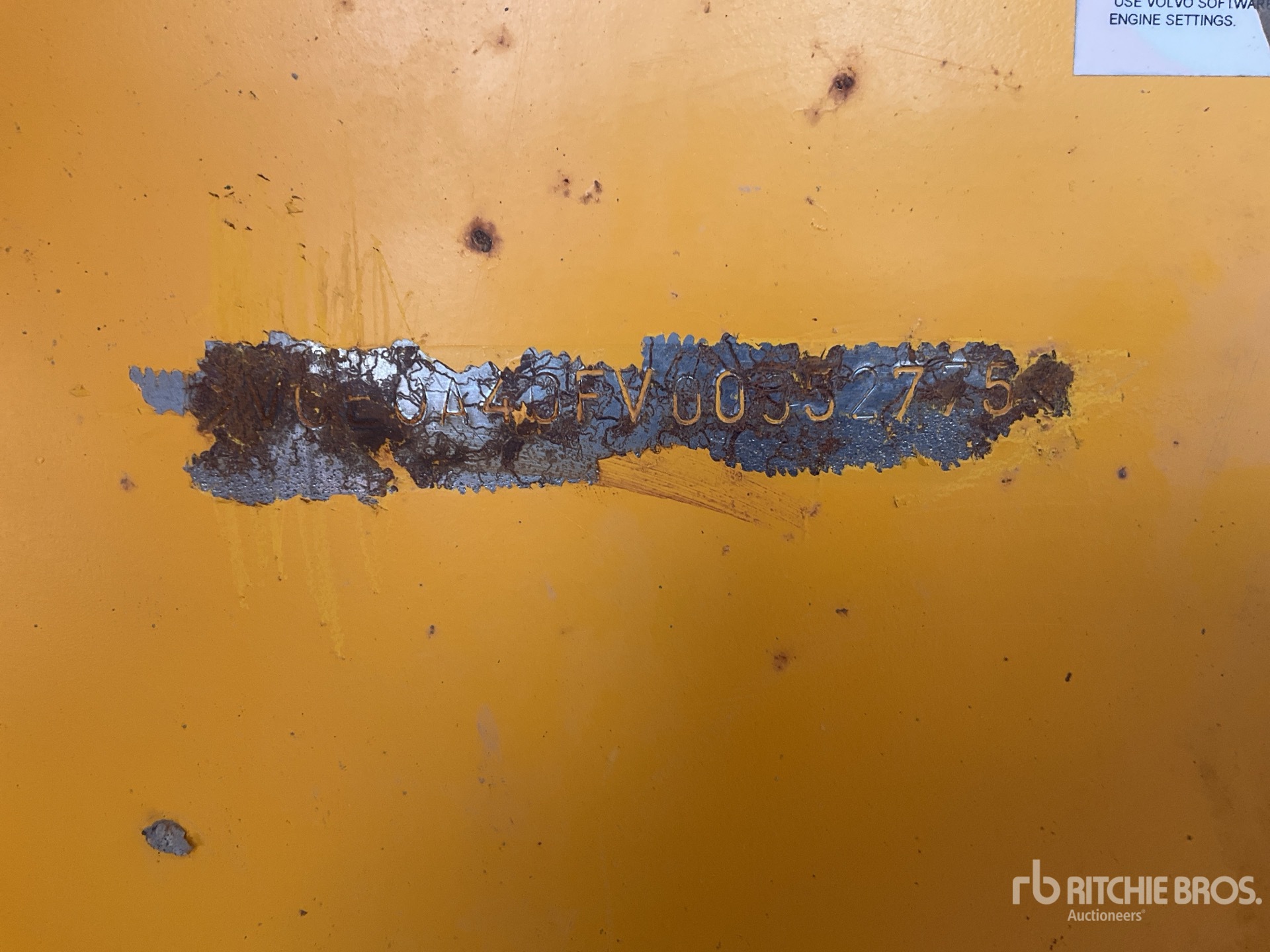

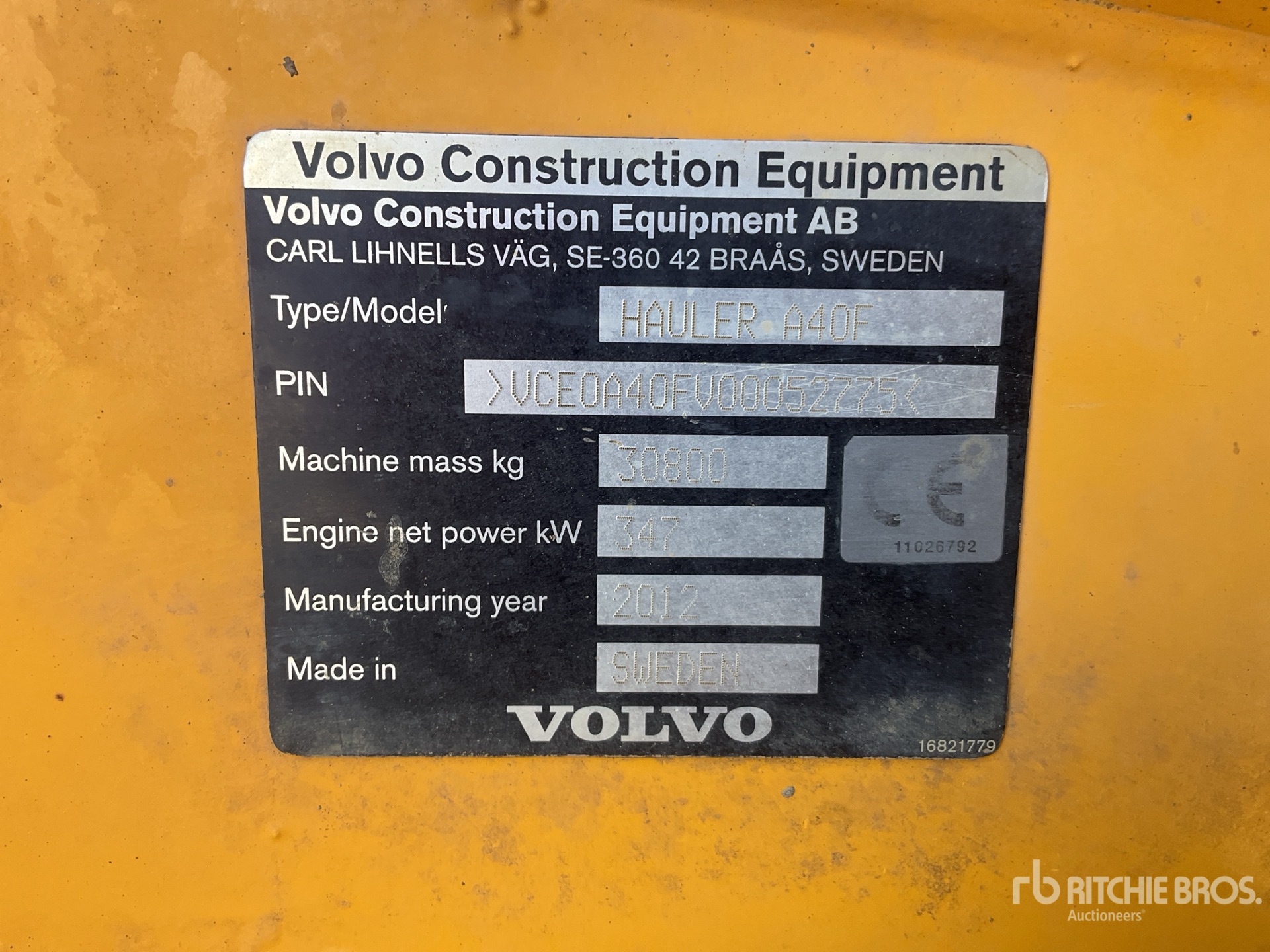

Serial Number:	VCE0A40FV00052775
Machine Location:	MALTBY, GBR

Description:

Air Conditioner, Engine Brake, Rear View Camera, 29.5R25 Tires **The item is located in Mullingar, Ireland. The bidder acknowledges and agrees that while the lot's bidding currency is GBP, the invoicing and payment currency will be Euro. The exchange rate will be confirmed this Friday 18th September 2026 **

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Volvo A40F is a rigid-frame articulated off-highway truck designed for heavy-duty hauling in construction, quarry, mining, and earthmoving applications. It is part of Volvo Construction Equipment's F-series and is built for material transport over rough terrain and soft ground. The A40F features a 40-ton class payload capacity, articulated steering, and all-wheel drive for traction in demanding site conditions. It is commonly used for moving soil, rock, aggregate, and demolition material. The truck is powered by a diesel engine and equipped with a dump body, operator cab, and suspension systems intended for load stability and off-road performance.

Dimensions
Dump Ground Clearance	3 ft (1 m)
Dump Ground Clearance	3 ft (1 m)
Dump Height	24 ft (7 m)
Dump Height	24 ft (7 m)
Ground Clearance	2 ft (1 m)
Ground Clearance	2 ft (1 m)
Overall Height	12 ft (4 m)
Overall Height	12 ft (4 m)
Overall Length	37 ft (11 m)
Overall Length	37 ft (11 m)
Overall Width	11 ft (3 m)
Overall Width	11 ft (3 m)
Wheelbase	18 ft (5 m)
Wheelbase	15 ft (5 m)
Dump
Capacity - Heaped	31 cu yd
Capacity - Struck	24 cu yd
Dump Angle	70 degrees
Lower Time	10 sec
Raise Time	12 sec
Rated Payload	85,980 lbs (39,000 kg)
Engine
Aspiration	Turbocharged
Displacement	982 cu in (16,092 cu cm)
Displacement	983 cu in (16,100 cu cm)
Engine Make	2,244
Engine Model	D13H-A
Gross Power	469 hp (350 kw)
Gross Power	476 hp (355 kw)
Max Torque	1,862 lbs ft (2,525 nm)
Max Torque	1,862 lbs ft (2,525 nm)
Net Power	465 hp (347 kw)
Net Power	465 hp (347 kw)
Number Of Cylinders	6
Power Measured @	1,800 rpm
Power Measured @	1,800 rpm
Torque Measured @	1,050 rpm
Operational
Alternator Supplied Amperage	80 amps
Cooling System Fluid Capacity	20 gal (75 l)
Cooling System Fluid Capacity	25 gal (95 l)
Engine Oil Capacity	14 gal (54 l)
Fuel Capacity	127 gal (480 l)
Fuel Capacity	144 gal (545 l)
Hydraulic System Fluid Capacity	65 gal (245 l)
Hydraulic System Fluid Capacity	69 gal (262 l)
Operating Voltage	24 V
Operational Weight	153,442 lbs (69,600 kg)
Tire Size	775/65R29
Tire Size	29.5R25
Transmission Fluid Capacity	11 gal (40 l)
Transmission Fluid Capacity	12 gal (46 l)
Transmission
Max Speed	35 mph (56 kph)
Number Of Forward Gears	9
Number Of Reverse Gears	3
Transmission Type	PT2519
Weights
Front Axle - Empty	36,487 lbs (16,550 kg)
Front Axle - Loaded	45194.8 %
Rear Axle - Empty	31,416 lbs (14,250 kg)
Rear Axle - Loaded	108,688 lbs (49,300 kg)
Total Empty	67,902 lbs (30,800 kg)
Total Loaded	153,883 lbs (69,800 kg)
