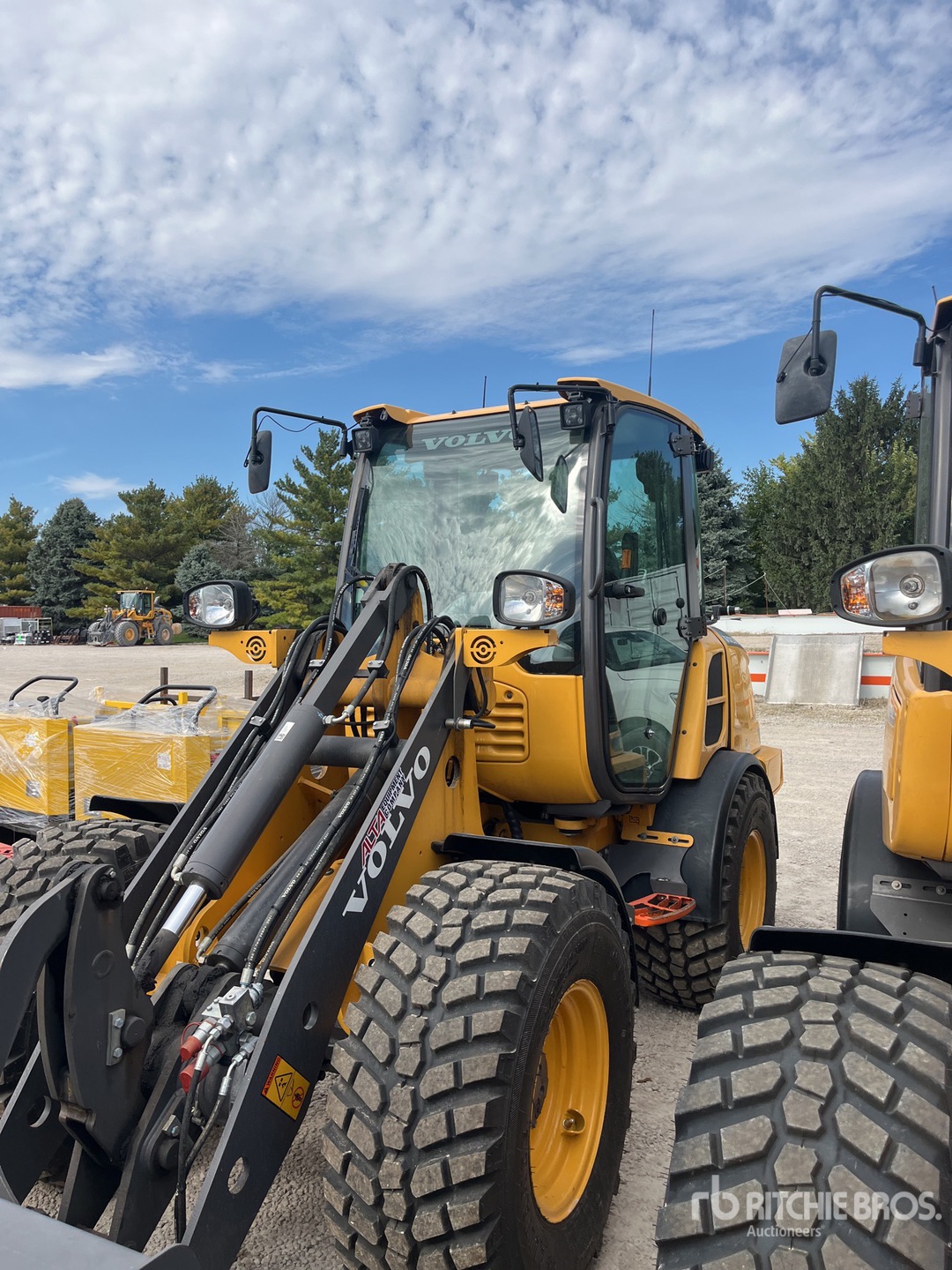

2022 Volvo L20H For Sale in Chicago, Il

Name: 2022 Volvo L20H
Brand: Volvo
SKU: 89447882
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-11-12

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Serial Number:	6368263
Machine Location:	CHICAGO, IL

Description:

Closing Time: 2026-11-12 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Volvo L20H is a compact wheel loader designed for material handling, loading, and site support applications. It is part of Volvo Construction Equipment's L-series and is commonly used in construction, landscaping, agriculture, and municipal work. The L20H features articulated steering, a hydrostatic transmission, and a loader linkage system suited to bucket work and attachment use. Its compact size supports maneuverability in confined areas while maintaining lifting and transport capability. Typical applications include loading aggregate, moving soil, snow removal, and general jobsite material handling. The Volvo L20H is classified as a wheel loader in the compact equipment segment.

Axles
Axle Oil Front	1 gal (4 l)
Axle Oil Rear	2 gal (6 l)
Bucket
Breakout Force	7,868 lbs (3,569 kg)
Dimensions
Ground Clearance	1 ft (0 m)
Height To Top Of Cab	8 ft (2 m)
Hinge Pin - Max Height	10 ft (3 m)
Length With Bucket On Ground	17 ft (5 m)
Wheelbase	7 ft (2 m)
Width Over Tires	5 ft (2 m)
Drive Train
Transport Speed, Maximum	19 mph (30 kph)
Electrical System
Alternator Rating	70 (W/A)
Batteries	12 V
Battery Capacity	100 Ah
Starter Motor Output	3 hp (3 kw)
Voltage	12 V V
Engine
Aspiration	Turbocharged
Bore	4 in (9 cm)
Displacement	201 cu in (3,300 cu cm)
Engine Model	Volvo D2.6M
Gross Power	64 hp (48 kw)
Max Torque	Gross - 225 Nm, Net - 221.6 Nm
Net Power	64 hp (47 kw)
Number Of Cylinders	4
Power Measured @	2,400 rpm
Stroke	4 in (11 cm)
Torque Measured @	1,500 rpm
General Specifications
Bucket Capacity (Since 2019)	0.9 (.69)
Bucket Capacity (Since 2020)	1 (.76)
Bucket Capacity (2021)	1 (.76)
Bucket Capacity (Since 2022)	1.05 (.8)
Bucket Capacity (2023)	1.05 (.8)
Bucket Capacity (2024)	1.05 (.8)
Engine Power (Since 2019)	63.4 (47.3)
Engine Power (Since 2020)	63 (47)
Engine Power (Since 2021)	64 (48)
Engine Power (2022)	64 (48)
Engine Power (2023)	64 (48)
Engine Power (2024)	64 (48)
Engine type (Since 2019)	Volvo D2.6M
Engine type (2020)	Volvo D2.6M
Engine type (2021)	Volvo D2.6M
Engine type (2022)	Volvo D2.6M
Engine type (2023)	Volvo D2.6M
Engine type (2024)	Volvo D2.6M
Max Dump Height (Since 2019)	8.2 (2.5)
Max Dump Height (2020)	8.2 (2.5)
Max Dump Height (2021)	8.2 (2.5)
Max Dump Height (Since 2022)	7.9 (2.4)
Max Dump Height (2023)	7.9 (2.4)
Max Dump Height (2024)	7.9 (2.4)
Operating Weight (Since 2019)	9877 (4,480)
Operating Weight (Since 2020)	11,222 (5,090)
Operating Weight (Since 2021)	10,141 (4,600)
Operating Weight (Since 2022)	10,251 (4,650)
Operating Weight (2023)	10,251 (4,650)
Operating Weight (2024)	10,251 (4,650)
Hydraulic Cycle Times (Unloaded)
Dump Time	4 sec
Lift	5 sec
Lower	3 sec
Hydraulic System
Engine Speed	2,400 rpm
Pump Flow Capacity	15 gpm (55 lpm)
Working Pressure	20 MPa, 200 bar
Operational
Cooling System Fluid Capacity	3 gal (9 l)
Engine Oil Fluid Capacity	3 gal (10 l)
Fuel Capacity	16 gal (60 l)
Hydraulic System Fluid Capacity	16 gal (59 l)
Steering System
Articulation Angle	38 degrees
Maximum Flow	8 gpm (30 lpm)
Steering Cylinders	1
Working Pressure	21 MPa, 3046 bar
