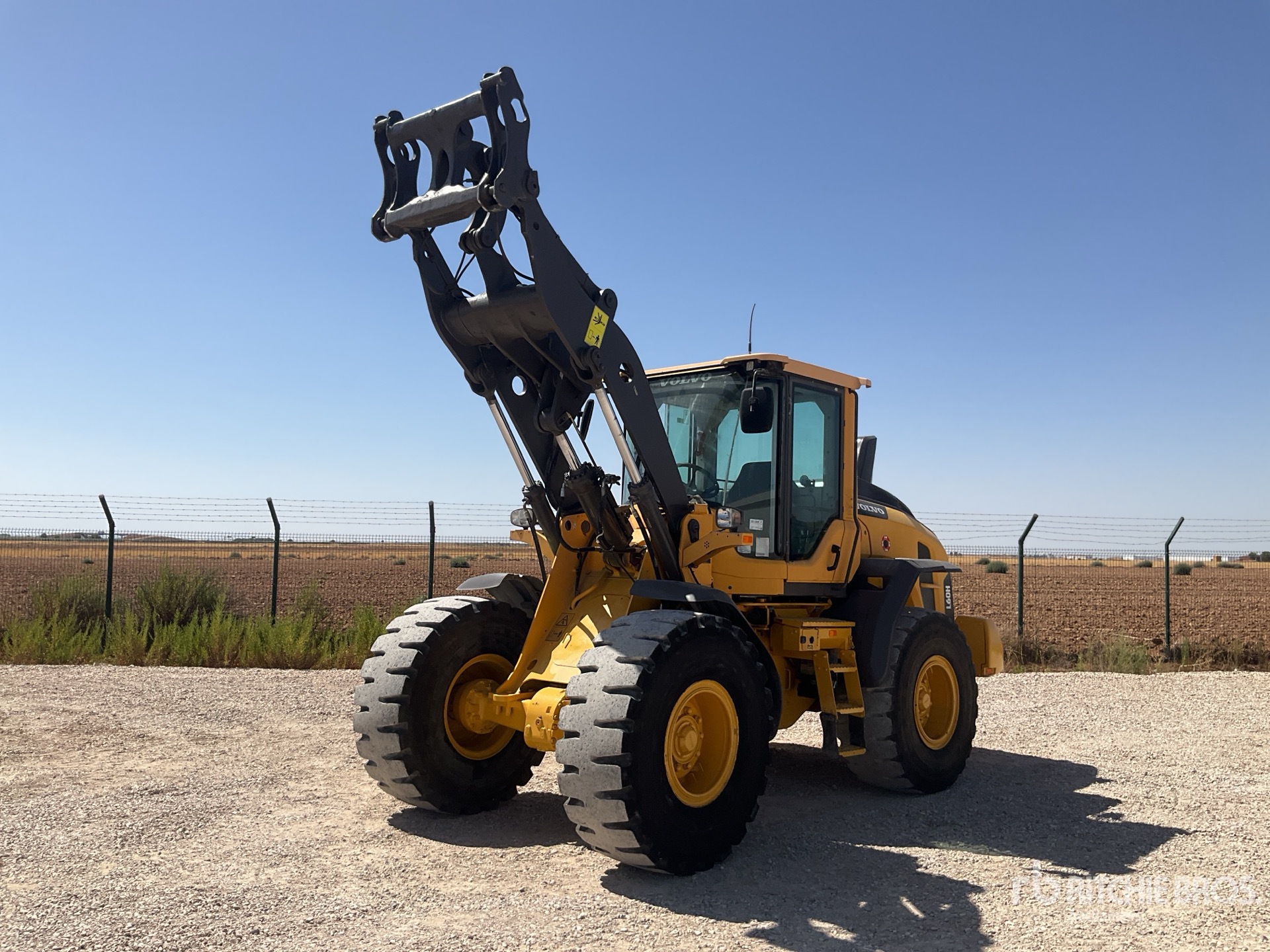

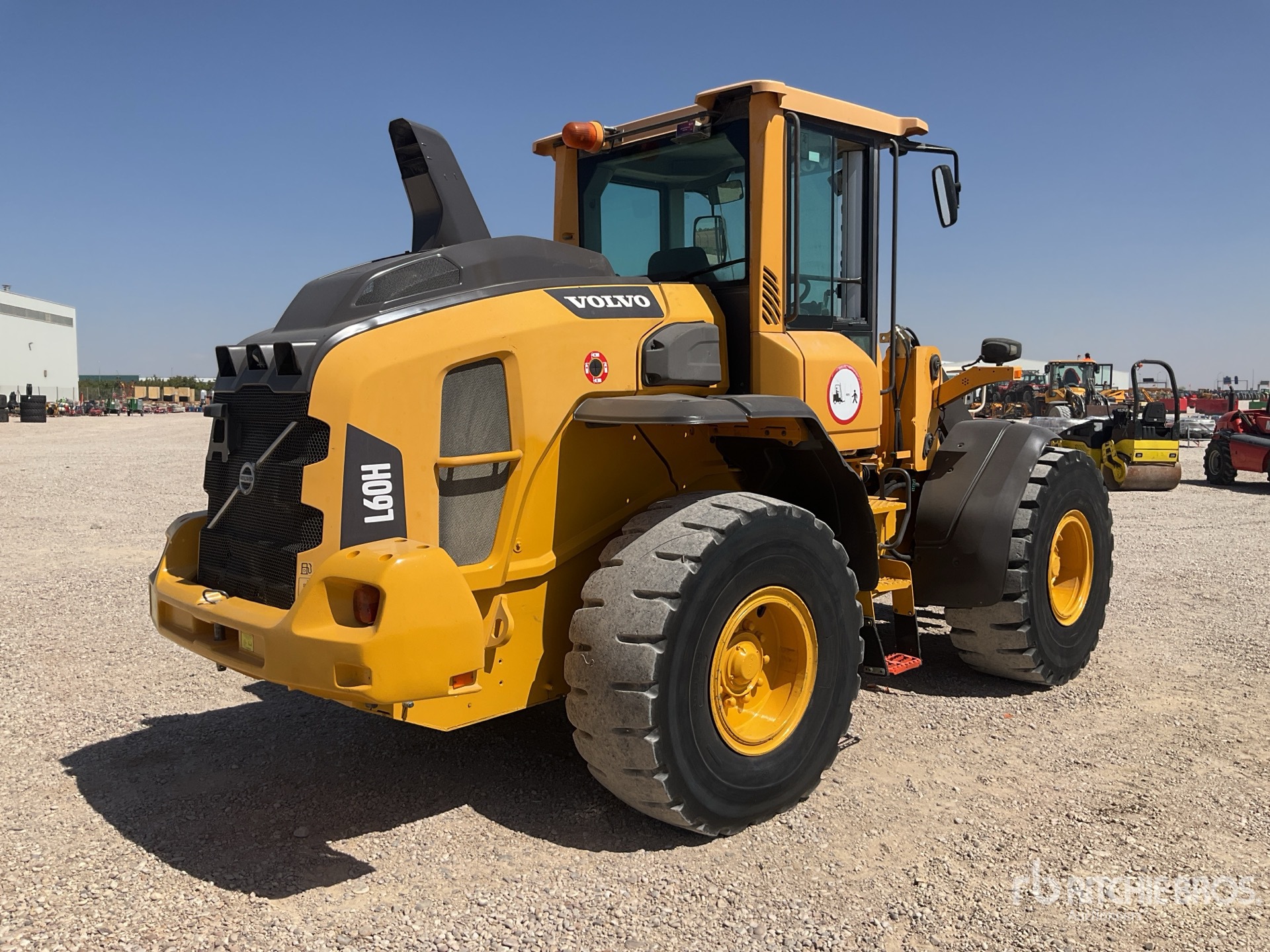

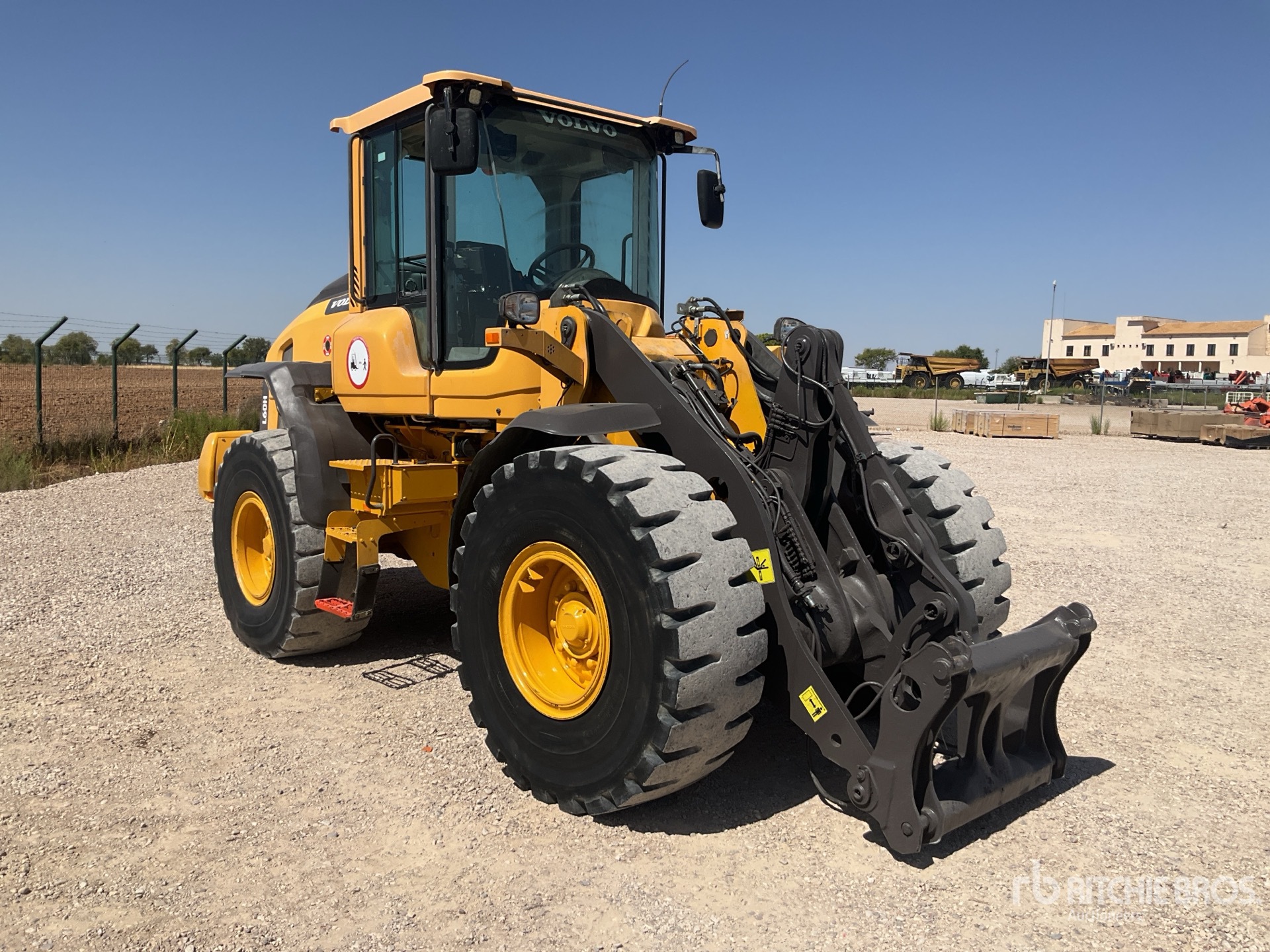

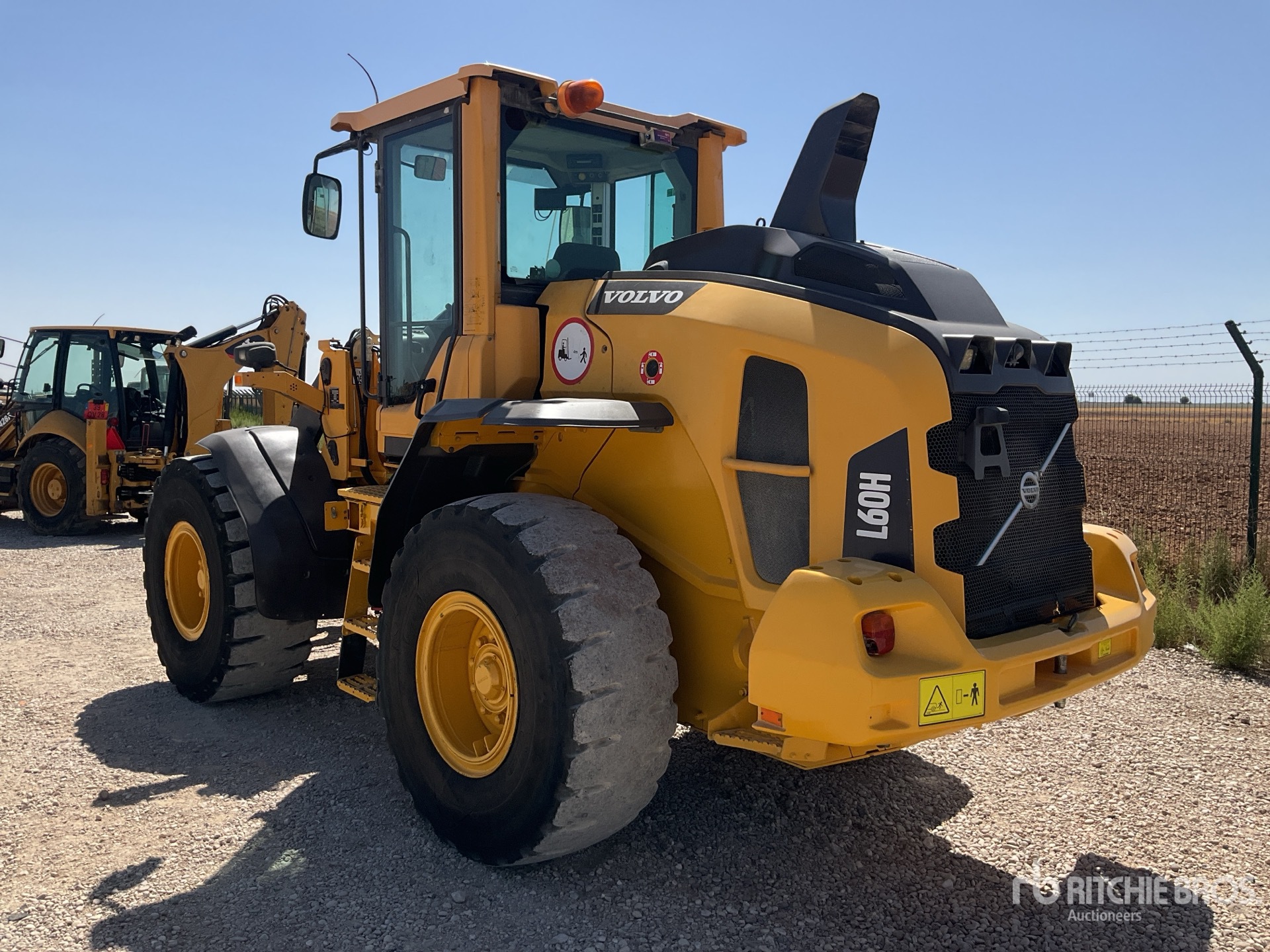

| Axles |
|
Axle Oil Front |
7 gal (25 l)
|
|
Axle Oil Rear |
7 gal (25 l)
|
|
Front |
Volvo AWB 15 |
|
Rear |
Volvo AWB 15 |
|
Rear Axle Oscillation |
13 degrees |

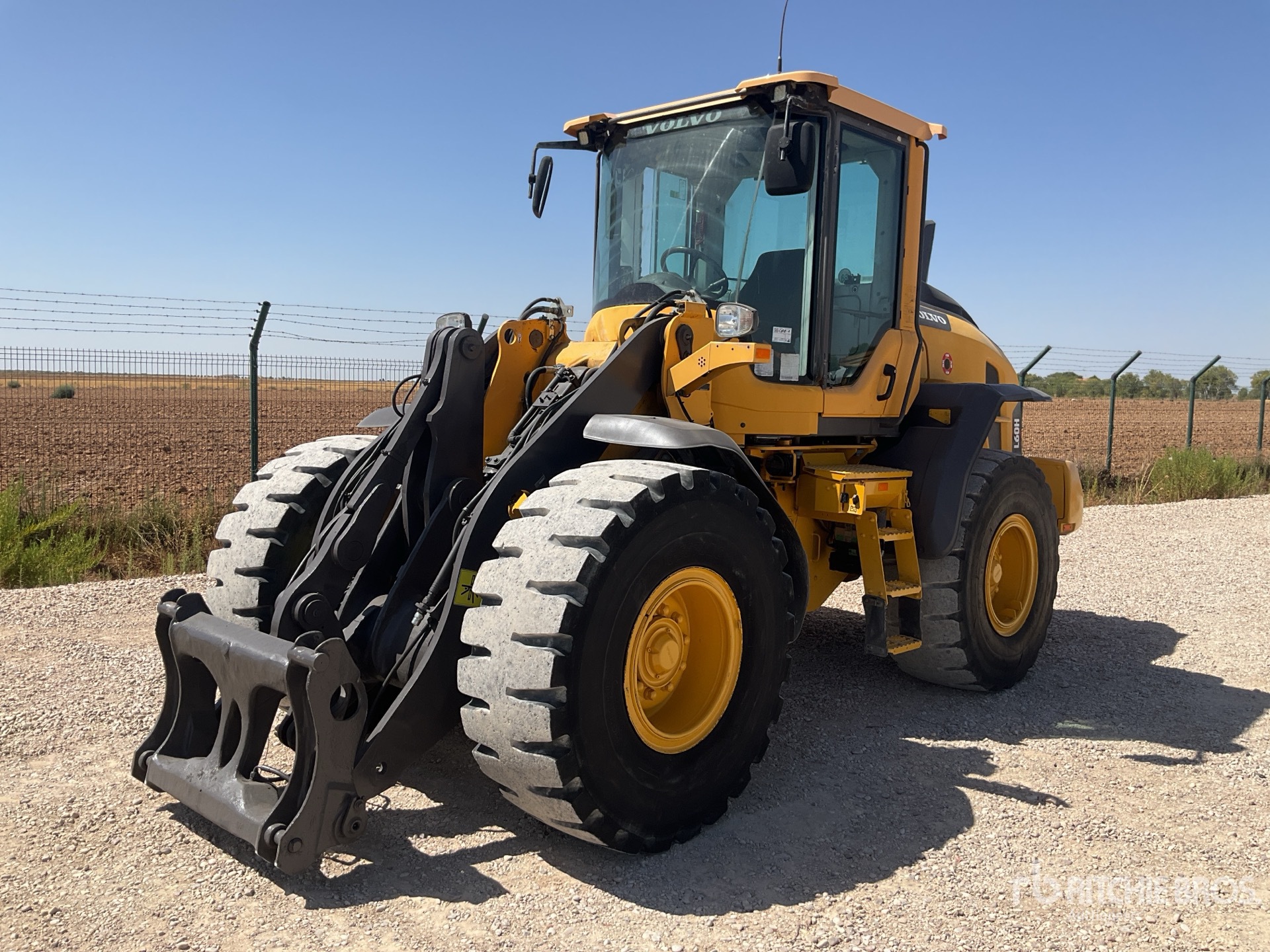

| Bucket |
|
Breakout Force |
18,389 lbs (8,340 kg)
|
| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Hinge Pin - Max Height |
13 ft (4 m)
|
|
Length |
25 ft (7 m)
|
|
Length With Bucket On Ground |
24 ft (7 m)
|
|
Weight |
27,293 lbs (12,380 kg)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width |
8 ft (2 m)
|
|
Width Over Tires |
8 ft (2 m)
|
| Drive Train |
|
Torque Multiplication, Stall Ratio |
2.5:1 |
|
Transmission |
Volvo HTE 125C |
|
Transport Speed, Maximum |
29 mph (46 kph)
|
| Electrical System |
|
Alternator Rating |
3135/80 (W/A) |
|
Batteries |
2 x 12 V |
|
Battery Capacity |
2 x 110 Ah |
|
Cold Cranking Capacity |
1000 A |
|
Starter Motor Output |
7 hp (6 kw)
|
|
Voltage |
24 V V |

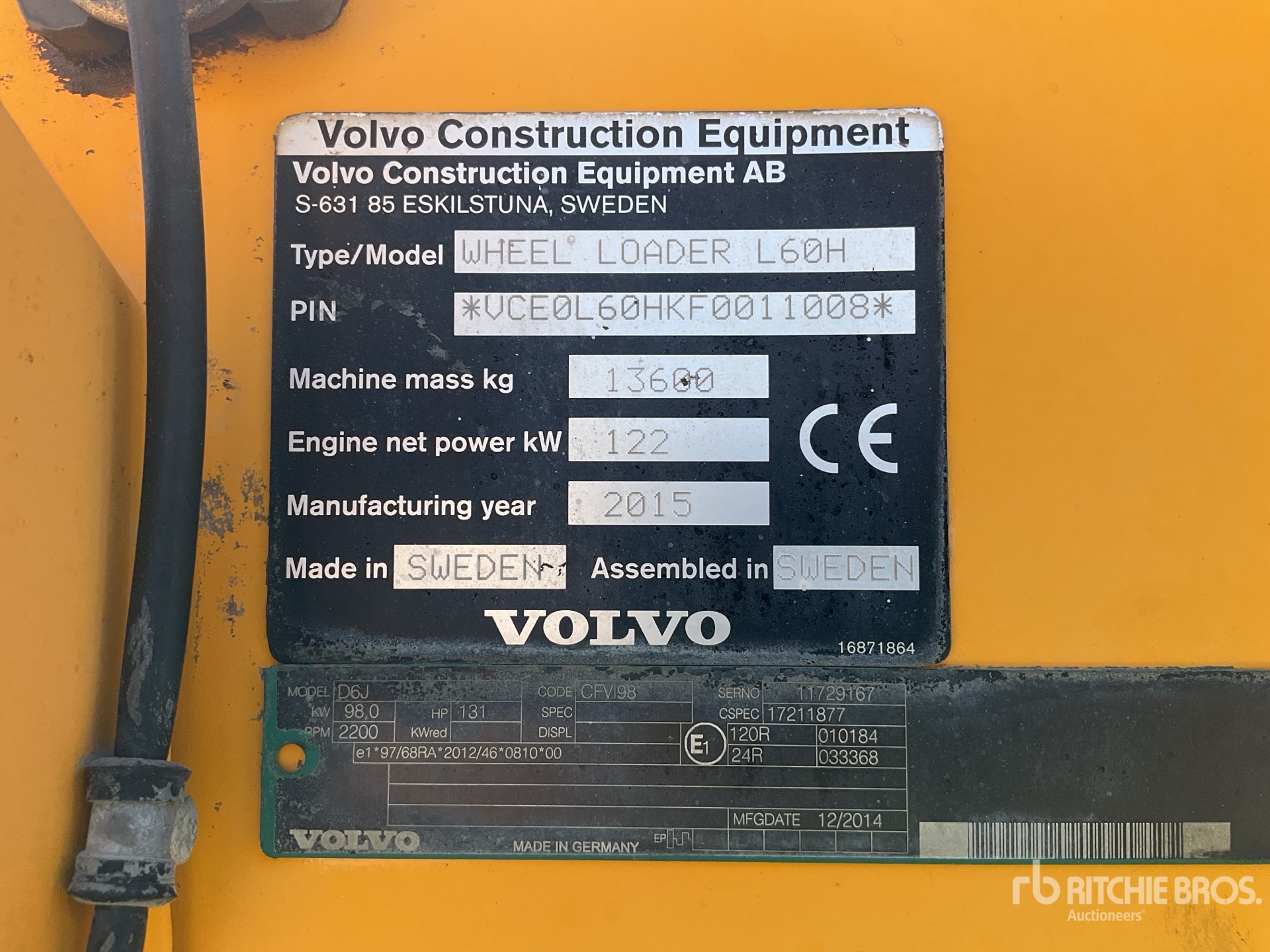

| Engine |
|
Aspiration |
Turbocharged |
|
Displacement |
348 cu in (5,701 cu cm)
|
|
Engine Model |
Volvo D6J |
|
Gross Power |
164 hp (122 kw)
|
|
Max Torque |
Gross - 820 Nm, Net - 820 Nm |
|
Net Power |
164 hp (122 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,800 rpm |
|
Torque Measured @ |
1,400 rpm |
| General Specifications |
|
Bucket Capacity (Since 2016)
|
2.1 - 6.5 (1.6 - 5) |
|
Bucket Capacity (Since 2017)
|
2.5 - 6.5 (1.9 - 4.9) |
|
Bucket Capacity (Since 2019)
|
2.1 - 6.5 (1.6 - 5.0) |
|
Bucket Capacity (Since 2020)
|
4.3 (3.3) |
|
Bucket Capacity (2021)
|
4.3 (3.3) |
|
Bucket Capacity (Since 2022)
|
2.7 (2.1) |
|
Bucket Capacity (2023)
|
2.7 (2.1) |
|
Bucket Capacity (2024)
|
2.7 (2.1) |
|
Engine Power (Since 2016)
|
165 (1231) |
|
Engine Power (2017)
|
165 (1231) |
|
Engine Power (Since 2019)
|
164 (122) |
|
Engine Power (Since 2020)
|
167 (124) |
|
Engine Power (2021)
|
167 (124) |
|
Engine Power (Since 2022)
|
164 (122) |
|
Engine Power (2023)
|
164 (122) |
|
Engine Power (2024)
|
164 (122) |
|
Engine type (Since 2016)
|
D6J |
|
Engine type (2017)
|
D6J |
|
Engine type (Since 2019)
|
Volvo D6J |
|
Engine type (2020)
|
Volvo D6J |
|
Engine type (2021)
|
Volvo D6J |
|
Engine type (2022)
|
Volvo D6J |
|
Engine type (2023)
|
Volvo D6J |
|
Engine type (2024)
|
Volvo D6J |
|
Max Dump Height (Since 2016)
|
9.3 (2.8) |
|
Max Dump Height (Since 2017)
|
9.2 (2.8) |
|
Max Dump Height (Since 2019)
|
9.4 (2.8) |
|
Max Dump Height (Since 2020)
|
9.3 (2.8) |
|
Max Dump Height (2021)
|
9.3 (2.8) |
|
Max Dump Height (2022)
|
9.3 (2.8) |
|
Max Dump Height (2023)
|
9.3 (2.8) |
|
Max Dump Height (2024)
|
9.3 (2.8) |
|
Operating Weight (Since 2016)
|
25,900 (11,748) |
|
Operating Weight (Since 2017)
|
26,800 (12,156) |
|
Operating Weight (Since 2019)
|
24,251 - 29,983 (11,000 - 13,600) |
|
Operating Weight (Since 2020)
|
29,983 (13,600) |
|
Operating Weight (2021)
|
29,983 (13,600) |
|
Operating Weight (2022)
|
29,983 (13,600) |
|
Operating Weight (2023)
|
29,983 (13,600) |
|
Operating Weight (2024)
|
29,983 (13,600) |
| Hydraulic Cycle Times (Unloaded) |
|
Lift |
5 sec |
|
Lower |
3 sec |
|
Tilt |
2 sec |
|
Total Cycle Time |
10 sec |
| Hydraulic System |
|
Engine Speed |
1,900 rpm |
|
Working Pressure |
Pump 2 - 26 MPa, Pump 3 - 21 MPa |
| Operational |
|
Cooling System Fluid Capacity |
8 gal (30 l)
|
|
Def Tank Capacity |
5 gal (20 l)
|
|
Engine Oil Fluid Capacity |
5 gal (20 l)
|
|
Fuel Capacity |
59 gal (222 l)
|
|
Hydraulic System Fluid Capacity |
24 gal (90 l)
|
|
Transmission Fluid Capacity |
6 gal (22 l)
|
| Steering System |
|
Articulation Angle |
40 degrees |
|
Cylinder Bore |
3 in (7 cm)
|
|
Maximum Flow |
16 gpm (60 lpm)
|
|
Rod Diameter |
2 in (5 cm)
|
|
Steering Cylinders |
2 |
|
Stroke |
1 ft (0 m)
|
|
Working Pressure |
21 MPa, 210 bar |
