Volvo L90E For Sale in PHOENIX, AZ

0 Volvo L90E
0 Volvo L90E
0 Volvo L90E
0 Volvo L90E
0 Volvo L90E
0 Volvo L90E
0 Volvo L90E
0 Volvo L90E 0 Volvo L90E 0 Volvo L90E 0 Volvo L90E 0 Volvo L90E 0 Volvo L90E 0 Volvo L90E

/ Save to Watch List

For Sale: $45,000.00 USD

Apply for Financing

RDO Equipment Company

RDO Equipment Company Dealer Info
RDO Equipment Company Website
Click here to email RDO Equipment Company.

Request an equipment inspection

Get shipping quotes


Contact: Sales Team

Click for Phone Number


Machine Info:

Serial Number:L90EV66950
Stock Number:Z287356
Machine Location:PHOENIX, AZ

Description:

4-WHEEL DRIVE LOADER -, BUCKET

Machine Details:

General Specifications
Operators StationCab w/ AC


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Volvo L90E is a wheel loader designed for material handling, loading, stockpiling, and general construction applications. It is part of Volvo Construction Equipment's L90 series and is commonly used in aggregate yards, roadwork, agriculture, waste handling, and industrial sites. The L90E features articulated steering, a front-mounted loader arm, and a bucket or attachment interface for moving loose materials such as soil, gravel, sand, and debris. It is built for productivity, operator visibility, and maneuverability in confined work areas. The model is recognized for its balance of lifting capacity, cycle efficiency, and versatility across a range of loading tasks.

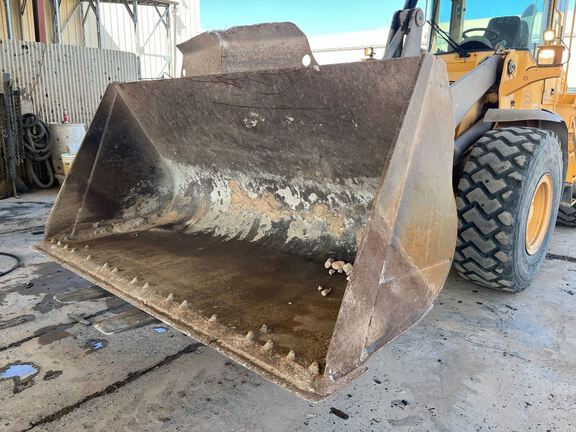

Bucket
Breakout Force 28,169 lbs (12,777 kg)
Bucket Capacity - Heaped 3 cu yd
Bucket Width 9 ft (3 m)
Dump Clearance At Max Raise 9 ft (3 m)
Dimensions
Ground Clearance 1 ft (0 m)
Height 11 ft (3 m)
Height To Top Of Cab 11 ft (3 m)
Hinge Pin - Max Height 13 ft (4 m)
Length 25 ft (8 m)
Length With Bucket On Ground 25 ft (8 m)
Reach At Max Lift And Dump 4 ft (1 m)
Weight 33,290 lbs (15,098 kg)
Wheelbase 10 ft (3 m)
Width 8 ft (2 m)
Width Over Tires 8 ft (2 m)
Engine
Aspiration turbocharged
Displacement 348 cu in (5,701 cu cm)
Engine Make 2,244
Engine Model D6D LA E2
Gross Power 166 hp (124 kw)
Max Torque 545 lbs ft (739 nm)
Net Power 165 hp (123 kw)
Number Of Cylinders 6
Power Measured @ 1,900 rpm
Torque Measured @ 1,400 rpm
Hydraulic System
Dump Time 2 sec
Lower Time 3 sec
Pump Flow Capacity 46 gpm (175 lpm)
Raise Time 5 sec
Relief Valve Setting 3,771 psi
Operational
Alternator Supplied Amperage 55 amps
Cooling System Fluid Capacity 10 gal (36 l)
Engine Oil Fluid Capacity 5 gal (20 l)
Front Axle/Diff Fluid Capacity 8 gal (30 l)
Fuel Capacity 54 gal (205 l)
Hydraulic System Fluid Capacity 30 gal (115 l)
Operating Voltage 24 V
Operating Weight 33,290 lbs (15,100 kg)
Rear Axle Oscillation 26 degrees
Rear Axle/Diff Fluid Capacity 7 gal (25 l)
Static Tipping Weight 25,265 lbs (11,460 kg)
Tire Size 20.5R25 L2
Transmission Fluid Capacity 11 gal (40 l)
Turning Radius 20 ft (6 m)
Transmission
Max Speed - Forward 23 mph (37 kph)
Max Speed - Reverse 23 mph (37 kph)
Number Of Forward Gears 4
Number Of Reverse Gears 4
Transmission Type Volvo HTE202
