Auction Pricing
Auction Info: Starting on 2026-10-29

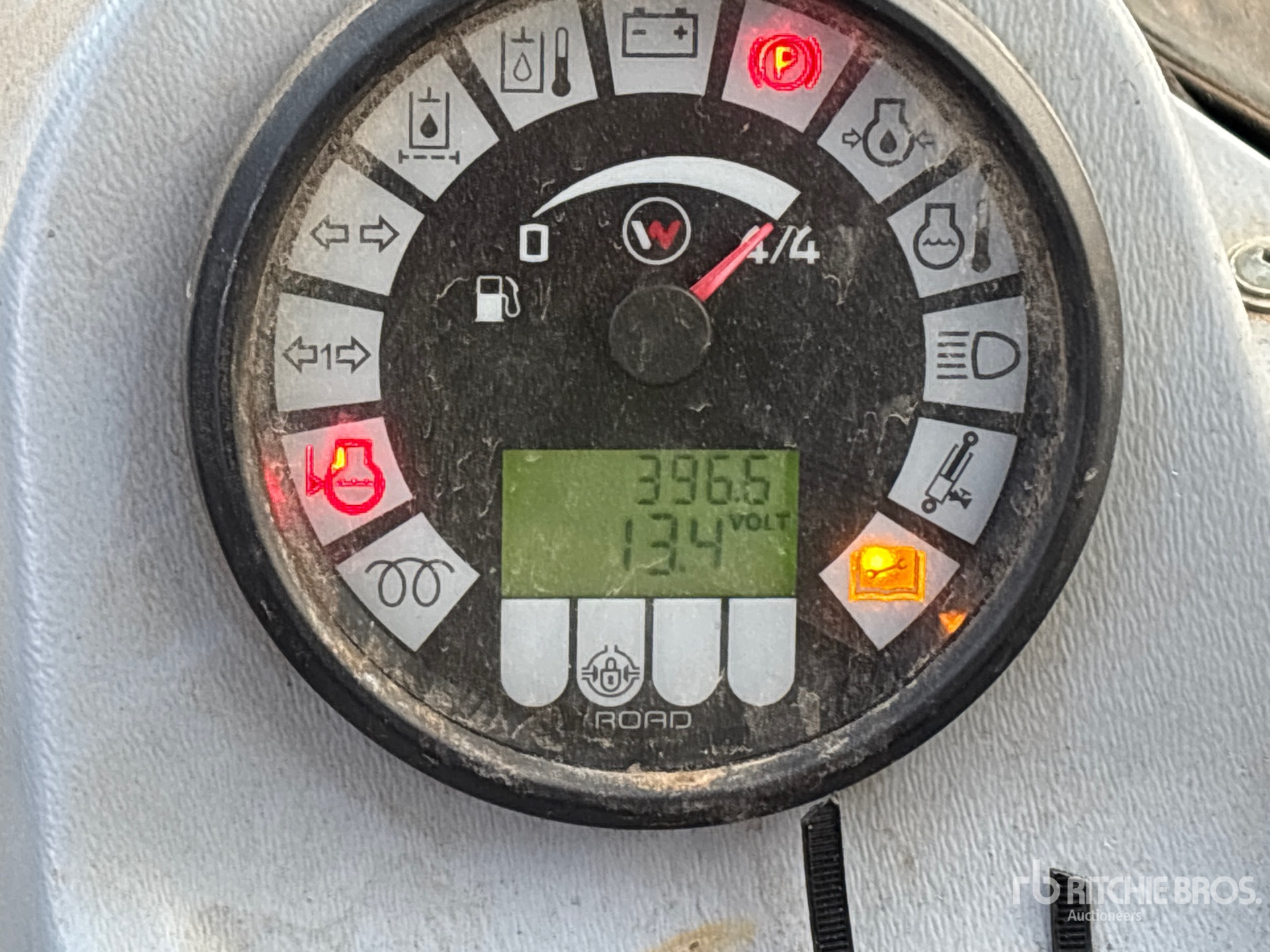

| Hours: | 318 |

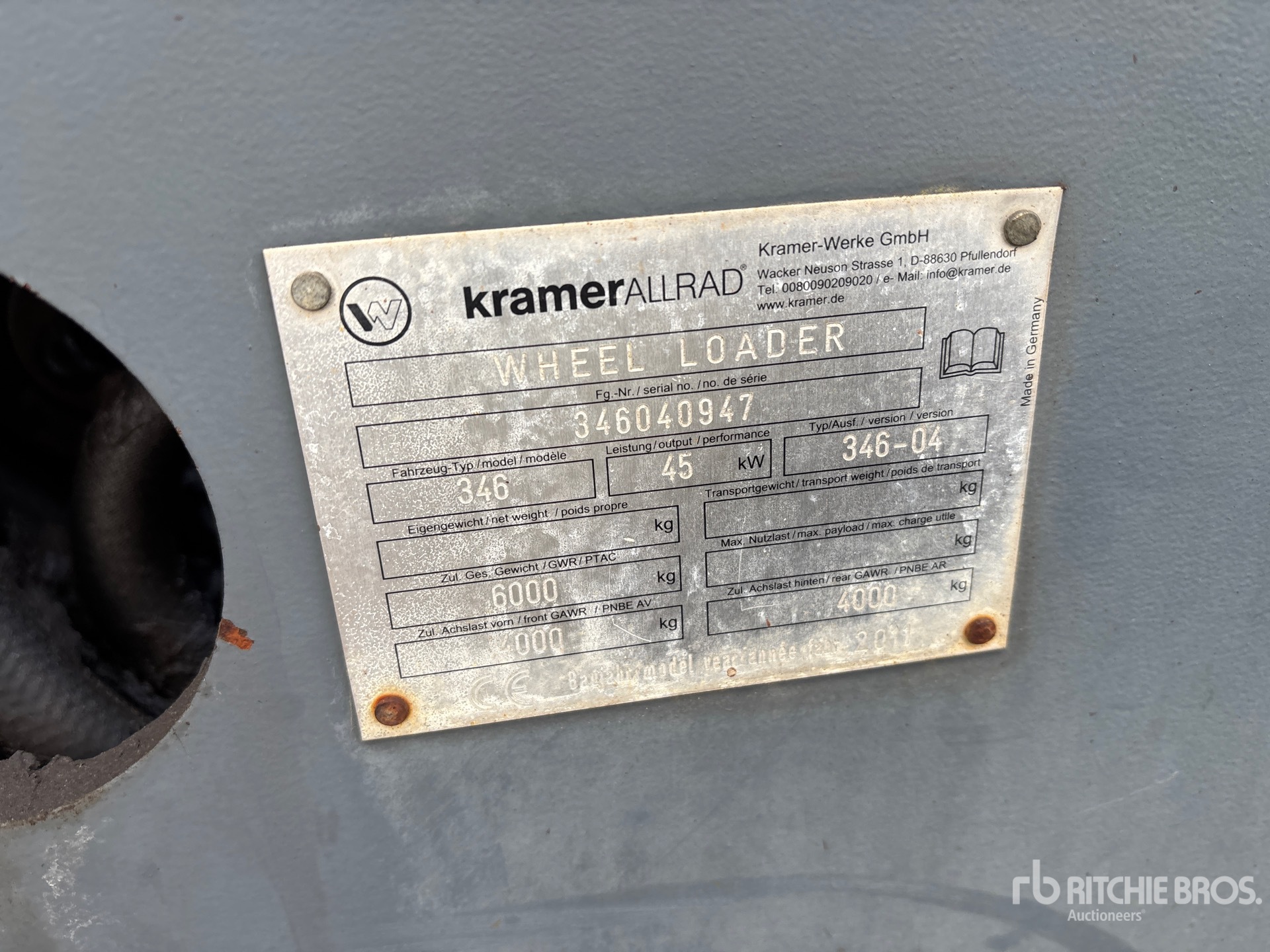

| Serial Number: | 346040947 |
| Machine Location: | CHEHALIS, WA |
Supplied by HeavyEquipmentData.com →
| Bucket | |
| Breakout Force | 7,868 lbs (3,569 kg) |
| Bucket Capacity - Heaped | 1 cu yd |
| Dump Clearance At Max Raise | 8 ft (3 m) |
| Dimensions | |
| Height | 8 ft (3 m) |
| Height To Top Of Cab | 8 ft (3 m) |
| Hinge Pin - Max Height | 11 ft (3 m) |
| Length | 17 ft (5 m) |
| Length With Bucket On Ground | 17 ft (5 m) |
| Weight | 9,920 lbs (4,500 kg) |
| Wheelbase | 6 ft (2 m) |
| Width | 6 ft (2 m) |
| Width Over Tires | 6 ft (2 m) |
| Engine | |
| Displacement | 221 cu in (3,618 cu cm) |
| Engine Make | Deutz |
| Gross Power | 60 hp (45 kw) |
| Number Of Cylinders | 4 |
| Hydraulic System | |
| Dump Time | 2 sec |
| Lower Time | 4 sec |
| Pump Flow Capacity | 20 gpm (74 lpm) |
| Pump Type | Gear pump |
| Raise Time | 6 sec |
| Relief Valve Setting | 3,046 psi |
| Operational | |
| Alternator Supplied Amperage | 95 amps |
| Fuel Capacity | 16 gal (59 l) |
| Hydraulic System Fluid Capacity | 13 gal (50 l) |
| Operating Voltage | 12 V |
| Operating Weight | 9,921 lbs (4,500 kg) |
| Rear Axle Oscillation | 22 degrees |
| Static Tipping Weight | 7,055 lbs (3,200 kg) |
| Tire Size | 12.5 - 20 |
| Turning Radius | 11 ft (3 m) |
| Transmission | |
| Max Speed - Forward | 12 mph (20 kph) |
| Transmission Type | Continuously variable hydrostatic axial-piston gearbox |
