2009 Case 580 SUPER M SERIES 3 4X4 For Sale in Birmingham, AL

Name: 2009 Case 580 SUPER M SERIES 3 4X4
Brand: Case
SKU: 88594554
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-06-17

JJ Kane Auctions

JJ Kane Auctions Dealer Info

JJ Kane Auctions Website

Click here to email JJ Kane Auctions.

Click for Phone Number

Machine Info:

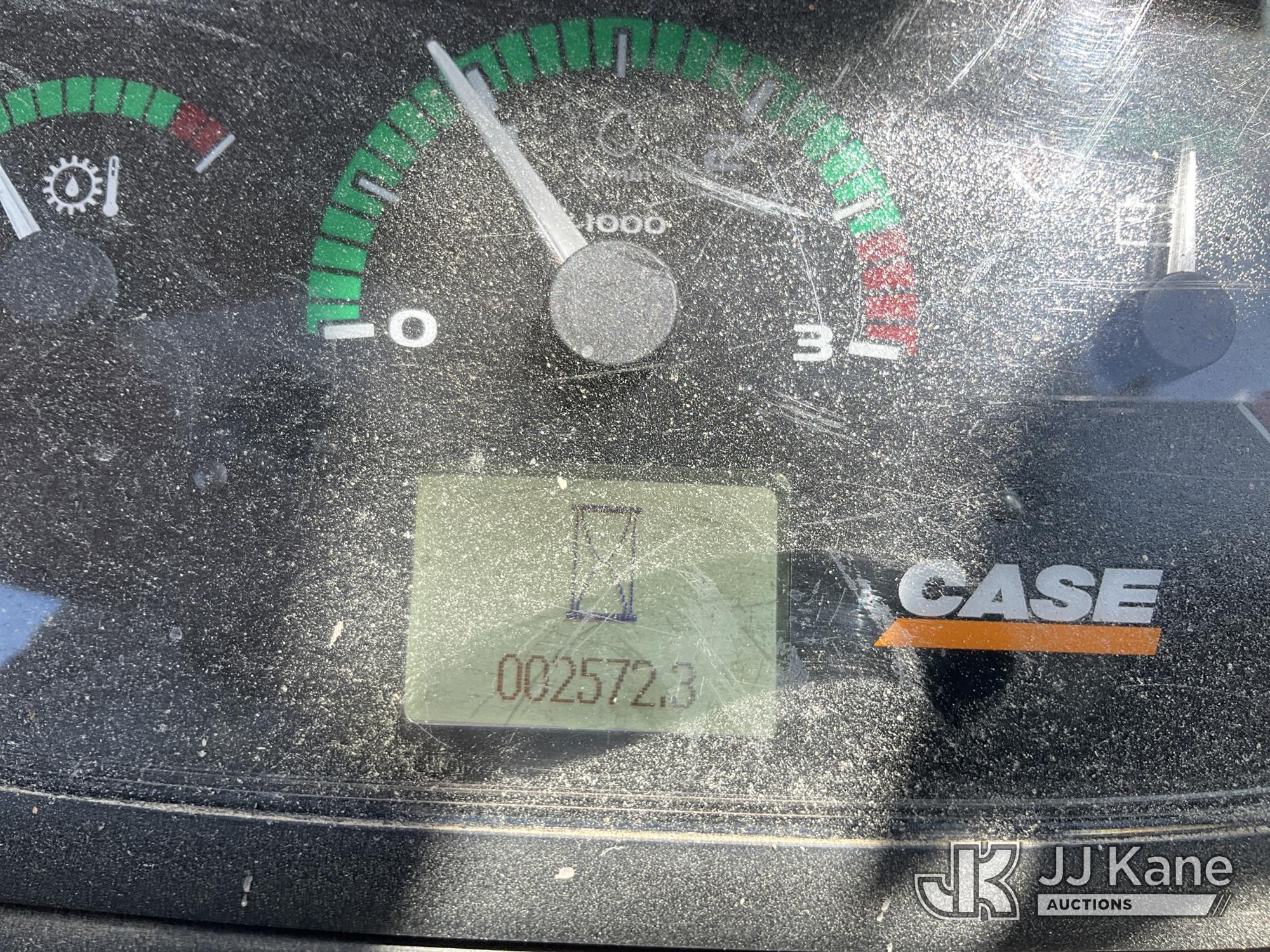

Hours:	2572

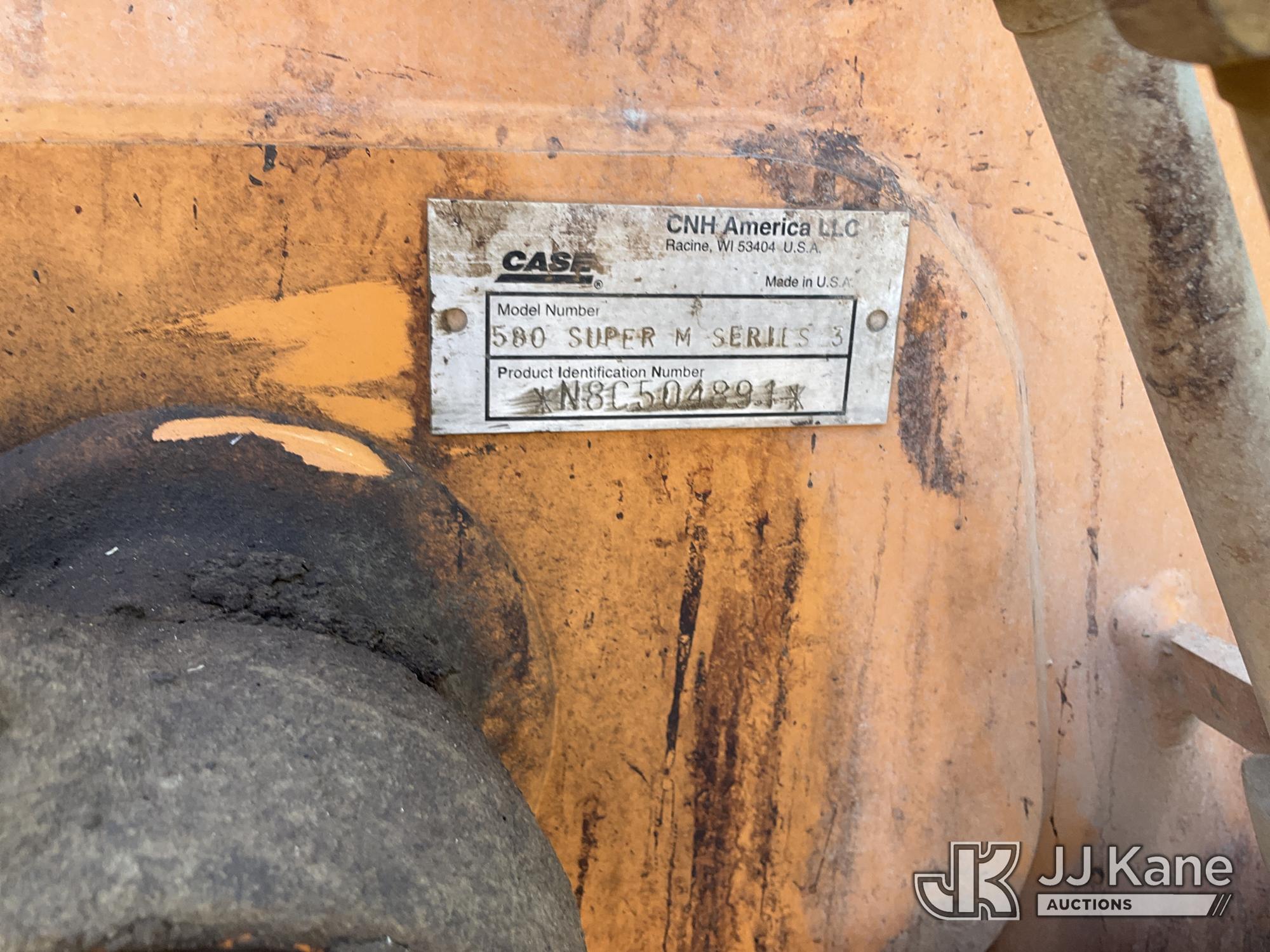

Serial Number:	N8C504891
Machine Location:	BIRMINGHAM, AL

Description:

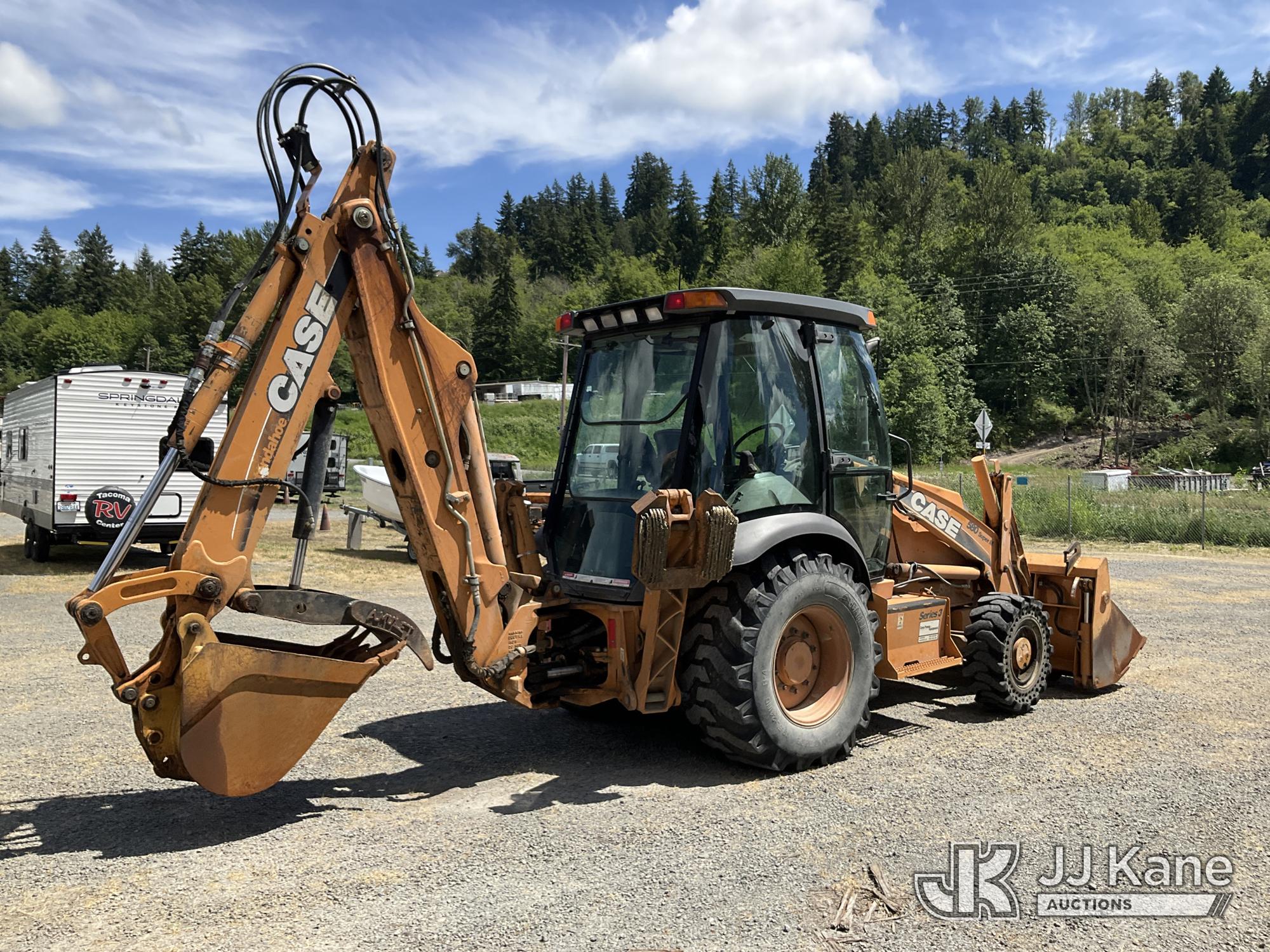

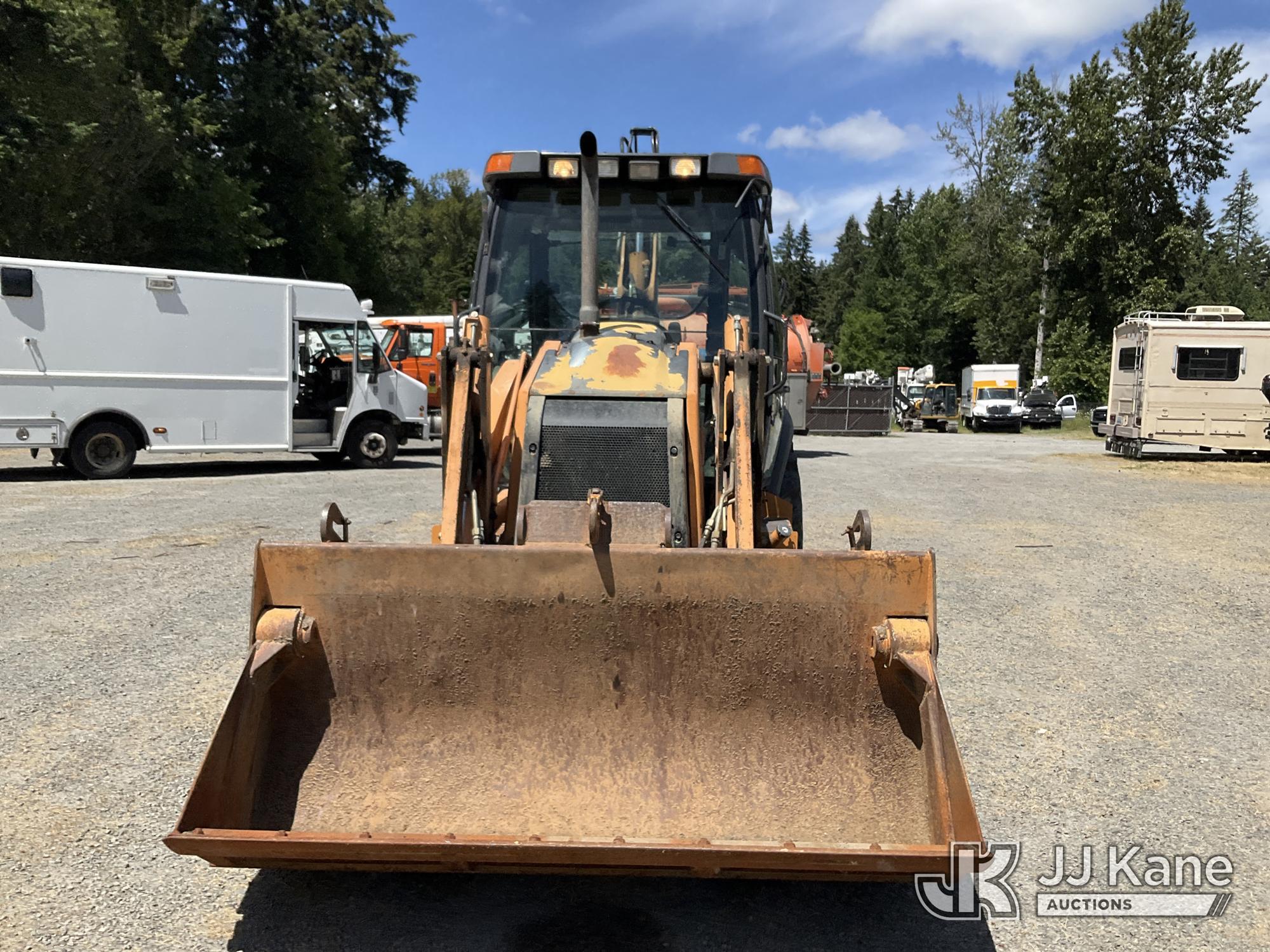

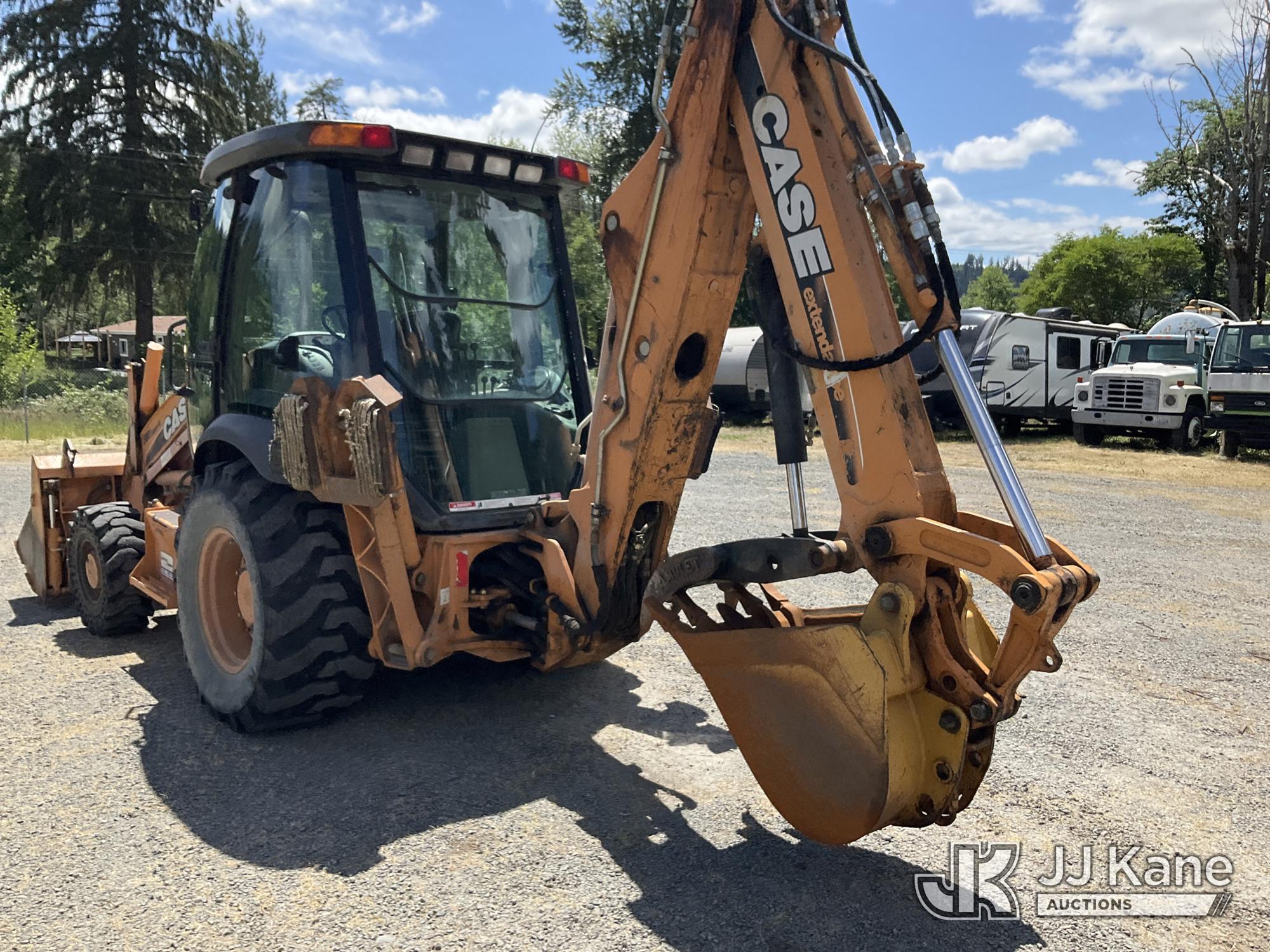

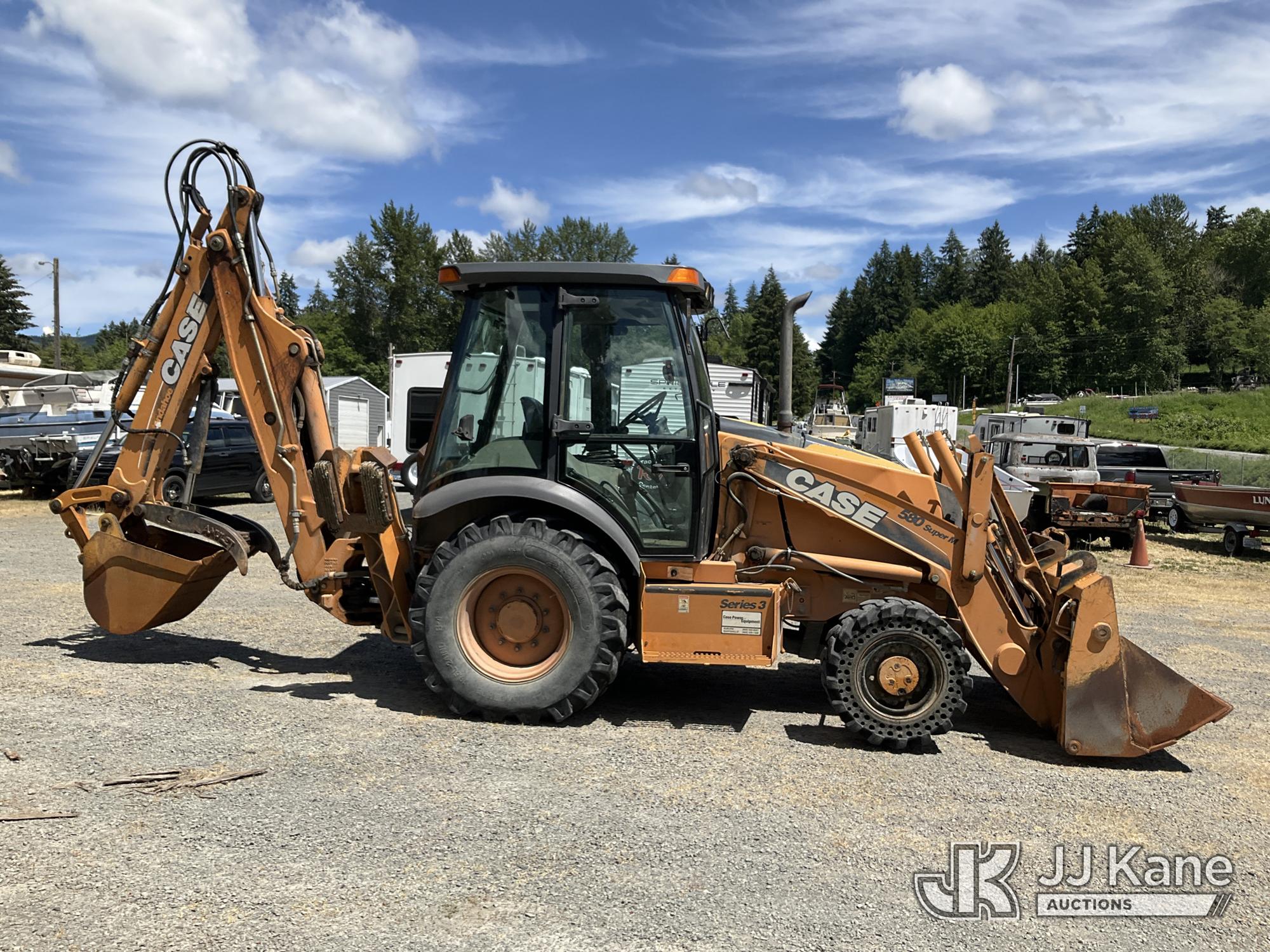

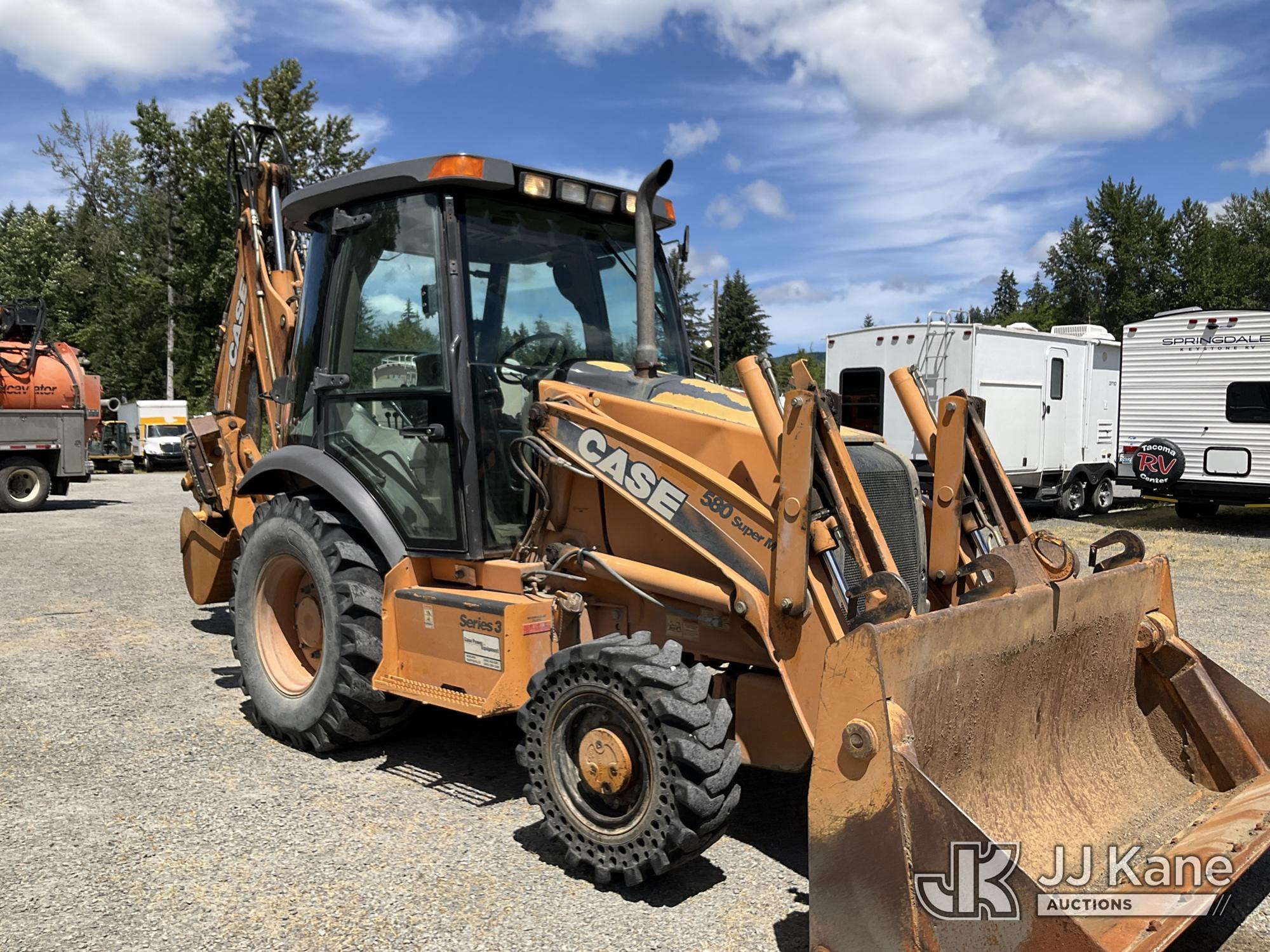

2009 Case 580 Super M Series 3 4x4 Tractor Loader Backhoe, s/n N8C504891, Diesel, Shuttle, with 4-in-1 loader bucket, extendahoe, hydraulic thumb, EROPS w/ AC, (Runs, Moves & Operates) (Reads 2,572 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Eatonville, WA. Inspection & preview days for this unit are by appointment only; please contact us at [email protected] or 84-Go-JJKane for more details. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Backhoe
Bucket Dig Force	12,821 lbs (5,816 kg)
Bucket Dig Force - Extended	12,821 lbs (5,816 kg)
Dig Depth	15 ft (4 m)
Dig Depth - Extended	18 ft (6 m)
Load Height - Extended	13 ft (4 m)
Loading Height	11 ft (3 m)
Max Digging Depth	15 ft (4 m)
Reach at Load Height - Extended	12 ft (4 m)
Reach From Swivel	18 ft (6 m)
Reach From Swivel - Extended	22 ft (7 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height to Top of Suspended Cab	9 ft (3 m)
Transport Length	23 ft (7 m)
Transport Width	7 ft (2 m)
Wheelbase	7 ft (2 m)
Engine
Aspiration	turbocharged
Displacement	272 cu in (4,457 cu cm)
Engine Model	Family IV 445TA/E3 Tier III certified
Gross Power	97 hp (72 kw)
Net Max Torque	329 lbs ft (446 nm)
Net Torque Rise	0
Number of Cylinders	4
Power Measured @	2,200 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Pump Flow Capacity	38 gpm (144 lpm)
Pump Type	gear-type transmission driven
Relief Valve Pressure	3,050 psi
Loader
Breakout Force	9,480 lbs (4,300 kg)
Bucket Capacity	1 cu yd (1 cu m)
Bucket Width	82 in (208 cm)
Clearance at Max Dump Height	9 ft (3 m)
Dig Depth	6 in (15 cm)
Reach at Max Dump Height	3 ft (1 m)
SAE - Net	91 hp (68 kw)
Operating Specifications
Alternator Supplied Amperage	90 amps
Cooling System Fluid Capacity	5 gal (18 l)
Front Axle Fluid Capacity	2 gal (6 l)
Fuel Capacity	31 gal (119 l)
Hydraulic System Fluid Capacity	30 gal (112 l)
Max Weight	17,545 lbs (7,958 kg)
Oil System Fluid Capacity	4 gal (14 l)
Operating Voltage	12 volts
Operating Weight	14,285 lbs (6,480 kg)
Operating Weight 2wd	14,285 lbs (6,480 kg)
Rear Axle Fluid Capacity	4 gal (14 l)
Tire Size Front - 2wd / 4wd	11Lx16.1/12x16.5
Transmission Fluid Capacity	5 gal (20 l)
Turning Radius	11 ft (3 m)
Tires
Rear Tires Size	17.5Lx24/19.5Lx24
Transmission
Max Speed	26 mph (42 kph)
Max Speed - Reverse	32 mph (51 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Transmission Type	4-speed synchromesh with hydraulically actuated clutches
Travel Speed
4th Gear Fwd	26 mph (42 kph)
