Equipment ↠ Case ↠ Compact Track Loaders ↠ 2014 Case TR320

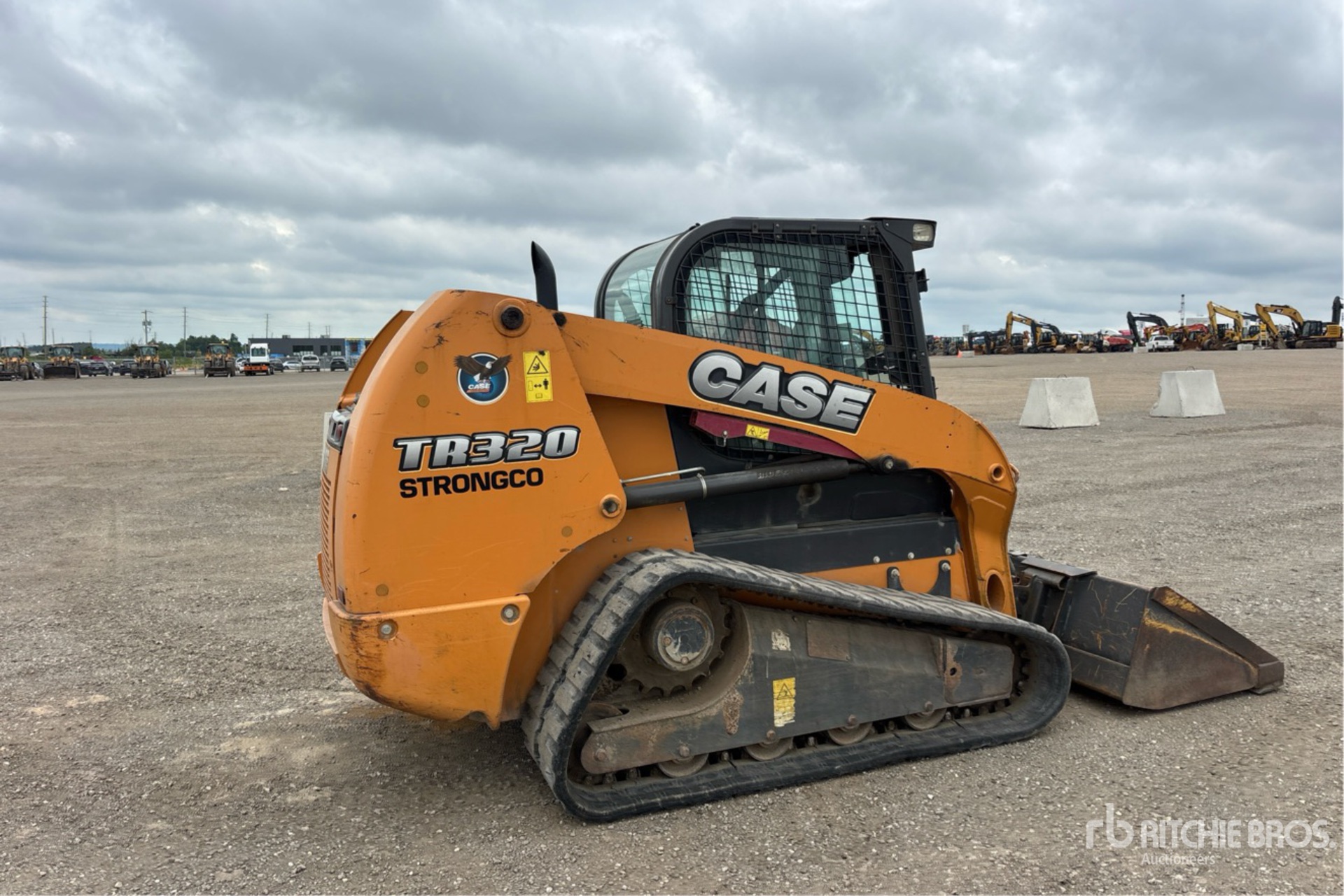

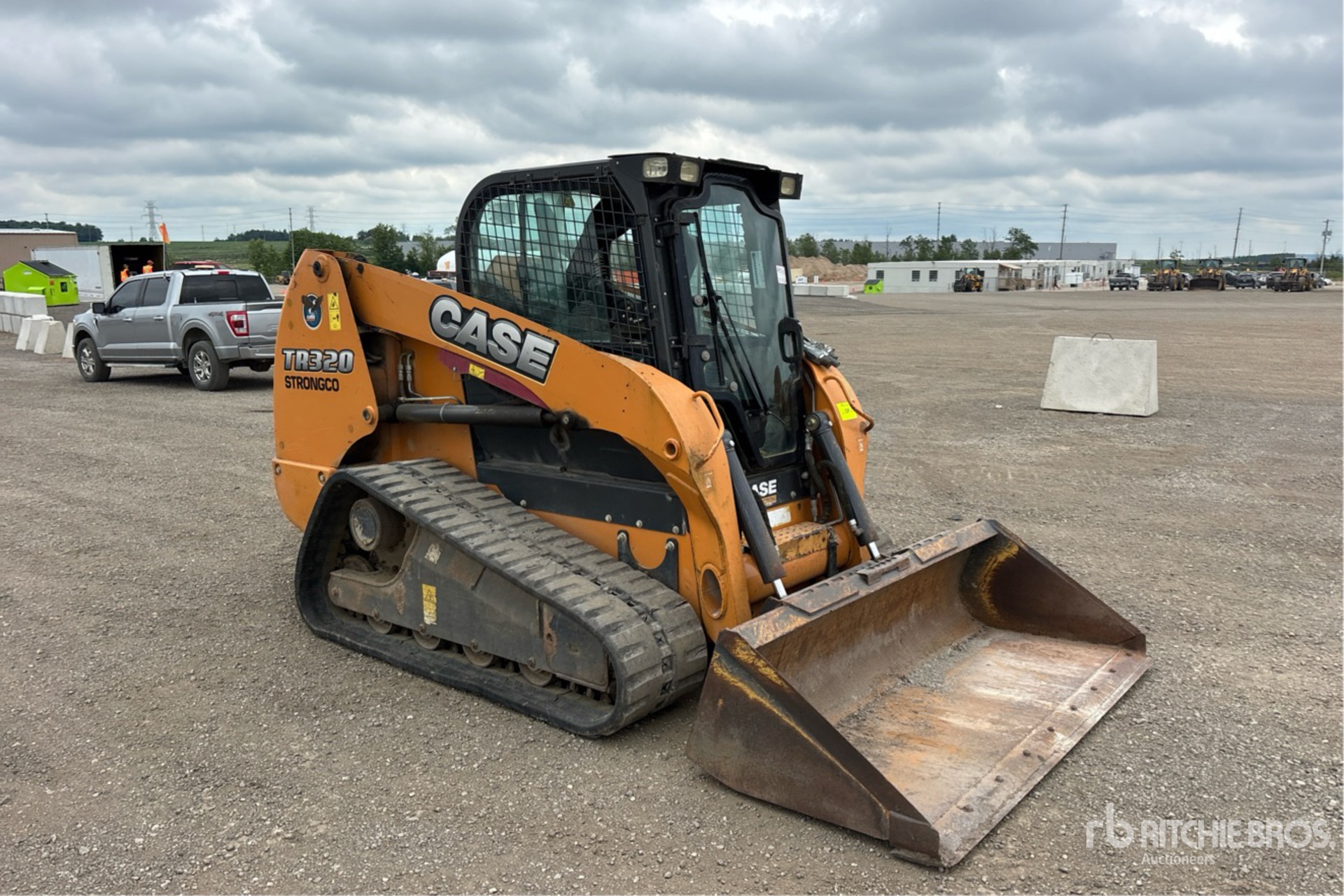

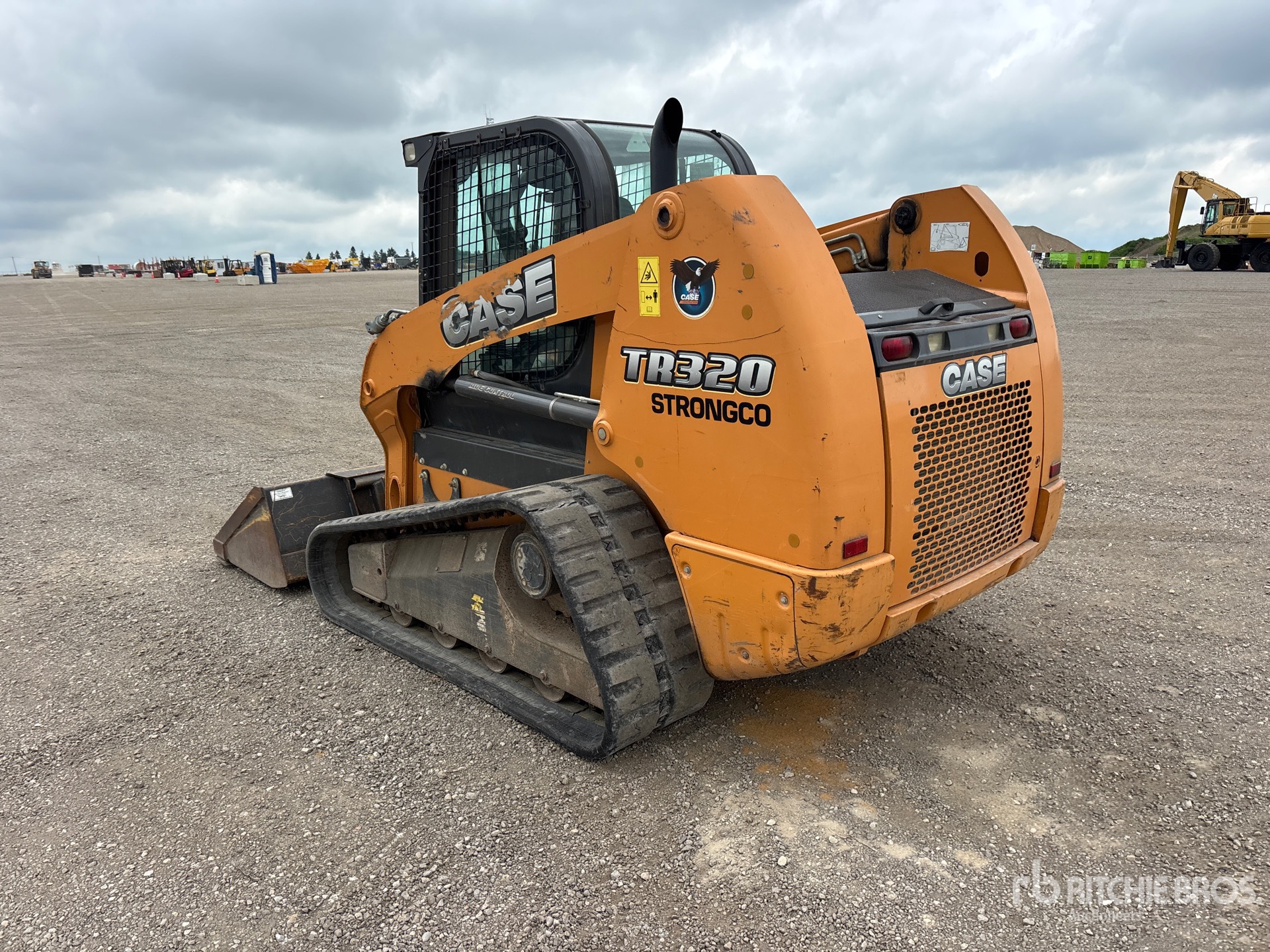

2014 Case TR320 For Sale in Toronto, On

Name: 2014 Case TR320
Brand: Case
SKU: 88698119
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-07-15 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

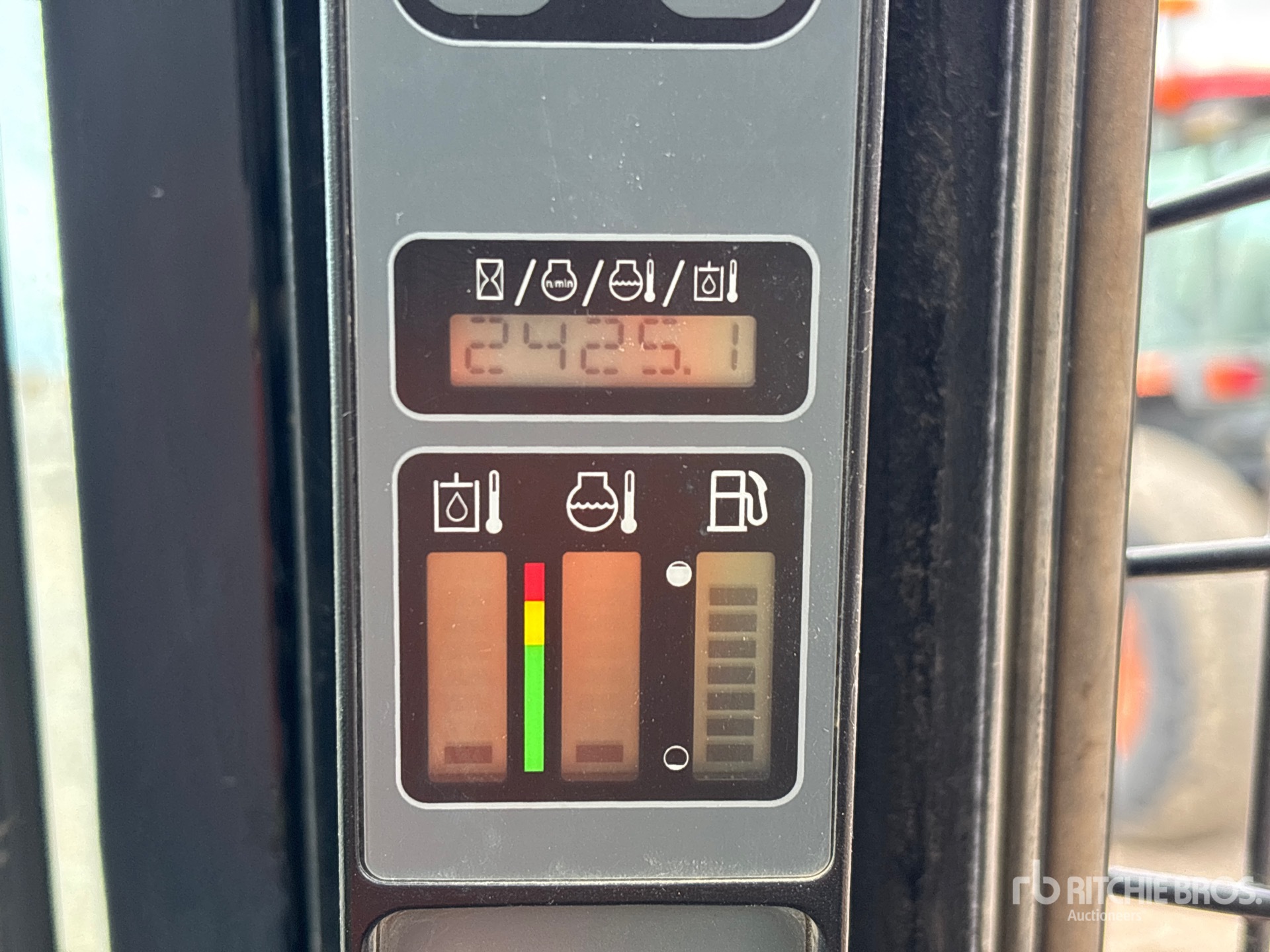

Hours:	2425

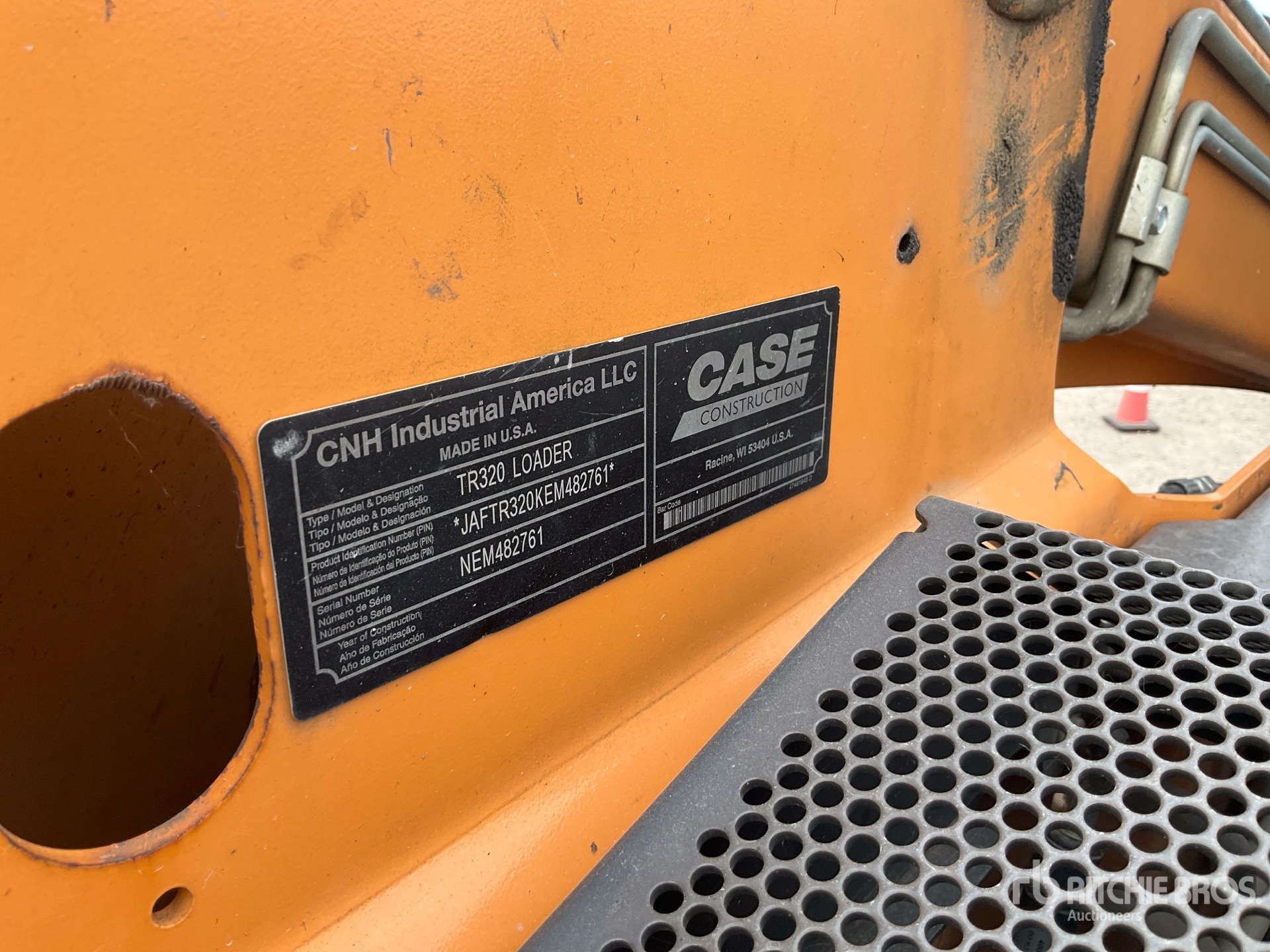

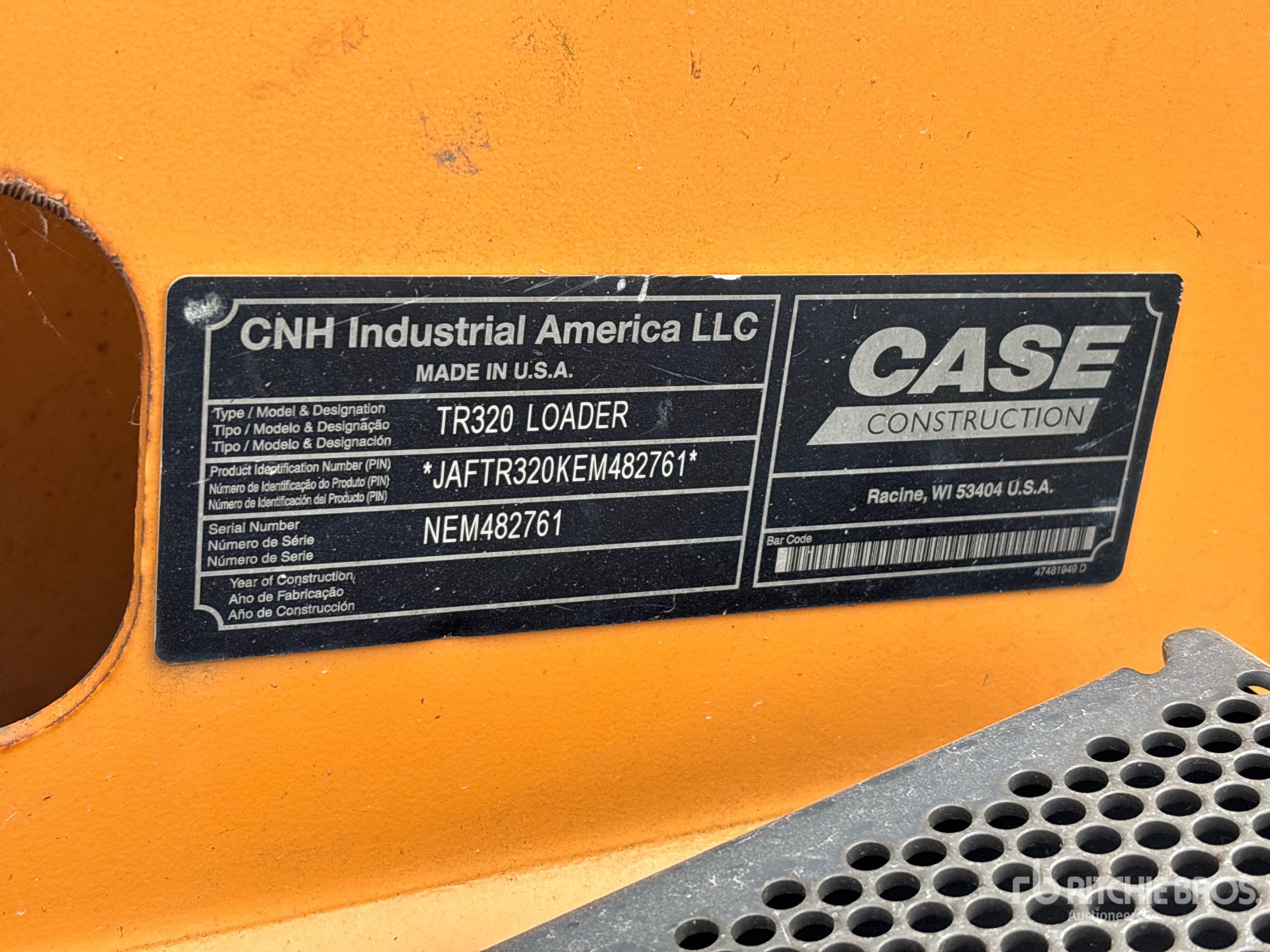

Serial Number:	JAFTR320KEM482761
Machine Location:	TORONTO, ON

Description:

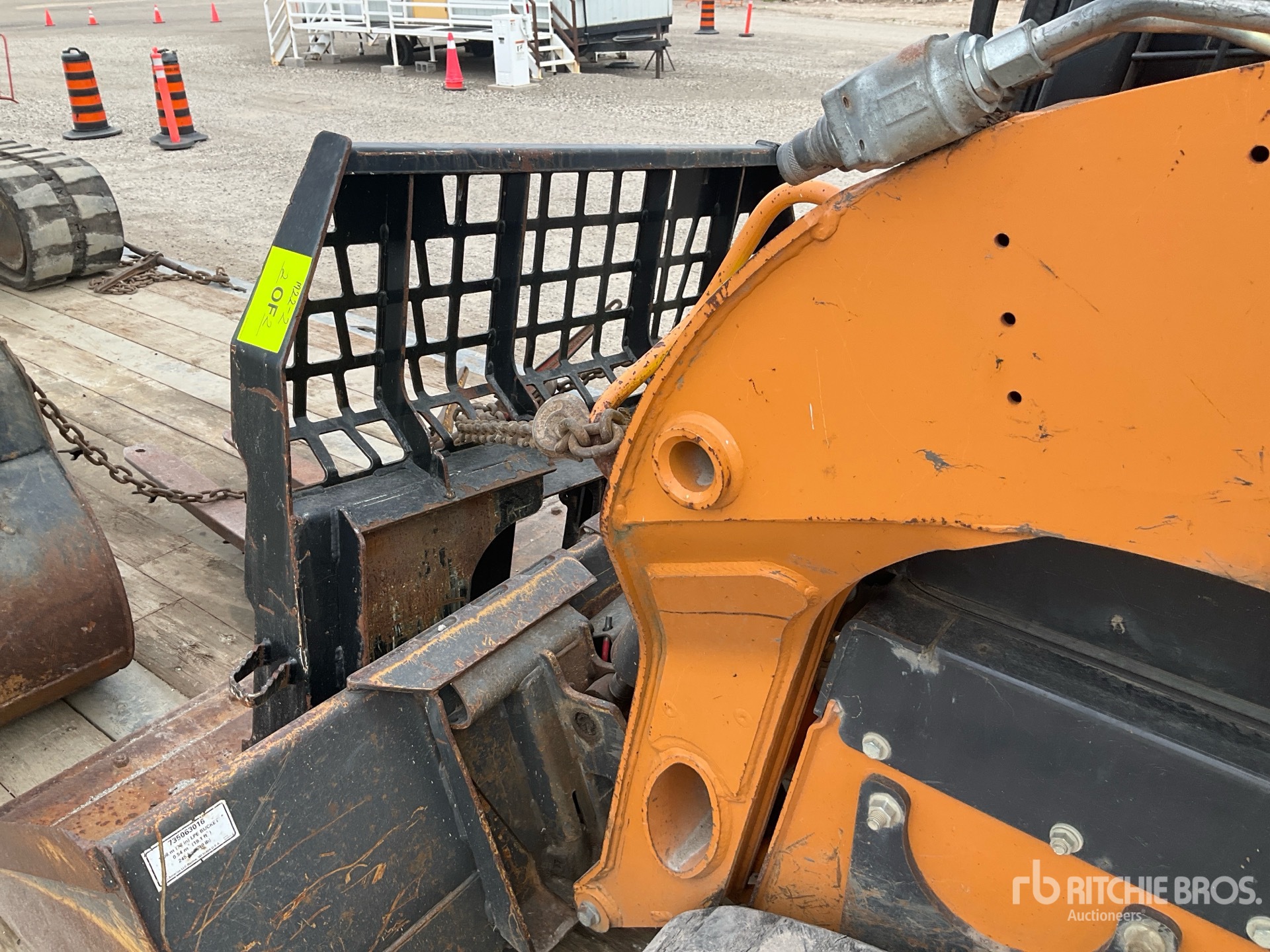

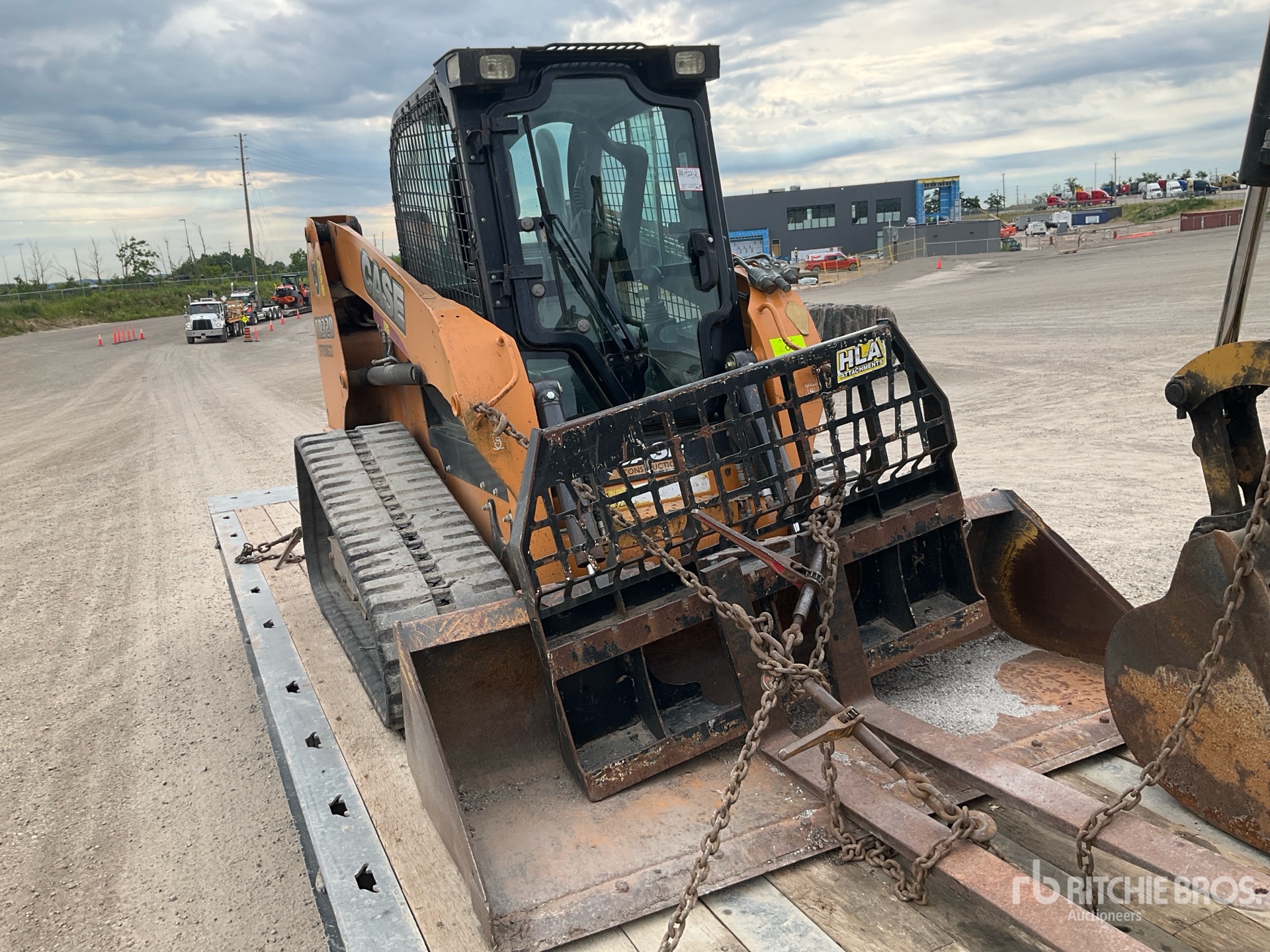

Enclosed Cab, Ride Control, Control Pattern Changer, 17.5 in Track Belts, Hydraulic Coupler, 74 in Bucket, Forks Closing Time: 2026-07-15 08:12:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case TR320 is a compact track loader designed for material handling, grading, loading, and site preparation in construction, landscaping, and agricultural applications. It is part of Case's TR series and uses a tracked undercarriage for improved traction and flotation on soft, uneven, or muddy ground. The TR320 is commonly equipped with a vertical-lift boom for lift height and reach in truck loading and material placement tasks. Typical features include a skid steer-style attachment interface, enclosed cab options, and hydraulic auxiliary flow for powered attachments. The model is used in utility work, earthmoving, and general jobsite operations.

Dimensions
Clearance at Max Lift and Dump	9 ft (3 m)
Ground Clearance	10 in (24 cm)
Height - Top of Cab	7 ft (2 m)
Length - with Bucket	12 ft (4 m)
Length - without Bucket	10 ft (3 m)
Reach at Max Lift and Dump	2 ft (1 m)
Turning Radius from Center - inc bucket	86 in (217 cm)
Turning Radius from Center - machine rear	70 in (179 cm)
Width Over Tracks	6 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	195 cu in (3,195 cu cm)
Engine Model	432T/M3
Gross Power	90 hp (67 kw)
Net Power	84 hp (63 kw)
Number of Cylinders	4
Peak Torque	251 lbs ft (340 nm)
Power Measured @	2,500 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Pump Flow	12 gpm (46 lpm)
Pump Type	Gear
Relief Valve Pressure	3,000 psi
Loader
Bucket Capacity	1 cu yd (1 cu m)
Bucket Width	78 in (198 cm)
Operating Load	3,200 lbs (1,452 kg)
Tipping Angle	6,400 degrees
Operating Specifications
Alternator Supplied Amperage	95 amps
Engine Oil Capacity	3 gal (10 l)
Fuel Capacity	26 gal (97 l)
Hydraulic System Fluid Capacity	12 gal (45 l)
Max Speed - high range	8 mph (13 kph)
Max Speed - low range	6 mph (9 kph)
Operating Voltage	12 volts
Operating Weight	9,600 lbs (4,354 kg)
Undercarriage
Ground Contact Area	2,038 cu in (33,397 cu cm)
Ground Pressure	5 psi
Track Gauge	5 ft (2 m)
Width of Track	16 in (40 cm)
